SDWAN LM Notes
SDWAN Initial Standup & Control channel flow
SDWAN initial standup and control channel flow
Winserver IP / Network Discovery / NTP deployment
Only vbond authenticates to the vmanage, every thing else authenticates to the vbond including vsmart and all wan edges
All devices including edges and controllers are assigned certificates from vmanage
but they all authenticate to vbond except vbond itself which has to authenticate with vmanage as there is nothing else
Step 1.
First we vmanage is installed and then vbond is added as a ‘validator’ to vmanage
vmanage then issues certificate to vbond
vmanage and vbond then perform mutual certificate based authentication and establish a management channel indicated by the grey arrow
Step 2.
Then vsmart is added to vmanage as a ‘controller’ and vmanage then issues certificate to the vsmart
vsmart information is uploaded to vbond (so vsmart can first authenticate to vbond)
vsmart then contacts and authenticates with vbond
after authentication vsmart will have management channel with vbond and vmanage, completing the triangle of control channels between the controllers , full mesh between controllers
if we add more vsmarts, they will learn about other existing vsmarts from vbond
Step 3.

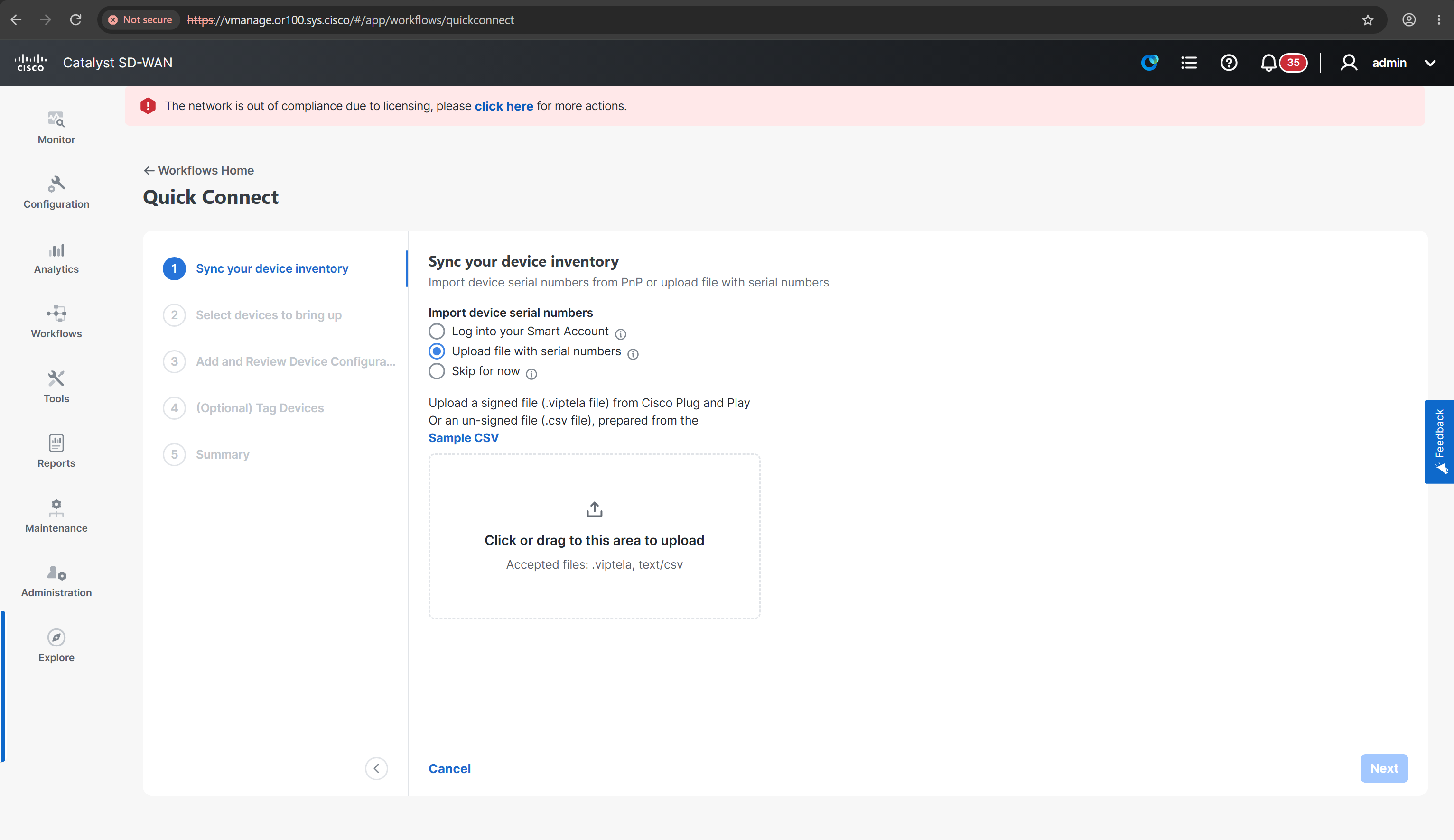

Either vmanage can sync with your smart account and download the list of devices
or we can use the serial file method which is importing devices as an offline
once device list has been uploaded to vmanage, it uploads this device list to all controllers (vbond and vsmart)
so all the controllers are aware of all the wan edge devices which will join in future
If your devices are virtual, then they get their chassis serial number at the time of being added to vmanage through either smart licensing virtual account or serial file contains them
Step 4. (Online Smart account)
If wan edge device comes up and gets DHCP ip and if it has internet reachability
It contacts ZTP on a pre-defined URL ‘devicehelper.cisco.com’
ZTP in this case is cisco’s online server that will have all the licenses generated / uploaded + this ZTP after checking license will redirect the wan edge to organisation’s vbond
Wan edge will authenticate with vbond
vbond will inform the wan edge about IP addresses of vmanage and vsmart
Step 5. Wan edge will go and authenticate with vmanage and establish the management channel (NETCONF inside DTLS)
Step 6. Wan edge will go and authenticate with vsmart and establish the OMP channel (inside DTLS)
Step 7. wan edge will establish the IPSec tunnel with other wan edge routers
TLOC
TLOC = System IP + Color + Encapsulation protocol
There are 3 kinds of routes
OMP routes
TLOC routes
Service routes
TLOC is a distinguisher between multiple different ISP / colors on same wan edge
It is system IP + color + ipsec/gre
TLOCs are sent to wan edges as ‘TLOC routes’ by vsmart, and only upon receipt of TLOCs, a wan edge router is to make tunnel to those allowed / received TLOCs
Example of TLOCs routes received on a wan edge router are
WC-BLD1-WER-01#show sdwan omp tloc-paths
tloc-paths entries 11.11.18.1 mpls ipsec
tloc-paths entries 11.11.18.1 biz-internet ipsec
tloc-paths entries 11.11.20.1 mpls ipsec
tloc-paths entries 11.11.20.1 biz-internet ipsec
tloc-paths entries 11.11.22.1 mpls ipsec
tloc-paths entries 11.11.22.2 mpls ipsec
tloc-paths entries 11.11.23.1 mpls ipsec
tloc-paths entries 11.11.23.1 biz-internet ipsec
tloc-paths entries 11.11.23.2 mpls ipsec
tloc-paths entries 11.11.24.1 biz-internet ipsecTLOC is maintained using BFD, if BFD check fails a TLOC is not just torn down due to lack of reachability but also all routes associated to that remote TLOC are removed just like next hop interface
BFD does more than reachability check,
Every 1 second (by default) it checks for
Loss [ Packet Loss ] ,
Delay [ Round trip / Latency ] ,
Jitter [ Variation in Latency ]
as well also called path quality, these path quality metrics are then used in application aware routing
VPN number is tagged in the IPSec header so a unique tunnel can be identified between router to router for landing traffic
vSmart
If there is a second vsmart, wan edges will have another omp peering with that vsmart
Configuration is not only pushed to wan edge devices but also to the vsmart
vsmart is also considered a vmanage managed device like a wan edge router
a template of controller type is also applied by vmanage
once template is applied, devices go in ‘vmanaged mode’ and from that point on direct CLI changes are not allowed on that device
Device templates and feature templates
Centralized control policy (vsmart)
Centralized data policy (wan edge)
Localized control policy (wan edge)
Localized data policy (wan edge)
Centralized control policy used for different types of topologies
Localized control policy – used for service side policies only, for example: OSPF and BGP on LAN side
Centralized data policy is similar to route-map that is applied on ‘data’ traffic but not control plane traffic
Packets can be matched on packet IP header or application (deep packet inspection) and take actions such as
Full drop, QoS re-classification, policing, change next hop and so on
– but this is pushed by vsmart and lives in wan edge memory and does not get added to the device local configuration,
remember that from keyword central
Anything centralized is from vsmart’s center position perspective
Localized Data policy is very similar to the Centralized Data policy, only difference is that is configuration is pushed and becomes part of wan edge configuration and is per interface
vBond’s ge0/0 and not eth0
make sure when connecting vbond device to switch, it is connected using ge0/0 instead of eth0
this will save you a lot of troubleshooting time when standing up vBond
Remember that even though validator is part of controller infrastructure, at the base it is a vedge that is playing the role of a vbond
Winserver configuration
Windows server needs to be configured with
Domain Services , DNS server with reverse zones and forwarders and CA role

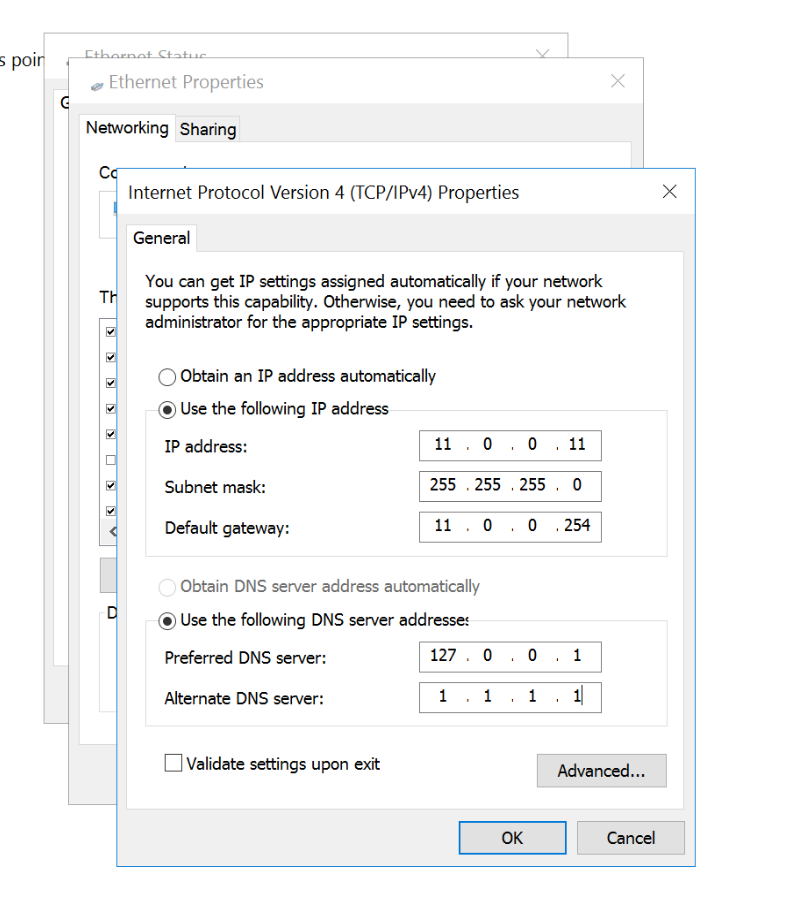

First assign static IP to Windows server
Then Turn on Network discovery
Deploy Meinberg NTP on Windows Server
Deploy Meinberg NTP server as Windows Server native NTP does not support NTPv4 which is used by most cisco network devices and NTP fails , failing installation of certs and many other issues
To test the server functionality from another PC:
https://www.ntp-time-server.com/ntp-software/ntp-server-tool.html
CA Server Configuration & DNS records
Configure CA Server

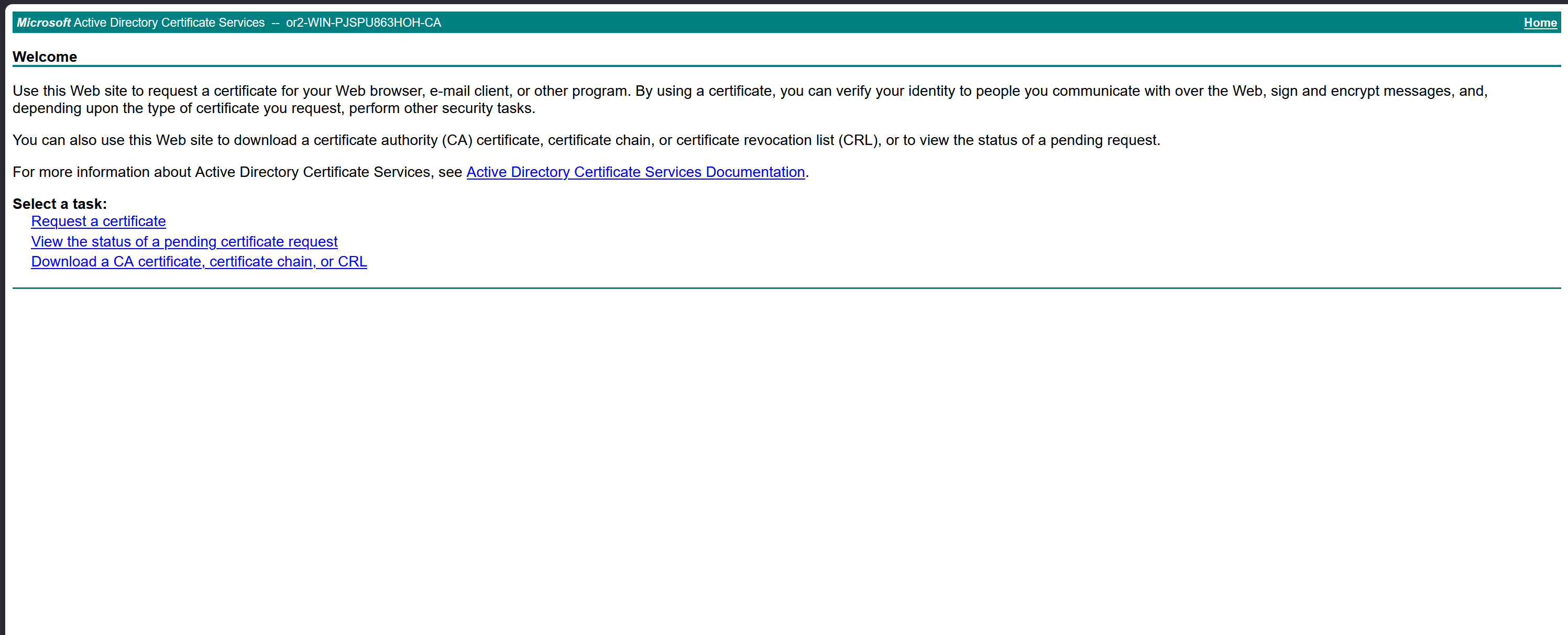

now visit http://[serverFQDN]/certsrv
http://WIN-PJSPU863HOH.or100.sys.cisco/certsrv/

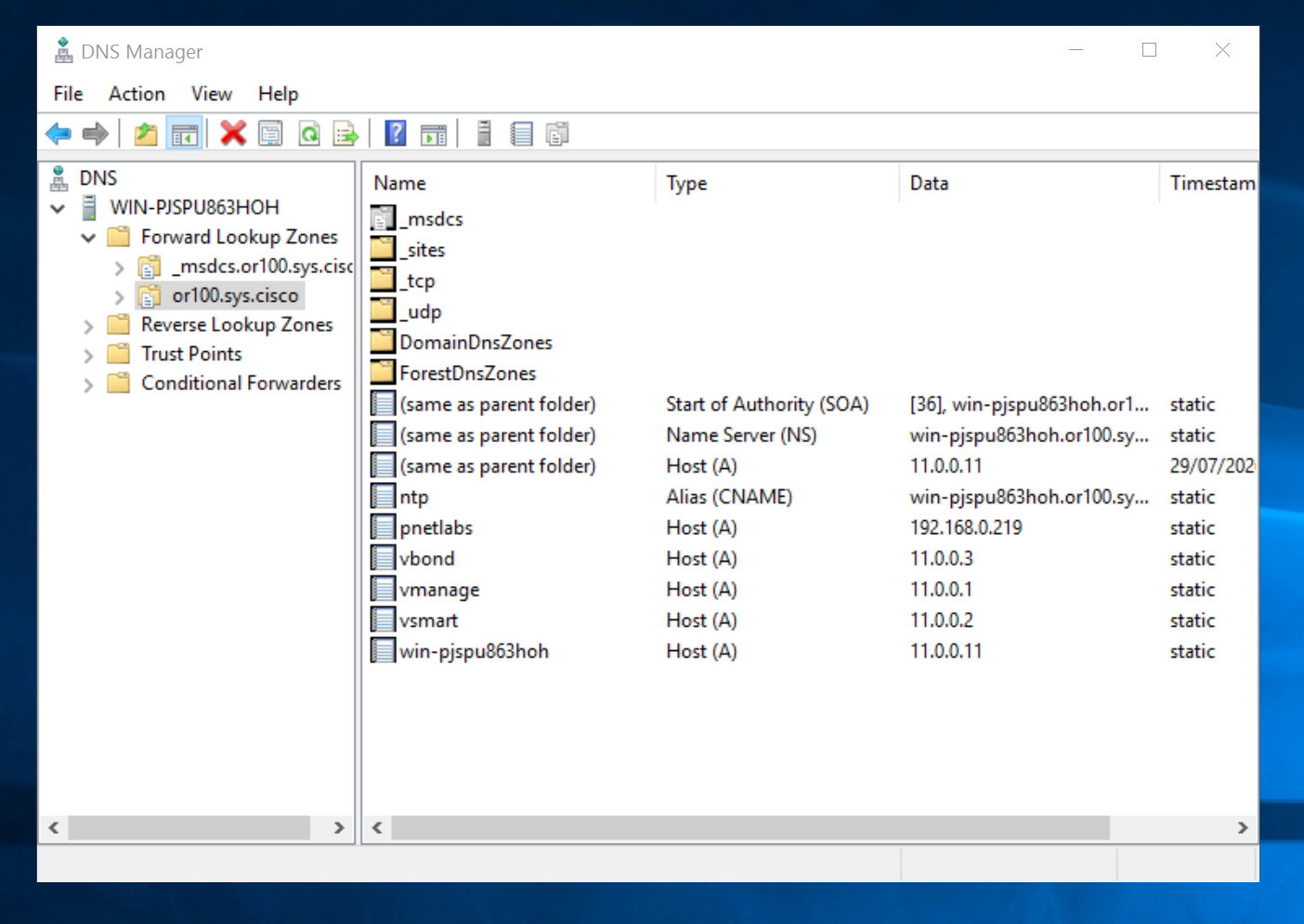

DNS entries on Windows Server

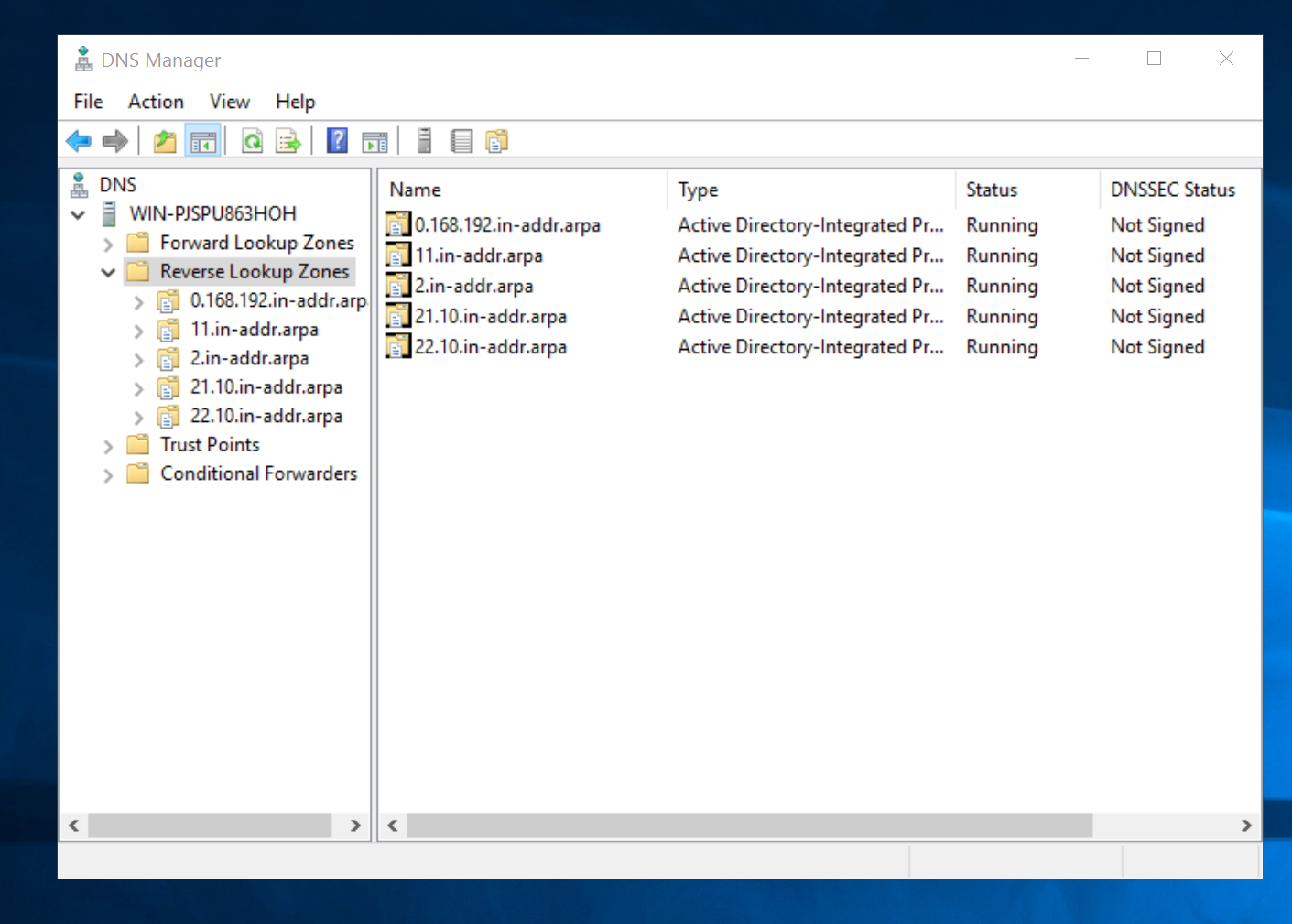

Add Reverse zones
Add A records for in or100.sys.cisco domain
SDWAN Controller Standup
SDWAN Controller Standup
default username and password for all controllers nodes is admin/admin
SDWAN LAB Sizing for 20.16.1
| Controller | vCPU | RAM | PNETLab recommendation |
|---|---|---|---|
| vManage | 16 | 32 GB | Do not reduce RAM below 32 GB |
| vSmart | 4 | 8 GB | Can sometimes run at 4 GB, but 8 GB is safer |
| vBond | 2 | 4 GB | Suitable for a lab |
| Total | 22 vCPU | 44 GB RAM | Controllers only |
vManage requires second hard disk in vCenter
We should know this if we are deploying for onprem environment
it needs to be 100G minimum
Make sure it is the master
During setup we can see the additional disk we added
vManage system configuration
Assign vmanage second hard drive , if this has not been done already
cd /opt/unetlab/addons/qemu/vtmgmt-20.16.1
/opt/qemu/bin/qemu-img create -f qcow2 virtiob.qcow2 100G
/opt/unetlab/wrappers/unl_wrapper -a fixpermissionsshow version
conf t
system
description vManage
host-name vManage
system-ip 11.11.1.1
clock timezone Europe/London
site-id 1
organization-name or100.sys.cisco
vbond vbond.or100.sys.cisco
ntp server 11.0.0.11
! it is vital to have a working NTP as onboarding and authentication relies on PKI which requires time to be synced between nodes
! vbond IP is the only controller that is
! defined on all SDWAN devices including
! controllers and wan edges , if there are
! 2 vBonds in deployment then it is good to
! add 2x IP addresses in vbond A records
! reason is that on controllers
! we cannot define two different vbond IP addresses
! always commit the configuration
commitvSmart system configuration
conf t
system
description vSmart
host-name vSmart
system-ip 11.11.1.2
clock timezone Europe/London
site-id 1
organization-name or100.sys.cisco
vbond vbond.or100.sys.cisco
ntp server 11.0.0.11vBond system configuration
conf t
system
description vBond
host-name vBond
system-ip 11.11.1.3
clock timezone Europe/London
site-id 1
organization-name or100.sys.cisco
vbond vbond.or100.sys.cisco local
! this local keyword converts the vedge to vbond role
ntp server 11.0.0.11Configure the Transport interface of SDWAN controllers
These interfaces are configured under VPN 0 and they are the only interfaces of controllers for communication to edge routers using NETCONF (vmanage), for OMP peering (vsmart) and onboarding (vbond)
There is no such thing as LAN interface for these controllers
In Cisco cedge devices we do not have VPN0 instead transport uses global routing table
Configure vmanage vpn0 Transport Interface only
conf t
vpn 0
interface eth0
ip address 11.0.0.1/24
no shutdown
no tunn
! Keep the tunnel interface down for now as it is used
! for fabric's management which is done through DTLS tunnel
! while within the vpn0 configure default route
ip route 0.0.0.0/0 11.0.0.254
dns 11.0.0.11
! configure DNS
! this is also needed for reachability to internet for automatic sync of device serial numbers
! from smart account vs serial file import
! "Sync Smart Account" button vs "Upload WAN Edge List" buttonYou cannot have interface ip same as system ip so they both need to be different
vManage(config)# commit
Aborted: ‘vpn 0 interface eth0 ip address’: Interface eth0 with address 11.0.0.1/24 & System IP 11.0.0.1 cannot be same in vpn 0
Configure vsmart Transport Interface only
conf t
vpn 0
interface eth0
ip address 11.0.0.2/24
no shutdown
no tunn
! Keep the tunnel interface down for now as it is used
! for fabric's management which is done through DTLS tunnel
! while within the vpn0 configure default route
ip route 0.0.0.0/0 11.0.0.254
dns 11.0.0.11Configure vbond Transport Interface only
conf t
vpn 0
interface ge0/0
no tunnel-interface
ip address 11.0.0.3/24
no shutdown
! while within the vpn0 router, configure default route
ip route 0.0.0.0/0 11.0.0.254
dns 11.0.0.11
ping vbond.or100.sys.ciscoDownload CA Certificate
Download in Base64 format
Rename this to root_ca

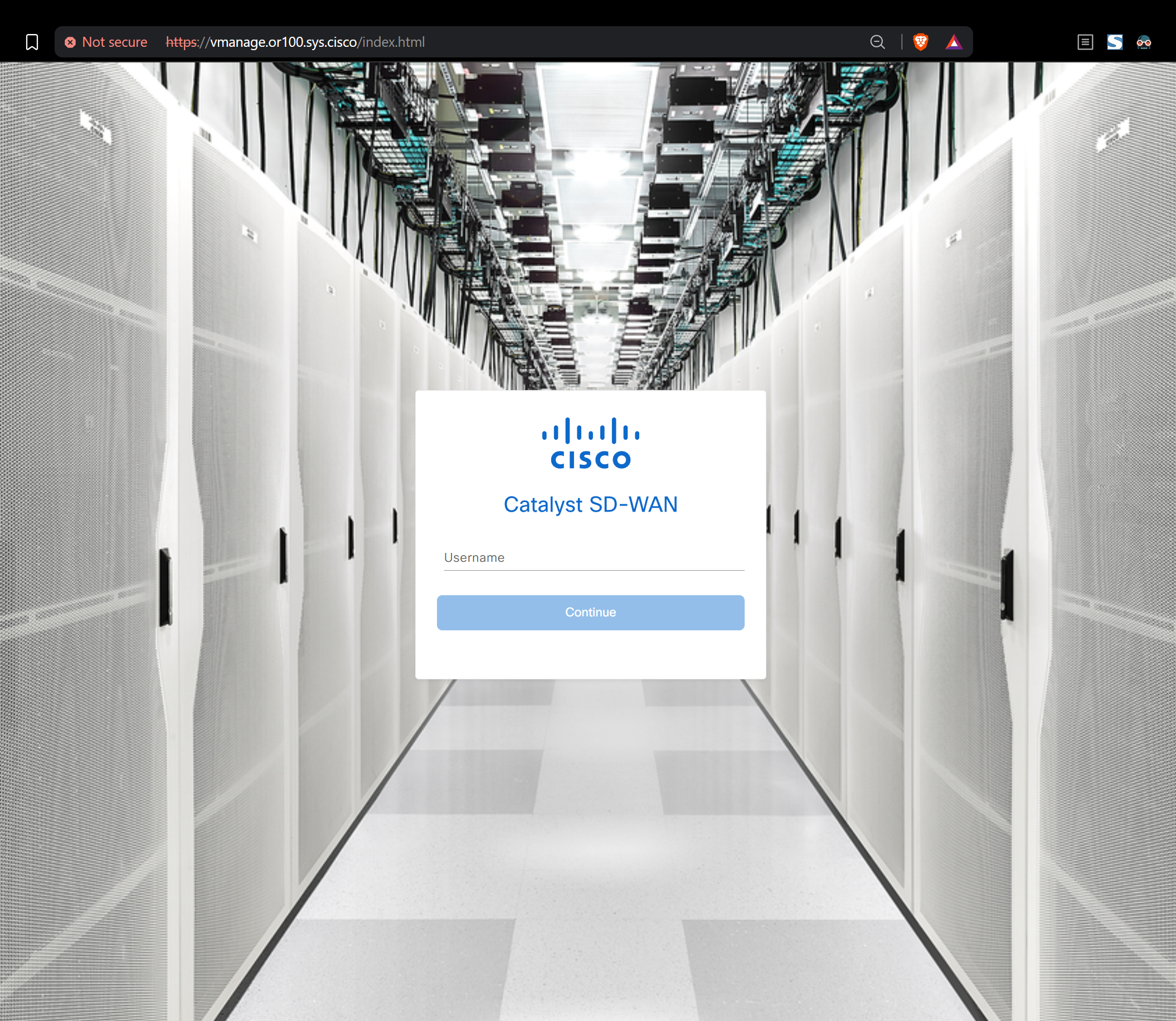

Access vmanage GUI but make sure you do using IP address and not FQDN, using FQDN it does not work and simply spins and comes back to login screen
Login as admin/C0mplex30
Upload root CA to all controllers’ trust store

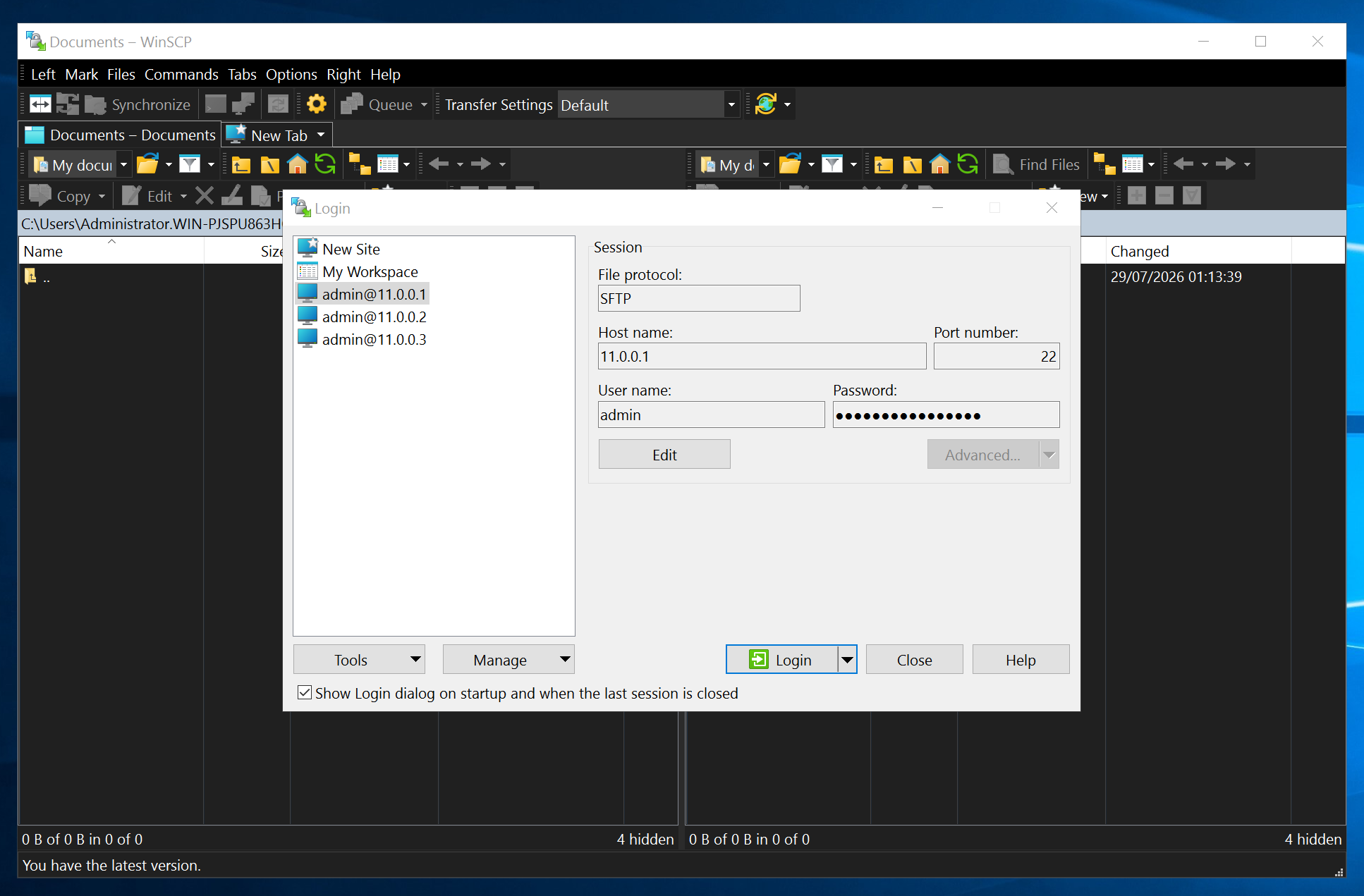

WinSCP SFTP to the vManage

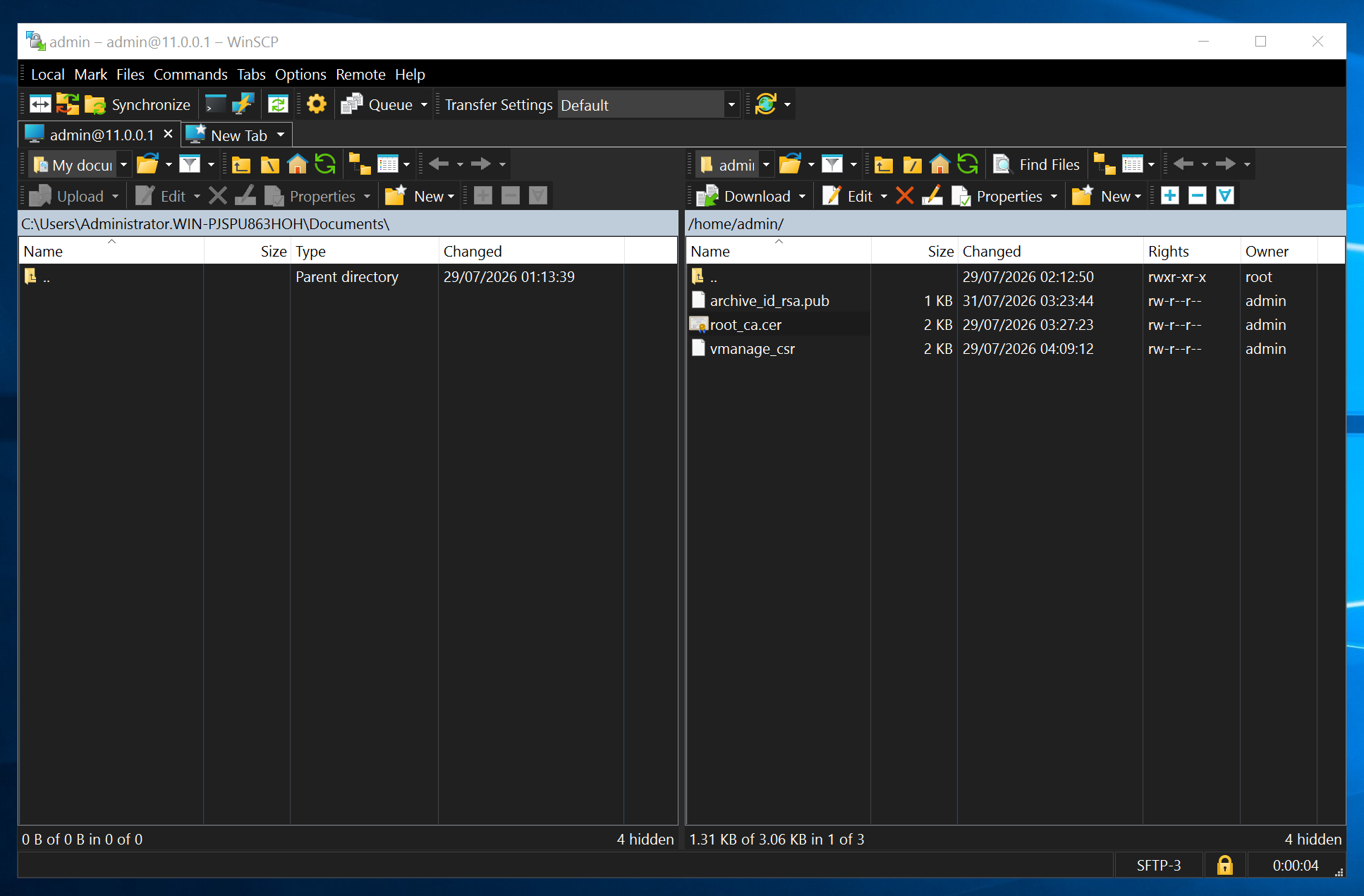

drag root.ca file to /home/admin folder
Do same for vSmart and vBond
Before adding certificate, make sure that basic system config is in place
the configuration that we configured earlier
Install root CA certificate chain in Trust store of Controllers
request root-cert-chain install /home/admin/root_ca.cervManage# request root-cert-chain install /home/admin/root_ca.cer
Uploading root-ca-cert-chain via VPN 0
Copying ... /home/admin/root_ca.cer via VPN 0
Updating the root certificate chain..
Successfully installed the root certificate chainvSmart# request root-cert-chain install /home/admin/root_ca.cer
Uploading root-ca-cert-chain via VPN 0
Copying ... /home/admin/root_ca.cer via VPN 0
Updating the root certificate chain..
Successfully installed the root certificate chainvBond# request root-cert-chain install /home/admin/root_ca.cer
Uploading root-ca-cert-chain via VPN 0
Copying ... /home/admin/root_ca.cer via VPN 0
Updating the root certificate chain..
Successfully installed the root certificate chainSync the root cert chain database on vmanage
https://vmanage.or100.sys.cisco/dataservice/system/device/sync/rootcertchainWarning of Configuration Database Username & Password
Get rid of this annoying Warning of Configuration Database using default username and password
Login to vmanage CLI
vManage# request nms configuration-db update-admin-user
Enter current user name:neo4j
Enter current user password:password
Enter new user name:admin
Enter new user password:C0mplex30
configuration-db
WARNING: sun.reflect.Reflection.getCallerClass is not supported. This will impact performance.
Successfully updated configuration database admin user
Successfully restarted NMS application server
Successfully restarted NMS data collection agent
vManage# Setting up watches.
Watches established.This will restart the vmanage

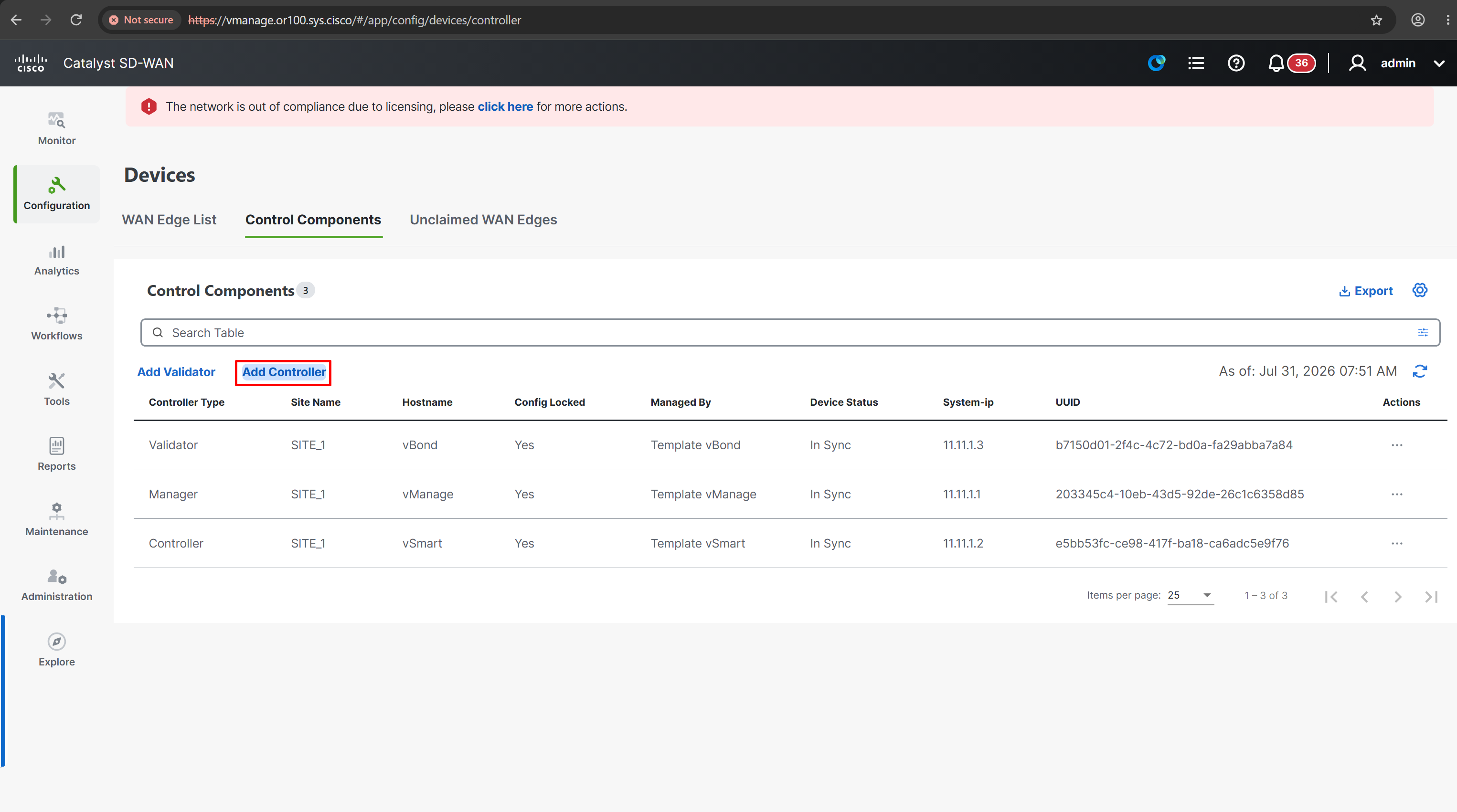

Add controllers to vManage

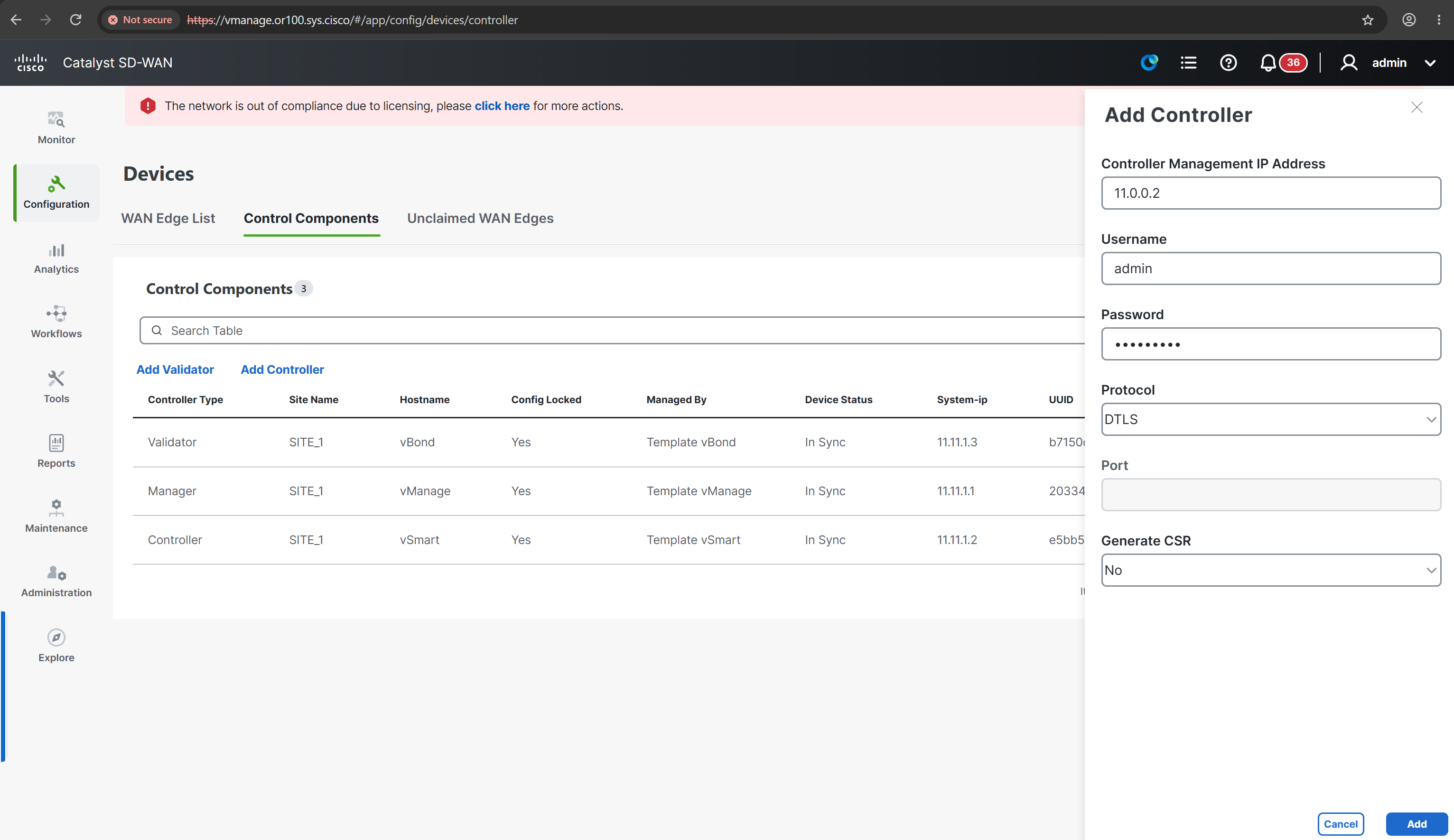

Add vSmart

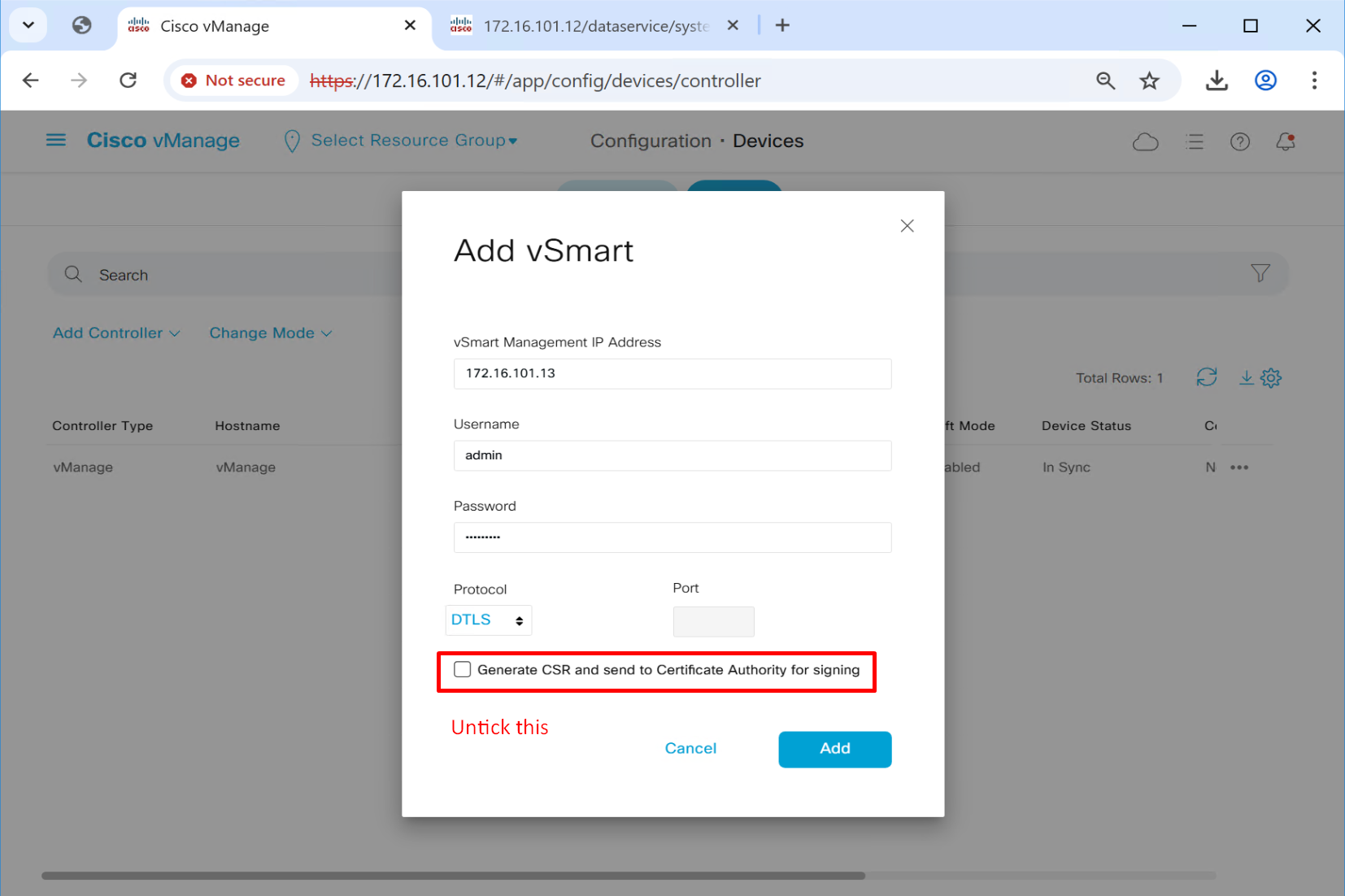

In older version untick following option

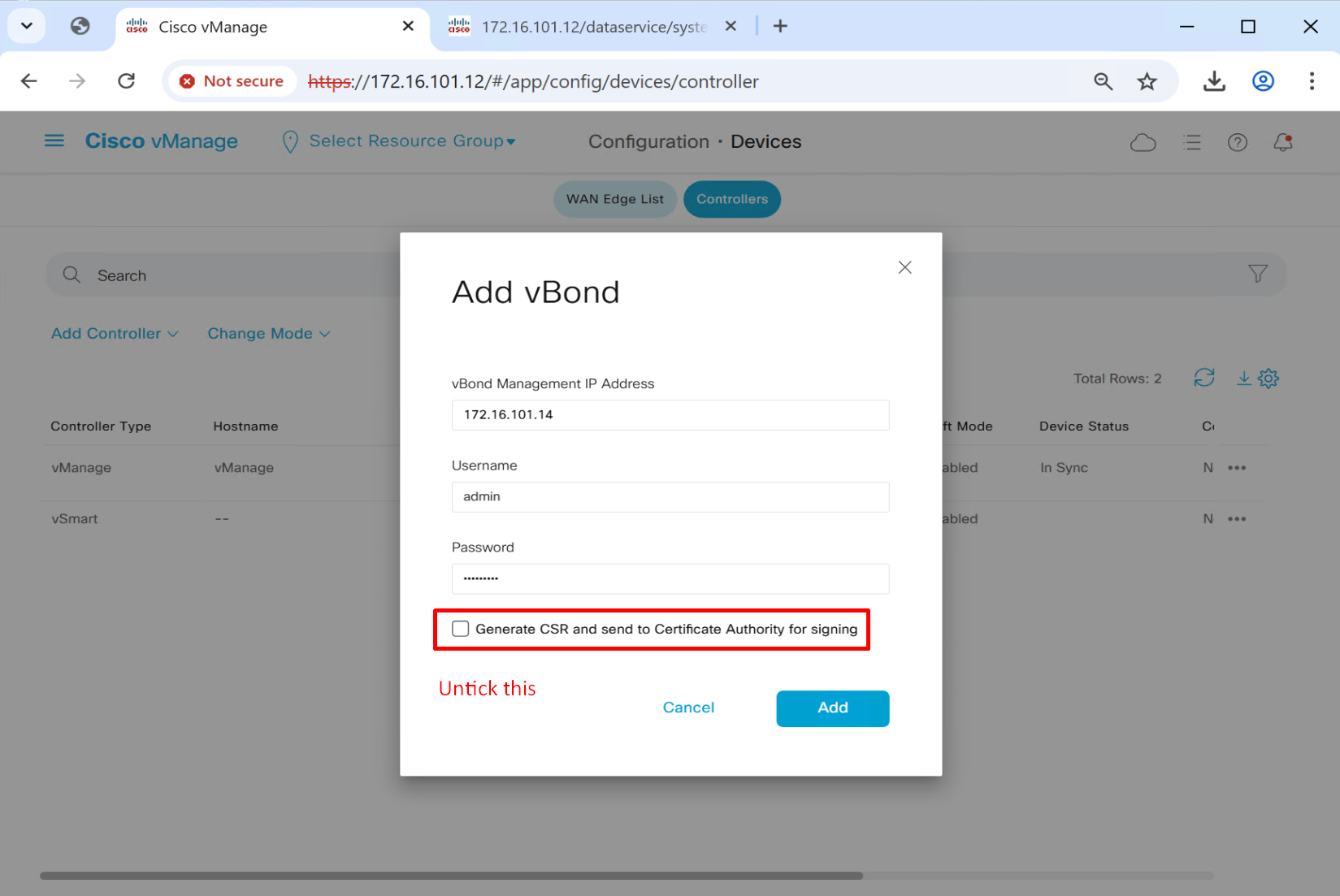

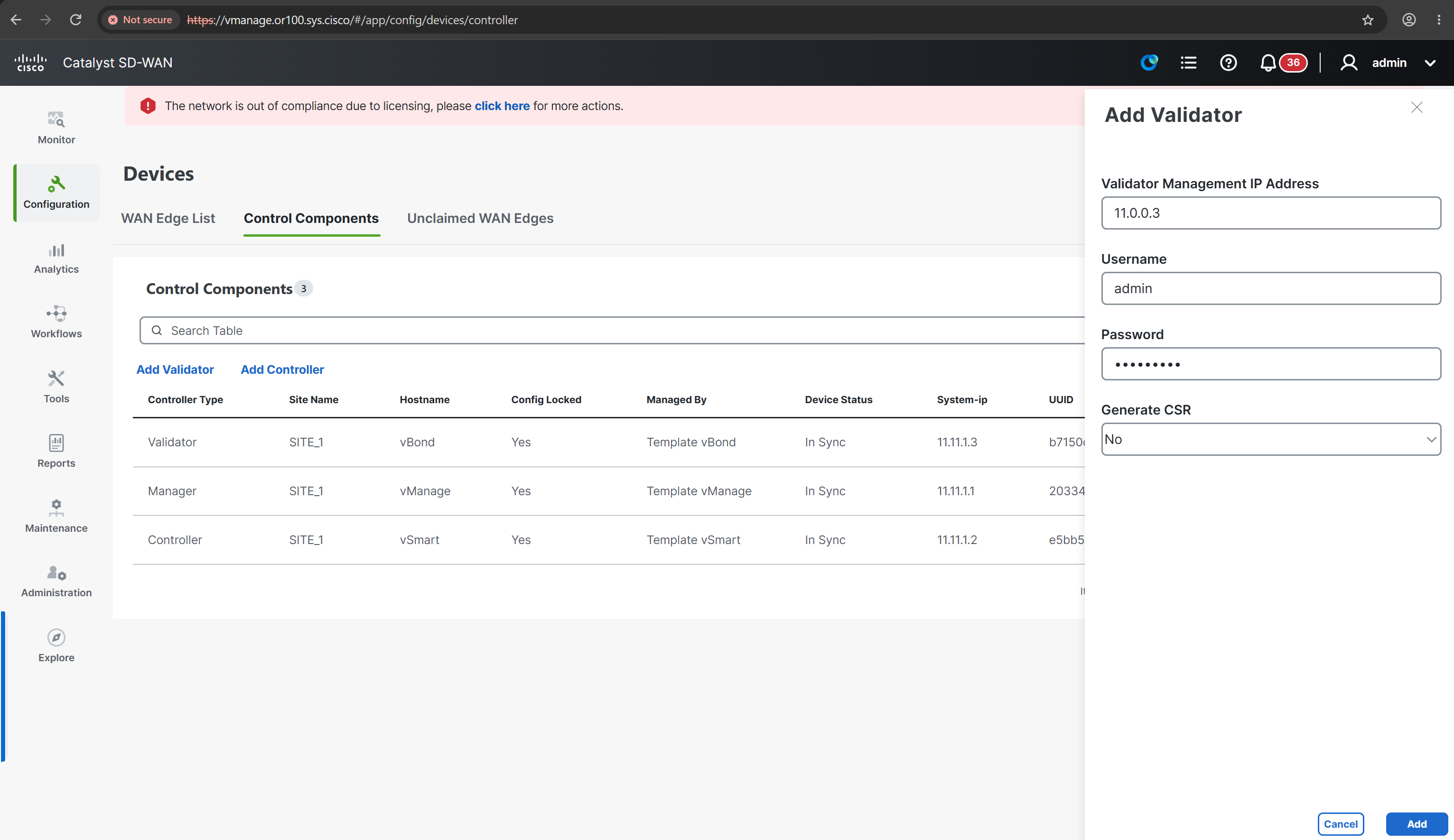

Add vBond
in older version untick this option
After adding current Certificate Status will still be “Not Installed” because CSRs have not been generated on vManage and signed by a CA server yet
Some times even though org name was configured on the controllers in command line earlier , it does not get picked up automatically in the vManage, this usually happens on old vManage controllers
Add Organisation Name or100.sys.cisco
Also add vBond FQDN under Organization Name
vbond.or100.sys.cisco

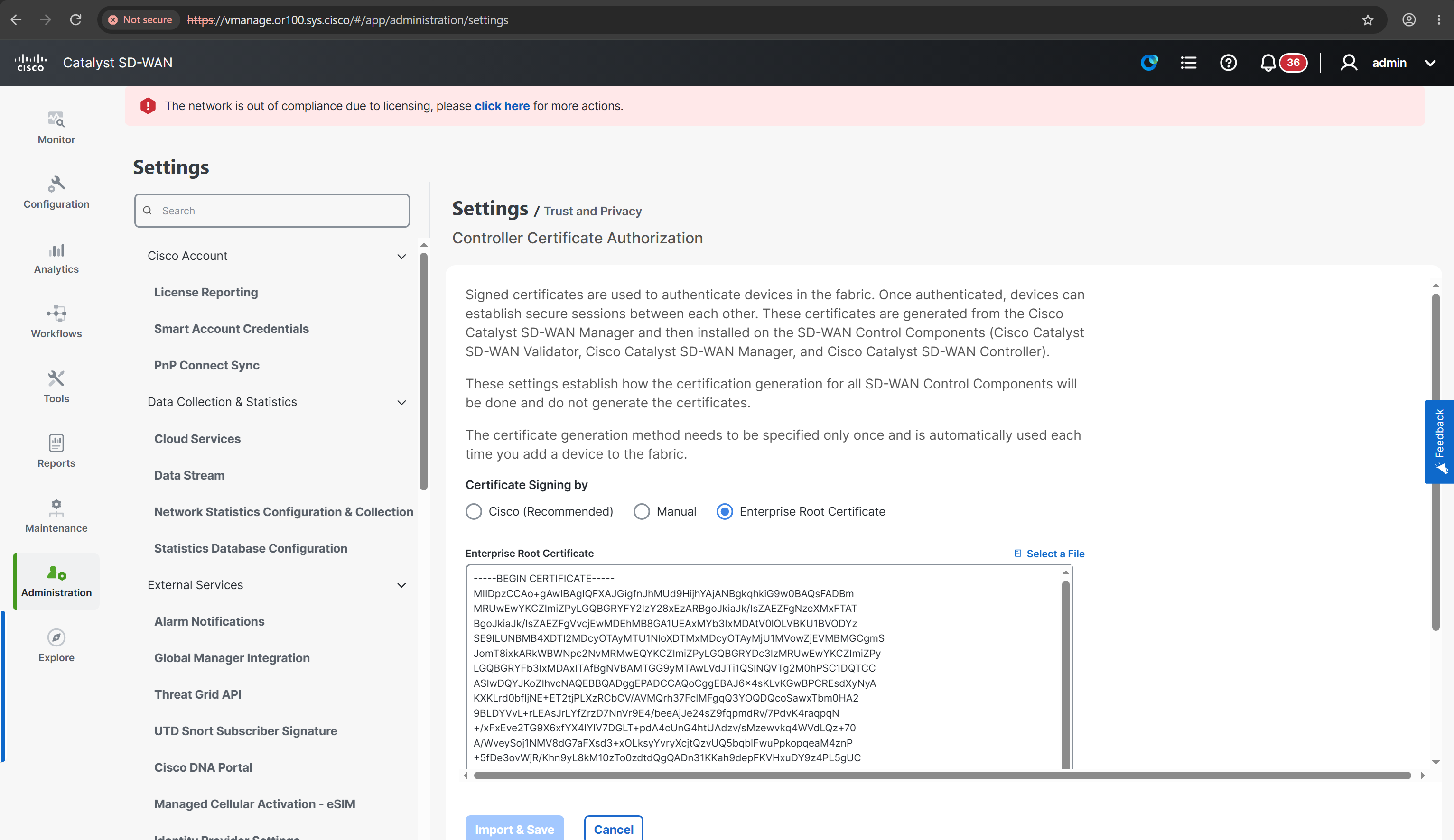

Controller Certificate Authorization mode
Paste the contents of root_ca.cer
This is much simpler method as it uses Cisco’s Pre-installed Certificates, that is used when you want to use Zero touch provisioning and want router to simply authenticate to vBond and then vManage , in Zero touch provisioning there is no enterprise CA involved and hence even vManage does not issue certificates to routers , Cisco Catalyst routers come with Cisco’s pre installed certificate
Change it to Enterprise Root Certificate when you want to use your Enterprise CA
Root CA which will be used for authentication and trusting of the incoming WAN edge devices
At this point vmanage knows about the IP addresses of the controllers like authorization or whitelisting but they are not onboarded yet, before they can be onboarded which means enabling channels of communications for which certificates need to be assigned to the controllers
One thing to take care of, the fqdn in certificate should be same as organization name set in vManage, otherwise deployment will fail
Install certificates on vSmart and vBond through vManage
Generate CSR per controller from vmanage, press three dots and Generate CSR
This step needs to be done for all controllers
CSRs are then signed by Winserver CA, so when the certs are presented from one controller to another or from wan edge to the controllers , it can be trusted
A certificate based mutual authentication will take place before controllers are considered to be authenticated
Copy the CSR file’s content
Repeat same process of CSR generate for vsmart and vbond as well
Install Certificates
Click on Install Certificate and Paste the CSR content
Follow same steps to install certificates on other controllers
“site ID” and “System IP” will still be missing from the Controllers , because the tunnel interfaces have not been brought up
we need to bring them up so control channels can be established between the controllers and also to the wan edges
Allowed service are both inbound and outbound for example such as NTP will be outbound but SSH will be inbound
vManage tunnel interface
vpn 0
interface eth0
tunnel-interface ! DTLS tunnel
allow-service all ! only use all in lab for prod restrict services
allow-service sshd
allow-service ntp
allow-service dns
allow-service httpsvSmart tunnel interface
vpn 0
interface eth0
tunnel-interface ! DTLS tunnel
allow-service all ! only use all in lab for prod restrict services
allow-service sshd
allow-service ntp
allow-service dns
allow-service httpsvBond tunnel interface
vpn 0
interface ge0/0
tunnel-interface ! DTLS tunnel
encapsulation ipsec ! this is also required in case of vbond
allow-service allafter bringing up the tunnel interface we can see that system IP, hostname and site ID are present
Controllers successfully onboarded
vManage commands
show runn
conf t
system
show configuration
commit
show certificate root-ca-cert ! to see installed root-ca cert
show ntp associations
show run vpn 0
show control local-properties
vbond commands
show orchestrator connections
one DTLS connection per vmanage CPU core with vmanage
show orchestrator valid-vsmarts
first one is vmanage and other one is vsmart
vsmart commands
show control connections
Web server certificate for vmanage
We will get the CSR
it needs to be signed by CA
for certificate to take effect, we need to reboot the vmanage
under maintenance, device reboot
Edge device onboarding
Virtual cEdge like C8000v do not have chassis number when they boot up as VM
in order to get those chassis number we need to go to cisco software central and then on same page look for Network Plug and Play, on the portal we need to define the controller profile and FQDN of the vbond (It is best to define the FQDN for for flexibility in serial file) and Org name.
Then create new software devices for C8000v and associate them to controller profile created earlier
For Virtual devices we specify how many virtual devices we want to generate
There is a different process for hardware edge devices.
If we have hardware routers then we have to enter their serial numbers, PID and certificate serial number from routers into the portal
Generate serial.viptela file
You need to have Smart account created in order to perform below steps inside Network Plug and Play
Define controller profile and add vbond FQDN
You define the PID of the device, quantity of devices and the vbond profile
this allowance will be added to our .viptela serial file
CSR1000v is not supported anymore , Always generate for C8000v if a virtual router is needed
After submitting wait for devices to be provisioned status
once all devices are provisioned, click on Controller profiles > Provisioning File can be dowloaded
This is the serial.viptela file
Select the controller version 18.3 and newer
Upload .viptela serial file
in older vManage
once file is uploaded, it will be pushed by vmanage to all other controllers
Onboard C8000v Routers
When a Catalyst 8000V router is powered on for the first time, it boots up in AUTONOMOUS mode, as seen in the output below.
%BOOT-5-OPMODE_LOG: R0/0: binos: System booted in AUTONOMOUS mode% Please answer 'yes' or 'no'.
Would you like to enter the initial configuration dialog? [yes/no]: no
The enable secret is a password used to protect
access to privileged EXEC and configuration modes.
This password, after entered, becomes encrypted in
the configuration.
-------------------------------------------------
secret should be of minimum 10 characters and maximum 32 characters with
at least 1 upper case, 1 lower case, 1 digit and
should not contain [cisco]
-------------------------------------------------
Enter enable secret: ************
Confirm enable secret: ************
The following configuration command script was created:
enable secret 9 $9$uYATfwi9sBtruU$A4/FPncLMnru9Oo4oQjaF89yHqrCXDJBp**********
!
end
[0] Go to the IOS command prompt without saving this config.
[1] Return back to the setup without saving this config.
[2] Save this configuration to nvram and exit.
Enter your selection [2]: 2
Building configuration...
Guestshell destroyed successfully ommand to modify this configuration.
Press RETURN to get started!Install root CA cert on C8000v
The easiest way to install the root certificate on a Catalyst 8000v router is by creating a local file directly on the router using TCLSH, as shown in the following example.
In the highlighted section, you should paste the root_ca.cer using the “cat root_ca.cer” command in vshell mode from vBond.
tclsh
puts [open "bootflash:root_ca.cer" w+] {
! then paste below
-----BEGIN CERTIFICATE-----
MIIDpzCCAo+gAwIBAgIQFXAJGigfnJhMUd9HijhYAjANBgkqhkiG9w0BAQsFADBm
MRUwEwYKCZImiZPyLGQBGRYFY2lzY28xEzARBgoJkiaJk/IsZAEZFgNzeXMxFTAT
BgoJkiaJk/IsZAEZFgVvcjEwMDEhMB8GA1UEAxMYb3IxMDAtV0lOLVBKU1BVODYz
SE9ILUNBMB4XDTI2MDcyOTAyMTU1NloXDTMxMDcyOTAyMjU1MVowZjEVMBMGCgmS
JomT8ixkARkWBWNpc2NvMRMwEQYKCZImiZPyLGQBGRYDc3lzMRUwEwYKCZImiZPy
LGQBGRYFb3IxMDAxITAfBgNVBAMTGG9yMTAwLVdJTi1QSlNQVTg2M0hPSC1DQTCC
ASIwDQYJKoZIhvcNAQEBBQADggEPADCCAQoCggEBAJ6x4sKLvKGwBPCREsdXyNyA
KXKLrd0bfIjNE+ET2tjPLXzRCbCV/AVMQrh37FclMFgqQ3YOQDQcoSawxTbm0HA2
9BLDYVvL+rLEAsJrLYfZrzD7NnVr9E4/beeAjJe24sZ9fqpmdRv/7PdvK4raqpqN
+/xFxEve2TG9X6xfYX4lYlV7DGLT+pdA4cUnG4htUAdzv/sMzewvkq4WVdLQz+70
A/WveySoj1NMV8dG7aFXsd3+xOLksyYvryXcjtQzvUQ5bqblFwuPpkopqeaM4znP
+5fDe3ovWjR/Khn9yL8kM10zTo0zdtdQgQADn31KKah9depFKVHxuDY9z4PL5gUC
AwEAAaNRME8wCwYDVR0PBAQDAgGGMA8GA1UdEwEB/wQFMAMBAf8wHQYDVR0OBBYE
FOSd9q0xplq+c7oJlNHtRsmhWp8sMBAGCSsGAQQBgjcVAQQDAgEAMA0GCSqGSIb3
DQEBCwUAA4IBAQBJttN2lOR5Clp0IxzJoLoc0vcP5H3/qfe7c34T31BdyUw/Aeis
fcCWC93MdvcCJCItUun9HdbZItPf4rfXwMKXxpfqE/fMGC6uI0YpsN5X14UKMO1t
IIbx9LgDQ3k95HYmiEznHEU13kWHRGeoo6cUI7SzU0Ax2/lhINev9cv6mn5ARkrp
y3H3zDFMZ57sxwkCR/6/utZkxXcMl3nptKEHnv36nrXZOQMVtC6z5XXFZNZMhJmb
+GbGTjBUL/bXQCBk4RNFJD3ZkO0nkLM2EUhj6Ztnp33PIuEfzsSDwpHhTRliLkhT
v5orCbxEfXVZGNuy2/+KXG7JYsJh20pME0bm
-----END CERTIFICATE-----
}
In the end, you should have the root certificate in the cEdge router’s bootflash, as shown below.
Router# dir bootflash:
Directory of bootflash:/
31 -rw- 1315 Sep 3 2022 08:19:25 +00:00 root_ca.cer
131078 drwx 4096 Sep 3 2022 08:18:48 +00:00 tracelogs
131073 drwx 4096 Sep 3 2022 08:16:36 +00:00 .installer
28 -rw- 618 Sep 3 2022 08:16:25 +00:00 cvac.log
131112 drwx 4096 Sep 3 2022 08:16:24 +00:00 license_evlog
29 -rw- 157 Sep 3 2022 08:16:23 +00:00 csrlxc-cfg.log
...
...
5183766528 bytes total (3968655360 bytes free)Router# controller-mode enable
Enabling controller mode will erase the nvram filesystem, remove all configuration files, and reload the box!
Ensure the BOOT variable points to a valid image
Continue? [confirm]
% Warning: Bootstrap config file needed for Day-0 boot is missing
Do you want to abort? (yes/[no]): no
Mode change successAfter the reboot, the router will boot up in CONTROLLER mode, as shown in the output below.
Oct 22 16:30:59.812: %BOOT-5-OPMODE_LOG: R0/0: binos: System booted in CONTROLLER modeInstall CA cert so connection with vbond and vmanage can be trusted and established
Router# request platform software sdwan root-cert-chain install bootflash:root_ca.cer
Uploading root-ca-cert-chain via VPN 0
Copying ... /bootflash/ROOTCA.pem via VPN 0
Updating the root certificate chain..
Successfully installed the root certificate chainIf everything has gone smoothly, you should see our Enterprise CA Root certificate installed on the router.
Router# show sdwan certificate root-ca-cert | in network
Issuer: C=US, ST=NY, L=NY, O=networkacademy-io, CN=root.certificate
Subject: C=US, ST=NY, L=NY, O=networkacademy-io, CN=root.certificatevManage issues certificate to vEdge
For C8000v device, click on three dots and click on “Generate Bootstrap Configuration”
#cloud-config
vinitparam:
- uuid : C8K-A1AD735C-C4D2-CE60-6D88-01686AD4ED52
- rcc : true
- otp : 4a3a1eb353fc4b3b9a9c94baf06fd1f5
- org : or100.sys.cisco
- vbond : vbond.or100.sys.cisco
ca-certs:
remove-defaults: false
trusted:
- |
-----BEGIN CERTIFICATE-----
MIIDnzCCAoegAwIBAgIQYJ1ACvIQRIlBAEITkoGNuzANBgkqhkiG9w0BAQsFADBi
MRUwEwYKCZImiZPyLGQBGRYFY2lzY28xEzARBgoJkiaJk/IsZAEZFgNzeXMxEzAR
BgoJkiaJk/IsZAEZFgNvcjIxHzAdBgNVBAMTFm9yMi1XSU4tVlEwOEc2VTk4R0Yt
Q0EwHhcNMjUwNzA2MjE1MjA1WhcNMzAwNzA2MjIwMjA1WjBiMRUwEwYKCZImiZPy
LGQBGRYFY2lzY28xEzARBgoJkiaJk/IsZAEZFgNzeXMxEzARBgoJkiaJk/IsZAEZ
FgNvcjIxHzAdBgNVBAMTFm9yMi1XSU4tVlEwOEc2VTk4R0YtQ0EwggEiMA0GCSqG
SIb3DQEBAQUAA4IBDwAwggEKAoIBAQCr6cjaoJz3vzgHlQ1hzhuy5WfIL/Ao0isM
ltIaGL+Z+9WftM1hNh10YECbxR71+lIpQKyBQTXQz8Of4nycxHjoI3dQdUvEYb8H
fysDXh4lYjQ60x82e5c7f1KPbD+AOhC31Zw1dgReMlPIuaa9LK903+z0FRnuCHaI
EG/Z9uCmv3JC22NgL69hscZc+NUGymMy1iBPN8G4EBkgqNVZ+zlRf/adW0JxEdc6
Sy53bp586/fXziRTW++jgdnhvfpn+VJ+BdG88/rEgMl7PUQE95lq4dih7qx0+OXu
ihFwQQvFxvi3dyqWWc0C1RKHPHtYQFz8rRuBJrR+uzgc0lVhrNHdAgMBAAGjUTBP
MAsGA1UdDwQEAwIBhjAPBgNVHRMBAf8EBTADAQH/MB0GA1UdDgQWBBQ/bI8yZeKD
fgjmmeWorjGo25t5hzAQBgkrBgEEAYI3FQEEAwIBADANBgkqhkiG9w0BAQsFAAOC
AQEAdtt6aiABkDDg/mAlcZfFPHcqmEEvQaMPeBaUqvfZKNrFVO8GMb9kingZJ62n
K05x5wE3tHy3jBmAl6eHZ/nUjXS11C06NwZMHpcDhty5BcDN08oEYdLF24upisNA
aRLOBhyEtKI9VKLAWfMkpWYEd/dqgVWs67GjAFT0Osgva9QHbz24iT6/c09jbZMt
41opmxacw8FFZcHMH9Afv1fIW9PwscrdlgjSSHR4XQLyDbyuDGsolzeh9PUVyPOd
f+/LYkLwH9jVcHlxl4Oy7MHRPtcbG9T3+vQGLjSAXu3Ybrl2R9Tn/sz5lYs44EEB
mqCxT00LxB3et6jAxJlEyE5vCw==
-----END CERTIFICATE-----We have to configure basic IP addressing , system configuration and default route
also configure a static name for vBond as ip host
config-transaction
hostname R1
!
int GigabitEthernet1
ip address 11.0.0.30 255.255.255.0
no shut
!
ip route 0.0.0.0 0.0.0.0 11.0.0.254
!
system
system-ip 11.11.30.1
site-id 30
ip host vbond.or100.sys.cisco 11.0.0.3 ! cisco recommends adding this host entry
organization-name or100.sys.cisco
vbond vbond.or100.sys.cisco
commitYou should be able to ping the controllers at this point, If there is no IP connectivity between the WAN edge router and the controllers, there is no point in continuing further. You should troubleshoot the problem first.
Now we need to create the tunnel interface and then configure sdwan related configuration under sdwan > interface Gig > tunnel-interface > color & encapsulation etc
interface Tunnel 1 ! this tunnel interface number should be same as physical interface
! There is space between Tunnel and number
! but no space between physical interface and number
ip unnumbered GigabitEthernet1 ! show ip int brief shows IP of physical interface
tunnel source GigabitEthernet1
tunnel mode sdwan
! Tunnel keyword in the "interface Tunnel" command should always be with a capital T.
! Unlike regular Cisco IOS-XE where you can create a new tunnel using the "interface tunnel 1" command.
sdwan
int GigabitEthernet1
tunnel-interface
color biz-internet
encapsulation ipsecRouter is now ready to Authenticate and Join SDWAN
This process is initiated by running command
request platform software sdwan vedge_cloud activate chassis-number C8K-XXXXXXXX-XXXX-XXXX-XXXX-XXXXXXXXXXXX token xxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxYou should see in the logs that vManage logs into the C8000v using NETCONF over SSH, generates a CSR, then signs it and install onto C8000v. Then C8000v is able to establish control connections with vManage and vSmart and OMP peering with vSmart comes up and start receiving TLOCs and OMP routes.
R1#
*Jul 21 20:27:09.257: %SYS-5-CONFIG_P: Configured programmatically by process iosp_dmiauthd_conn_100001_vty_100001 from consol6
*Jul 21 20:27:09.523: %SYS-5-CONFIG_P: Configured programmatically by process iosp_dmiauthd_conn_100001_vty_100001 from console as admin on vty42946
*Jul 21 20:27:09.503: %DMI-5-CONFIG_I: R0/0: dmiauthd: Configured from NETCONF/RESTCONF by admin, transaction-id 558pong
*Jul 21 20:27:17.068: %SYS-5-CONFIG_P: Configured programmatically by process iosp_dmiauthd_conn_100001_vty_100001 from console as admin on vty4294l
*Jul 21 20:28:03.534: %DMI-5-AUTH_PASSED: R0/0: dmiauthd: User 'vmanage-admin' authenticated successfully from 1.1.255.11:36606 for netconf over s:
*Jul 21 20:28:29.847: %Cisco-SDWAN-R1-cEdge-action_notifier-6-INFO-1400002: Notification: 7/21/2025 20:28:29 security-install-rcc severity-level:mi1
*Jul 21 20:28:30.030: %DMI-5-AUTH_PASSED: R0/0: dmiauthd: User 'vmanage-admin' authenticated successfully from 1.1.255.11:36688 for netconf over s:
*Jul 21 20:28:43.152: %Cisco-SDWAN-R1-cEdge-action_notifier-6-INFO-1400002: Notification: 7/21/2025 20:28:43 security-install-certificate severity-1
*Jul 21 20:29:25.117: %Cisco-SDWAN-Router-OMPD-3-ERRO-400002: vSmart peer 1.1.255.13 state changed to Init
*Jul 21 20:29:25.343: %DMI-5-AUTH_PASSED: R0/0: dmiauthd: User 'vmanage-admin' authenticated successfully from 1.1.255.11:36822 for netconf over ss
*Jul 21 20:29:27.205: %Cisco-SDWAN-Router-OMPD-6-INFO-400002: vSmart peer 1.1.255.13 state changed to Handshake
*Jul 21 20:29:27.218: %Cisco-SDWAN-Router-OMPD-5-NTCE-400002: vSmart peer 1.1.255.13 state changed to Up
*Jul 21 20:29:27.218: %Cisco-SDWAN-Router-OMPD-6-INFO-400005: Number of vSmarts connected : 1
*Jul 21 20:29:41.535: %DMI-5-AUTH_PASSED: R0/0: dmiauthd: User 'vmanage-admin' authenticated successfully from 1.1.255.11:36882 for netconf over s:
*Jul 21 20:30:01.736: %DMI-5-AUTH_PASSED: R0/0: dmiauthd: User 'vmanage-admin' authenticated successfully from 1.1.255.11:36928 for netconf over s:
*Jul 21 20:30:23.576: %DMI-5-AUTH_PASSED: R0/0: dmiauthd: User 'vmanage-admin' authenticated successfully from 1.1.255.11:37006 for netconf over s:
*Jul 21 20:30:33.557: %DMI-5-AUTH_PASSED: R0/0: dmiauthd: User 'vmanage-admin' authenticated successfully from 1.1.255.11:37052 for netconf over s:
*Jul 21 20:30:43.535: %DMI-5-AUTH_PASSED: R0/0: dmiauthd: User 'vmanage-admin' authenticated successfully from 1.1.255.11:37078 for netconf over s:
*Jul 21 20:30:48.611: %DMI-5-AUTH_PASSED: R0/0: dmiauthd: User 'vmanage-admin' authenticated successfully from 1.1.255.11:37108 for netconf over s:R1#
*Jul 21 20:27:09.257: %SYS-5-CONFIG_P: Configured programmatically by process iosp_dmiauthd_conn_100001_vty_100001 from consol6
*Jul 21 20:27:09.523: %SYS-5-CONFIG_P: Configured programmatically by process iosp_dmiauthd_conn_100001_vty_100001 from console as admin on vty42946
*Jul 21 20:27:09.503: %DMI-5-CONFIG_I: R0/0: dmiauthd: Configured from NETCONF/RESTCONF by admin, transaction-id 558pong
*Jul 21 20:27:17.068: %SYS-5-CONFIG_P: Configured programmatically by process iosp_dmiauthd_conn_100001_vty_100001 from console as admin on vty4294l
*Jul 21 20:28:03.534: %DMI-5-AUTH_PASSED: R0/0: dmiauthd: User 'vmanage-admin' authenticated successfully from 1.1.255.11:36606 for netconf over s:
*Jul 21 20:28:29.847: %Cisco-SDWAN-R1-cEdge-action_notifier-6-INFO-1400002: Notification: 7/21/2025 20:28:29 security-install-rcc severity-level:mi1
*Jul 21 20:28:30.030: %DMI-5-AUTH_PASSED: R0/0: dmiauthd: User 'vmanage-admin' authenticated successfully from 1.1.255.11:36688 for netconf over s:
*Jul 21 20:28:43.152: %Cisco-SDWAN-R1-cEdge-action_notifier-6-INFO-1400002: Notification: 7/21/2025 20:28:43 security-install-certificate severity-1
*Jul 21 20:29:25.117: %Cisco-SDWAN-Router-OMPD-3-ERRO-400002: vSmart peer 1.1.255.13 state changed to Init
*Jul 21 20:29:25.343: %DMI-5-AUTH_PASSED: R0/0: dmiauthd: User 'vmanage-admin' authenticated successfully from 1.1.255.11:36822 for netconf over ss
*Jul 21 20:29:27.205: %Cisco-SDWAN-Router-OMPD-6-INFO-400002: vSmart peer 1.1.255.13 state changed to Handshake
*Jul 21 20:29:27.218: %Cisco-SDWAN-Router-OMPD-5-NTCE-400002: vSmart peer 1.1.255.13 state changed to Up
*Jul 21 20:29:27.218: %Cisco-SDWAN-Router-OMPD-6-INFO-400005: Number of vSmarts connected : 1
*Jul 21 20:29:41.535: %DMI-5-AUTH_PASSED: R0/0: dmiauthd: User 'vmanage-admin' authenticated successfully from 1.1.255.11:36882 for netconf over s:
*Jul 21 20:30:01.736: %DMI-5-AUTH_PASSED: R0/0: dmiauthd: User 'vmanage-admin' authenticated successfully from 1.1.255.11:36928 for netconf over s:
*Jul 21 20:30:23.576: %DMI-5-AUTH_PASSED: R0/0: dmiauthd: User 'vmanage-admin' authenticated successfully from 1.1.255.11:37006 for netconf over s:
*Jul 21 20:30:33.557: %DMI-5-AUTH_PASSED: R0/0: dmiauthd: User 'vmanage-admin' authenticated successfully from 1.1.255.11:37052 for netconf over s:
*Jul 21 20:30:43.535: %DMI-5-AUTH_PASSED: R0/0: dmiauthd: User 'vmanage-admin' authenticated successfully from 1.1.255.11:37078 for netconf over s:
*Jul 21 20:30:48.611: %DMI-5-AUTH_PASSED: R0/0: dmiauthd: User 'vmanage-admin' authenticated successfully from 1.1.255.11:37108 for netconf over s:
R1#show sdwan control local-properties
personality vedge
sp-organization-name or100.sys.cisco
organization-name or100.sys.cisco
root-ca-chain-status Installed
certificate-status Installed
certificate-validity Valid
certificate-not-valid-before Jul 7 05:58:30 2025 GMT
certificate-not-valid-after Jul 5 05:58:30 2035 GMT
enterprise-cert-status Not-Applicable
enterprise-cert-validity Not Applicable
enterprise-cert-not-valid-before Not Applicable
enterprise-cert-not-valid-after Not Applicable
dns-name vbond.or100.sys.cisco
site-id 250
domain-id 1
protocol dtls
tls-port 0
system-ip 192.168.254.1
chassis-num/unique-id C8K-A1AD735C-C4D2-CE60-6D88-01686AD4ED52
serial-num 588AA845
subject-serial-num N/A
enterprise-serial-num No certificate installed
token Invalid
keygen-interval 1:00:00:00
retry-interval 0:00:00:16
no-activity-exp-interval 0:00:00:20
dns-cache-ttl 0:00:02:00
port-hopped TRUE
time-since-last-port-hop 0:00:30:51
embargo-check success
number-vbond-peers 1
INDEX IP PORT
-----------------------------------------------------
0 172.16.101.14 12346
number-active-wan-interfaces 1
NAT TYPE: E -- indicates End-point independent mapping
A -- indicates Address-port dependent mapping
N -- indicates Not learned
Note: Requires minimum two vbonds to learn the NAT type
PUBLIC PUBLIC PRIVATE PRIVATE PRIVATE MAX RESTRICT/ LAM
INTERFACE IPv4 PORT IPv4 IPv6 PORT VS/VM COLOR STATE CNTRL CONTROL/ LR/LB CON
STUN F
--------------------------------------------------------------------------------------------------------------------------------------------------------------------------
GigabitEthernet1 172.16.101.200 12366 172.16.101.200 :: 12366 1/1 biz-internet up 2 no/yes/no No/R1#show sdwan control connections
PEER PEER
PEER PEER PEER SITE DOMAIN PEER PRIV PEER PUB
TYPE PROT SYSTEM IP ID ID PRIVATE IP PORT PUBLIC IP PORT ORGANIZA
----------------------------------------------------------------------------------------------------------------------------------------------------
vsmart dtls 1.1.255.13 255 1 1.1.0.13 12446 1.1.0.13 12446 or100.sys.
vbond dtls 0.0.0.0 0 0 1.1.0.12 12346 1.1.0.12 12346 or100.sys.
vmanage dtls 1.1.255.11 255 0 1.1.0.11 12846 1.1.0.11 12846 or100.sys.show run ! still works
show sdwan running-config
vbond command: show orchestrator valid-vedges
Platform Console
The last thing in running Catalyst 8000V in a virtual EVE-NG environment is to change the console method after attaching a device template.
Depending on your lab, you will most likely end up attaching a device template to the 8000V edge routers. What typically happens is that you lose access to the device via the console. This happens because, by default, the device boot up configured with the following command.
platform console serialHowever, after you attach a template, vManage changes the console method to
platform console virtualThe “virtual” option defines that the 8000V router is accessed through the virtual VGA console of the hypervisor. To change the console method back to “serial,” you must configure a CLI add-on feature template and add it to the respective device template the router is attached to.
Changing IP address on WAN side of the edge device
I changed IP address on R1-cEdge on its WAN transport interface and it re-established connections to controllers and all control connections came up, I did not have to edit or change addresses in any of the controllers, that is good. I changed IP address from 1.1.1.1 to 1.1.1.2
vBond valid-vedges
vBond# show orchestrator valid-vedges | tab
HARDWARE
INSTALLED SUBJECT
SERIAL SERIAL
CHASSIS NUMBER SERIAL NUMBER VALIDITY ORG NUMBER NUMBER
-----------------------------------------------------------------------------------------------------------------------------
0d7b4db2-d1c7-a10c-82aa-51133e50a3ad 56831d0a459a4d11adbebfb844115fe0 valid or100.sys.cisco N/A 0D7B4DB2-D1
14d3598d-2f93-d5e3-ec33-ebb972a54a96 07b454f7f0694a1a8fdc3f59915d8e97 valid or100.sys.cisco N/A 14D3598D-2F
38323e71-a386-a59f-6ec5-82fb08cdbc0c 6b81257104424bdc928e4c2fabfc0967 valid or100.sys.cisco N/A 38323E71-A3
4567a82e-54d1-fa17-e1a4-302781b96194 eca16978e13744e2ac2edda6e33c9373 valid or100.sys.cisco N/A 4567A82E-54
4c353382-ddc5-9ac0-d903-c07ce6fc19ac e56d759ca369422c842d5ff98b370293 valid or100.sys.cisco N/A 4C353382-DD
67f29d5d-4996-109c-bcab-cd14ec837a33 6950d355072b452bb0c3c6ee348e684d valid or100.sys.cisco N/A 67F29D5D-49
70caebef-8a53-a200-9a21-72c3ee424737 25936ef5caa74cff8a30118cba2e5595 valid or100.sys.cisco N/A 70CAEBEF-8A
748d428d-ab9d-81d5-316f-fea7fb910d6d 2b31d2d21dc141b0b0b31cf87a028ddf valid or100.sys.cisco N/A 748D428D-AB
aafa211d-aee9-6dc7-ce14-829e5a025225 cc51993a8cfb46b588def2f923e09e66 valid or100.sys.cisco N/A AAFA211D-AE
b0cfb377-813b-5f02-69f2-5cd76d3c261f 930d0e37929f49f2ad1fbe3d23cc7c5a valid or100.sys.cisco N/A B0CFB377-81
C8K-93E4A981-1B6A-5B49-0D59-4818588CA46A 9B10218D valid or100.sys.cisco N/A N/A
C8K-A1AD735C-C4D2-CE60-6D88-01686AD4ED52 aac6851892a546edbc6c6b50b182ae96 valid or100.sys.cisco N/A C8K-A1AD735
C8K-AB8303D2-8707-6BBA-051F-8BB318E56660 1250E1E5 valid or100.sys.cisco N/A C8K-AB8303D
C8K-EFE0AD8A-3CFB-E448-0402-6108A06678C2 88c4c032d1d1413cbf66c72166e4b070 valid or100.sys.cisco N/A C8K-EFE0AD8
C8K-FF74B9C0-47EC-6B46-6F06-B63A33303C0F 3d4817593d9e42d19092a8a7804051aa valid or100.sys.cisco N/A C8K-FF74B9C
CSR-0EA86B7E-AE07-0D12-86C6-93E64EA24C46 d843a0b45dbf4b7982c930e6c5c120c6 valid or100.sys.cisco N/A CSR-0EA86B7
CSR-11441782-E387-3A13-60D8-74FFCE54D959 7b5690b9065e44e1943c3e74e336625e valid or100.sys.cisco N/A CSR-1144178
CSR-82981844-35B0-60A8-81A0-4E511A9FF6FA 08086272a4174295b0ec03095b39492e valid or100.sys.cisco N/A CSR-8298184
CSR-BADCECC2-6CDC-1876-0072-0F9EAE28D879 fb7abe09c58e48daab91c73fe59a1bc1 valid or100.sys.cisco N/A CSR-BADCECC
CSR-CC7AD88D-16E7-27C4-1278-EC9520C8CCD4 d58d1b454b0f45a2a16bfbeeca1b1f28 valid or100.sys.cisco N/A CSR-CC7AD88
CSR-ED63ADBC-750F-E08A-5C4D-0DDEE109E9D1 46a30397d6b04e43a2b8d5cfa370126e valid or100.sys.cisco N/A CSR-ED63ADB
ebebb4ea-fa4c-ba33-2287-f7b4d4c04b74 f6a307a61d4d4fceac7e2d45a45dc528 valid or100.sys.cisco N/A EBEBB4EA-FA
ff39e75a-8ee5-a214-6d15-3985fc7a9273 5718fec846484ba0b9fb0243c90fc62e valid or100.sys.cisco N/A FF39E75A-8EFilter Onboarded Nodes
Type “In Sync” in filter on top to see the succesfully onboards devices
Onboarding WAN Edge Routers with Dual Transports
config-transaction
!
system
system-ip 11.11.18.1
site-id 18
organization-name or100.sys.cisco
vbond vbond.or100.sys.cisco
platform console serial
hostname RE-NT10-WER-01
username admin privilege 15 secret C0mplex30
ip host vbond.or100.sys.cisco 11.0.0.3
ip route 0.0.0.0 0.0.0.0 11.0.0.254
ip route 0.0.0.0 0.0.0.0 172.31.110.3
!
interface GigabitEthernet1
description biz-internet
no shutdown
ip address 11.0.0.21 255.255.255.0
no mop enabled
no mop sysid
negotiation auto
exit
interface GigabitEthernet2
description mpls
no shutdown
ip address 172.31.110.2 255.255.255.254
no mop enabled
no mop sysid
negotiation auto
exit
interface Tunnel1
no shutdown
ip unnumbered GigabitEthernet1
tunnel source GigabitEthernet1
tunnel mode sdwan
exit
interface Tunnel2
no shutdown
ip unnumbered GigabitEthernet2
tunnel source GigabitEthernet2
tunnel mode sdwan
exit
sdwan
interface GigabitEthernet1
tunnel-interface
encapsulation ipsec
color biz-internet
allow-service all
no allow-service bgp
allow-service dhcp
allow-service dns
allow-service icmp
allow-service sshd
allow-service netconf
allow-service ntp
allow-service ospf
allow-service stun
allow-service https
allow-service snmp
allow-service bfd
exit
exit
interface GigabitEthernet2
tunnel-interface
encapsulation ipsec
color mpls restrict
allow-service all
no allow-service bgp
allow-service dhcp
allow-service dns
allow-service icmp
no allow-service sshd
no allow-service netconf
no allow-service ntp
no allow-service ospf
no allow-service stun
allow-service https
no allow-service snmp
no allow-service bfd
exit
!
commitTemplates on Controllers
Remember that we need to configure system, vpn 0 (routing table for transport) and interface feature templates
but when device type vManage and vSmart, template types are reduced
with vmanage and vsmart selected we can have common feature template for system and vpn
vedge cloud is applied on vbond
we are more limited in terms of template when we select vedge cloud, vmanage and vsmart
Lets configure template for vmanage
Template Configuration on Edges
System
Device Specific variables, value will be taken at the time when we attach the template to device
Global means that all the devices that are attached to this template will inherit same static value
Each section of the running-config will require a feature template
VPN 0 or GRT
Enhance ECMP Keyring when turned on, also considers the source and destination port to calculate the ECMP
DNS and Static IPv4 routes will come under the GRT
Interface (WAB Transport)
If devices models are different then each device model will need its own feature due to difference in interface names > Cisco VPN interface ethernet template
if this color does not have reachability to controllers such as MPLS connection then not only no control connections but data / bfd tunnels will not be attempted over it
If we make “Maximum Control Connections to 0” , it can still form data tunnels over that color
Setting Maximum Control Connections to 0 on MPLS only sites caused loss of control connections to all controllers since control connections were already there , this option is for when there are no control connections forming or present
and because of loss of connections caused rollback because MPLS was only connection to site
Exclude Controller Group List: This is group of controllers that you dont want the edge to connect to, this is important when we dont want edge to connect to vsmart in far regions.
vManage Connection Preference: by default is 5, a link with higher preference is used to connect to vmanage in case we have 2x transports because only one vmanage connection is established
Port hop
By default, WAN Edge devices form control connections with controllers (vBond, vSmart, vManage) using:
DTLS (UDP 12346)
TLS (TCP 443)
So normally, traffic will keep using those fixed ports.
When Port Hop is enabled, the “WAN Edge” will not stick to just a single fixed port. Instead, it will cycle through a range of ports if a connection attempt fails.
- DTLS (UDP):
- Starts with UDP/12346.
- If blocked, it will try other ports in the UDP range 12346–12846.
- It keeps retrying until it finds an open port.
- TLS (TCP):
- Starts with TCP/443.
- If blocked, it will try other ports in the TCP range 443–12443.
- Again, hops until success.
This makes control connections much more resilient in restrictive or dynamic network environments where firewalls are doing inspections and rate limiting traffic
Sometimes port hop can be issue
Control connections on the router, you see it is up from last 4 mins and 12 seconds. It will again retrigger after completing 5 mins
NDNA_c8000v#sh sdwan control connections
PEER PEER CONTROLLER
PEER PEER PEER SITE DOMAIN PEER PRIV PEER PUB GROUP
TYPE PROT SYSTEM IP ID ID PRIVATE IP PORT PUBLIC IP PORT ORGANIZATION LOCAL COLOR PROXY STATE UPTIME ID
------------------------------------------------------------------------------------------------------------------------------------------------------------
vsmart dtls 10.10.10.11 1 1 10.10.3.5 12646 17.23.12.11 12646 NDNA-111 gold No up 0:00:04:12 0
vsmart dtls 10.10.10.12 2 1 10.10.3.15 12646 17.23.12.25 12646 NDNA-111 gold No up 0:00:04:12 0
vmanage dtls 10.10.10.10 1 0 10.10.3.12 13046 17.23.12.88 13046 NDNA-111 gold No up 0:00:04:12 0 checked again after like a minute now and you will notice, it is showing 8 seconds now which means it is bounced again.
NDNA_c8000v#sh sdwan control connections
PEER PEER CONTROLLER
PEER PEER PEER SITE DOMAIN PEER PRIV PEER PUB GROUP
TYPE PROT SYSTEM IP ID ID PRIVATE IP PORT PUBLIC IP PORT ORGANIZATION LOCAL COLOR PROXY STATE UPTIME ID
------------------------------------------------------------------------------------------------------------------------------------------------------------
vsmart dtls 10.10.10.11 1 1 10.10.3.5 12646 17.23.12.11 12646 NDNA-111 gold No up 0:00:00:08 0
vsmart dtls 10.10.10.12 2 1 10.10.3.15 12646 17.23.12.25 12646 NDNA-111 gold No up 0:00:00:08 0
vmanage dtls 10.10.10.10 1 0 10.10.3.12 13046 17.23.12.88 13046 NDNA-111 gold No up 0:00:00:08 0For troubleshooting, move the router to CLI mode
First check the mode in which router is working, if we see below in red, the template is attached to the router which means the router is in controller mode.
Personality: vEdge
Model name: C8000V
Device role: cEdge-SDWAN
Services: None
vManaged: true
Commit pending: false
Configuration template: AZURE-NDNA-V01
Chassis serial number: XXXXXXXXXXXXXXMove the router from controller mode to CLI mode in order to do packet captures on the router. Although it is recommended to capture using vmanage datastream mode
Once you moved, run the below script in order to capture the packets on the interface with the source and the destination IPs as shown below :
!
ip access-list extended CAP-Filter
10 permit ip host 10.10.1.23 host 17.23.12.88
20 permit ip host 17.23.12.88 host 10.10.1.23
exit
monitor capture CAP access-list CAP-Filter interface GigabitEthernet1 both buffer circular size 25
monitor capture CAP limit pps 1000000
monitor capture CAP access-list CAP-Filter both buffer circular size 25
monitor capture CAP start
monitor capture CAP stop
!Now run below commands to get debugs
NDNA_c8000v# debug platform software sdwan vdaemon all high
NDNA_c8000v# monitor logging process vdaemon internalOnce you run the above commands, you will see logs related to the interfaces
You will see that in debug logs , TLOC Disable … Why ?
2024/04/19 17:47:59.779970993 {vdaemon_R0-0}{255}: [event] [18342]: (debug): Disabling tloc GigabitEthernet1.
2024/04/19 17:47:59.780001093 {vdaemon_R0-0}{255}: [misc] [18342]: (ERR): Delta preference value added to TLOC pref.
2024/04/19 17:47:59.780003193 {vdaemon_R0-0}{255}: [misc] [18342]: (ERR): Sending TLOC: ifname:GigabitEthernet3 color:gold spi:18915 smarts:2 manages:1 state:DOWN LR encap:0 LR hold time:7000 bw:0, down-bw 0 range: 0-0,adapt period 0 up-bw range 0-0 up_fia 0 capability:0x3fCheck the interface for port-hop and you will see port-hop is enabled. Now disable the port hop and you will see the control connections will be stable
interface GigabitEthernet1
tunnel-interface
encapsulation ipsec weight 1
no border
color gold restrict
no last-resort-circuit
no low-bandwidth-link
no vbond-as-stun-server
vmanage-connection-preference 5
port-hopCheck the control connection after disabling port-hop on the interface , you will see it is up from last 19 min. and stable.
NDNA_c8000v#sh sdwan control connections
PEER PEER CONTROLLER
PEER PEER PEER SITE DOMAIN PEER PRIV PEER PUB GROUP
TYPE PROT SYSTEM IP ID ID PRIVATE IP PORT PUBLIC IP PORT ORGANIZATION LOCAL COLOR PROXY STATE UPTIME ID
------------------------------------------------------------------------------------------------------------------------------------------------------------
vsmart dtls 10.10.10.11 1 1 10.10.3.5 12646 17.23.12.11 12646 NDNA-111 gold No up 0:00:19:02 0
vsmart dtls 10.10.10.12 2 1 10.10.3.15 12646 17.23.12.25 12646 NDNA-111 gold No up 0:00:19:02 0
vmanage dtls 10.10.10.10 1 0 10.10.3.12 13046 17.23.12.88 13046 NDNA-111 gold No up 0:00:19:02 0
Now we can copy the template and also change its device model as well
Once you have changed the device model, make sure that interface names match, such as make sure that interface name is not GigabitEthernet0/0/0 and GigabitEthernet1, if it is different then change it inside template as well
on hardware models we also need to make sure that we have template for management gig0 interface to satisfy the requirement for device template on hardware platforms otherwise deployment fails, for managemet gig0 interface same template “Cisco VPN Interface Ethernet” is used and input its name from “show ip int brief”
Now create device template
Device Template
In case we have another transport interface, we can add another from plus icon next to the type of interface
In case we have to attach mgmt interface to avoid deployment errors on hardware device
Now we need to attach the device template to a device – C8000v that has internet only connectivity
And you do that from the template itself
fill the variables with following information from the running-config of edge device
deployment failed and it rolled back to restore connectivity to vmanage
edge lost connectivity to vmanage and also other controllers
As I checked the template, the default route was missing from feature template FT_C8000V_GRT
after successful deployment I was not able to login, so new AAA policy was attached
now I can login
Whenever there is a change made on templates, these changes need to be pushed to the devices
While making those changes there is an option to download the CSV for provided device values
This CSV is not only for backing up values but changes can be made to all devices at once on the CSV excel file and then uploaded back
This is very useful when you have large number of devices
When making changes there is an option on the bottom left corner
Configure Device Rollback Timer
NTP Feature Template common for all edges
Login Banner Feature Template
Banner text new lines should be replaced with \n so it can be pasted in this box
************************************************************\n* *\n* WARNING: Authorized Access Only! *\n* *\n* This system is for the use of authorized users only. *\n* Any unauthorized access or use is prohibited and *\n* may be subject to criminal and civil penalties. *\n* *\n* All activities on this system are monitored. *\n* *\n************************************************************
Local Disk Logging Feature Template
As log messages are in /var/log for troubleshooting
In case Syslog server is inside Datacenter and not over the WAN transport then we have to change the below VPN number and change it from 0 to service side VPN / VRF number of local site / datacenter in which Syslog server lives
SNMP Feature Template
OMP , TLOCs and IPSec VPN
vSmart# show omp peers
R -> routes received
I -> routes installed
S -> routes sent
DOMAIN OVERLAY SITE
PEER TYPE ID ID ID STATE UPTIME R/I/S
------------------------------------------------------------------------------------------
172.16.0.11 vedge 1 1 1 up 0:04:15:03 0/0/0
172.16.0.12 vedge 1 1 1 up 0:03:16:13 0/0/0
172.16.0.101 vedge 1 1 101 up 0:02:45:09 0/0/0
172.16.0.102 vedge 1 1 102 up 0:04:15:21 0/0/0
172.16.0.103 vedge 1 1 103 up 0:04:14:59 0/0/0
172.16.0.111 vedge 1 1 101 up 0:02:45:31 0/0/0R1-cEdge#show sdwan omp peers
R -> routes received
I -> routes installed
S -> routes sent
DOMAIN OVERLAY SITE
PEER TYPE ID ID ID STATE UPTIME R/I/S
------------------------------------------------------------------------------------------
1.1.255.13 vsmart 1 1 255 up 0:04:17:40 0/0/0All the TLOCs known by router, two repeating system IPs means router has transports / colors
R1-cEdge#show sdwan omp tloc-paths
tloc-paths entries 172.16.0.11 biz-internet ipsec
tloc-paths entries 172.16.0.12 mpls ipsec
tloc-paths entries 172.16.0.101 biz-internet ipsec
tloc-paths entries 172.16.0.102 mpls ipsec
tloc-paths entries 172.16.0.102 biz-internet ipsec
tloc-paths entries 172.16.0.103 mpls ipsec
tloc-paths entries 172.16.0.103 biz-internet ipsec
tloc-paths entries 172.16.0.111 mpls ipsecFull TLOC details
R1-cEdge#show sdwan omp tlocs
---------------------------------------------------
tloc entries for 172.16.0.11
biz-internet
ipsec
---------------------------------------------------
RECEIVED FROM:
peer 0.0.0.0
status C,Red,R
loss-reason not set
lost-to-peer not set
lost-to-path-id not set
Attributes:
attribute-type installed
encap-key not set
encap-proto 0
encap-spi 284
encap-auth sha1-hmac,ah-sha1-hmac
encap-encrypt aes256
public-ip 1.1.1.2
public-port 12366
private-ip 1.1.1.2
private-port 12366
public-ip ::
public-port 0
private-ip ::
private-port 0
bfd-status up << BFD status should be up
domain-id not set
site-id 1
overlay-id not set
preference 0
tag not set
stale not set
weight 1
version 3
gen-id 0x80000001
carrier default
restrict 0
on-demand 0
groups [ 0 ]
bandwidth 0
bandwidth-dmin 0
bandwidth-down 0
bandwidth-dmax 0
adapt-qos-period 0
adapt-qos-up 0
qos-group default-group
border not set
extended-ipsec-anti-replay not set
unknown-attr-len not set
---------------------------------------------------
tloc entries for 172.16.0.12
mpls
ipsec
---------------------------------------------------
RECEIVED FROM:
peer 1.1.255.13
status C,I,R
loss-reason not set
lost-to-peer not set
lost-to-path-id not set
Attributes:
attribute-type installed
encap-key not set
encap-proto 0
encap-spi 287
encap-auth sha1-hmac,ah-sha1-hmac
encap-encrypt aes256
public-ip 10.0.1.2
public-port 12406
private-ip 10.0.1.2
private-port 12406
public-ip ::
public-port 0
private-ip ::
private-port 0
bfd-status down
domain-id not set
site-id 1
overlay-id not set
preference 0
tag not set
stale not set
weight 1
version 3
gen-id 0x80000000
carrier default
restrict 0
on-demand 0
groups [ 0 ]
bandwidth 0
bandwidth-dmin 0
bandwidth-down 0
bandwidth-dmax 0
adapt-qos-period 0
adapt-qos-up 0
qos-group default-group
border not set
extended-ipsec-anti-replay not set
unknown-attr-len not set
---------------------------------------------------
tloc entries for 172.16.0.101
biz-internet
ipsec
---------------------------------------------------
RECEIVED FROM:
peer 1.1.255.13
status C,I,R
loss-reason not set
lost-to-peer not set
lost-to-path-id not set
Attributes:
attribute-type installed
encap-key not set
encap-proto 0
encap-spi 285
encap-auth sha1-hmac,ah-sha1-hmac
encap-encrypt aes256
public-ip 1.1.1.101
public-port 12386
private-ip 1.1.1.101
private-port 12386
public-ip ::
public-port 0
private-ip ::
private-port 0
bfd-status up
domain-id not set
site-id 101
overlay-id not set
preference 0
tag not set
stale not set
weight 1
version 3
gen-id 0x80000000
carrier default
restrict 0
on-demand 0
groups [ 0 ]
bandwidth 0
bandwidth-dmin 0
bandwidth-down 0
bandwidth-dmax 0
adapt-qos-period 0
adapt-qos-up 0
qos-group default-group
border not set
extended-ipsec-anti-replay not set
unknown-attr-len not set
---------------------------------------------------
tloc entries for 172.16.0.102
mpls
ipsec
---------------------------------------------------
RECEIVED FROM:
peer 1.1.255.13
status C,I,R
loss-reason not set
lost-to-peer not set
lost-to-path-id not set
Attributes:
attribute-type installed
encap-key not set
encap-proto 0
encap-spi 262
encap-auth sha1-hmac,ah-sha1-hmac
encap-encrypt aes256
public-ip 10.0.102.2
public-port 12426
private-ip 10.0.102.2
private-port 12426
public-ip ::
public-port 0
private-ip ::
private-port 0
bfd-status up
domain-id not set
site-id 102
overlay-id not set
preference 0
tag not set
stale not set
weight 1
version 3
gen-id 0x80000000
carrier default
restrict 0
on-demand 0
groups [ 0 ]
bandwidth 0
bandwidth-dmin 0
bandwidth-down 0
bandwidth-dmax 0
adapt-qos-period 0
adapt-qos-up 0
qos-group default-group
border not set
extended-ipsec-anti-replay not set
unknown-attr-len not set
---------------------------------------------------
tloc entries for 172.16.0.102
biz-internet
ipsec
---------------------------------------------------
RECEIVED FROM:
peer 1.1.255.13
status C,I,R
loss-reason not set
lost-to-peer not set
lost-to-path-id not set
Attributes:
attribute-type installed
encap-key not set
encap-proto 0
encap-spi 280
encap-auth sha1-hmac,ah-sha1-hmac
encap-encrypt aes256
public-ip 1.1.1.102
public-port 12366
private-ip 1.1.1.102
private-port 12366
public-ip ::
public-port 0
private-ip ::
private-port 0
bfd-status up
domain-id not set
site-id 102
overlay-id not set
preference 0
tag not set
stale not set
weight 1
version 3
gen-id 0x80000000
carrier default
restrict 0
on-demand 0
groups [ 0 ]
bandwidth 0
bandwidth-dmin 0
bandwidth-down 0
bandwidth-dmax 0
adapt-qos-period 0
adapt-qos-up 0
qos-group default-group
border not set
extended-ipsec-anti-replay not set
unknown-attr-len not set
---------------------------------------------------
tloc entries for 172.16.0.103
mpls
ipsec
---------------------------------------------------
RECEIVED FROM:
peer 1.1.255.13
status C,I,R
loss-reason not set
lost-to-peer not set
lost-to-path-id not set
Attributes:
attribute-type installed
encap-key not set
encap-proto 0
encap-spi 265
encap-auth sha1-hmac,ah-sha1-hmac
encap-encrypt aes256
public-ip 10.0.103.2
public-port 12366
private-ip 10.0.103.2
private-port 12366
public-ip ::
public-port 0
private-ip ::
private-port 0
bfd-status up
domain-id not set
site-id 103
overlay-id not set
preference 0
tag not set
stale not set
weight 1
version 3
gen-id 0x80000000
carrier default
restrict 0
on-demand 0
groups [ 0 ]
bandwidth 0
bandwidth-dmin 0
bandwidth-down 0
bandwidth-dmax 0
adapt-qos-period 0
adapt-qos-up 0
qos-group default-group
border not set
extended-ipsec-anti-replay not set
unknown-attr-len not set
---------------------------------------------------
tloc entries for 172.16.0.103
biz-internet
ipsec
---------------------------------------------------
RECEIVED FROM:
peer 1.1.255.13
status C,I,R
loss-reason not set
lost-to-peer not set
lost-to-path-id not set
Attributes:
attribute-type installed
encap-key not set
encap-proto 0
encap-spi 286
encap-auth sha1-hmac,ah-sha1-hmac
encap-encrypt aes256
public-ip 1.1.1.103
public-port 12426
private-ip 1.1.1.103
private-port 12426
public-ip ::
public-port 0
private-ip ::
private-port 0
bfd-status up
domain-id not set
site-id 103
overlay-id not set
preference 0
tag not set
stale not set
weight 1
version 3
gen-id 0x80000000
carrier default
restrict 0
on-demand 0
groups [ 0 ]
bandwidth 0
bandwidth-dmin 0
bandwidth-down 0
bandwidth-dmax 0
adapt-qos-period 0
adapt-qos-up 0
qos-group default-group
border not set
extended-ipsec-anti-replay not set
unknown-attr-len not set
---------------------------------------------------
tloc entries for 172.16.0.111
mpls
ipsec
---------------------------------------------------
RECEIVED FROM:
peer 1.1.255.13
status C,I,R
loss-reason not set
lost-to-peer not set
lost-to-path-id not set
Attributes:
attribute-type installed
encap-key not set
encap-proto 0
encap-spi 266
encap-auth sha1-hmac,ah-sha1-hmac
encap-encrypt aes256
public-ip 10.0.101.2
public-port 12406
private-ip 10.0.101.2
private-port 12406
public-ip ::
public-port 0
private-ip ::
private-port 0
bfd-status up
domain-id not set
site-id 101
overlay-id not set
preference 0
tag not set
stale not set
weight 1
version 3
gen-id 0x80000000
carrier default
restrict 0
on-demand 0
groups [ 0 ]
bandwidth 0
bandwidth-dmin 0
bandwidth-down 0
bandwidth-dmax 0
adapt-qos-period 0
adapt-qos-up 0
qos-group default-group
border not set
extended-ipsec-anti-replay not set
unknown-attr-len not setInterval for BFD session is 1000 msec
R1-cEdge#show sdwan bfd sessions
SOURCE TLOC REMOTE TLOC DST PUBLIC DST PUBLIC DETECT TX
SYSTEM IP SITE ID STATE COLOR COLOR SOURCE IP IP PORT ENCAP MULTIPLIER INTERVAL(msec UPTIME TRANSITIONS
-----------------------------------------------------------------------------------------------------------------------------------------------------------------------------
172.16.0.101 101 up biz-internet biz-internet 1.1.1.2 1.1.1.101 12386 ipsec 7 1000 10 0:23:51:18 0
172.16.0.102 102 up biz-internet biz-internet 1.1.1.2 1.1.1.102 12386 ipsec 7 1000 10 0:00:48:47 2
172.16.0.103 103 up biz-internet biz-internet 1.1.1.2 1.1.1.103 12426 ipsec 7 1000 10 0:03:48:08 0
172.16.0.111 101 up biz-internet mpls 1.1.1.2 10.0.101.2 12406 ipsec 7 1000 10 0:23:14:16 1
172.16.0.102 102 up biz-internet mpls 1.1.1.2 10.0.102.2 12426 ipsec 7 1000 10 0:13:47:48 0
172.16.0.103 103 up biz-internet mpls 1.1.1.2 10.0.103.2 12366 ipsec 7 1000 10 0:12:48:23 0
on ipsec outbound connections destination IP will be of remote routers
R1-cEdge#show sdwan ipsec outbound-connections
SOURCE SOURCE DEST DEST REMOTE REMOTE INTEGRITY NEGOTIATED
IP PORT IP PORT SPI TUNNEL MTU TLOC ADDRESS TLOC COLOR USED KEY HASH ENCRYPTION ALGORITHM TC SPIs
----------------------------------------------------------------------------------------------------------------------------------------------------------------
1.1.1.2 12366 1.1.1.101 12386 285 1438 172.16.0.101 biz-internet ip-udp-esp *****346f AES-GCM-256 8
1.1.1.2 12366 1.1.1.102 12386 281 1438 172.16.0.102 biz-internet ip-udp-esp *****60d6 AES-GCM-256 8
1.1.1.2 12366 1.1.1.103 12426 286 1438 172.16.0.103 biz-internet ip-udp-esp *****d535 AES-GCM-256 8
1.1.1.2 12366 10.0.101.2 12406 266 1438 172.16.0.111 mpls ip-udp-esp *****bf3e AES-GCM-256 8
1.1.1.2 12366 10.0.102.2 12426 262 1438 172.16.0.102 mpls ip-udp-esp *****8f3f AES-GCM-256 8
1.1.1.2 12366 10.0.103.2 12366 266 1438 172.16.0.103 mpls ip-udp-esp *****863f AES-GCM-256 8on the ipsec inbound connections, source IP will be of the remote routers
R1-cEdge#show sdwan ipsec inbound-connections
SOURCE SOURCE DEST DEST REMOTE REMOTE LOCAL LOCAL NEGOTIATED
IP PORT IP PORT TLOC ADDRESS TLOC COLOR TLOC ADDRESS TLOC COLOR ENCRYPTION ALGORITHM TC SPIs
--------------------------------------------------------------------------------------------------------------------------------------------------
1.1.1.101 12386 1.1.1.2 12366 172.16.0.101 biz-internet 172.16.0.11 biz-internet AES-GCM-256 8
10.0.102.2 12426 1.1.1.2 12366 172.16.0.102 mpls 172.16.0.11 biz-internet AES-GCM-256 8
1.1.1.102 12386 1.1.1.2 12366 172.16.0.102 biz-internet 172.16.0.11 biz-internet AES-GCM-256 8
10.0.103.2 12366 1.1.1.2 12366 172.16.0.103 mpls 172.16.0.11 biz-internet AES-GCM-256 8
1.1.1.103 12426 1.1.1.2 12366 172.16.0.103 biz-internet 172.16.0.11 biz-internet AES-GCM-256 8
10.0.101.2 12406 1.1.1.2 12366 172.16.0.111 mpls 172.16.0.11 biz-internet AES-GCM-256 more…
coming soon
Leave a Reply
