Keeping it tunnel all

Recommended settings for MTU and DF bit

More restrictive settings

Recommended settings for SSL rekeying

Restrictive settings for contractor

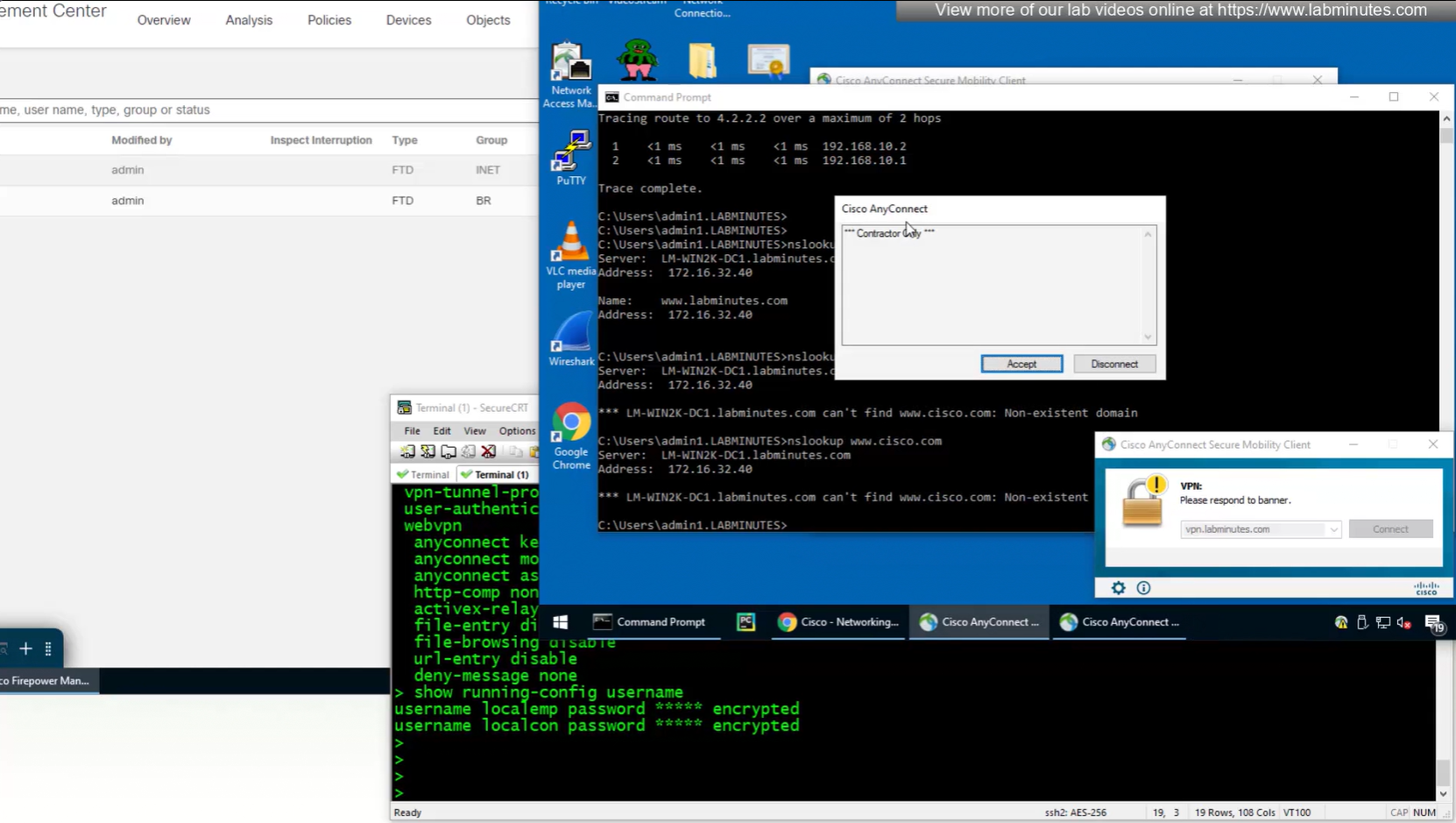

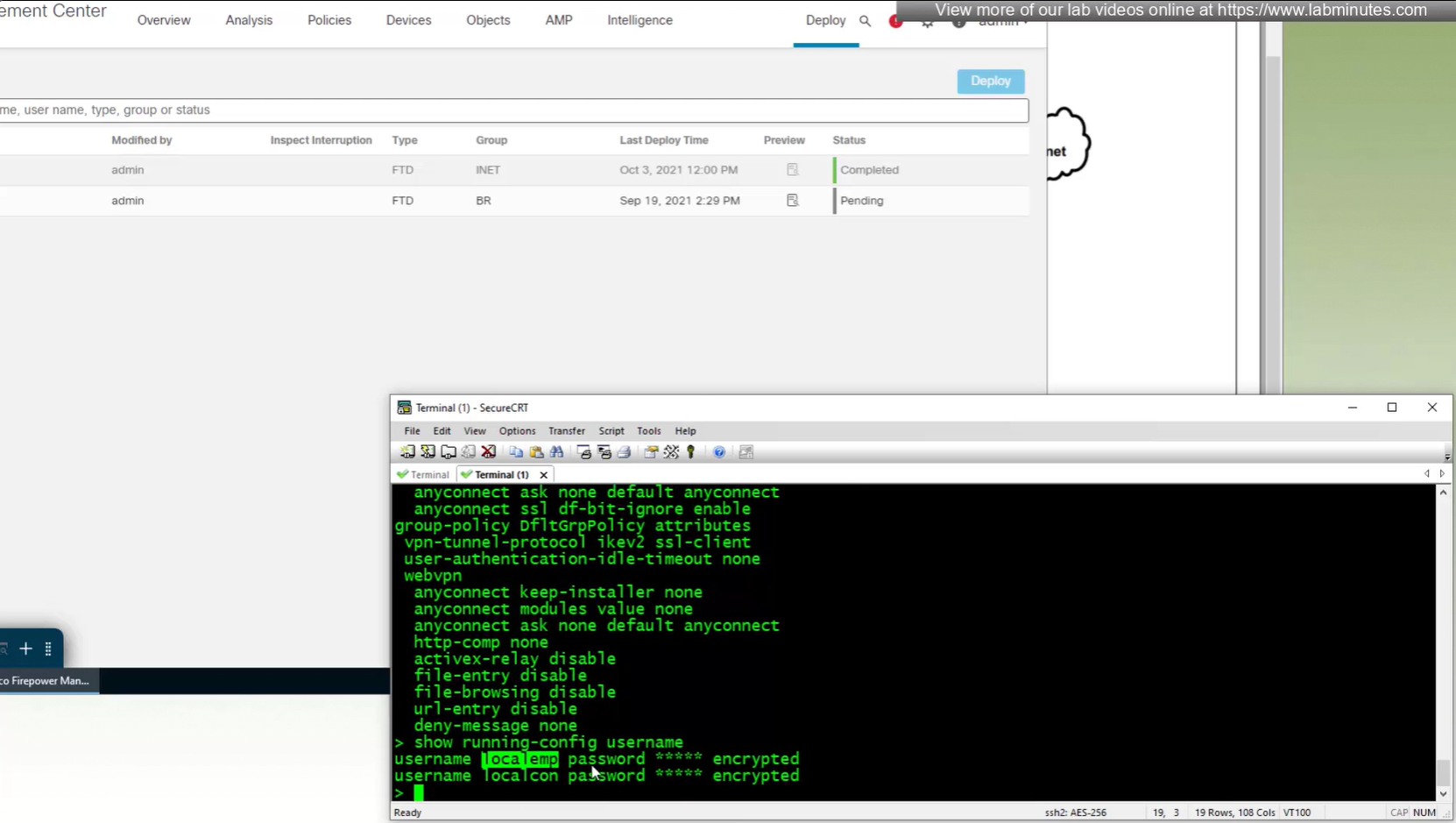

show run username

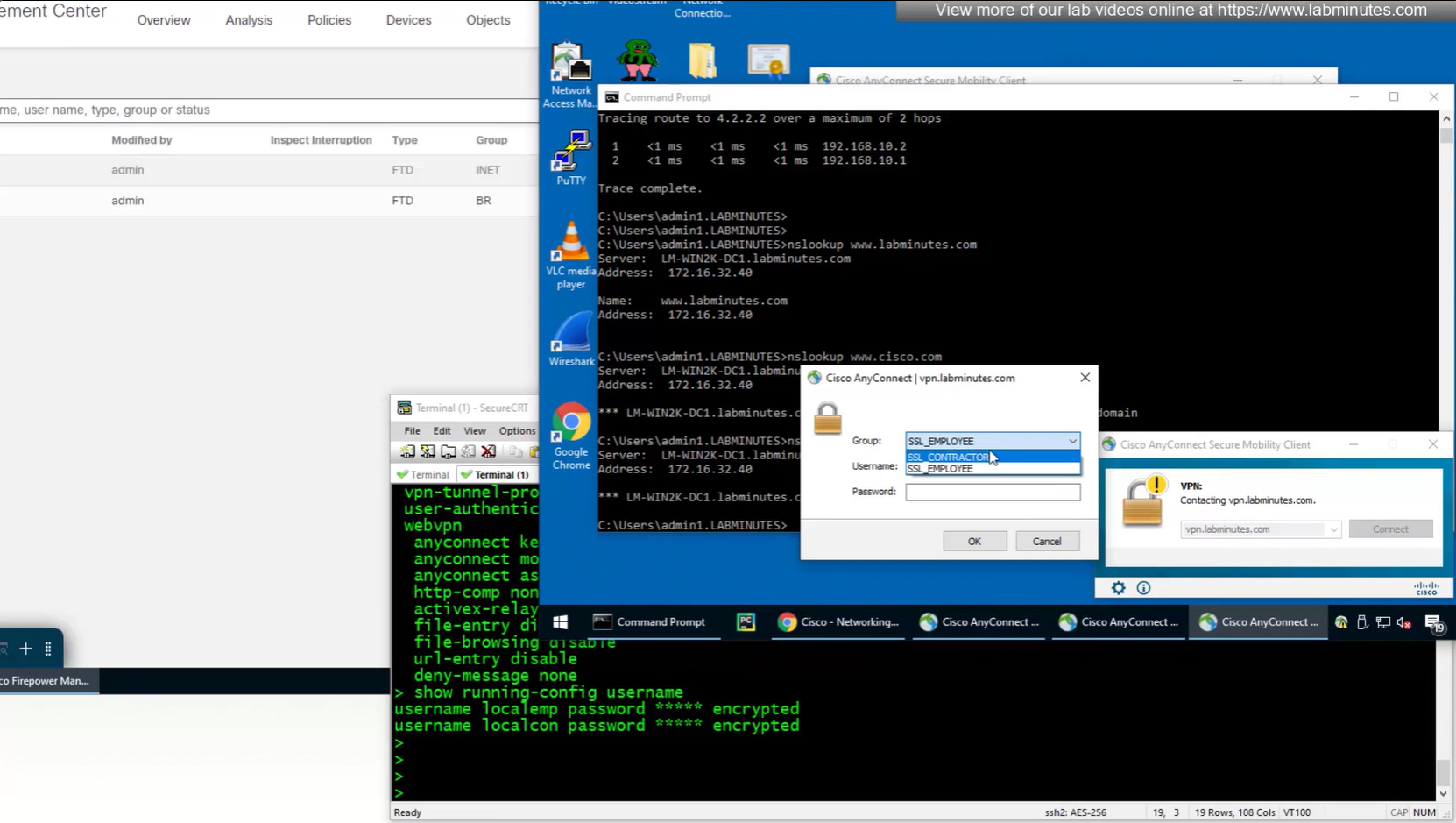

Only reason different tunnel group or connection profile was selected, because we selected from dropdown, a limitation with local account is because realm is local, a contractor can select Employee connection profile from drop down and then login to that connection profile with contractor username and password which is not good and in firepower unlike ASA we cannot lock down local accounts to a connection profile, that is why local accounts should not be used if there are multiple connection profiles.

In this video our main focus is on connection profiles and what options we can configure

Firepower also has the ability to get IP address from DHCP server rather than the IP address pools but we will talk about that later

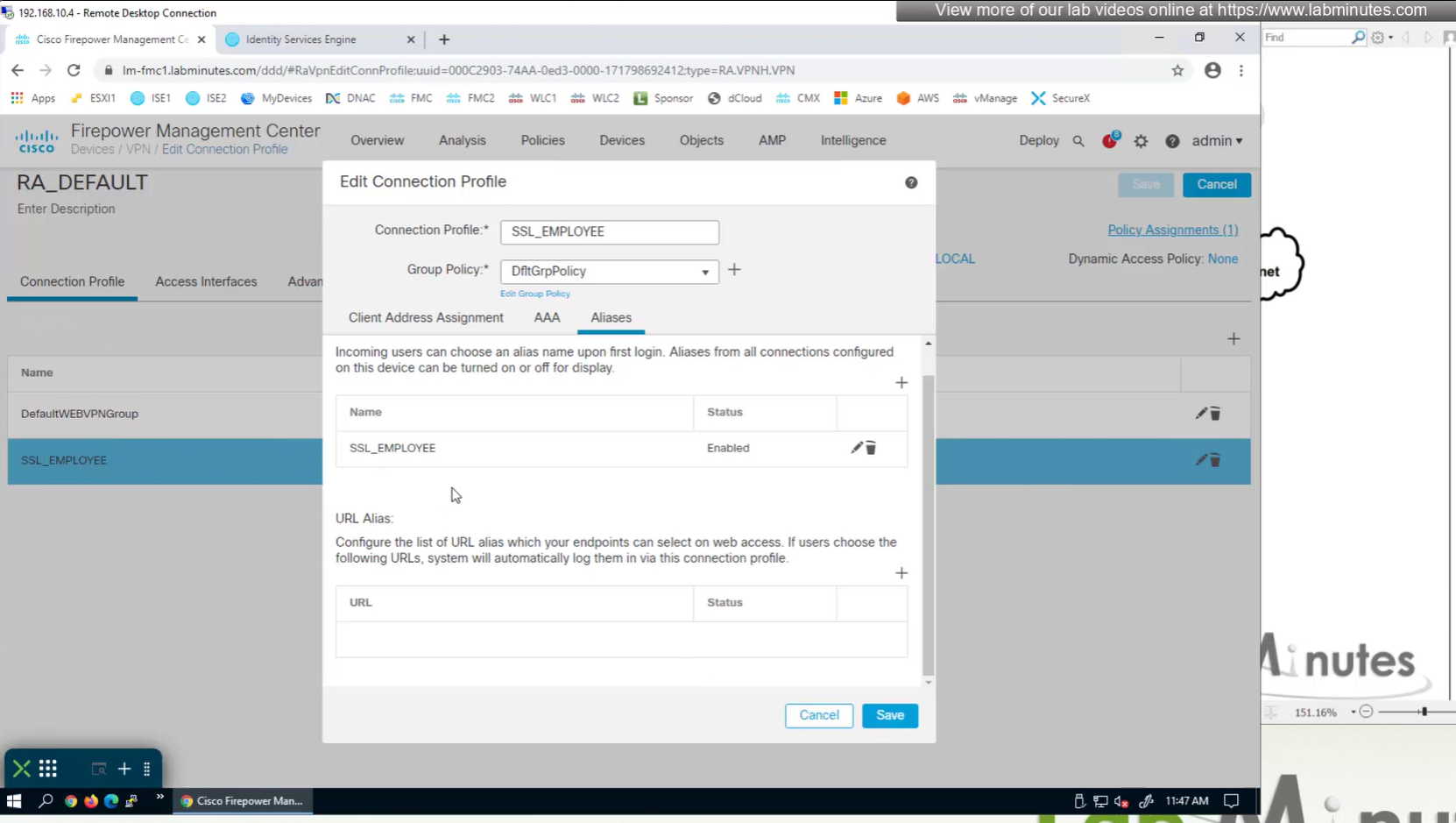

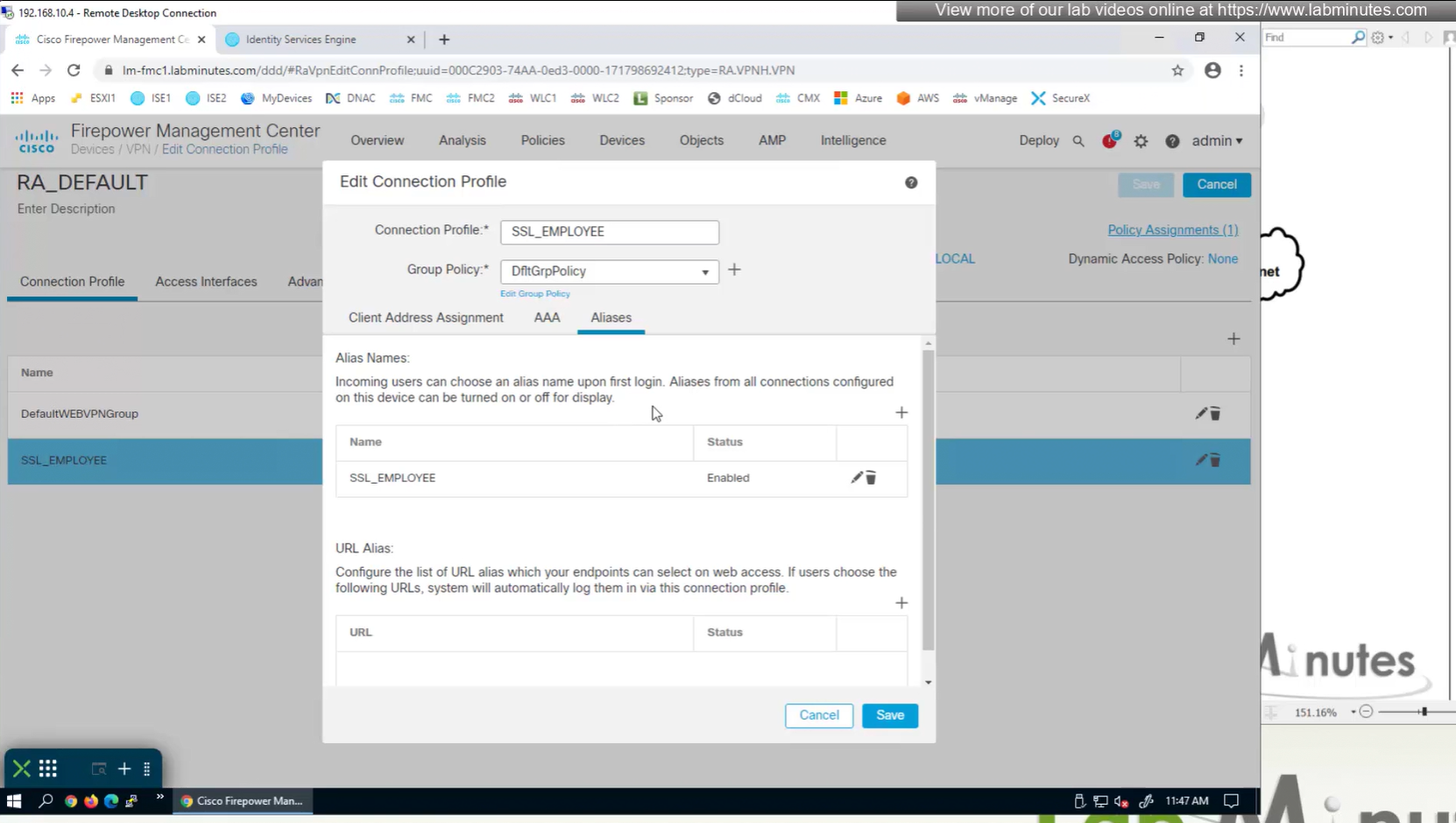

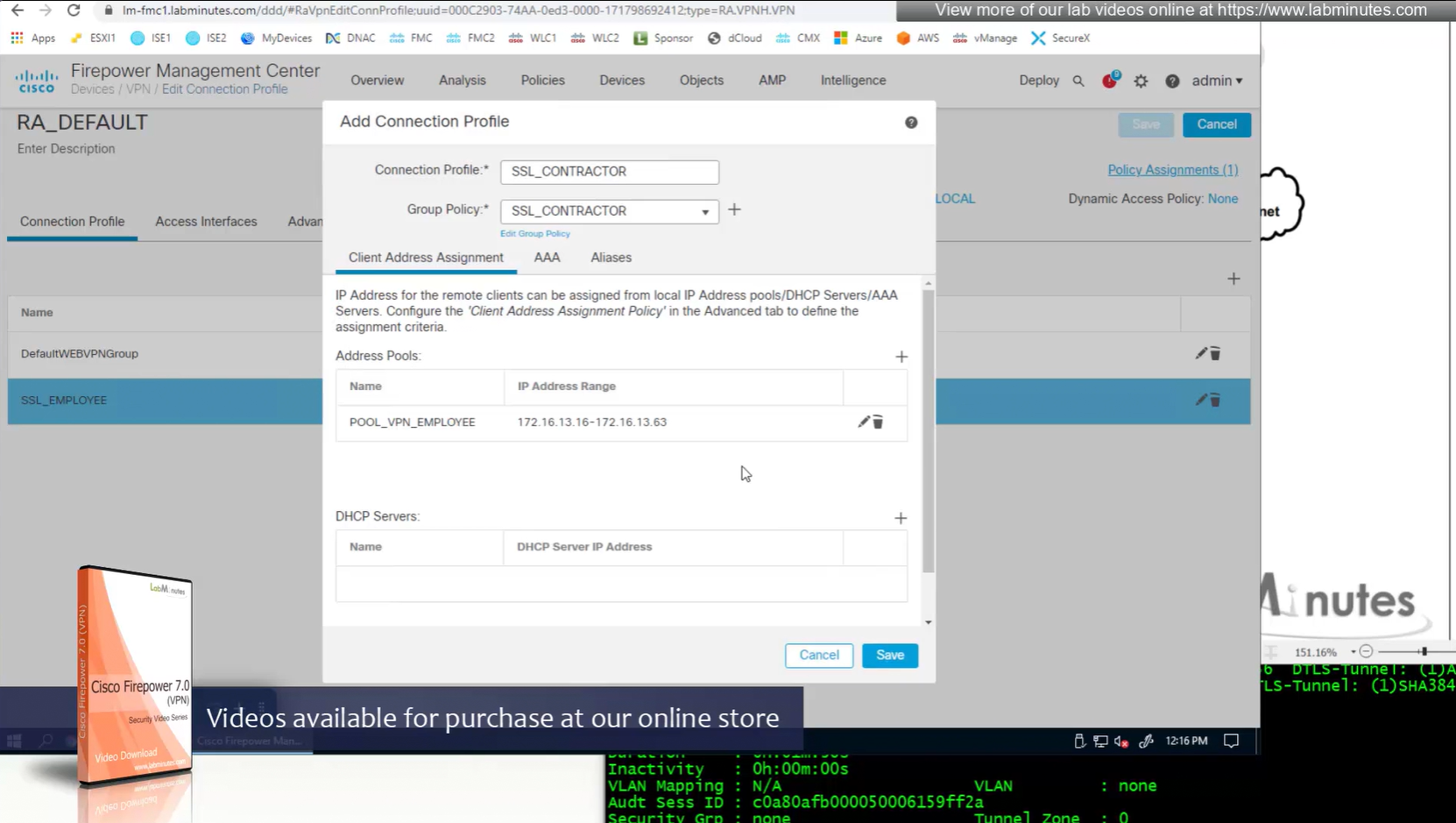

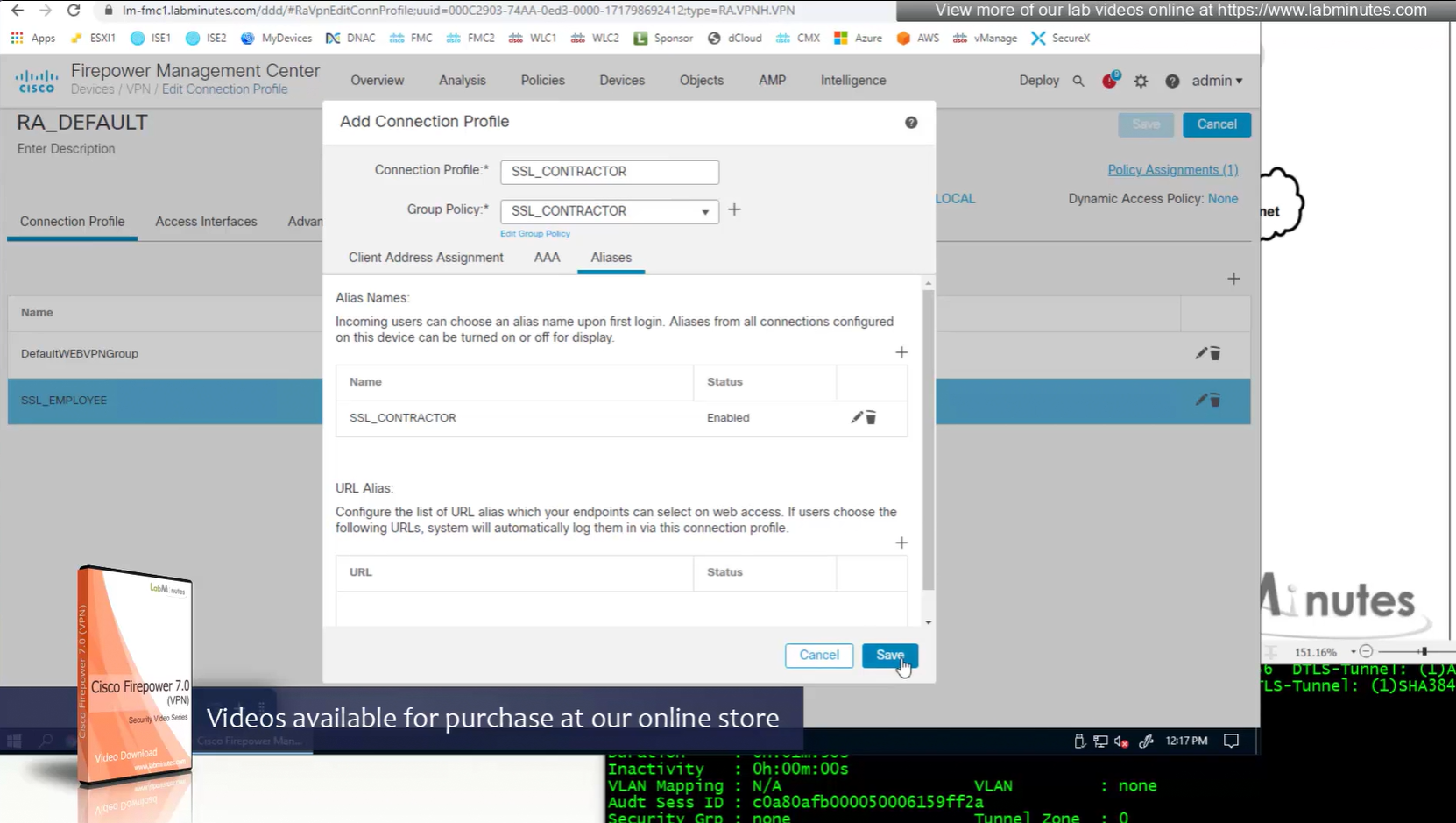

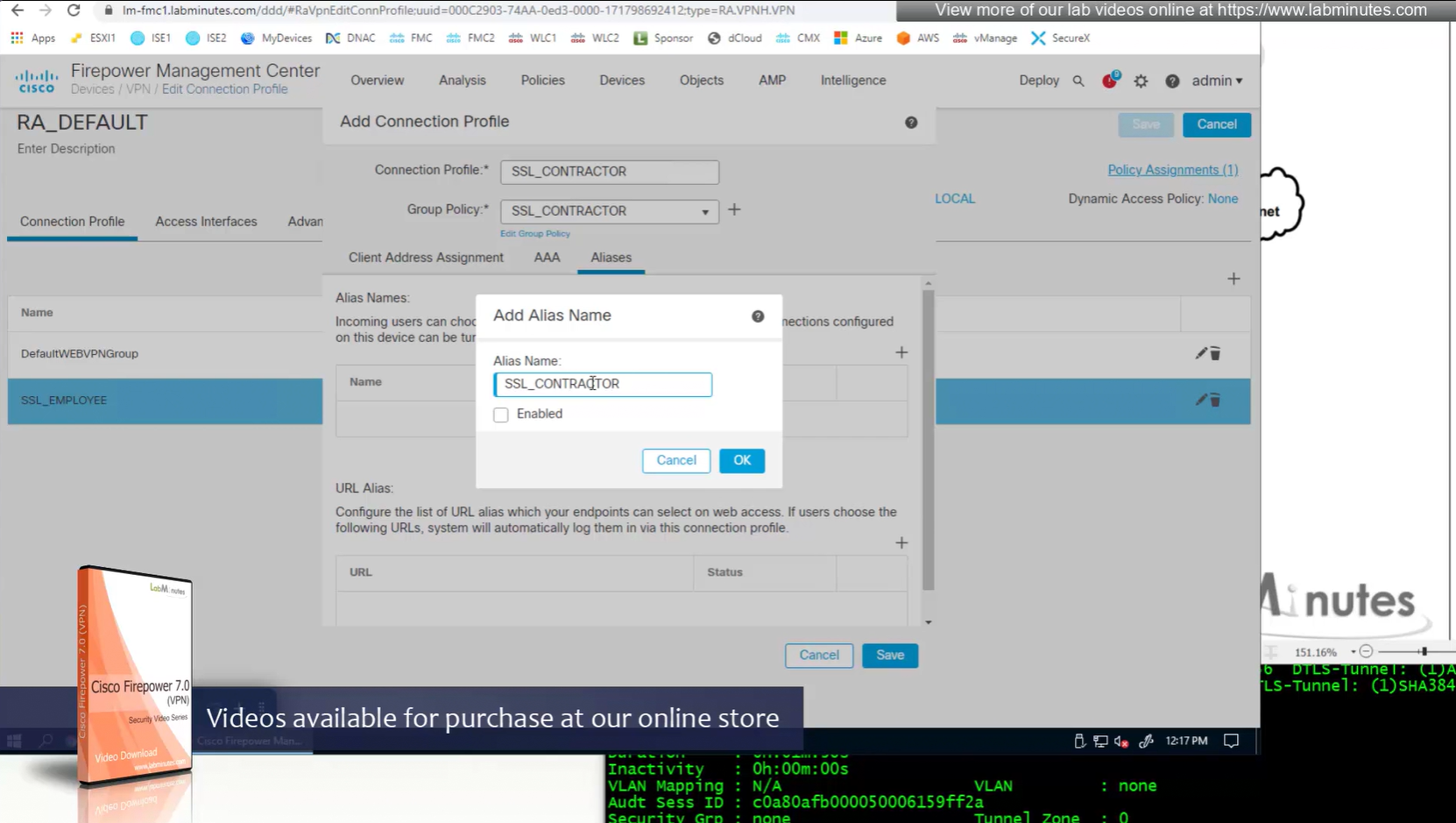

Aliases is where we can configured Alias for “this” connection profile or tunnel group that users can select and as we can SSL_EMPLOYEE is configured which was in drop down also

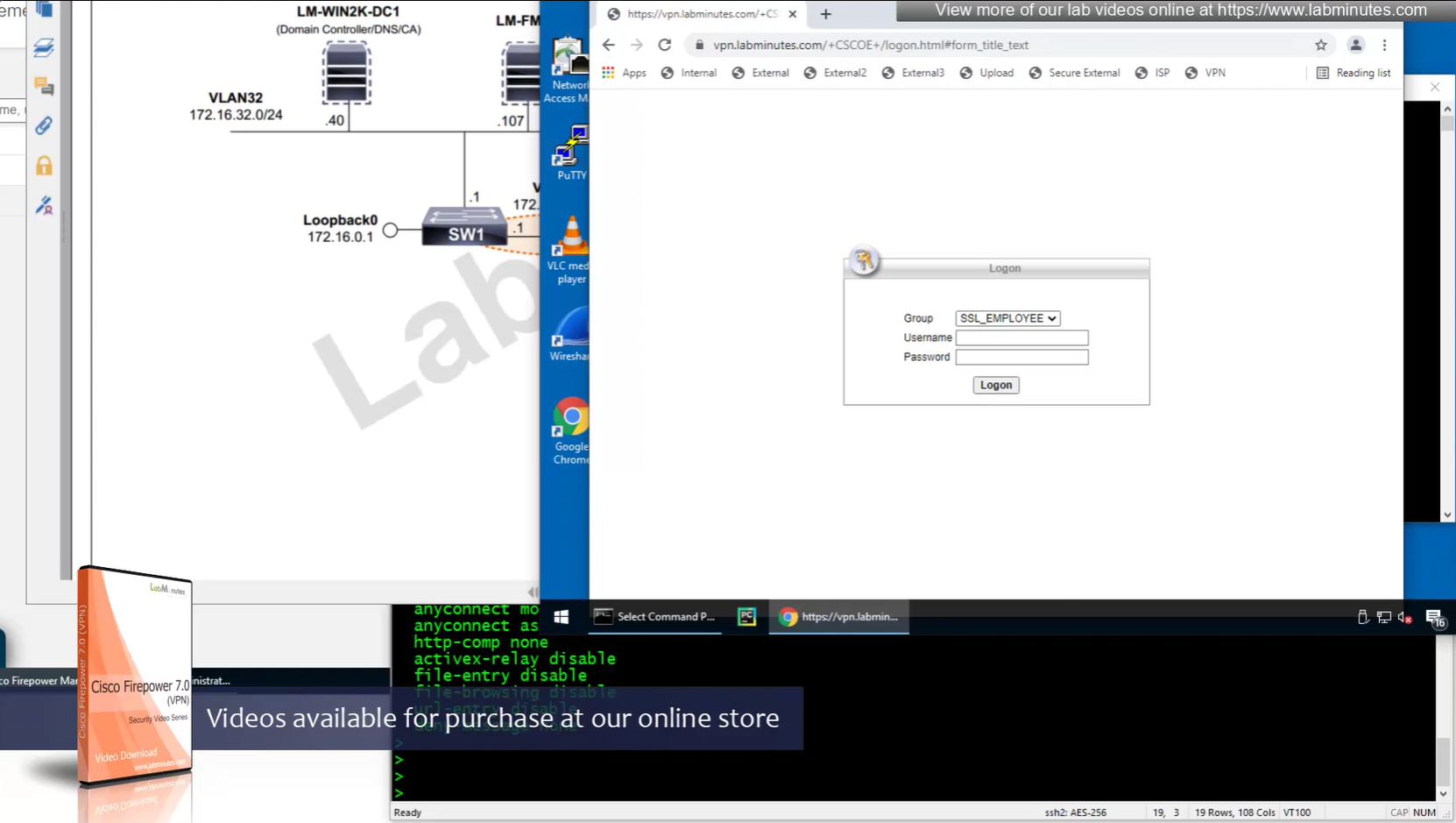

If you dont want the user to go through the drop, you can configure the URL Alias and give that to user to enter in anyconnect and connect to it

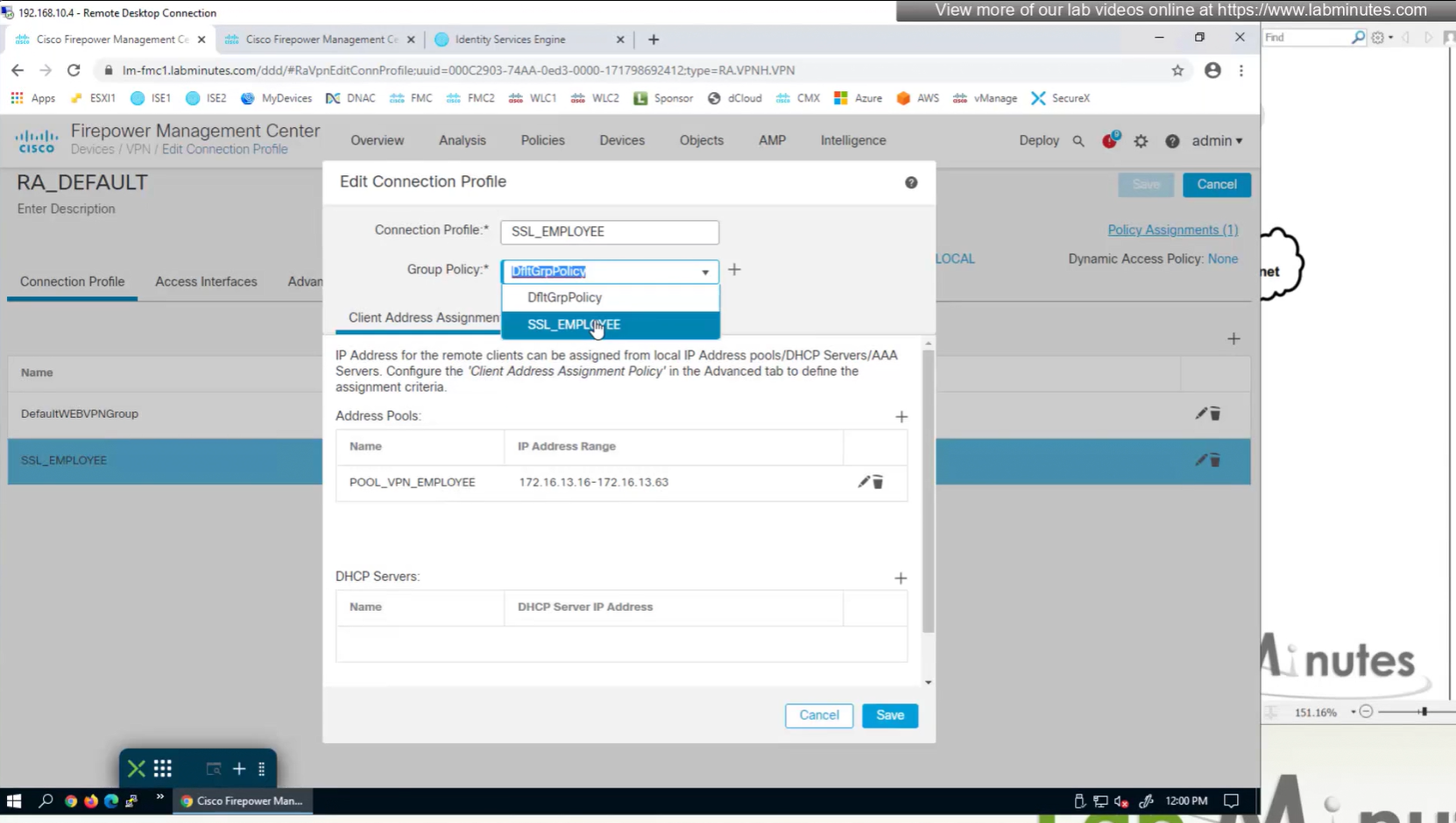

group policies are actually configured in objects , like most things

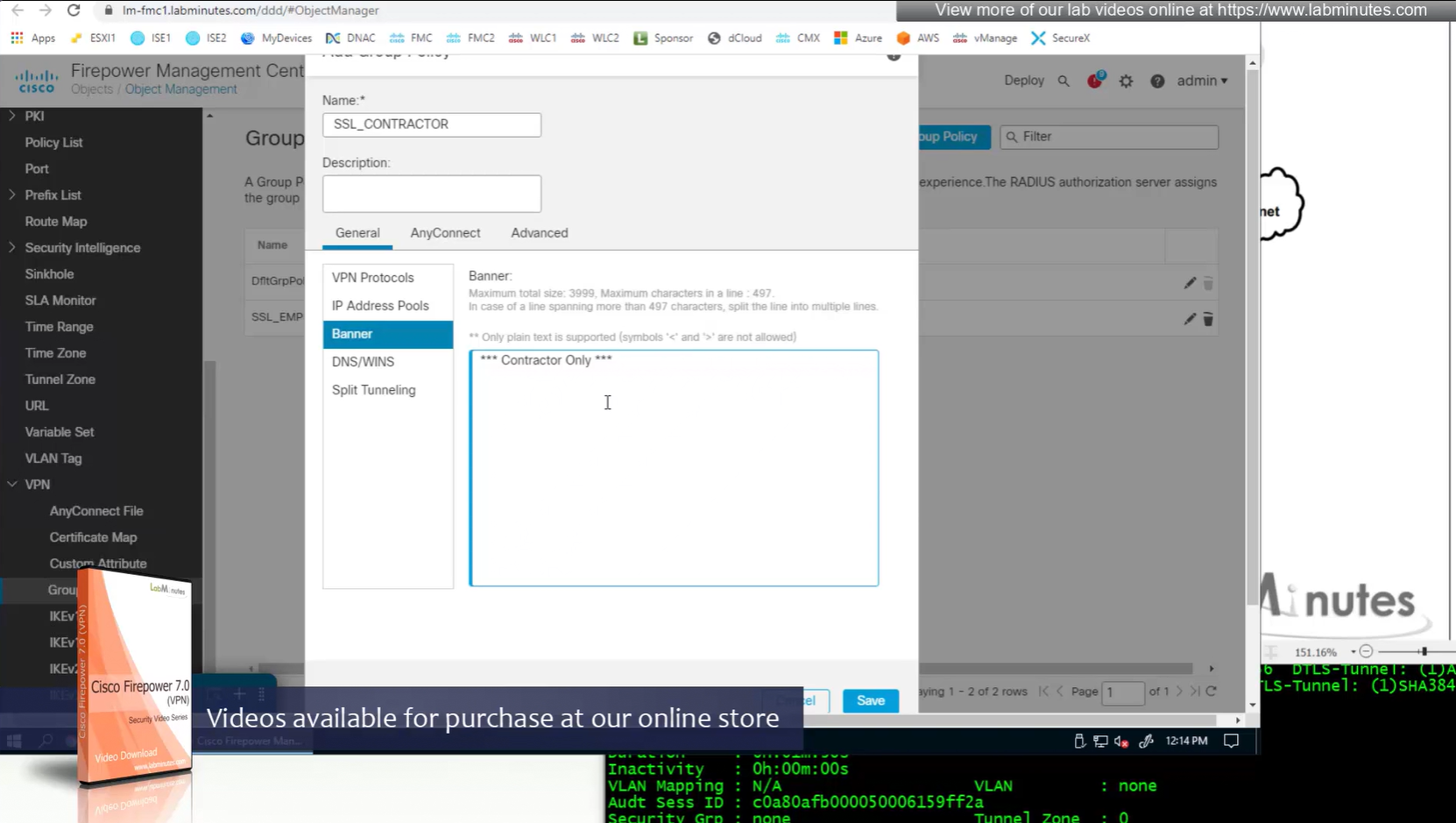

If you configure group policy, and leave options empty they will be reflected as ‘none’ so we need to configure parameters in group policy as much as possible

If you dont want to remove IPSec from OUTSIDE interface and only remove it for some remote connections then it can be done using group policy on a tunnel group

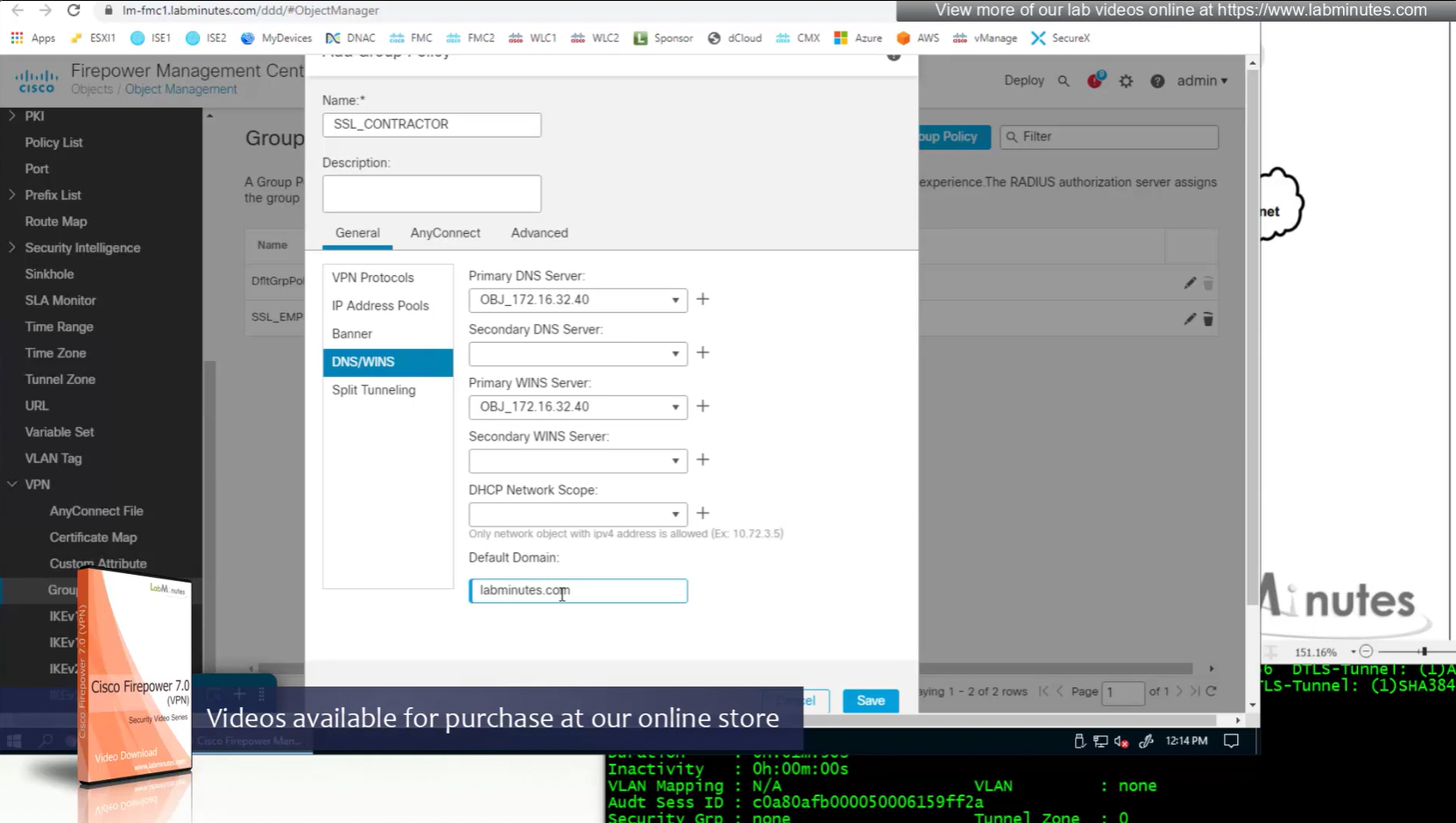

Split DNS allows you to specify which DNS domains you want to send to your corporate DNS (that was defined earlier in DNS section) and which DNS domains you want to send to public or local DNS defined in your client’s adapter

ipconfig /all DNS suffix is configured here as Domain List

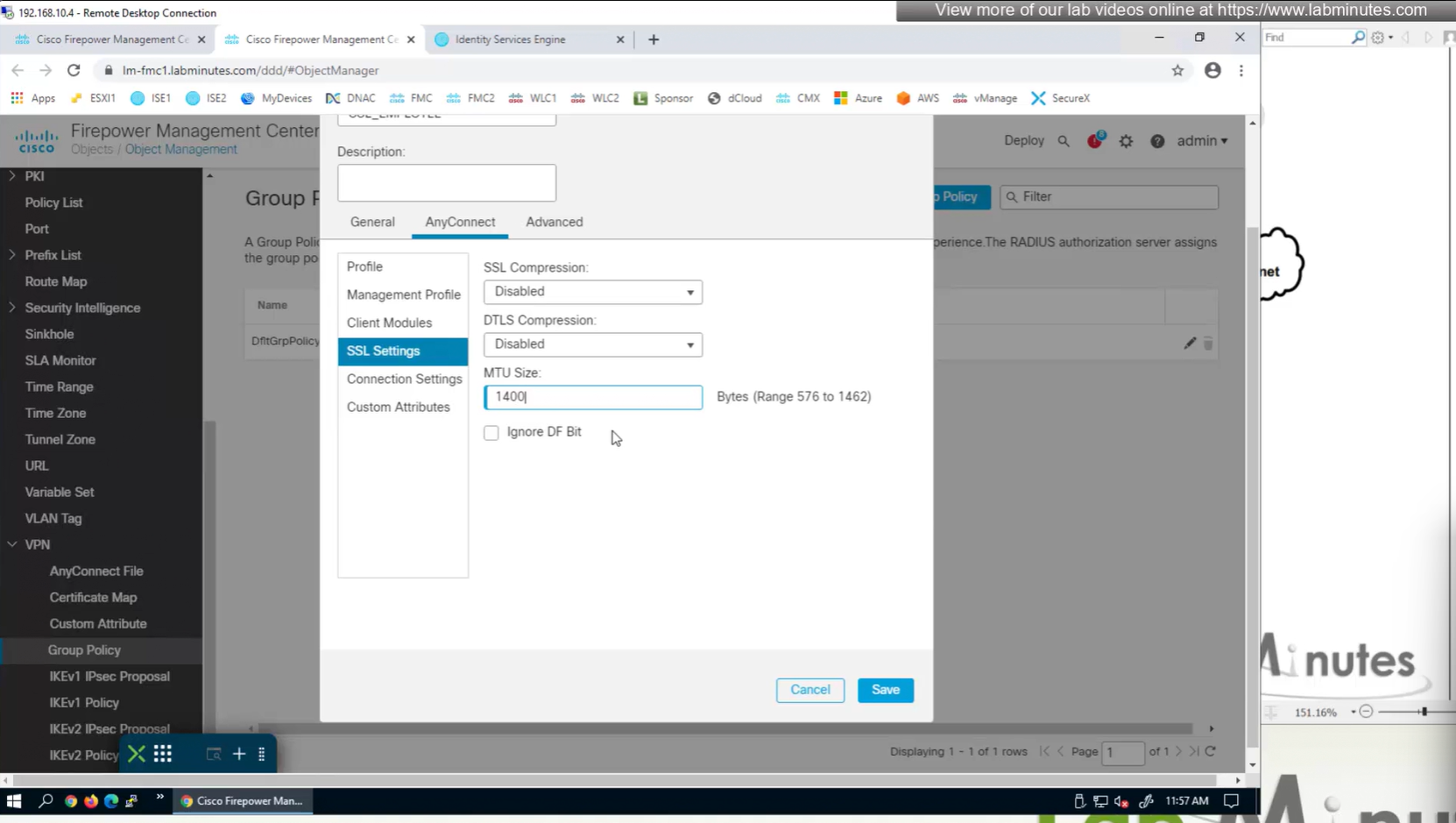

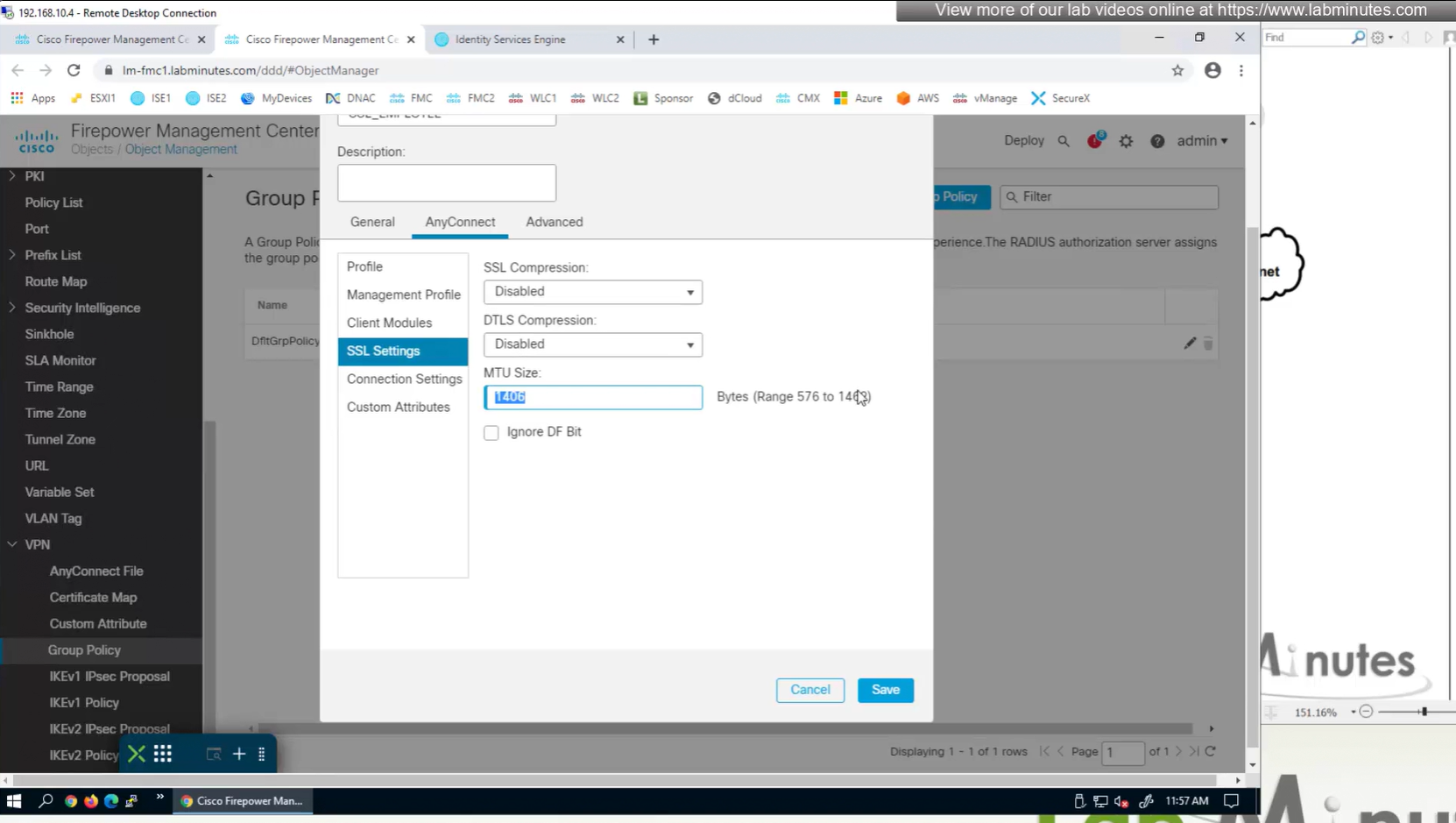

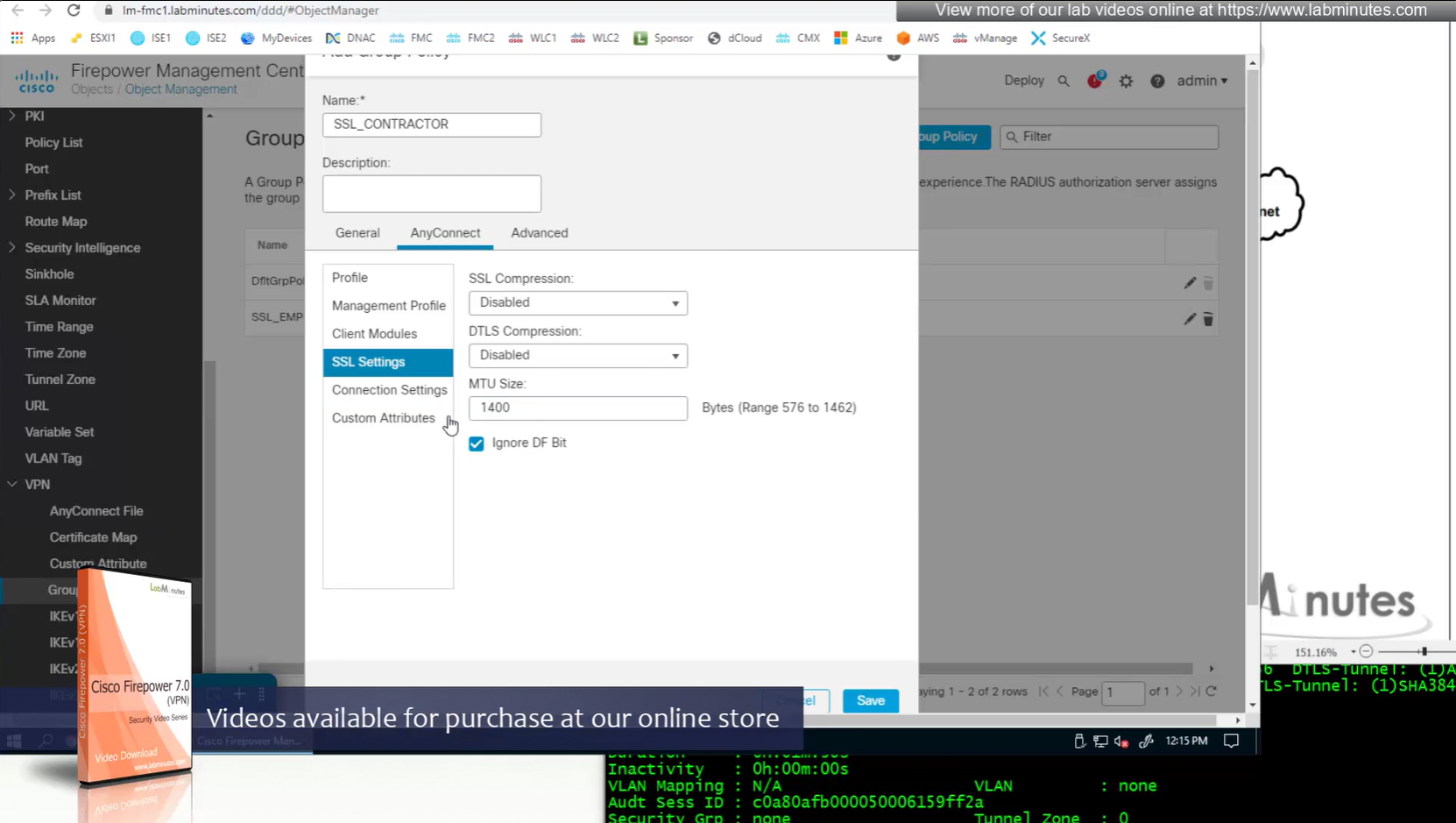

MTU can be adjusted and recommended to be 1400
and Ignore DF bit means, allow fragmented VPN traffic
It is recommended by Cisco to have “ticked”

Under AnyConnect section we will look at Profile , Management Profile and Client Modules later

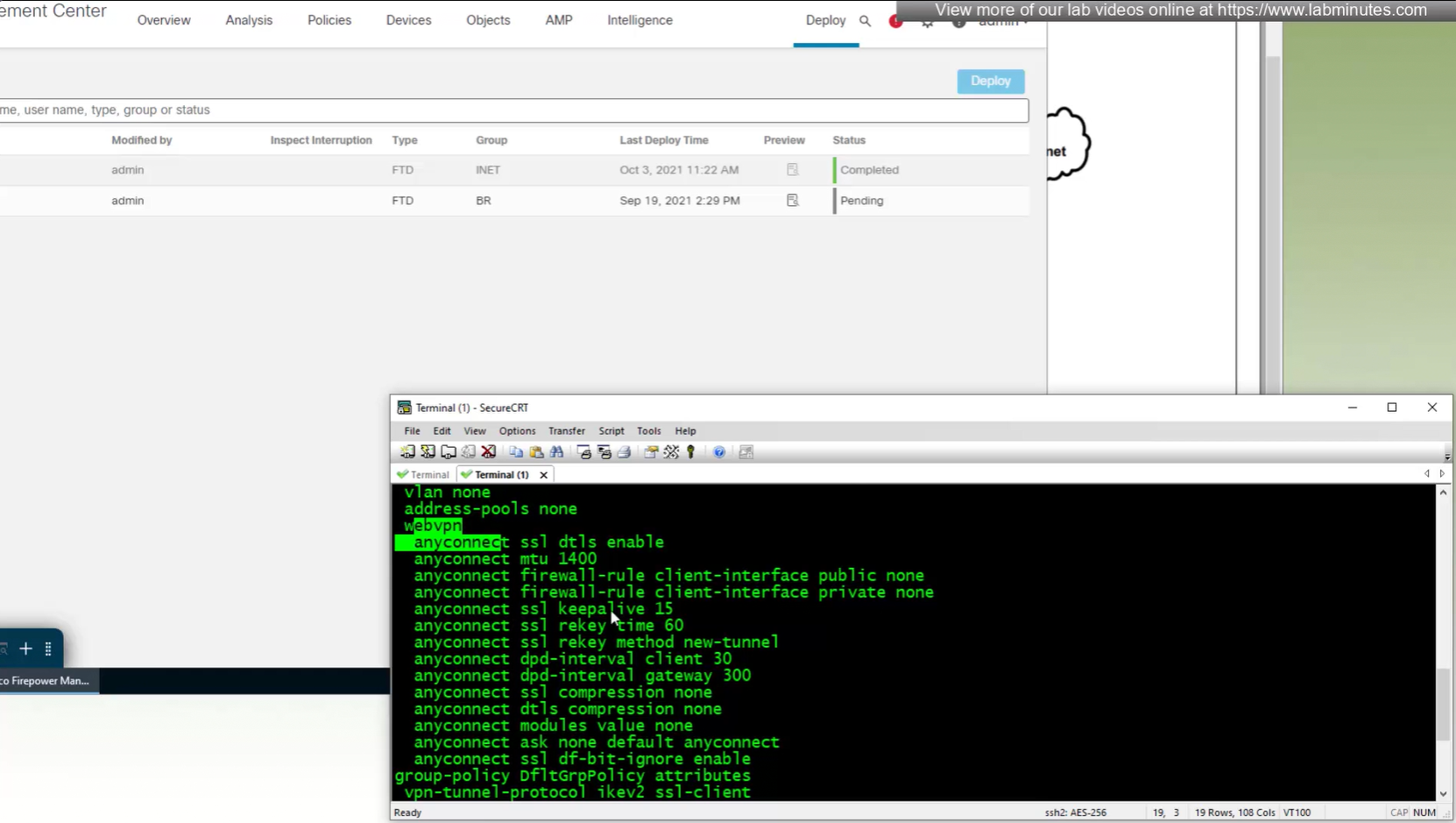

There is a keepalive between anyconnect client and gateway – default 20 seconds

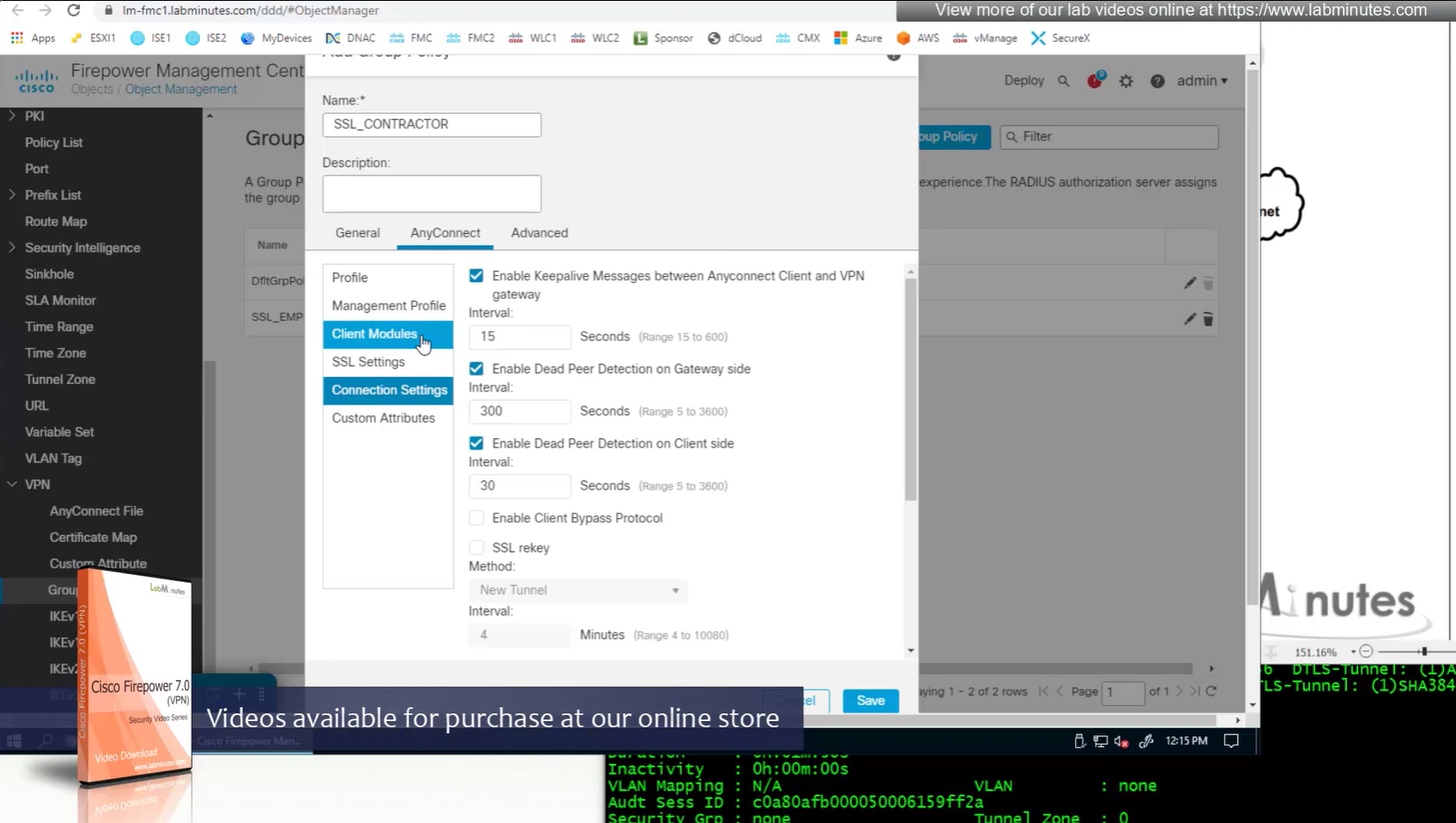

Enable Dead Peer detection initiated from gateway – default every 30 seconds – best practice is to increase this from 30 to 90 as gateway might be burdened as number of clients go up

Enable Dead Peer detection initiated from client – default every 30 seconds

SSL rekey using the same tunnel
Interval change it to 60 minutes from 4 minutes default

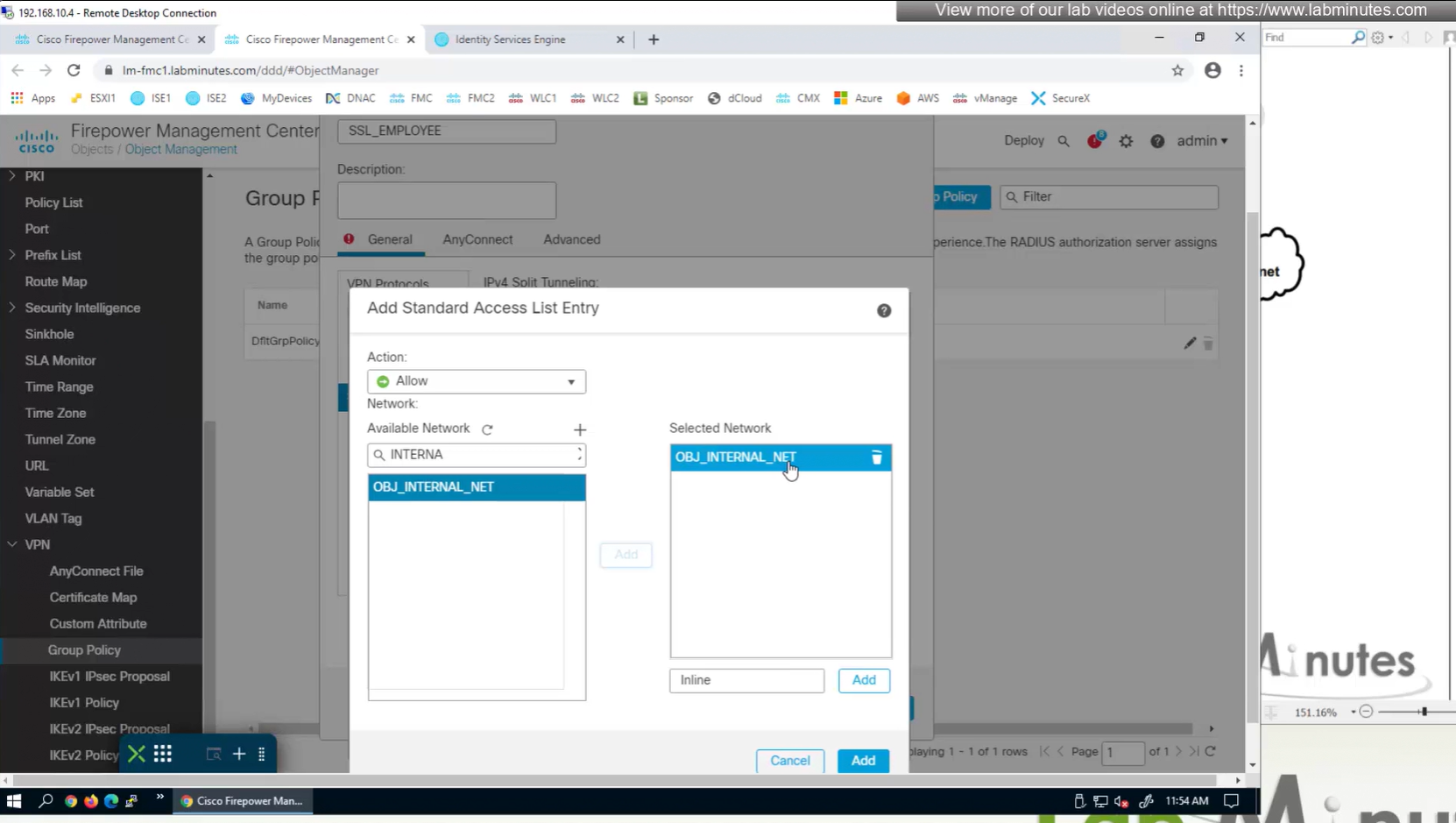

Traffic filter to block certain traffic on the VPN side between client and gateway OUTSIDE interface
requires extended ACL

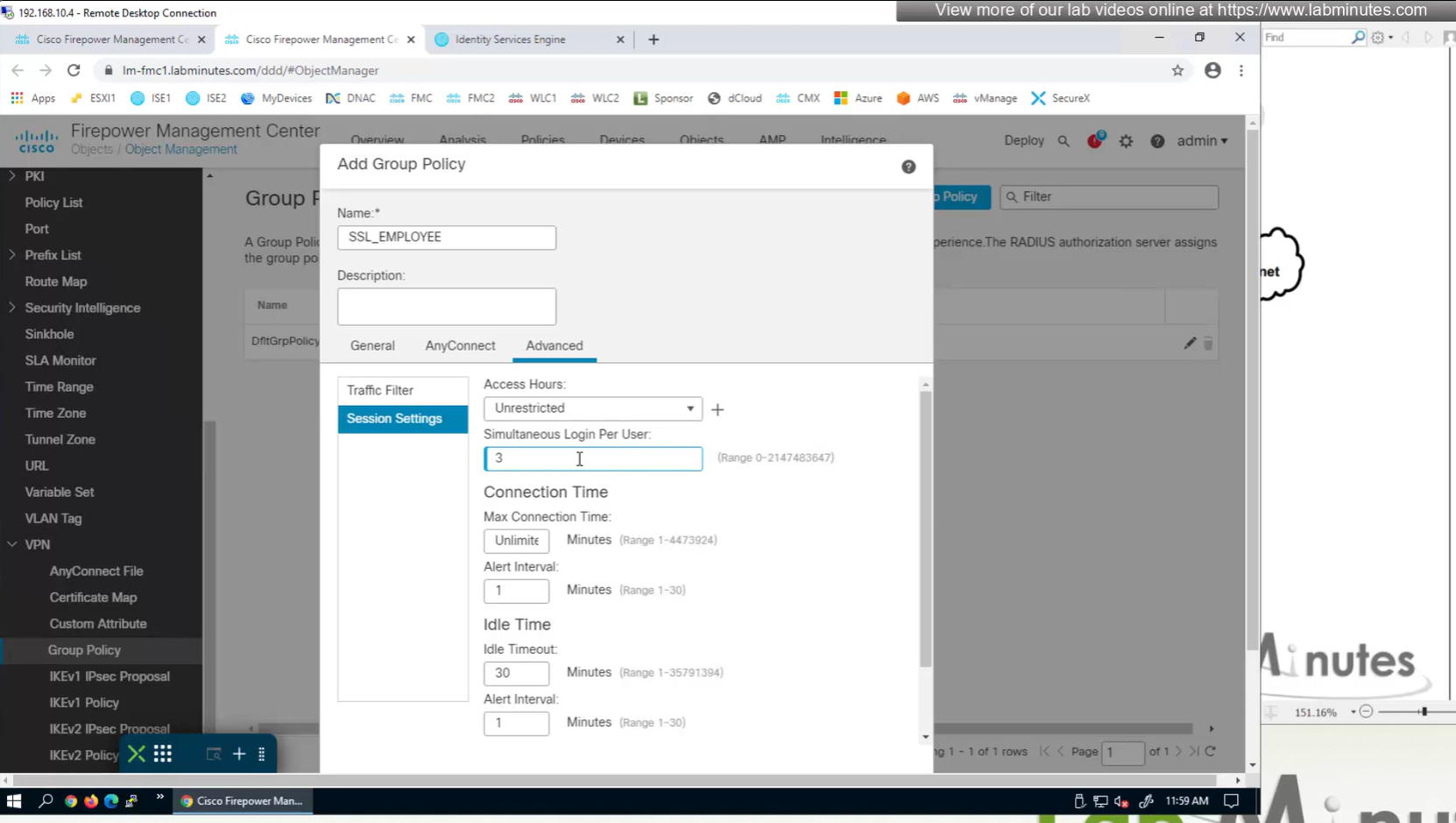

Limit simultaneous login per user – default is 3

Maximum connection time – default is unlimited

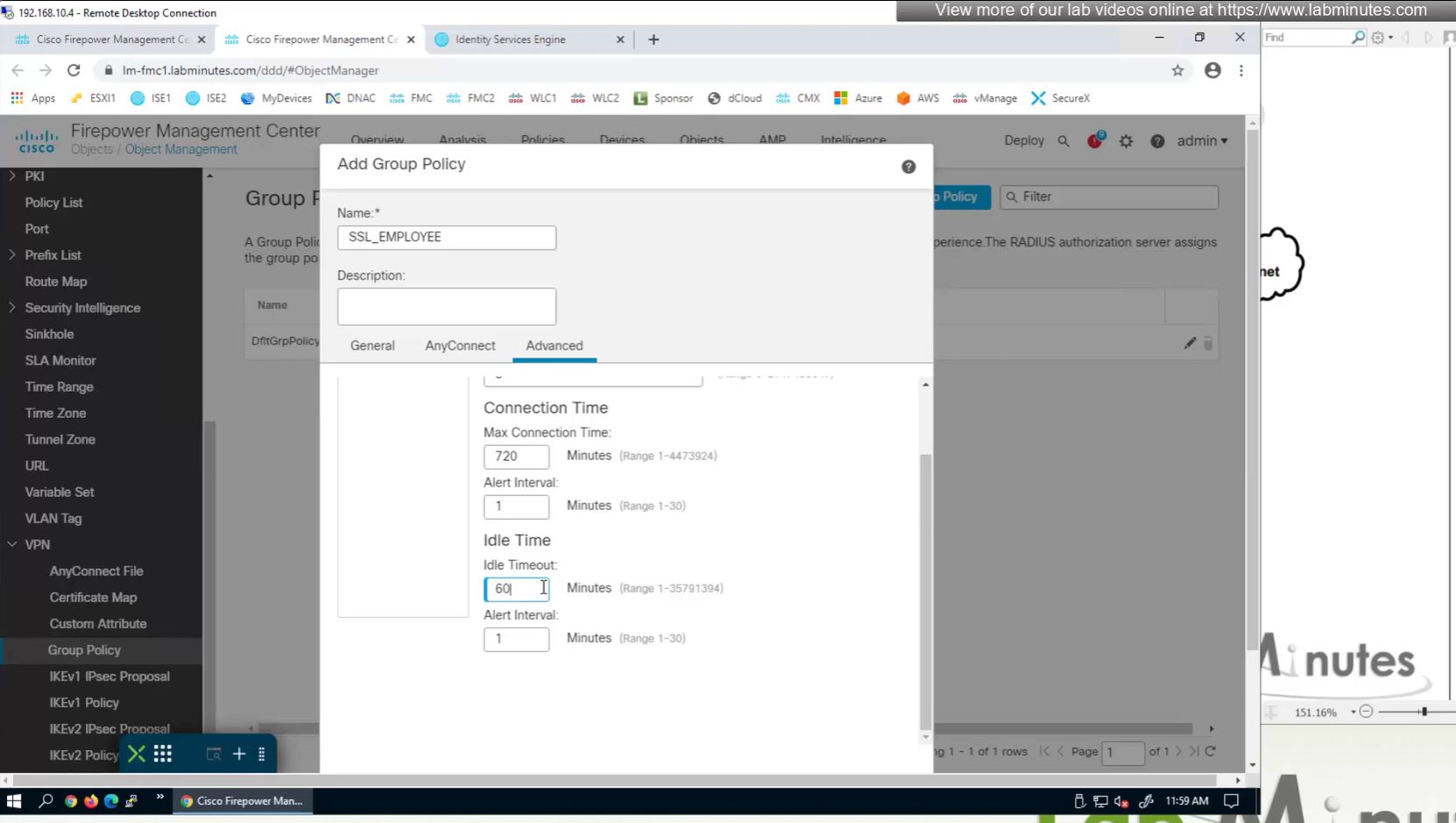

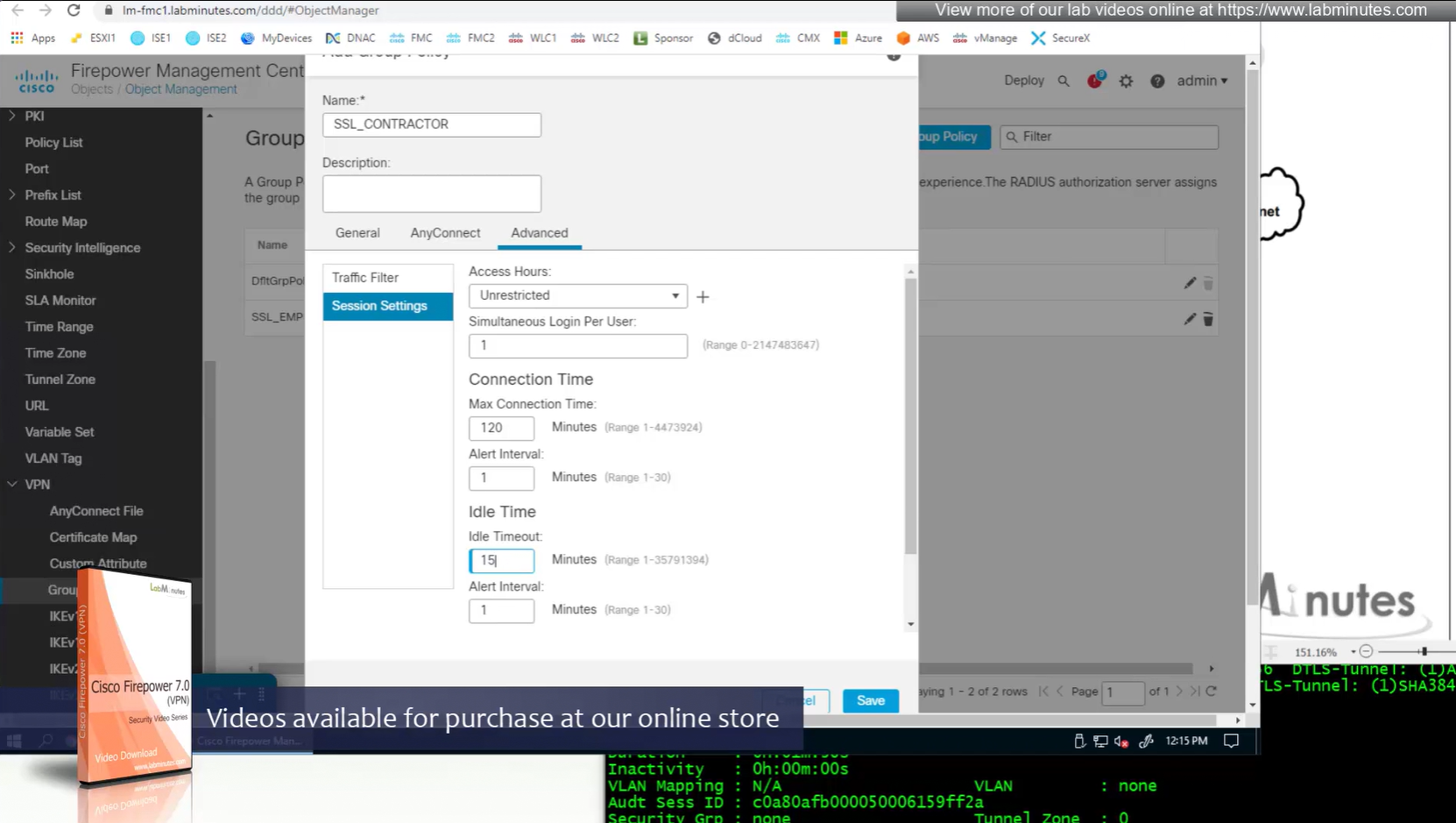

Idle time – if machine stays idle for that time then anyconnect VPN will be disconnected

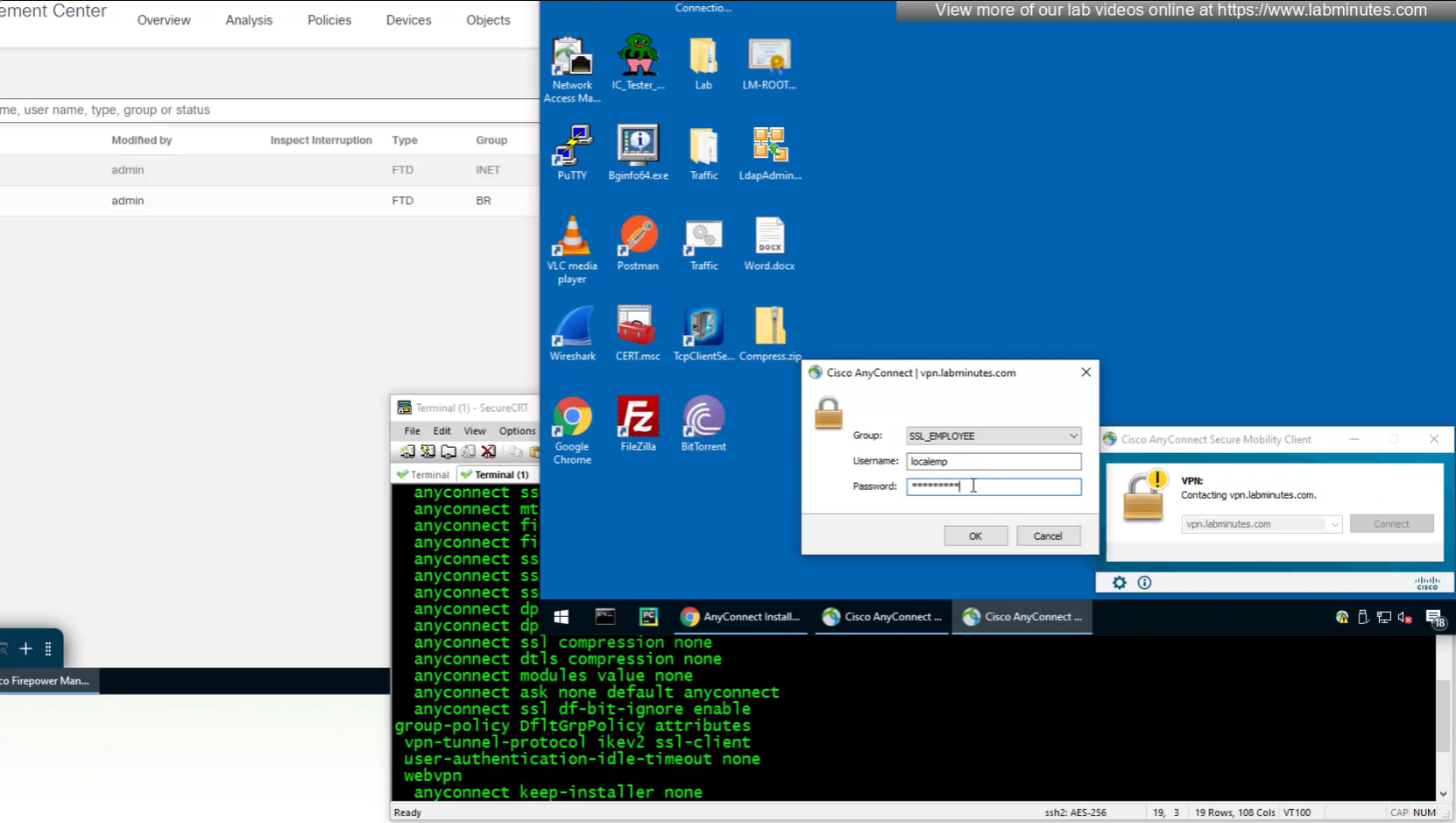

new group policy is showing on tunnel group in CLI

All anyconnect options from group policy

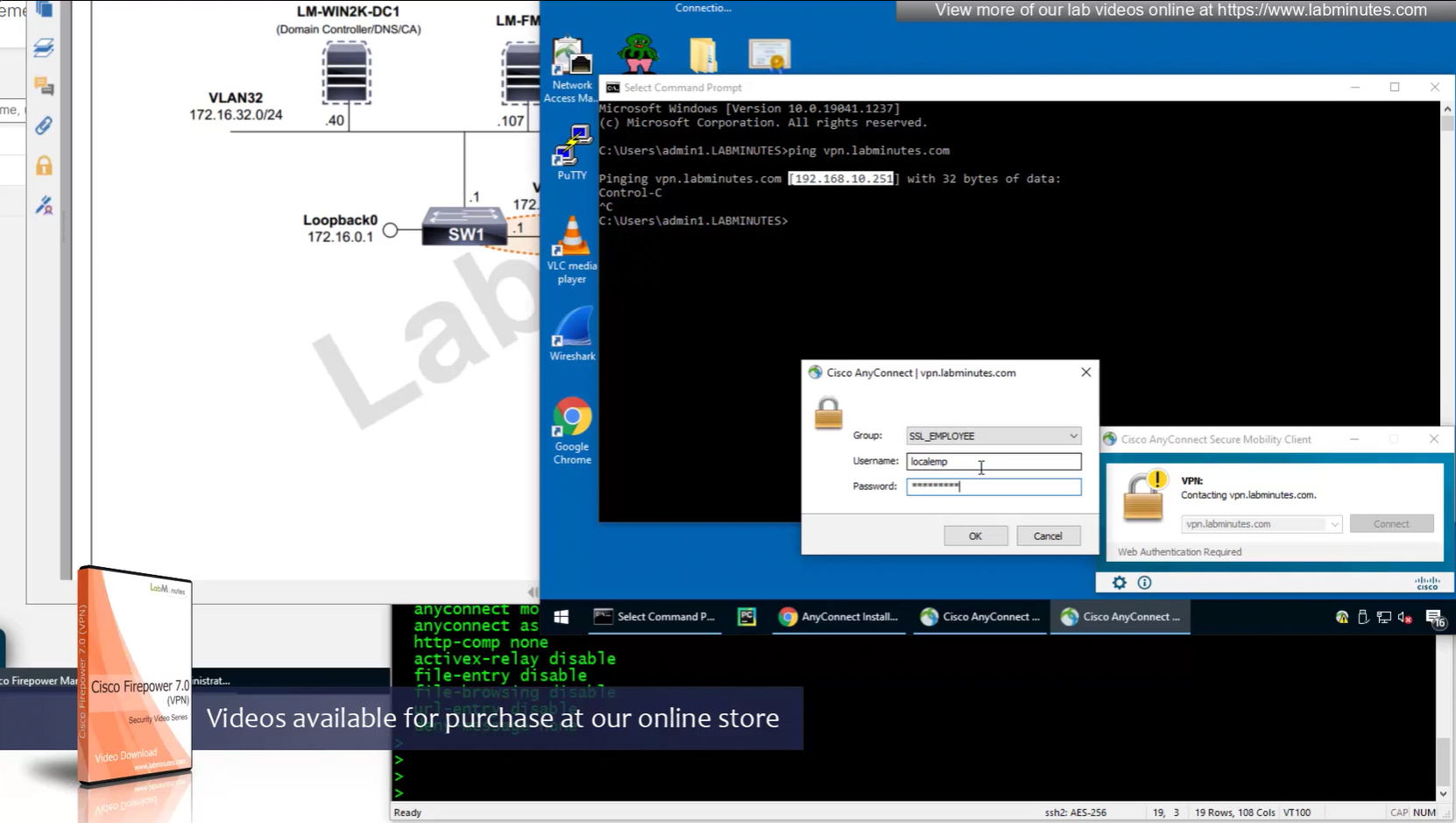

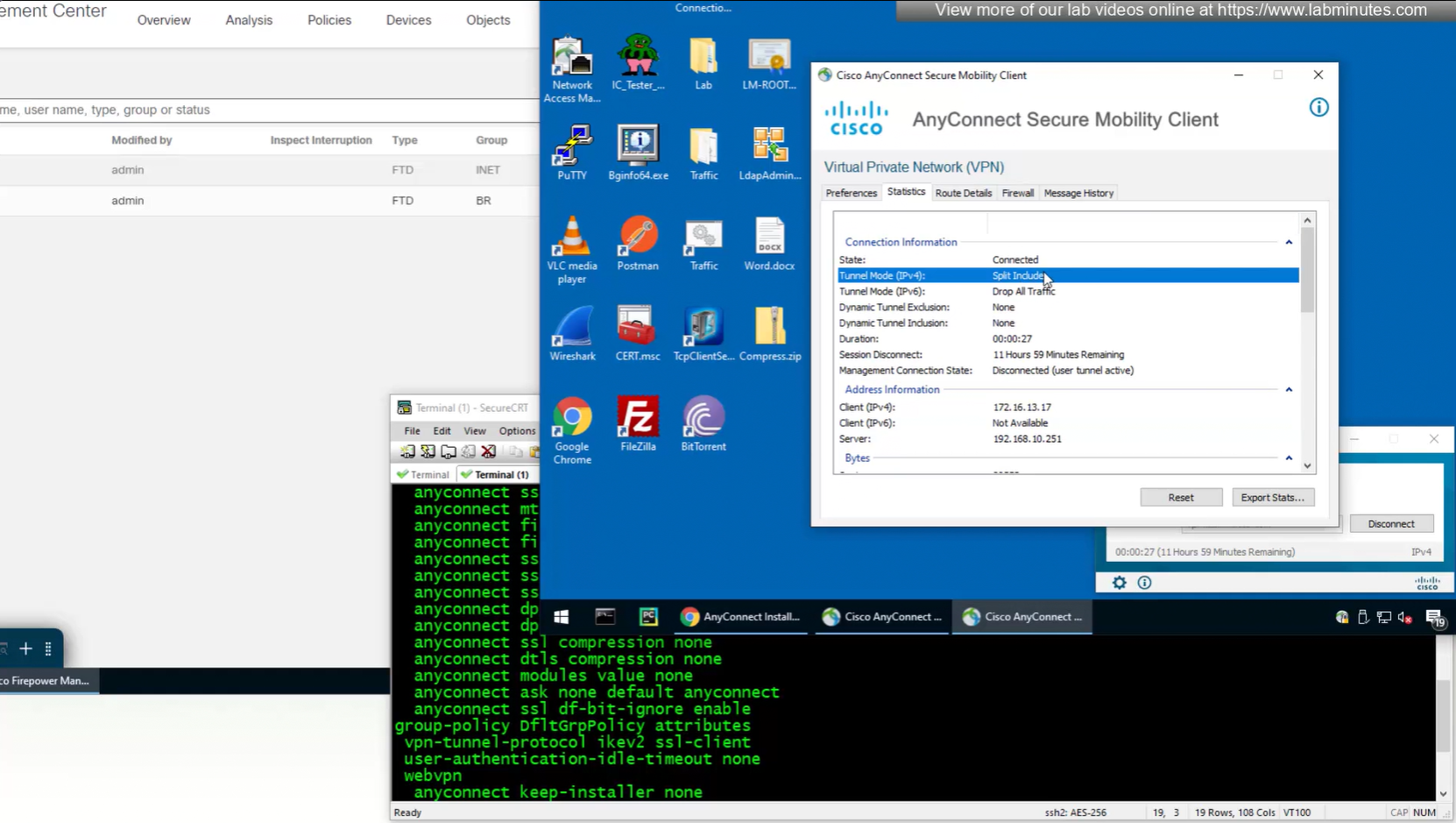

In lower corner of anyconnect client it says that 11 hours and 59 minutes left

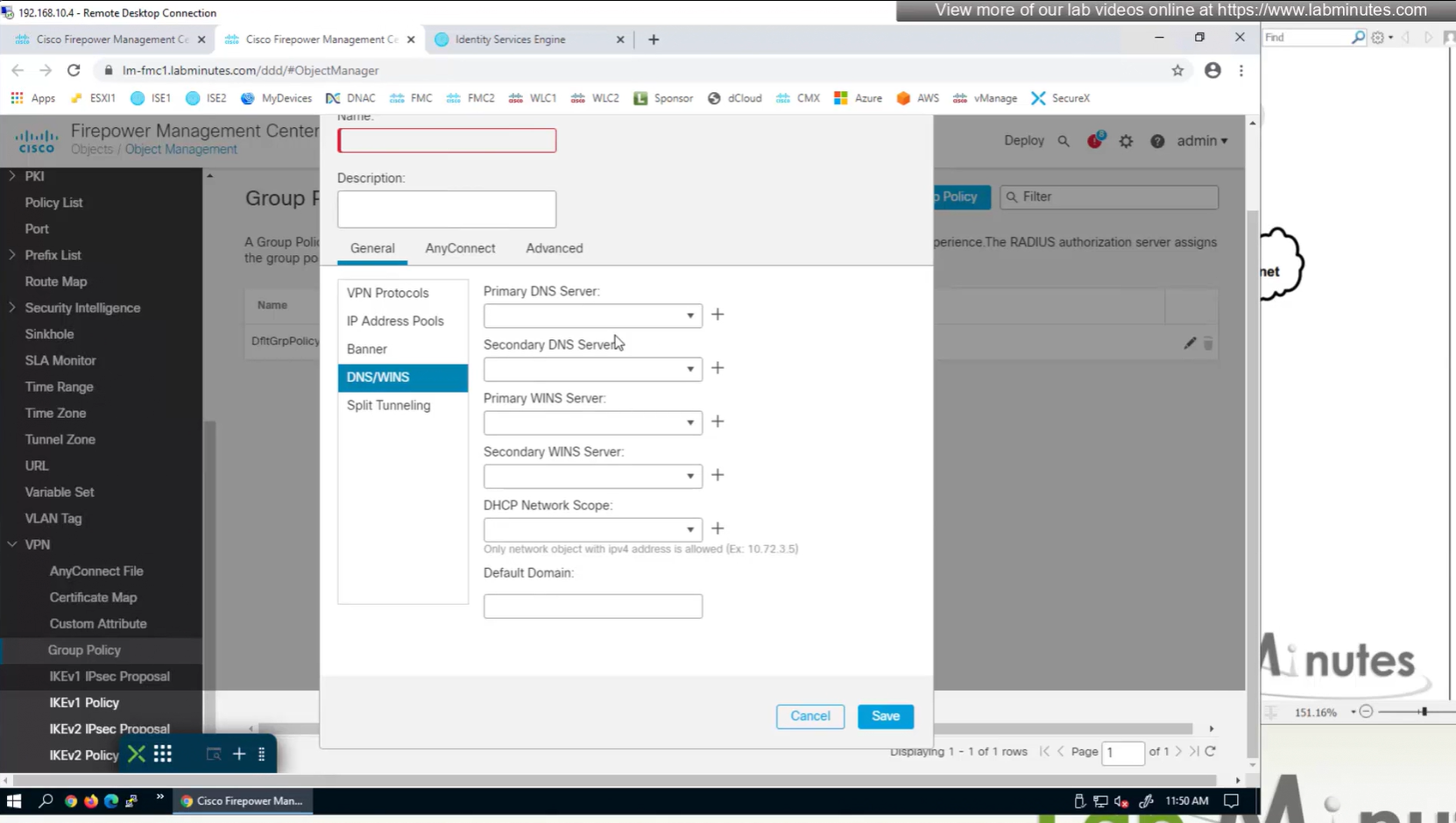

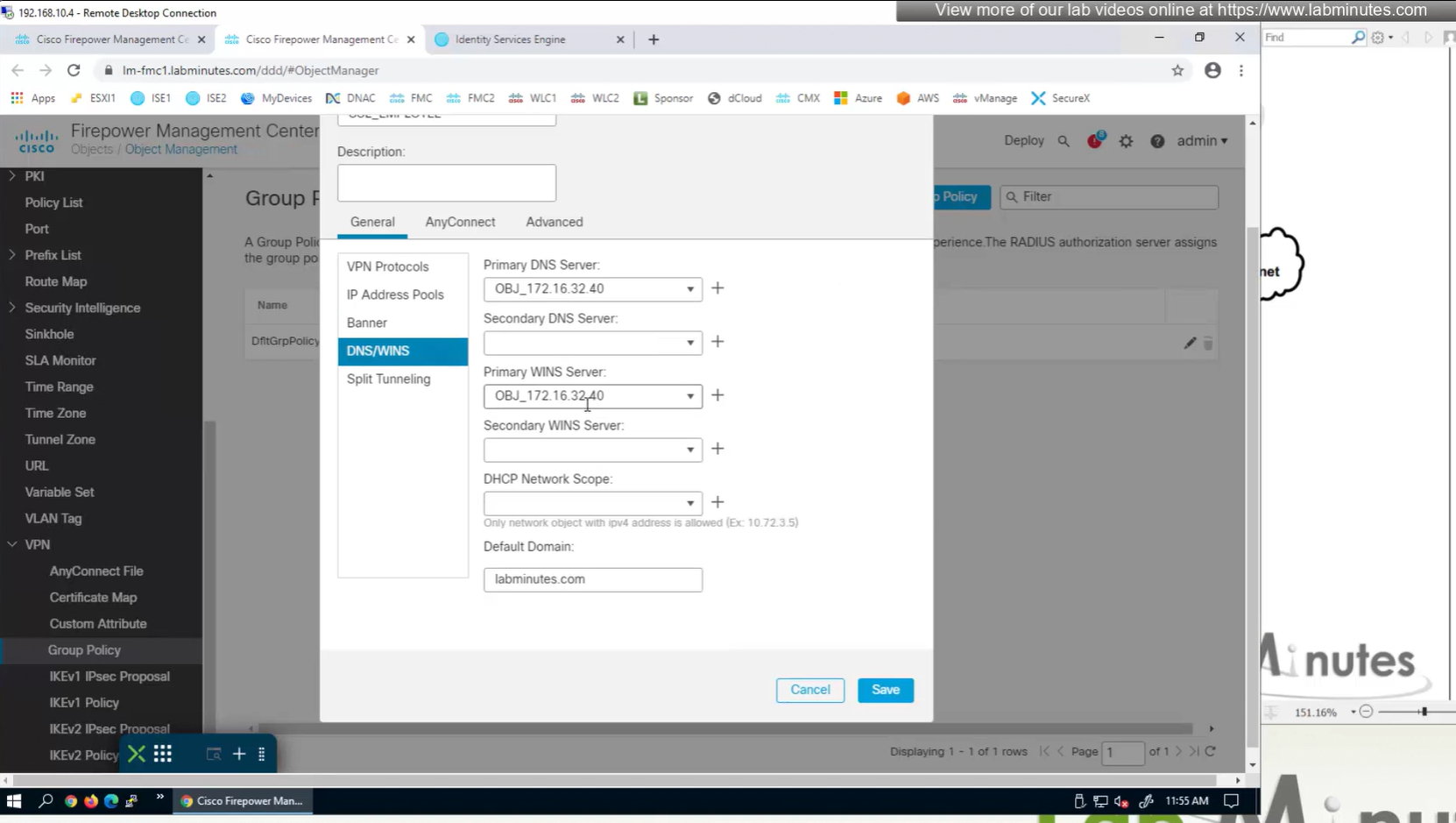

we can also the DNS suffix in ipconfig /all that we defined in Group Policy > General > DNS/WINS > Default Domain

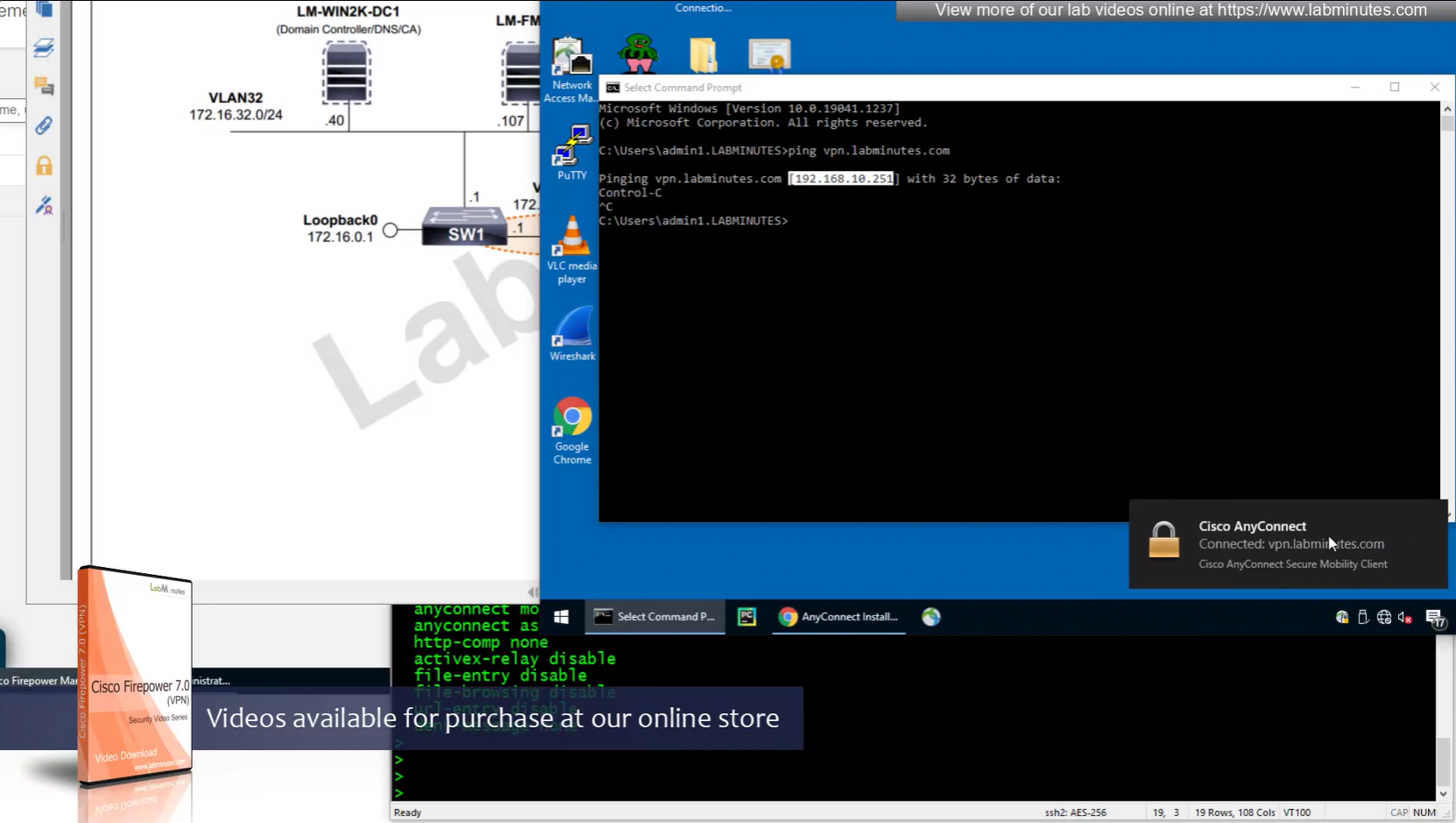

192.168.10.251 is the OUTSIDE IP of the firewall

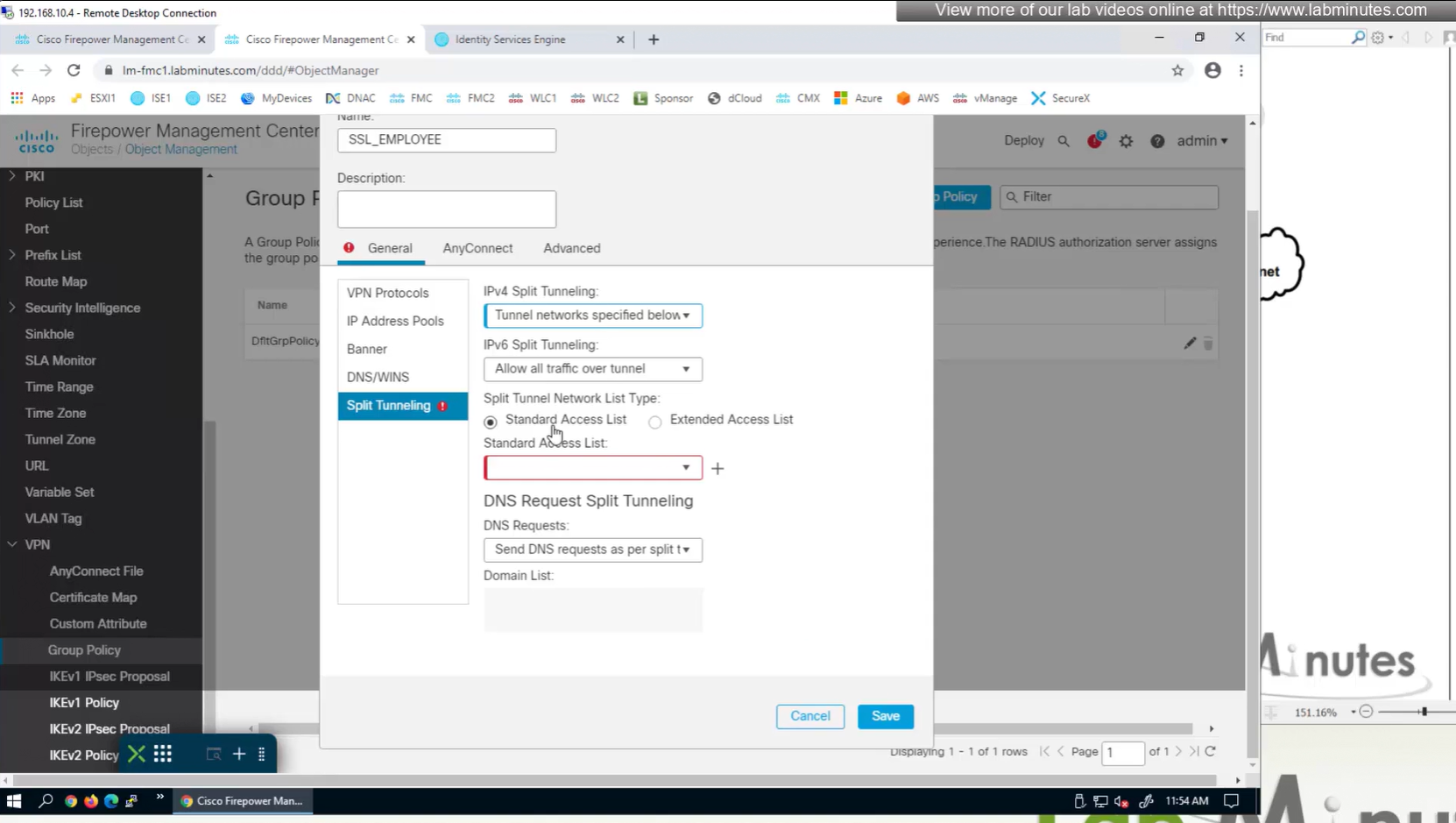

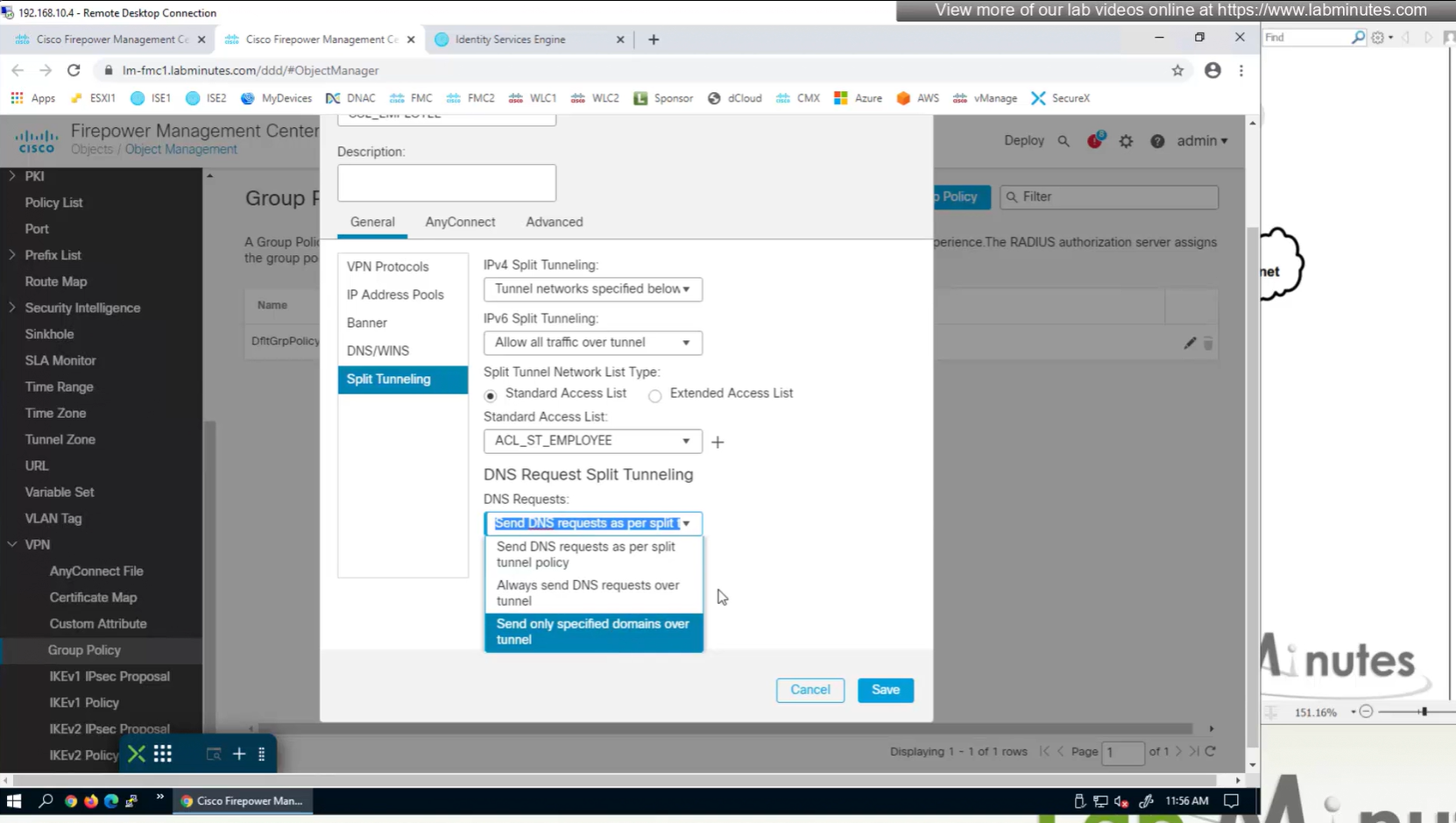

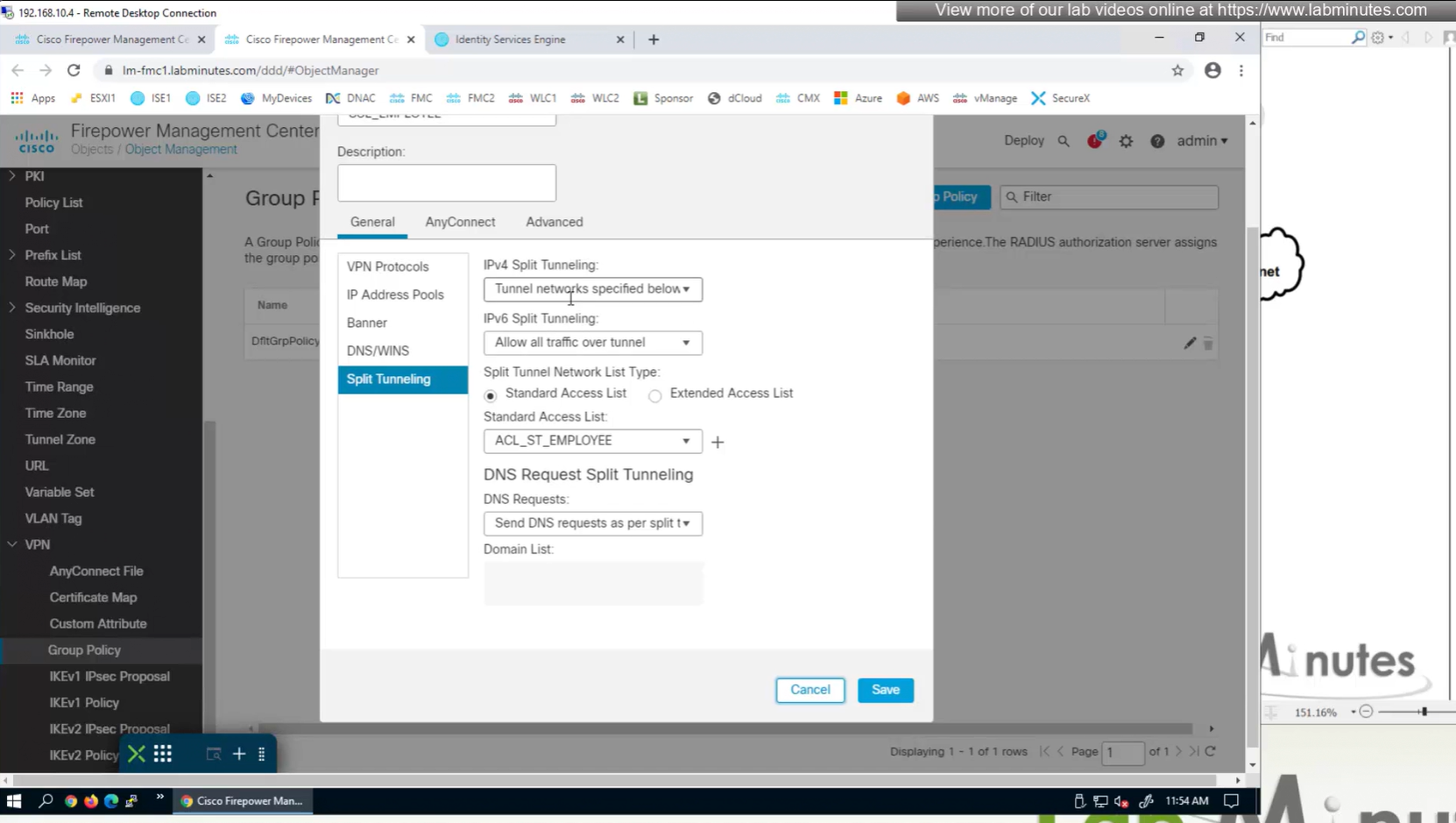

Testing the Split DNS lookup that was configured in Group Policy > General > Split Tunneling > DNS Request Split Tunneling > DNS requests > Send only specified Domains over tunnel and we can see that only public internet queries are showing up on wifi capture and dns queries to corporate domain are going over the tunnel

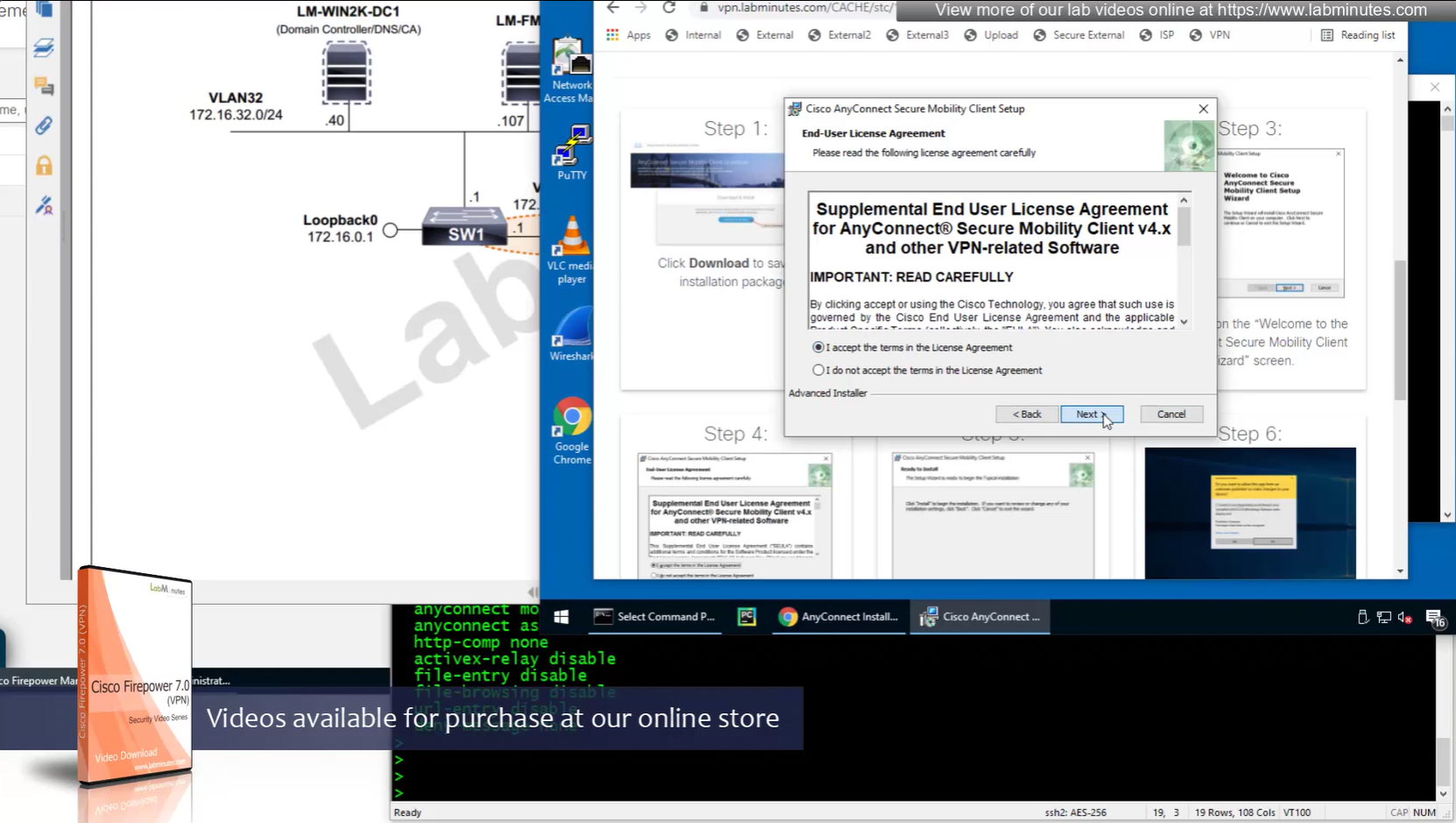

Headend download experience

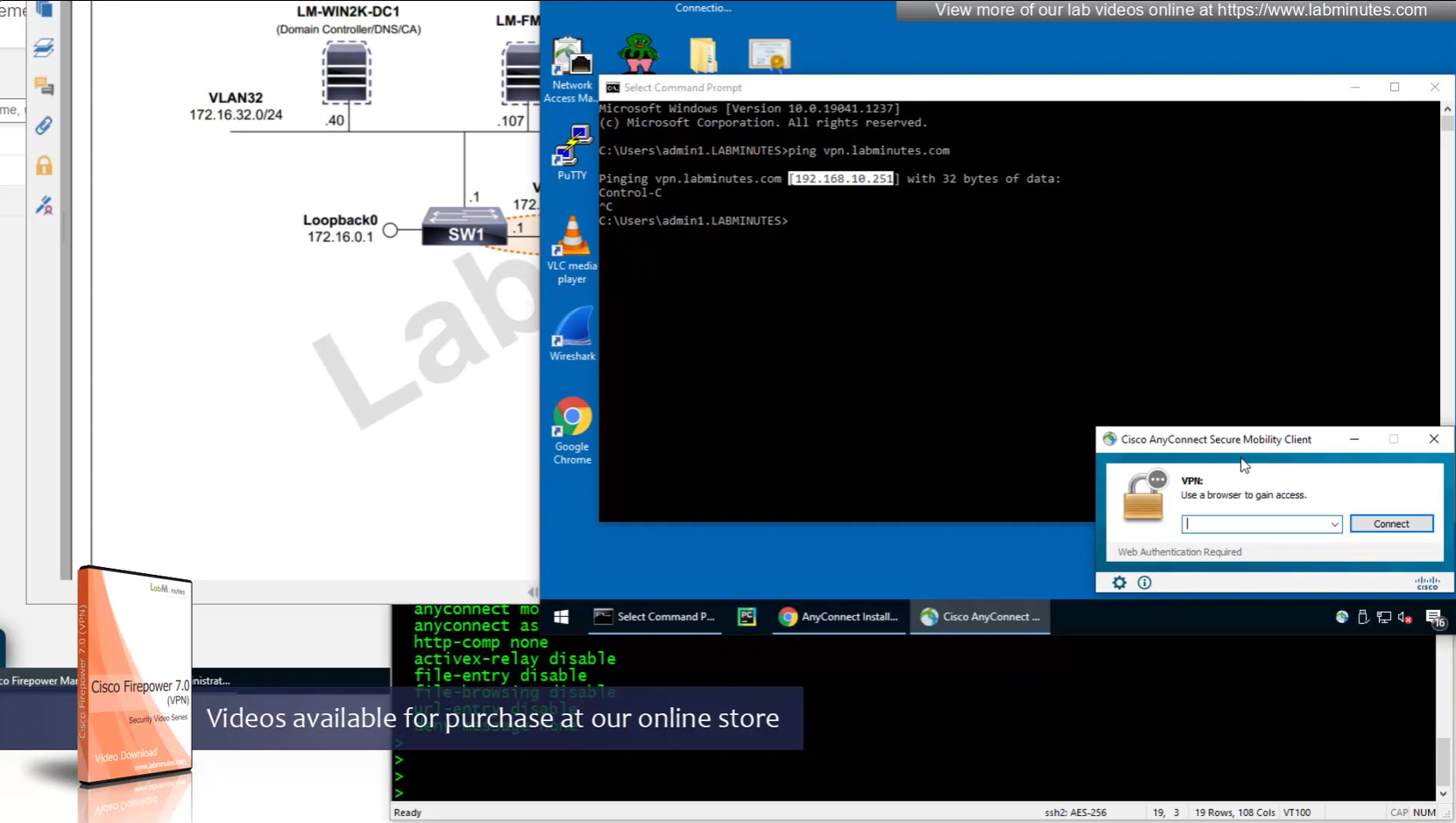

Reachability is not working

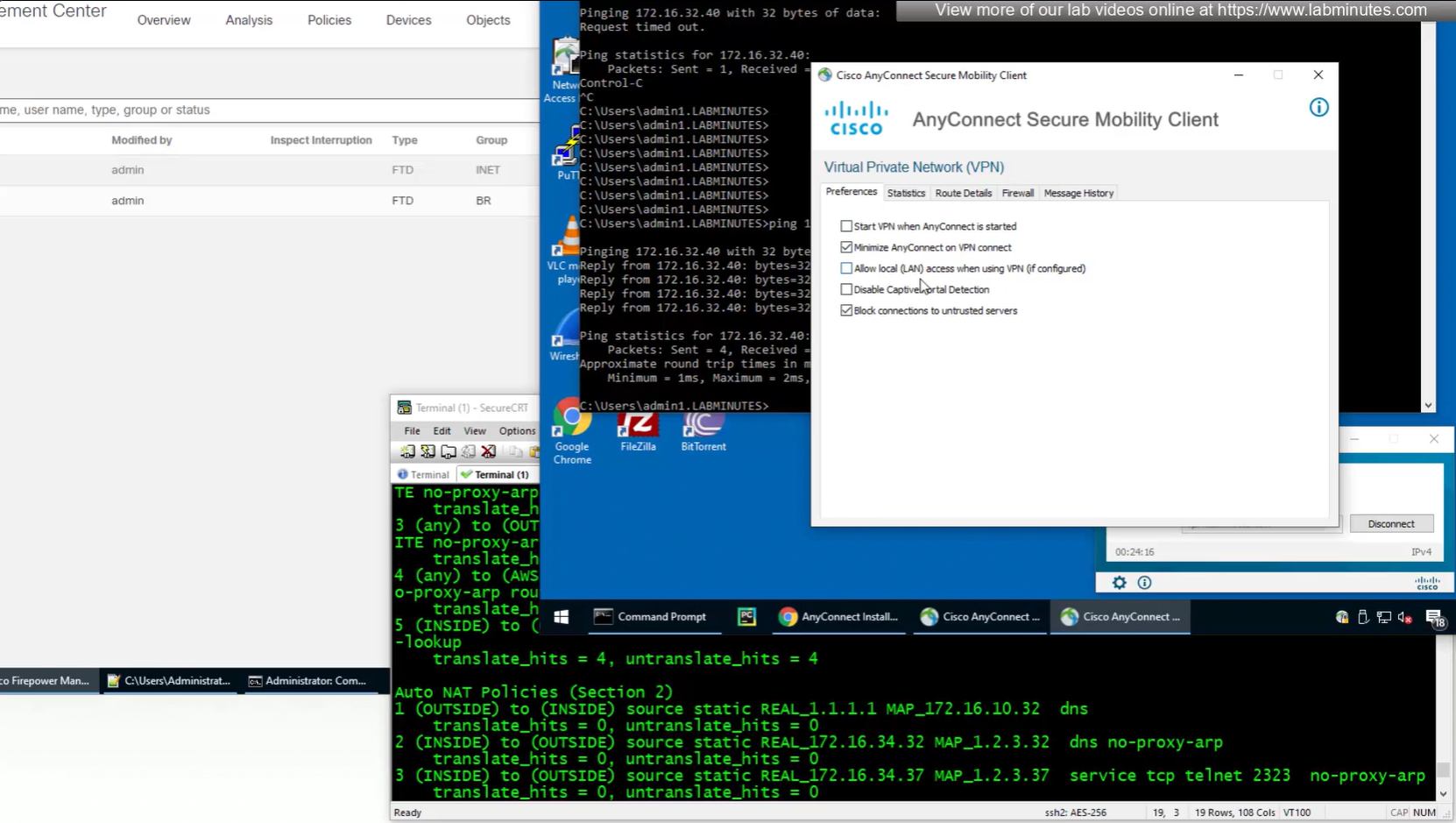

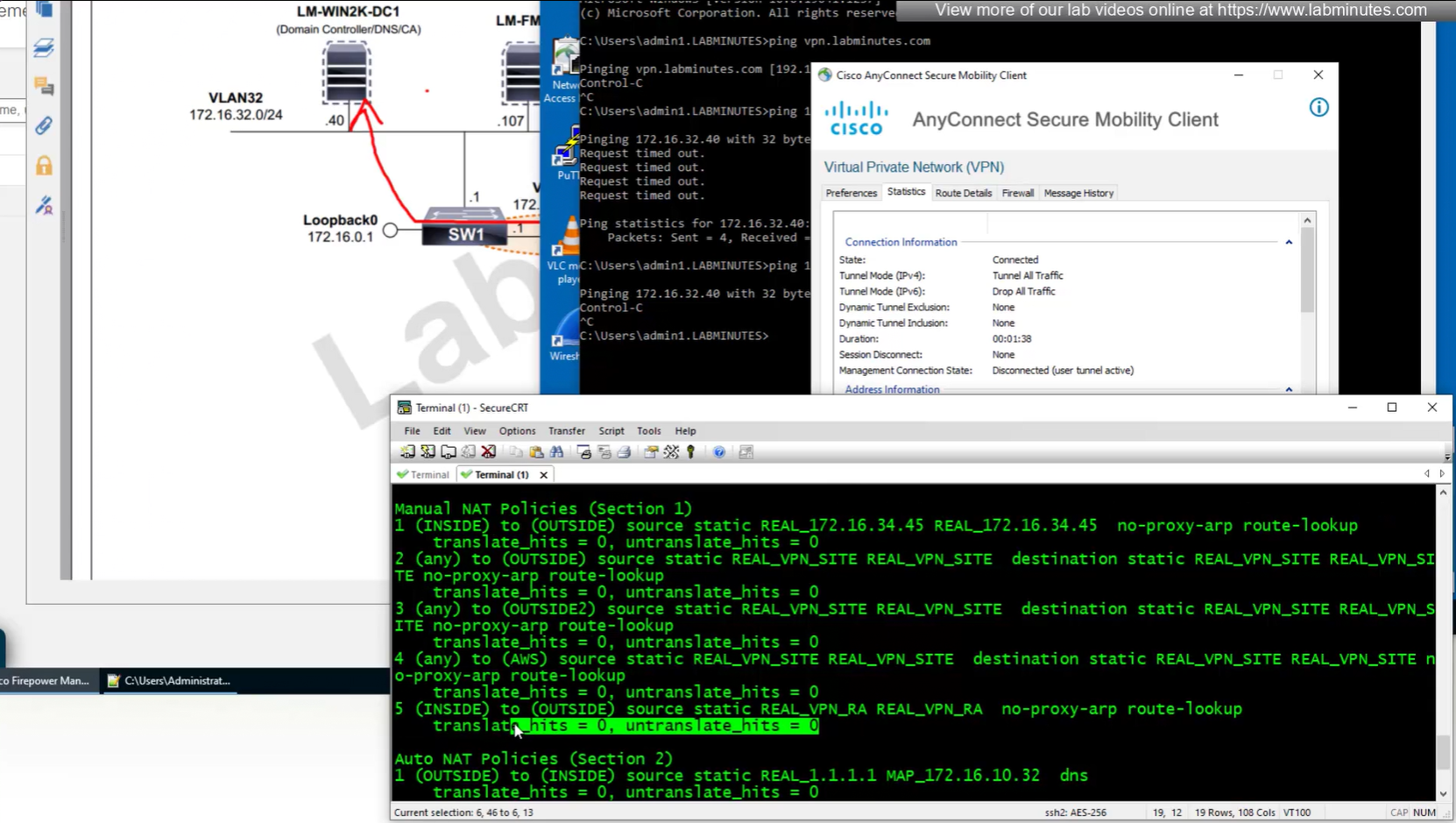

NAT statement for anyconnect is not being hit and untranslate hit is not there since NAT statement is for INSIDE > OUTSIDE and that is why we should see “untranslate” hits

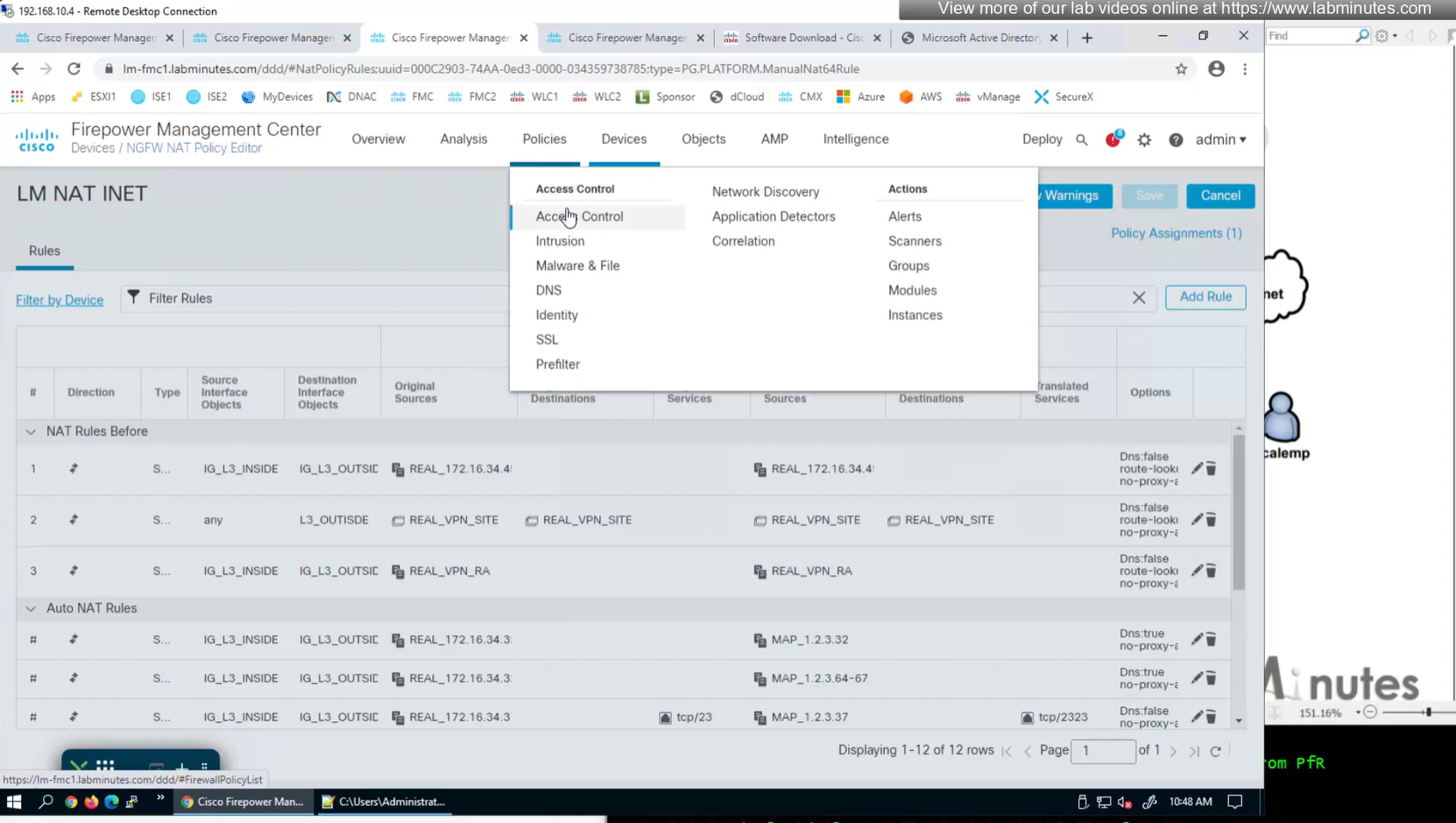

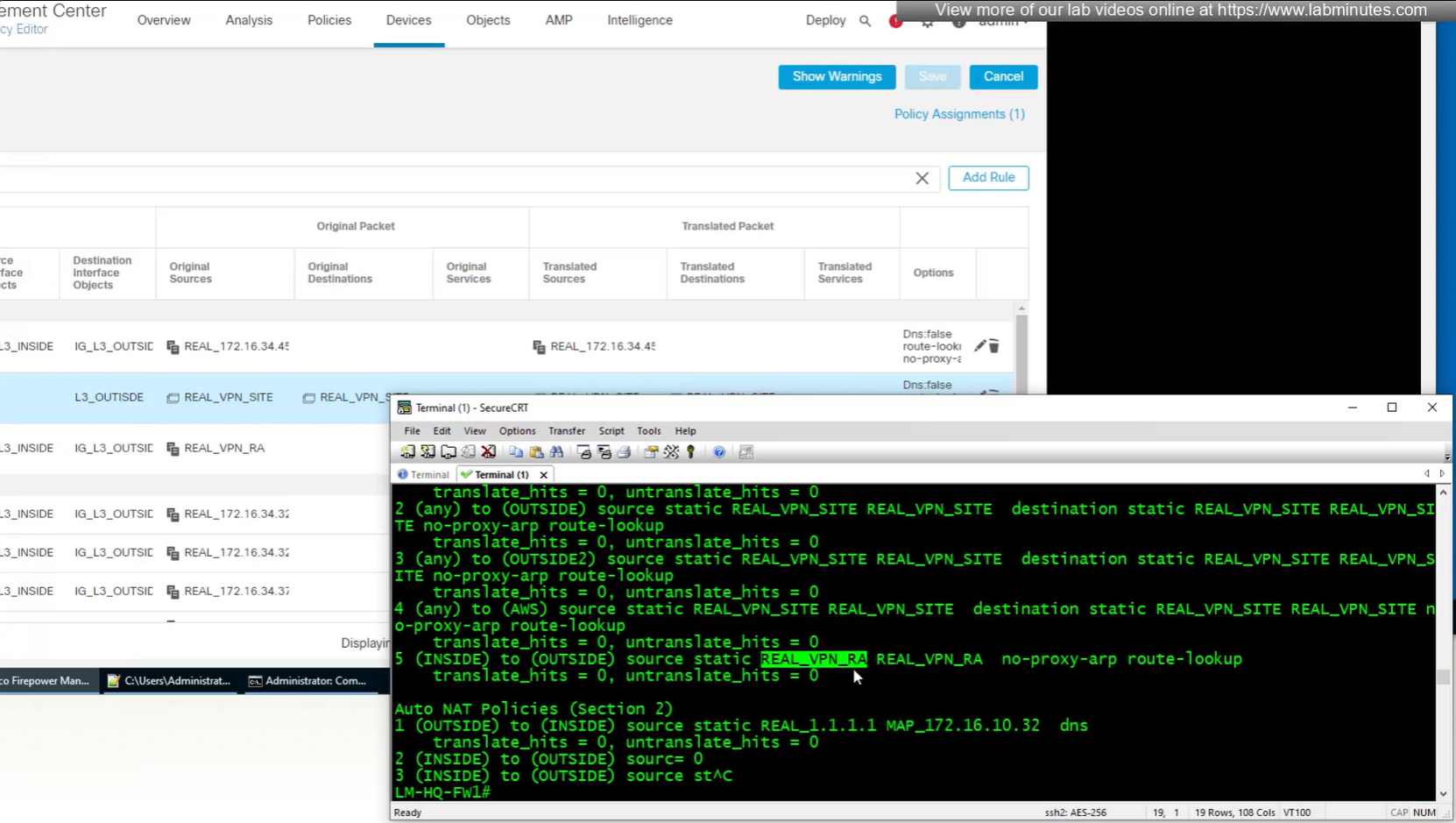

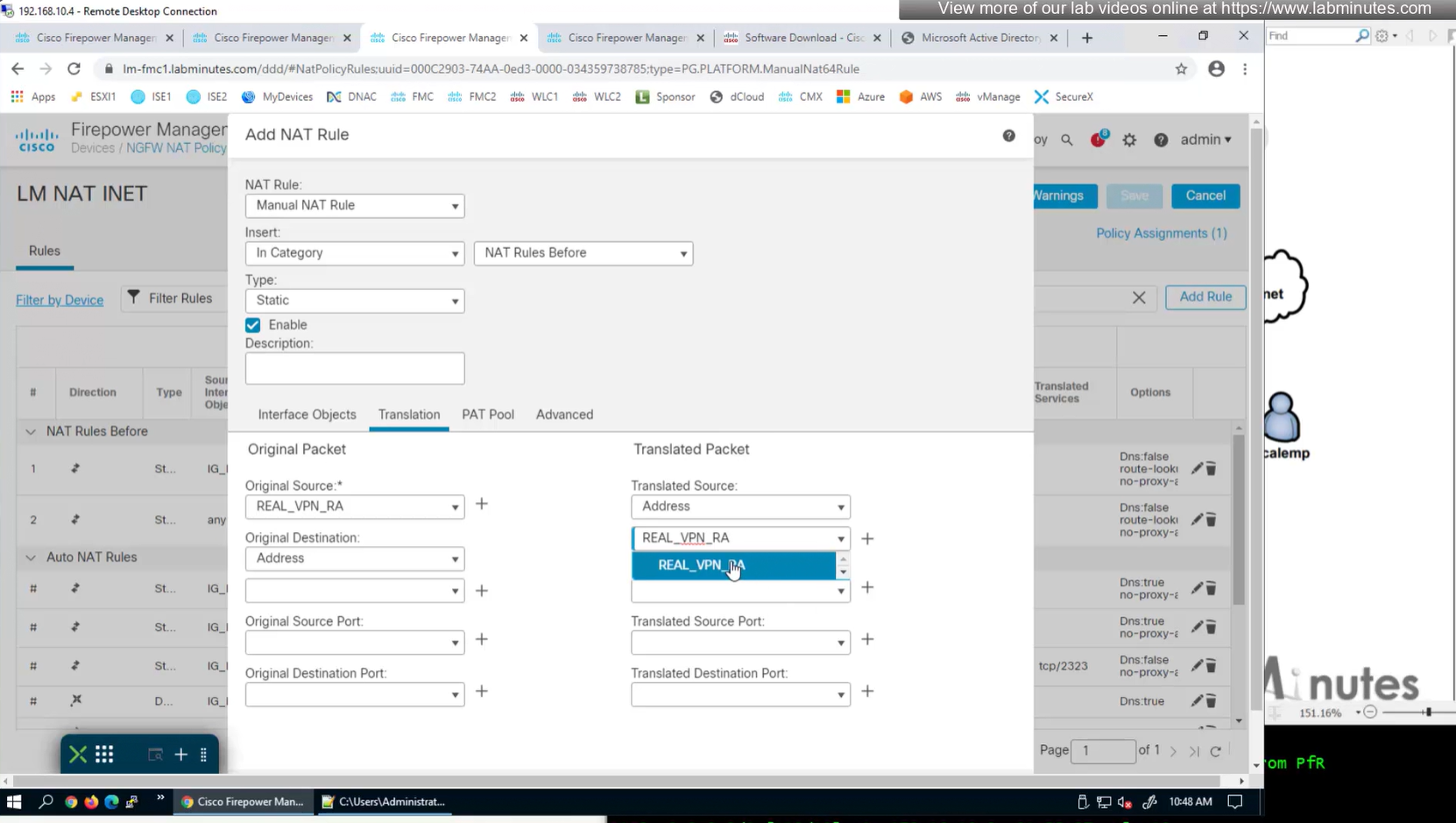

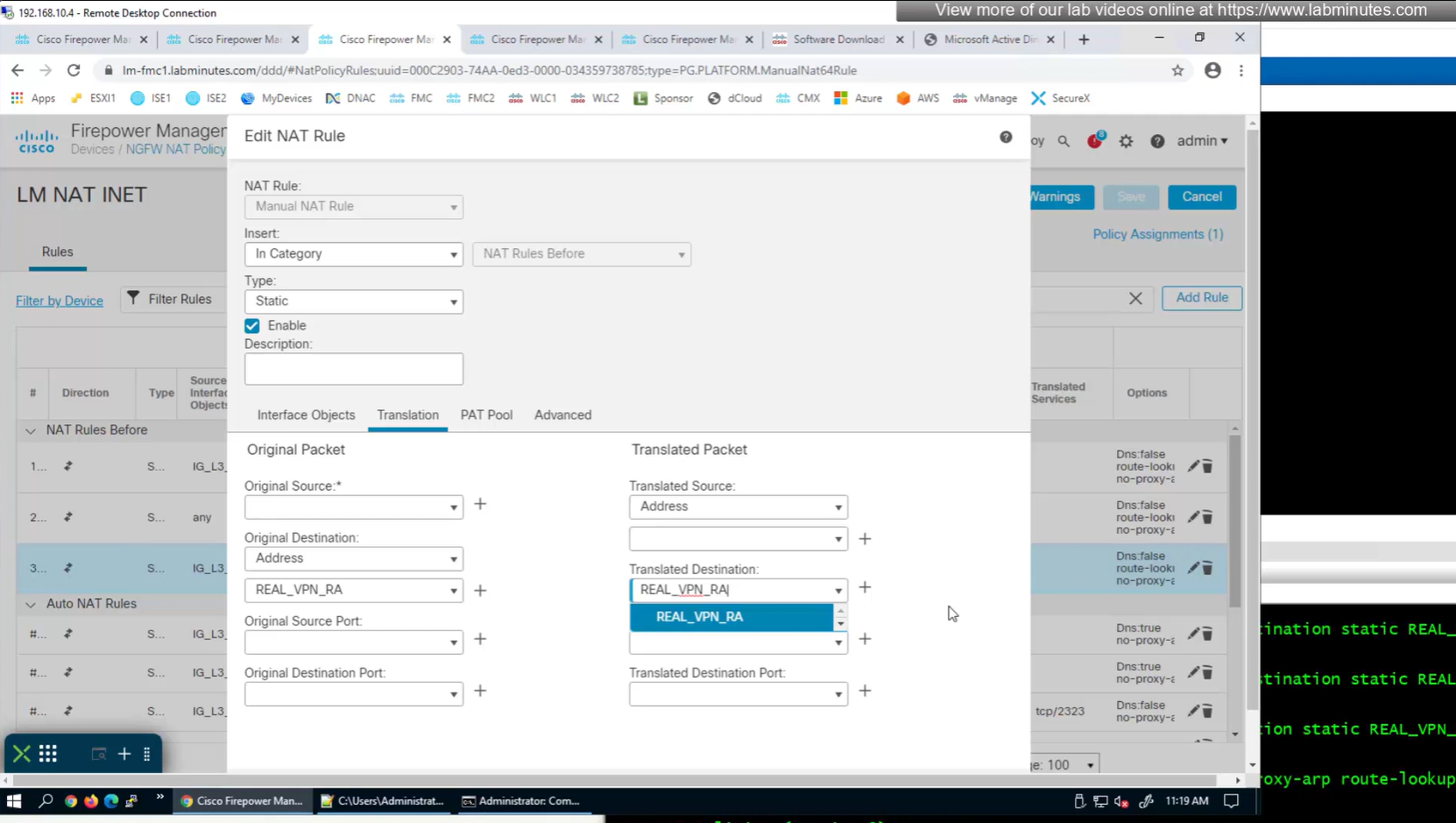

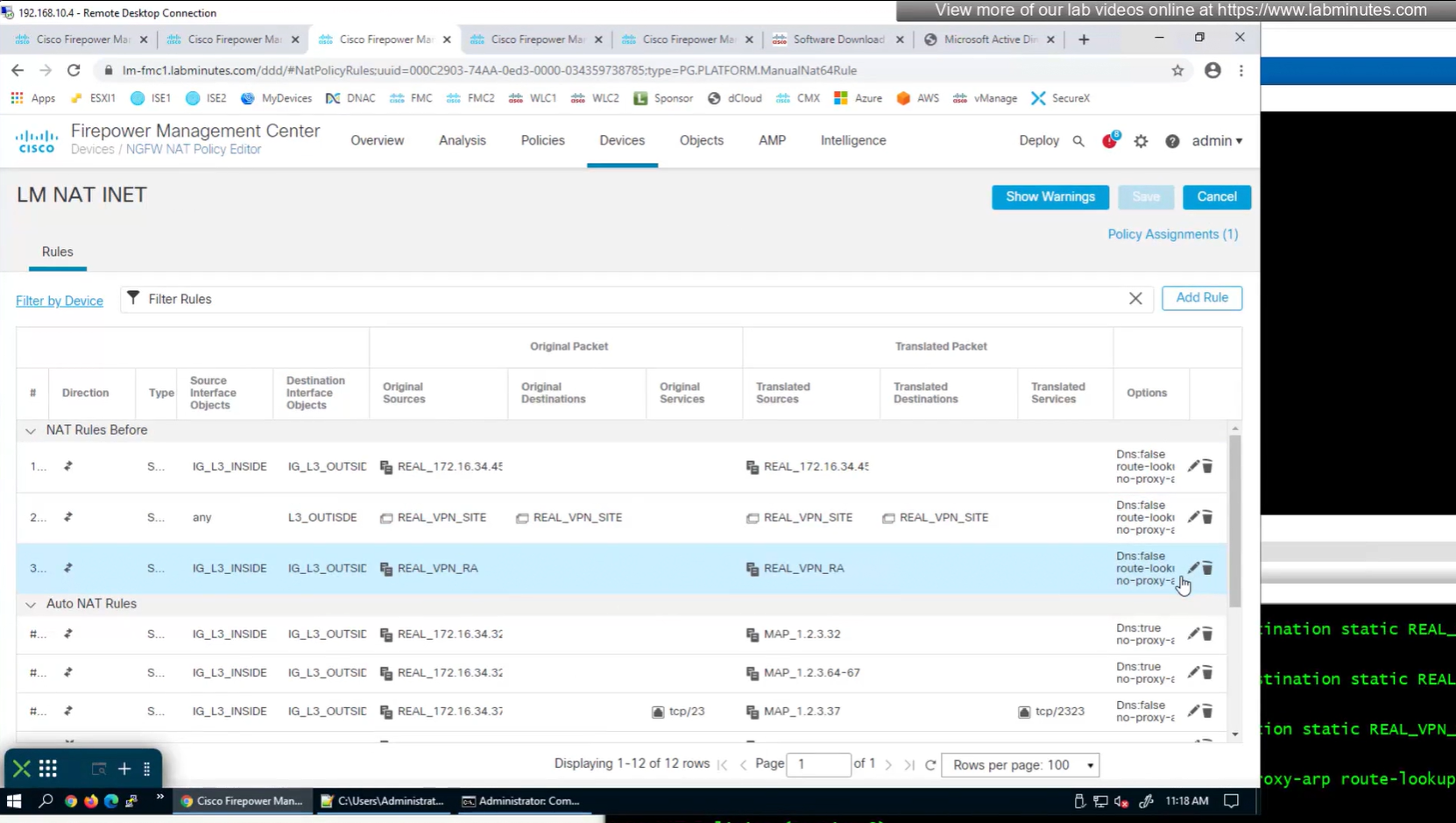

earlier while creating NAT rule a mistake was made where REAL_VPN_RA was used in source section and not in destination section, emptied out the source field and added REAL_VPN_RA in destination section and that worked

now pings work

These are some user facing customisations

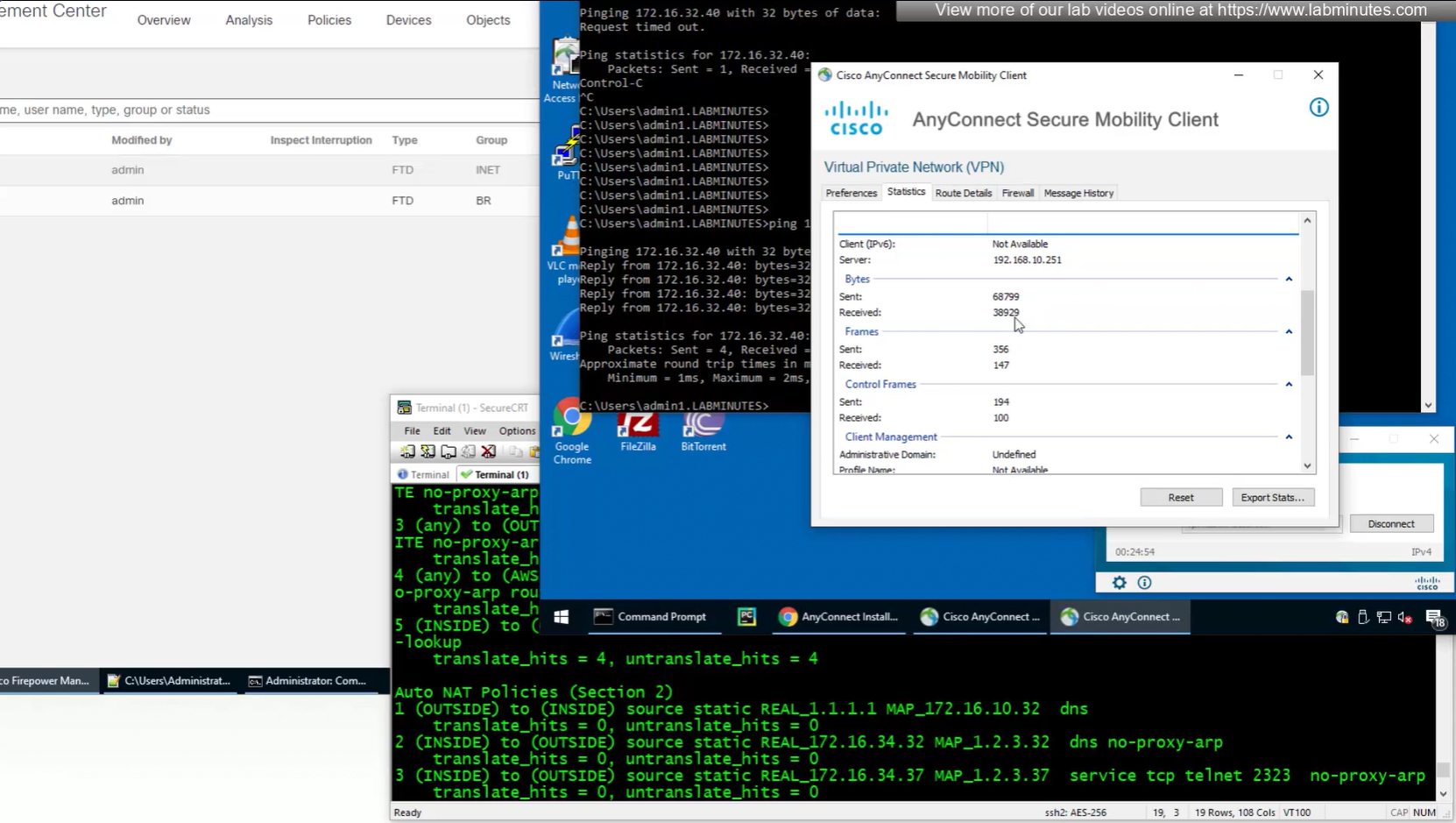

number of bytes sent and received

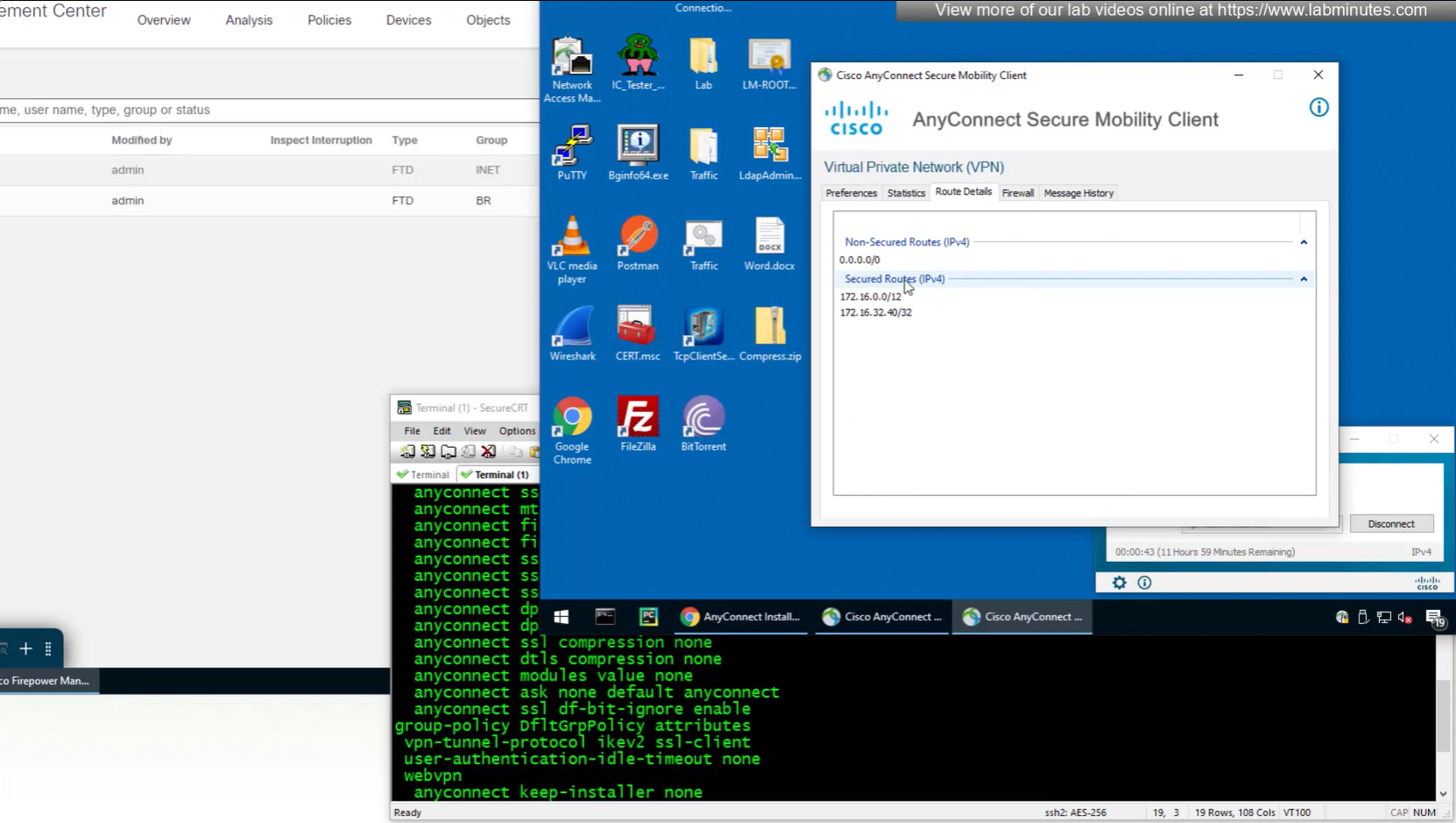

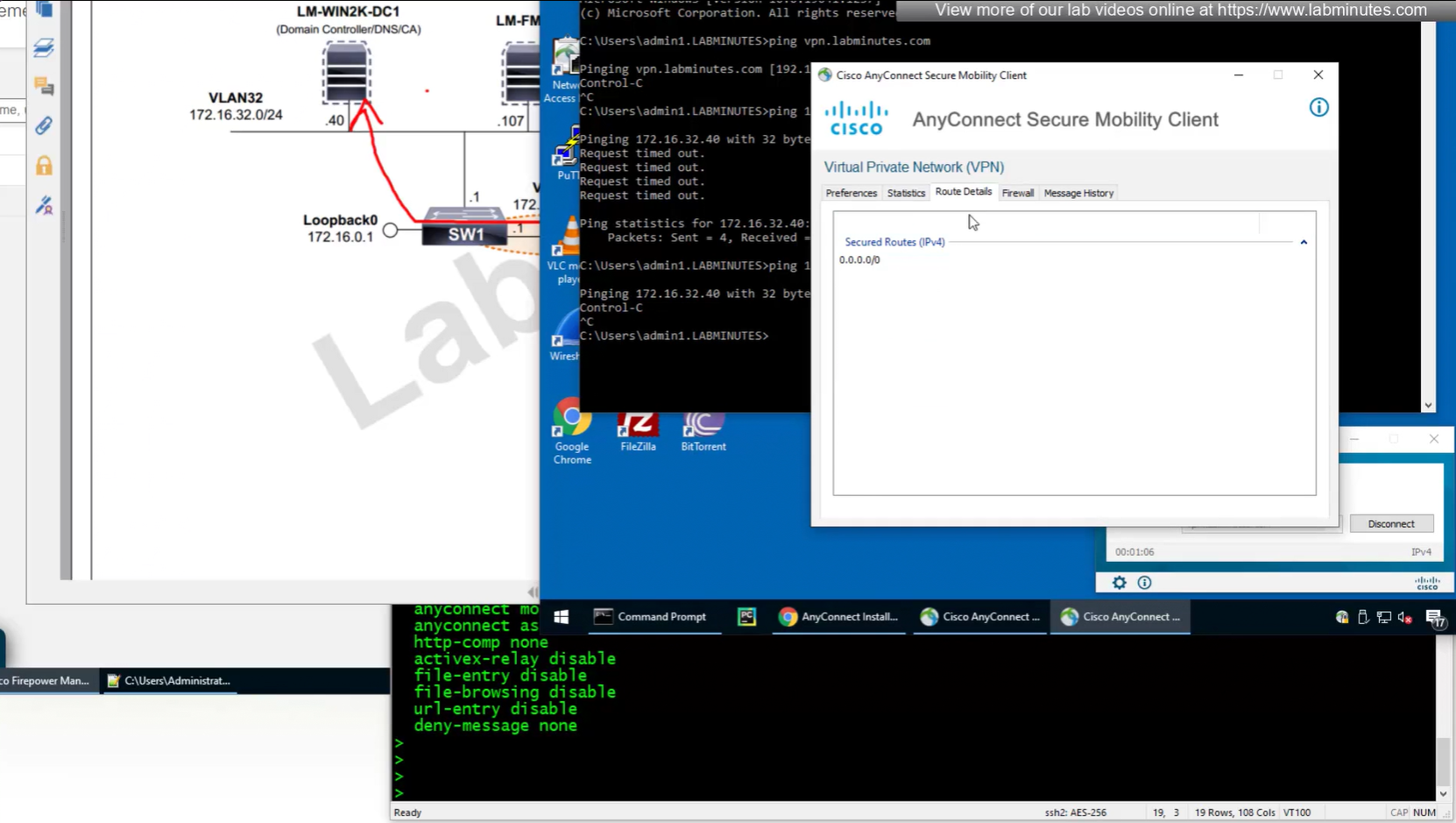

because this is default group policy that has “tunnel all traffic” we see route for 0.0.0.0/0

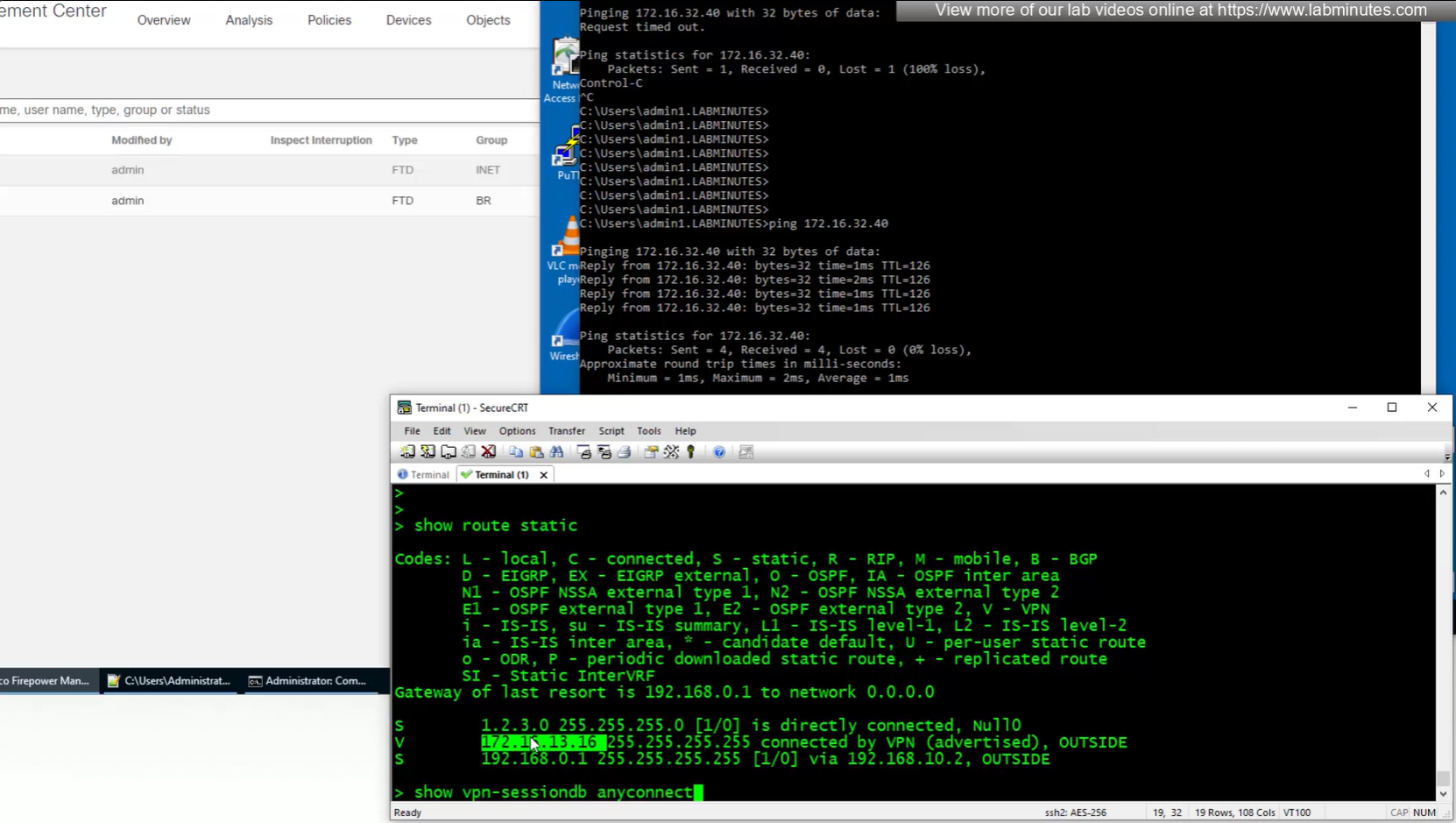

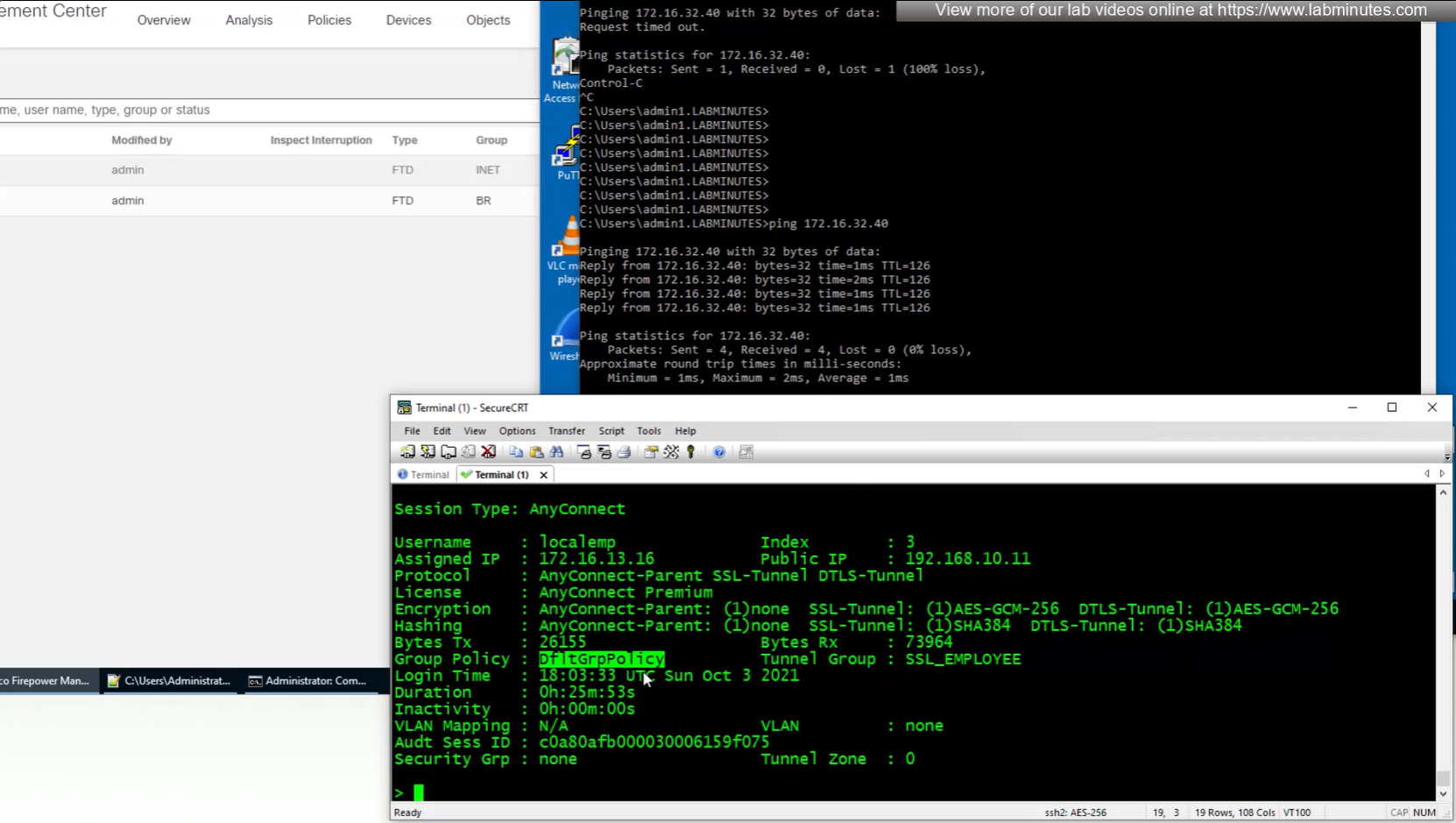

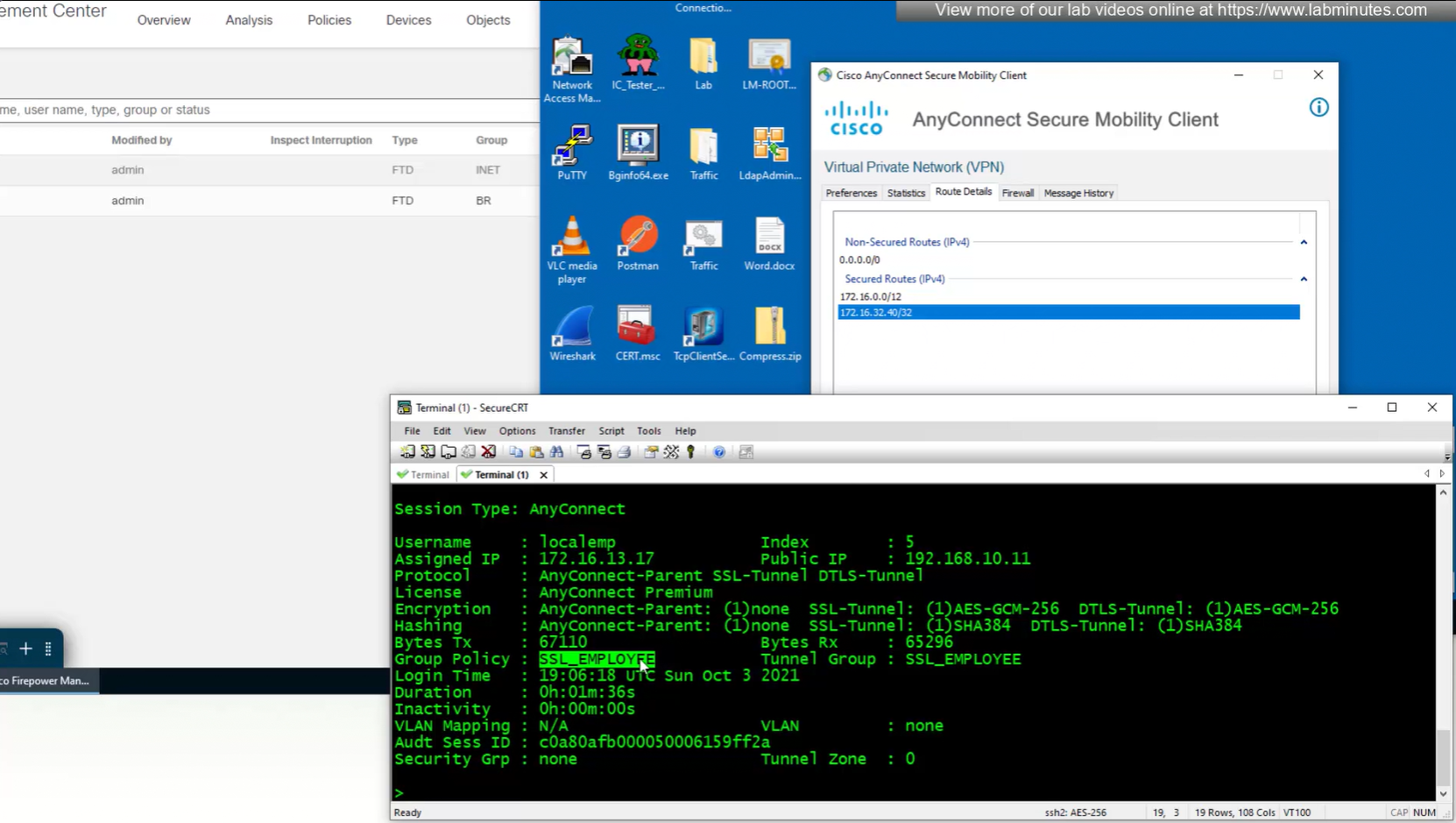

show vpn-sessiondb anyconnect

anyconnect license consumed by user

encryption and hashing

group policy

tunnel-group

duration

inactivity

bytes

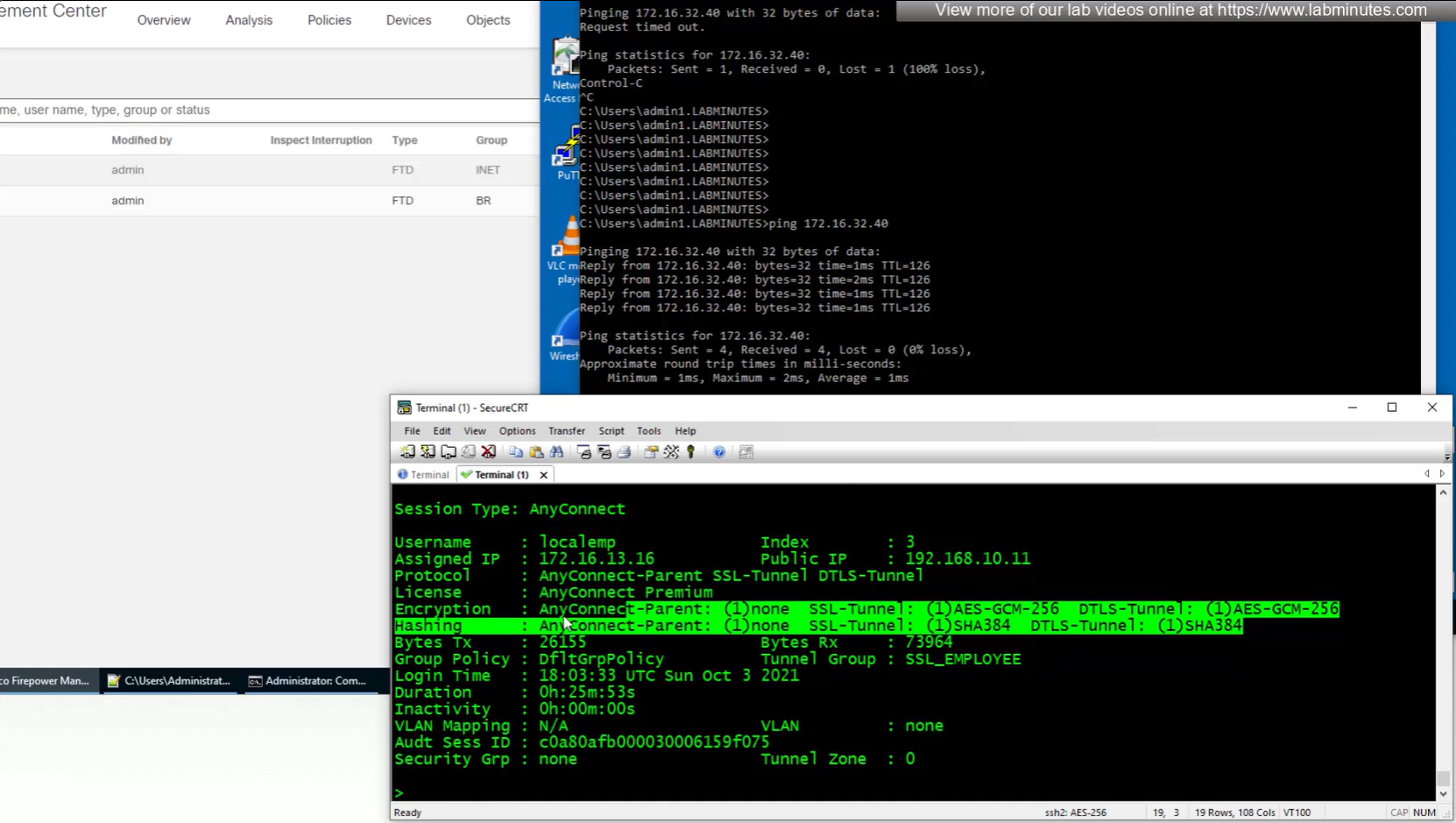

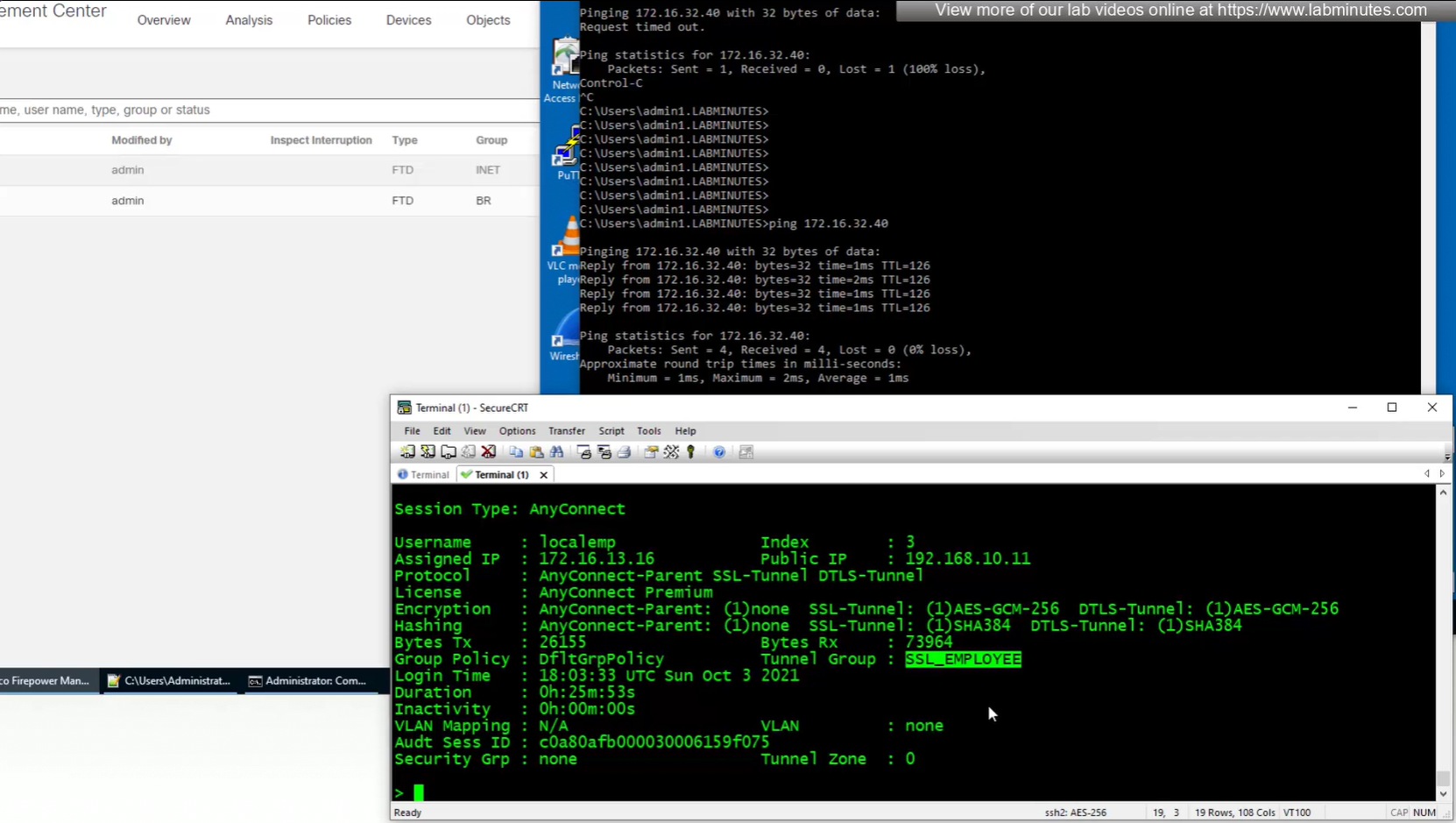

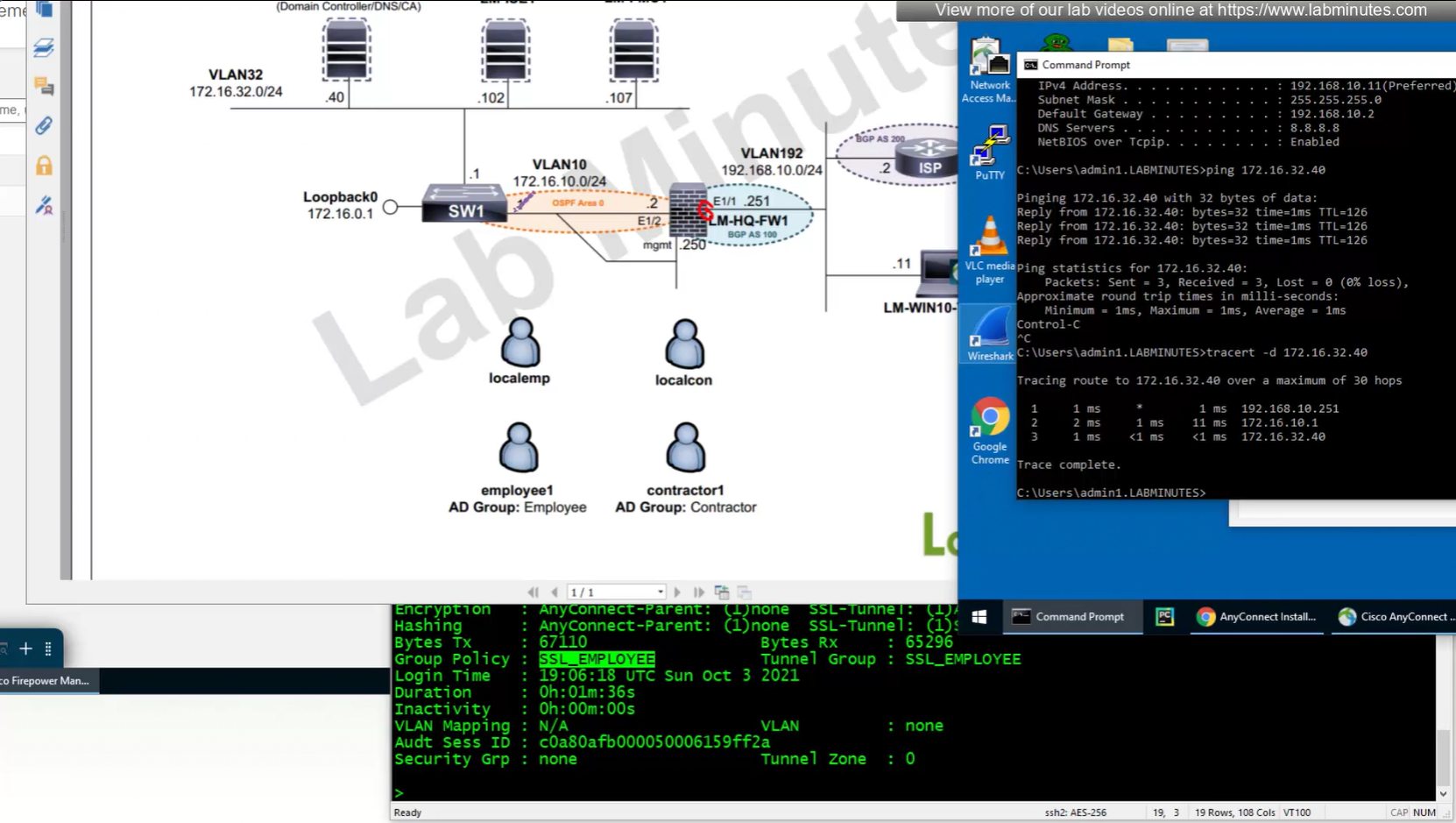

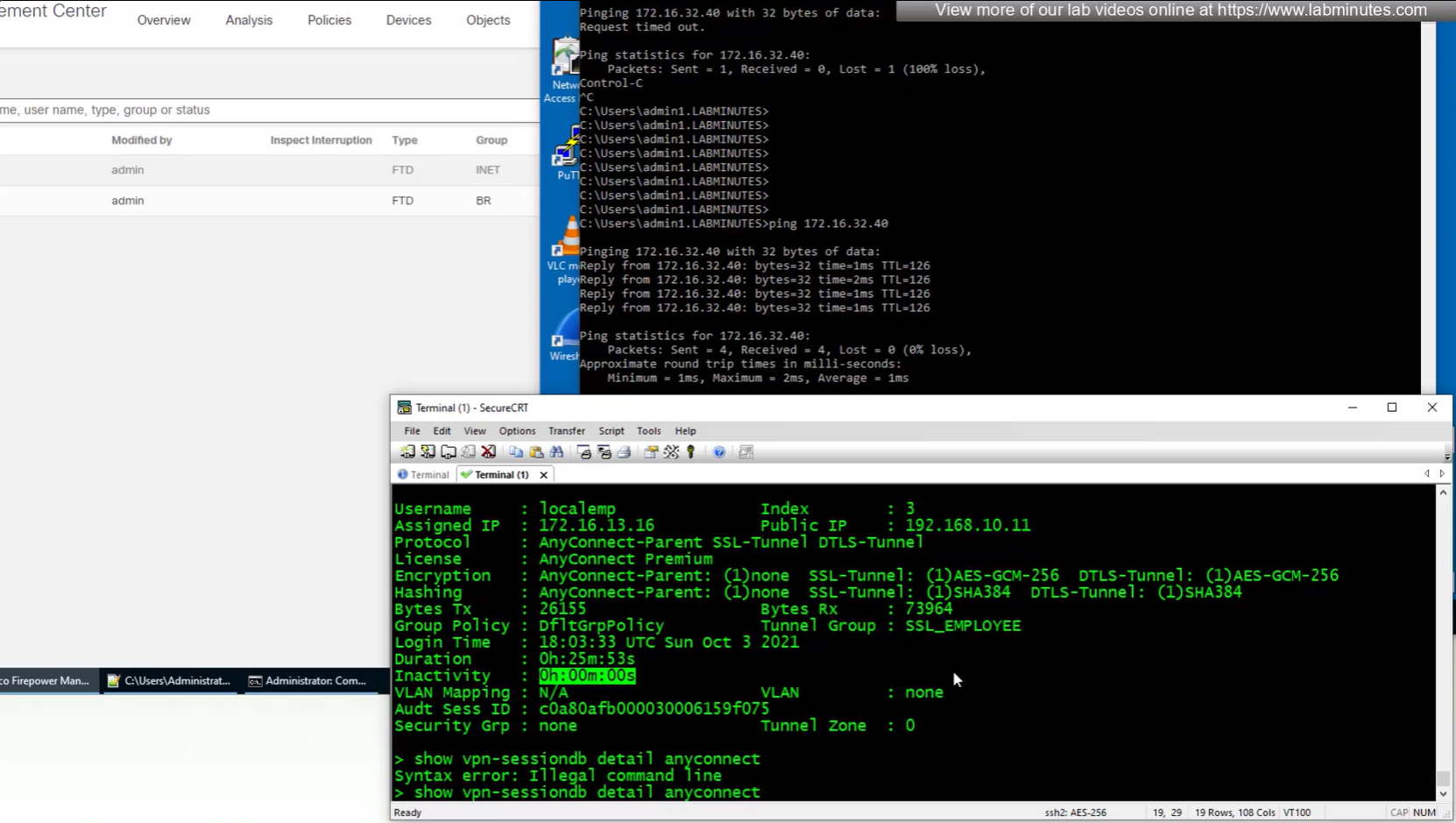

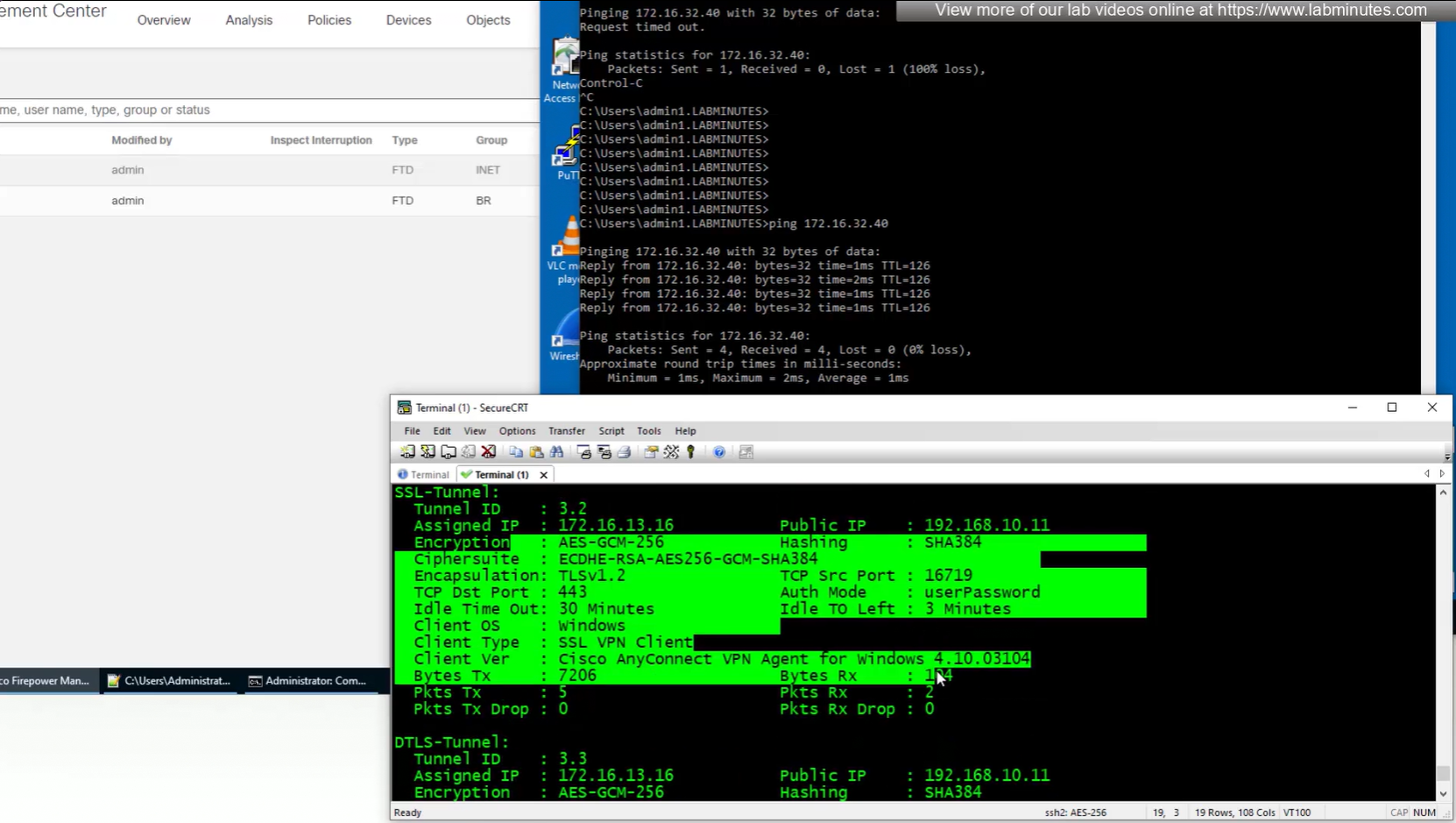

show vpn-sessiondb detail anyconnect

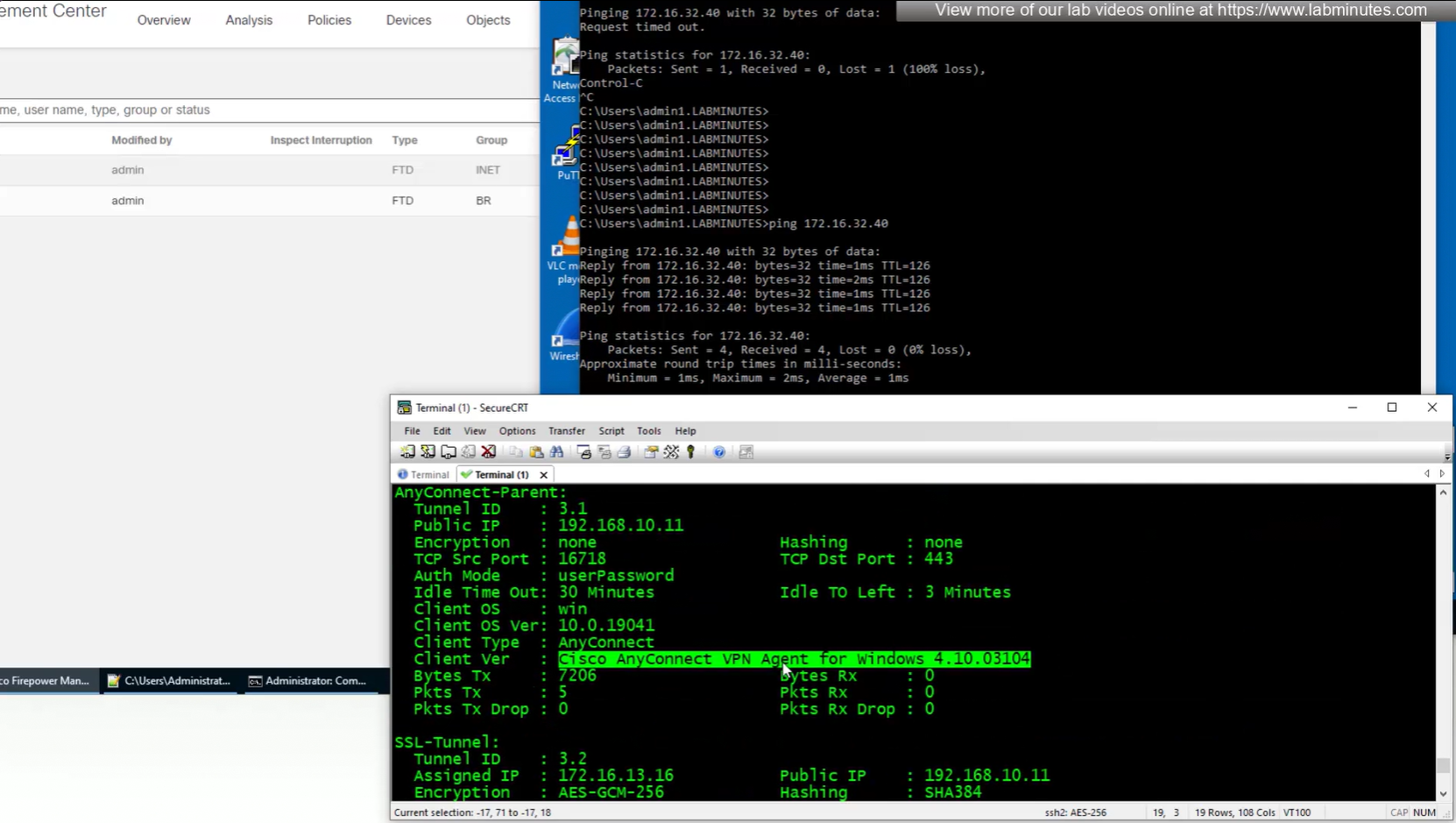

client version and OS

authentication

OS and client info

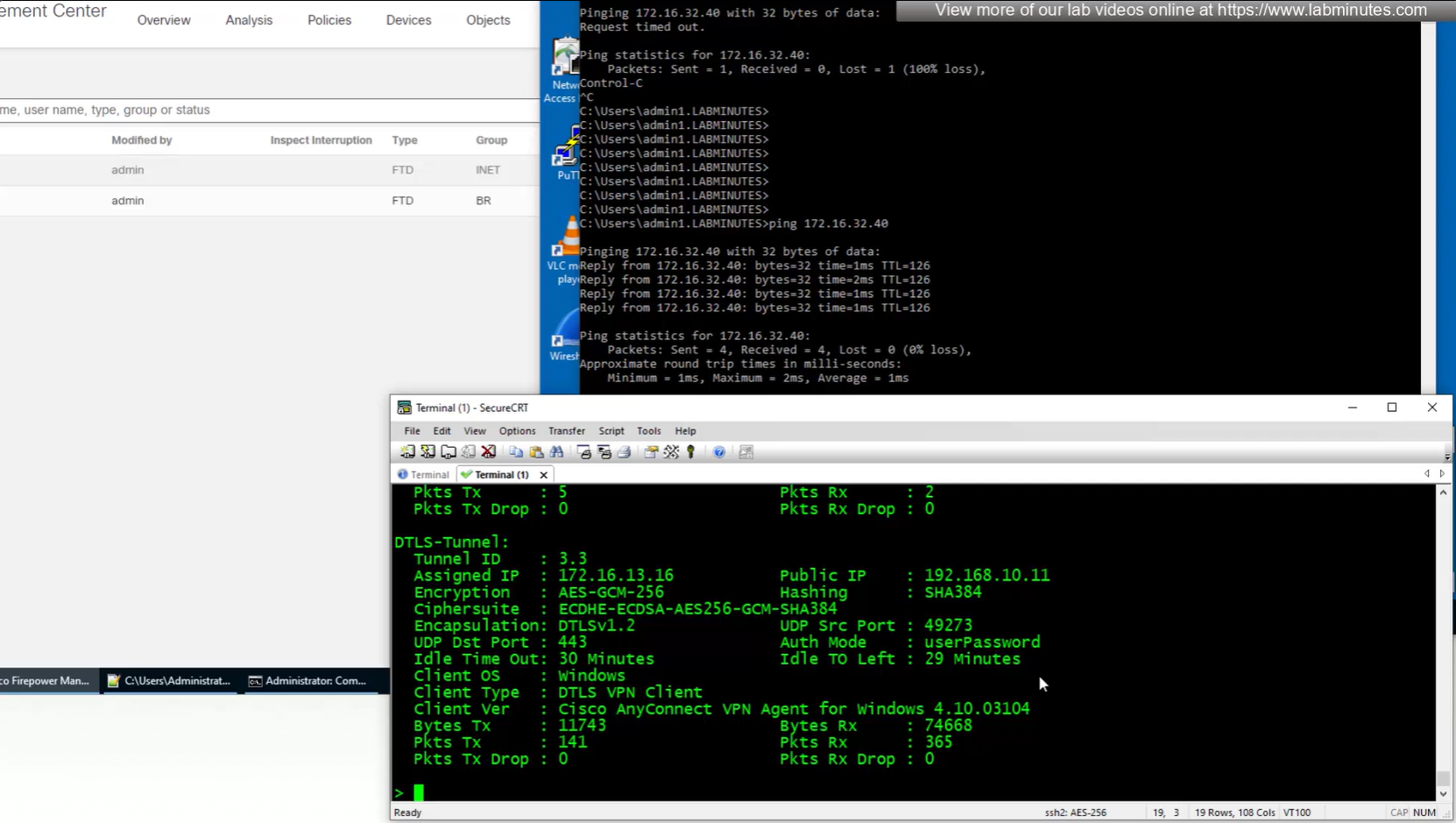

TCP ports , Idle timeout , bytes

connection seems to be coming from OUTSIDE

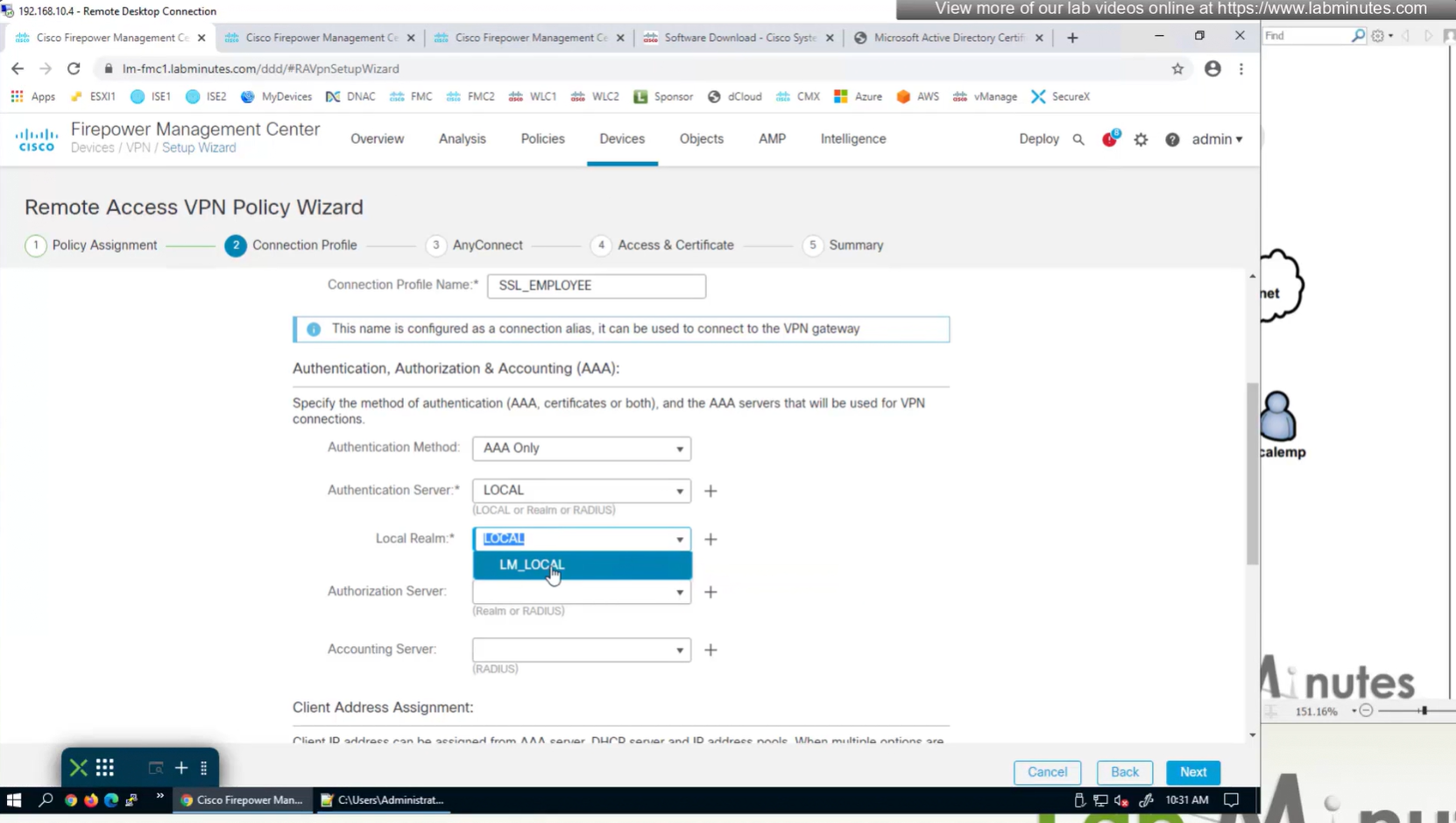

AAA server is defined here

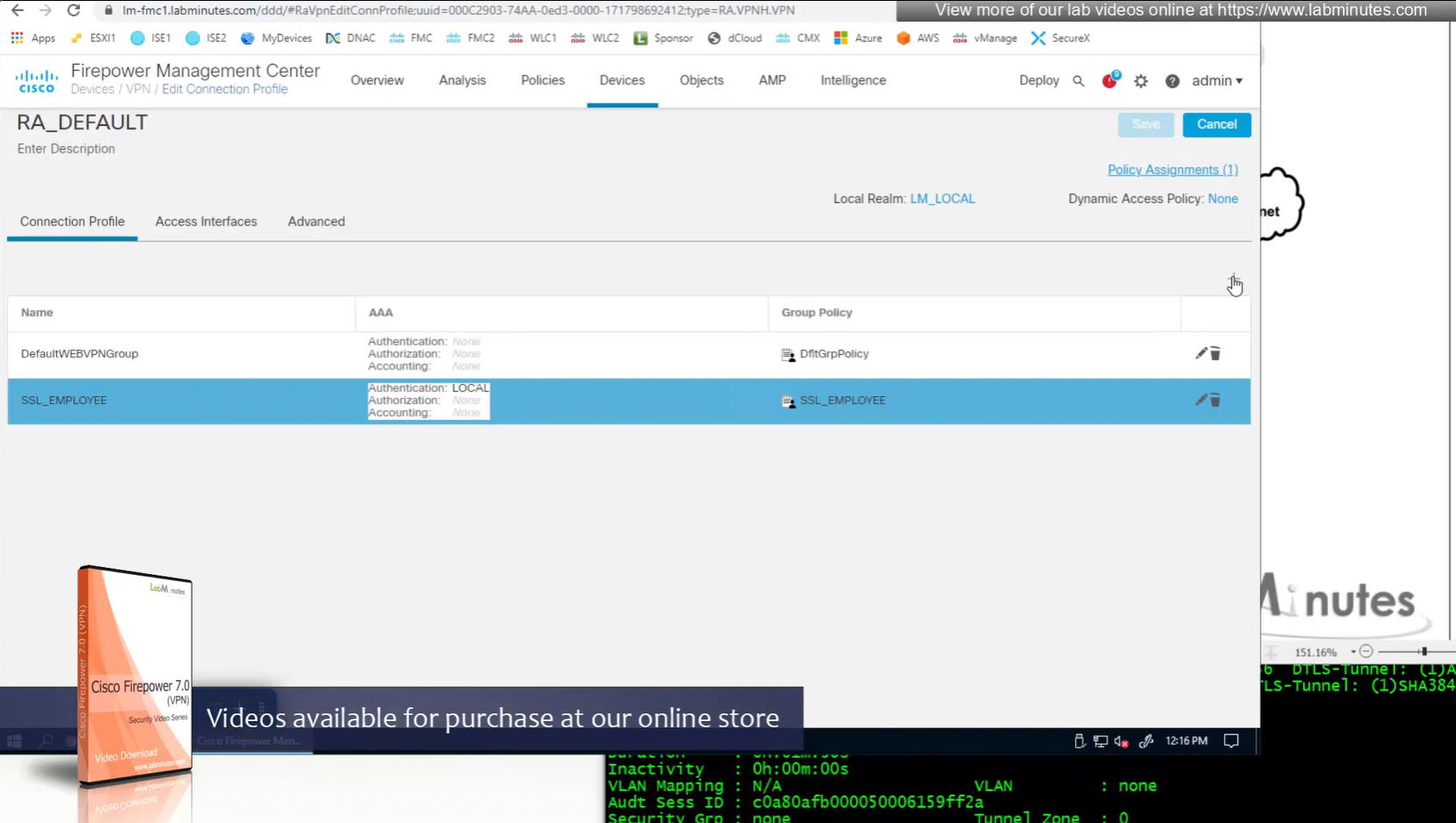

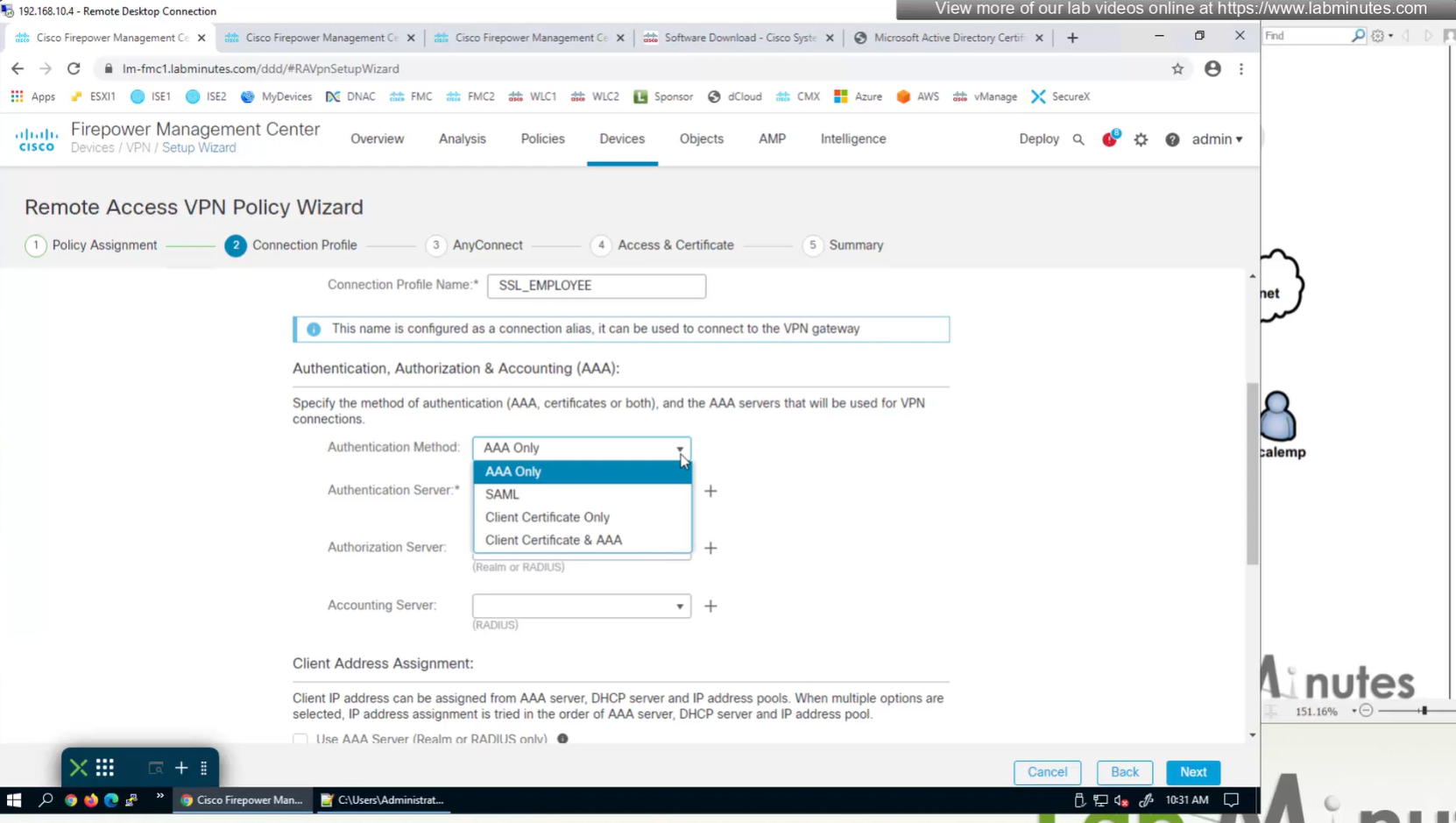

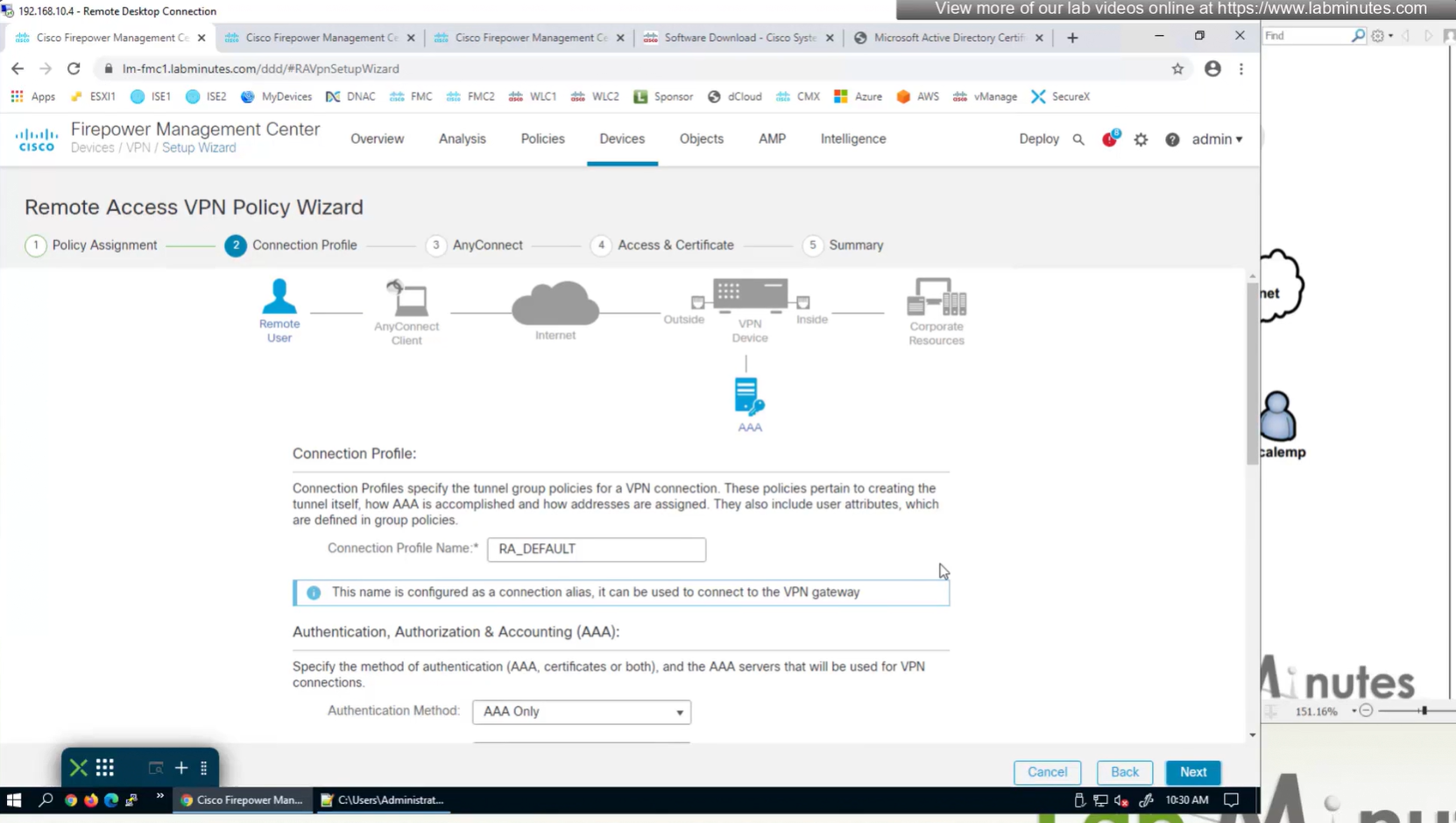

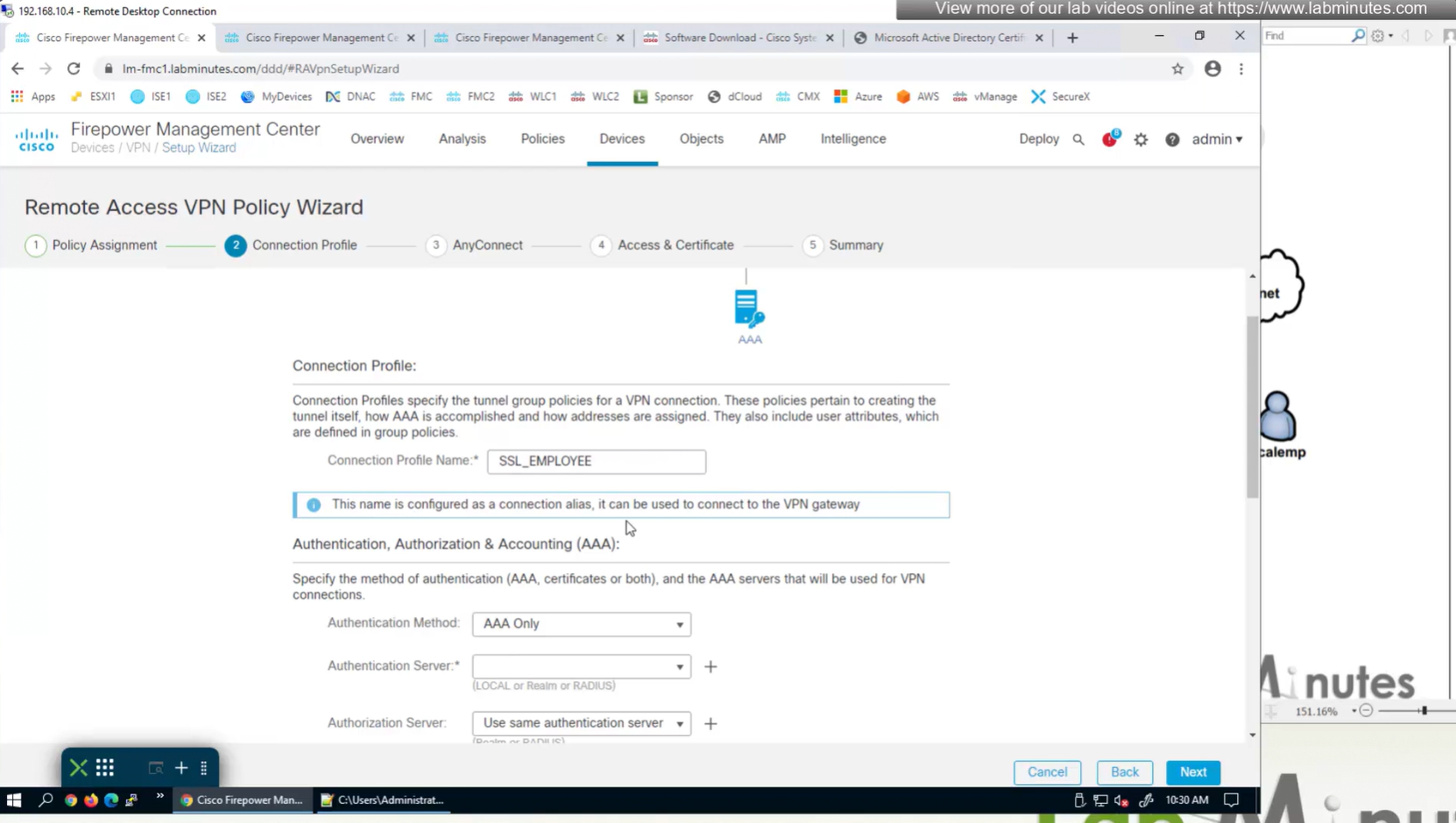

Connection profile is basically a tunnel group – tunnel group controls user realated information such as

1. How is user authenticated
2. Which group policies apply to user aka which settings apply to user
3. Addressing and routing related such as (e.g. split tunneling, DNS, IP pools) are used , What resources the user can reach.

A tunnel group in AnyConnect is the front door to the VPN. It decides who you are, how you log in, and which rules (policies) you inherit. The group policy behind it is like the house rules once you’re inside. Group policy can also be thought of policy for different groups of users that is why address assignment can also be assigned in group policy, for example Employees vs Contractors.

There are remote access tunnel groups and there are also L2L tunnel groups as well

There are default tunnel groups

DefaultRAGroup → For remote-access connections without a specified group.
DefaultL2LGroup → For site-to-site VPN connections without a specified group.
These act as “catch-all” settings if no other tunnel group matches.

If user connects to URL on anyconnect
https://vpn.company.com/employees
“employees” is called a group URL (or alias), and it maps to a tunnel group

tunnel-group EMPLOYEES type remote-access
tunnel-group EMPLOYEES general-attributes
  address-pool EMP_POOL
  default-group-policy EMP_POLICY
  group-alias Employees enable
  group-url https://vpn.company.com/employees enable

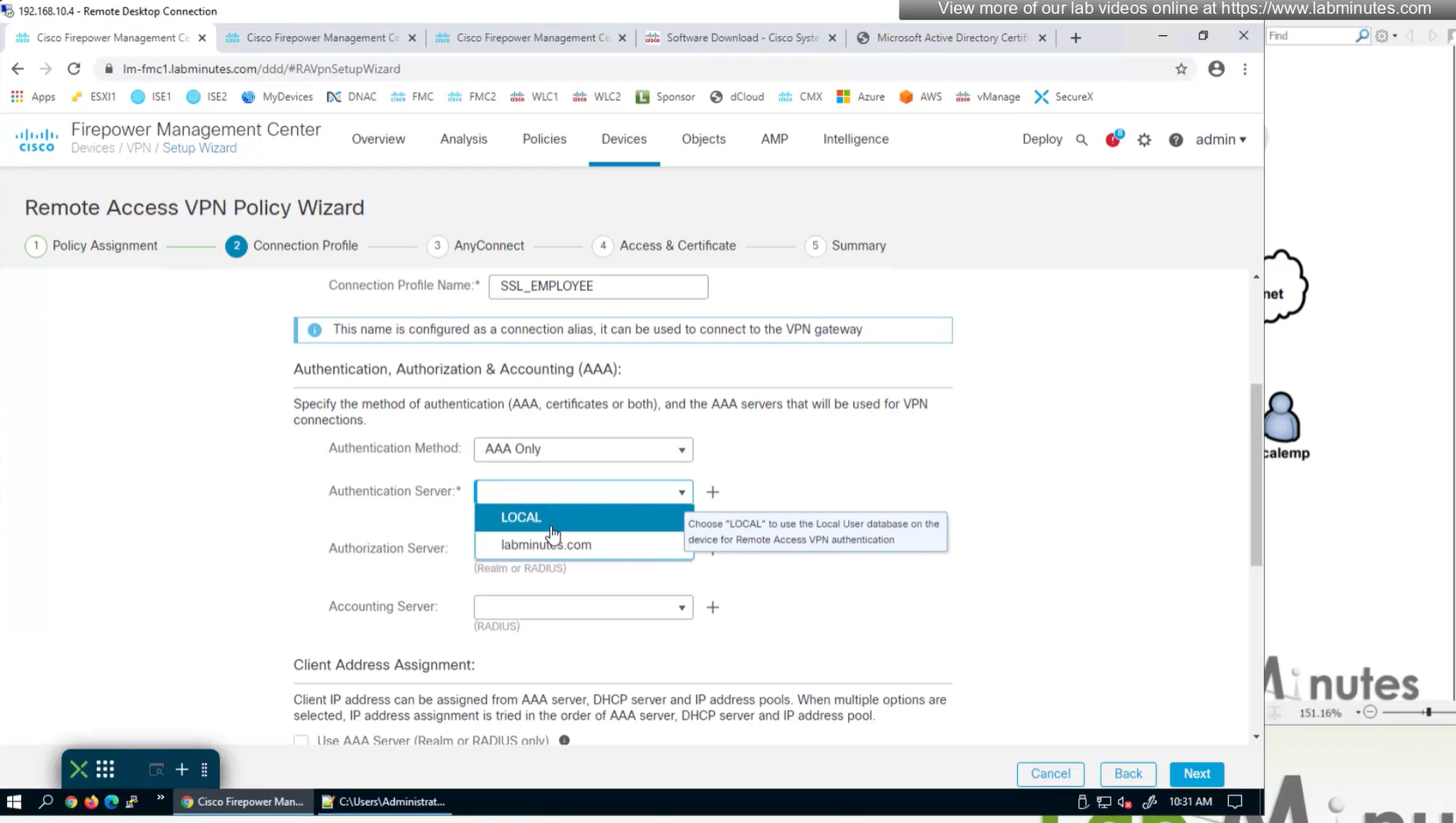

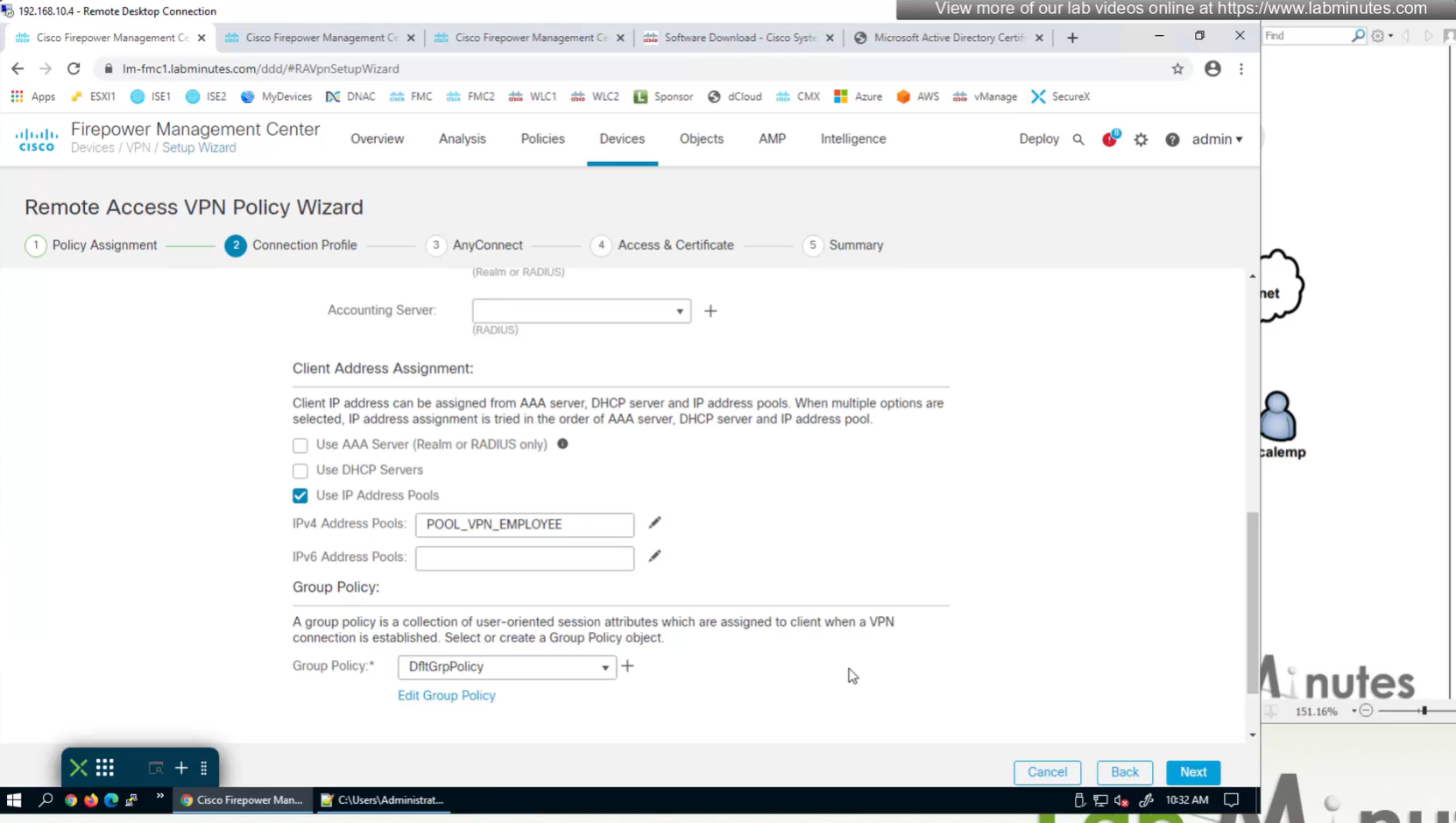

for now we will select default group policy

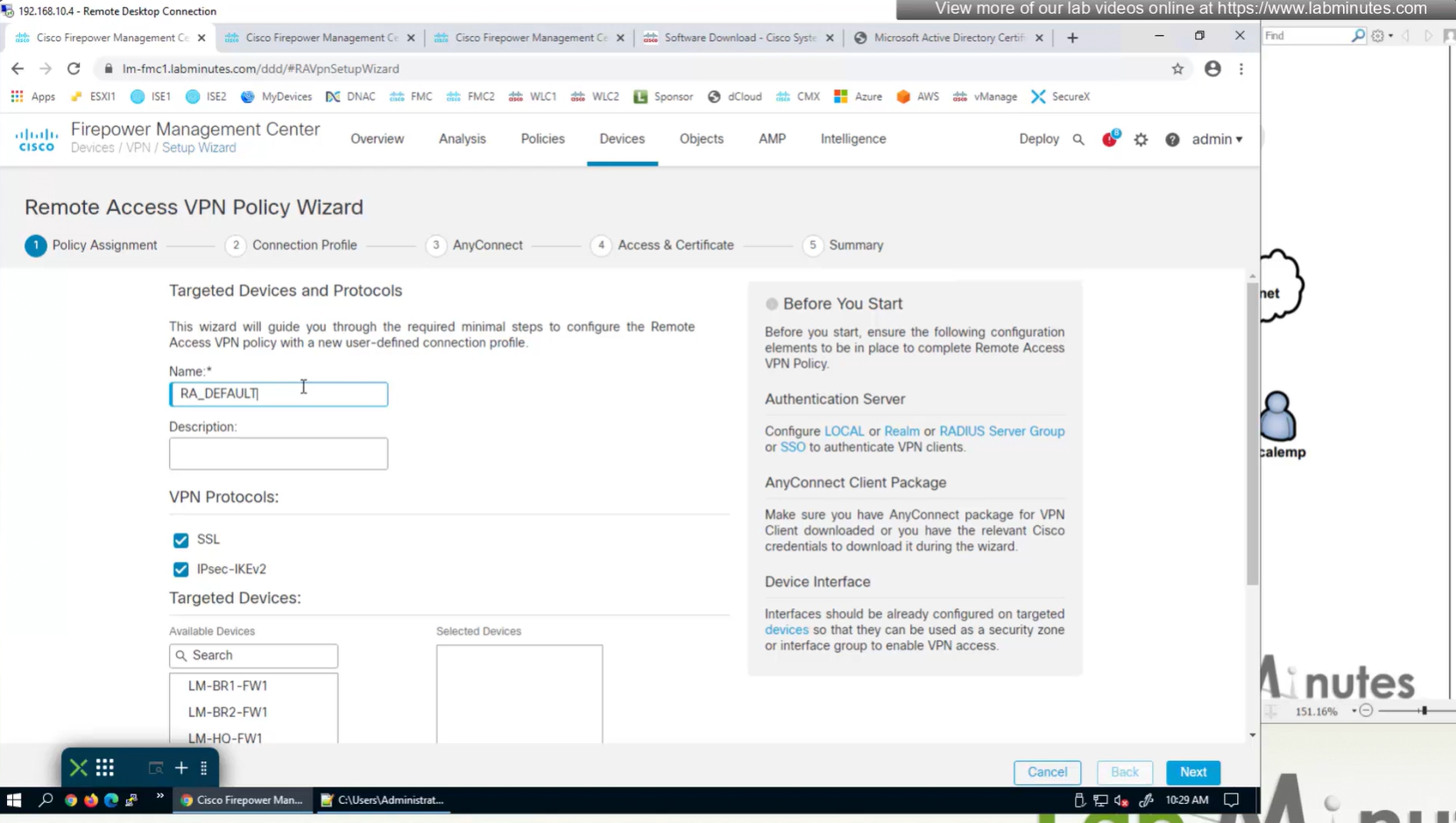

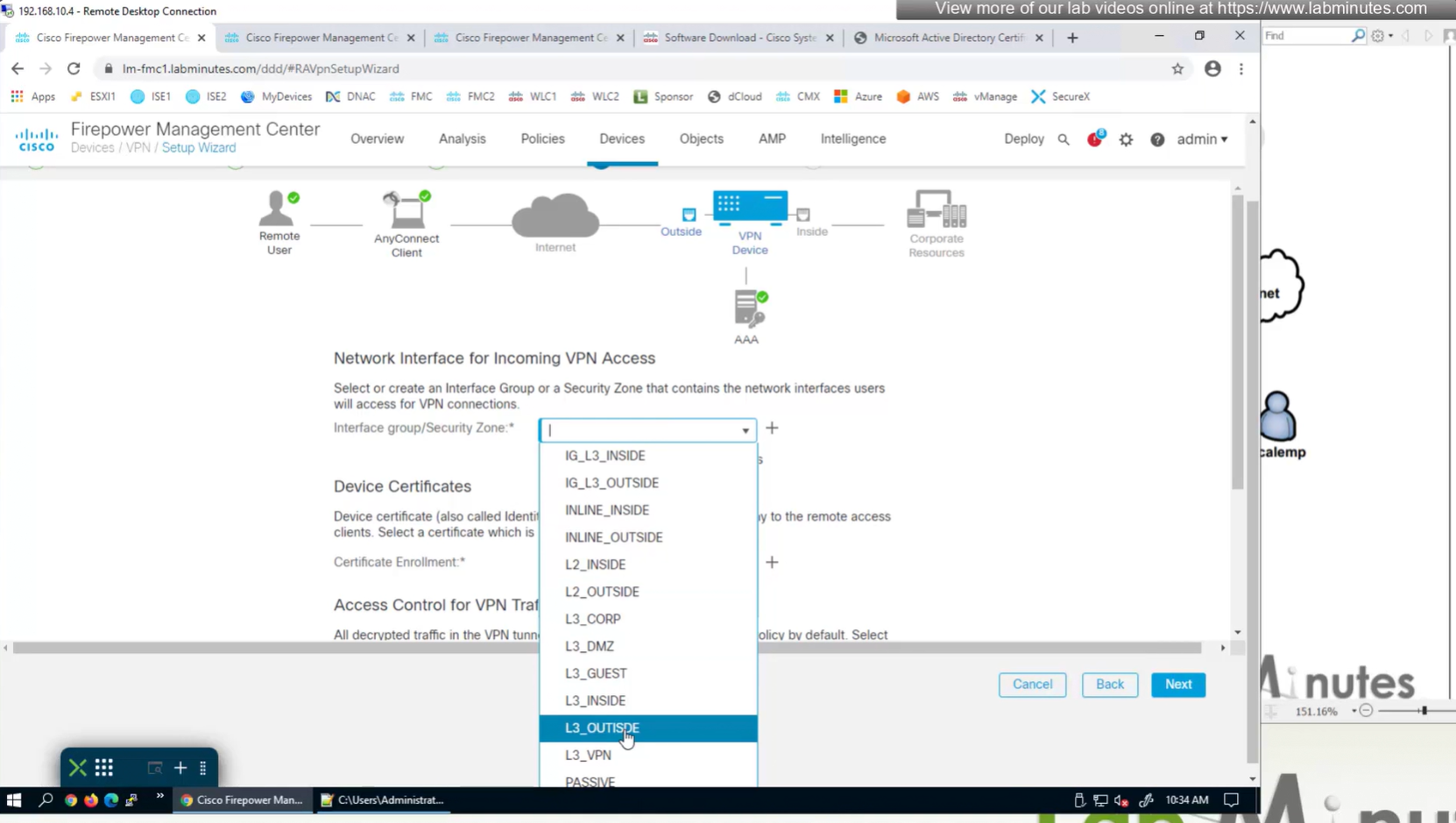

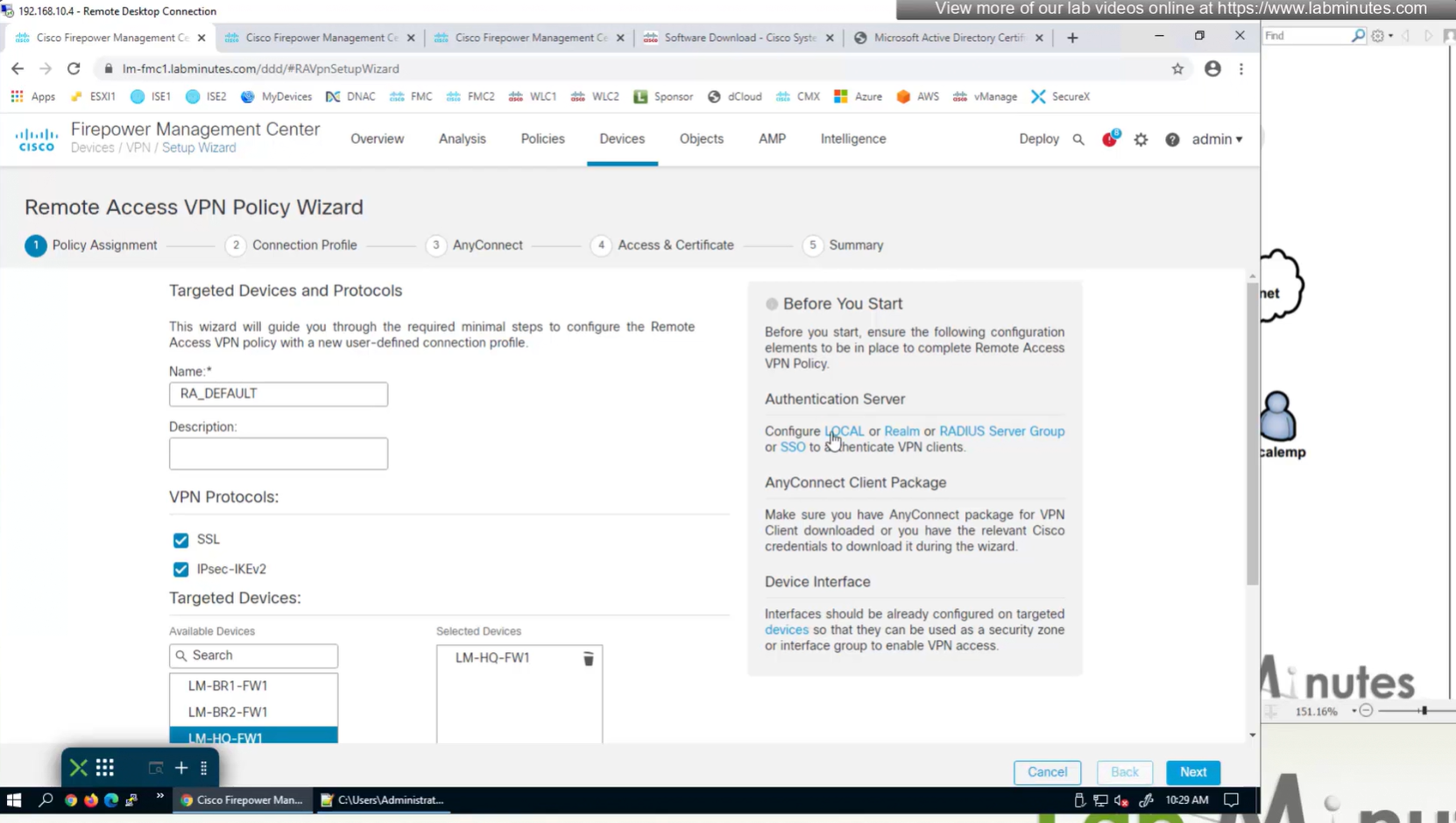

Select Interface

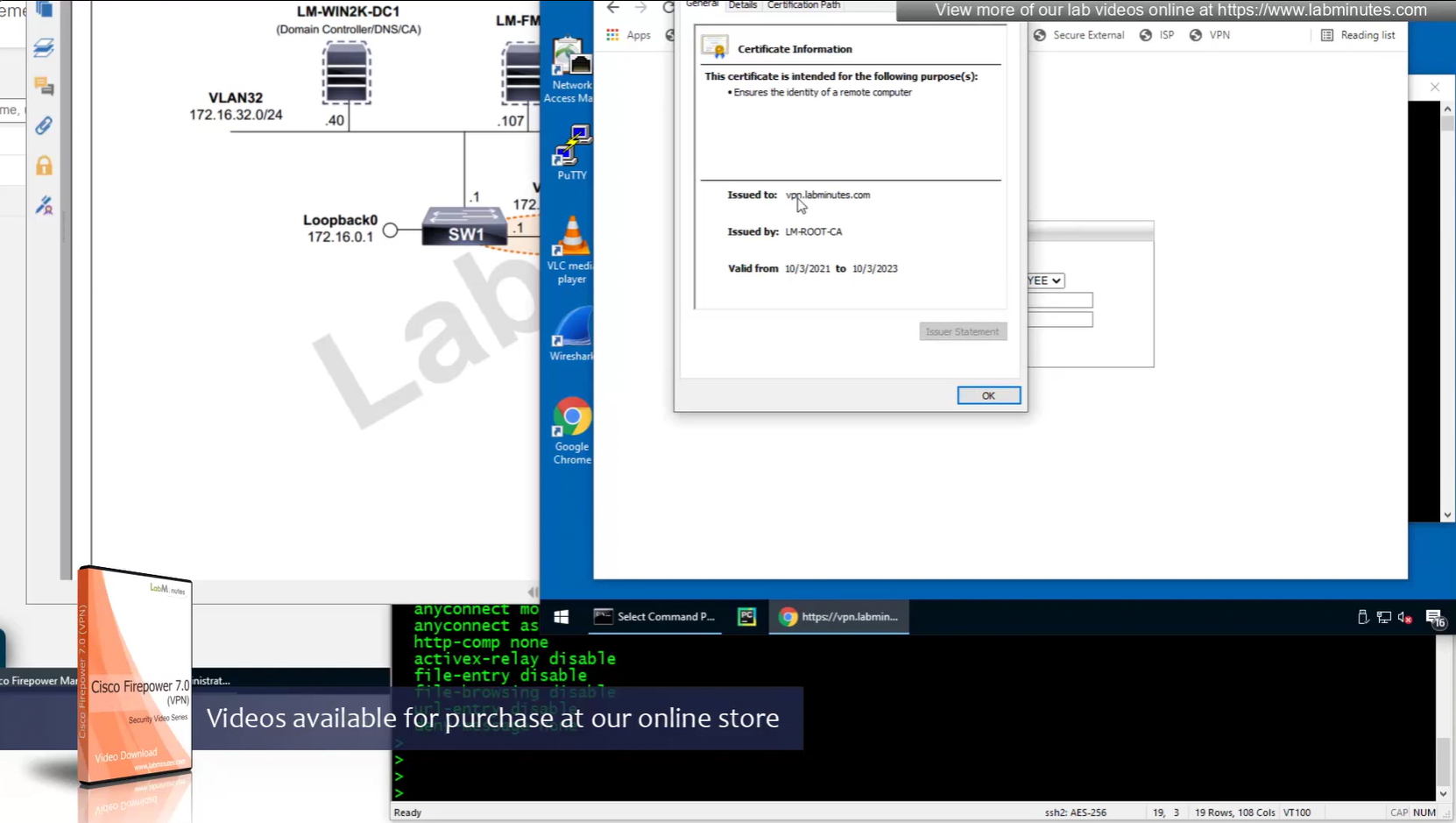

Select certificate to add on the outside interface

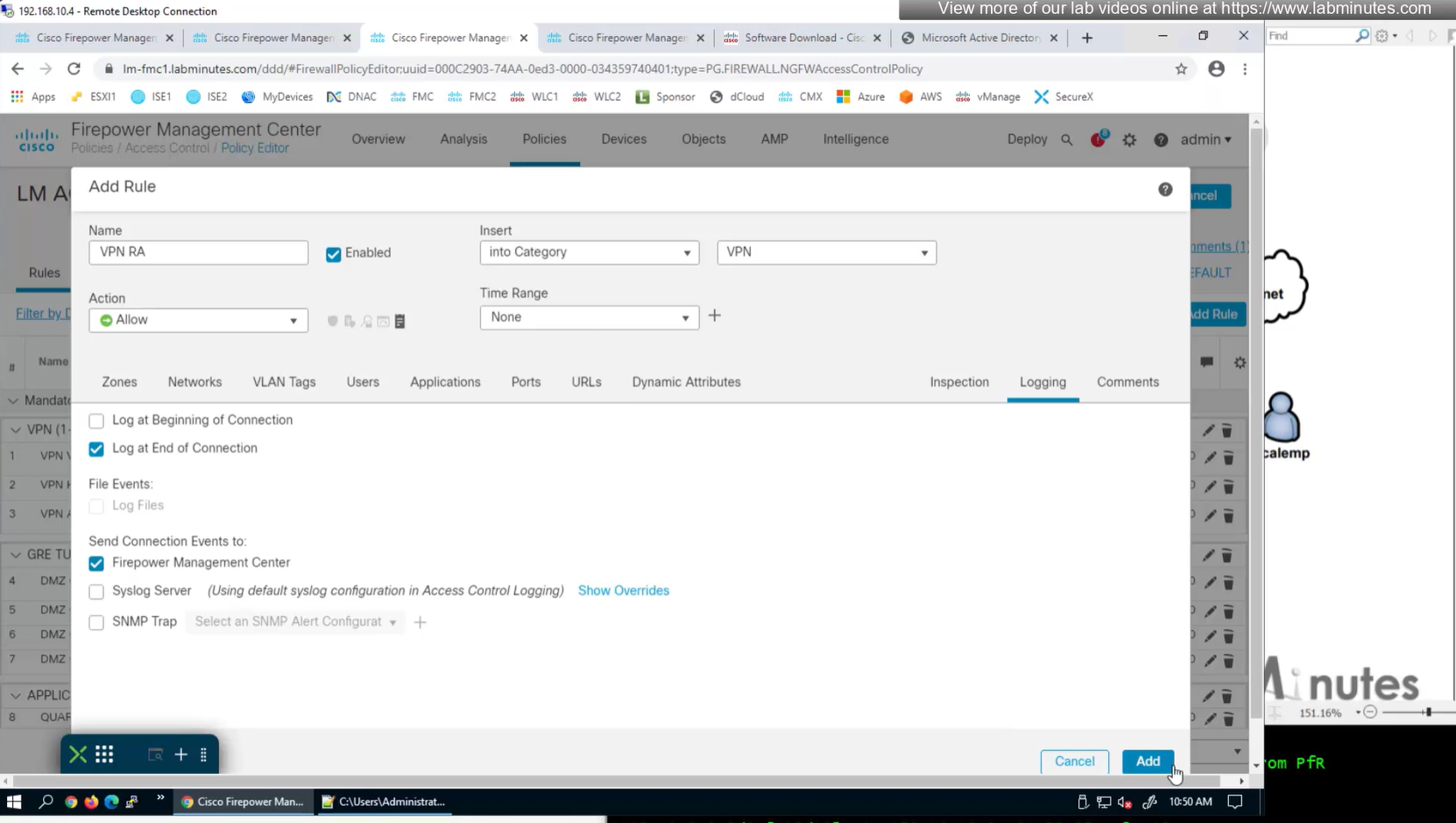

Access Control Policy is needed to allow remote user’s traffic towards enterprise

NAT exemption is needed in case there is NAT policy applied on remote access firewall

SSL will be enabled on port 443, IPSec IKEV2 uses port 500, NAT-T will be enabled by default which will use port 4500

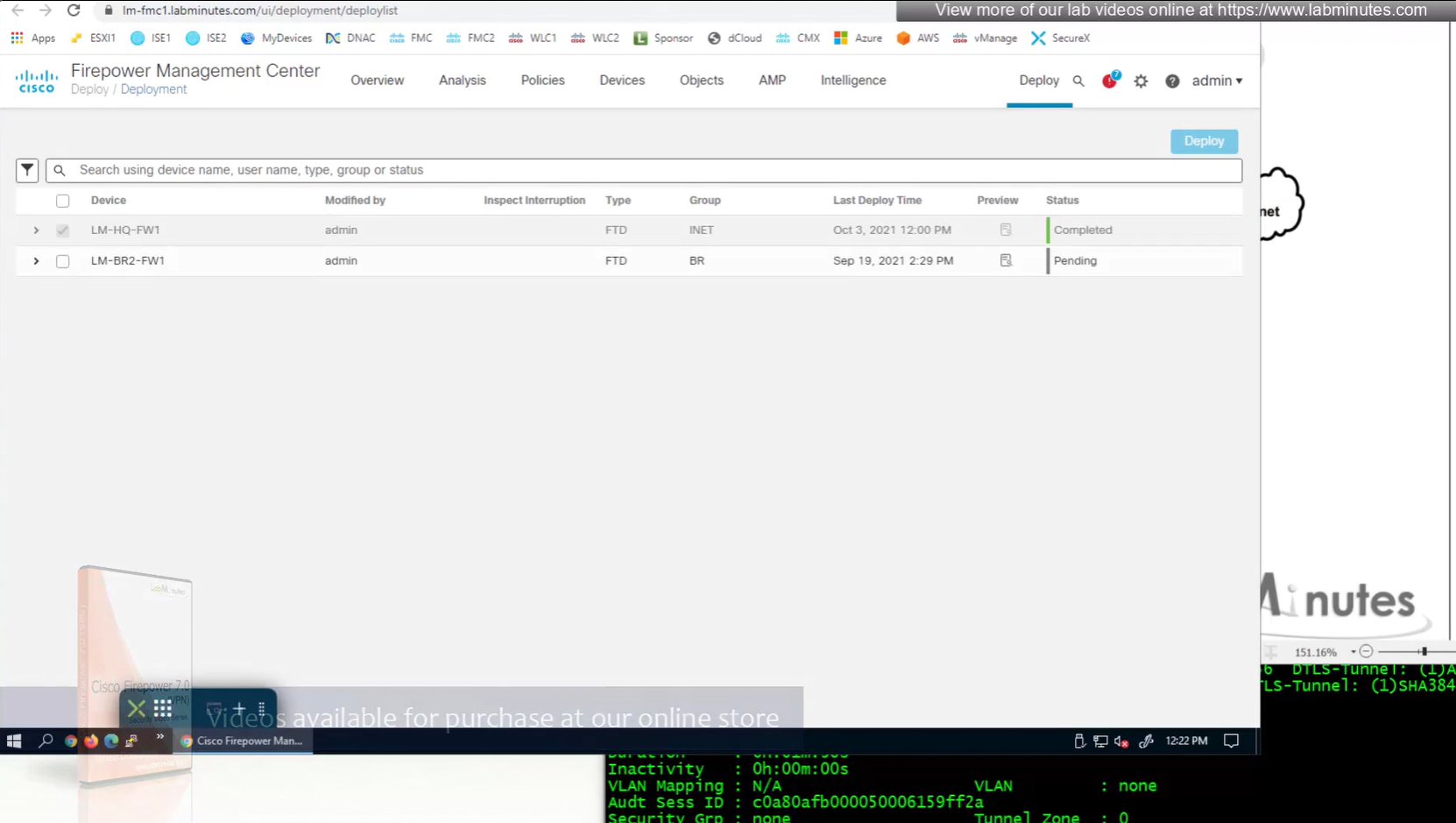

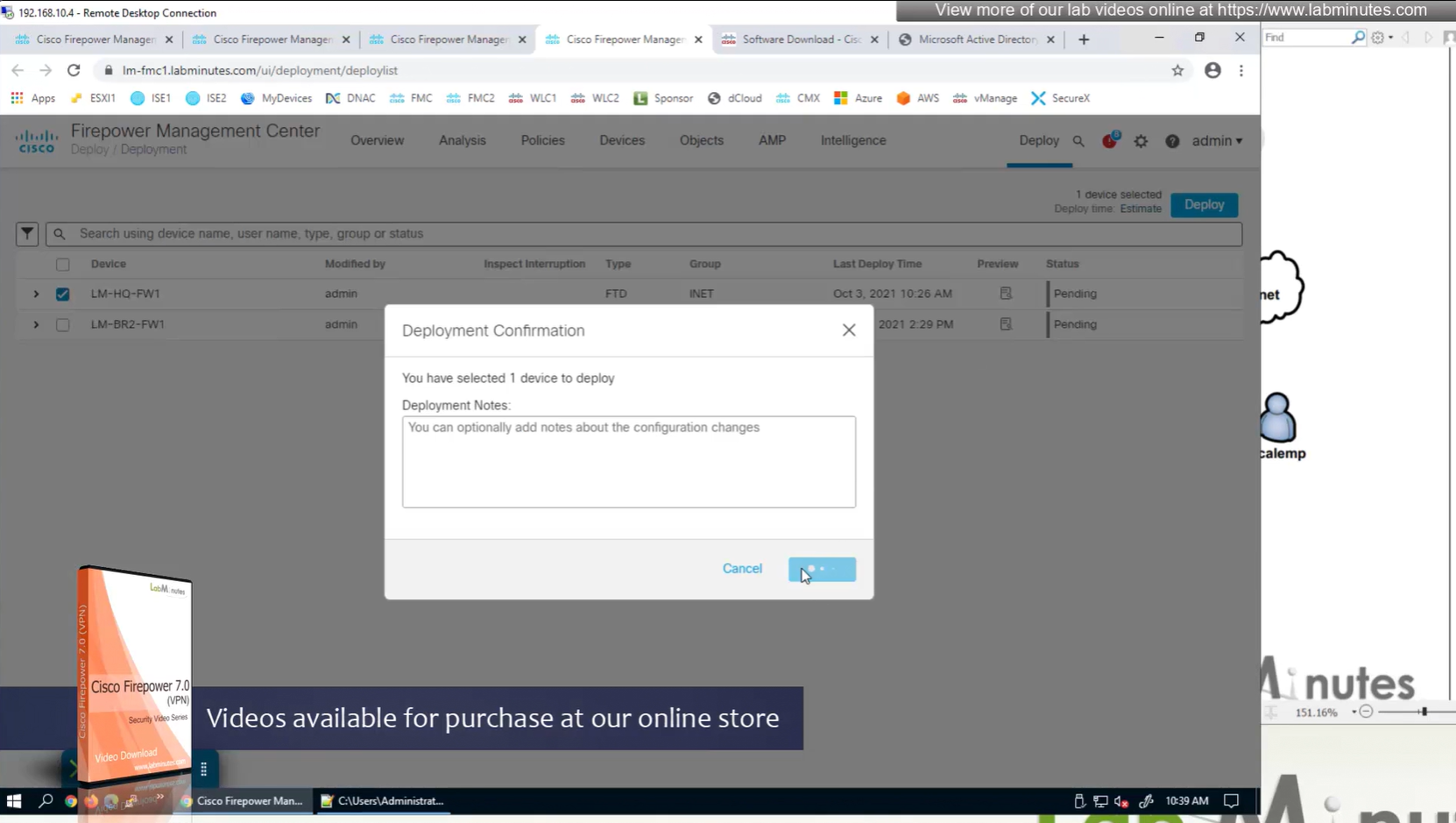

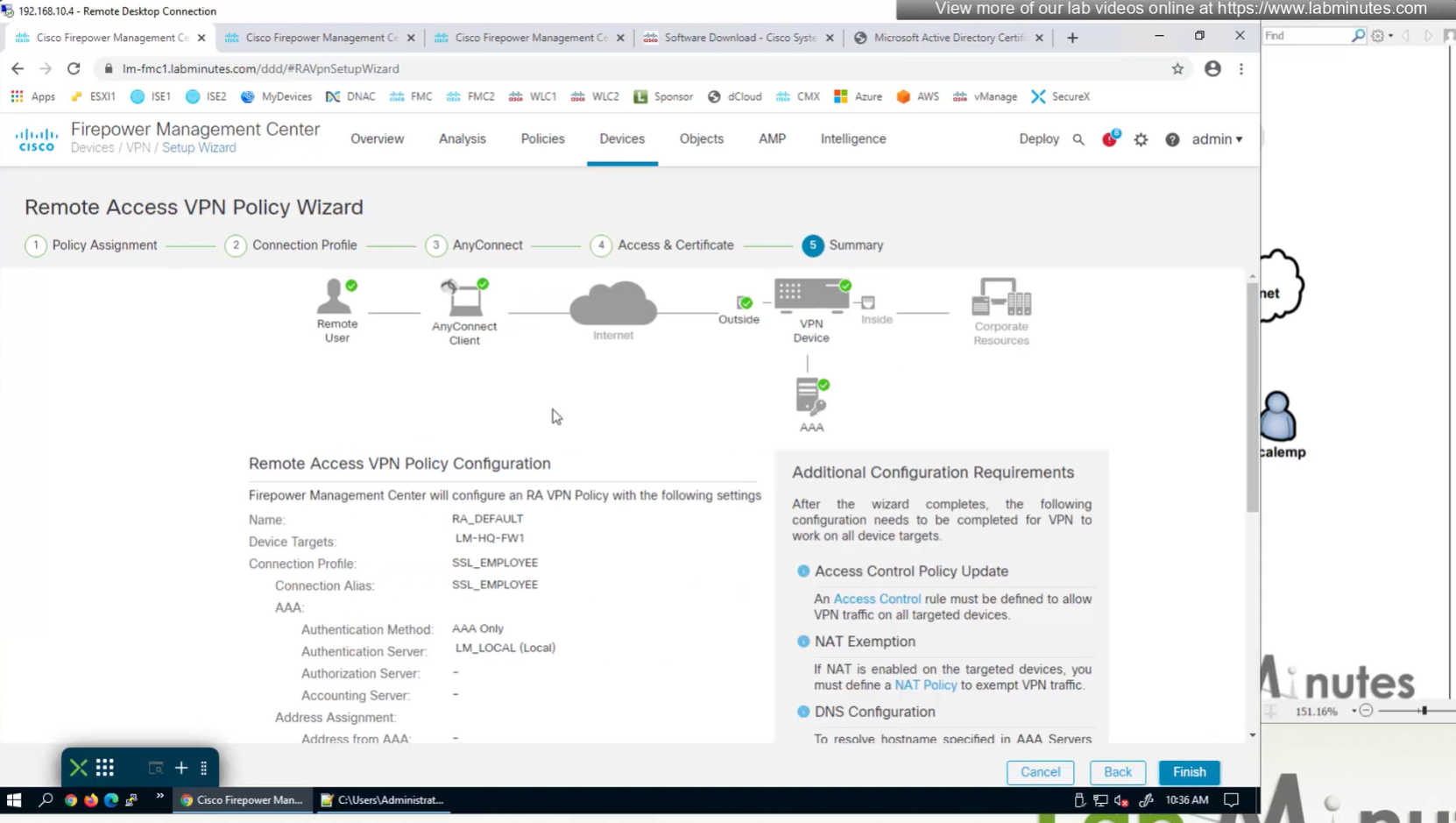

Now we will deploy to make sure that there is no error

Make sure to advertise the anyconnect address pool in routing so enterprise can reach remote clients

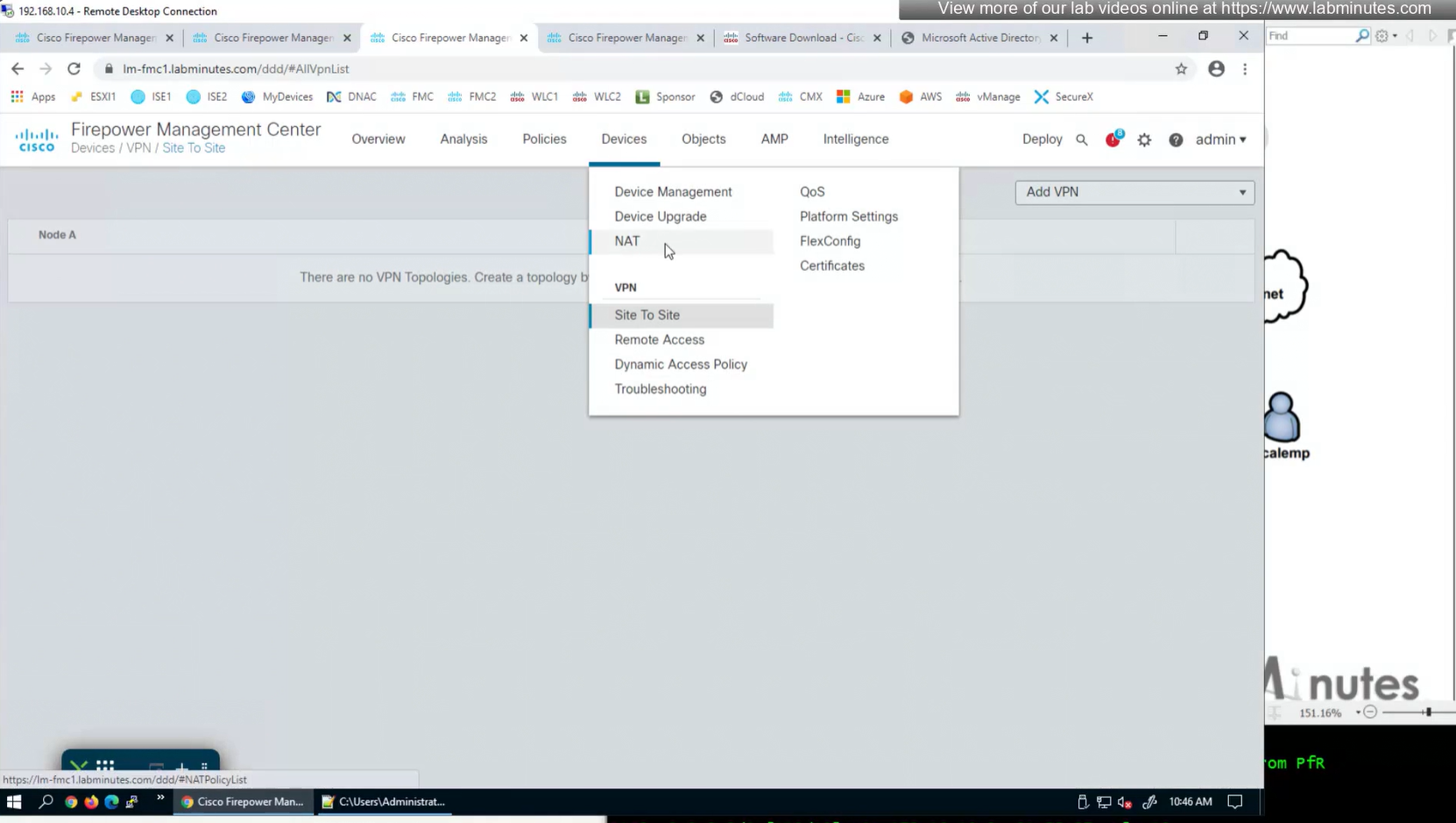

We also need to exempt the traffic as we dont want the traffic going to or coming from remote clients to be NATed, a static NAT will do the job

Select do not proxy ARP and also select perform route lookup for destination interface (to avoid NAT divert)

2x outside interfaces are here because because outside interface group

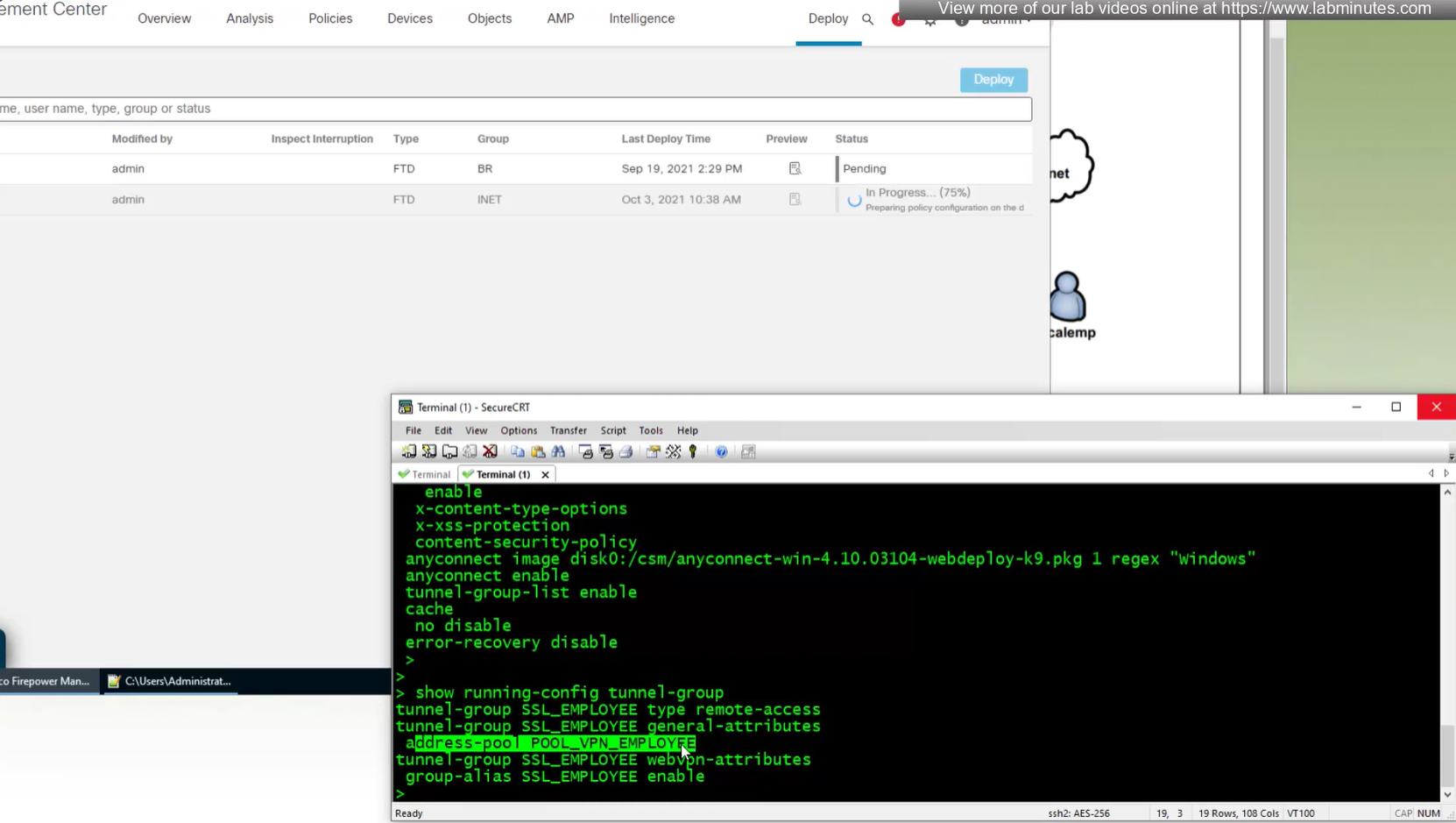

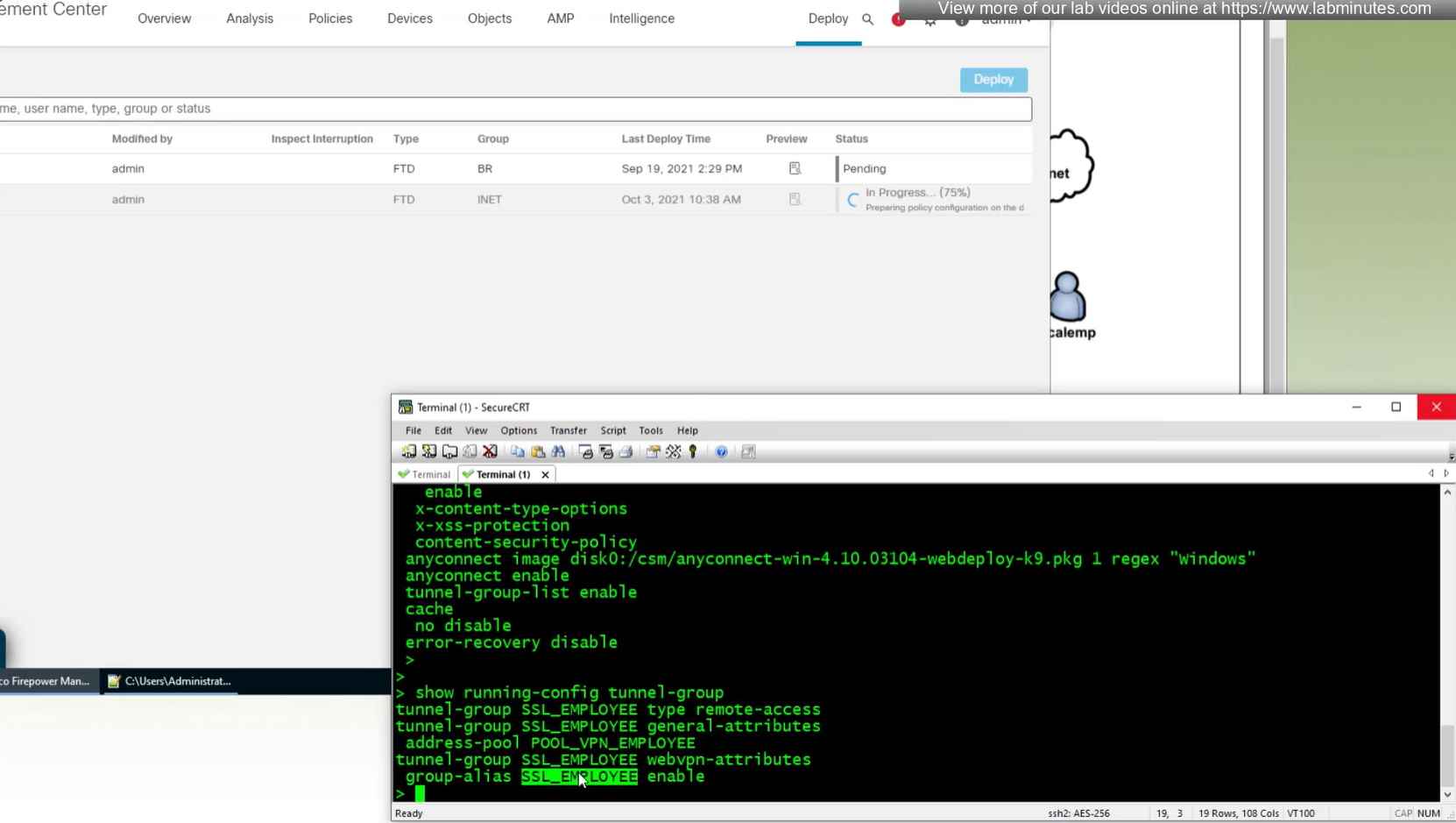

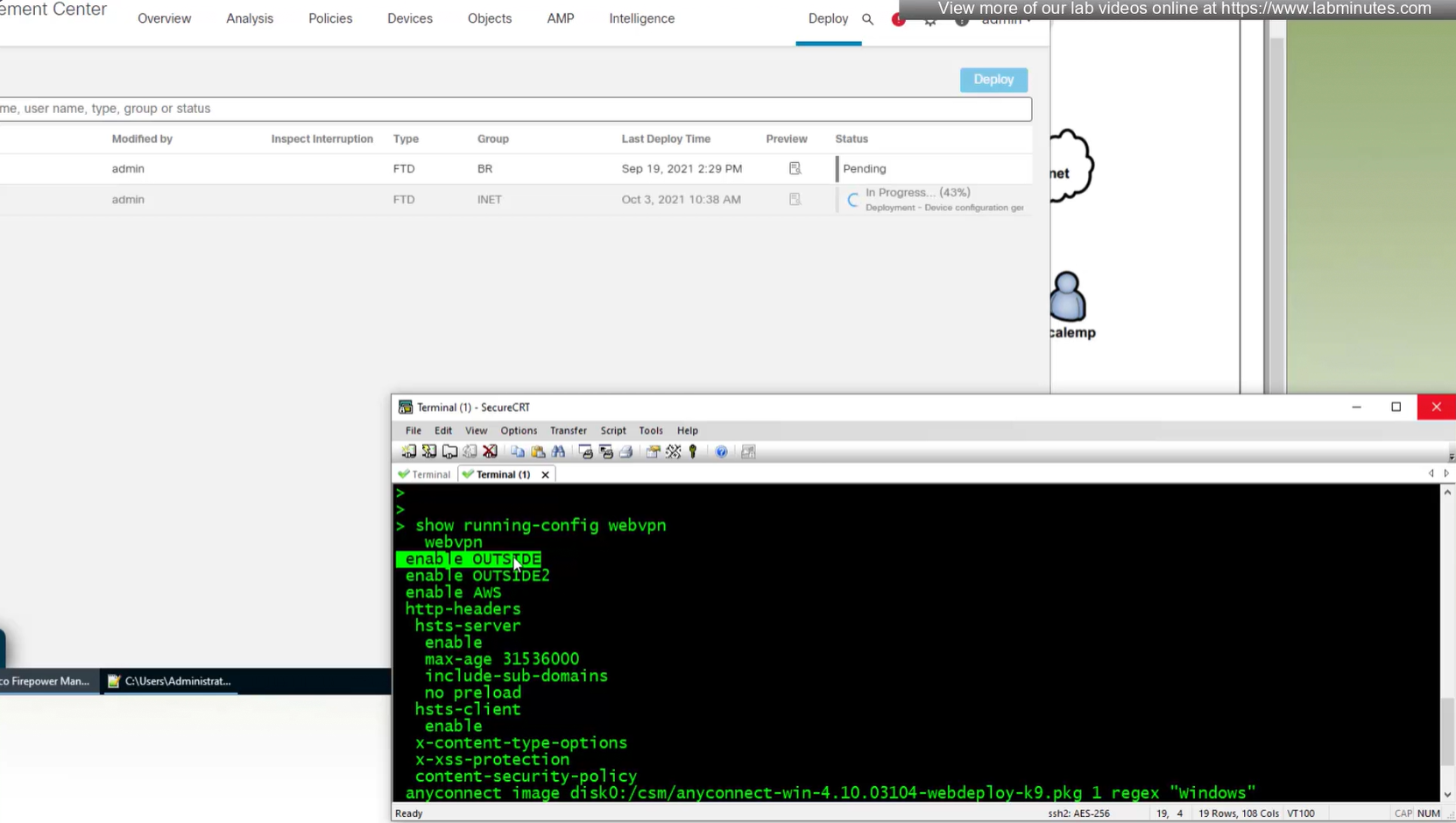

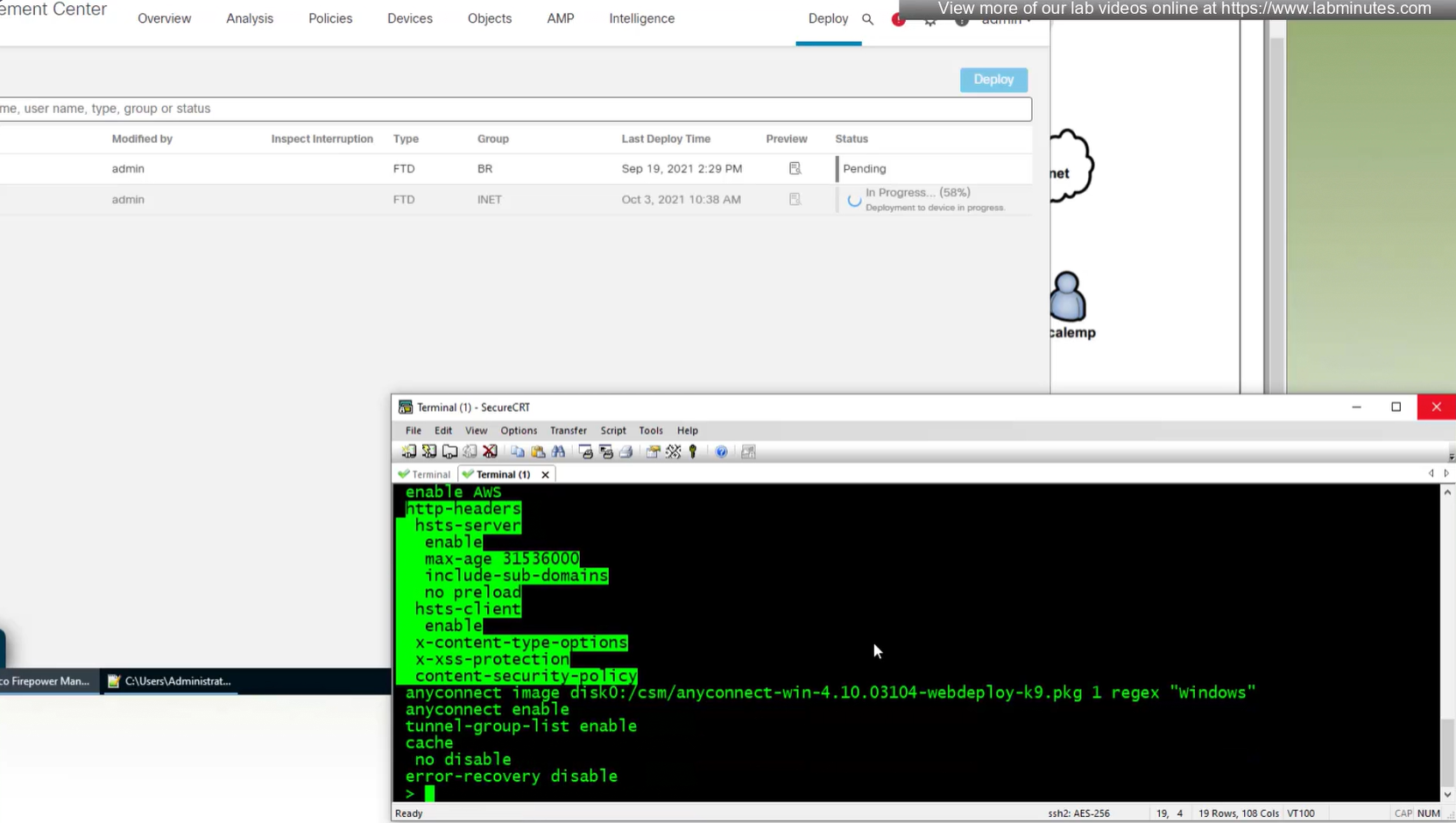

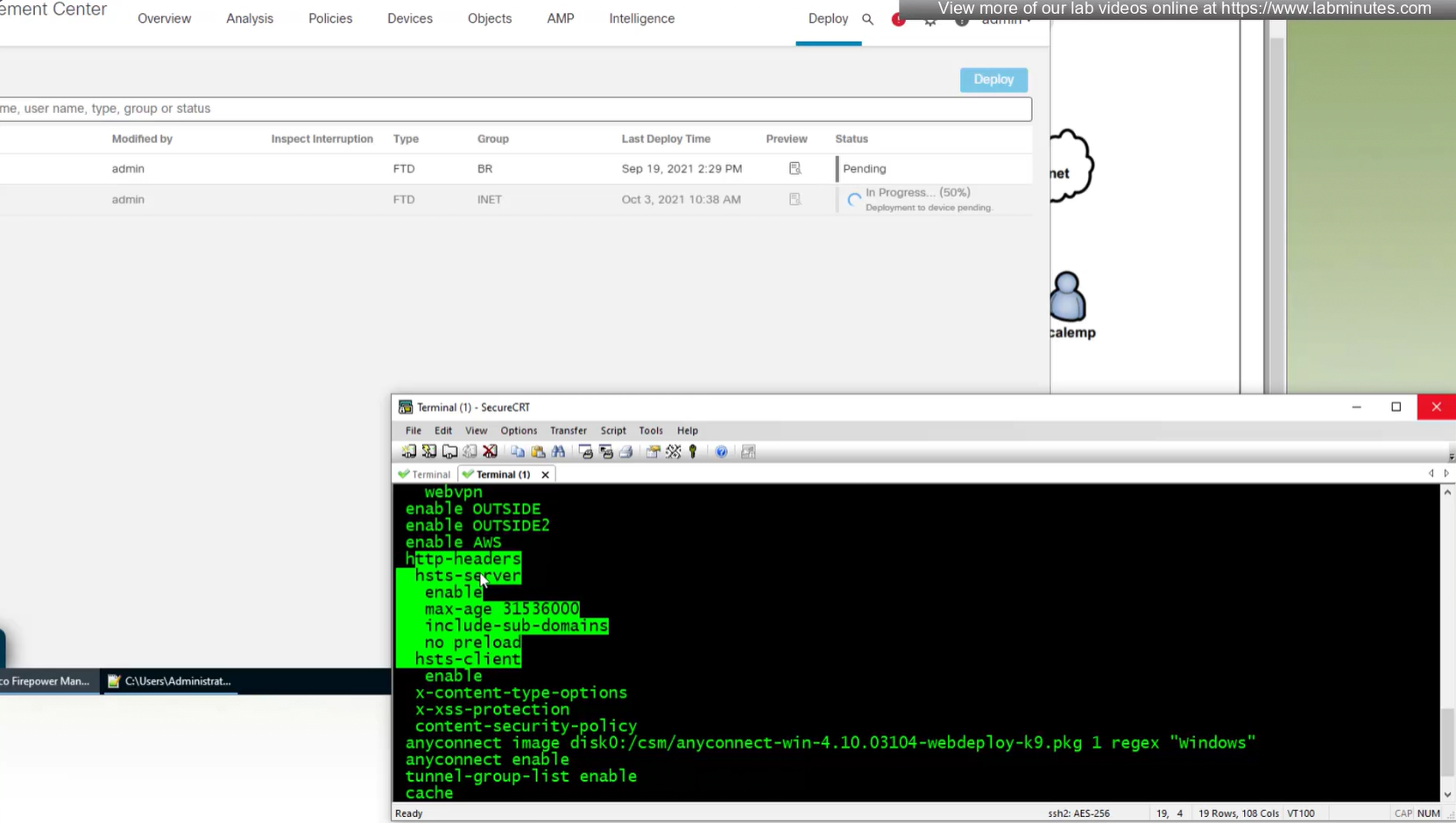

show running-config webvpn

default config that is part of the anyconnect vpn

some additional HTTP headers

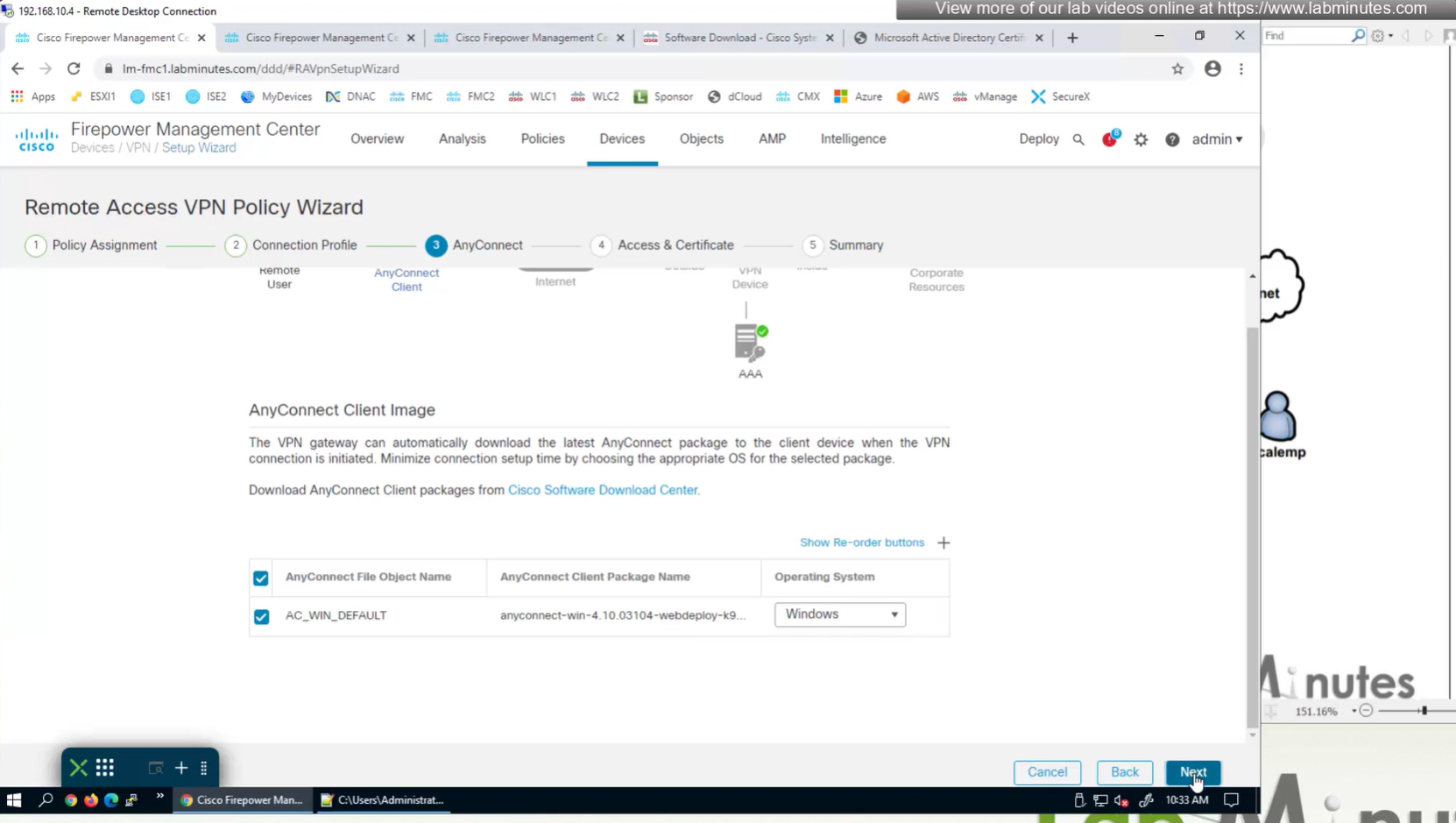

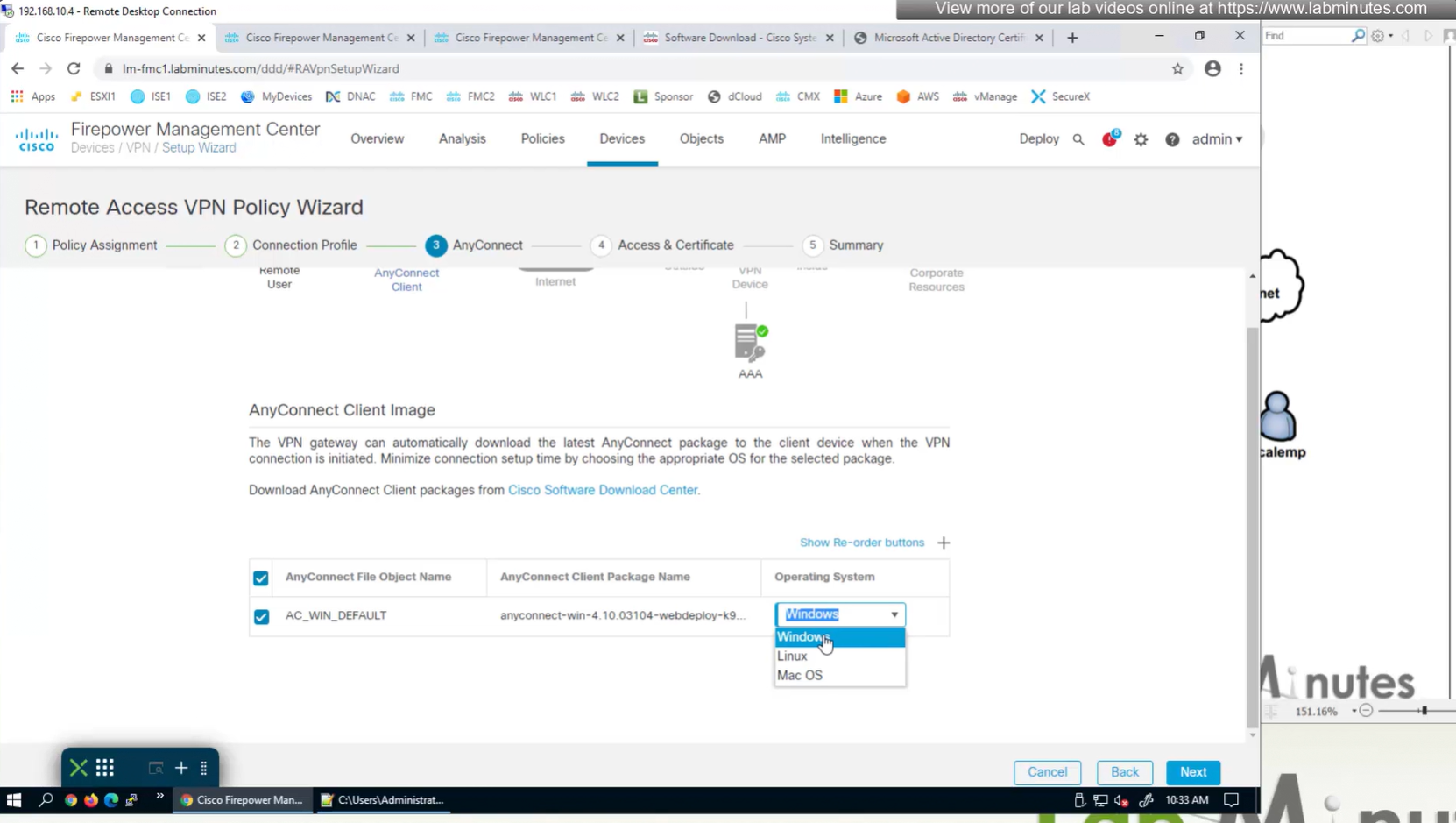

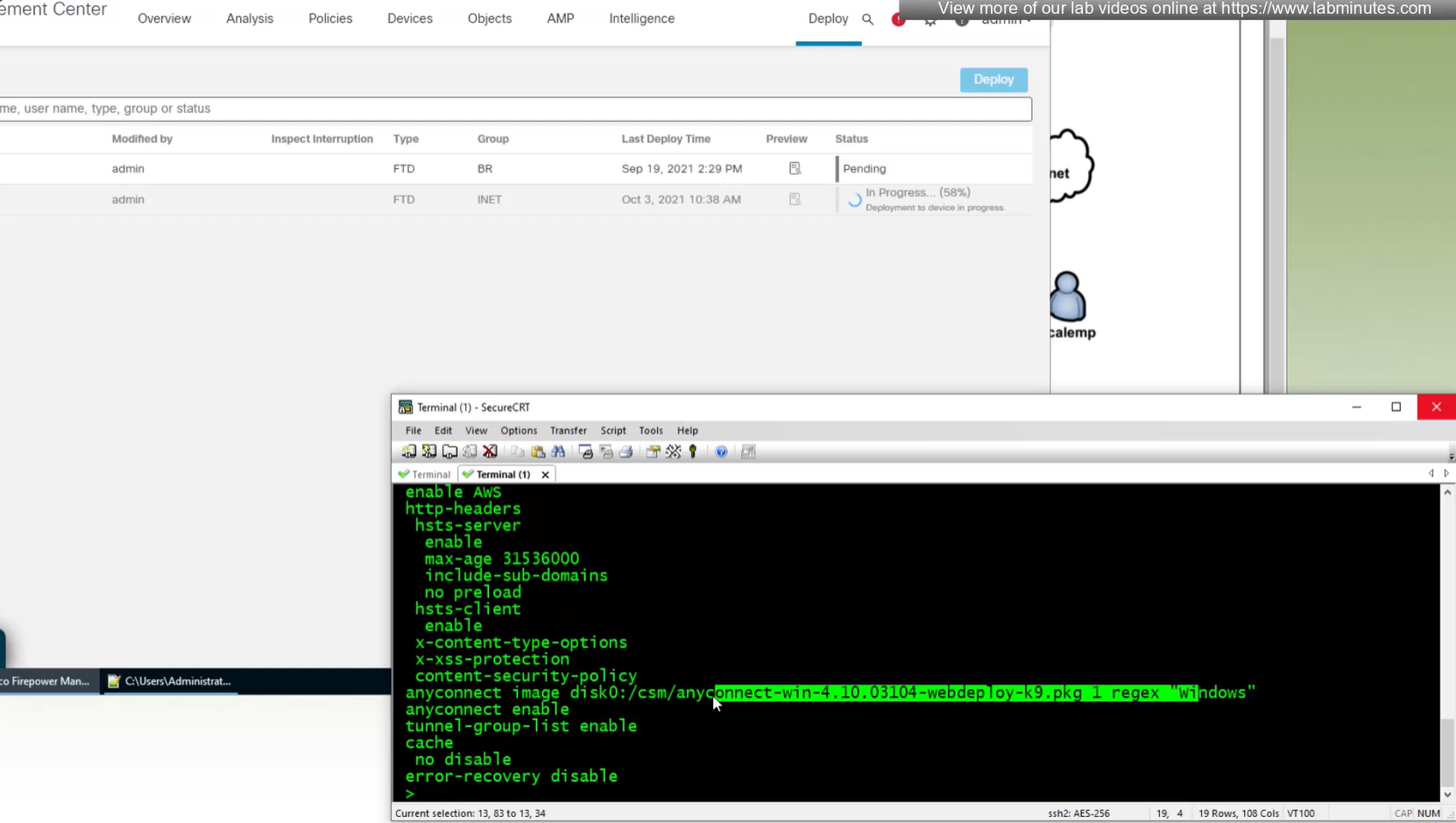

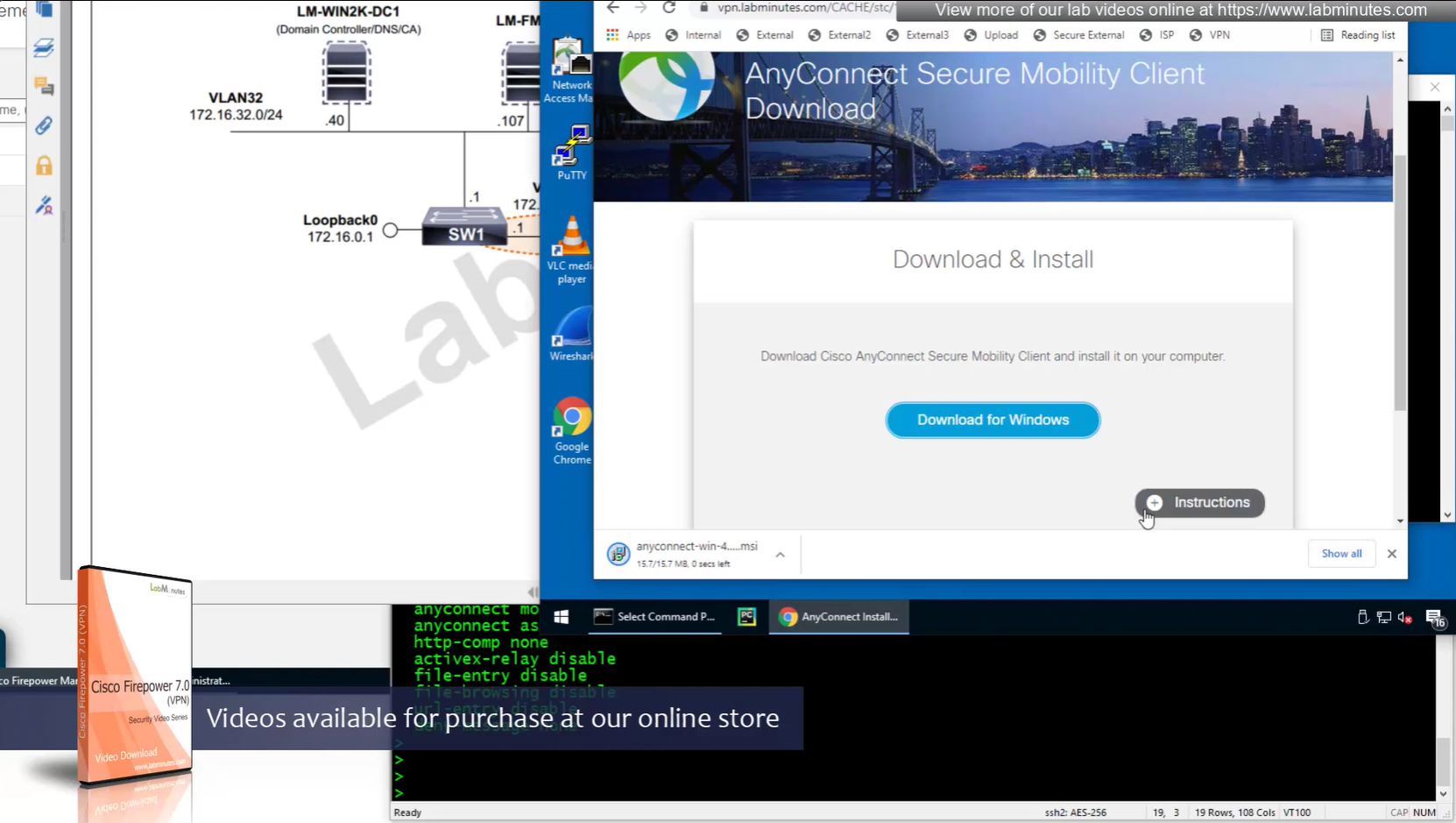

Anyconnect image

When you configure multiple tunnel groups (also known as connection profiles) on an ASA, users connecting via VPN (like AnyConnect or IPsec) may need to pick which one to use.

By default, the ASA won’t show users a drop-down list of available tunnel groups at the login screen. Instead, they’d have to know and type in the group name.

The command:

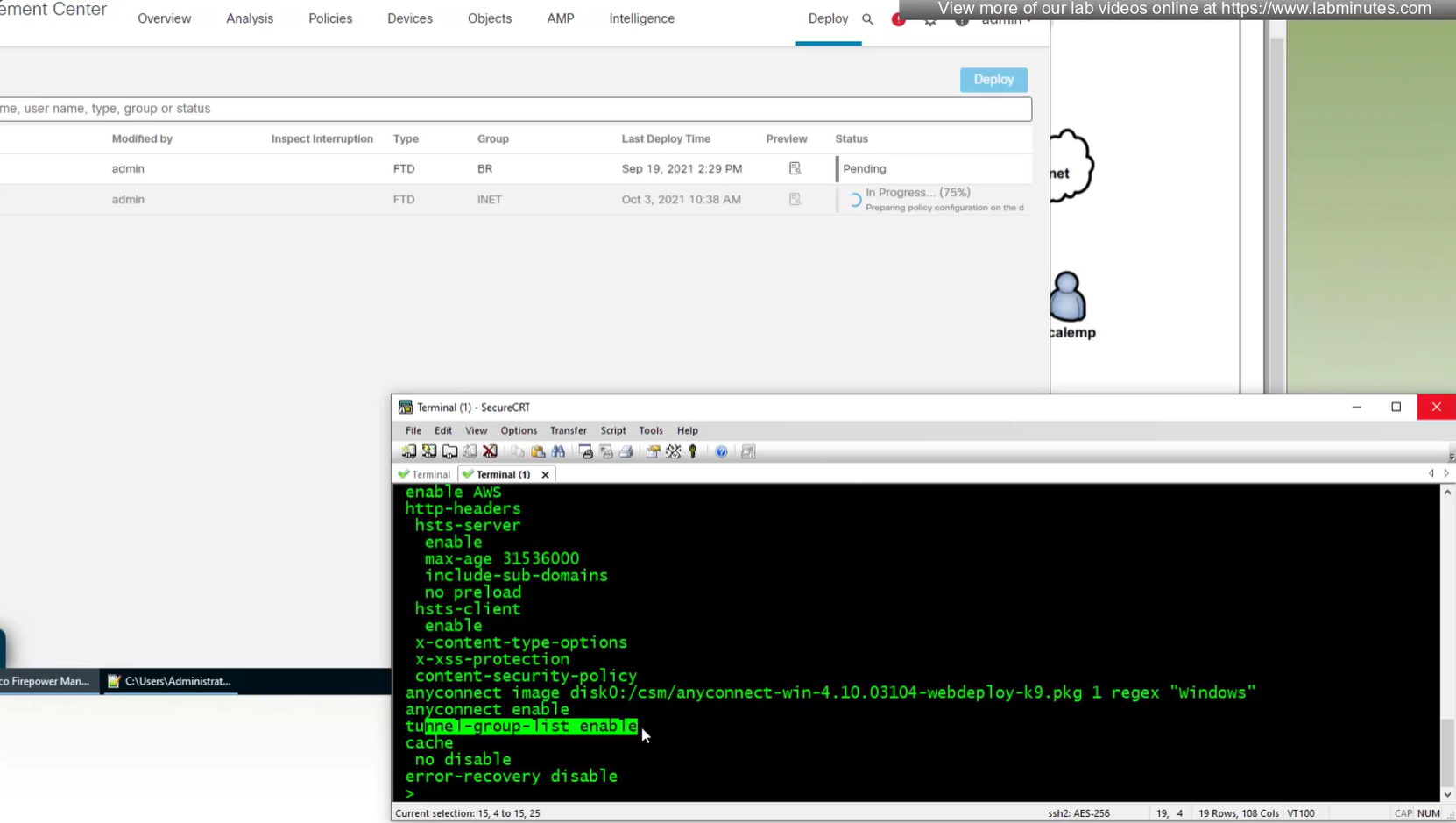

tunnel-group-list enable

enables the display of the tunnel group (connection profile) list on the VPN login page.

show run tunnel-group

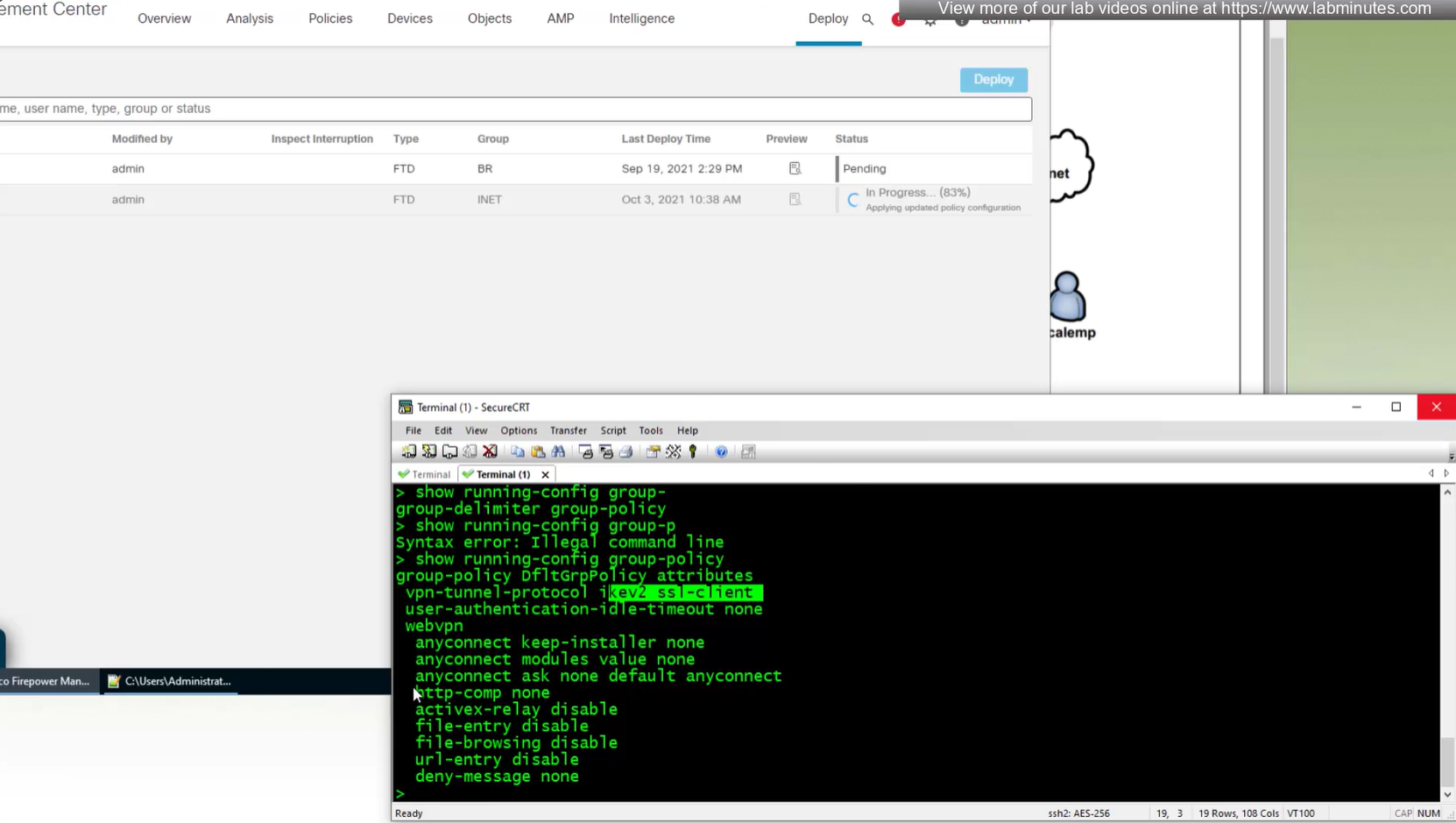

show running-config group-policy

There are different anyconnect licenses and we need to make sure we have right kind of licenses and also make sure that they are synced to our smart account as FMC will be pulling them from Smart licensing.

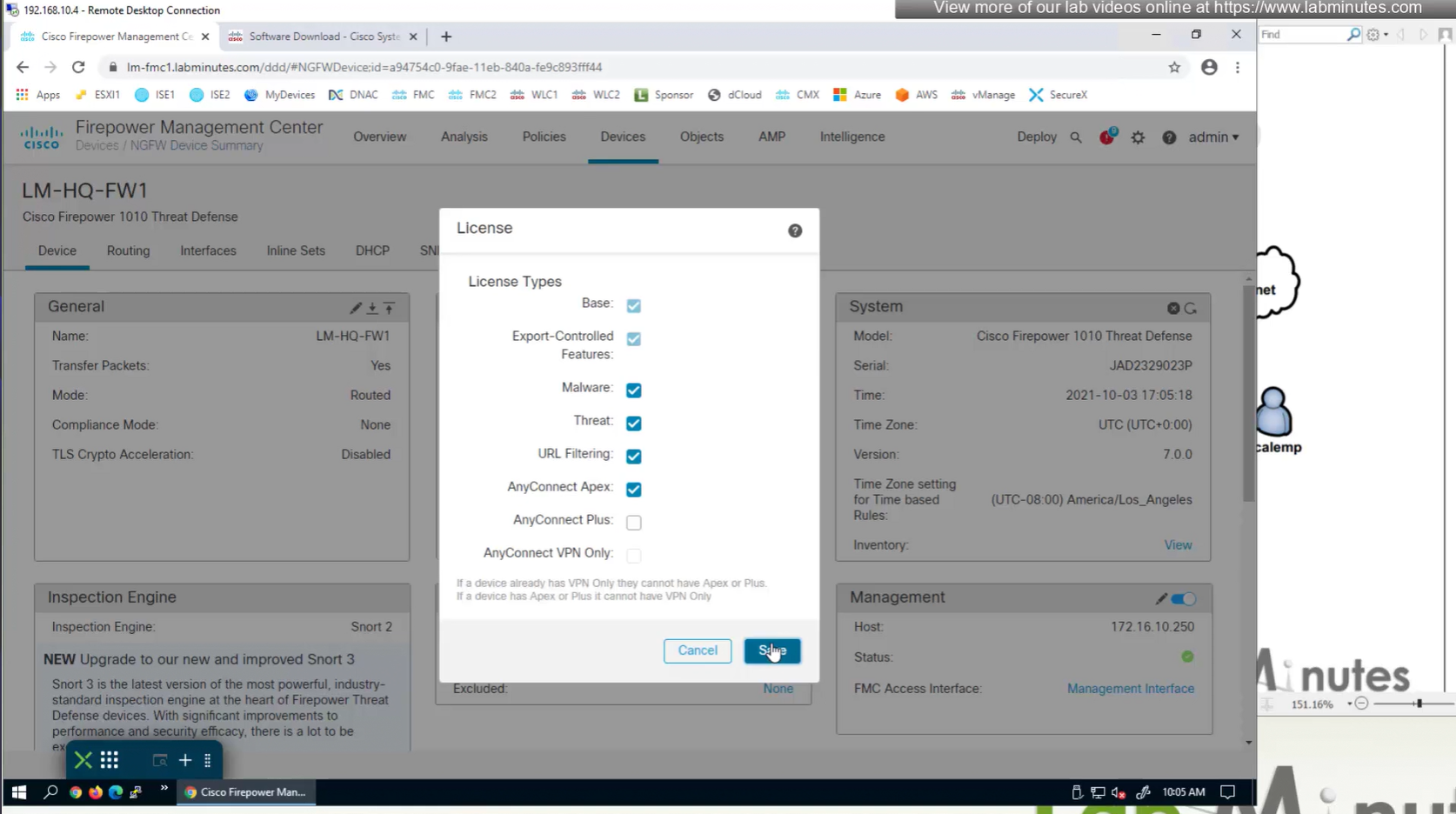

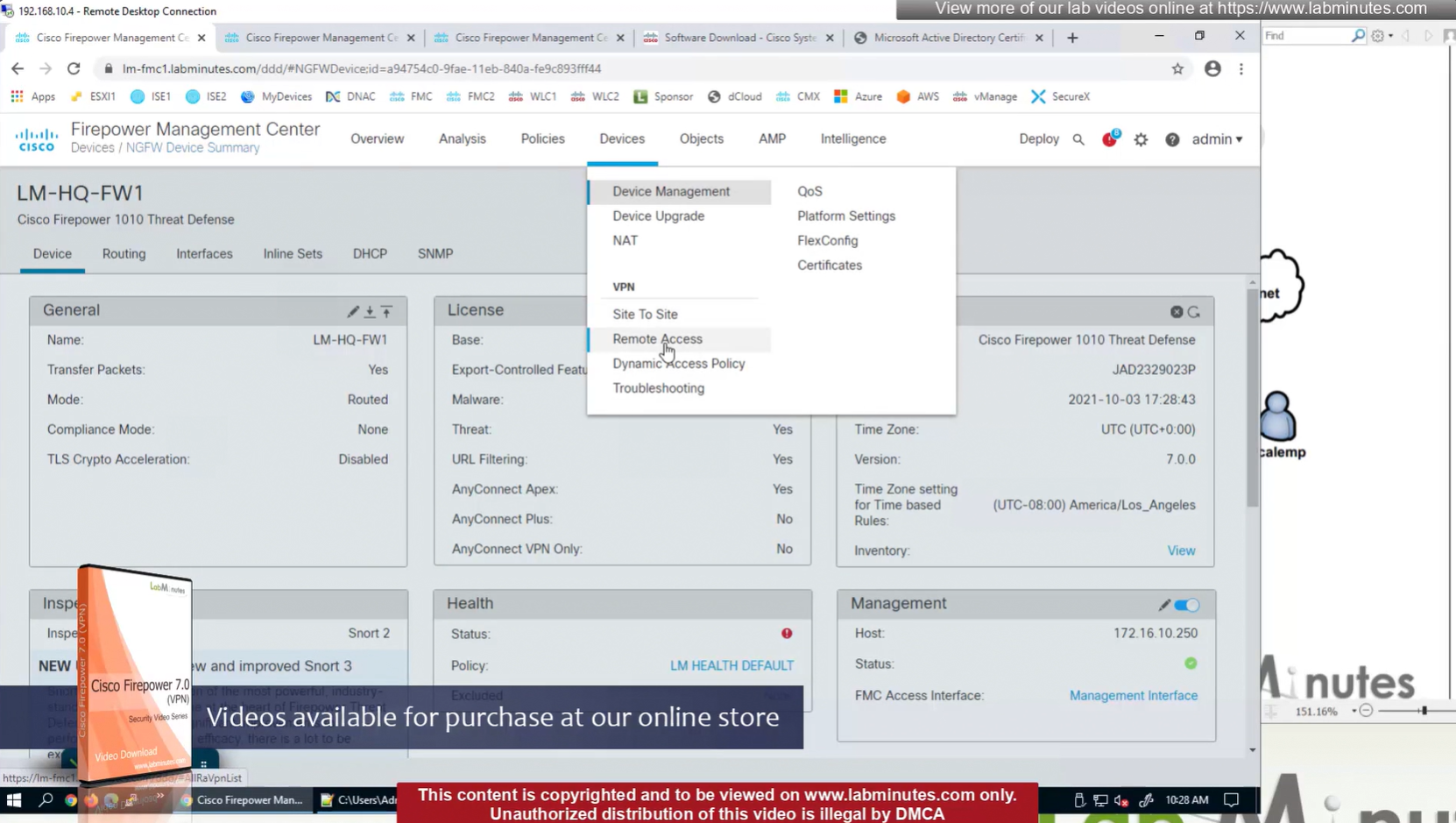

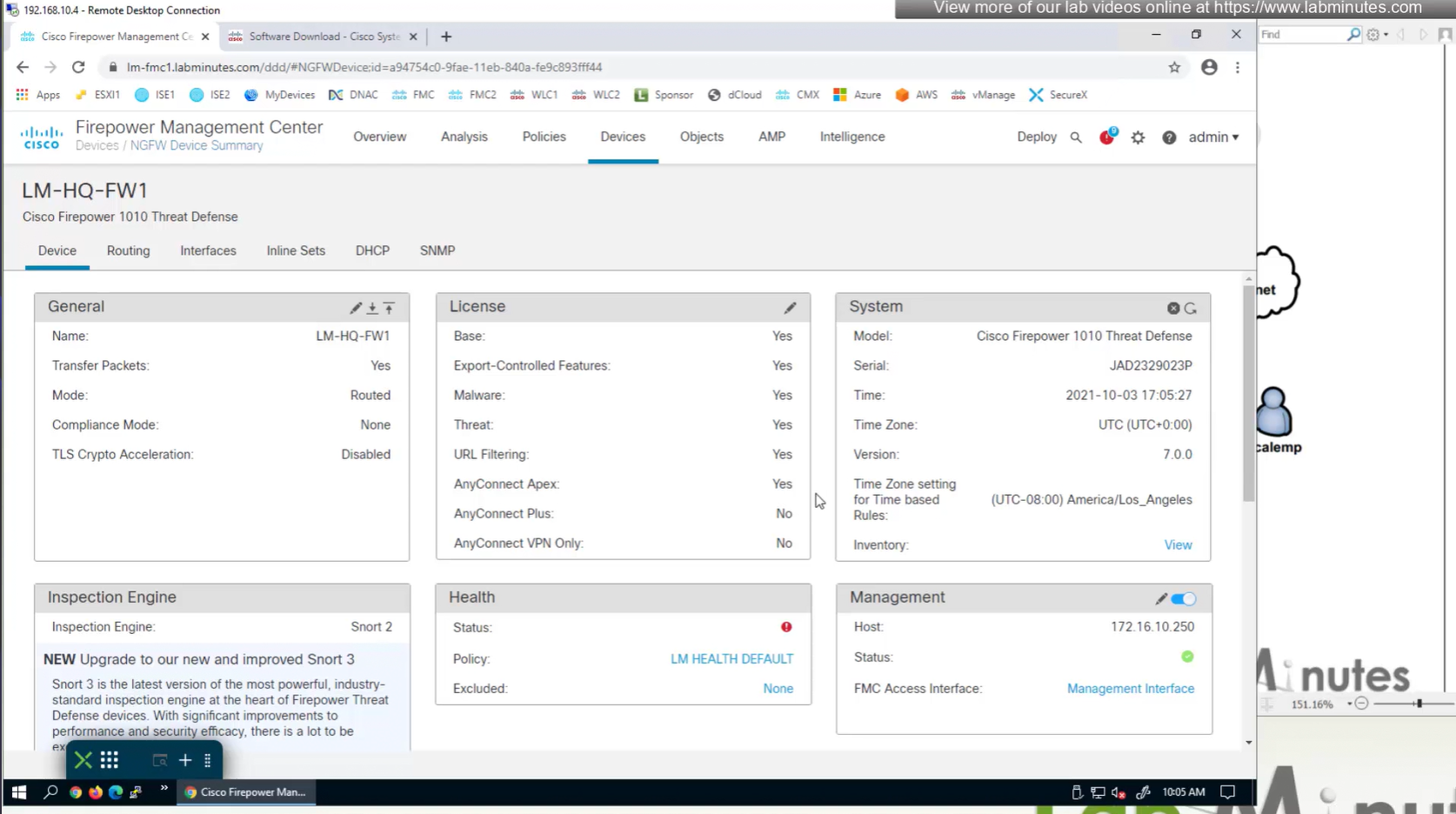

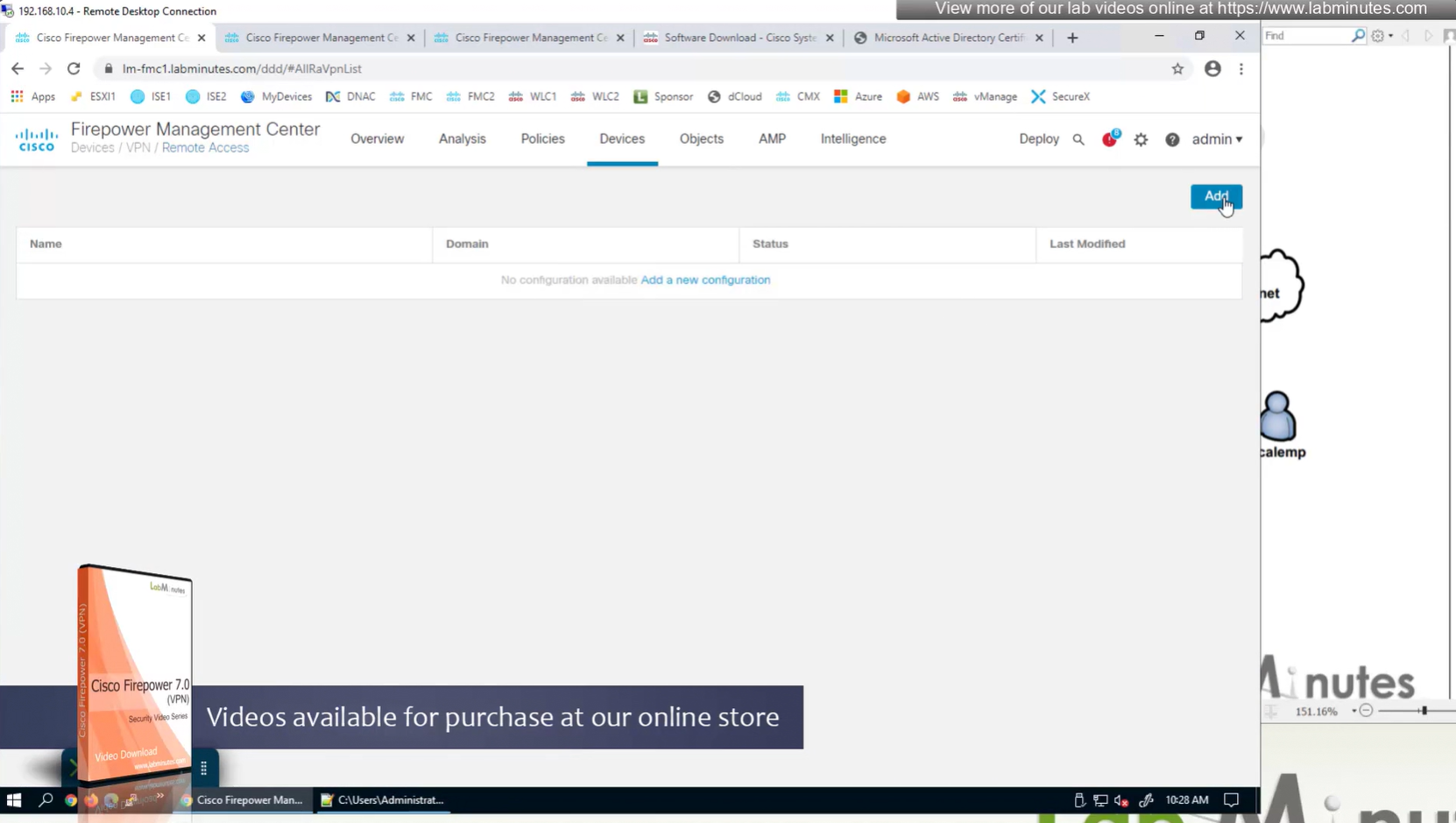

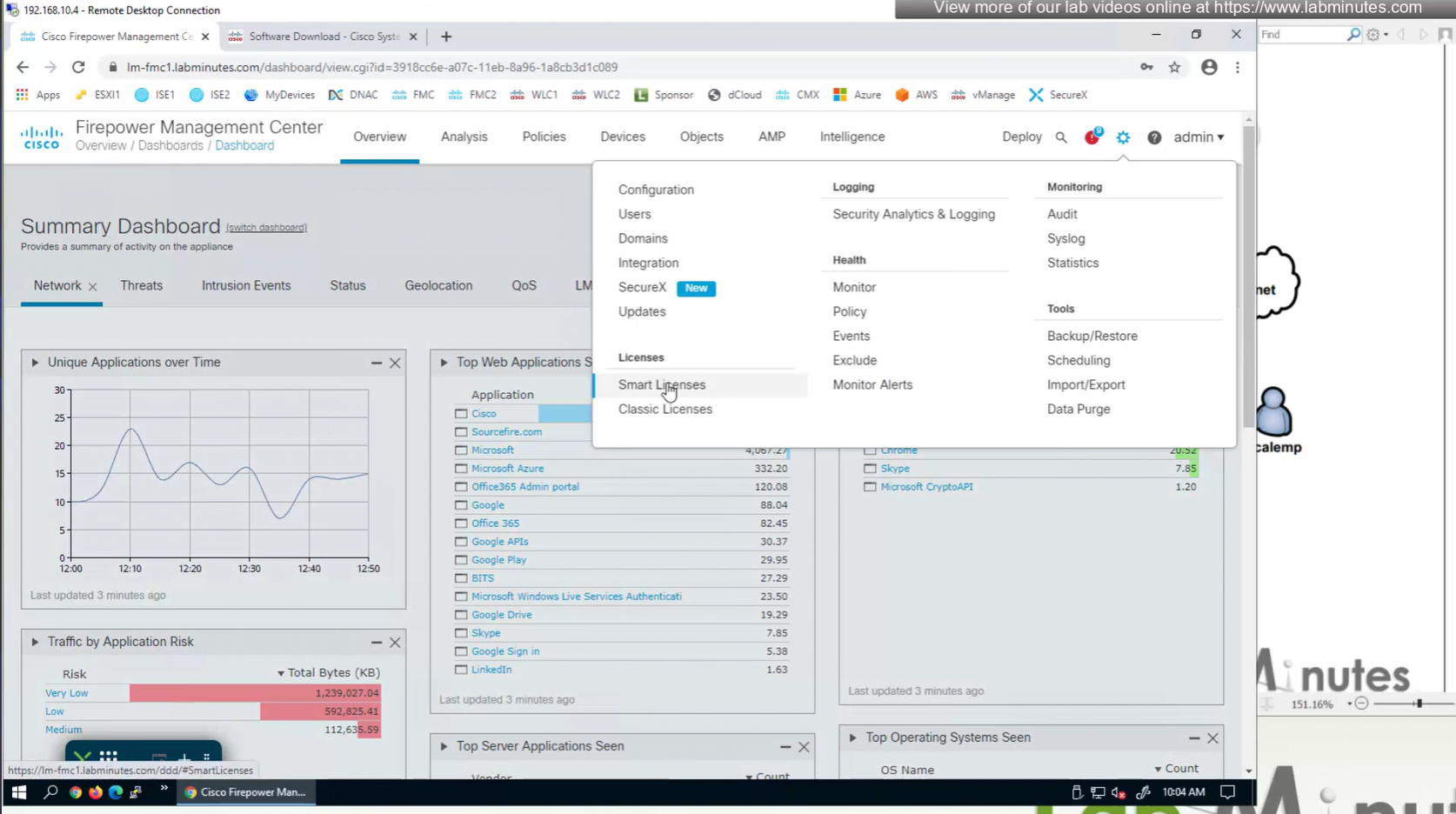

Edit the device and add Anyconnect license on remote access VPN firewall

Manual deployment means that you will be installing anyconnect manually or distribute it through software distribution system

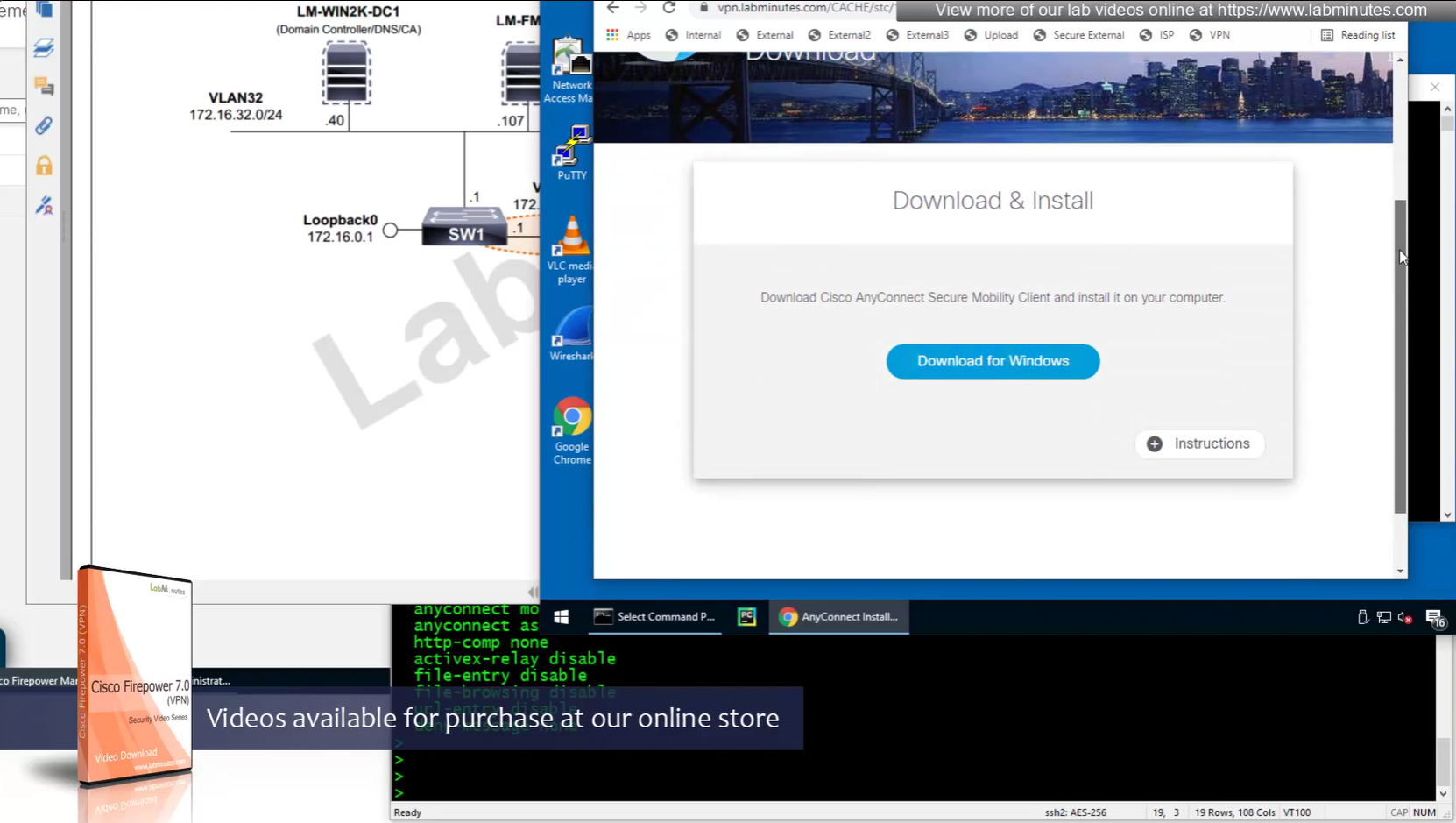

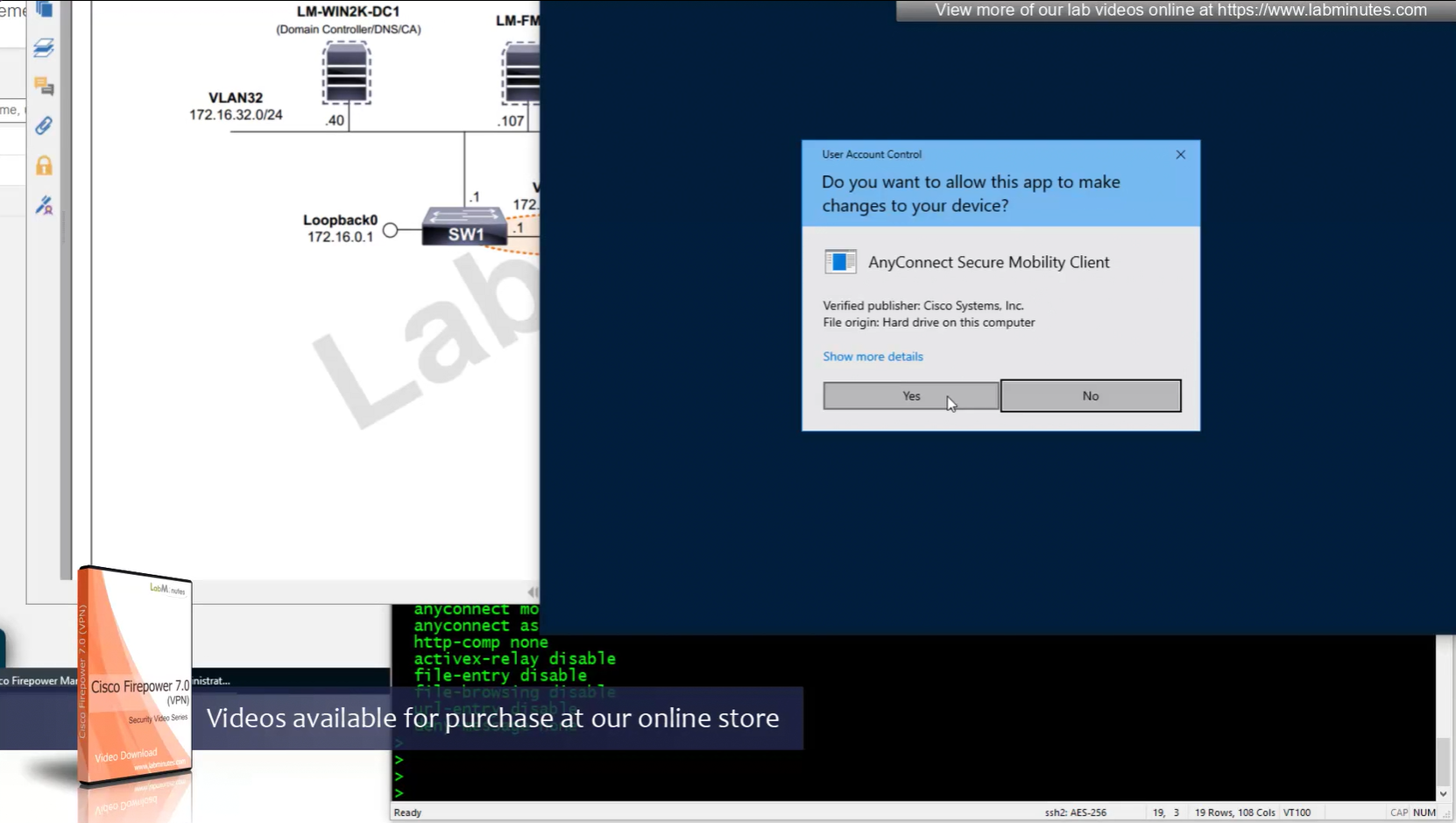

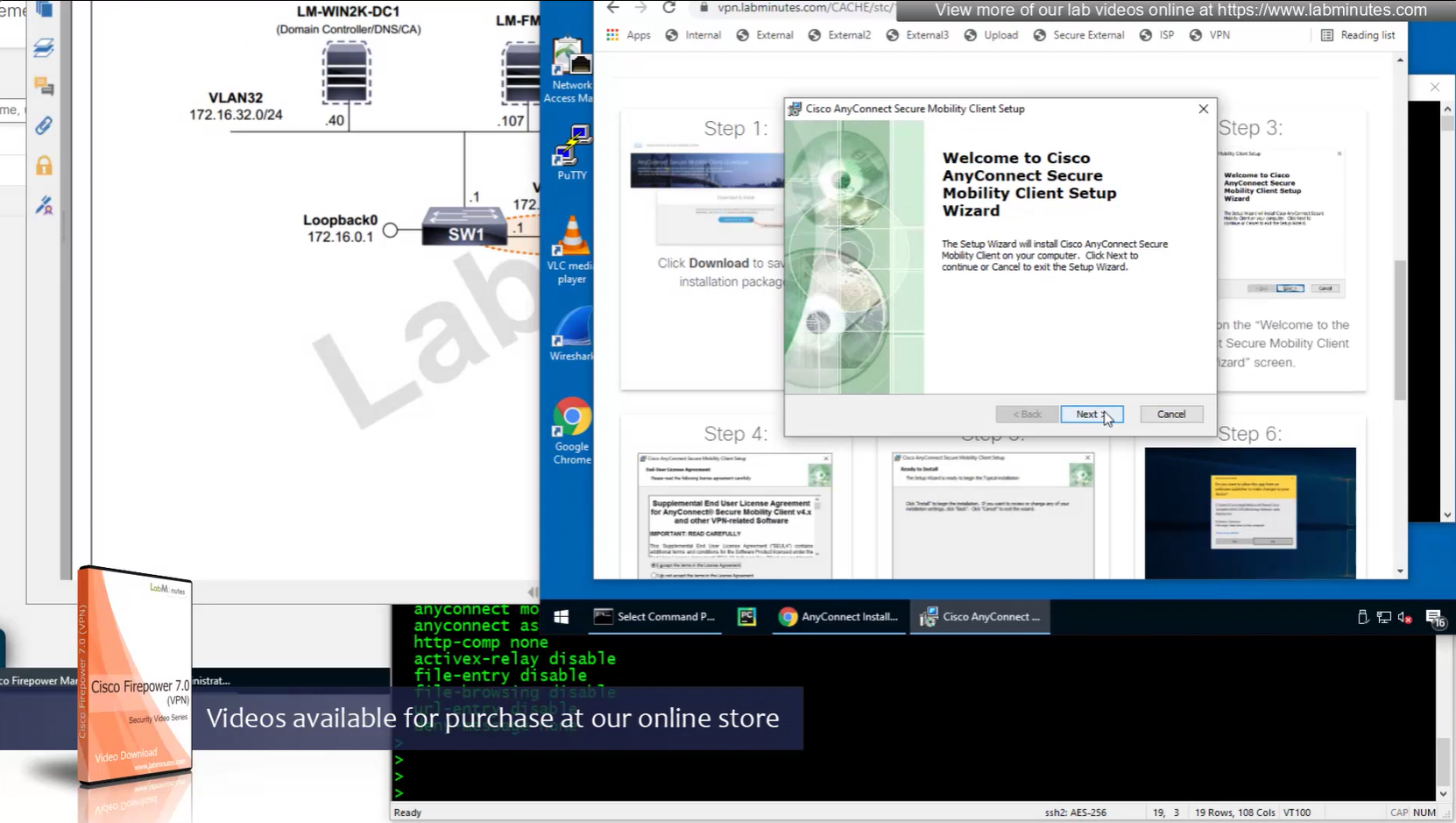

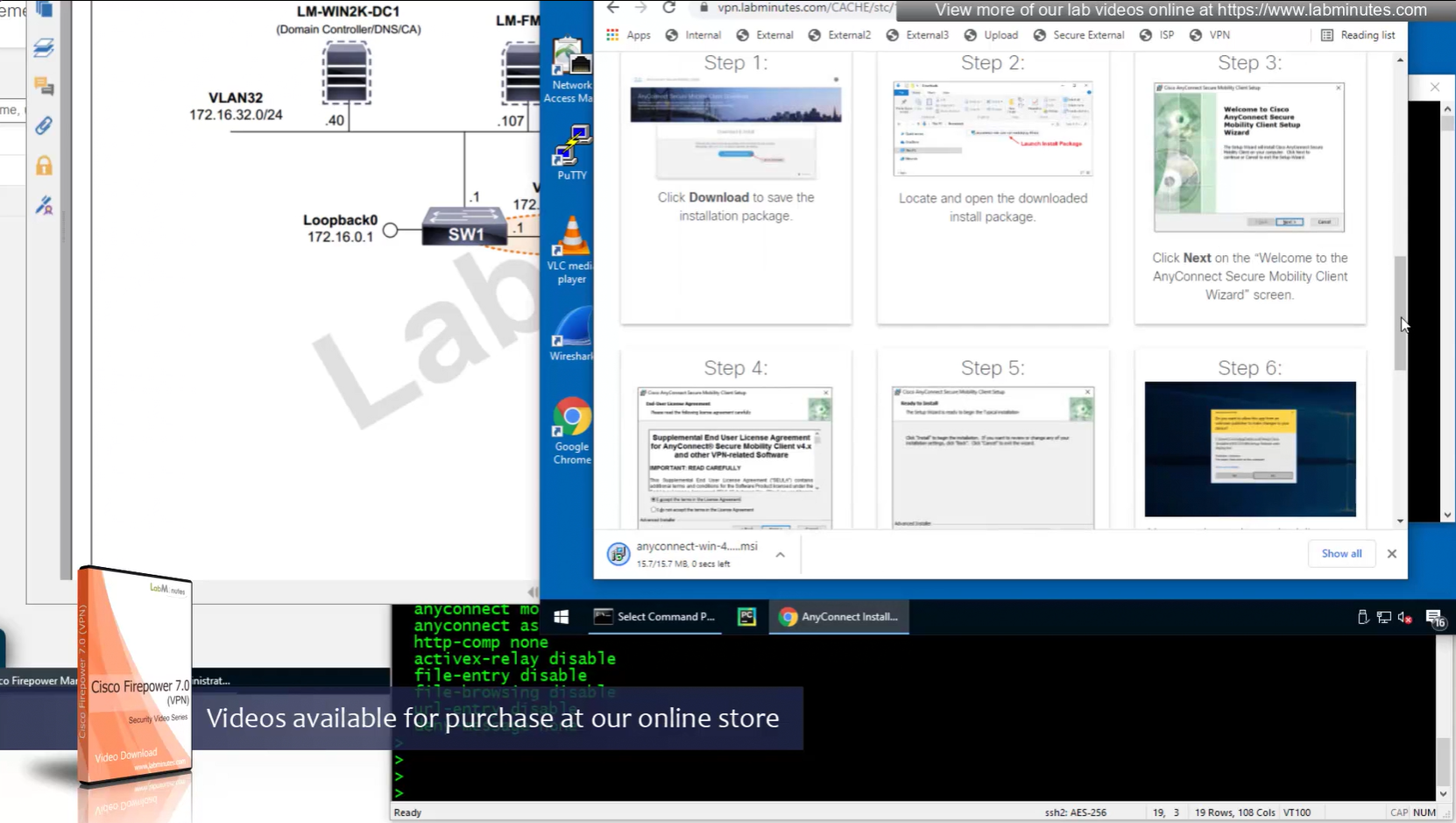

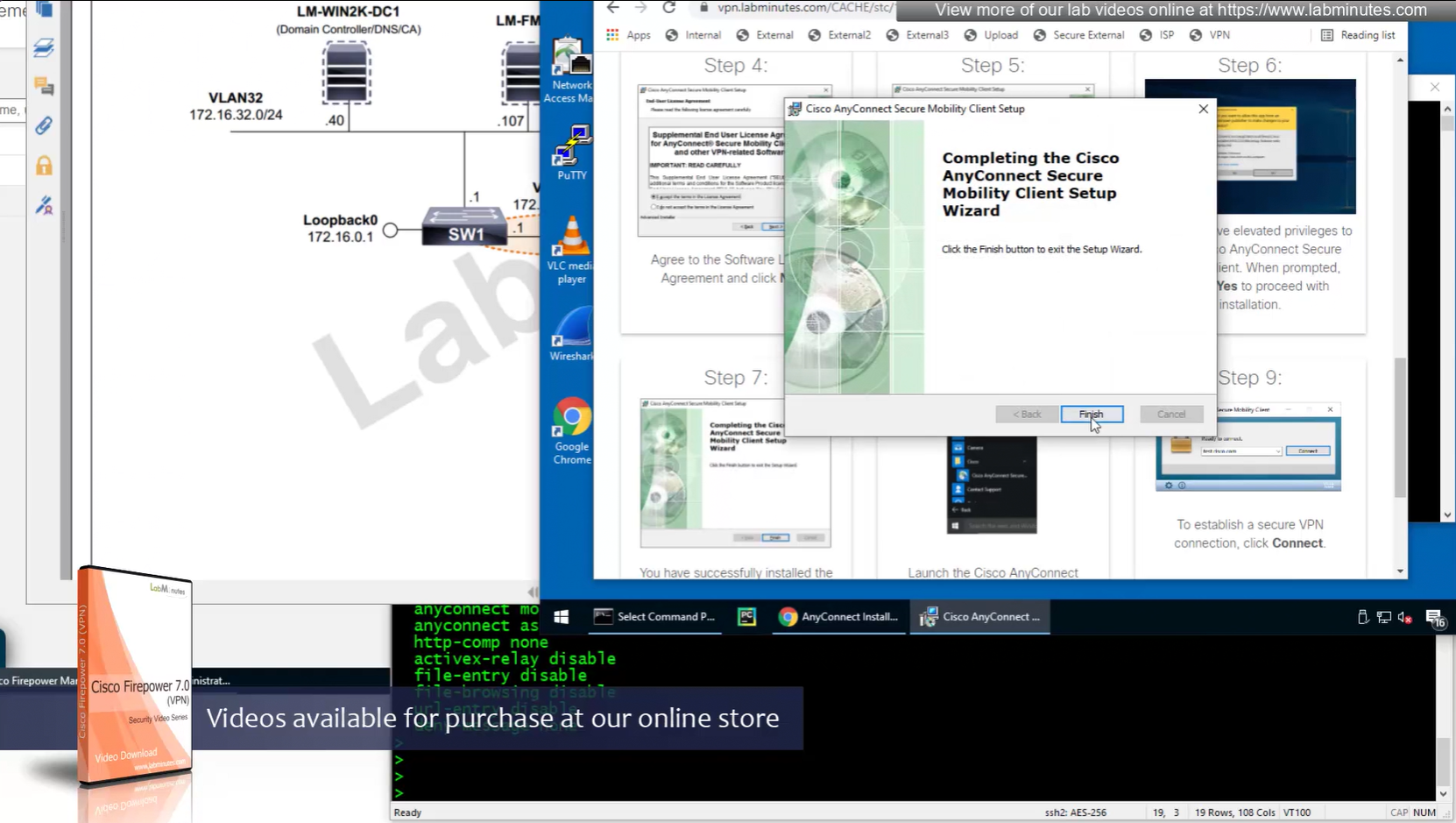

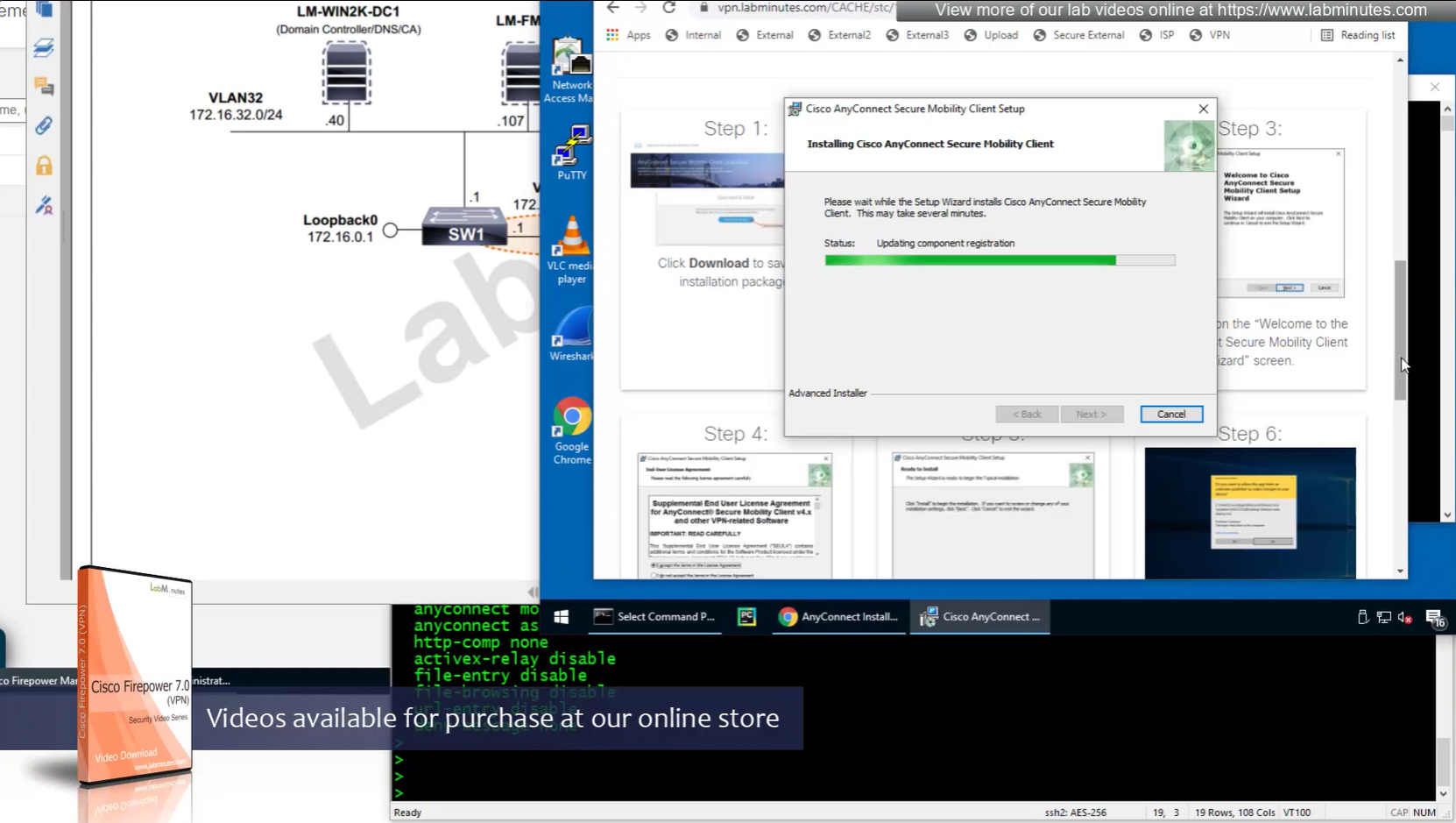

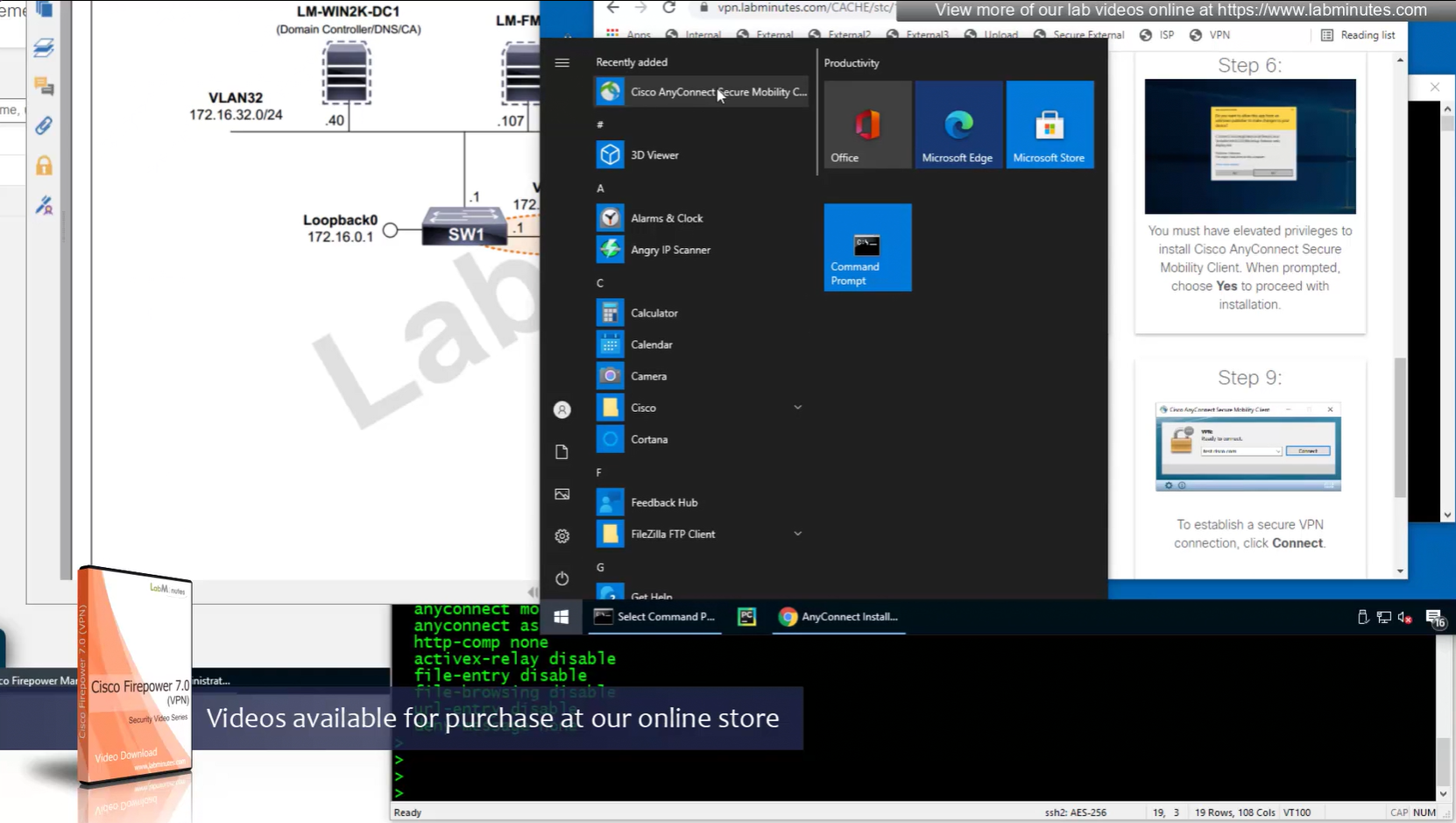

Headend package means that user will be allowed to download and install anyconnect if client does not have it already

Objects

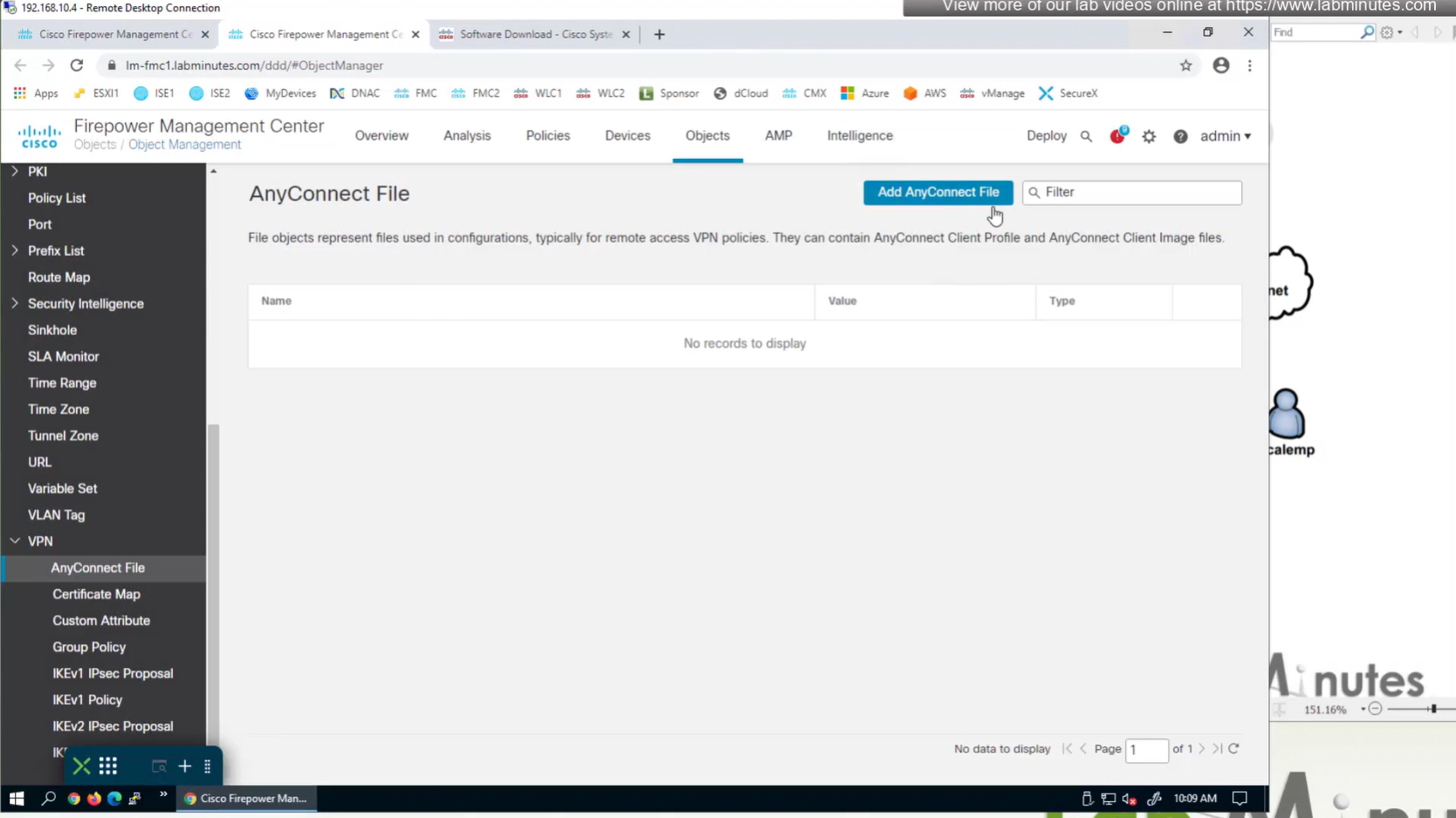

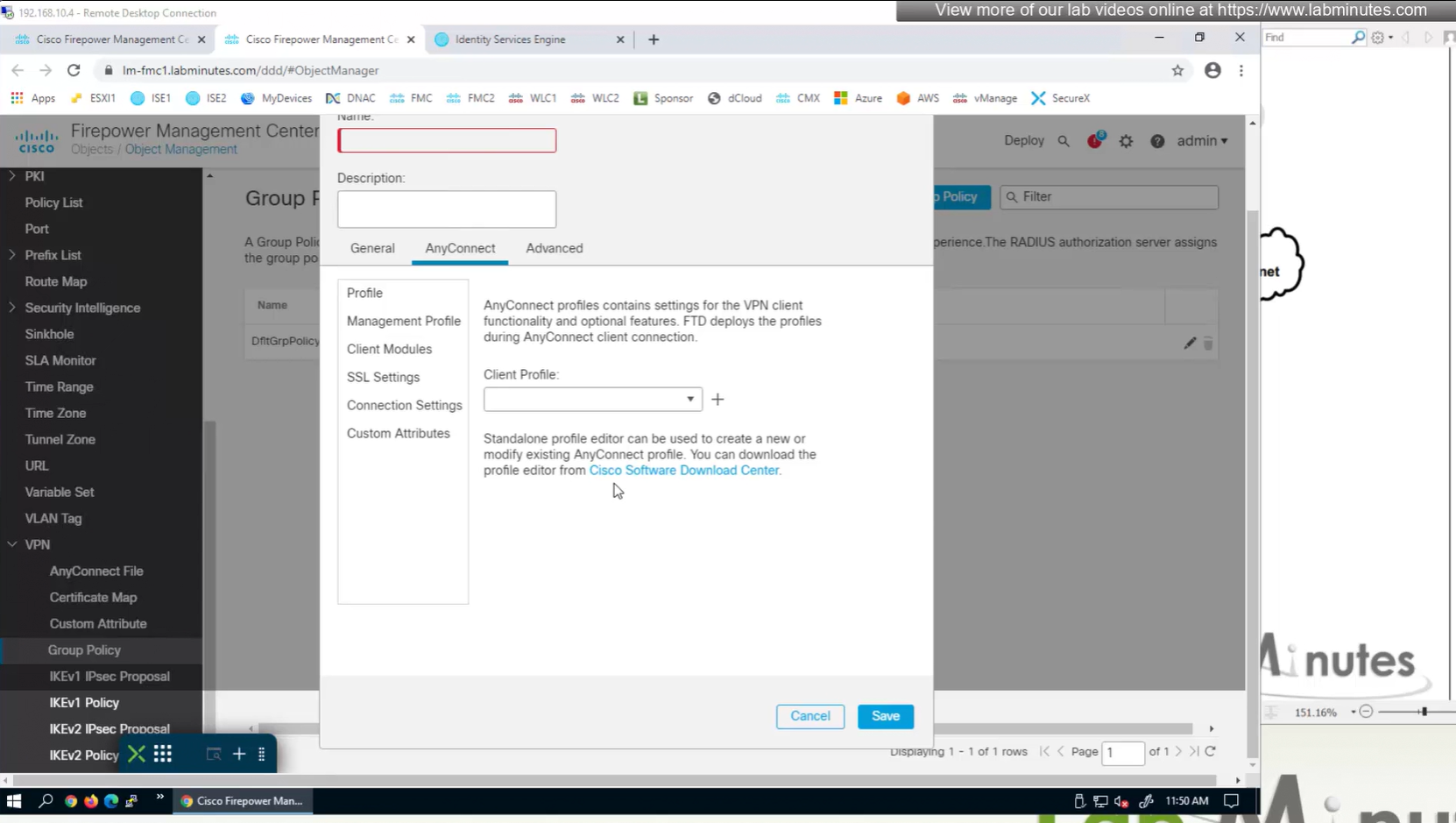

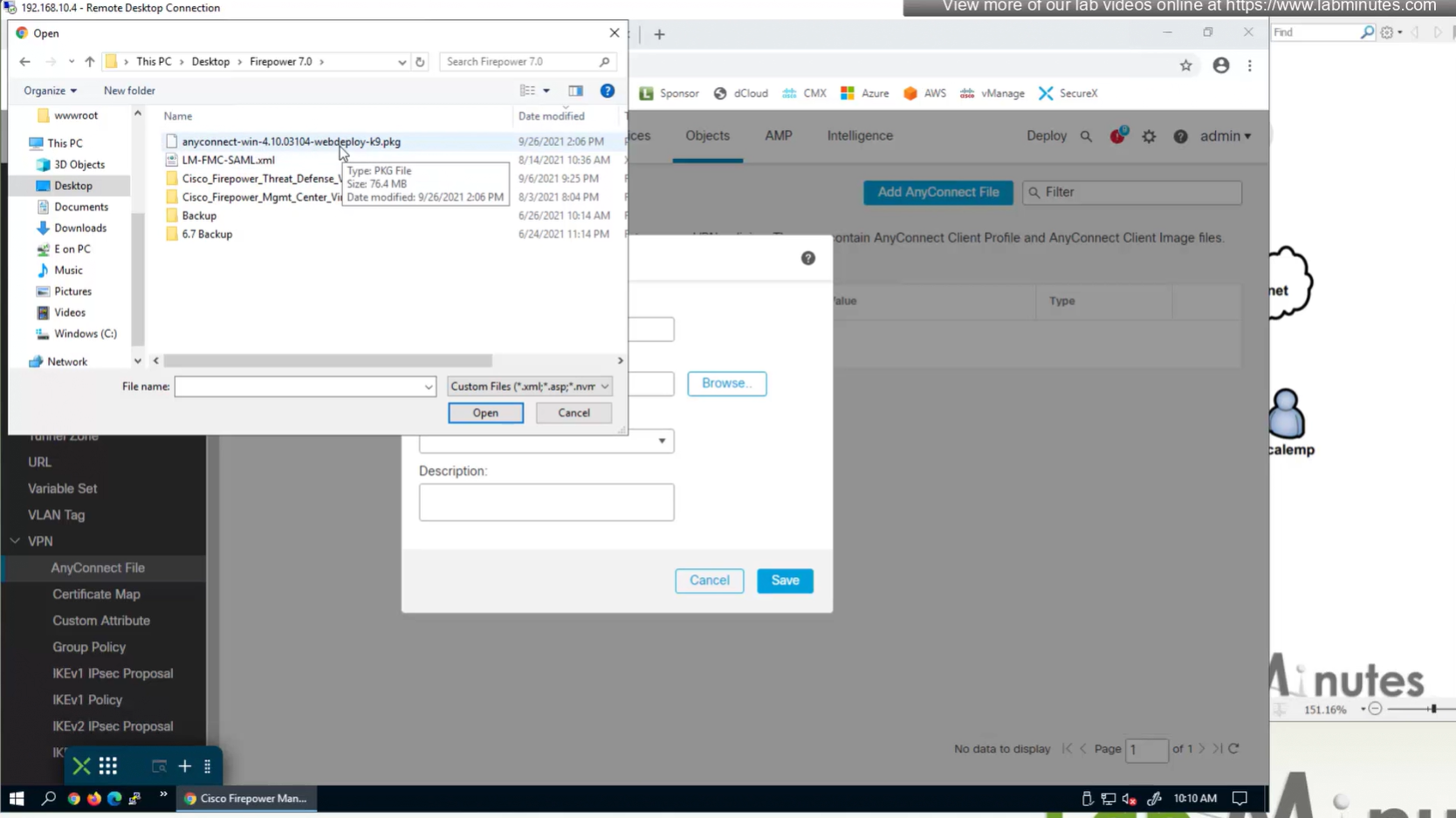

In Objects > Anyconnect file

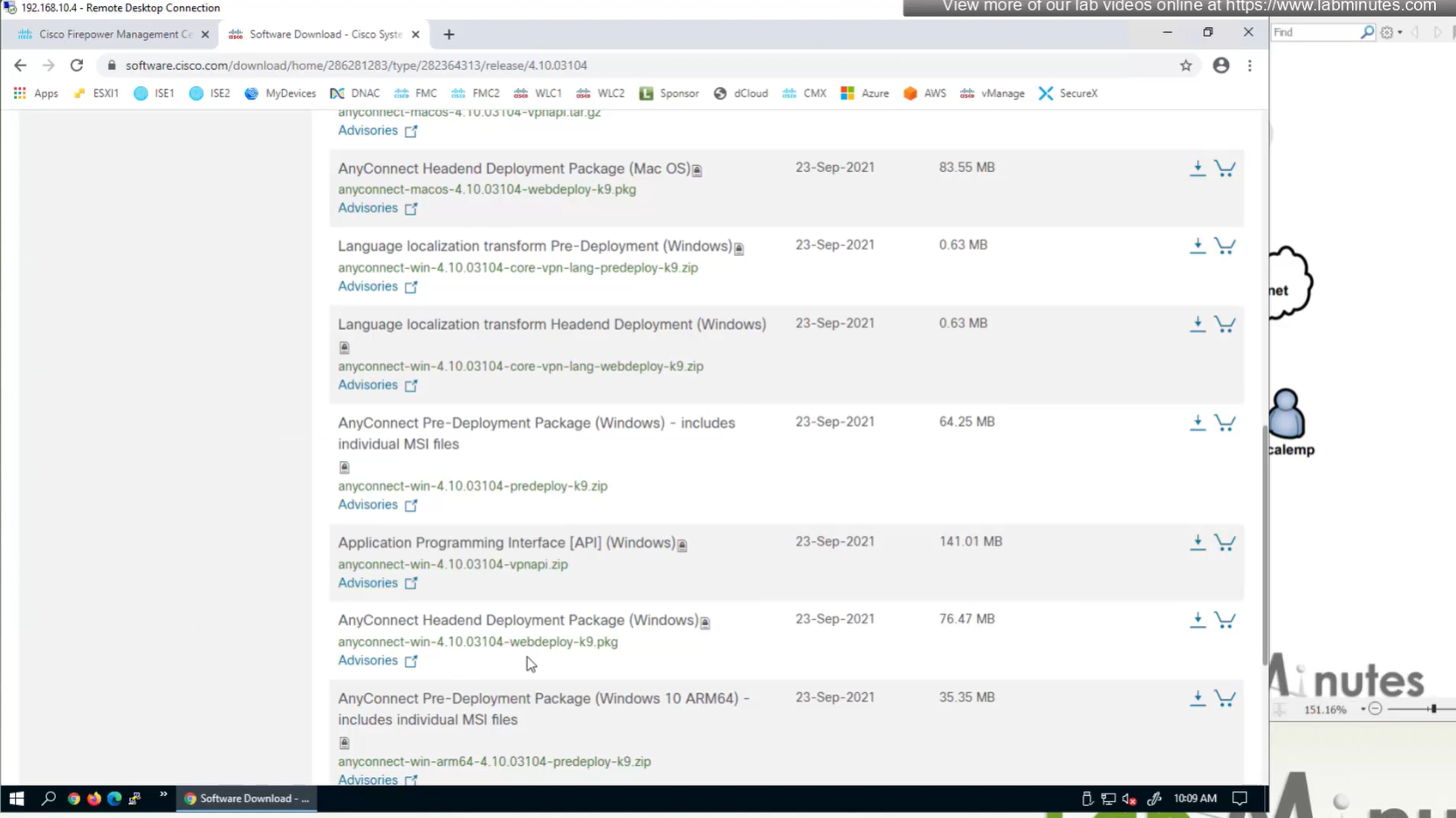

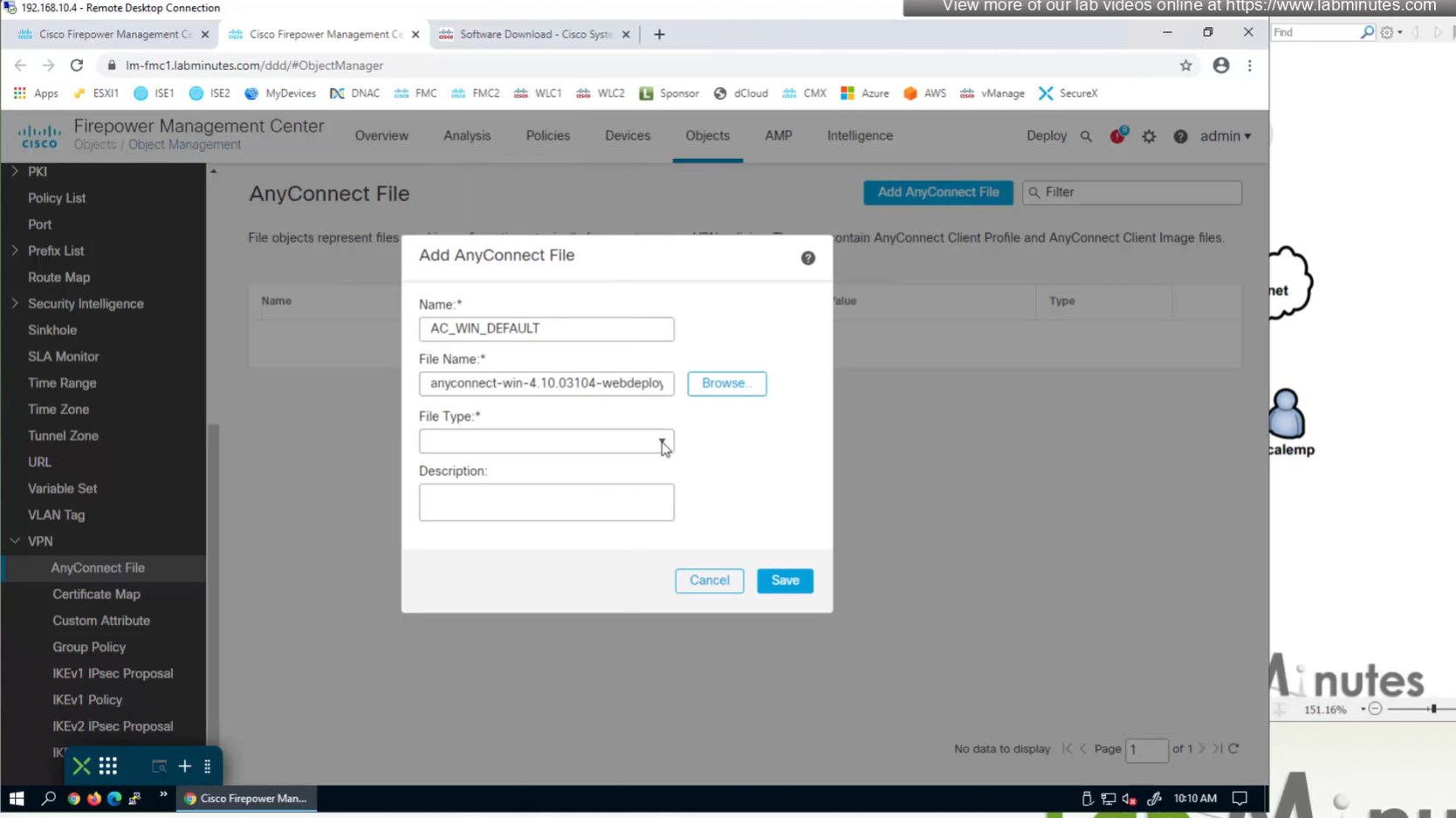

Upload the headend package

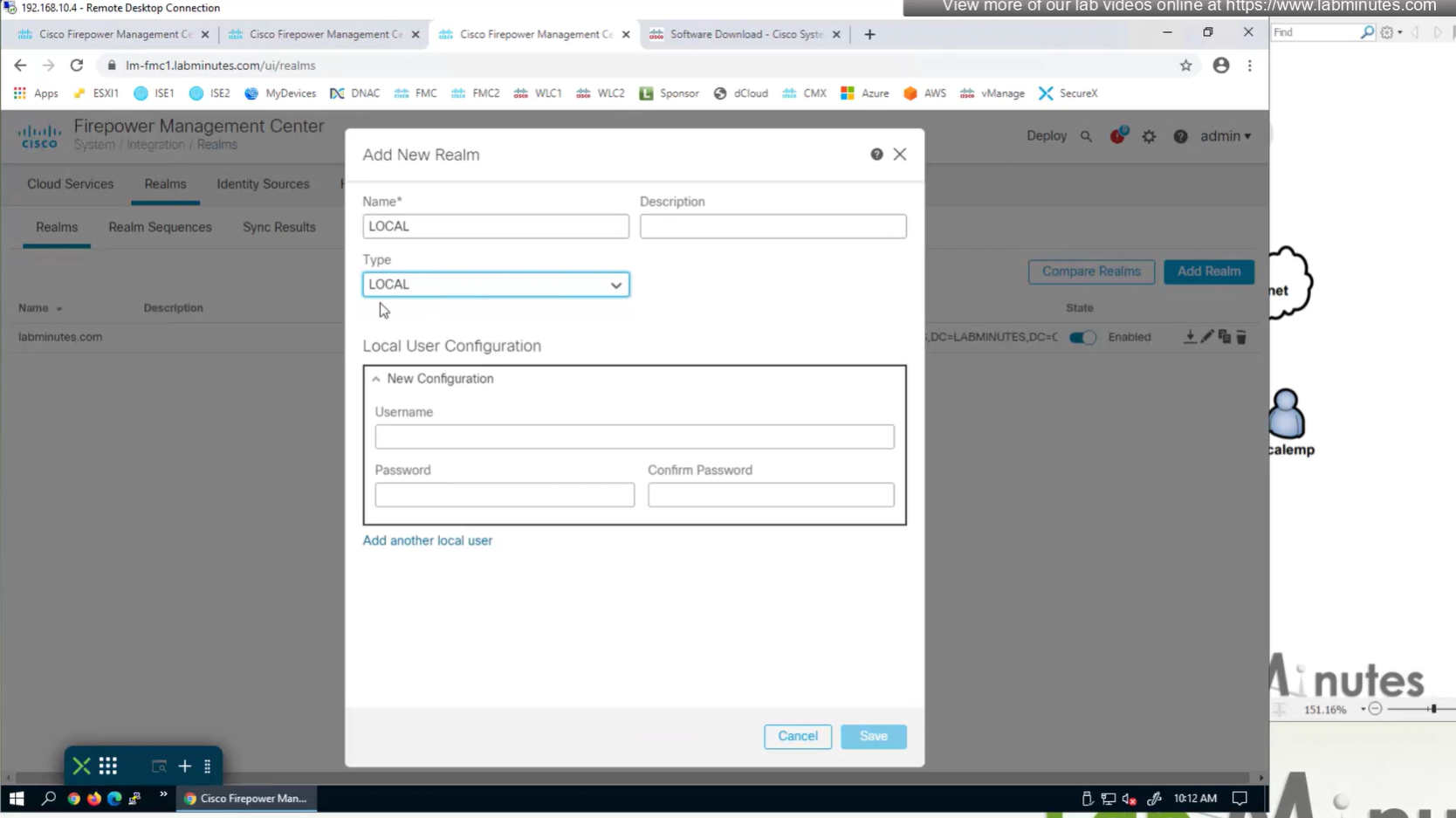

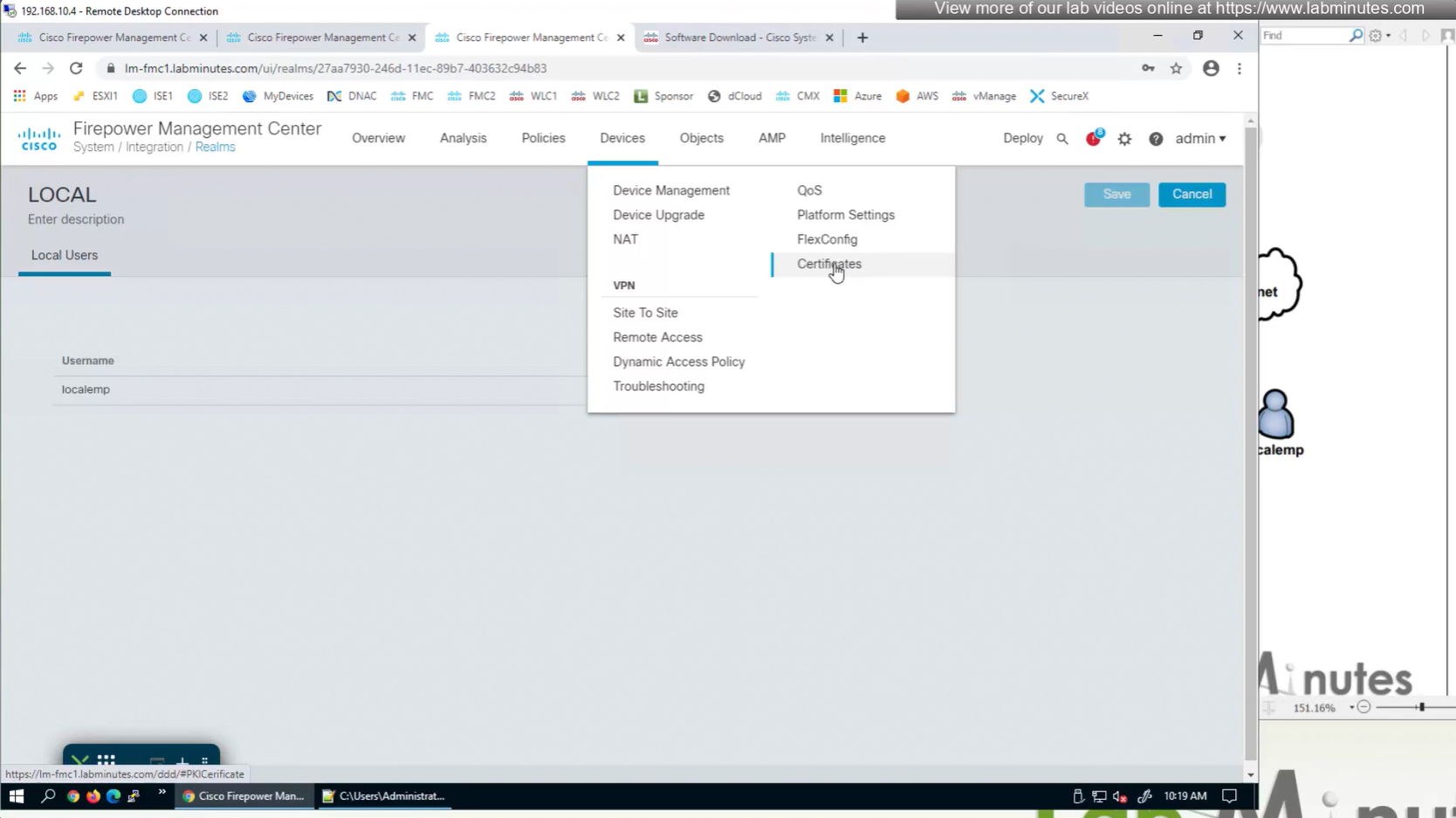

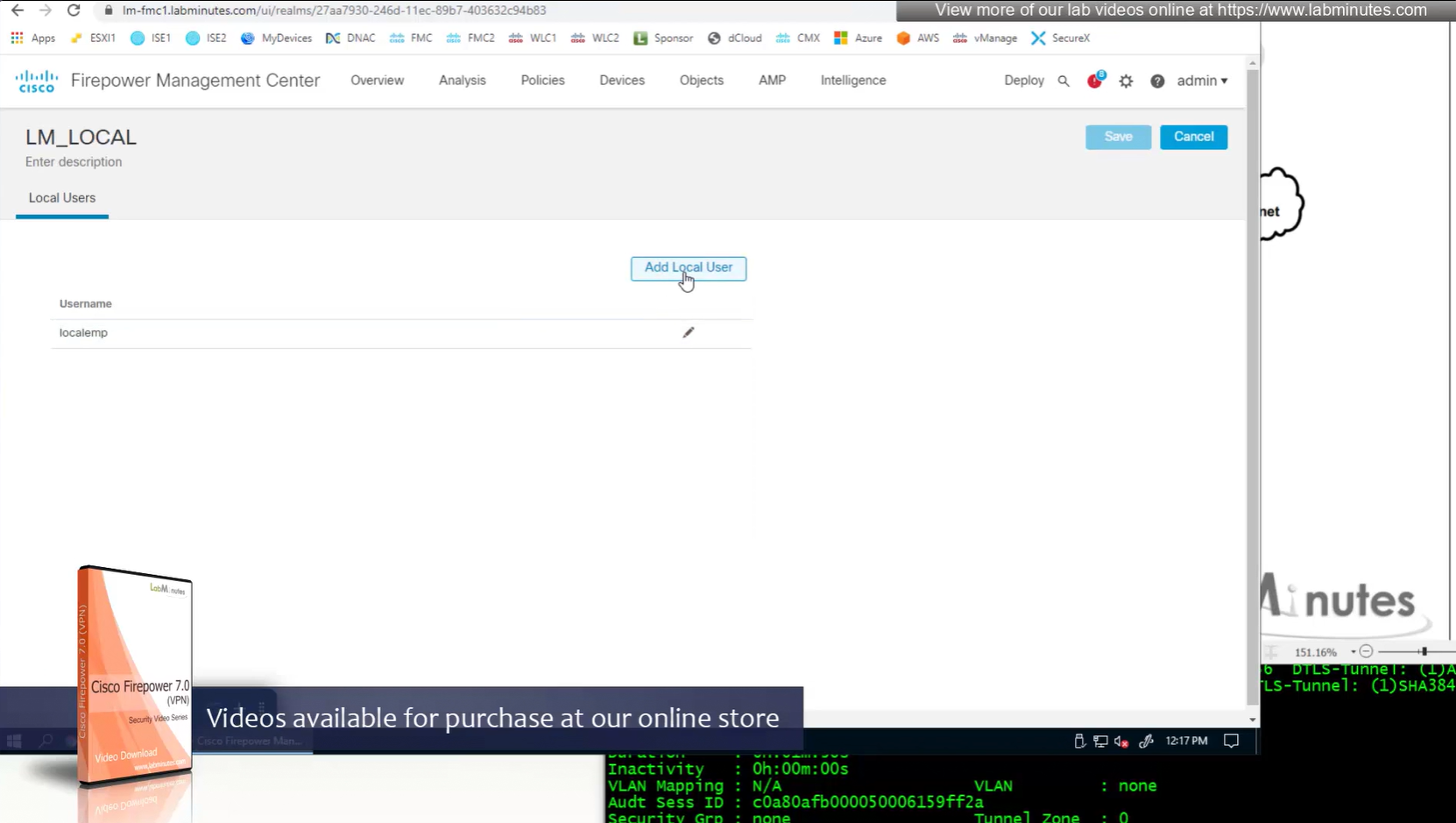

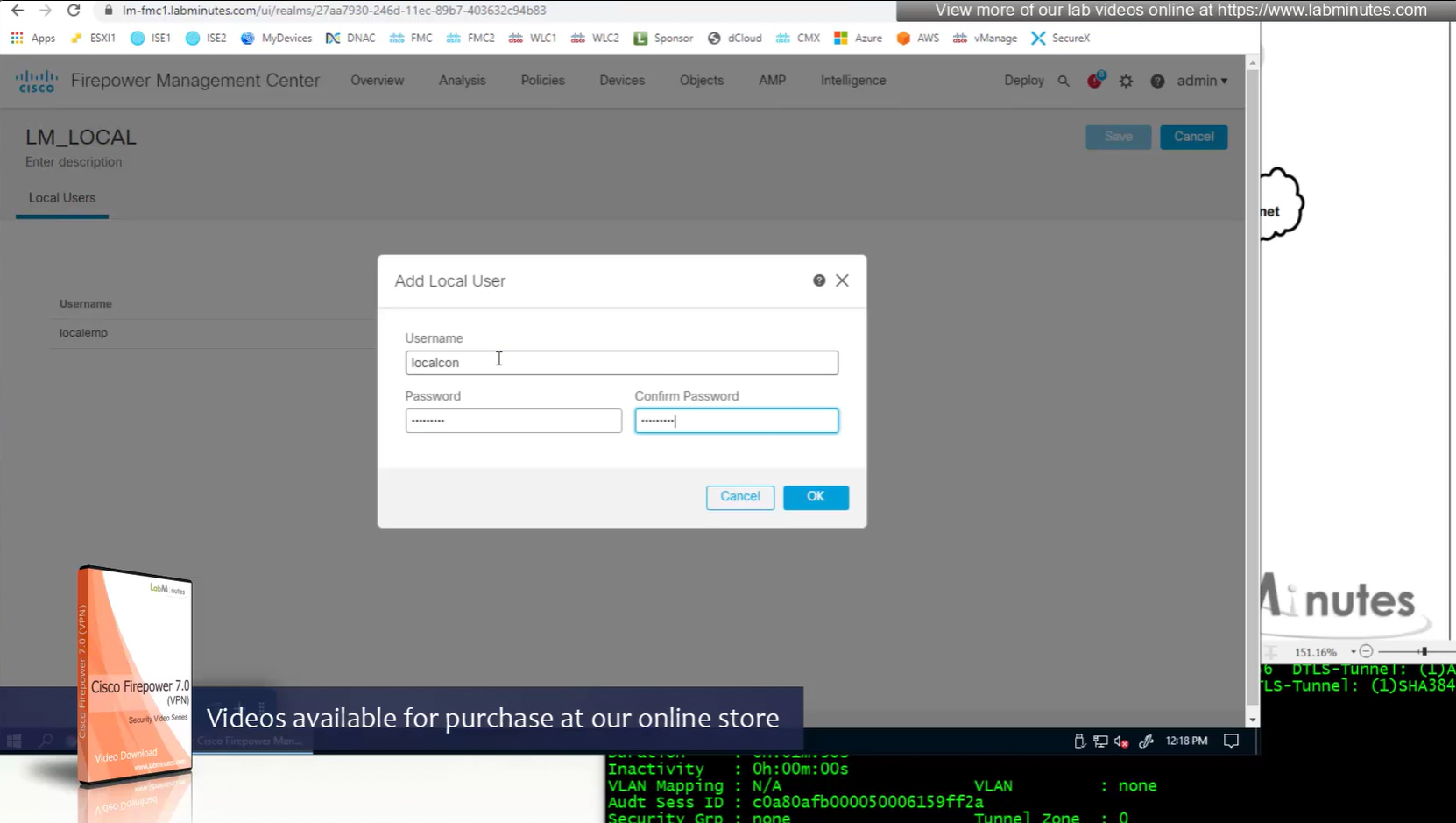

Create local user in Integration > Realm > Local > Local user

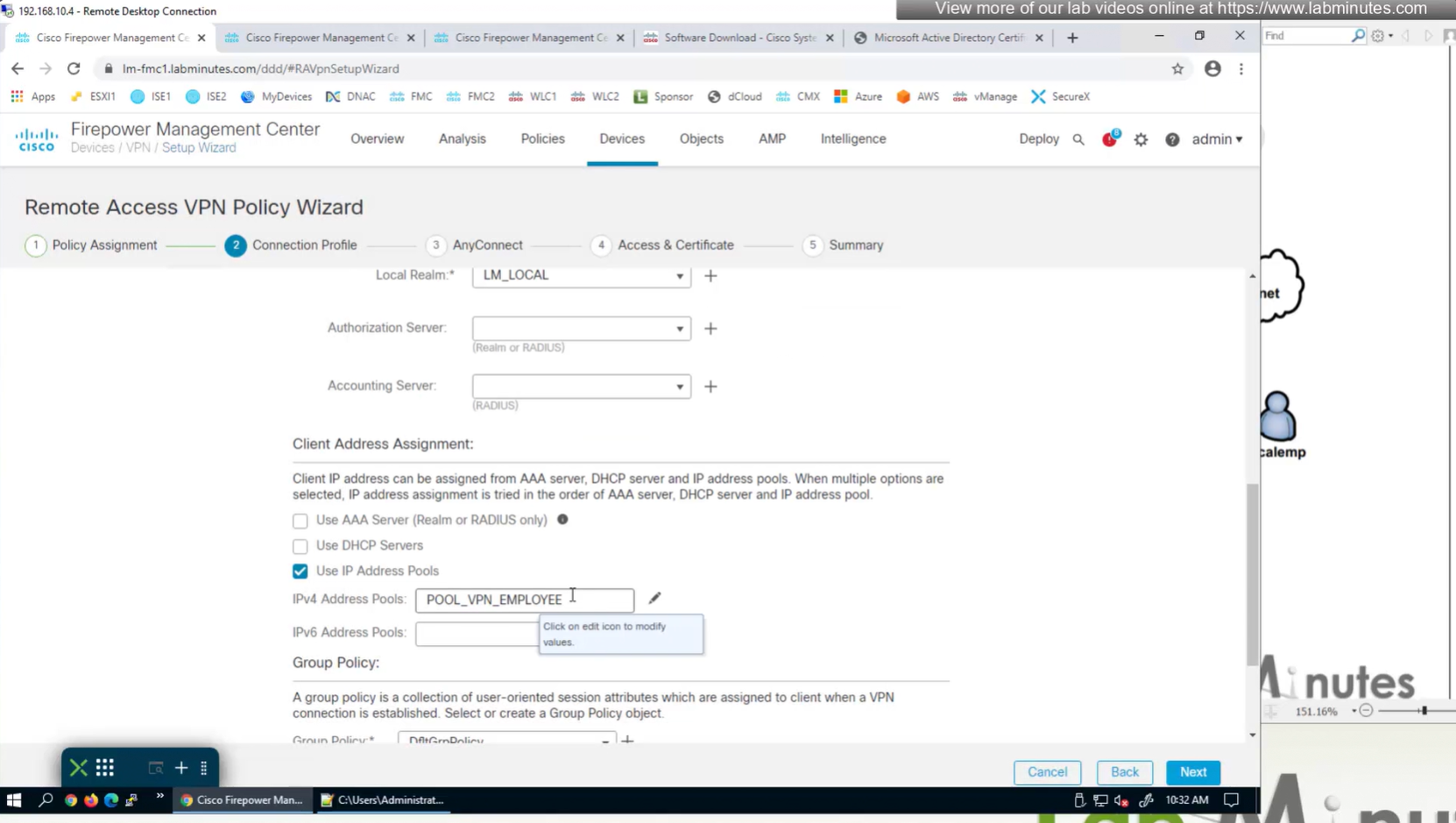

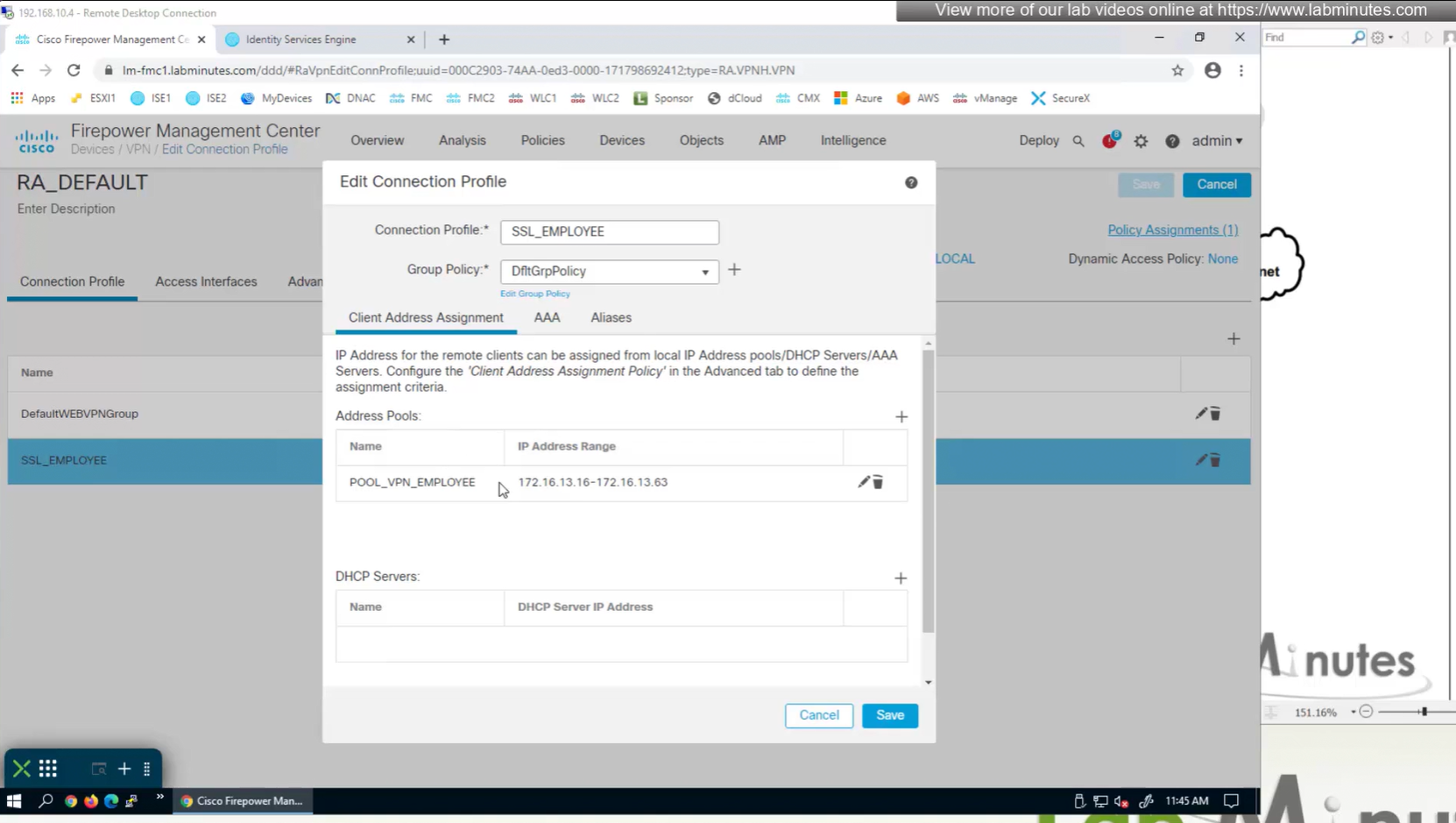

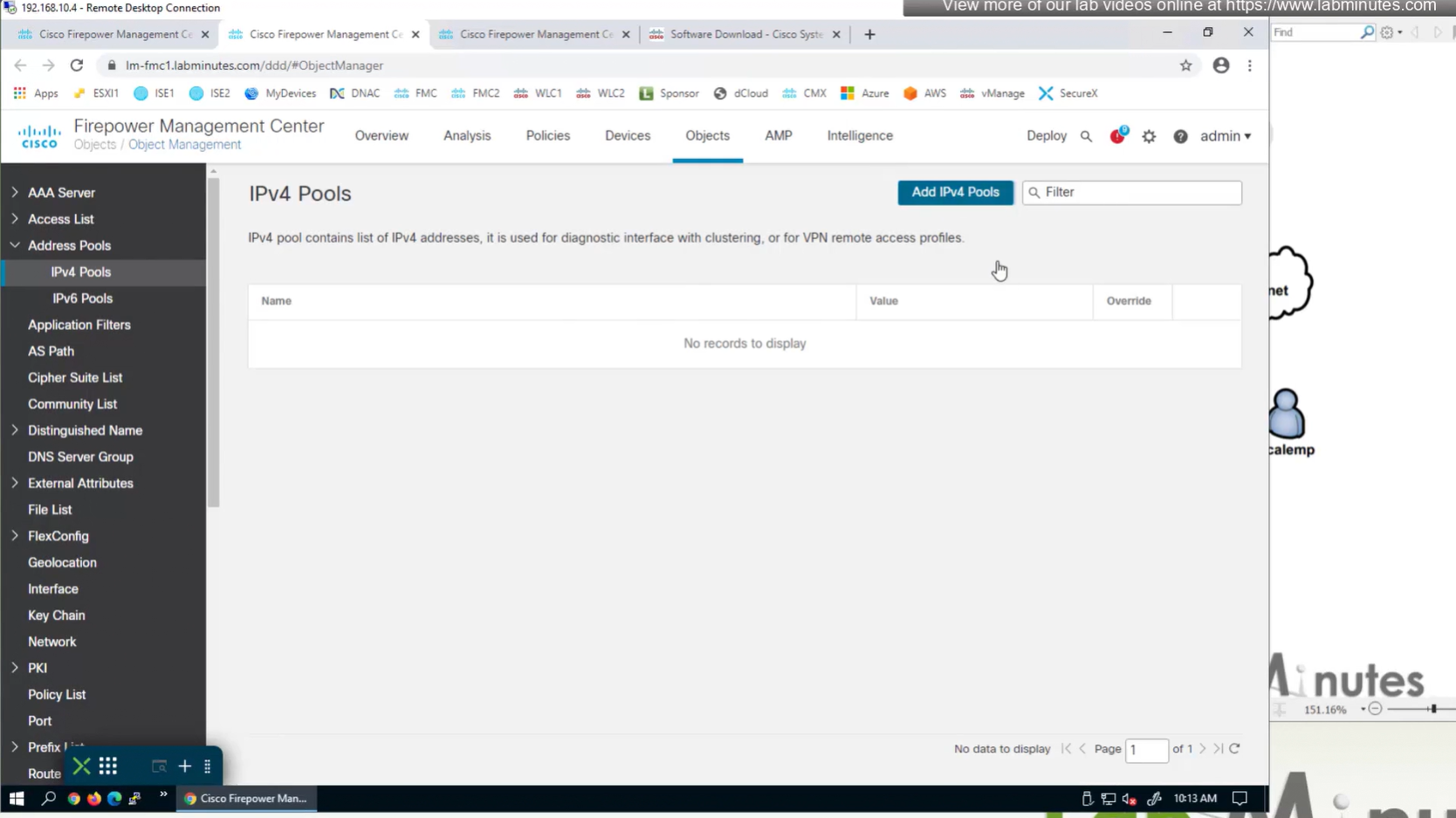

Objects > Address Pools > IPv4 Pools

Allow overrides mean that same “object” can be used on different firewalls but can have different value per firewall but object can be same

Client pool cannot be just network object but it is object type IPv4 Pool

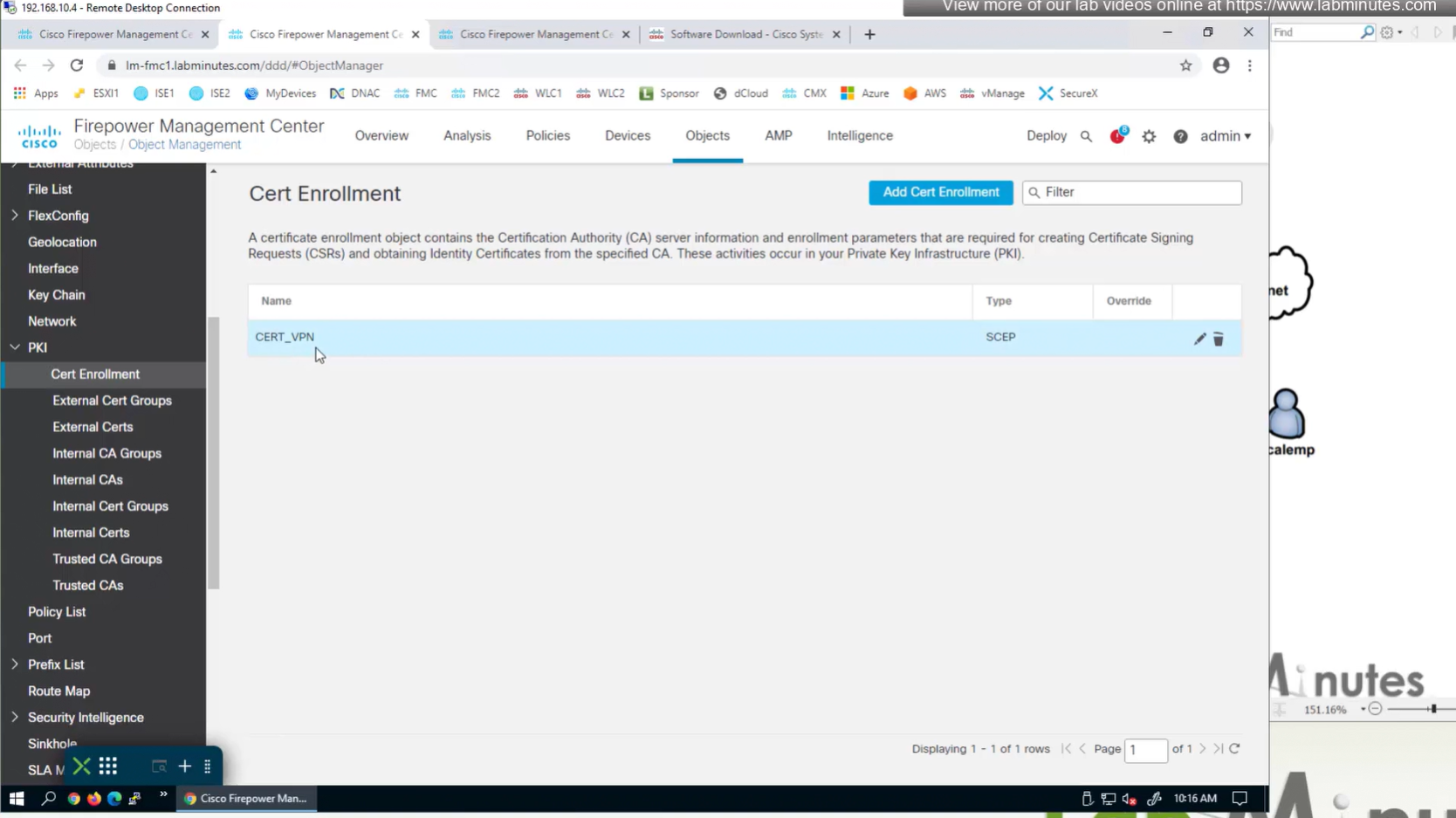

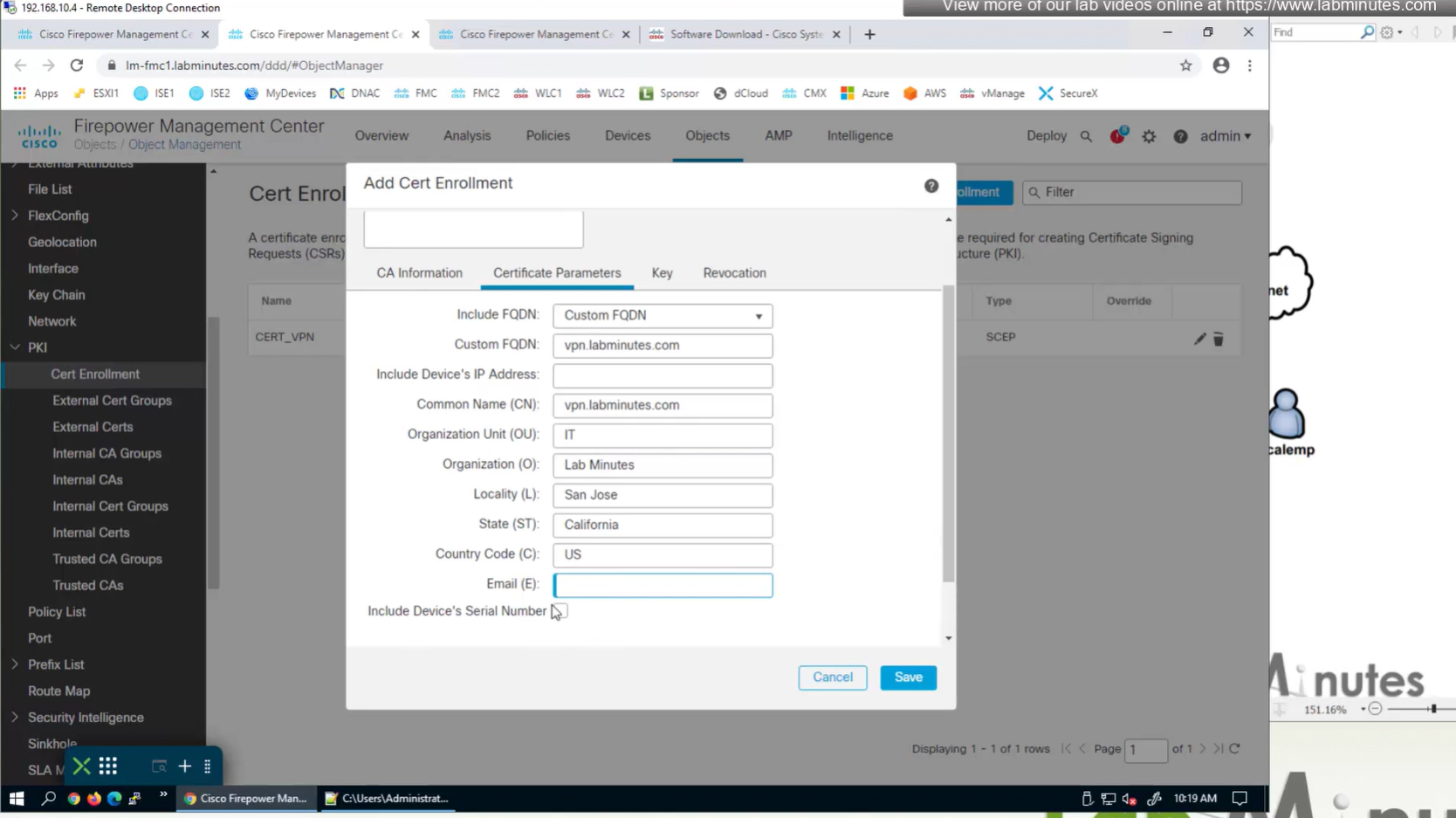

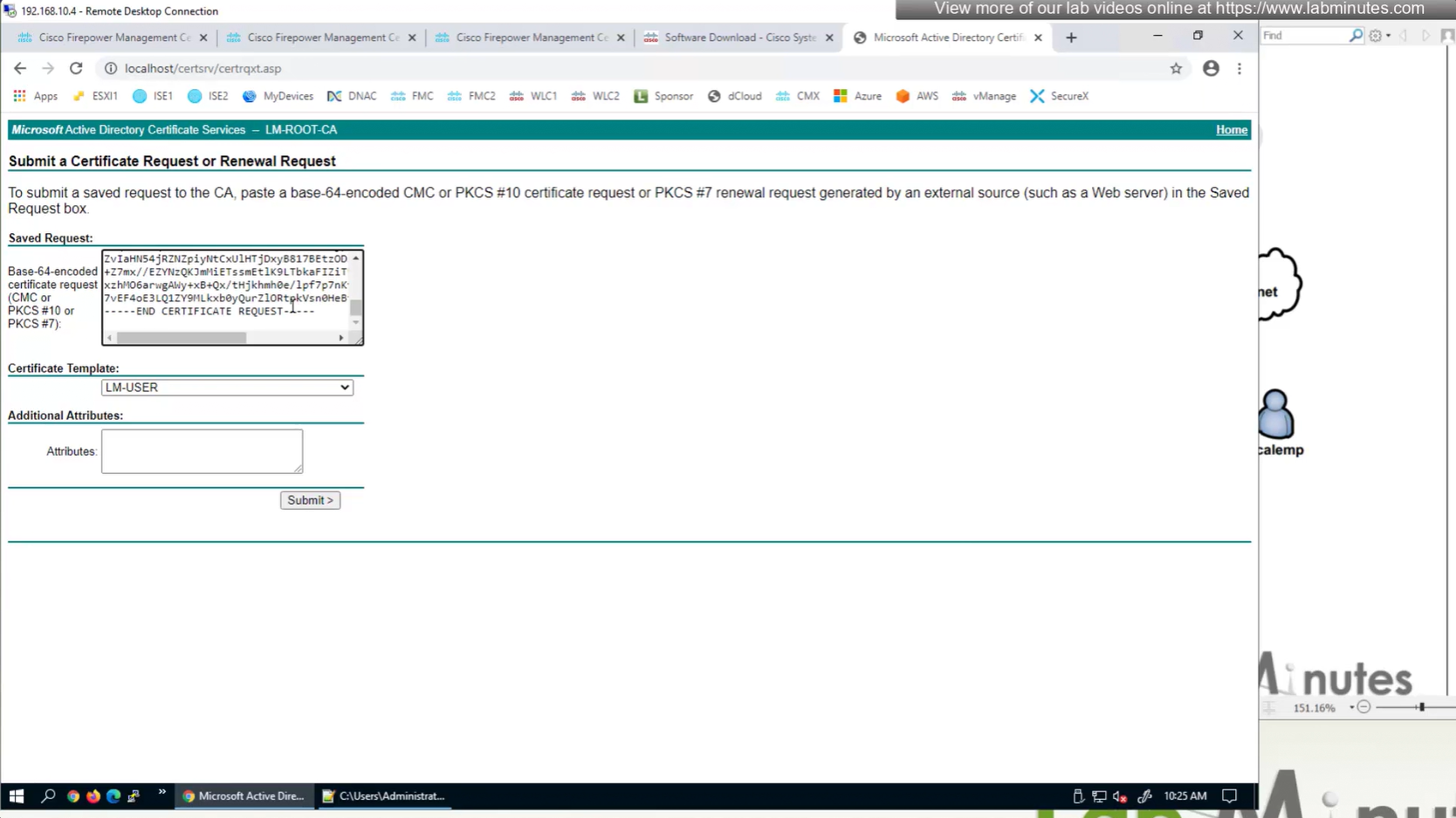

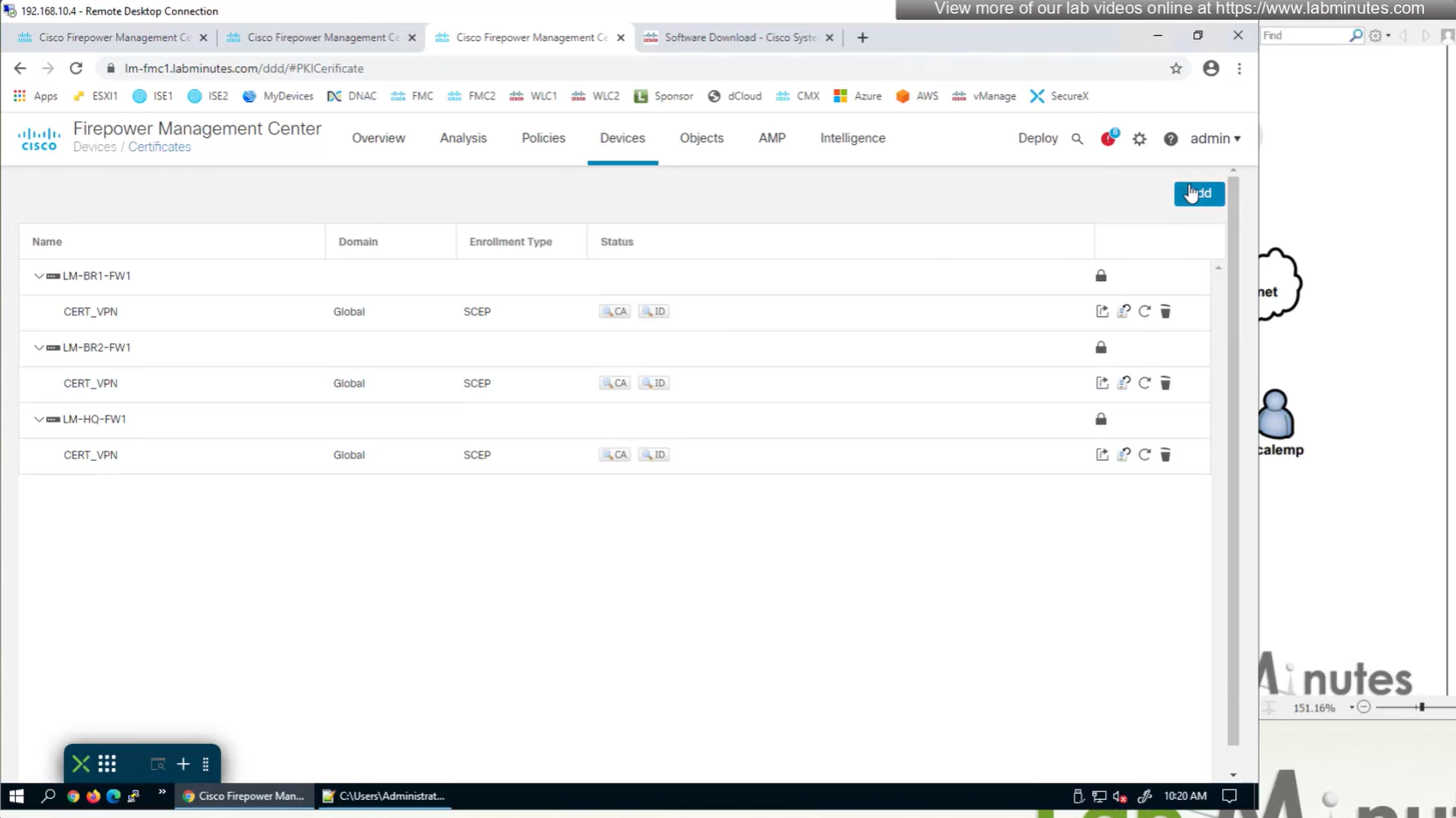

Objects > Cert Enrollment

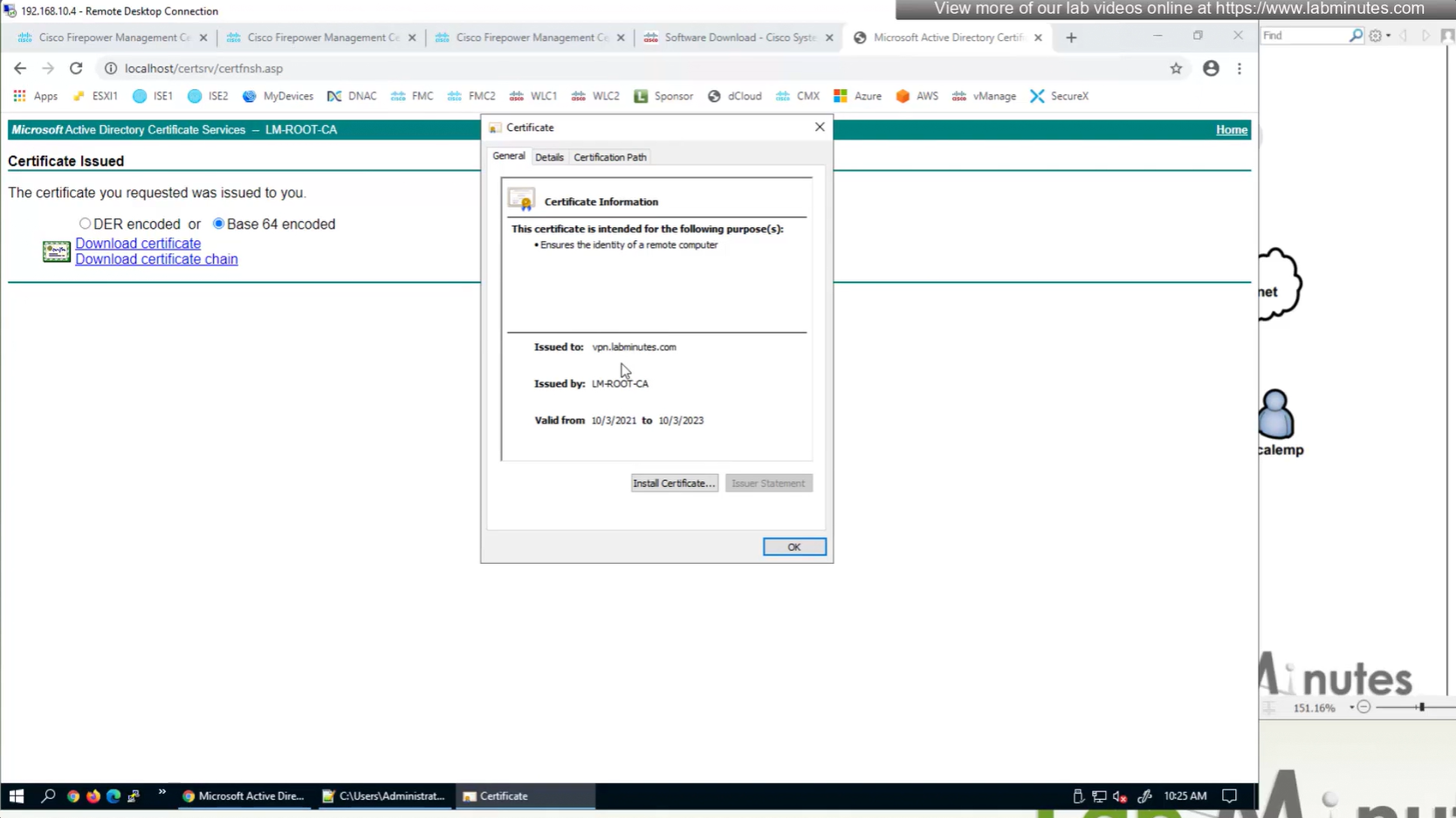

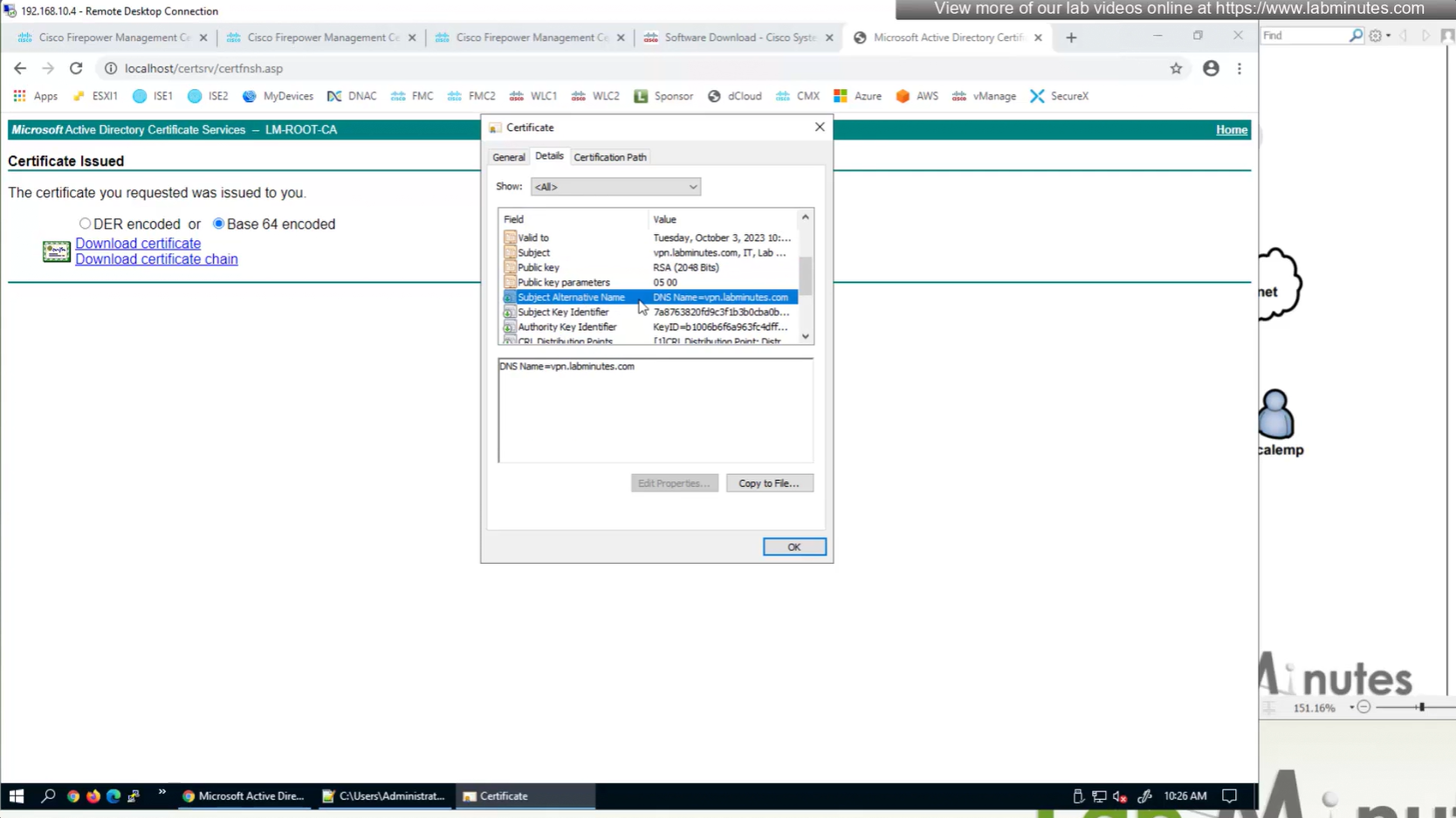

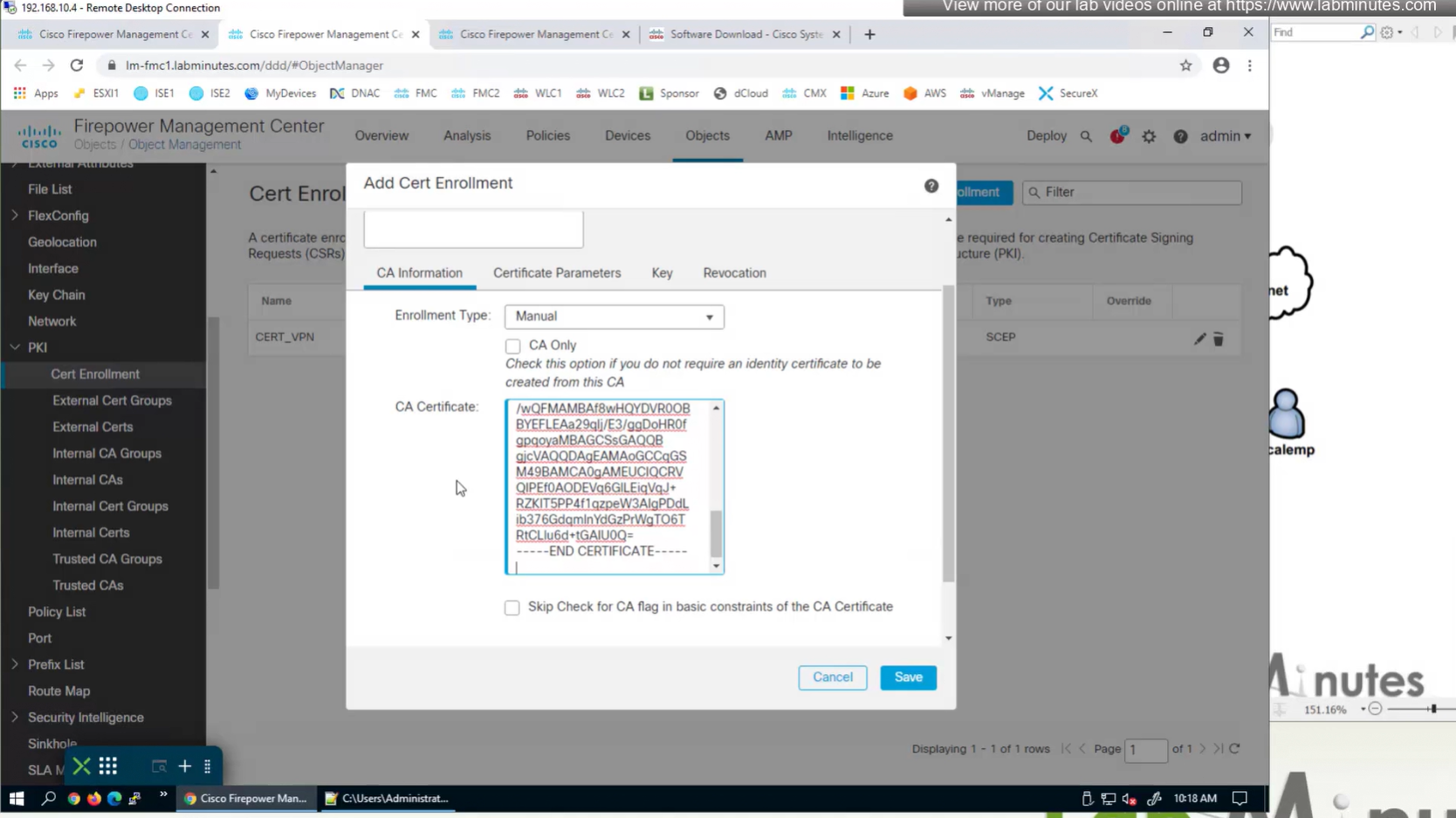

Cert Enrollment means Firewall obtaining cert and that process requires root CA cert information also

Certificate enrollment in Firepower is about securely obtaining a trusted certificate from a CA but here instead of SCEP we are doing manual certificate for firewall

Change from SCEP to Manual

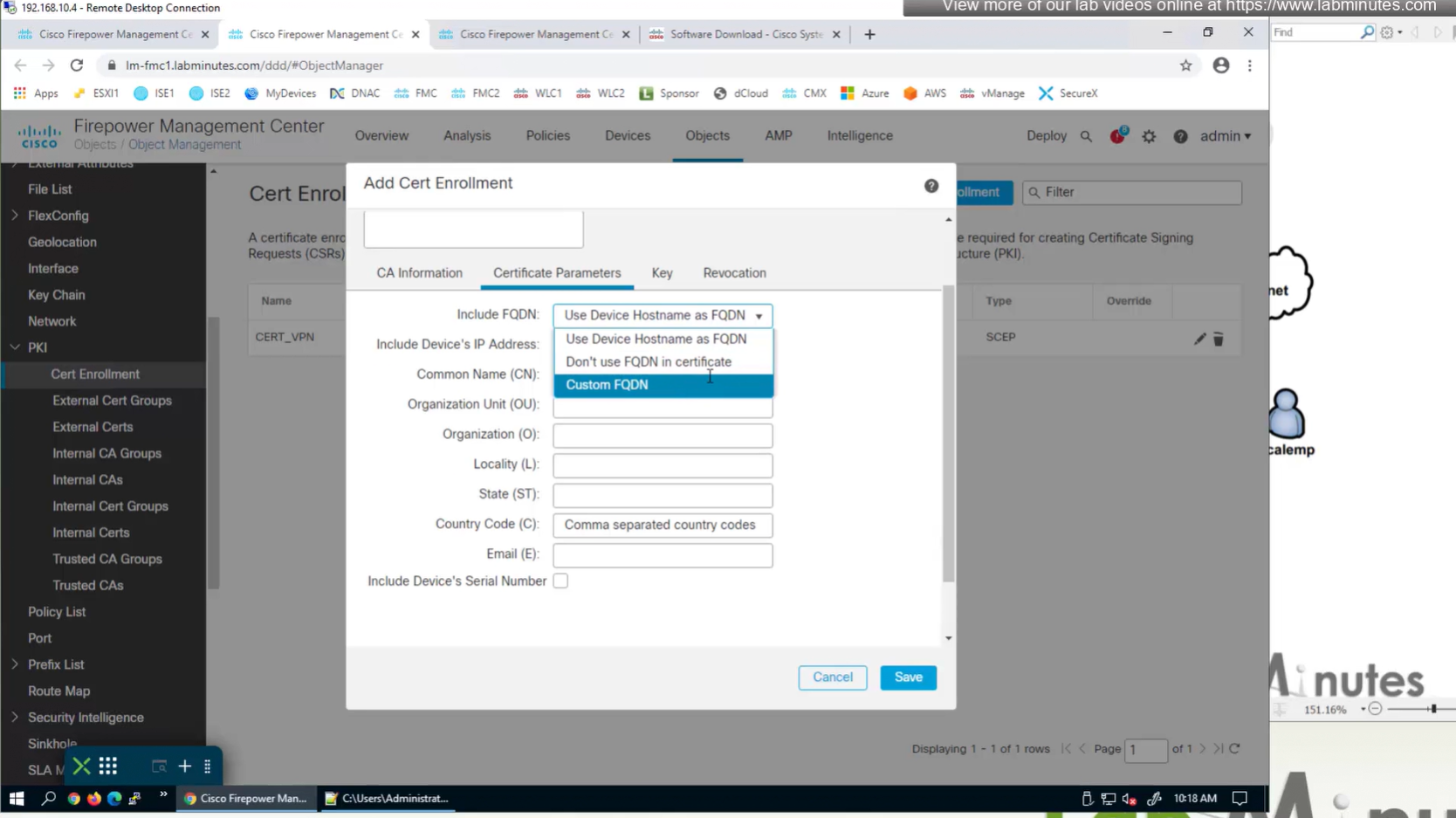

Change to Custom FQDN

Objects >

Anyconnect file
Local Realm + local user
IPv4 Address Pool

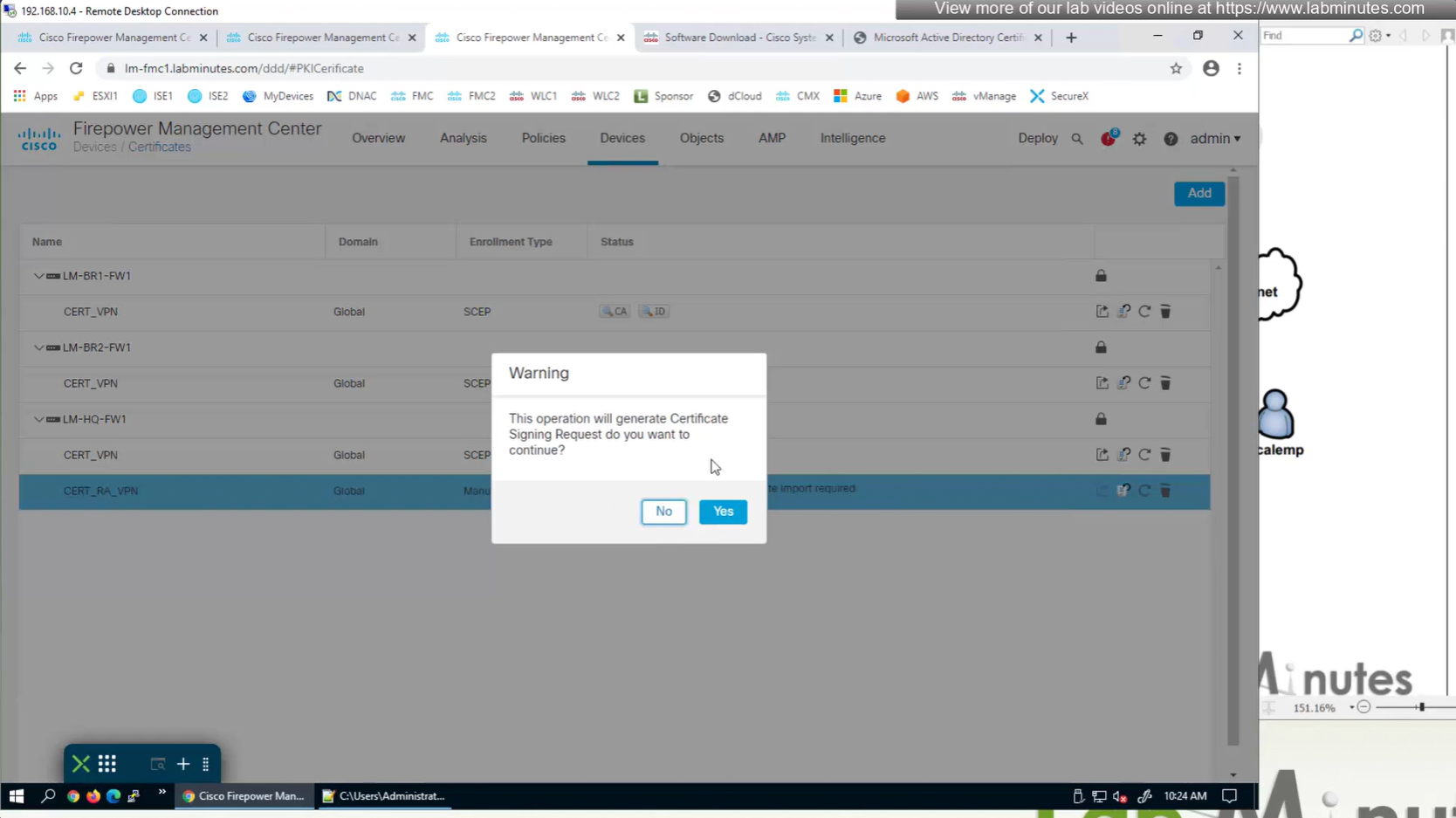

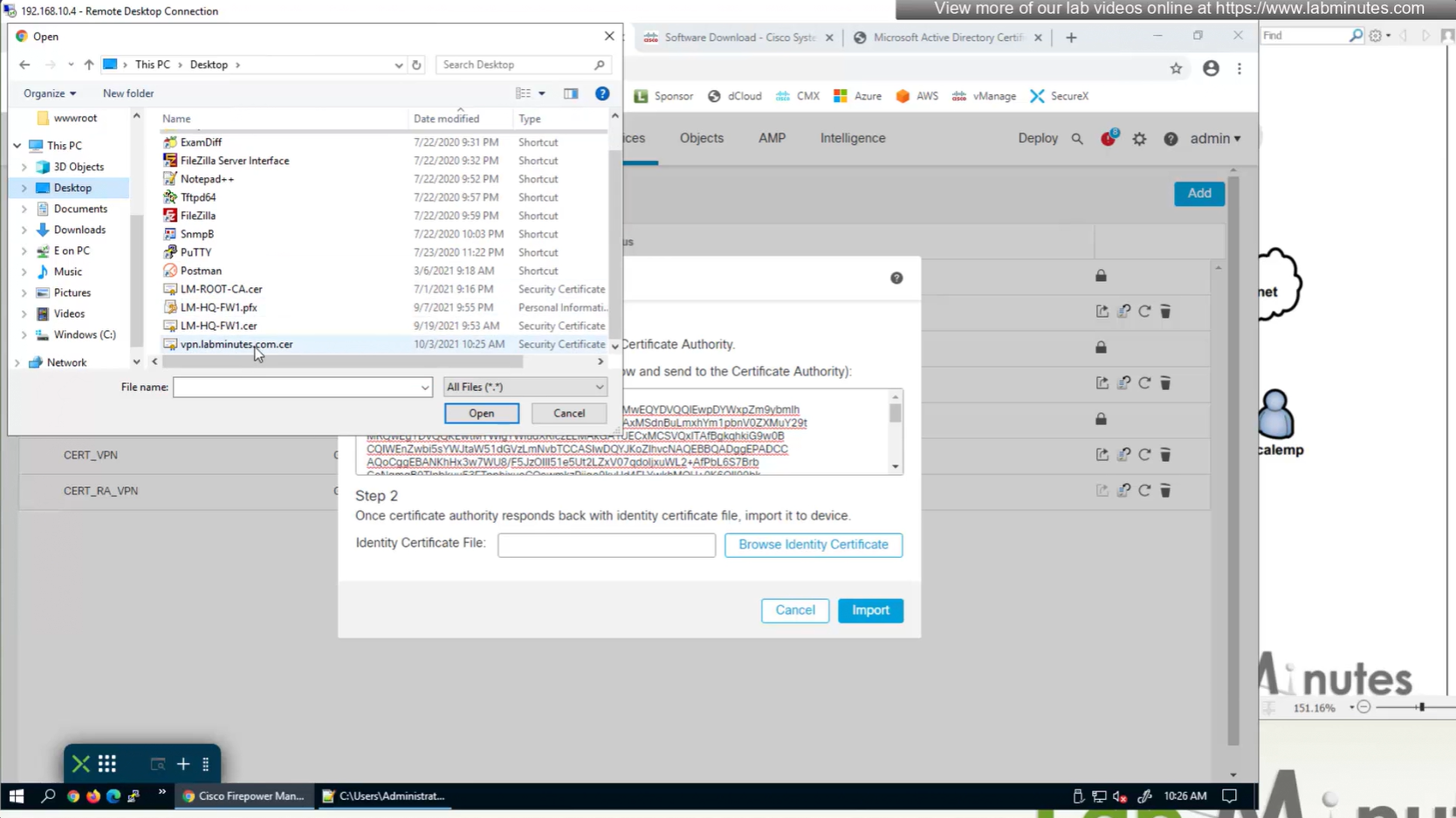

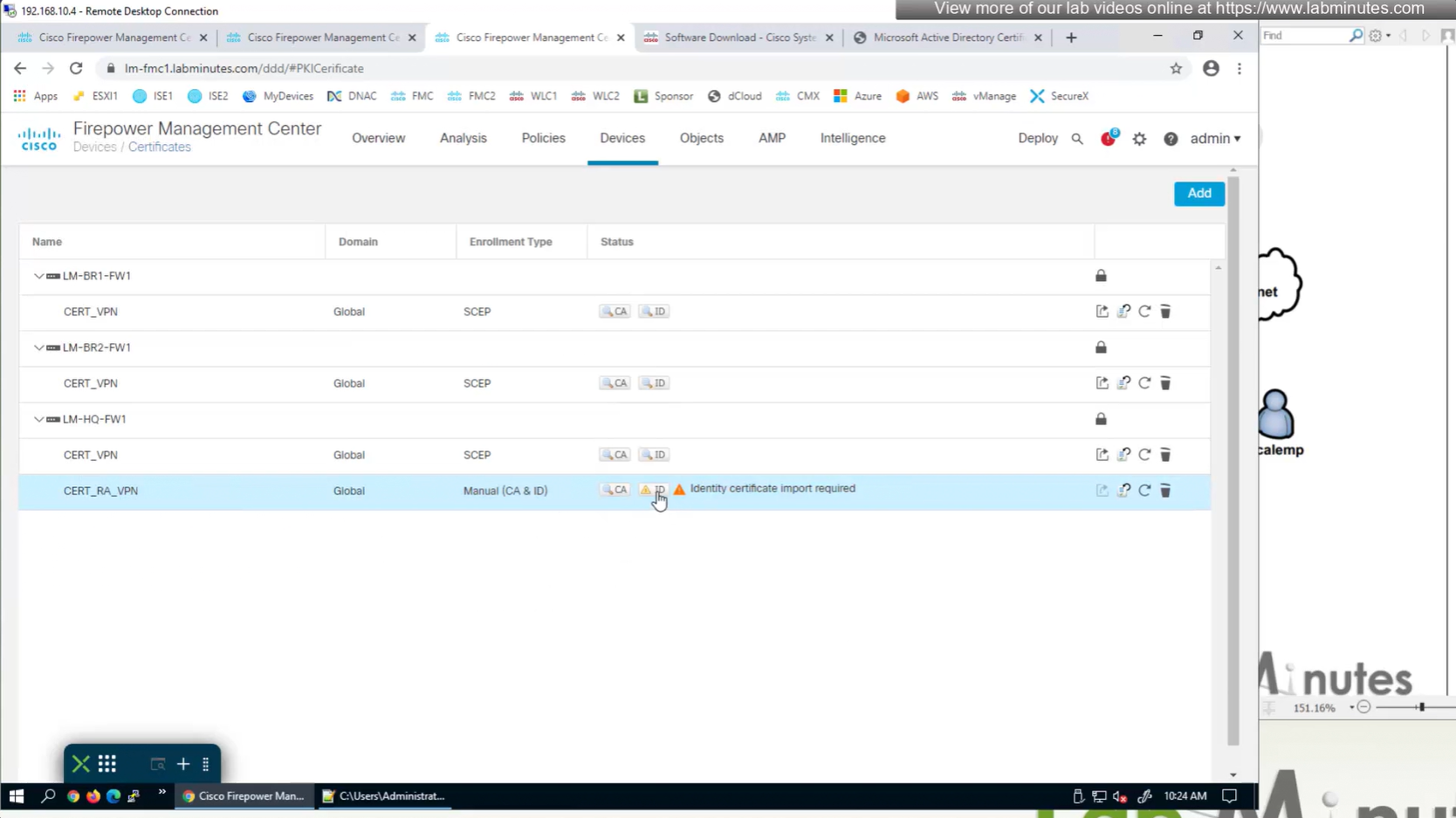

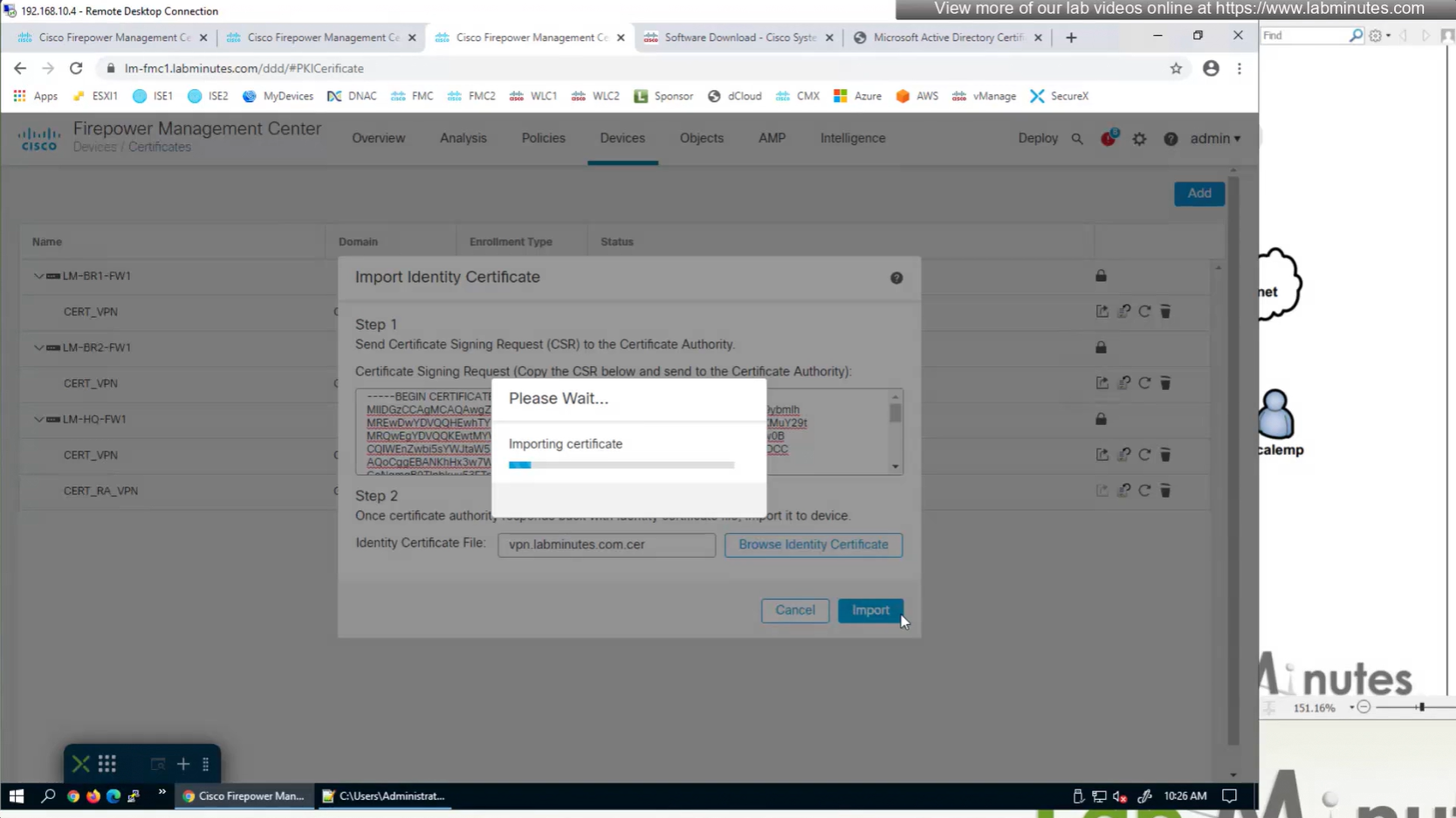

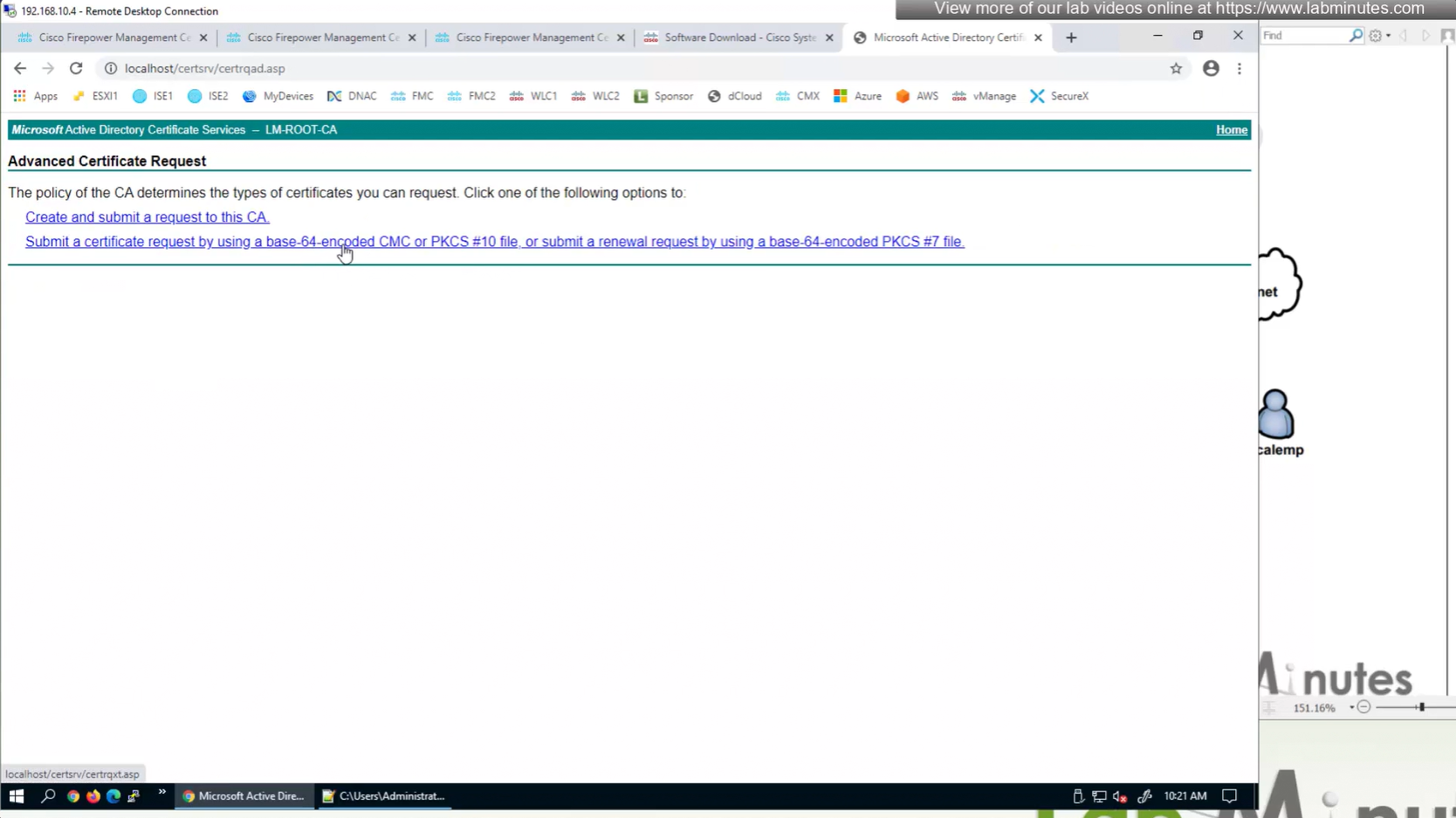

Cert Enrolment (Root CA Server cert + CSR)

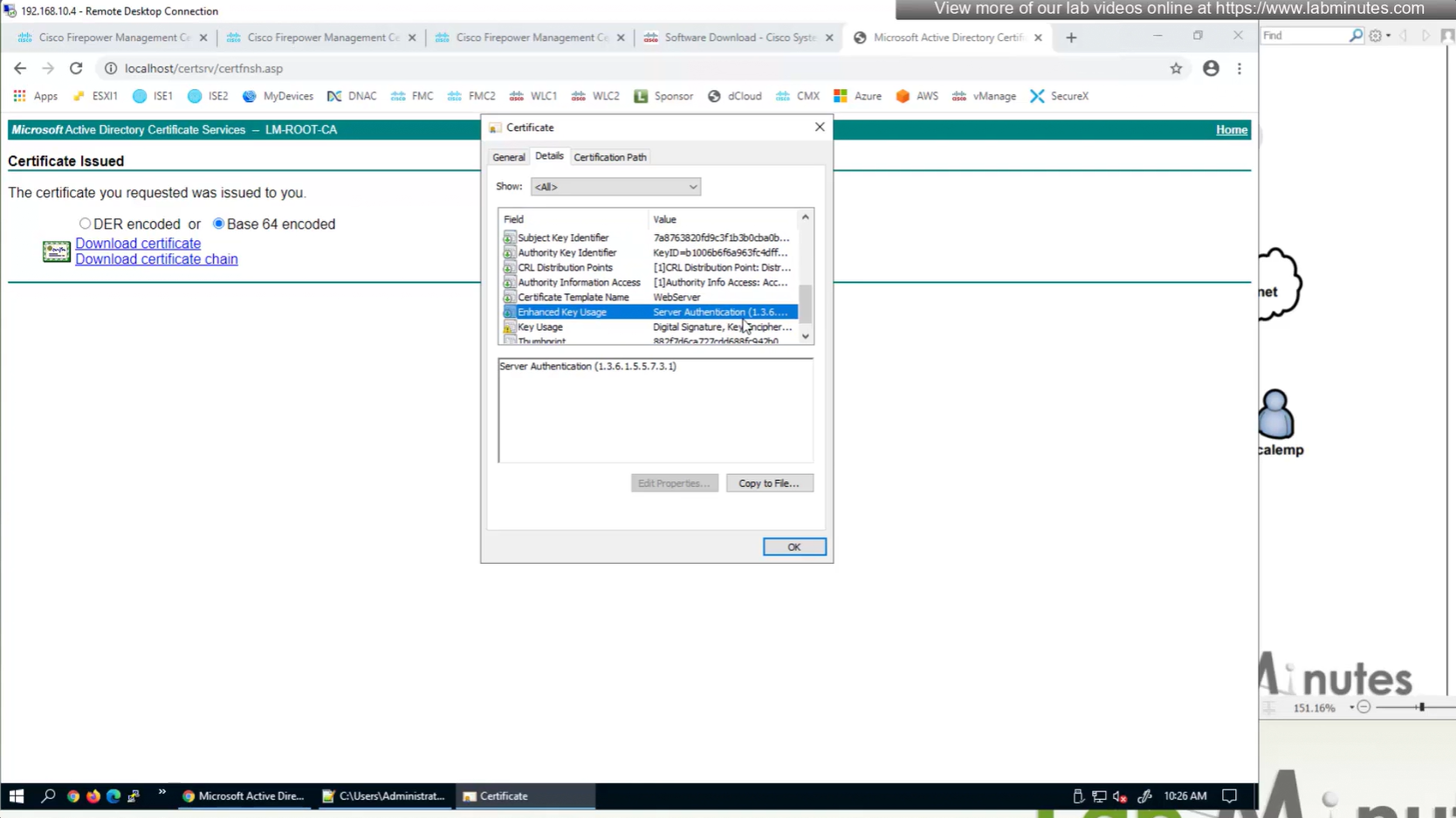

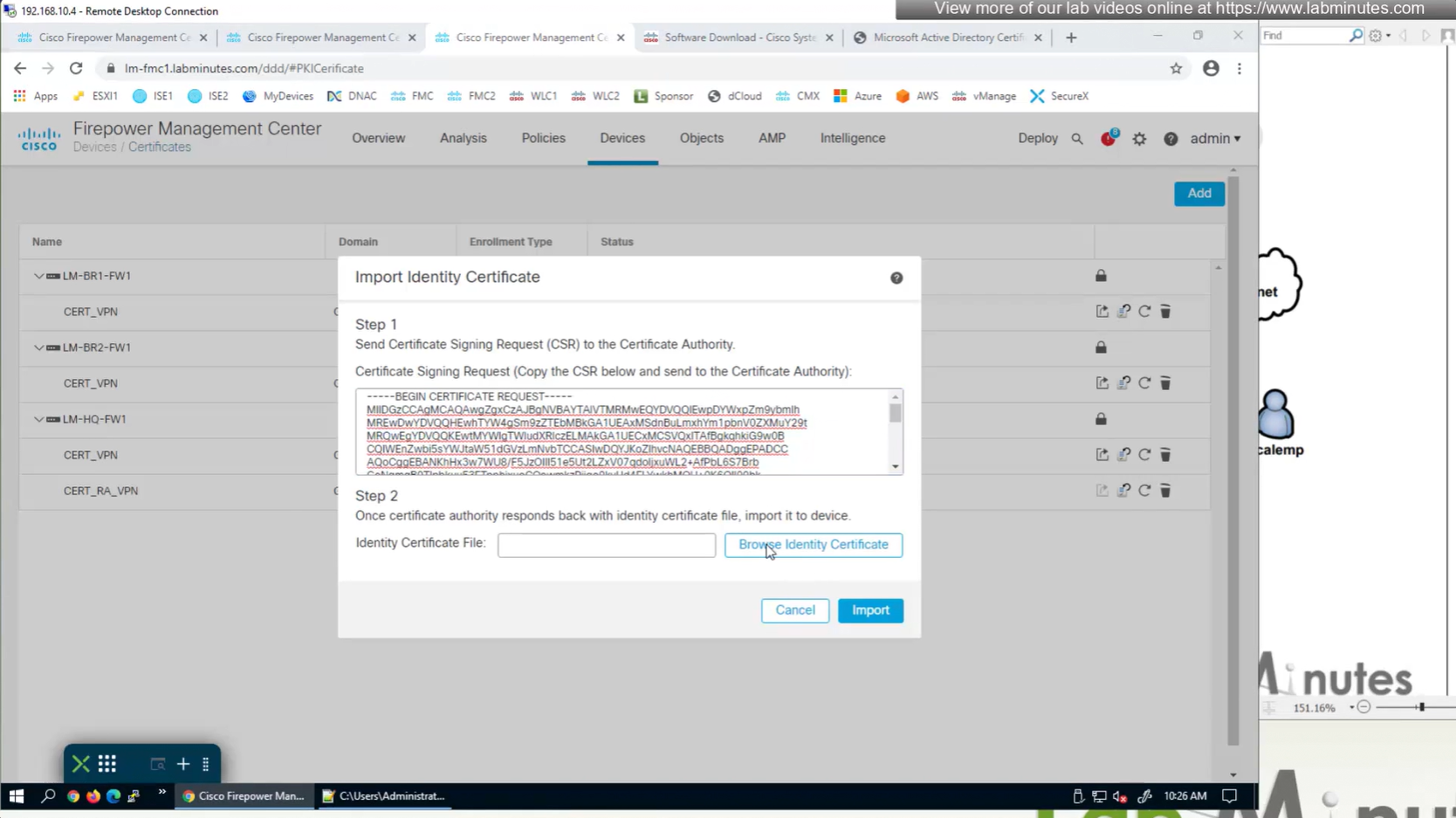

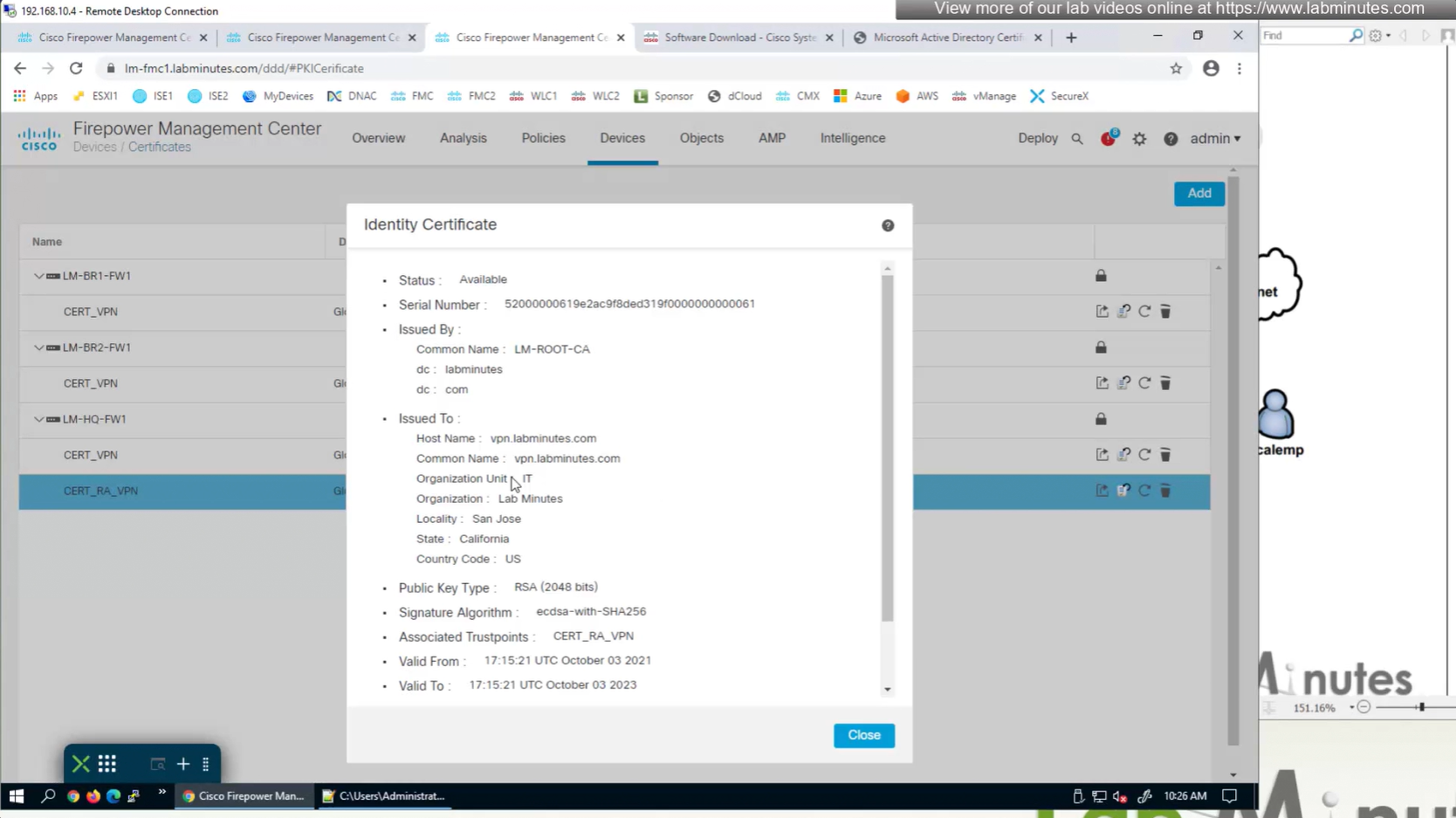

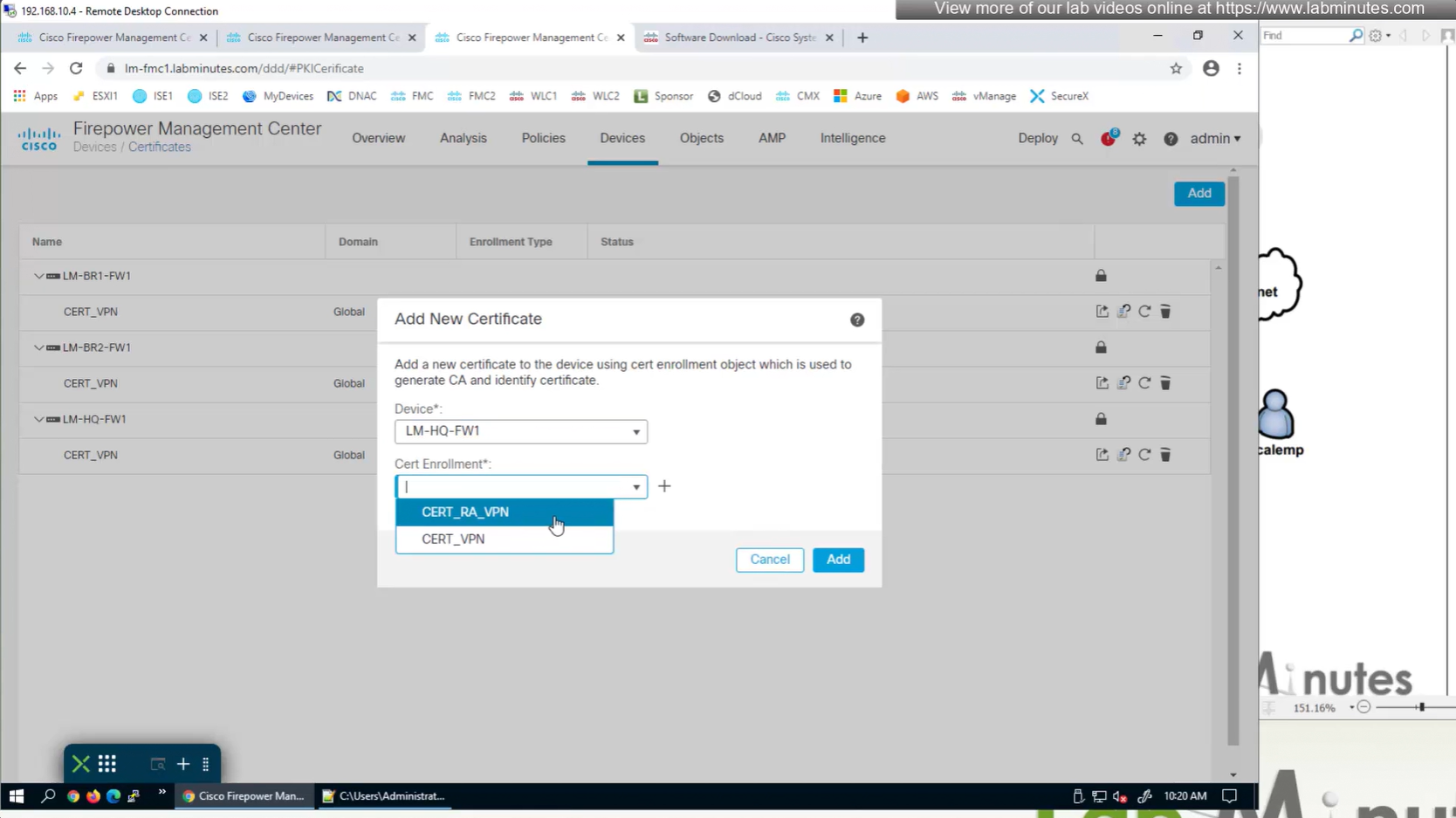

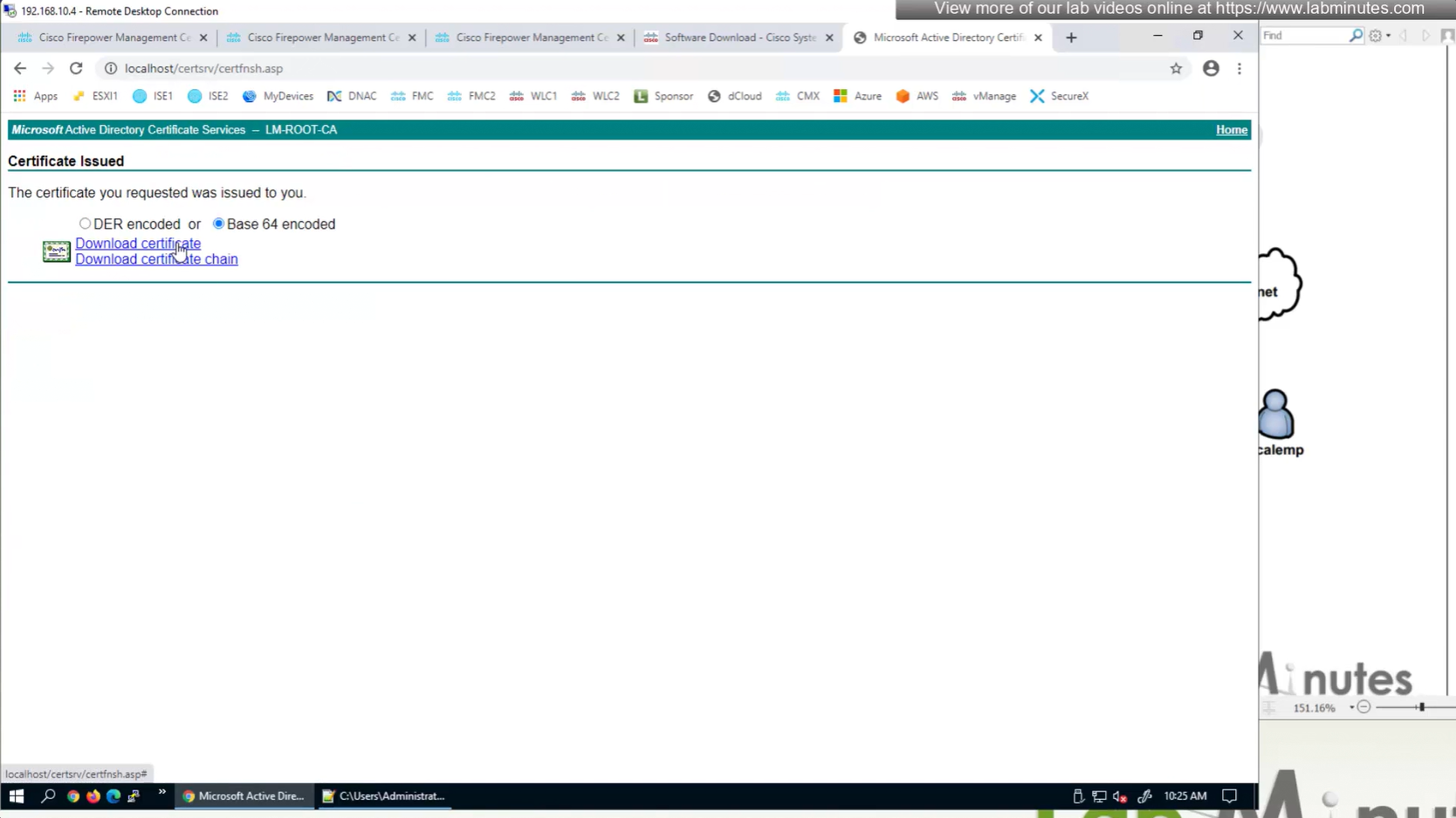

Install Cert on firewall

Here we combine the Root CA cert and CSR parameters defined earlier and pin it to the firewall – and FMC then installs cert on the firewall along with Root CA cert

Trustpoint is like a trust store on devices

This root CA must be trusted by all Clients or present in their trust store
