We can also enable authorization from ISE but authentication will be certificate based

on the same connection profile we will select default group policy since group policy will be returned from RADIUS server

debug radius

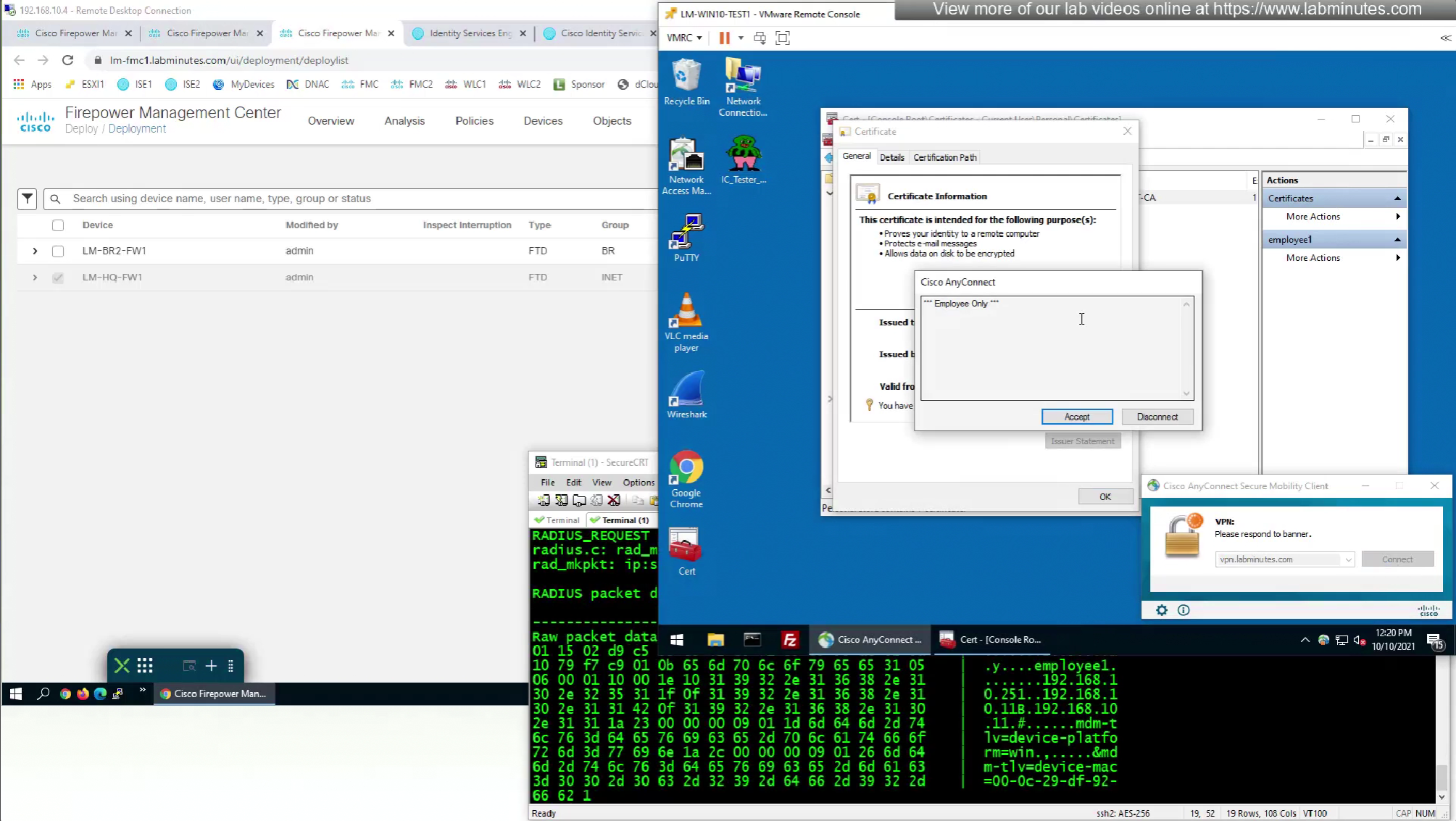

so it seems like firepower is sending username (from certificate) to ISE even though we did not configure it for authentication

so it means that when client sends certificate, client gets authenticated locally on the firewall but when going out to ISE firewall is also doing authentication and not just authorization

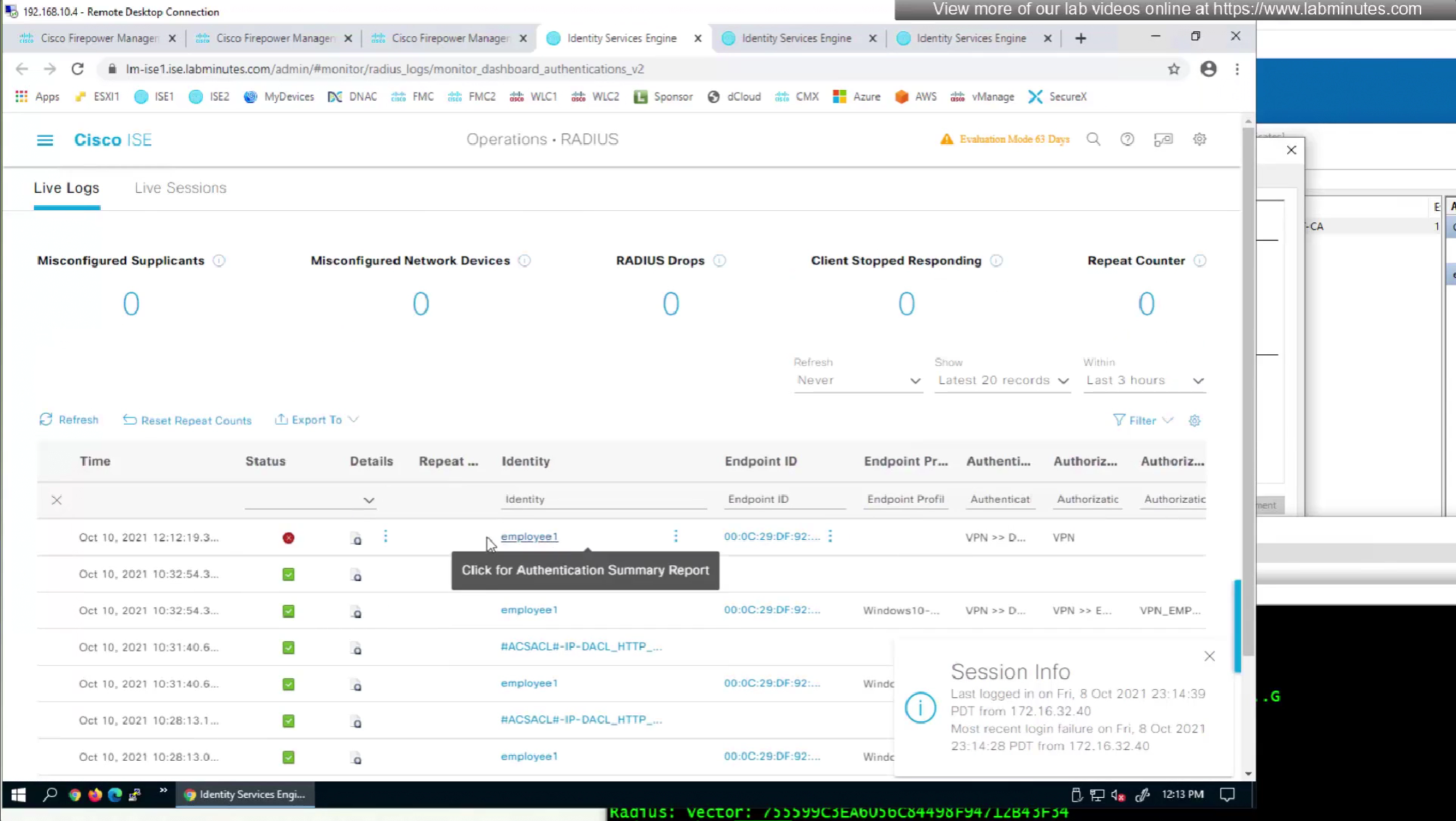

This is how we can successfully authenticate using certificates but authorize using ISE

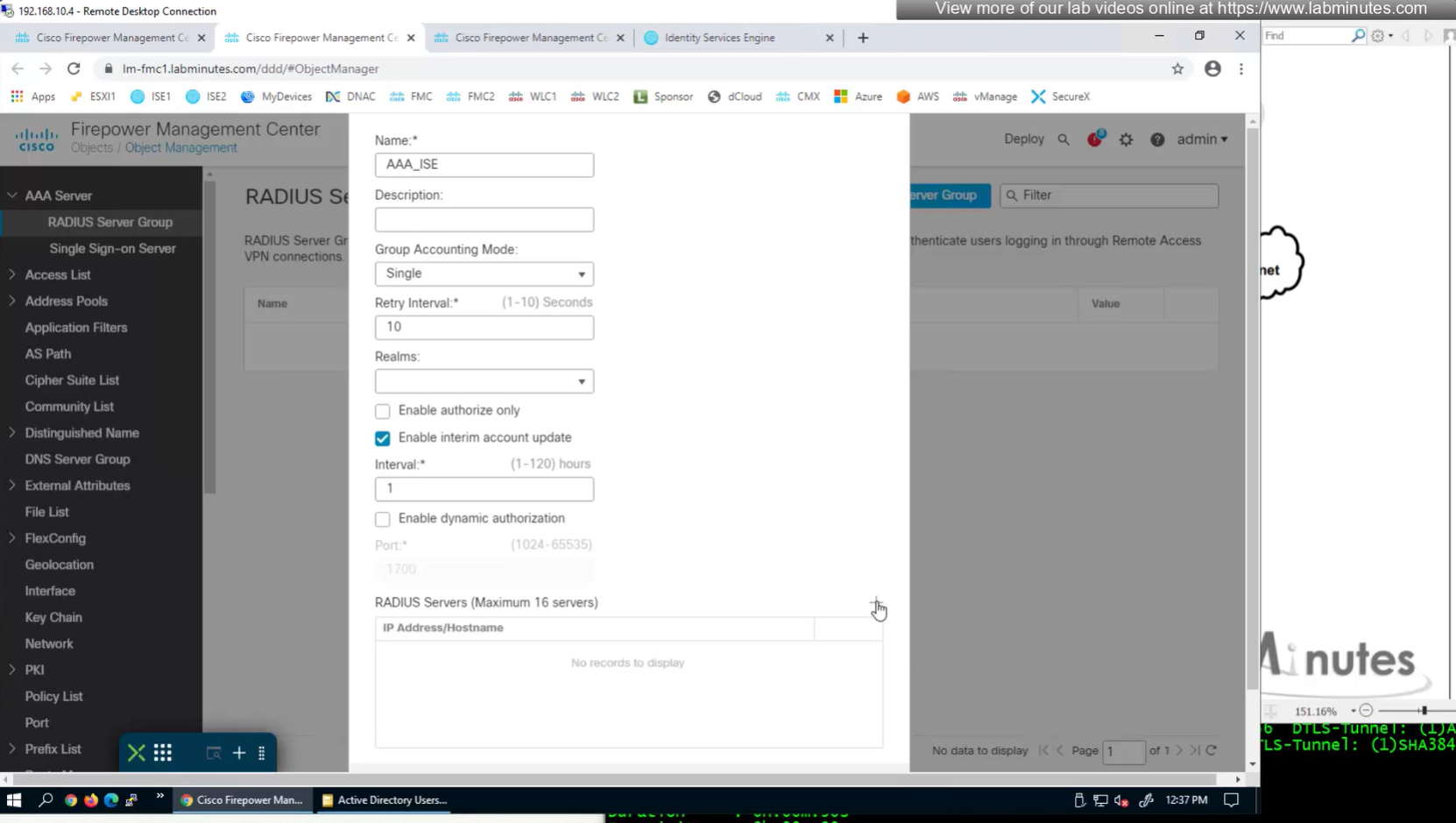

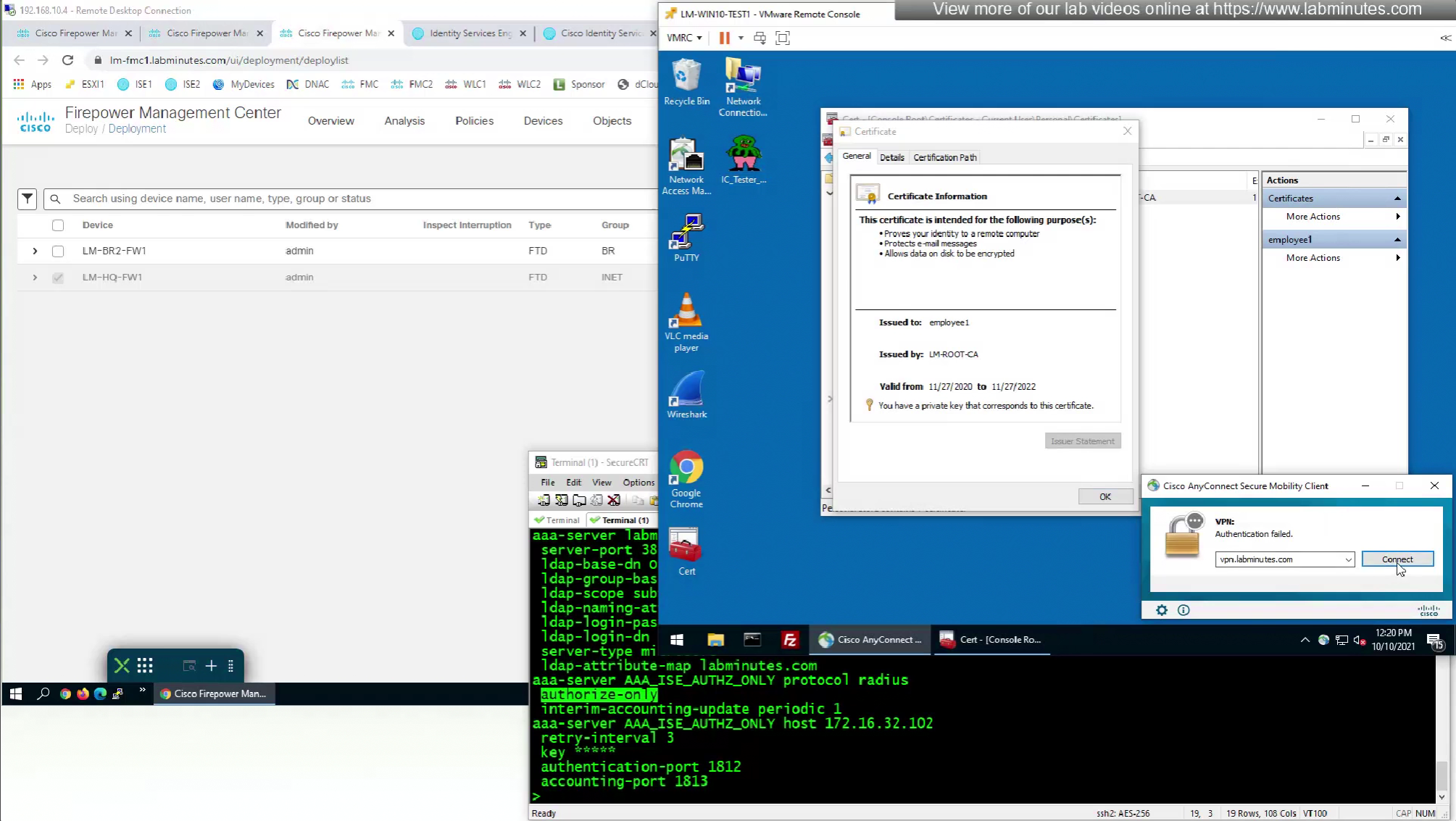

Fortunately we can turn off authentication to ISE using “Enable authorize only”

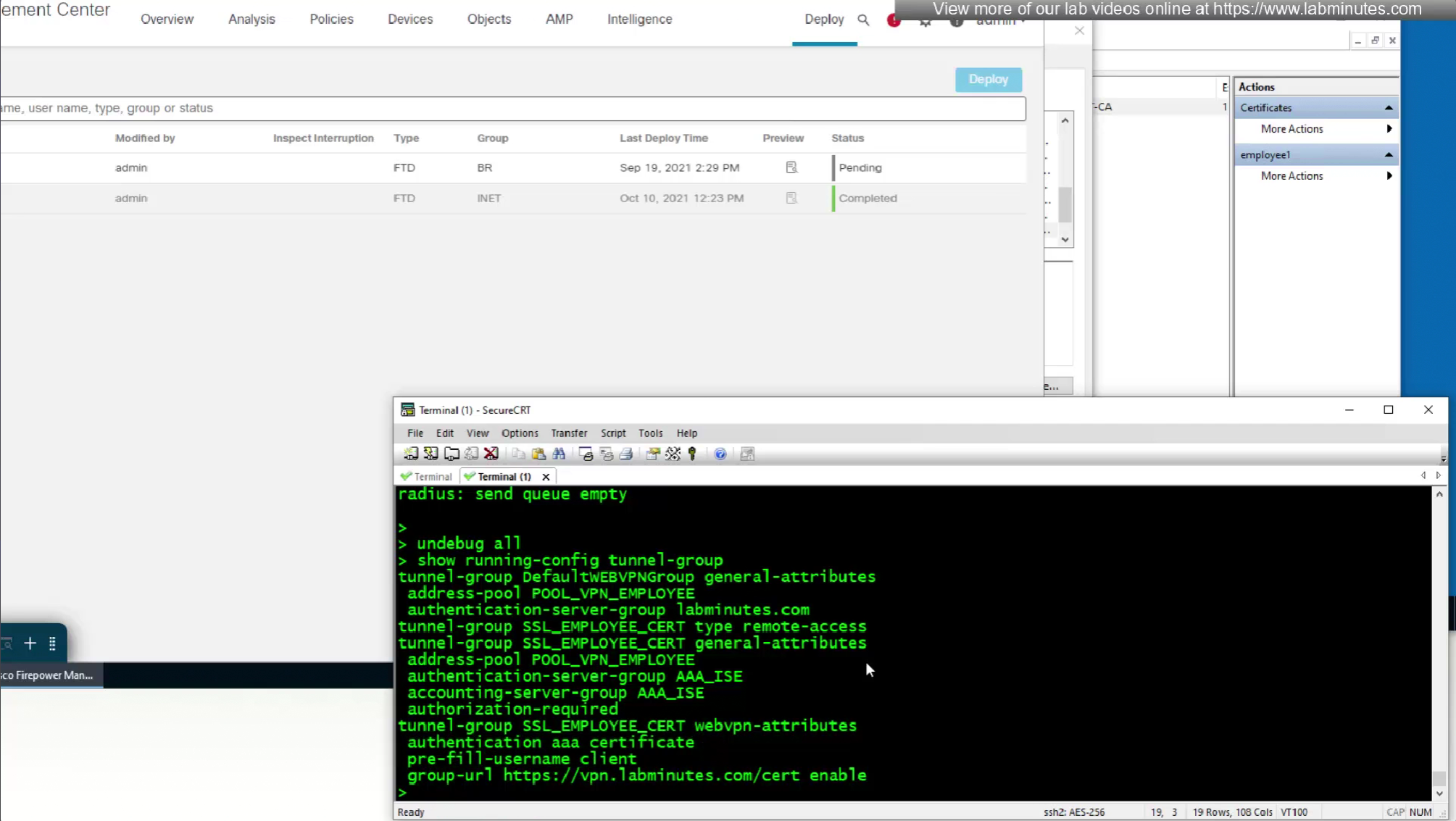

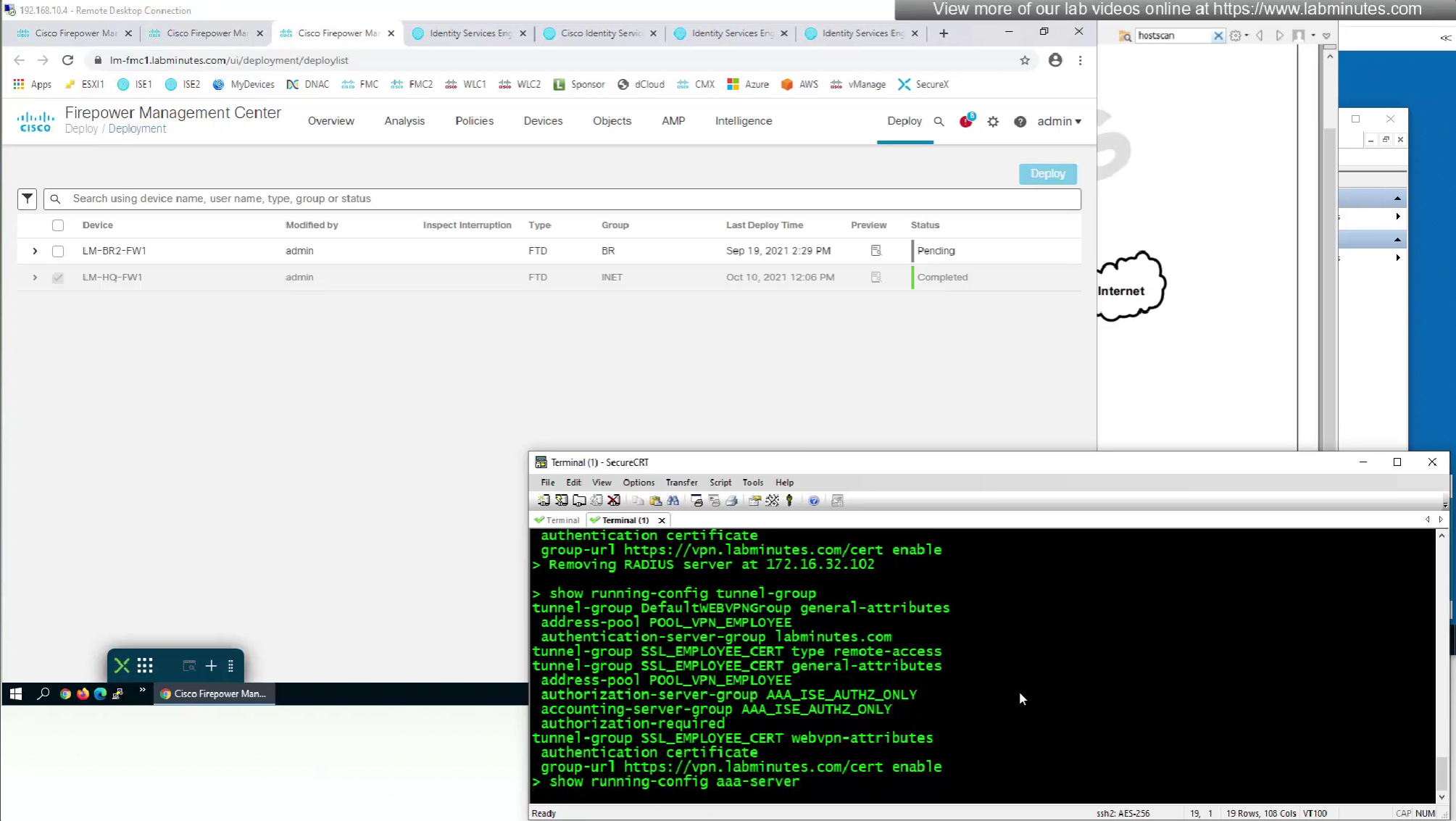

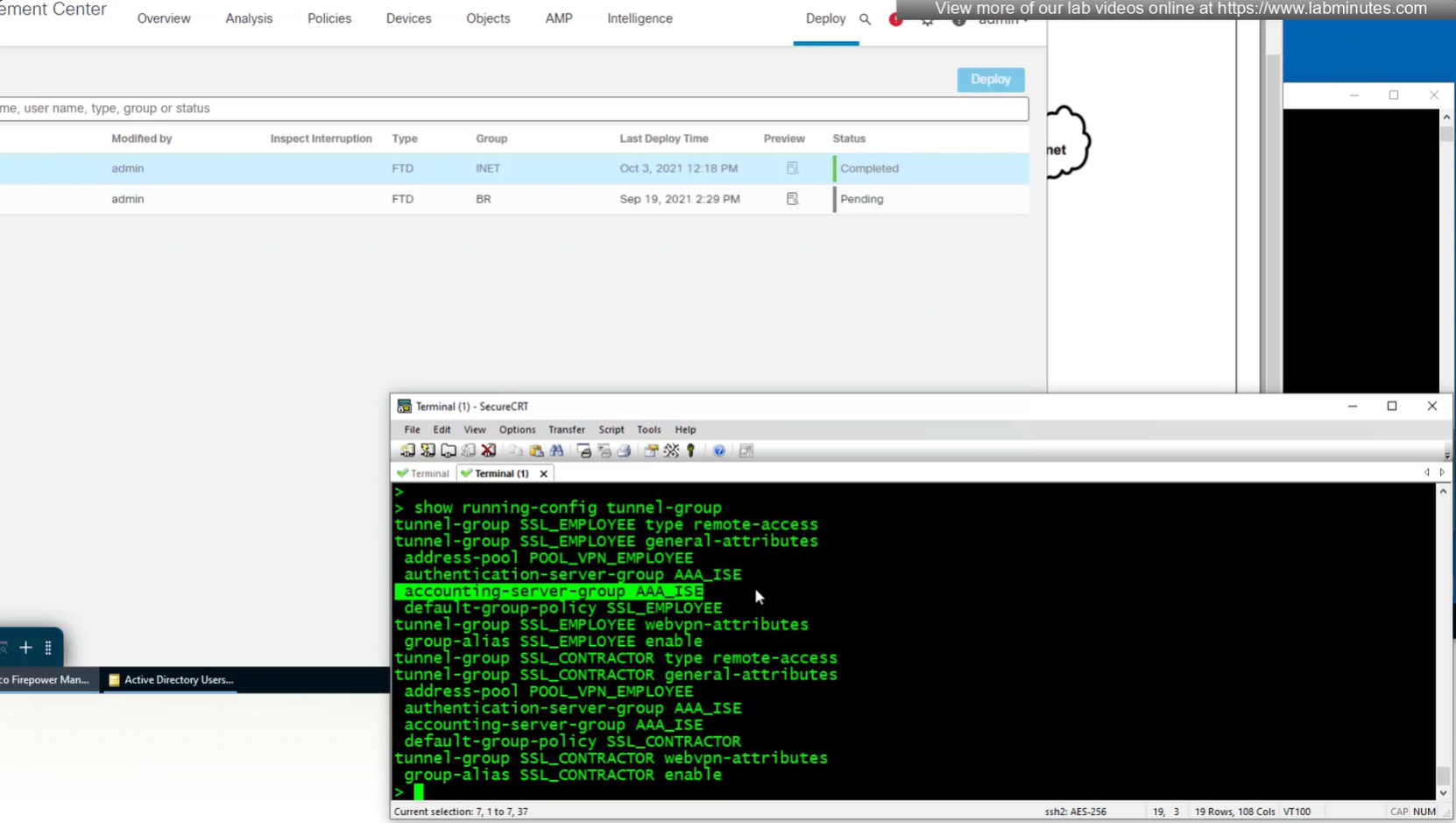

show running-config tunnel-group
show running-config aaa-server

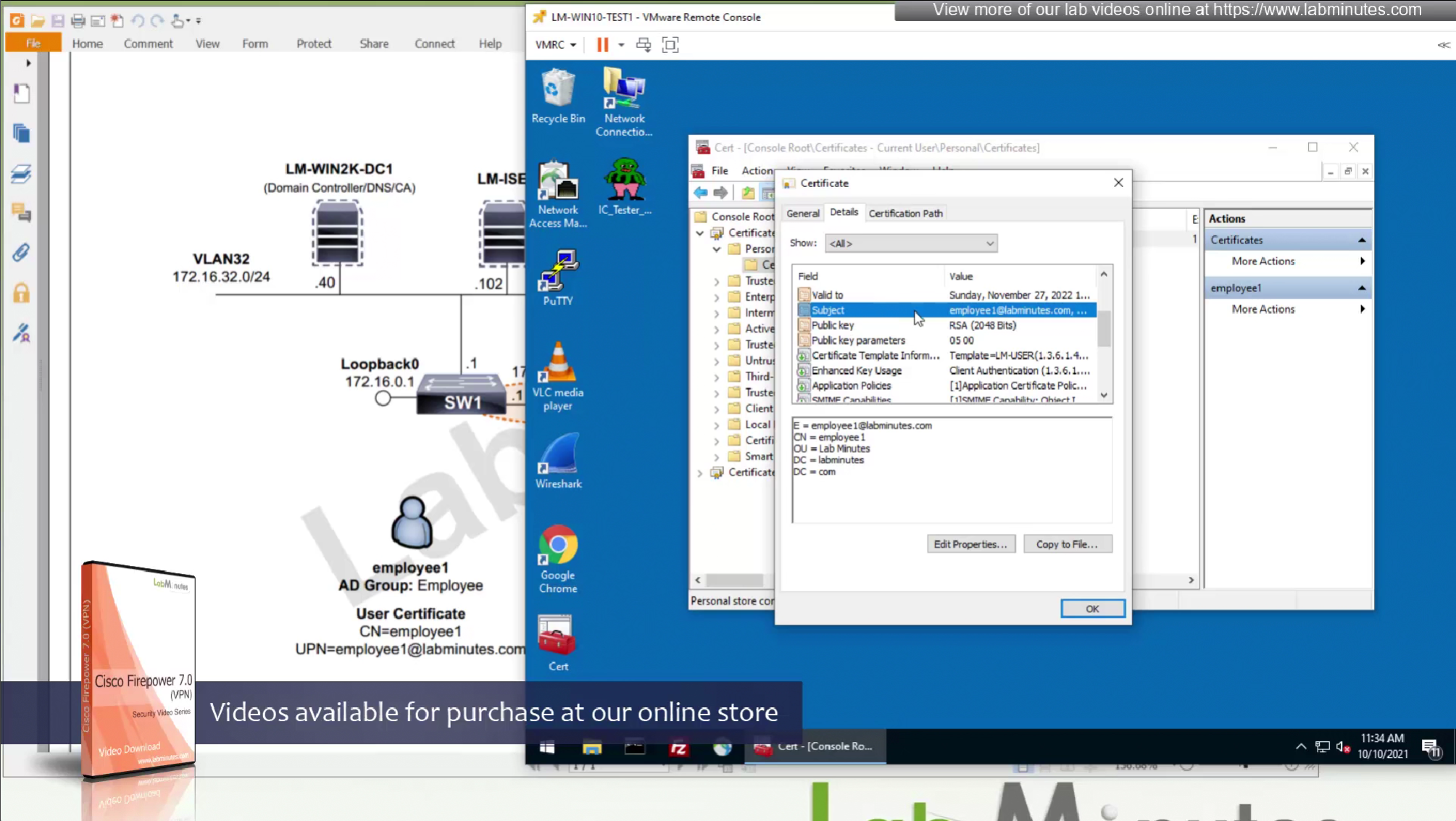

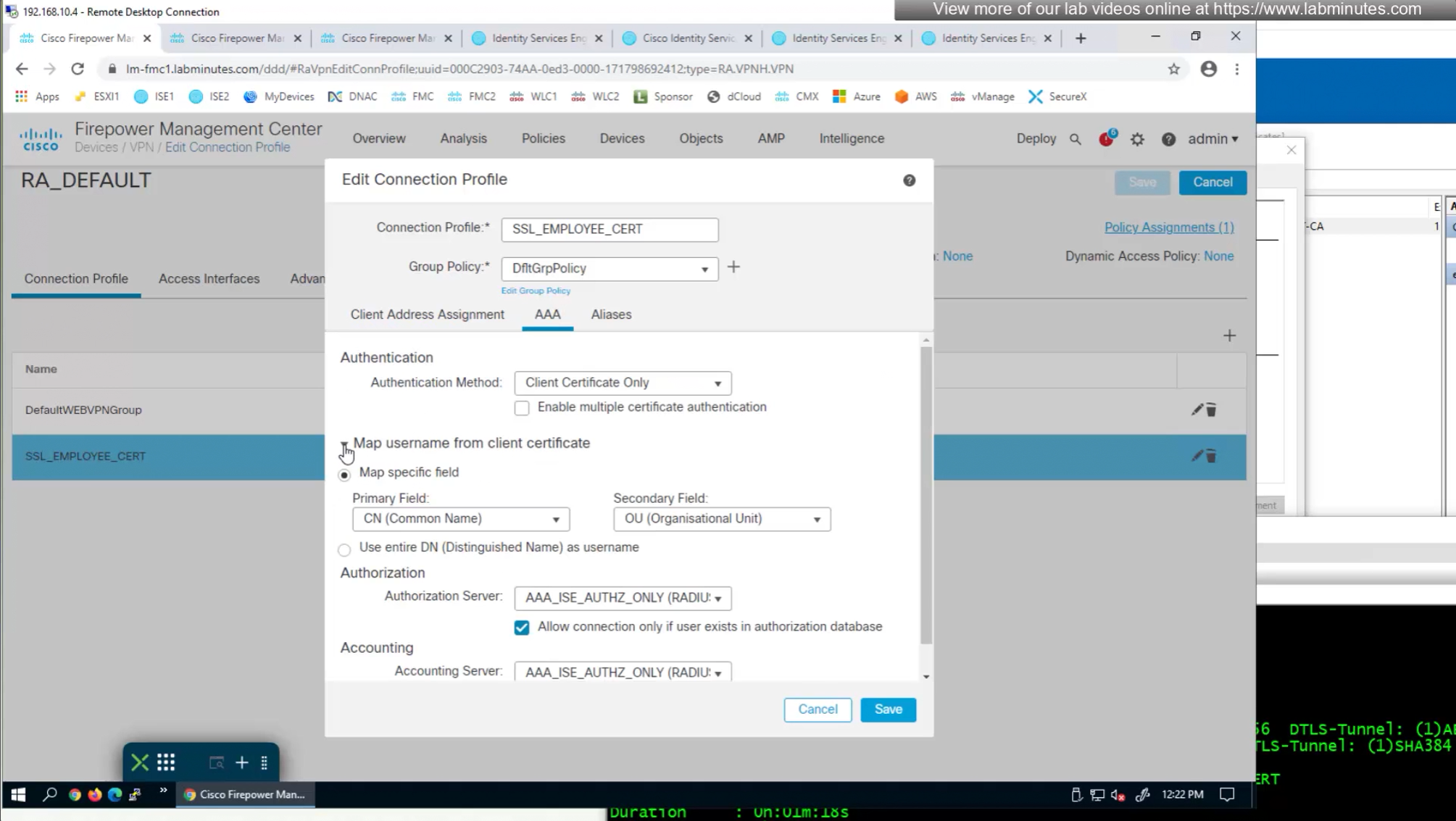

if we have UPN in subject alternative name then we can change Primary field from CN to UPN to use it as email address rather than just the username

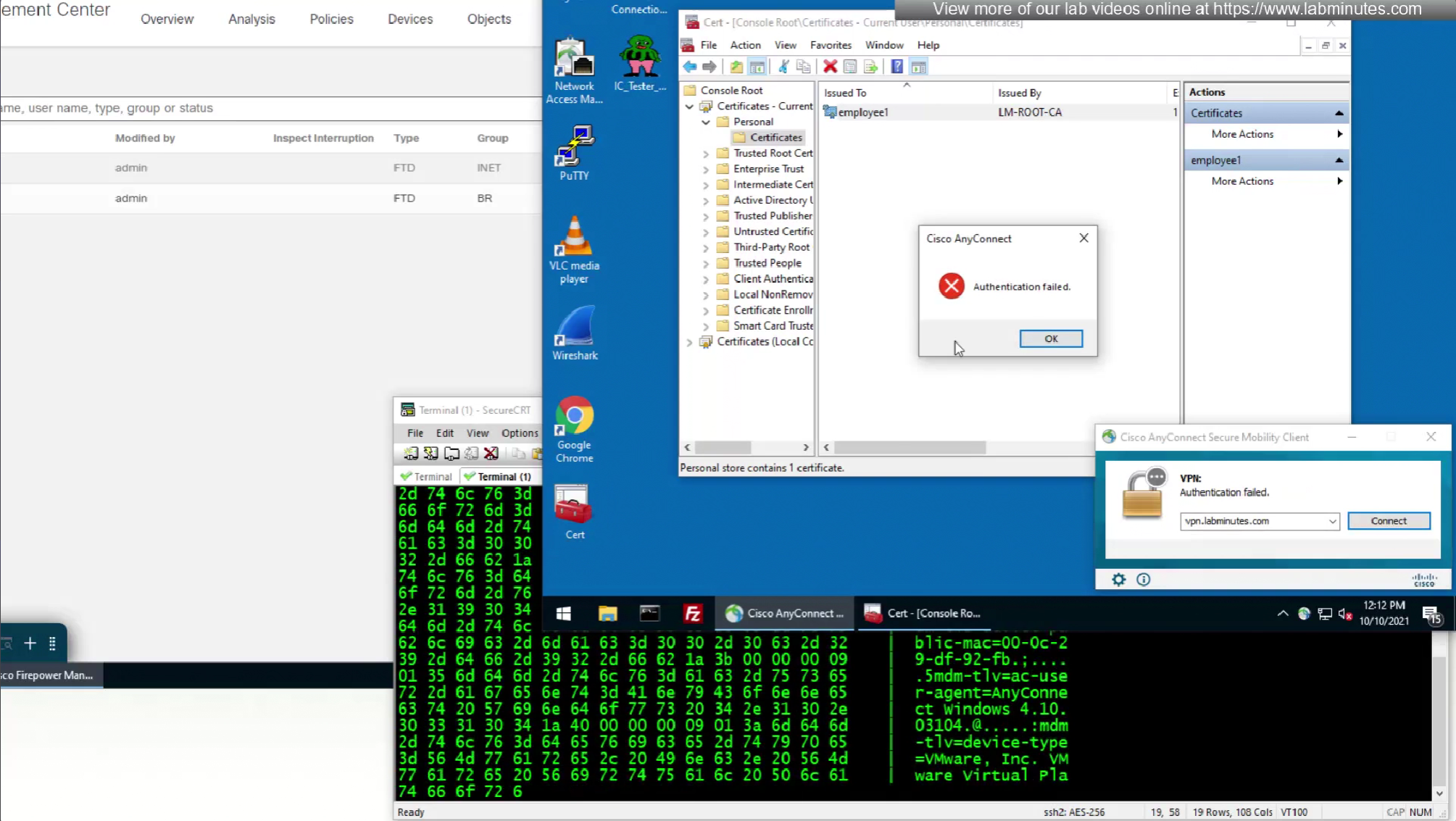

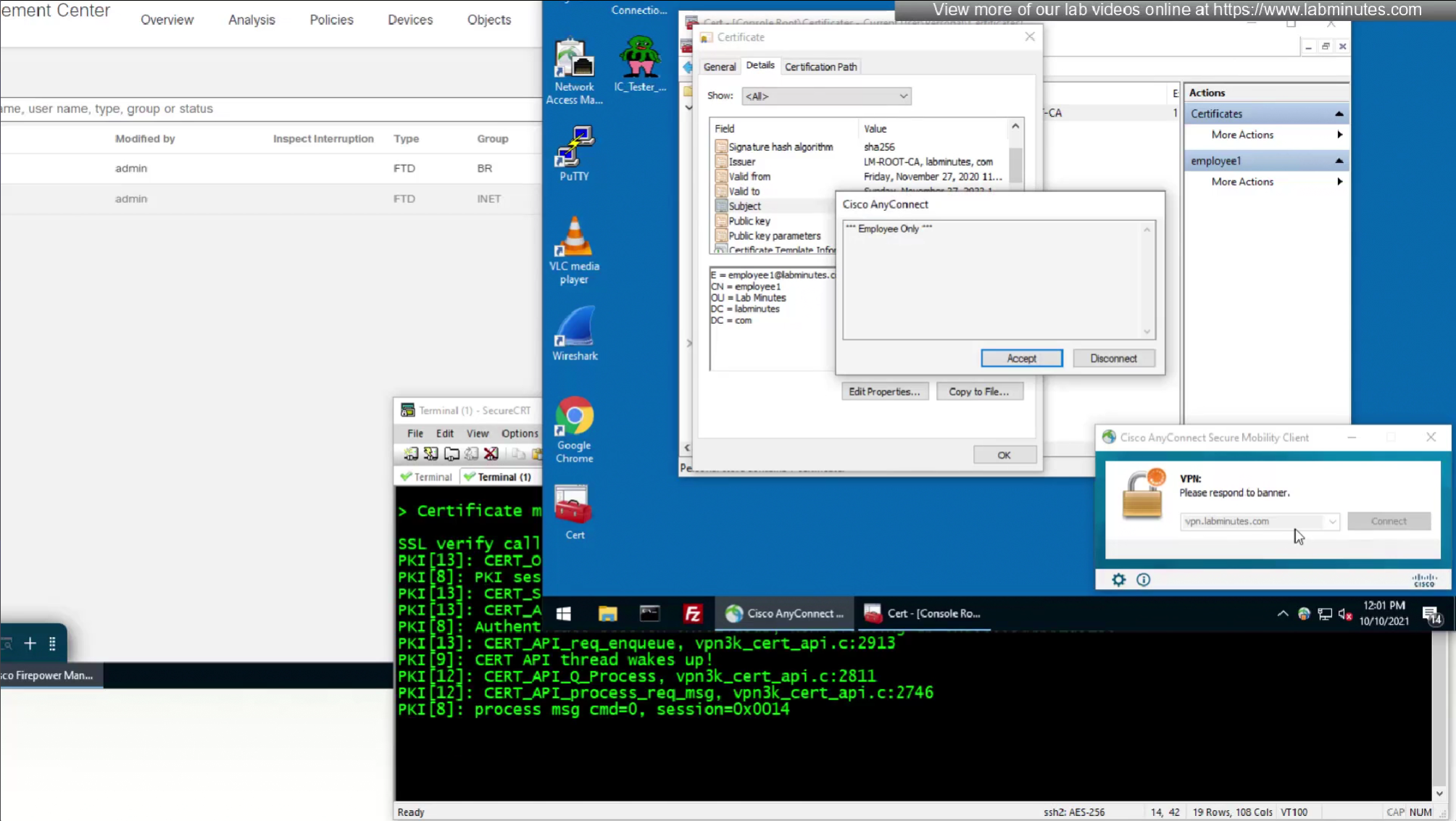

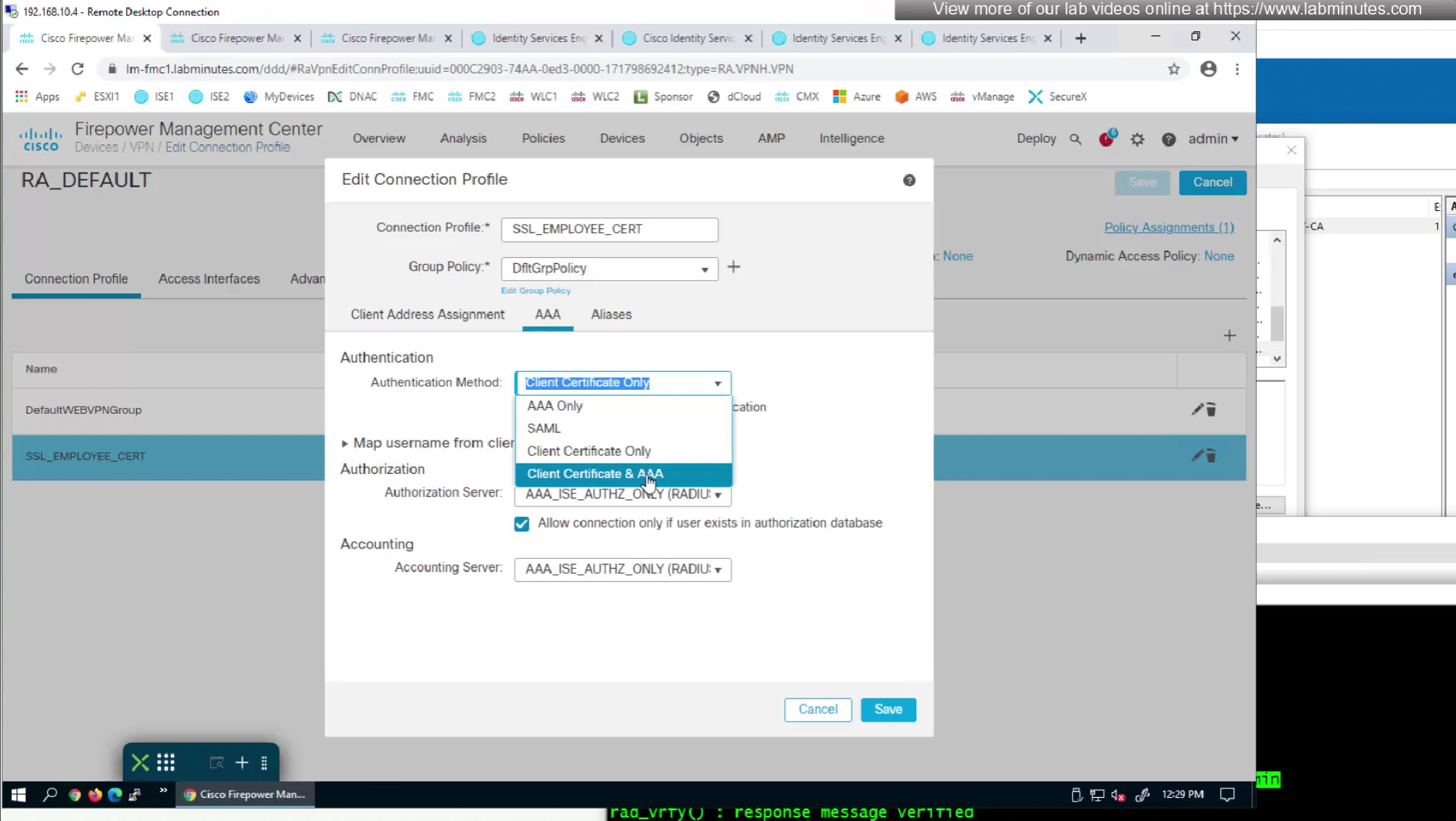

As last part of this lab we will use both certificate and password as 2 factor authentication

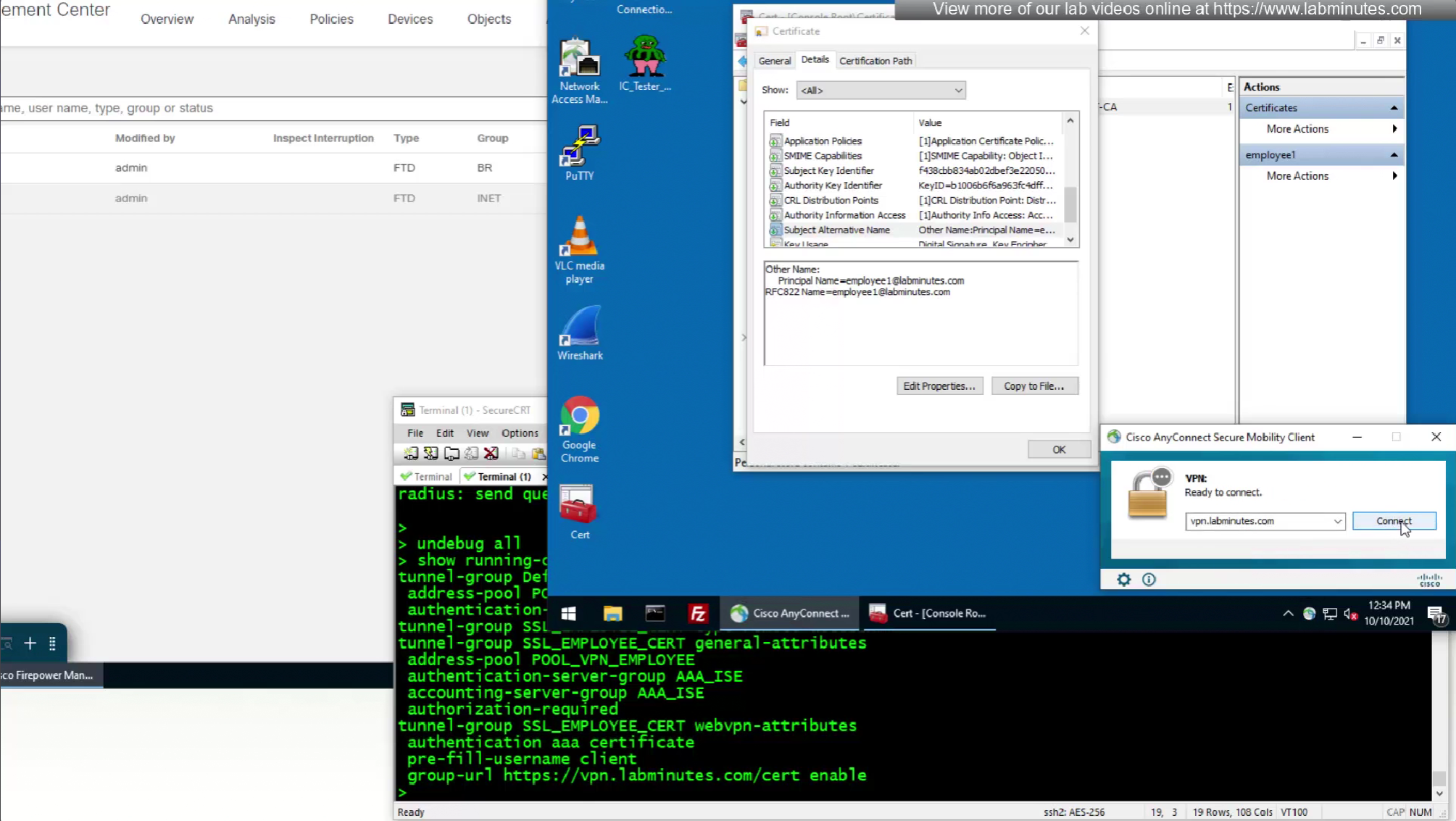

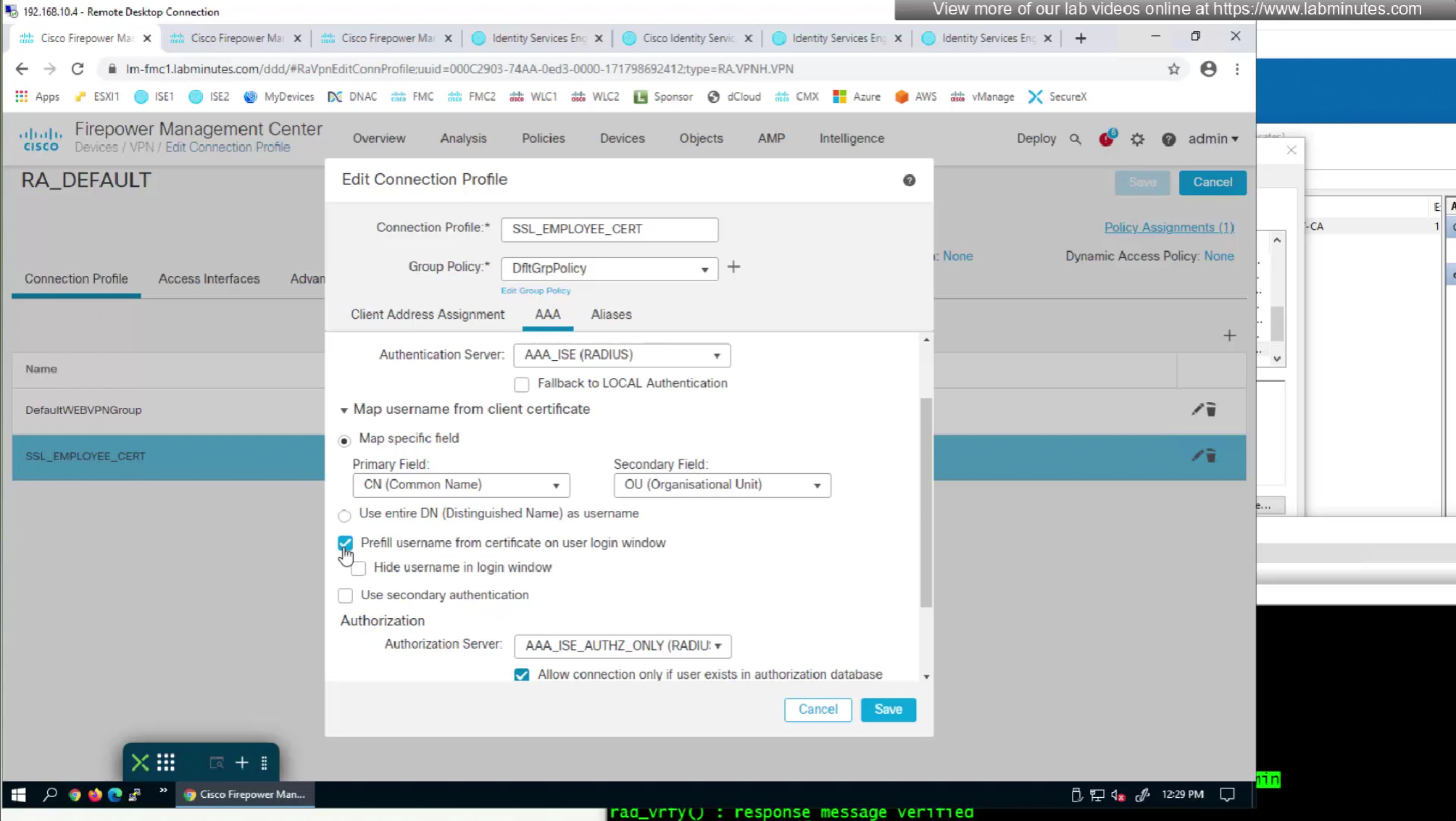

option “Prefill username from certificate on user login window” fills and locks the username from certificate on login window so user cannot switch the credentials

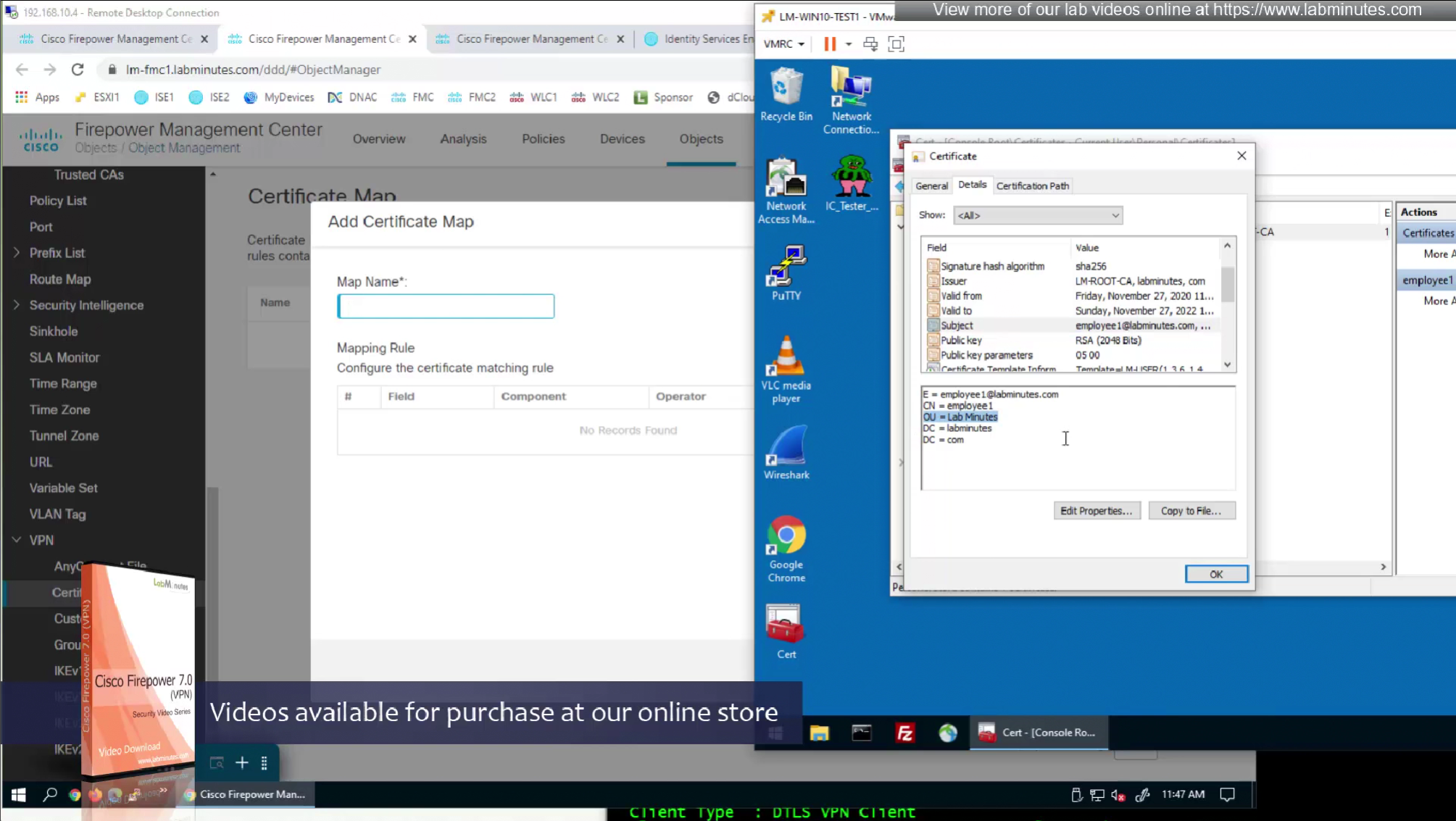

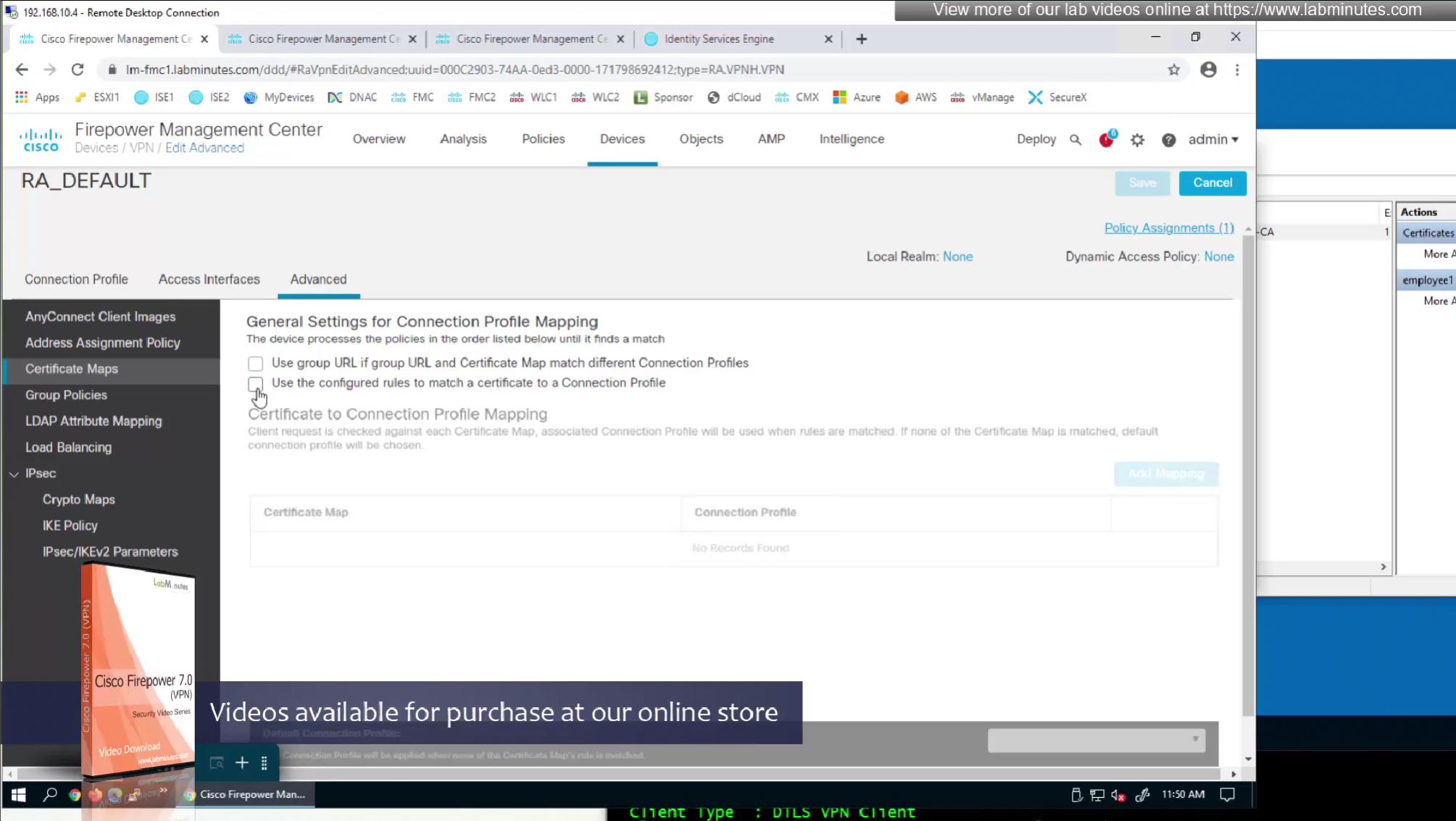

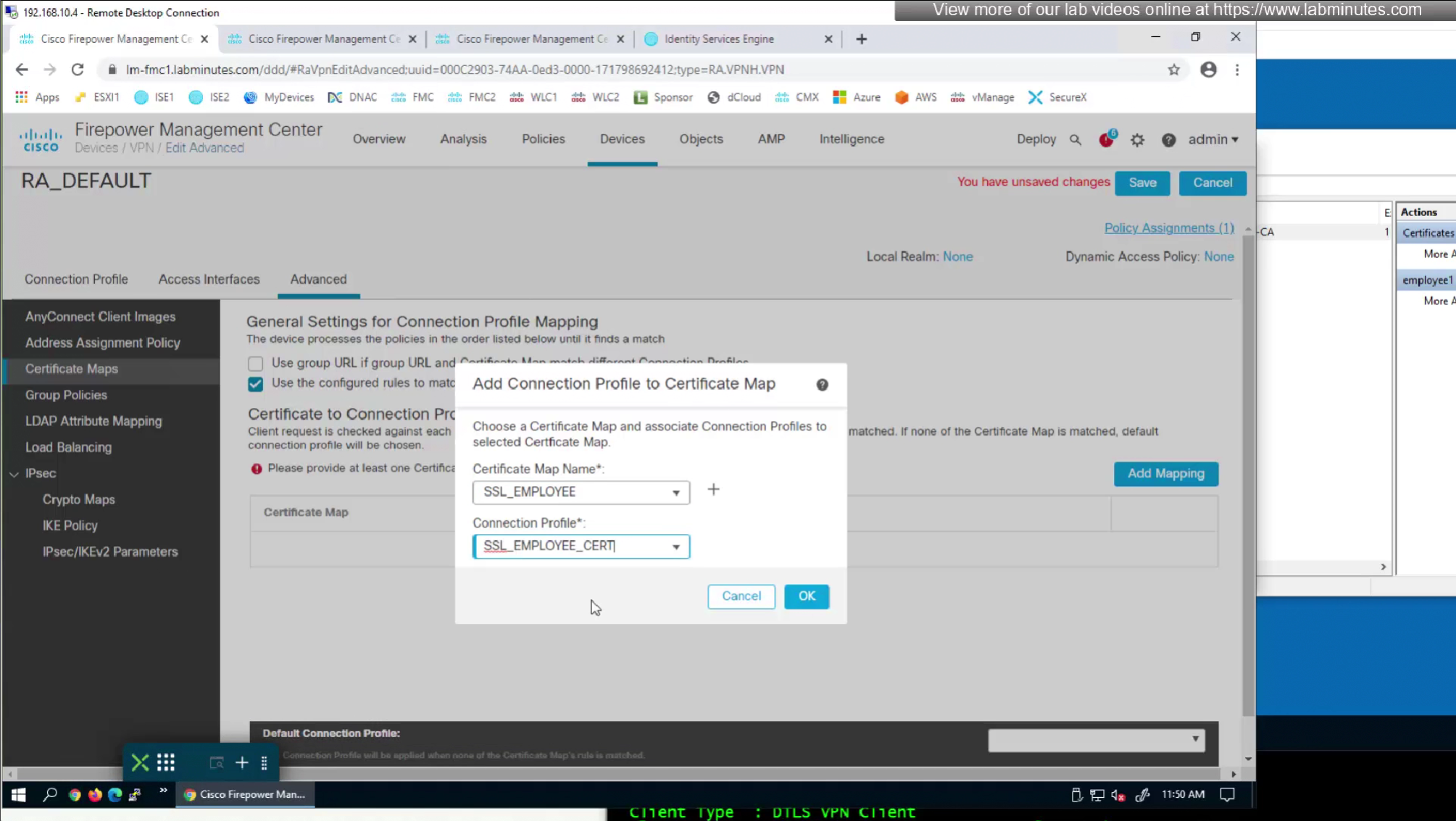

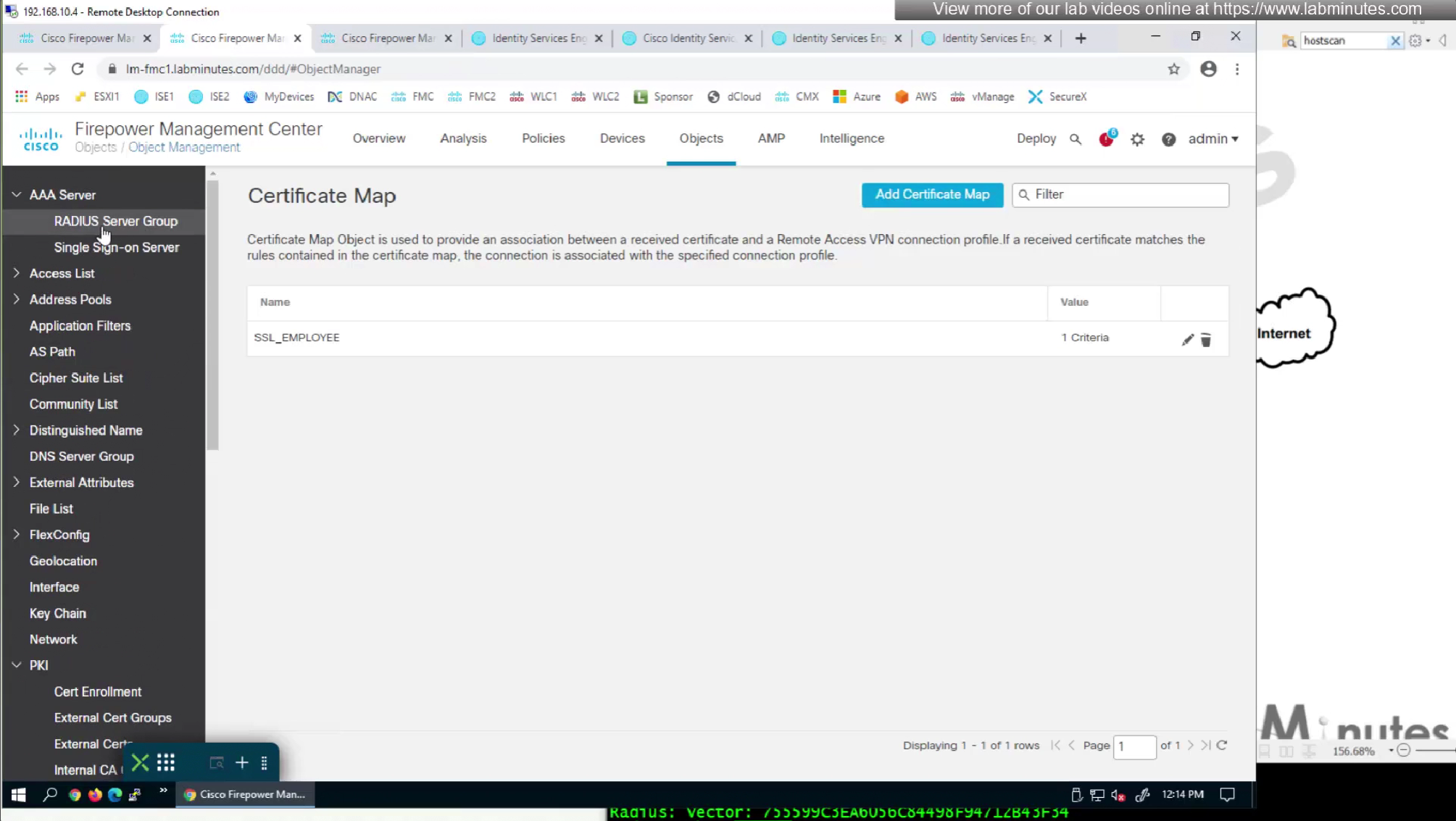

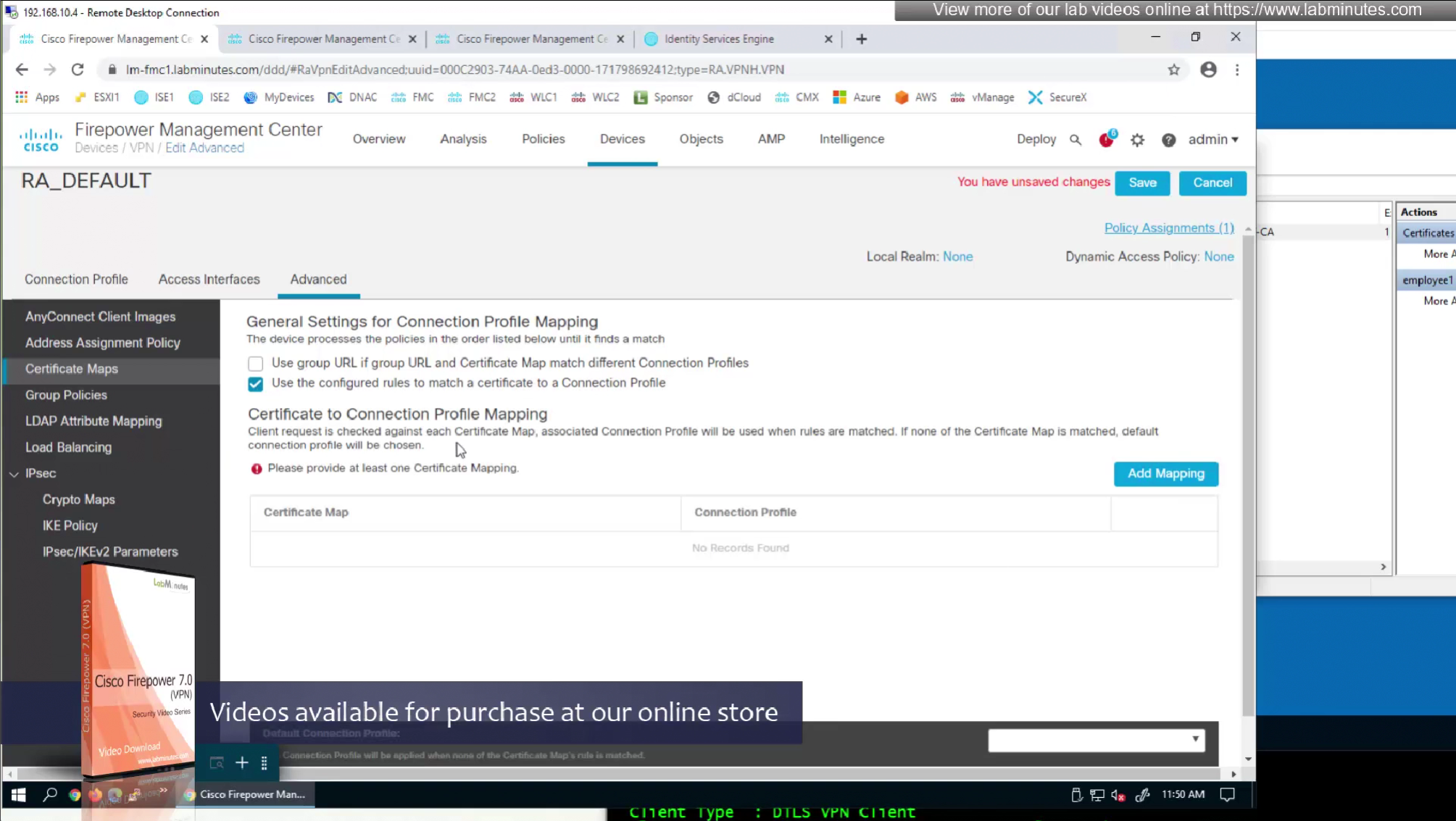

Sometimes having to inform user about group url is not what we want to do, a better option that is present is to allow ask firepower to look at attributes of the certificate and then map them to connection profiles called certificate map

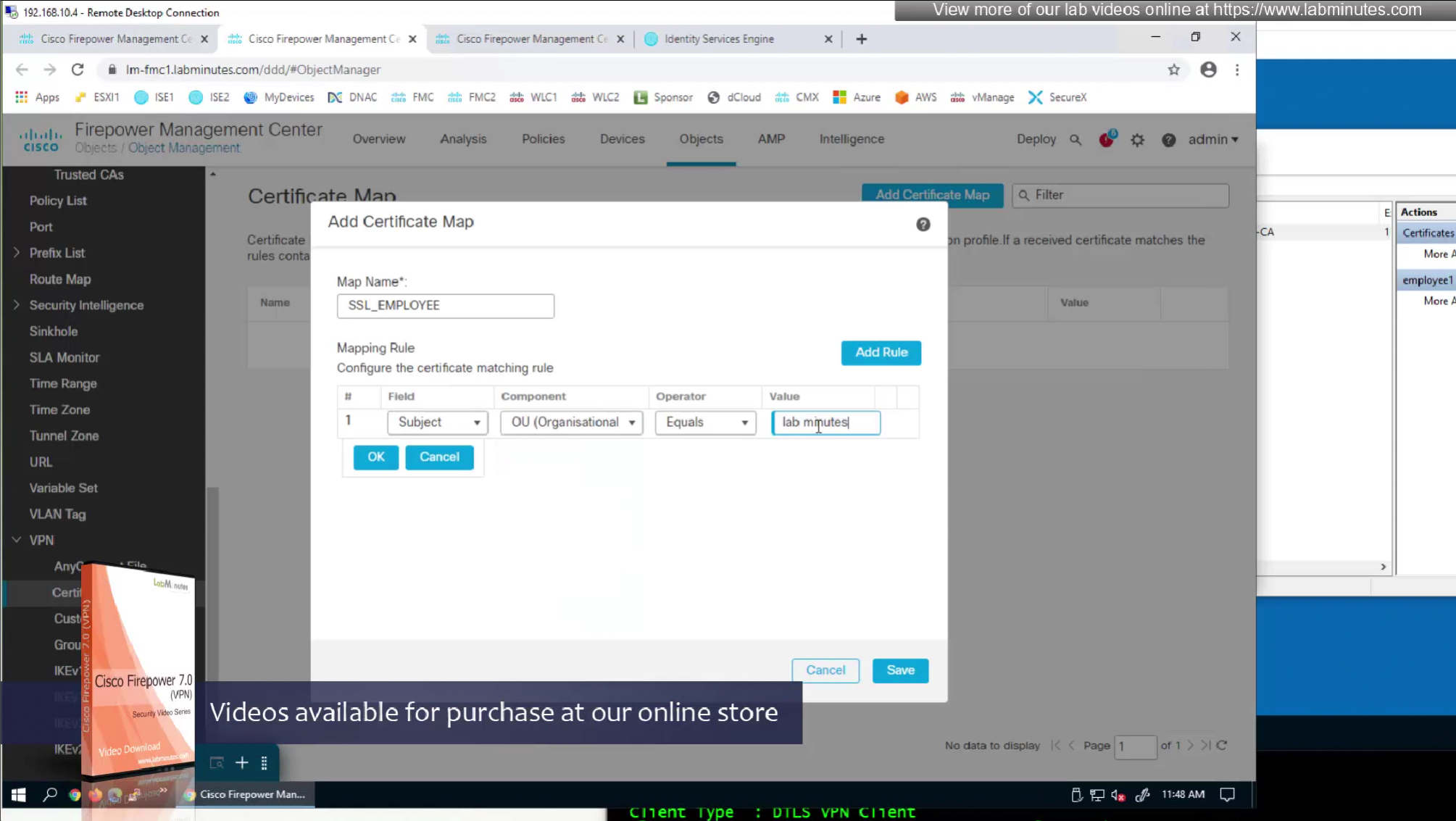

This way we can say that if OU in subject is home.local
This way is if user has correct certificate they will never have to worry about the group URL

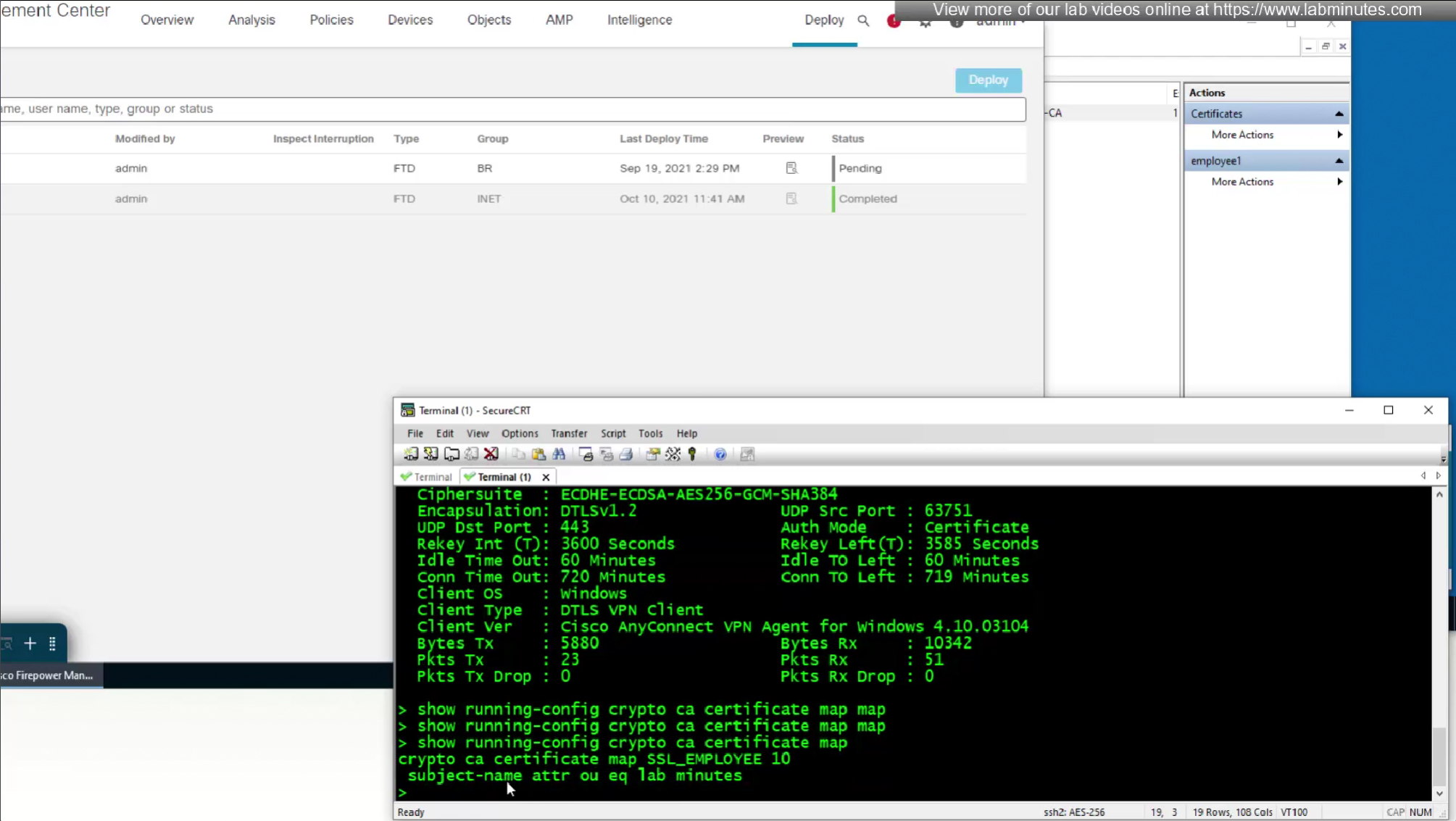

show running-config crypto ca certificate map

debug webvpn 127 debug crypto ca 14

Having non certificate based authentication means that if user knows their credentials then they can install anyconnect and use it from any device, connecting your network to another network making their machine a transit machine and deliver malware in network

This can be locked down using certificate based authentication
This way device can be locked down and credentials are locked down as well

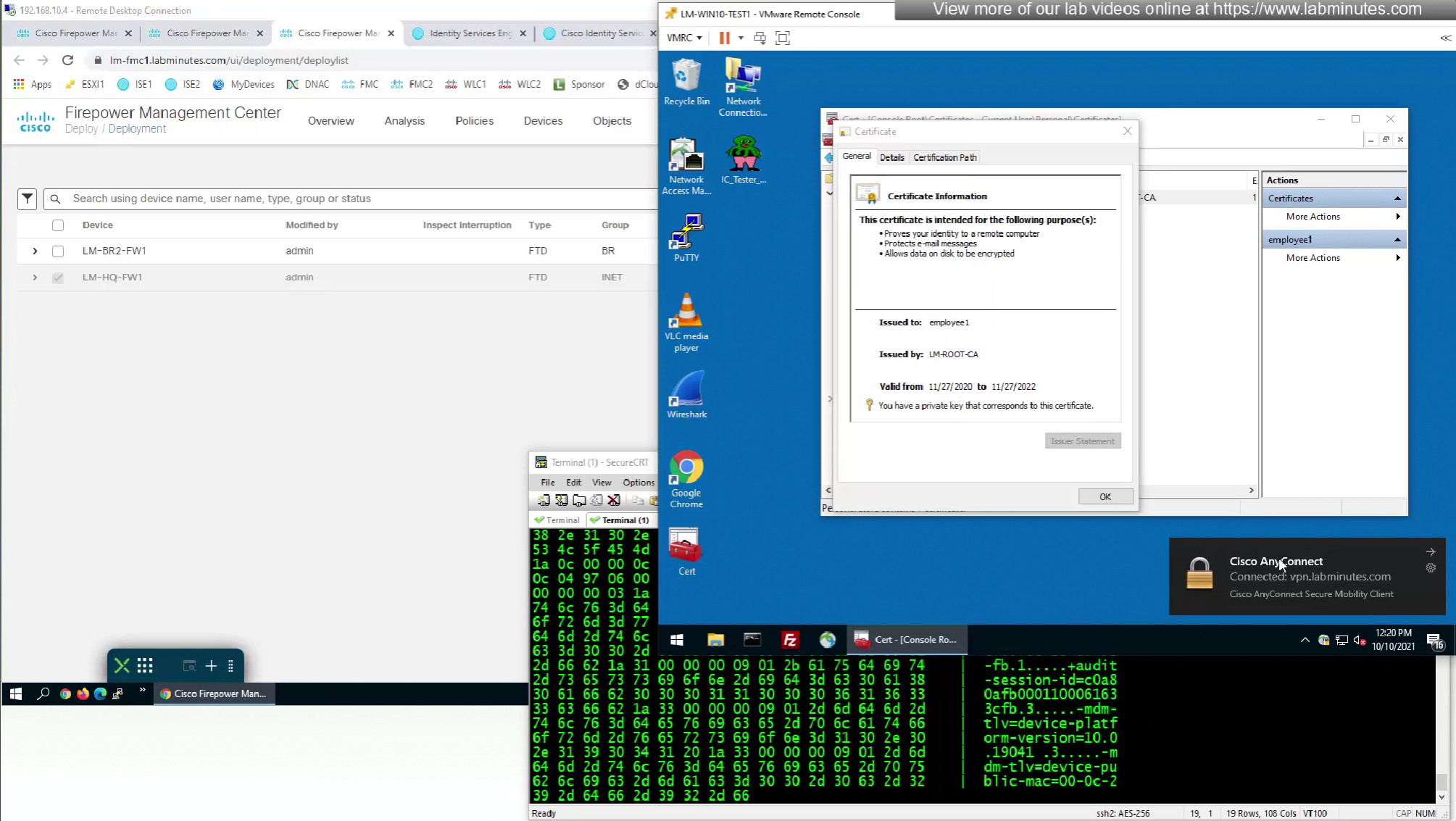

These certificates are pushed using GPO and this machine certificate is used automatically for anyconnect certificate authentication

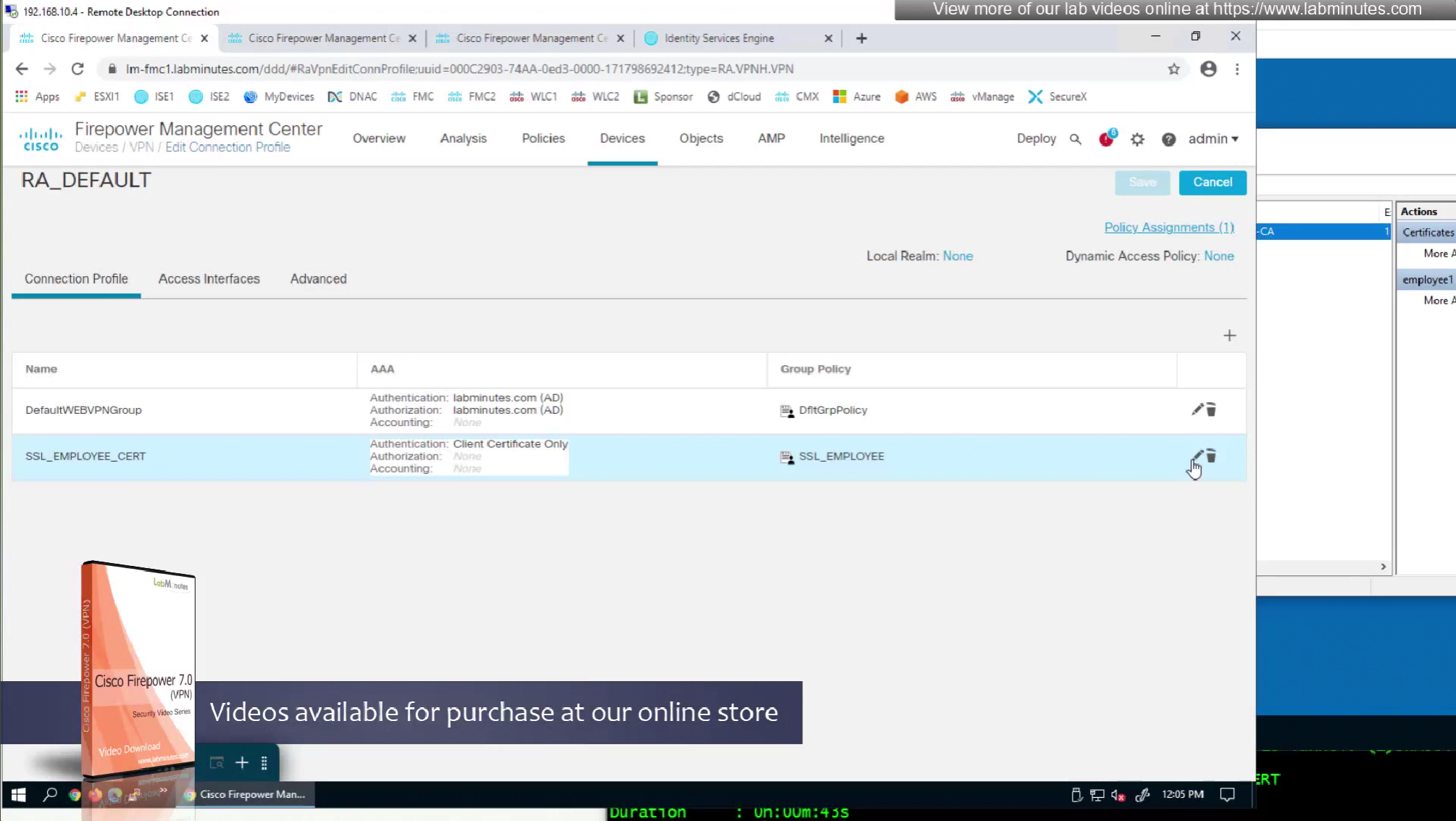

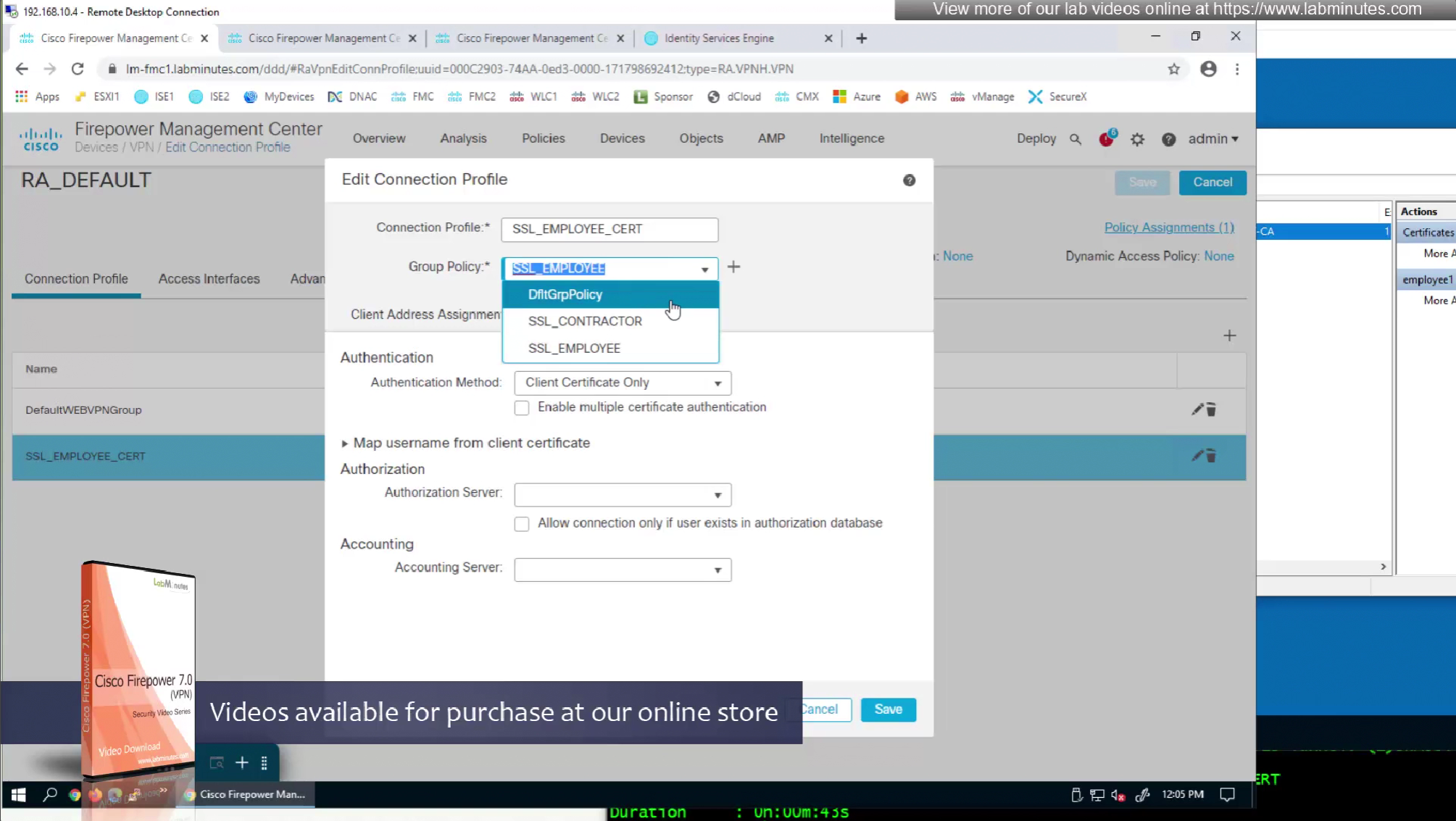

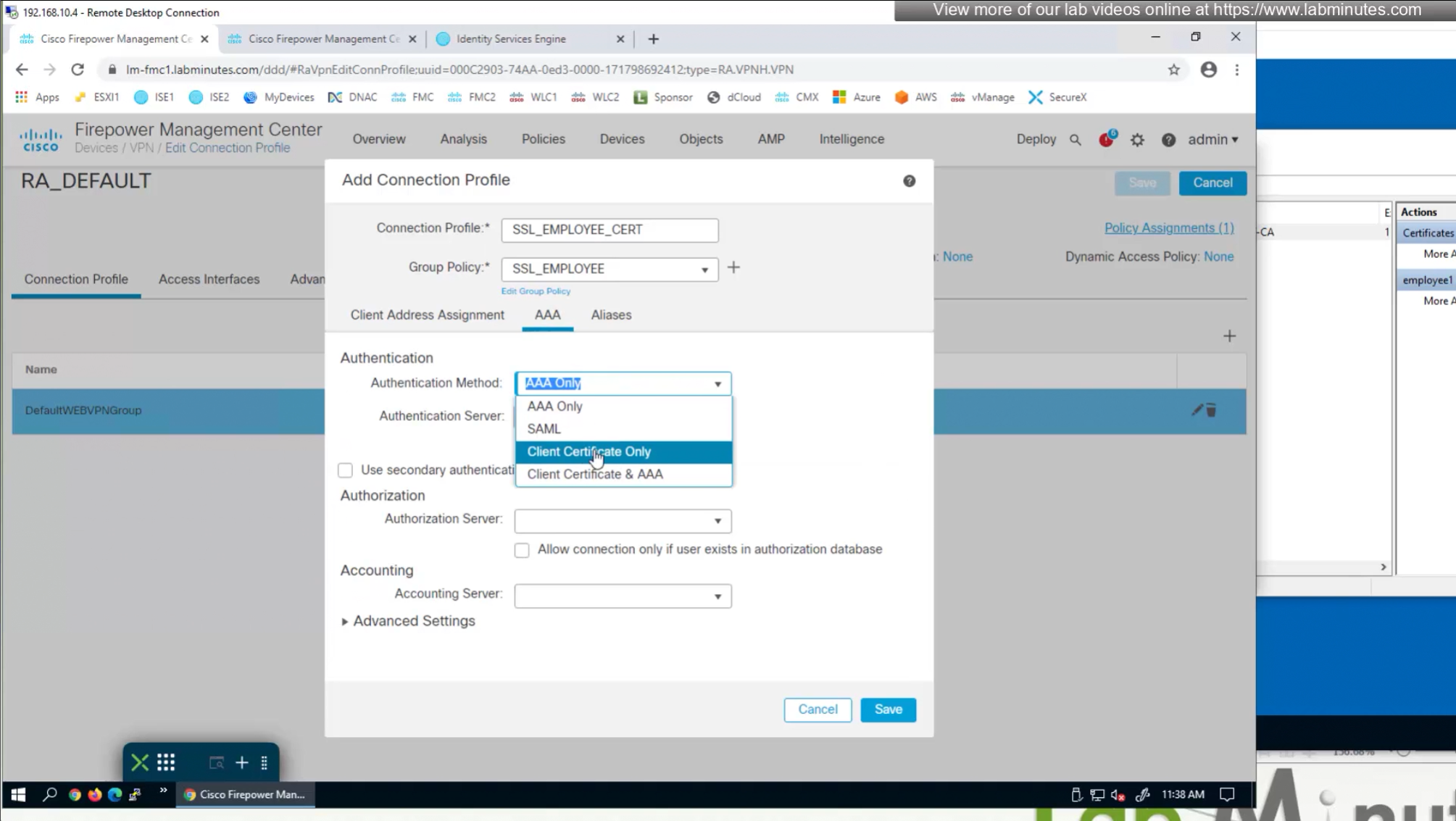

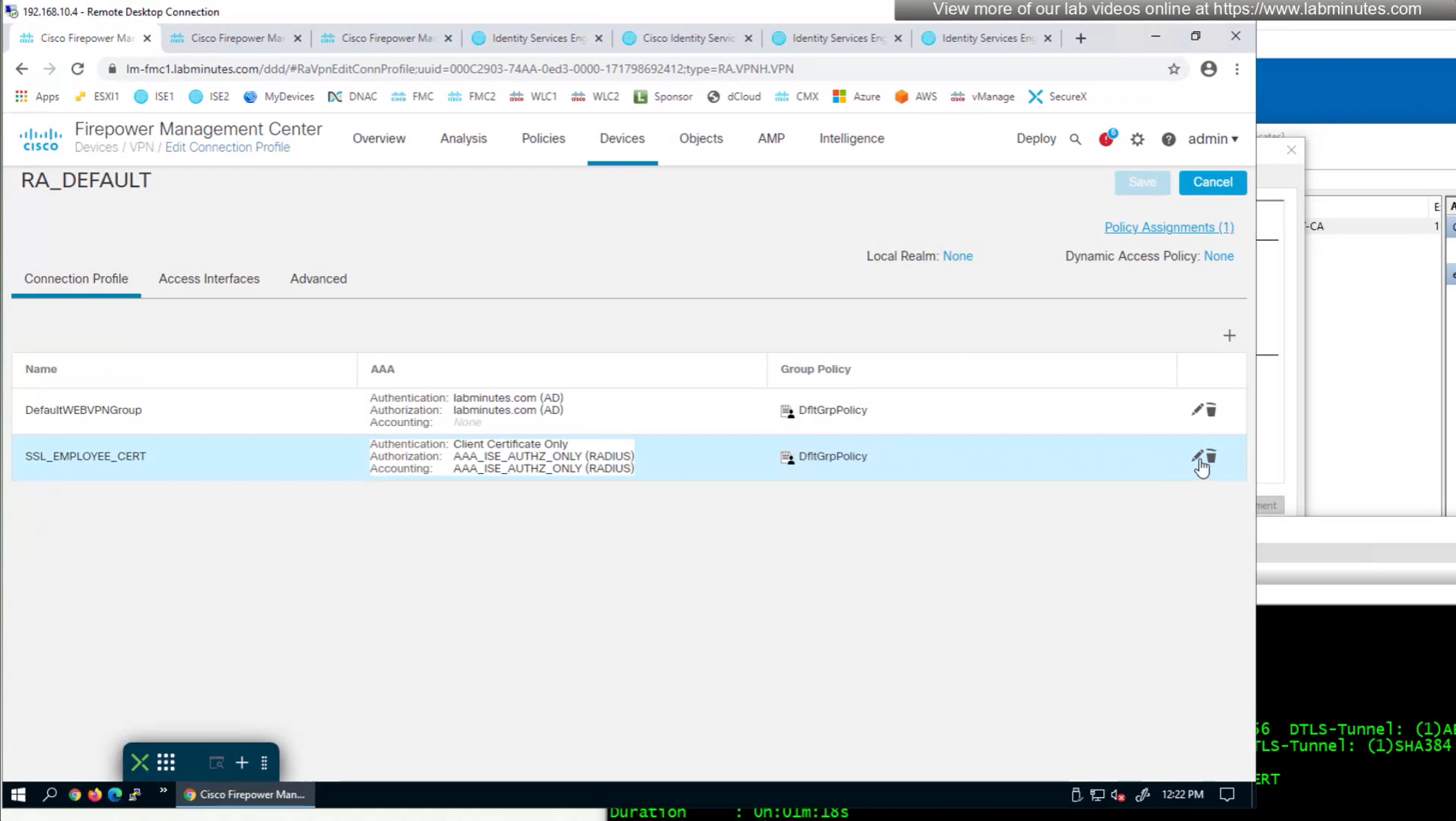

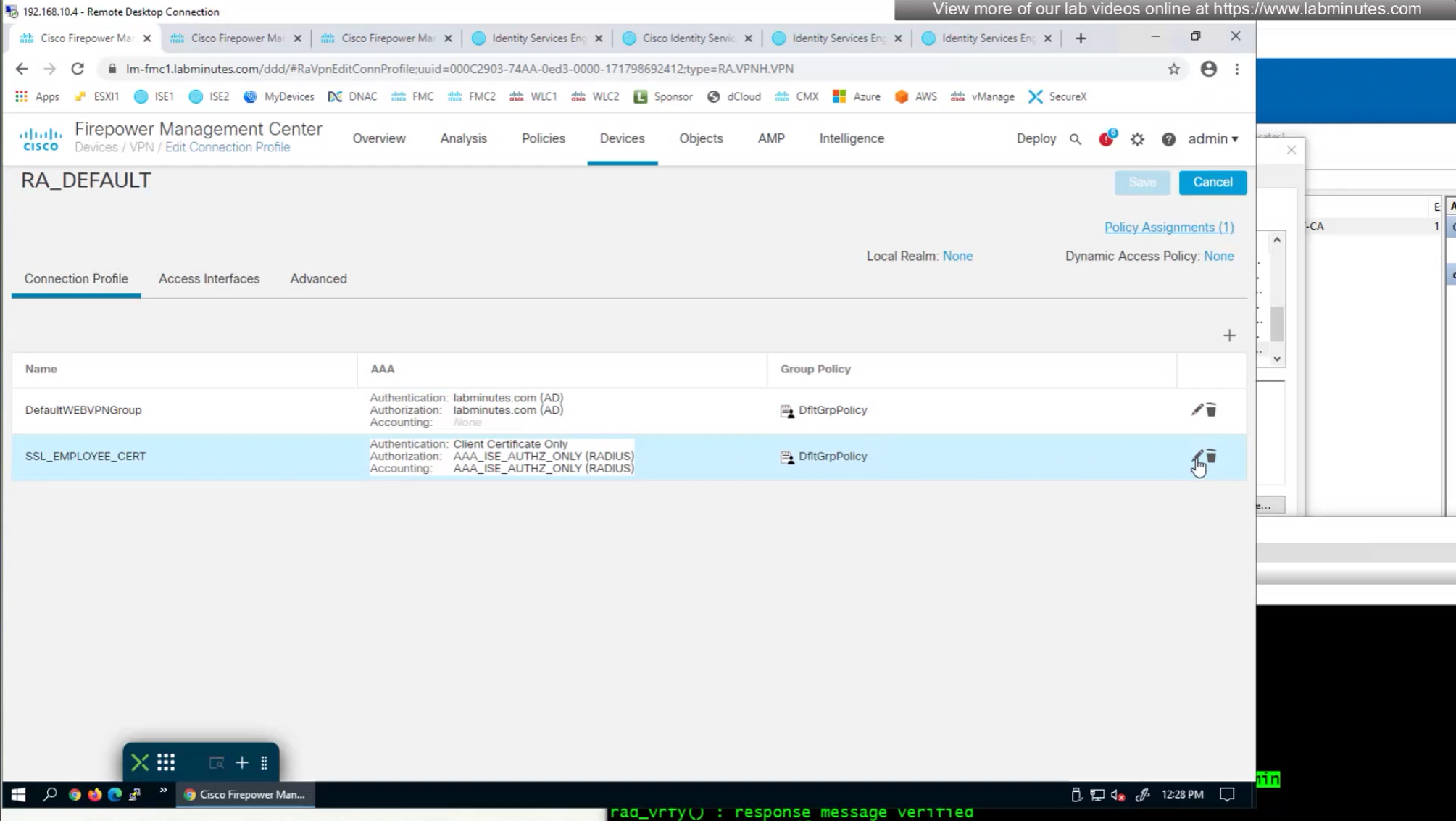

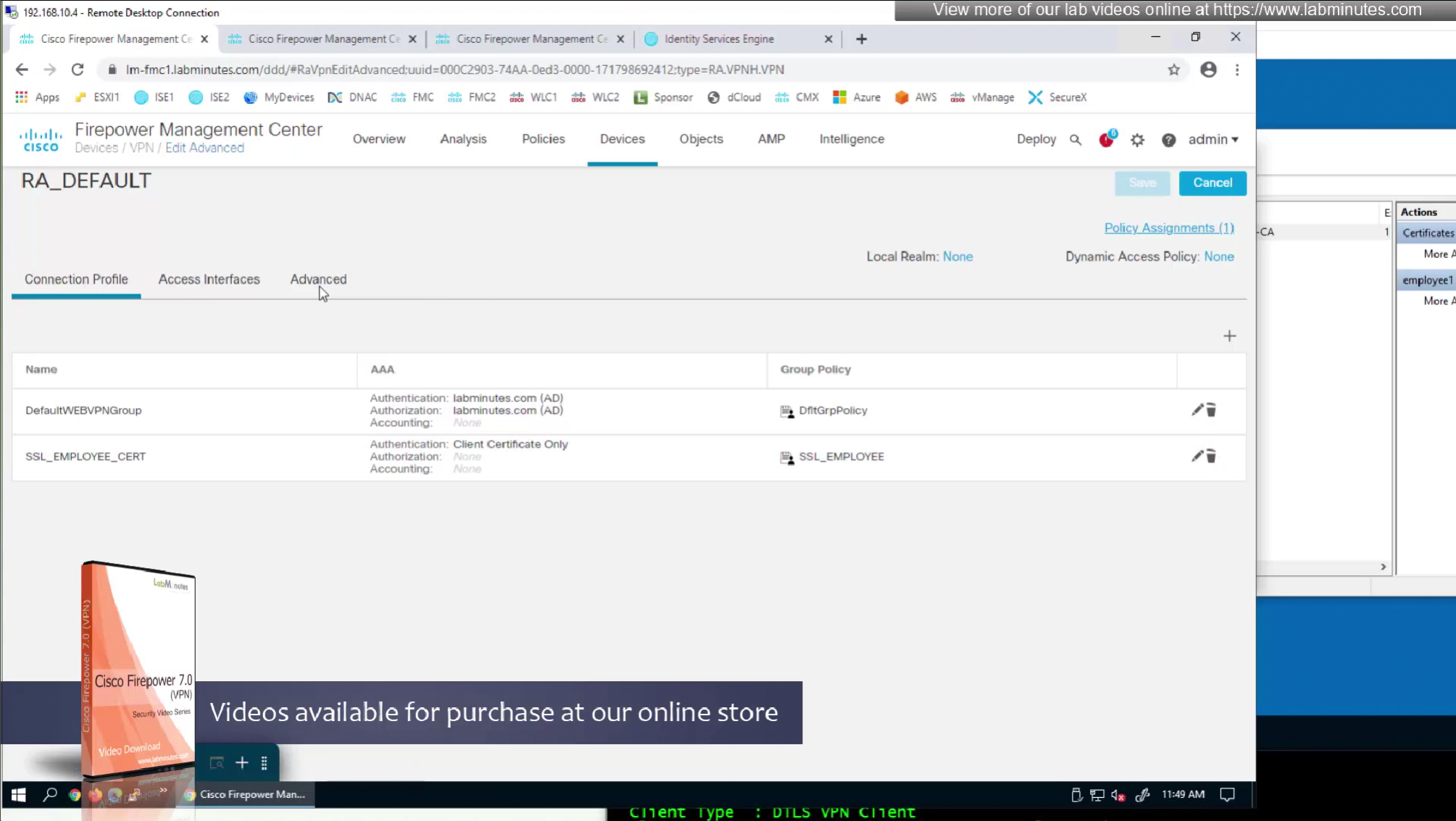

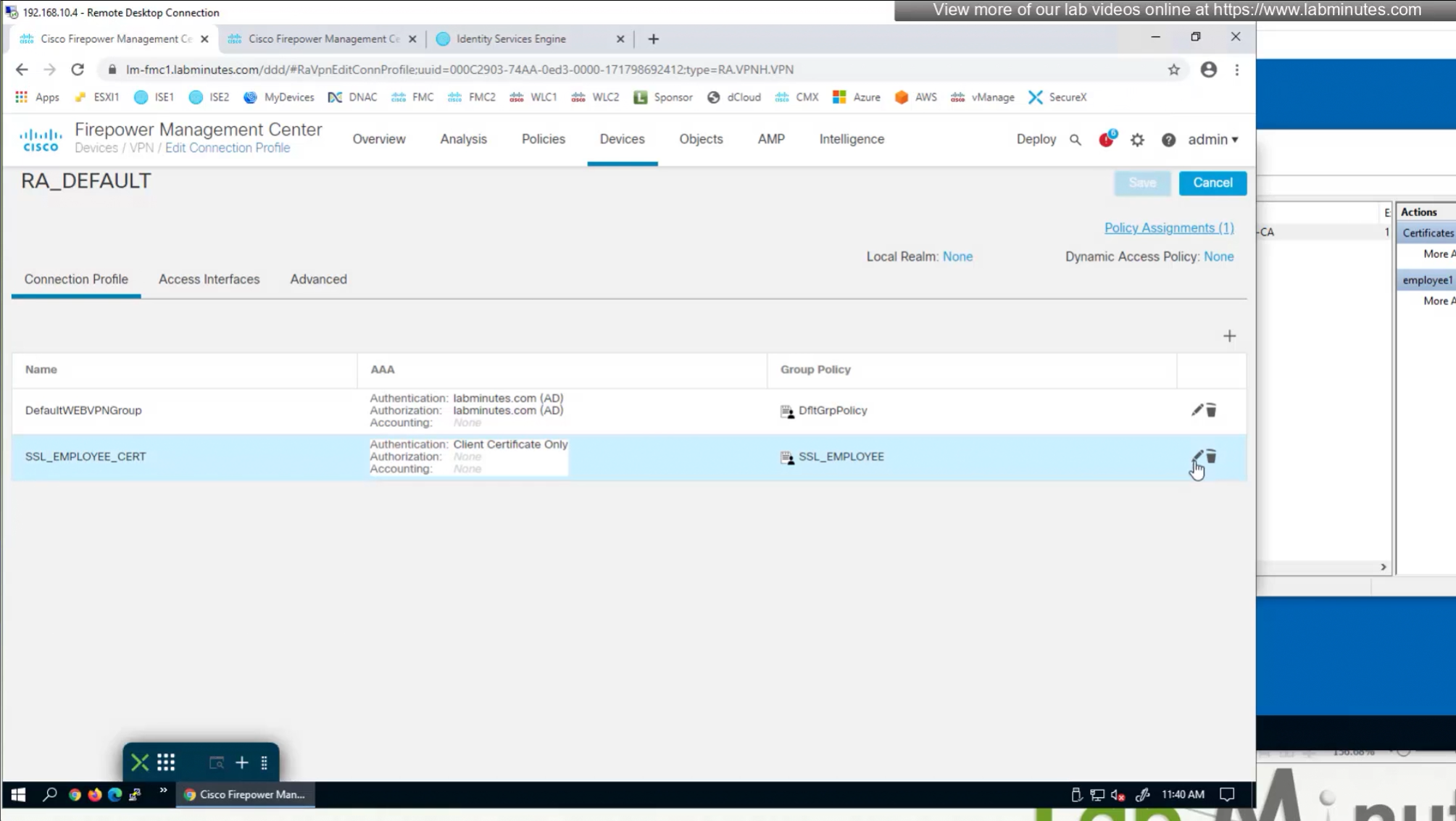

We need to create new connection profile because current connection profile is configured with AAA authentication and only one type of authentication can be configured on connection profile, either Certificate based authentication or AAA based authentication

That is why we will configure new connection profile

Question is how we get VPN users to use this certificate authentication connection profile

1. Either enable group alias like before

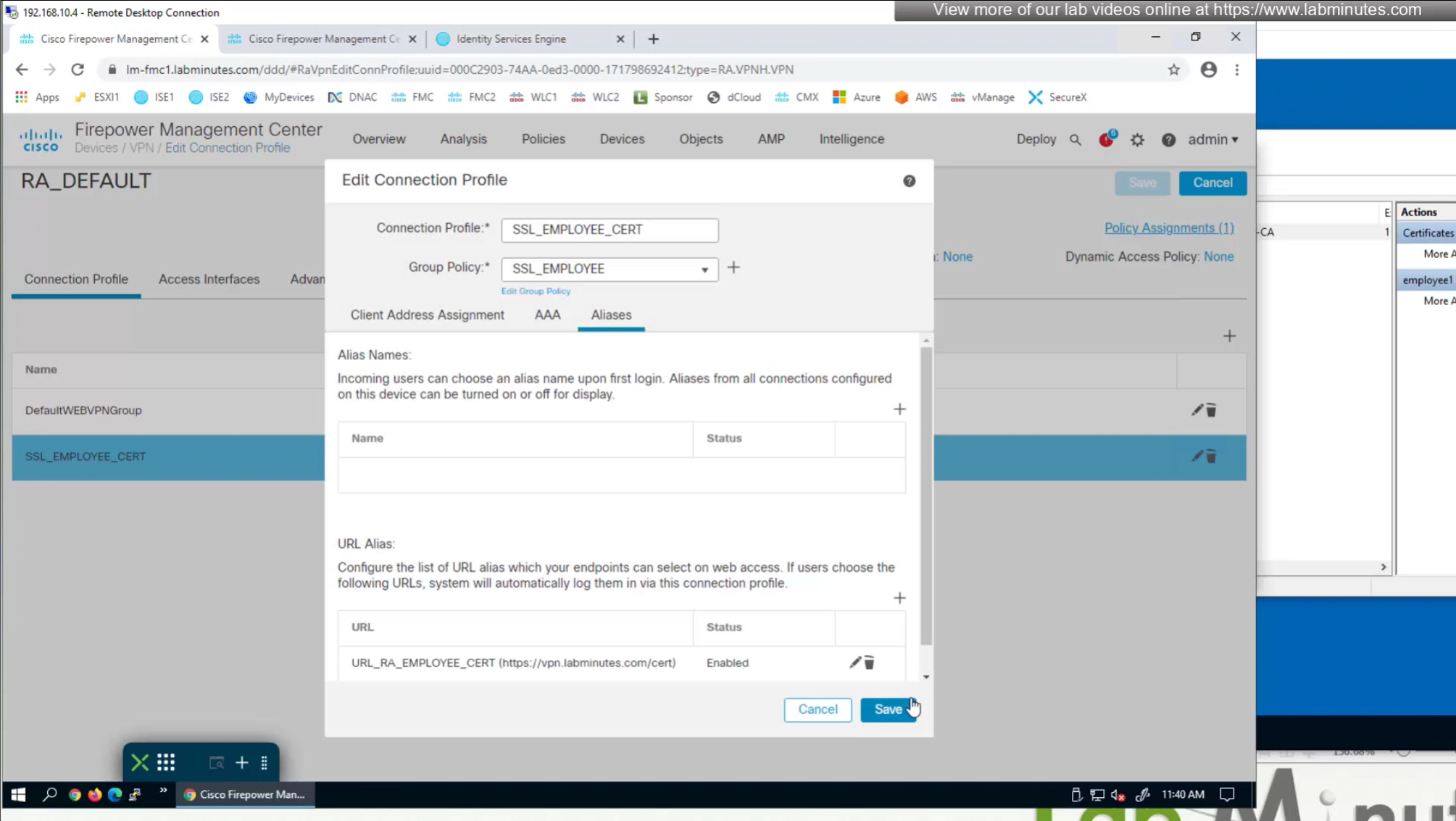

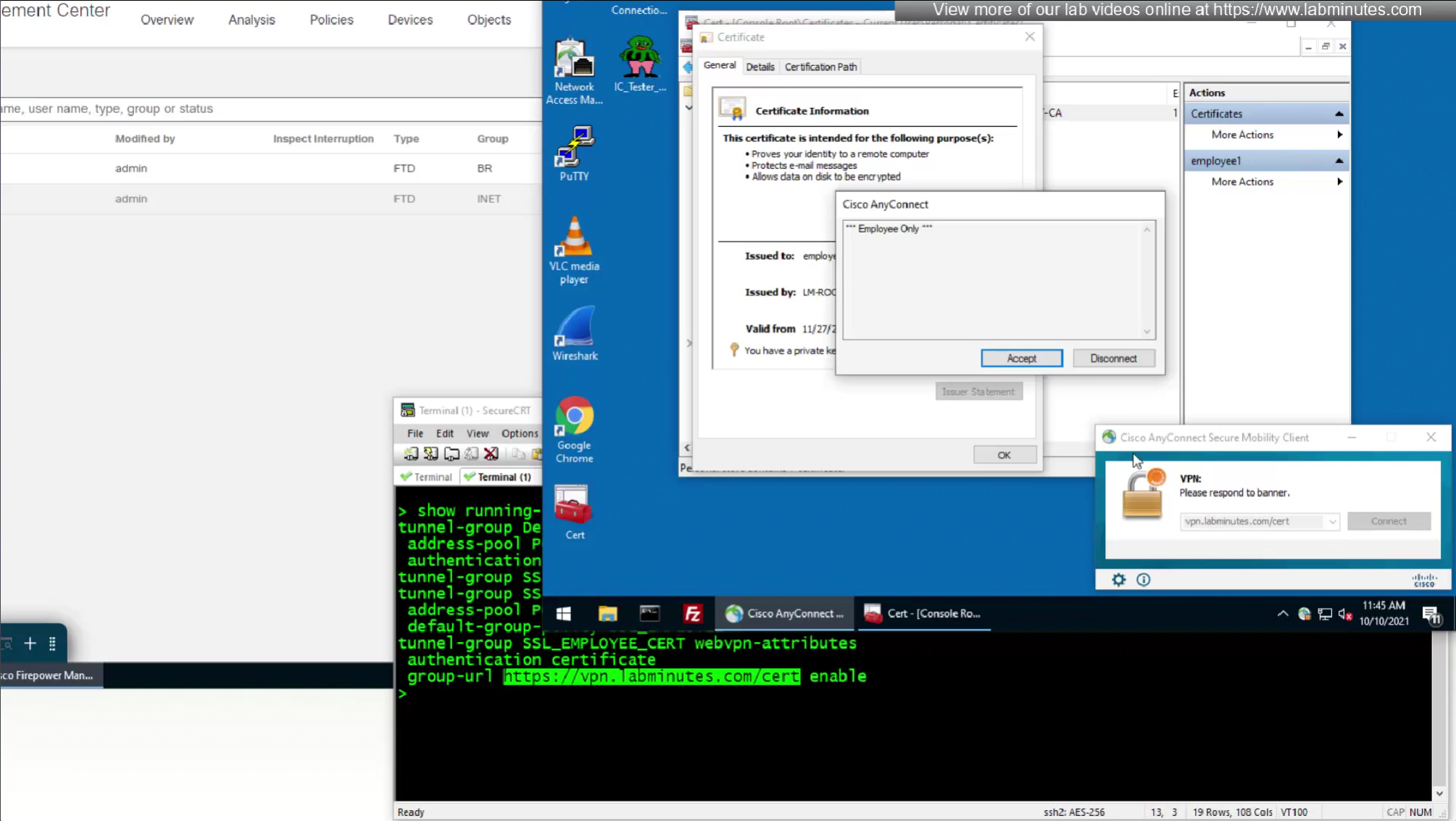

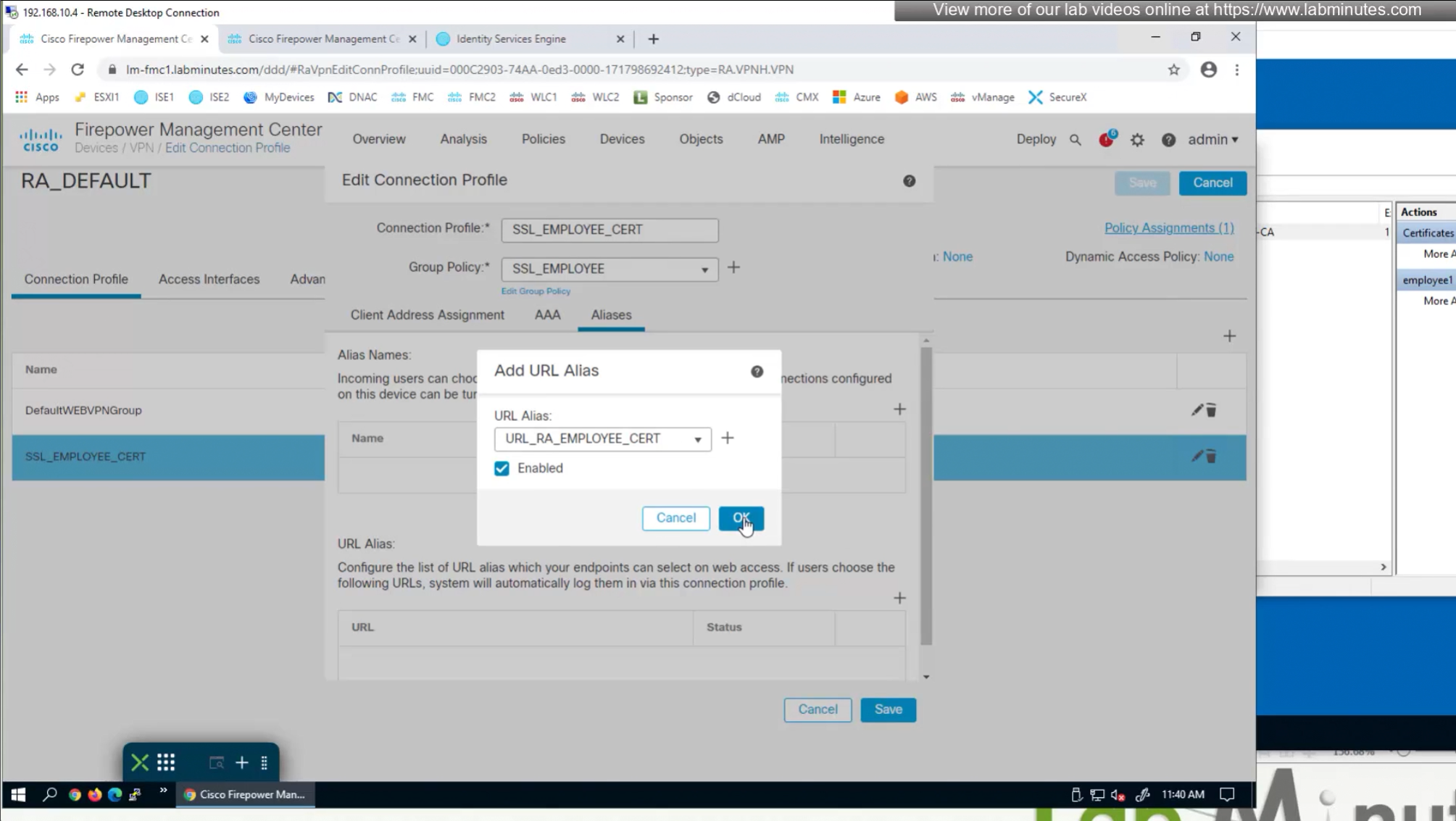

2. (Preferred) We can provide a different URL for different connection profiles

URL is preferred and in some deployments URL part is treated as complex string to use it as a password and lock it down further with initial connection at build time and have anyconnect locked down

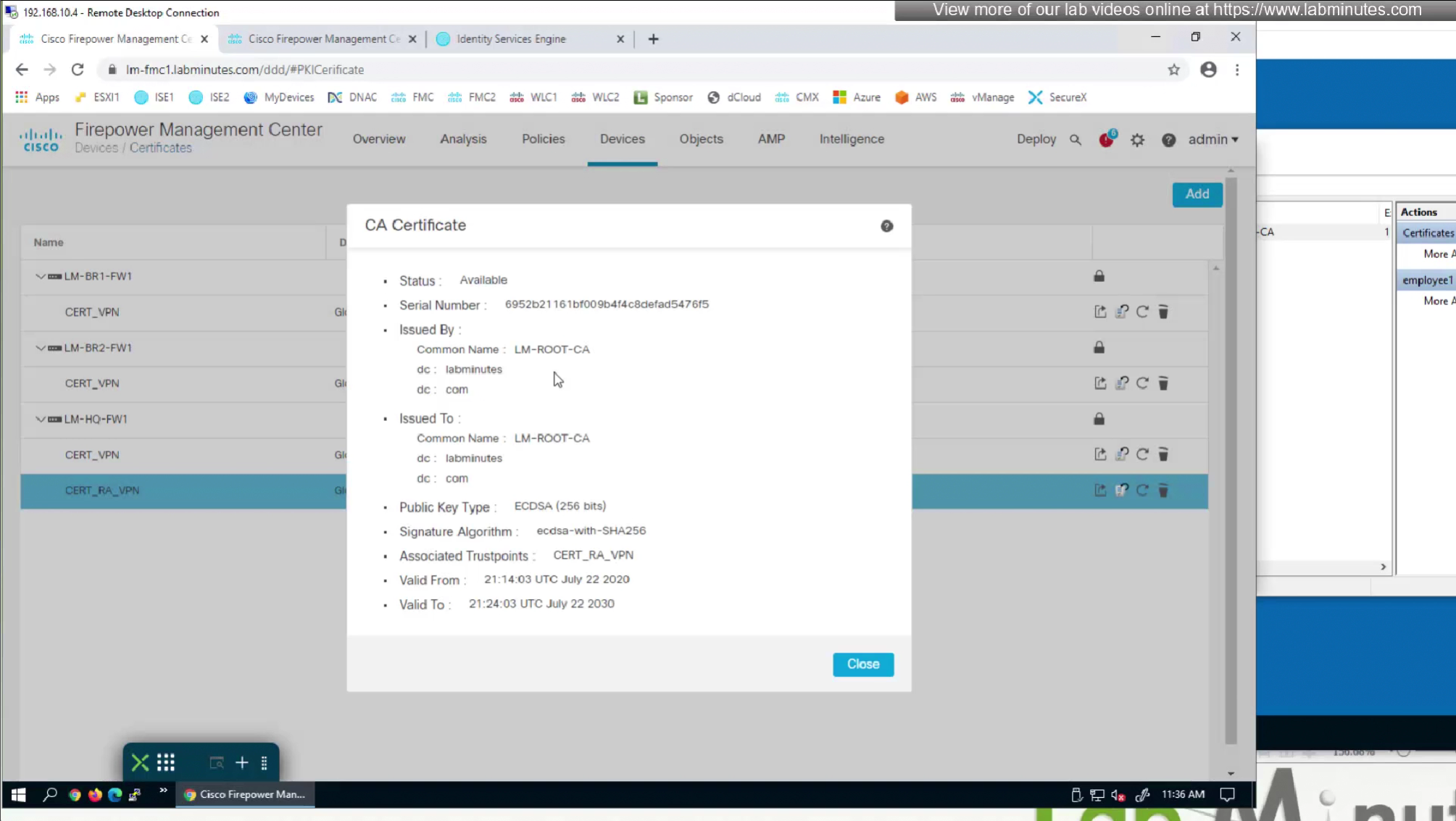

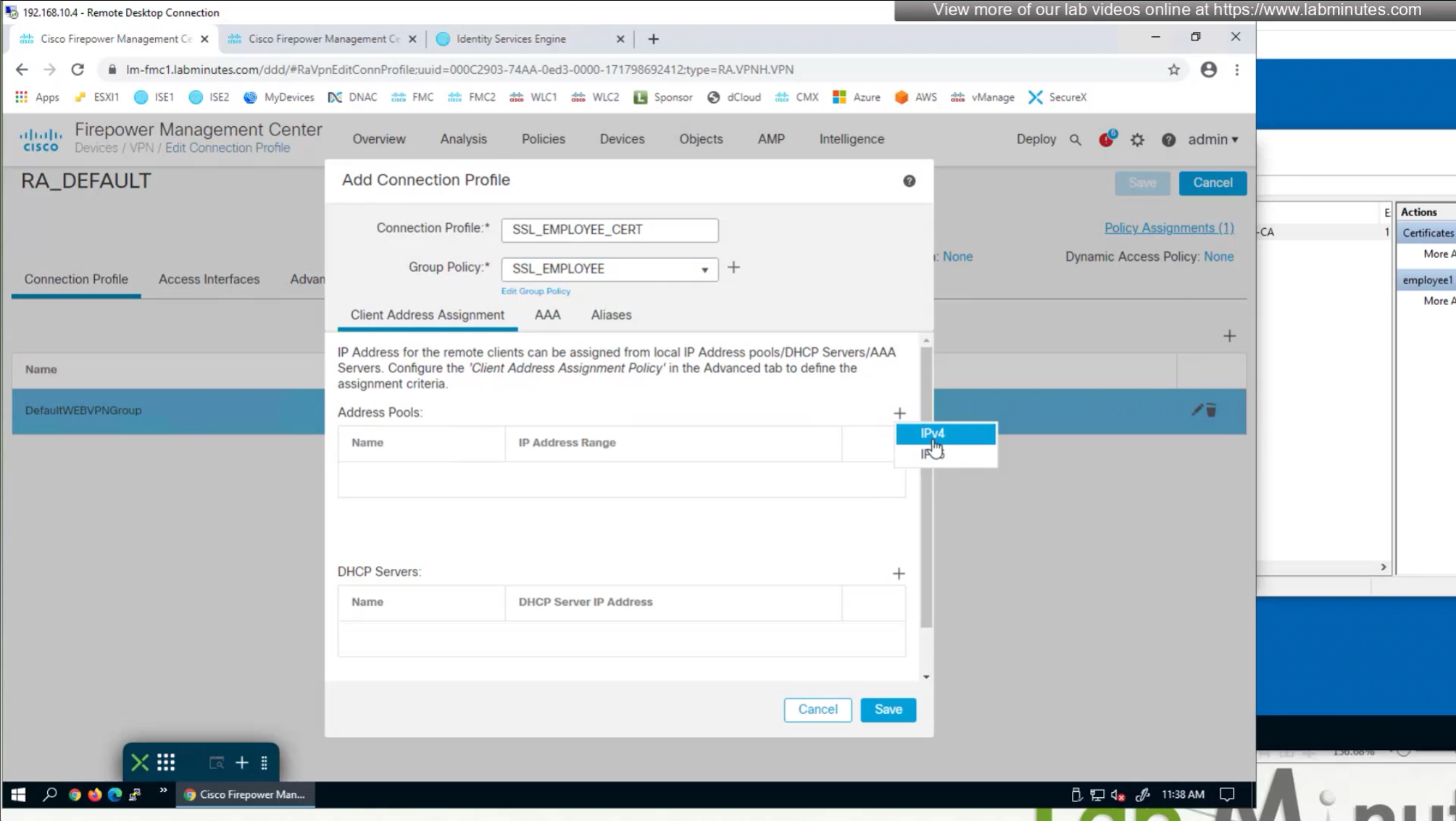

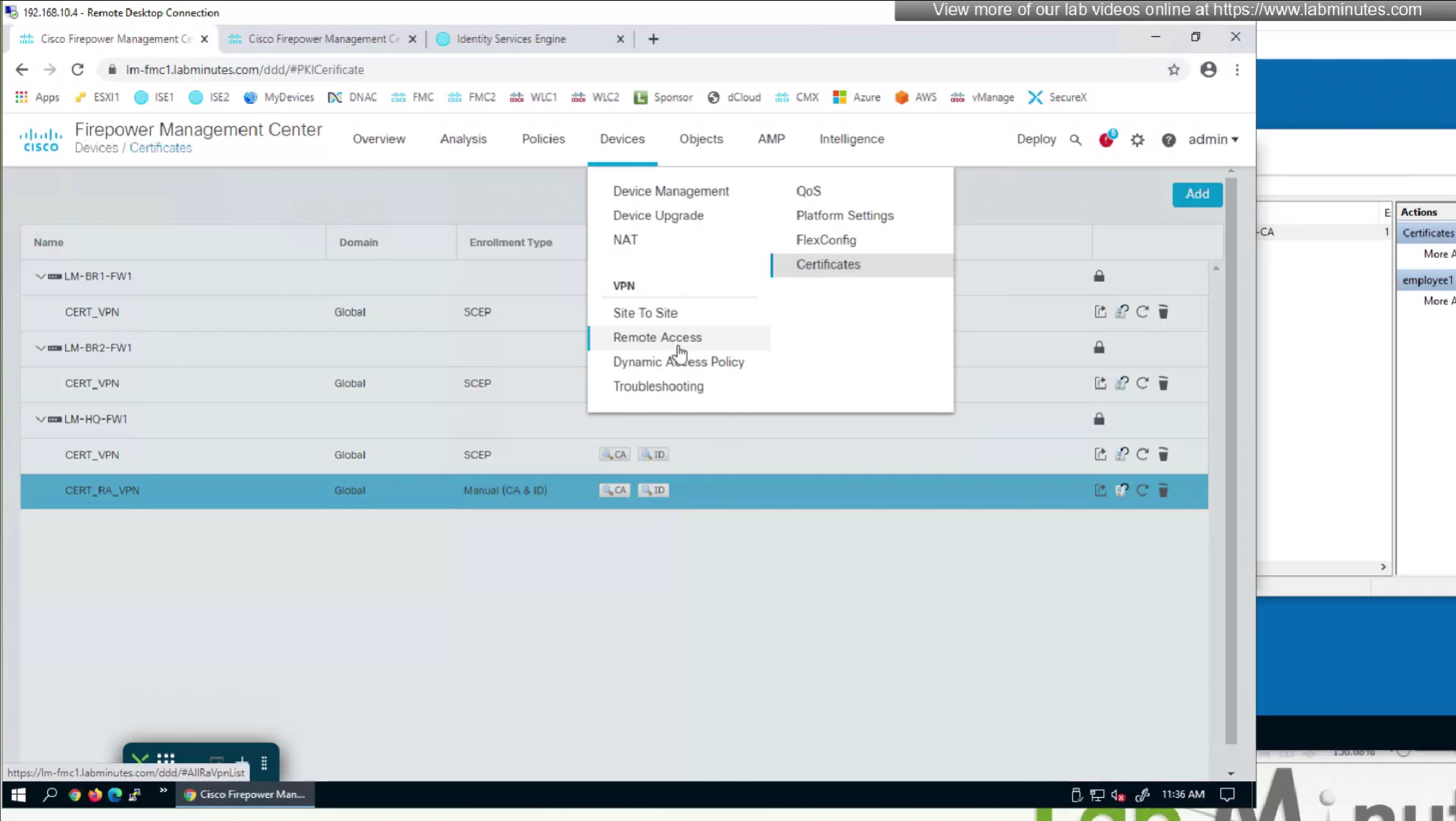

CA certificate is already on firewall as it was done as part of the Cert enrollment

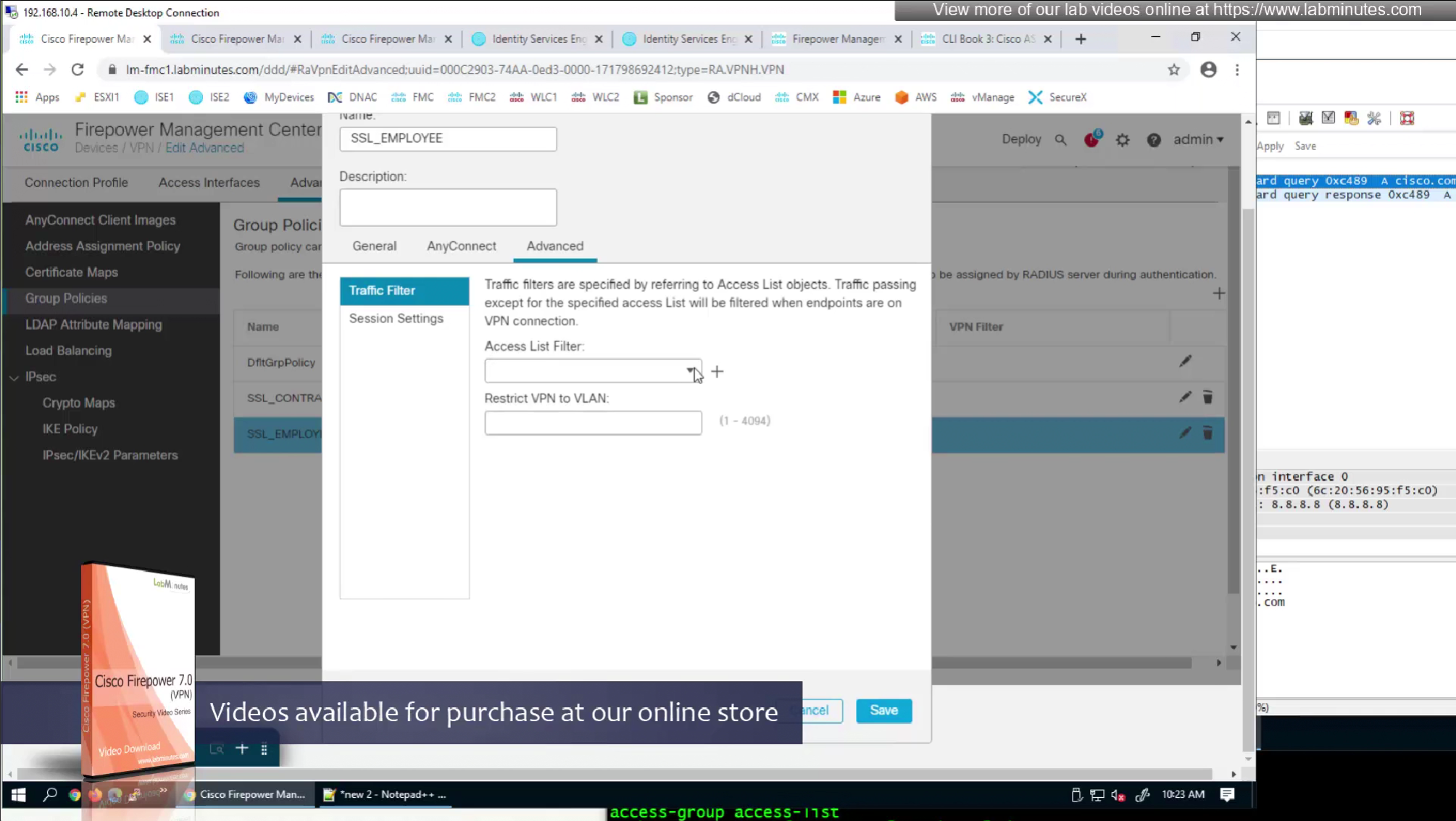

In order to control the traffic over the anyconnect tunnel
we need to edit the connection profile > advanced

There are 2 ways of accomplishing this with RADIUS

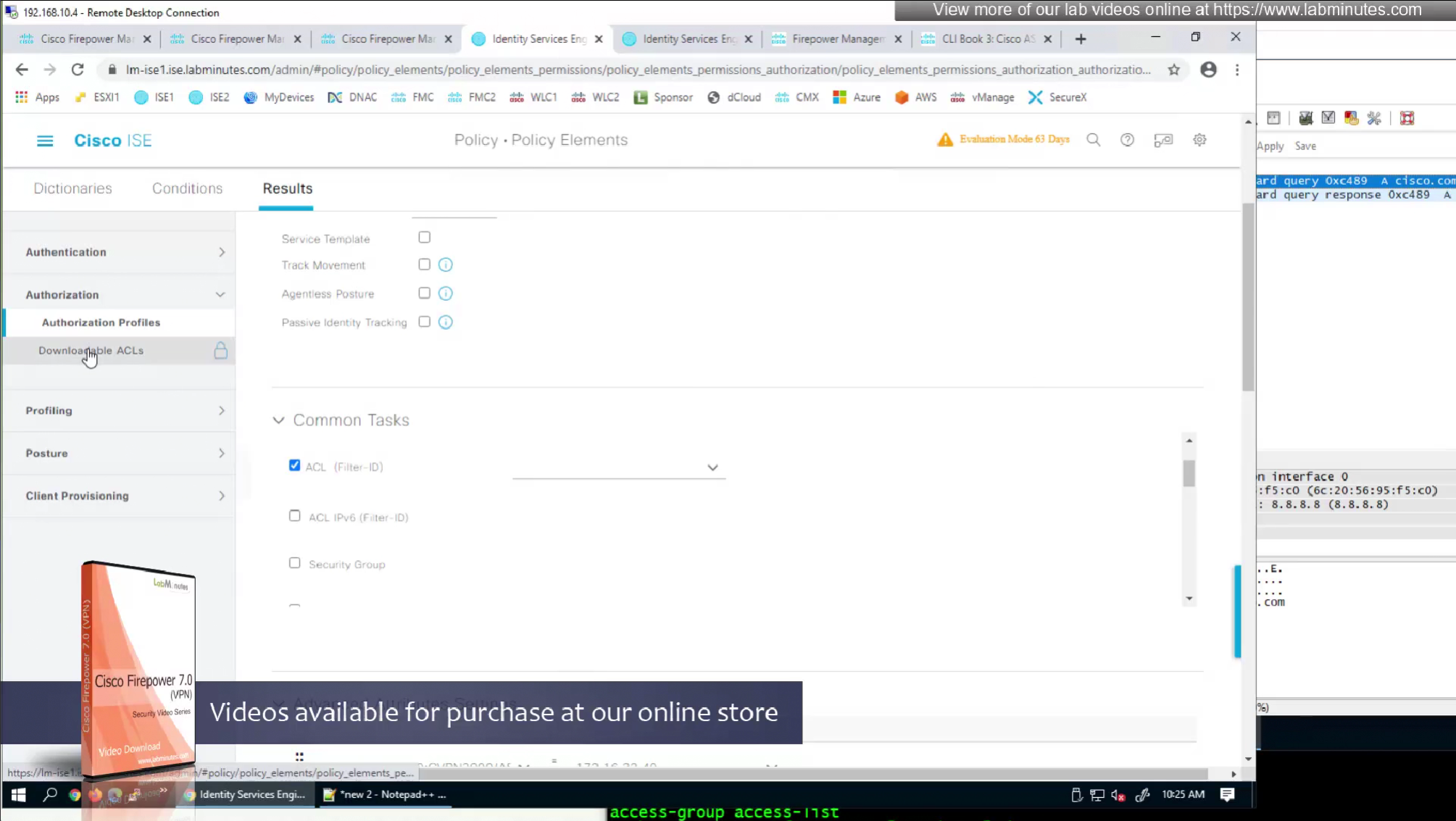

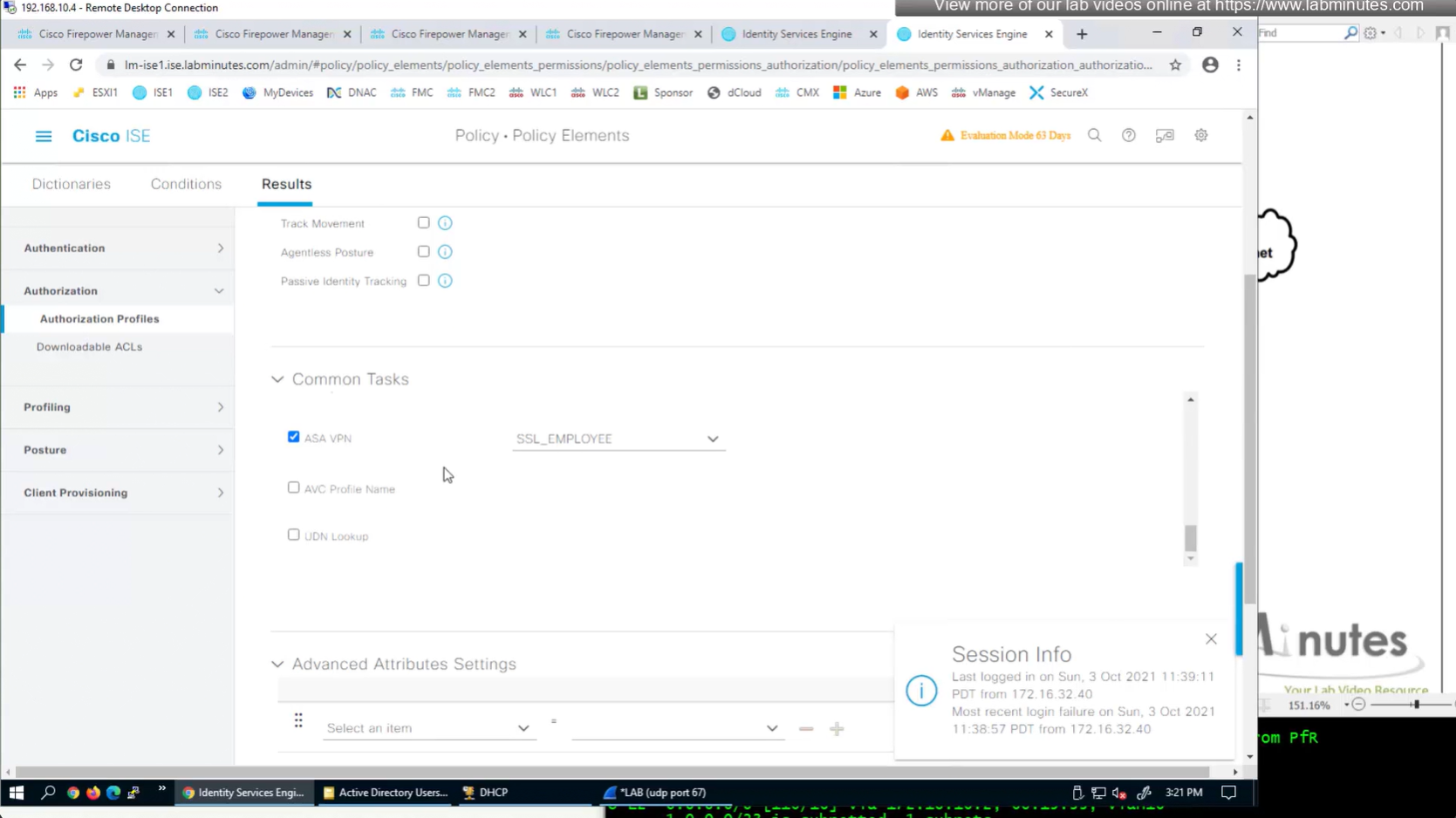

1. define ACL (Filter-ID) under Common Tasks in ISE in Auth profile

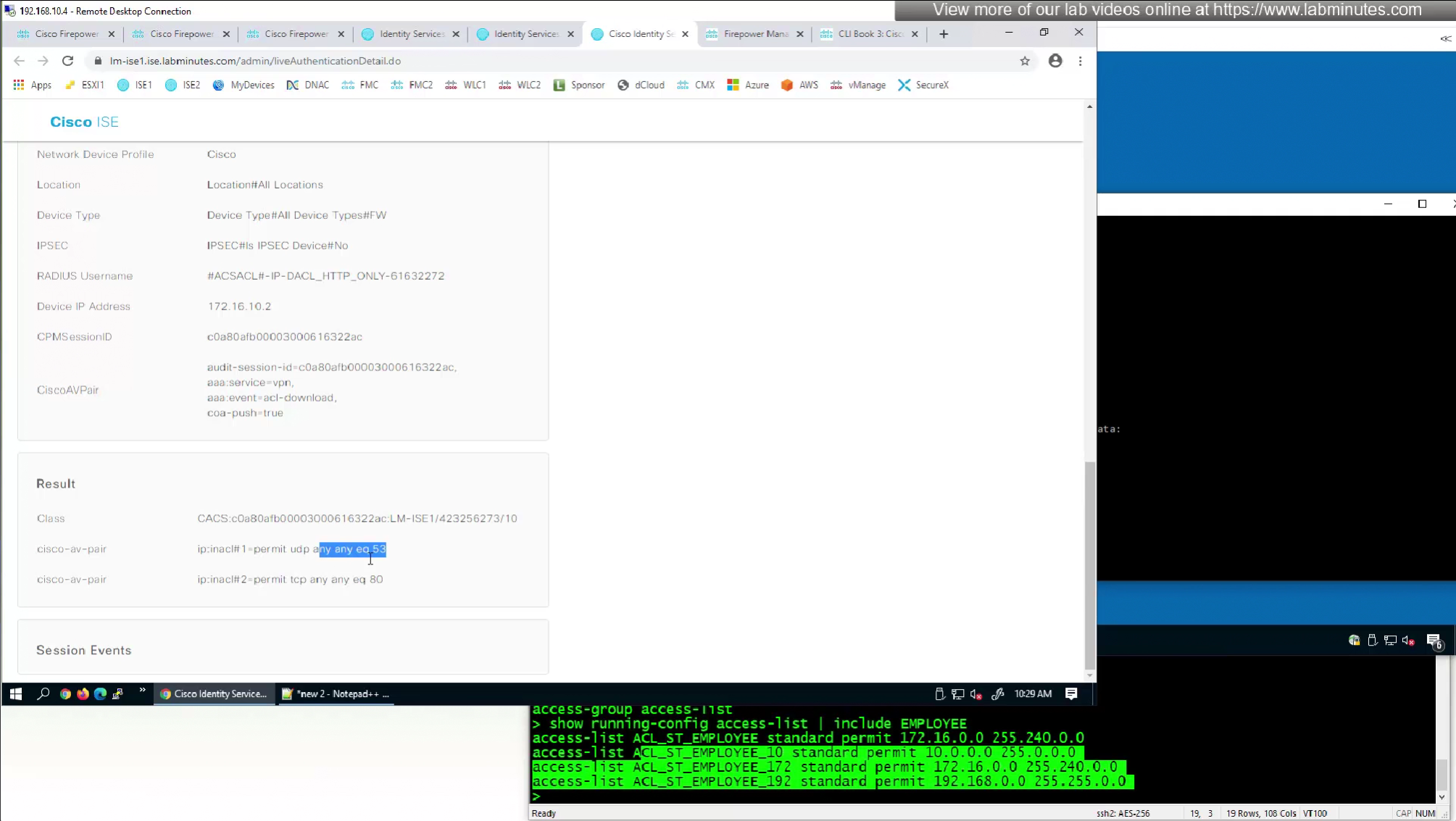

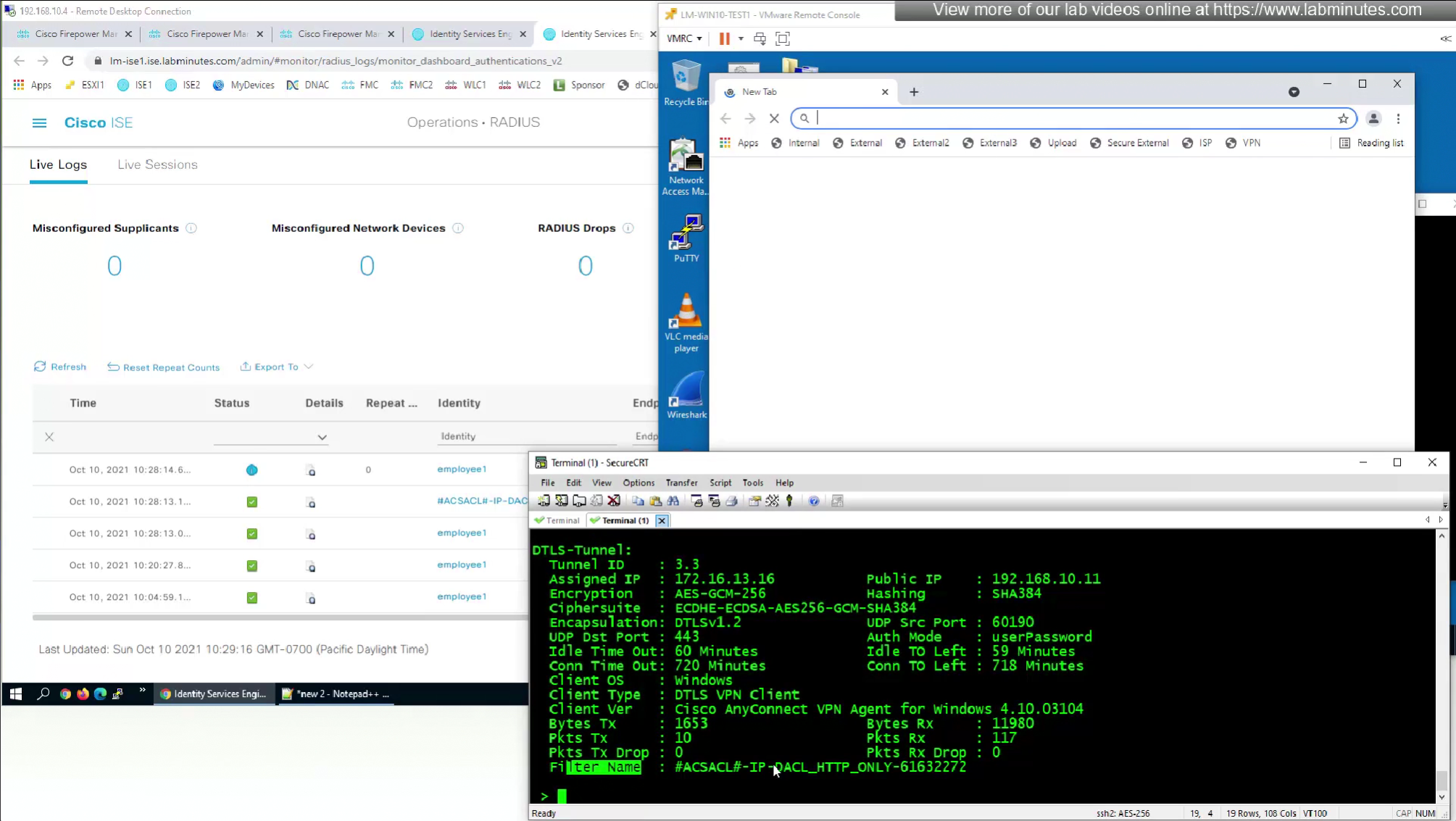

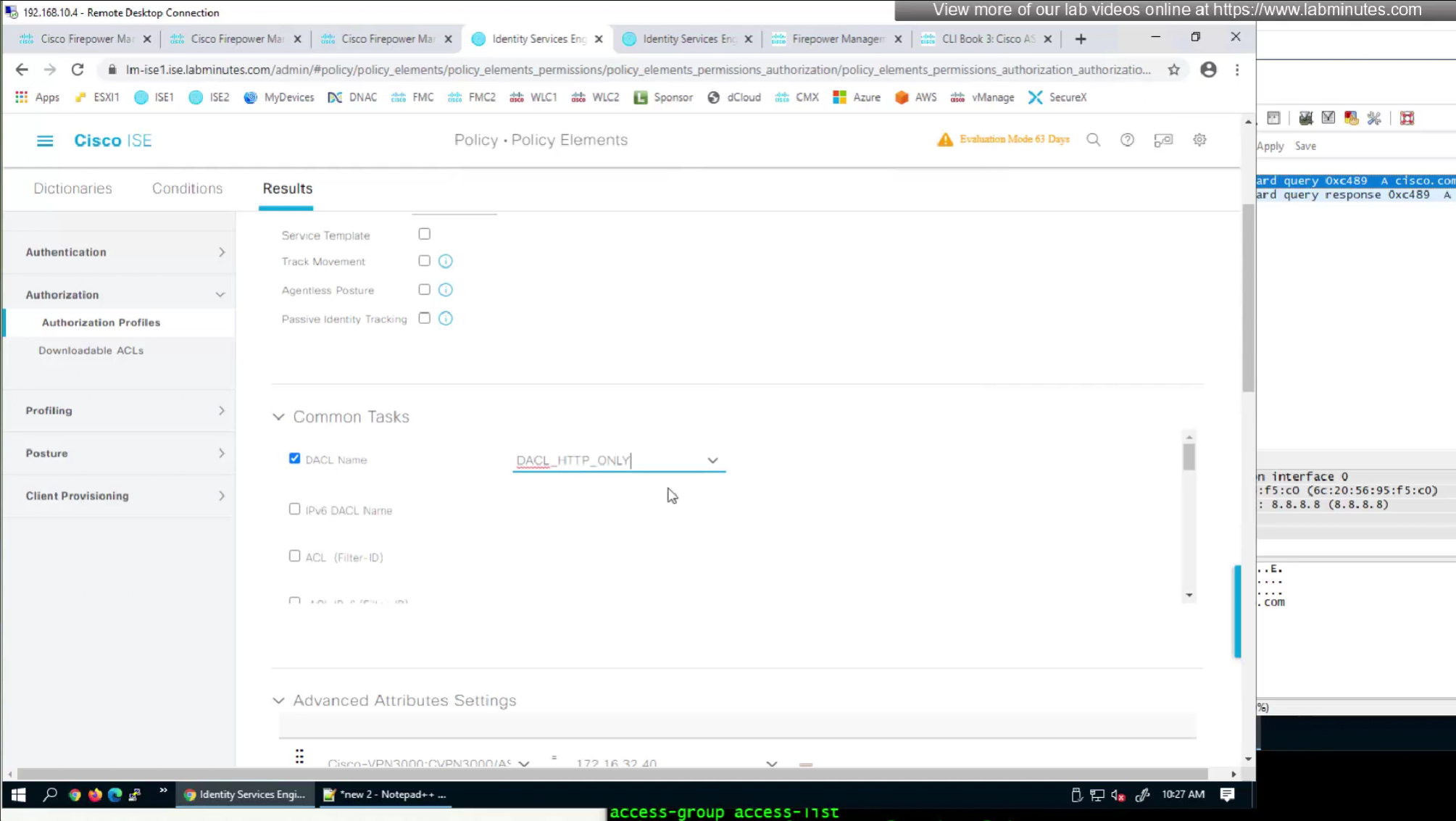

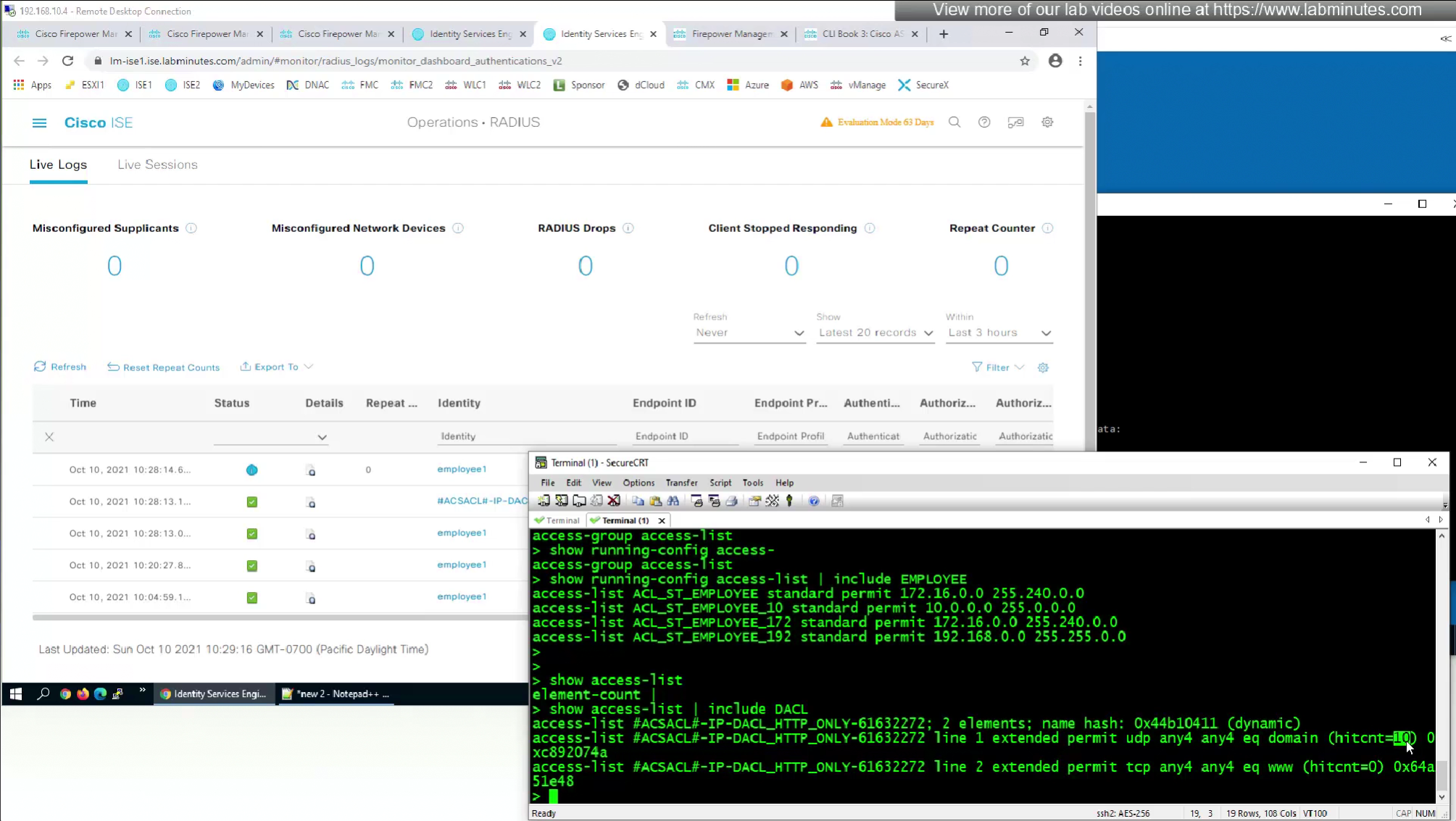

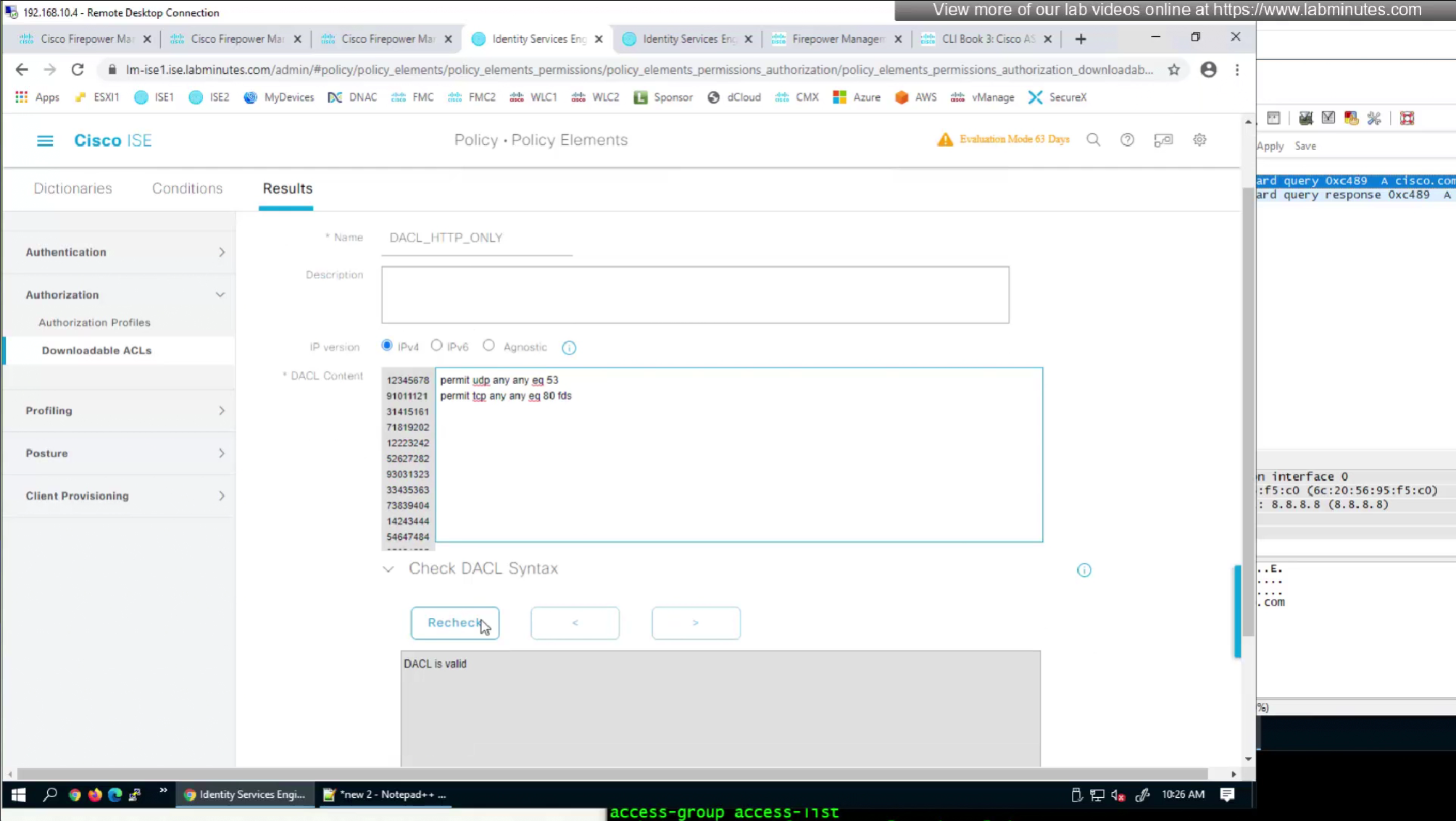

2. or define a DACL that will be pushed to FTD after RADIUS auth but this DACL is only used for traffic filter and not for any other purpose such as Split tunnel etc

The best reason to use this over static group policy is that for changes we dont have to redeploy the policy on fmc

and second reason is that you can push different policies to different groups of users instead of creating new group policy per group of users

In this video we will look into split tunneling that we skipped earlier

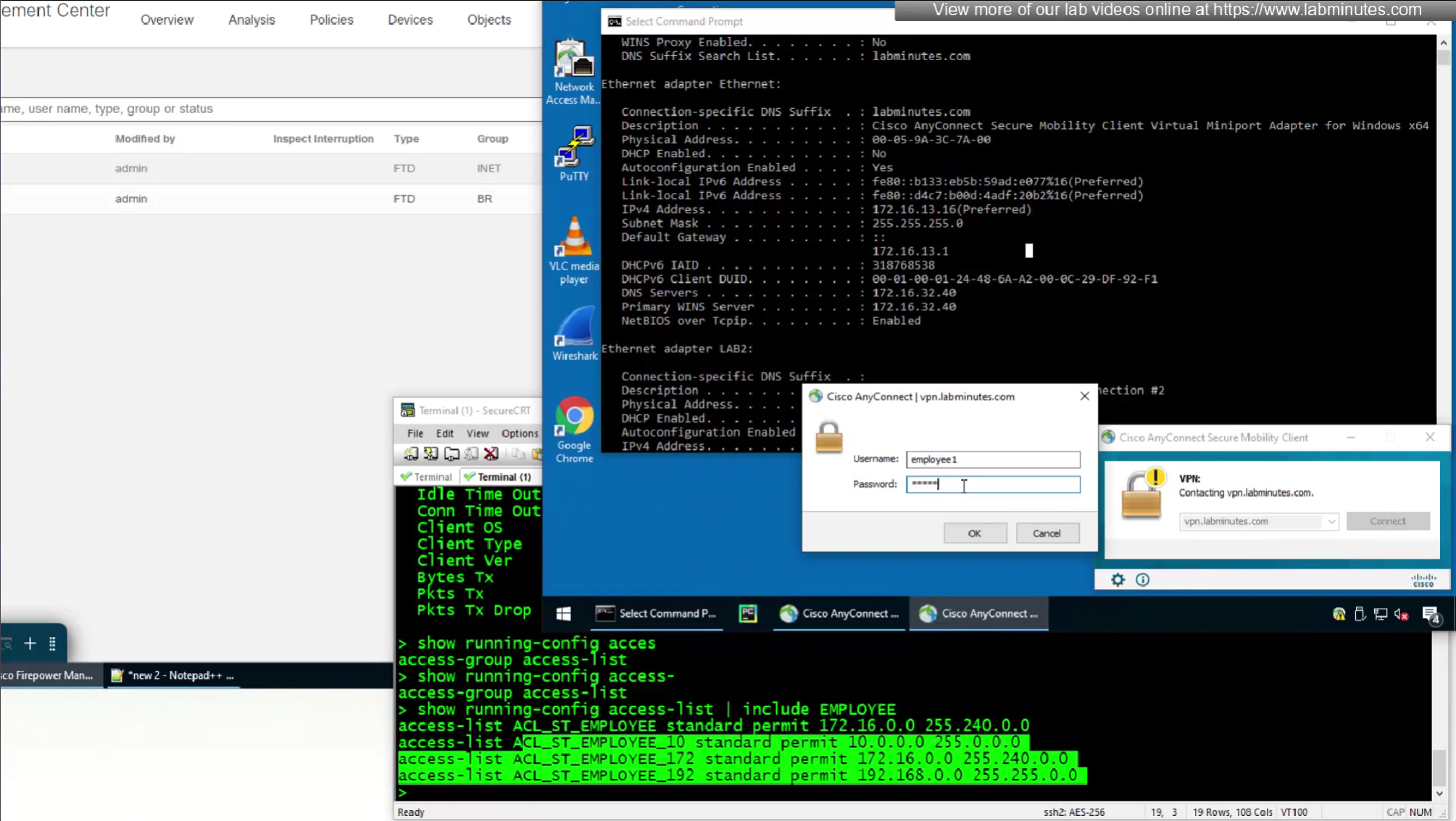

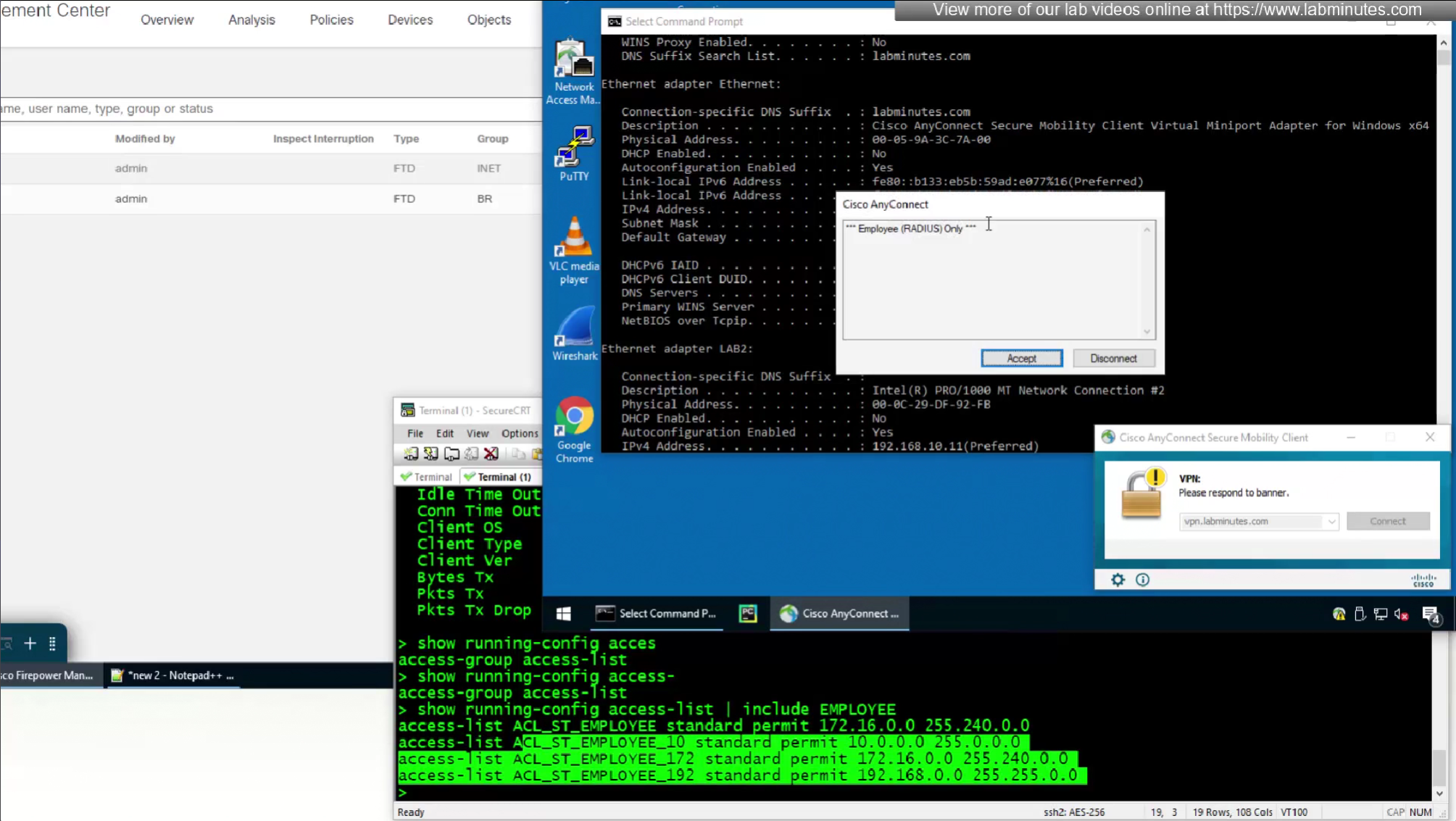

Split tunnel ACL will need to exist on the firewall and cannot be pushed from RADIUS server like DACL
Issue is that ACL cannot be pushed by FMC to FTD unless it is being used somewhere like in a route map

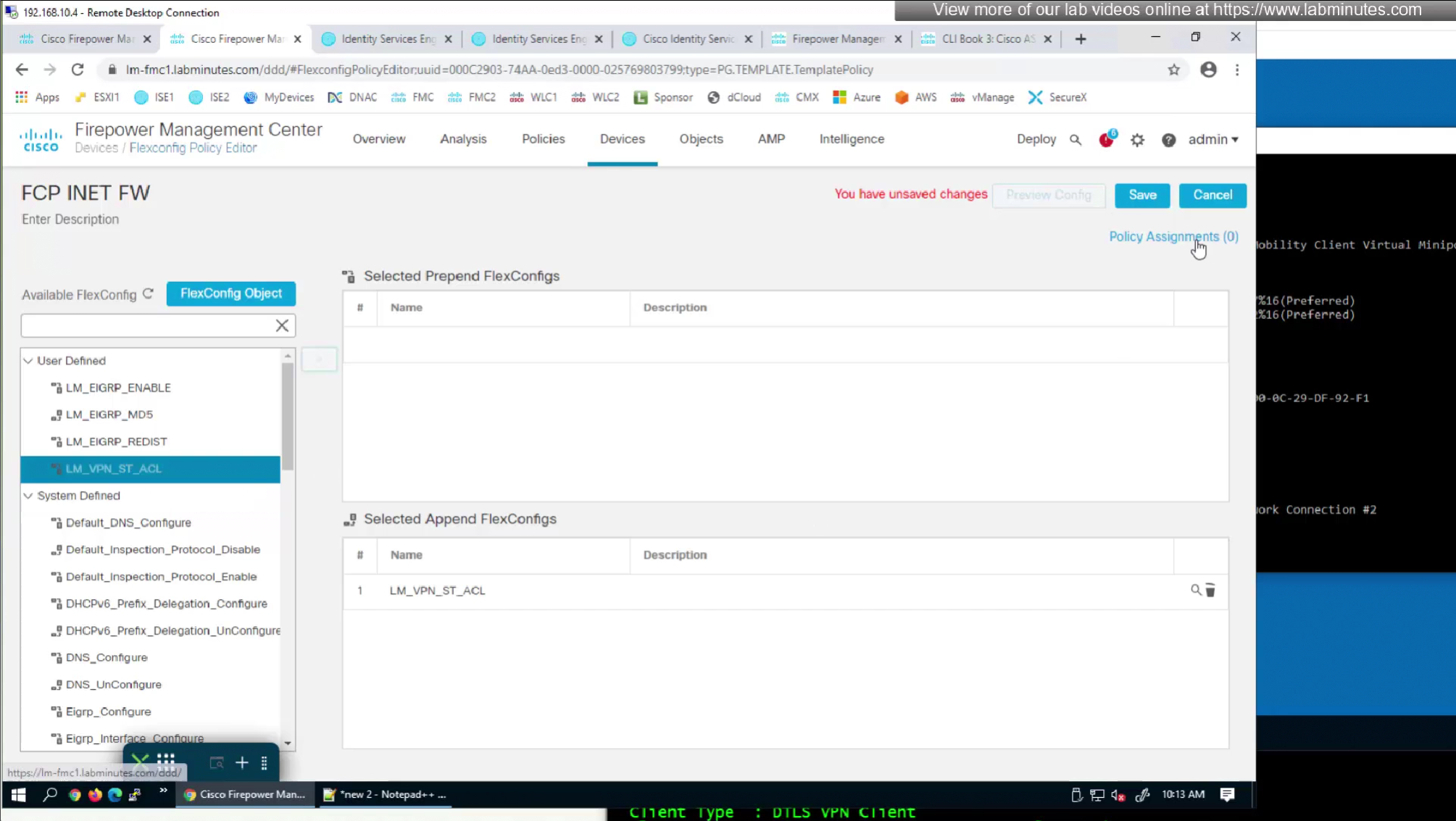

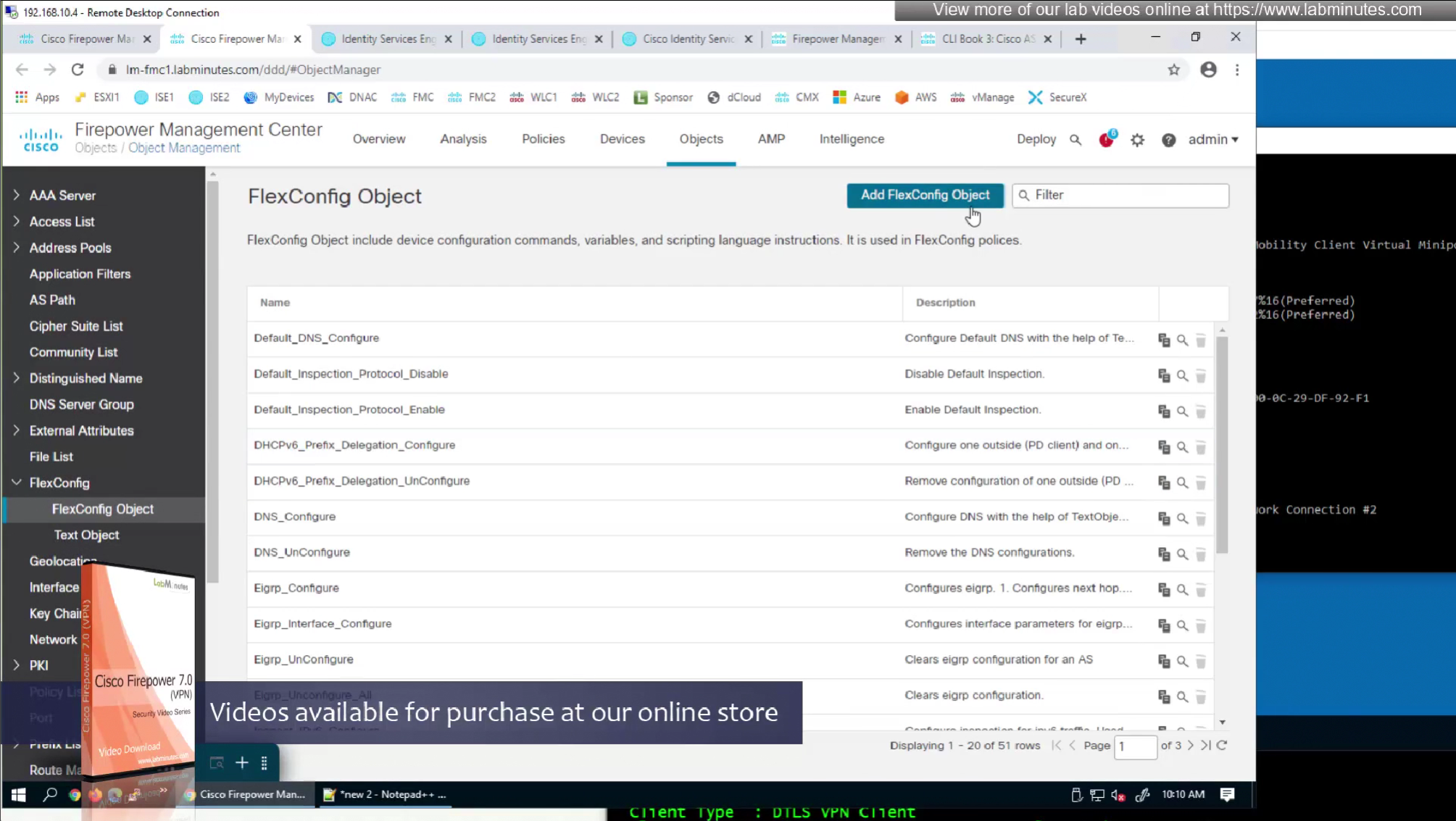

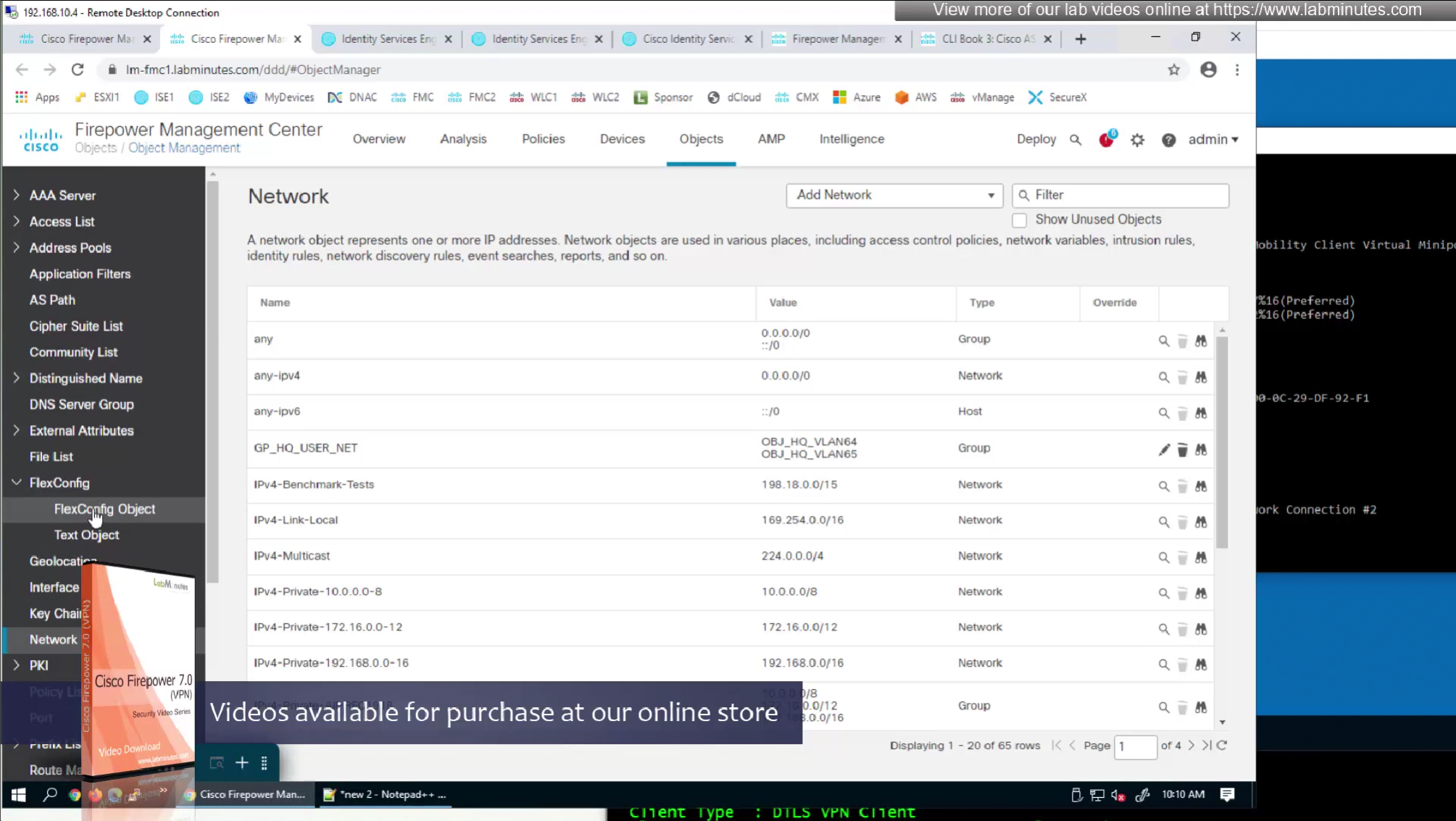

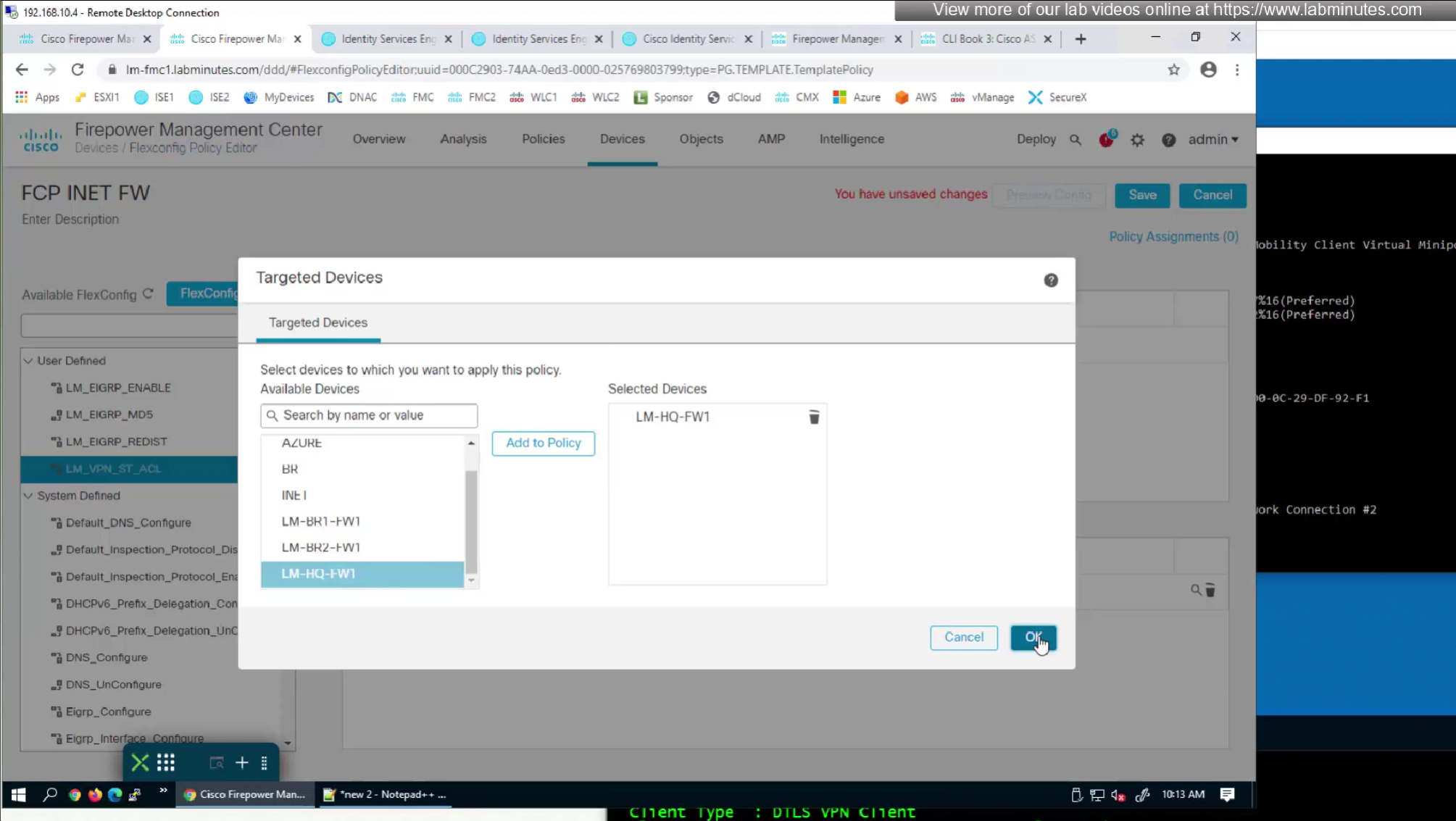

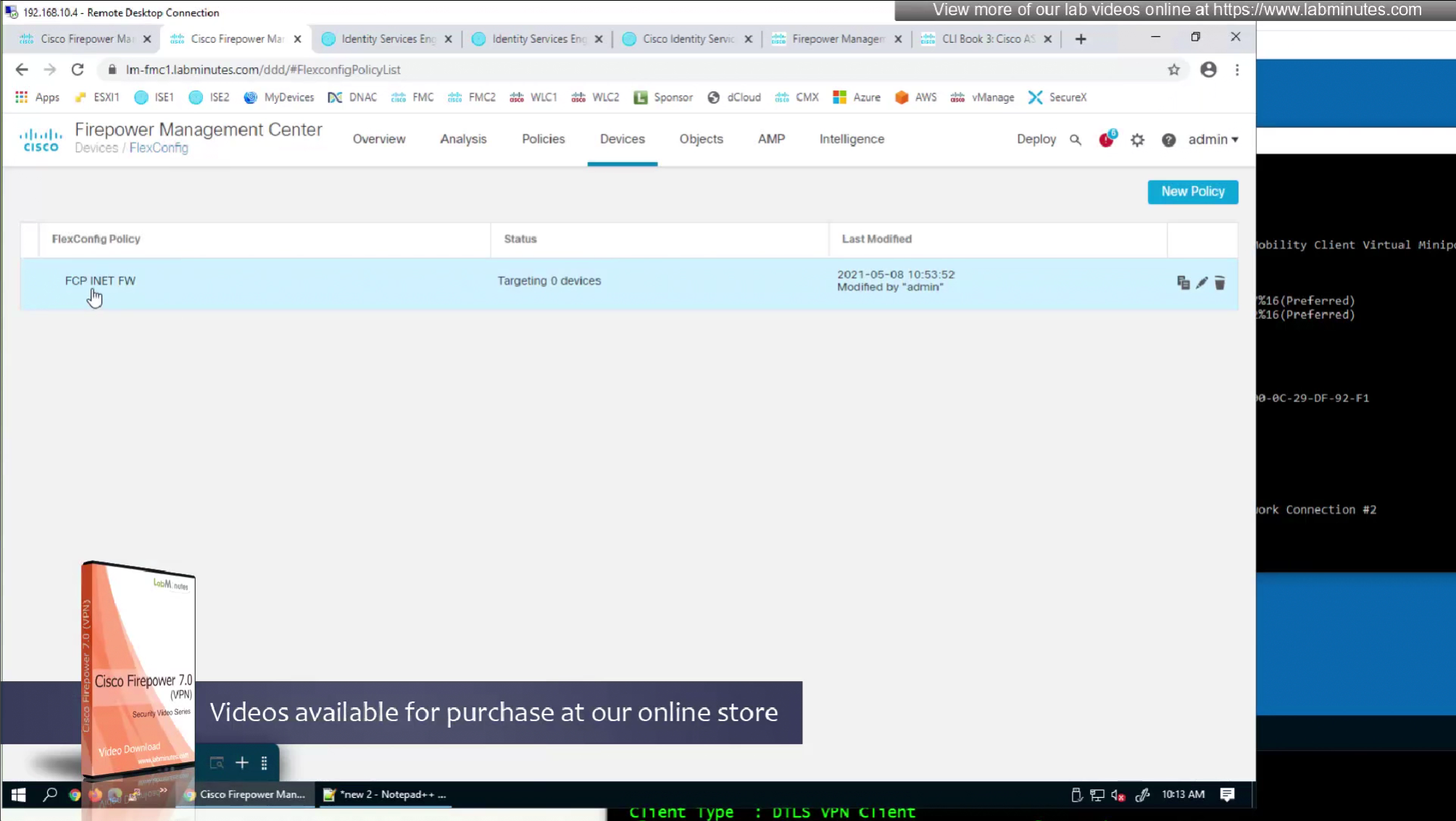

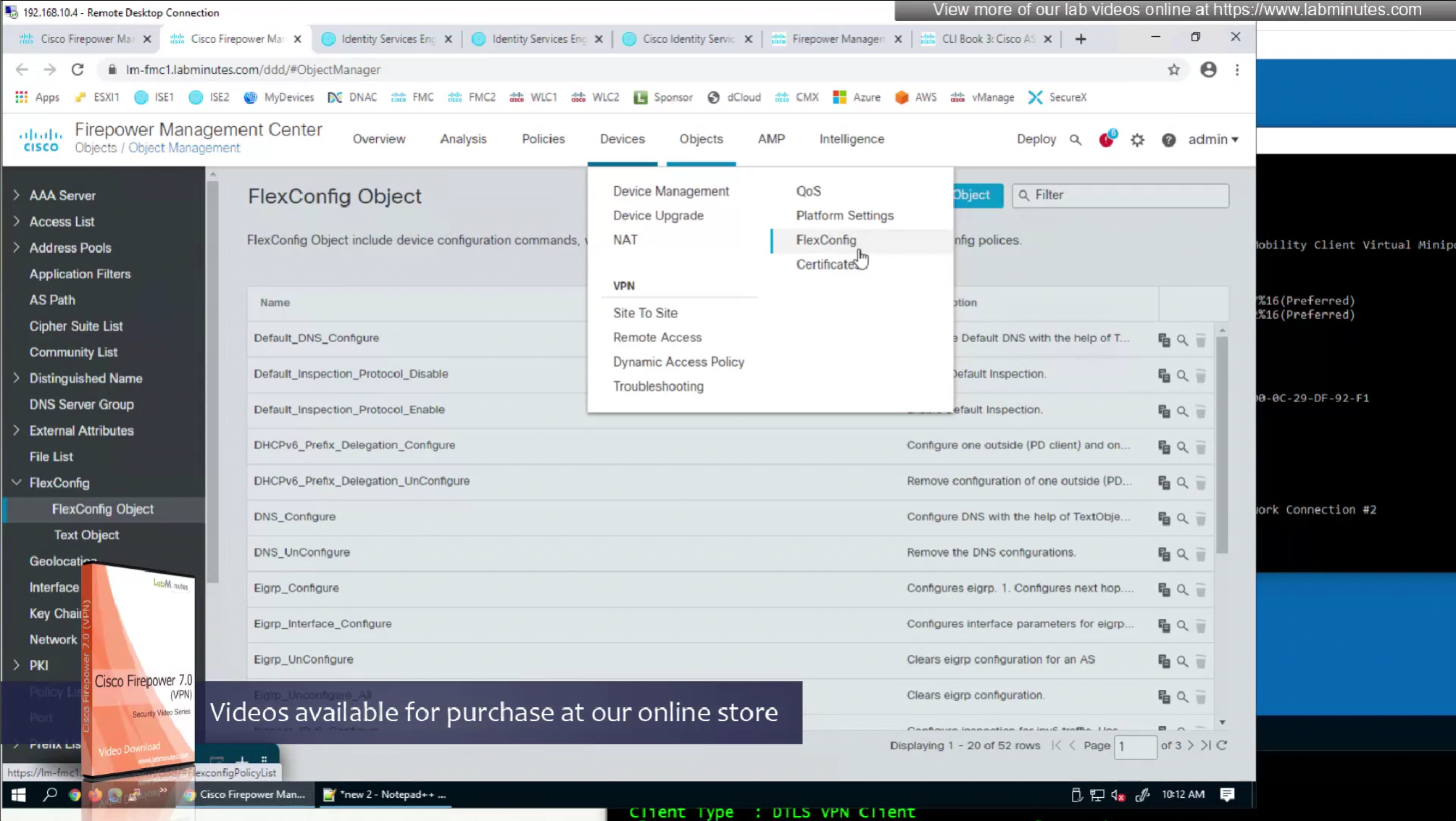

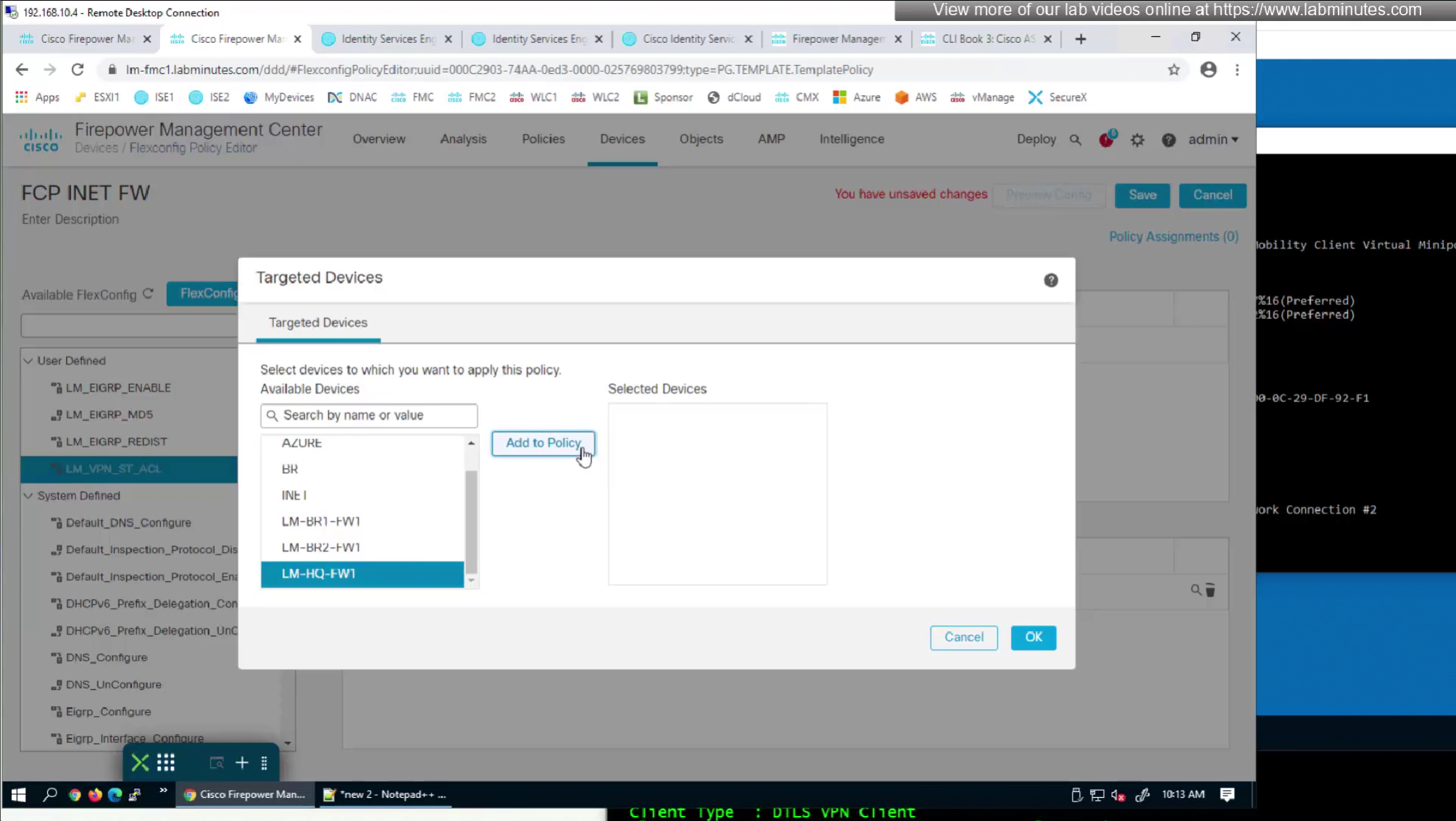

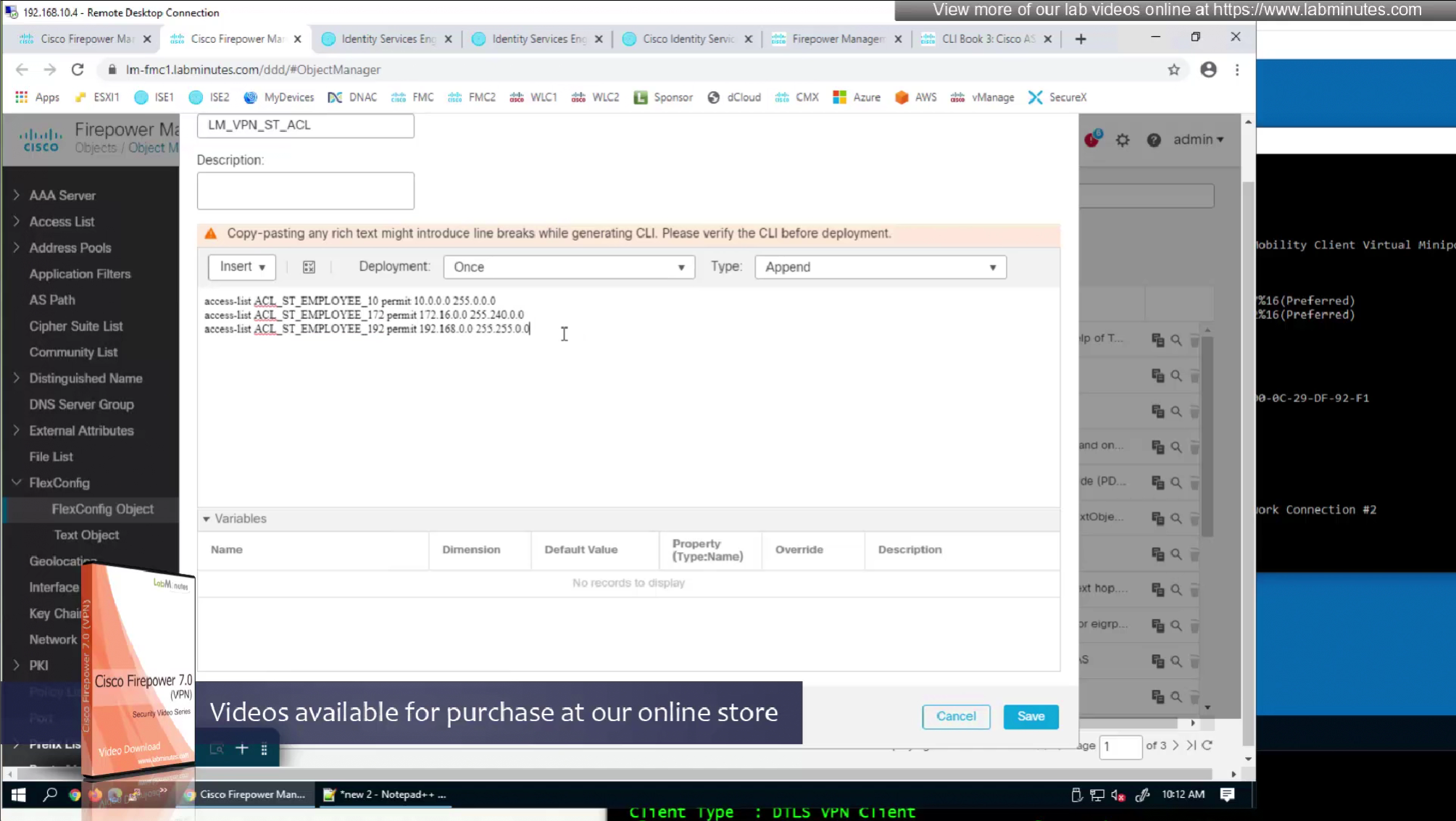

If we want to configure simple ACL then that is possible through flexconfig only
FMC does not let us configure config that might interfere with config that is already managed by FMC

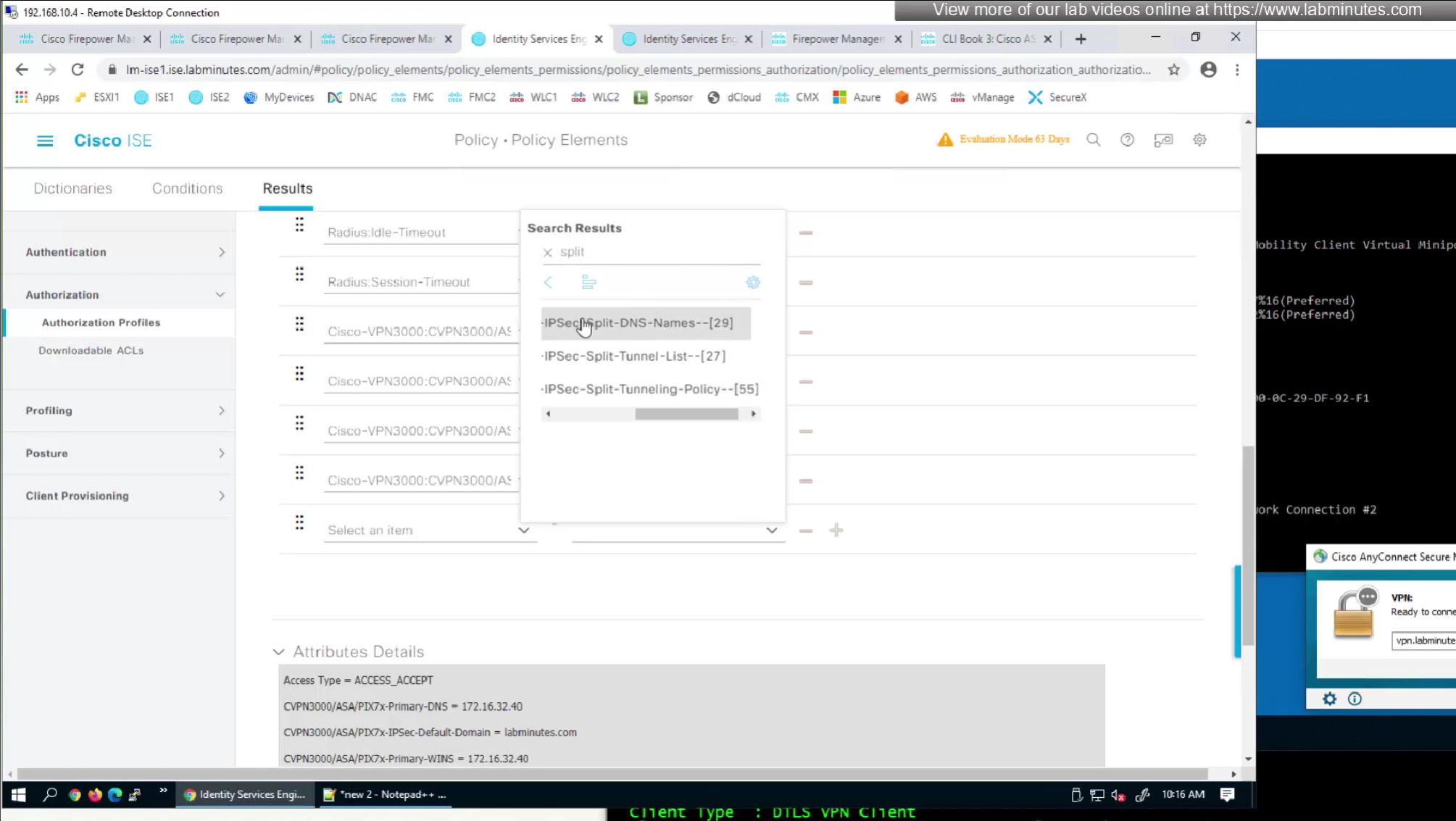

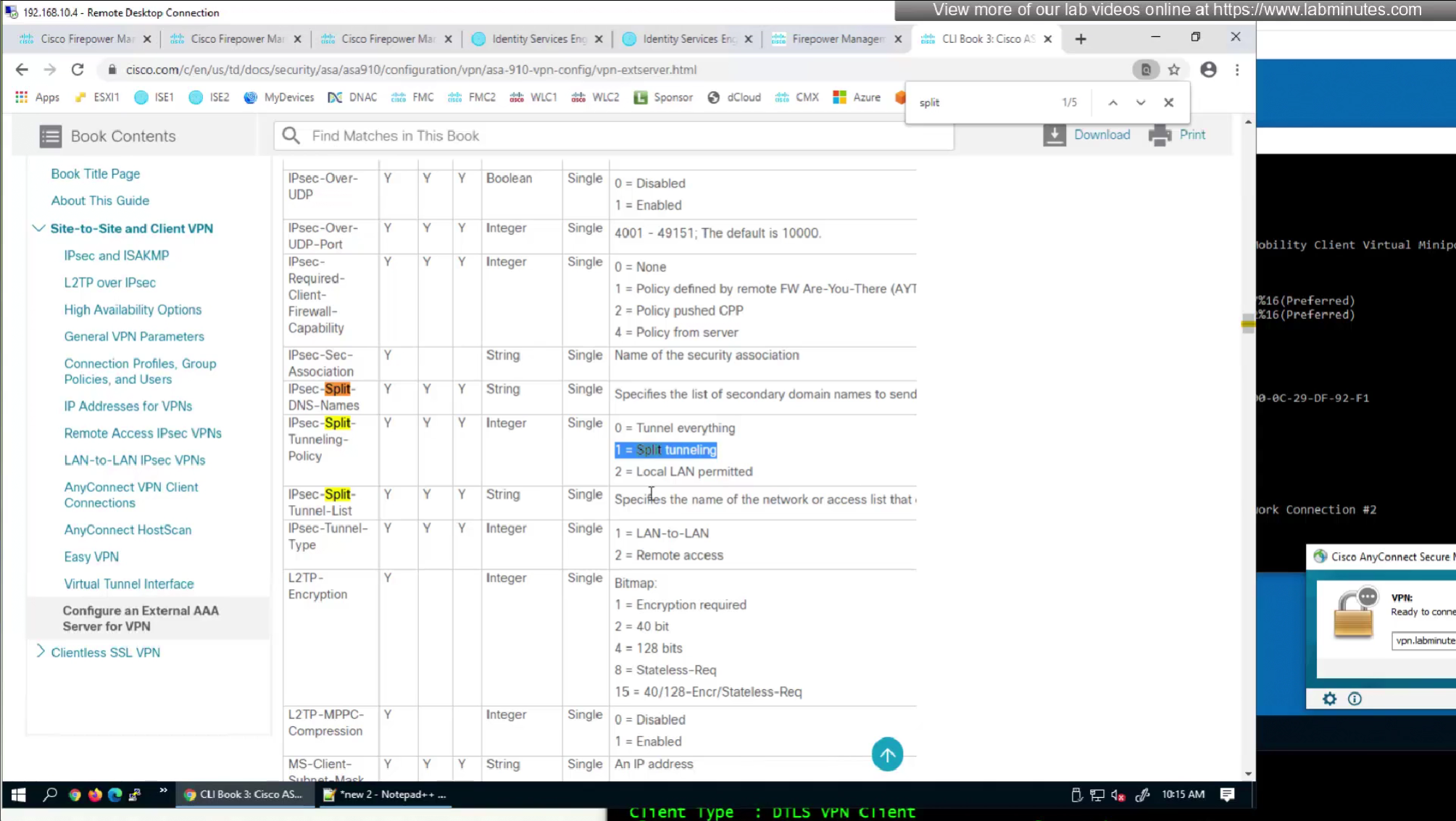

Split tunnel ACL is known as Split tunnel list in ISE attributes

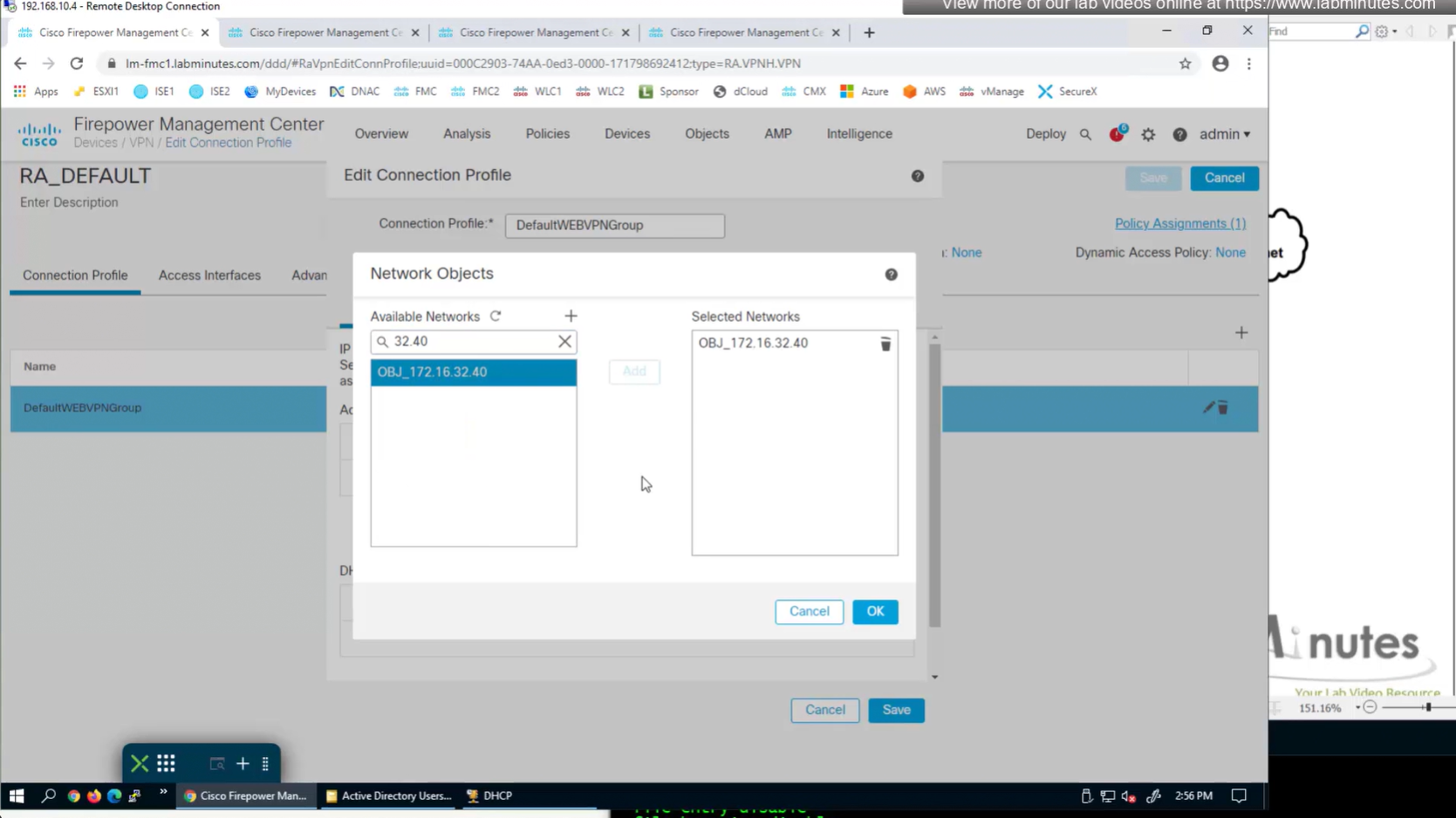

This 172.16.32.40/32 is route for DNS server due to Split DNS config

Split include

In this video we will see what else we can do with RADIUS attributes
Radius was designed for this and it has these capabilities already
Following are some of the RADIUS attributes that firepower supports

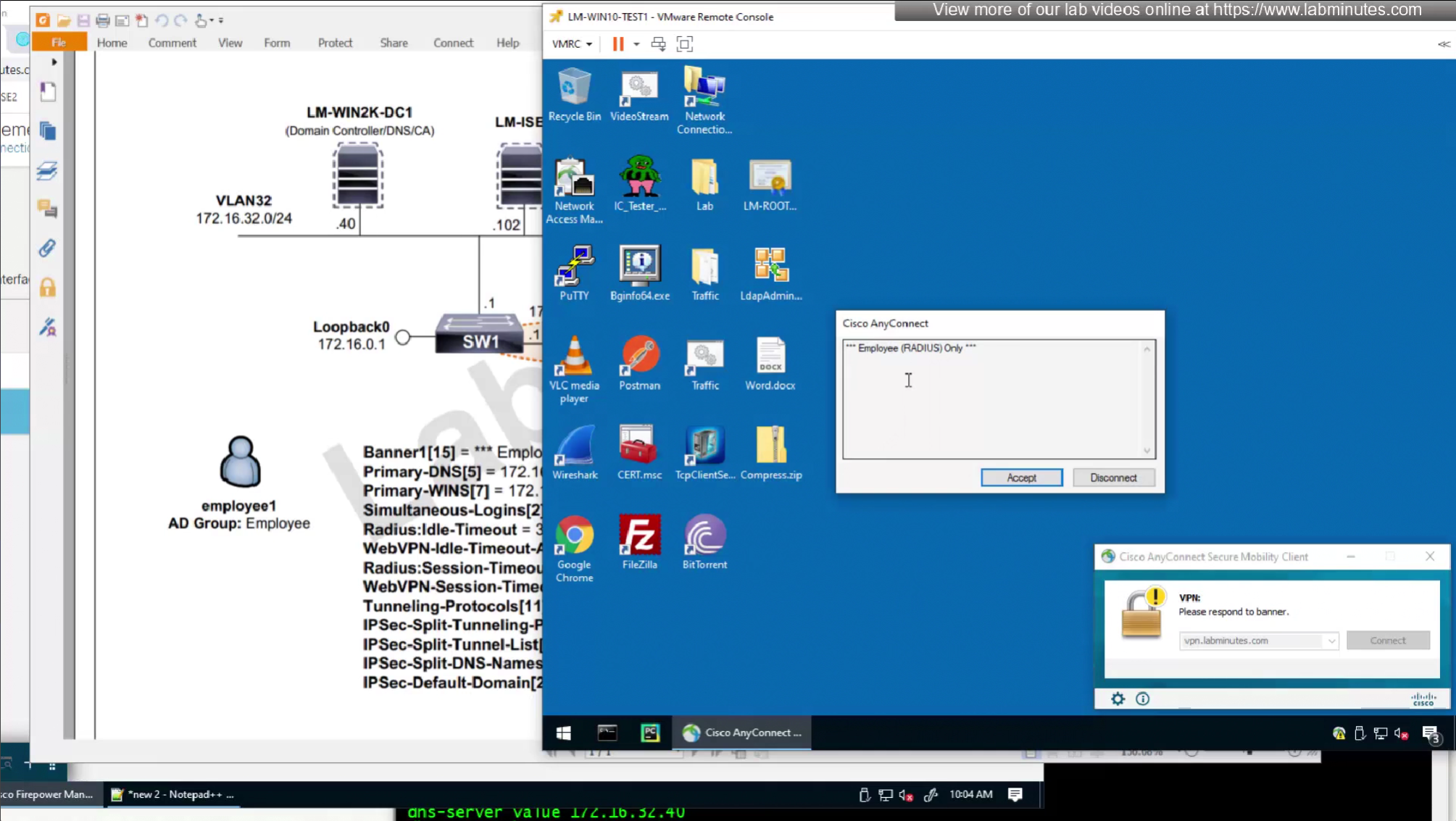

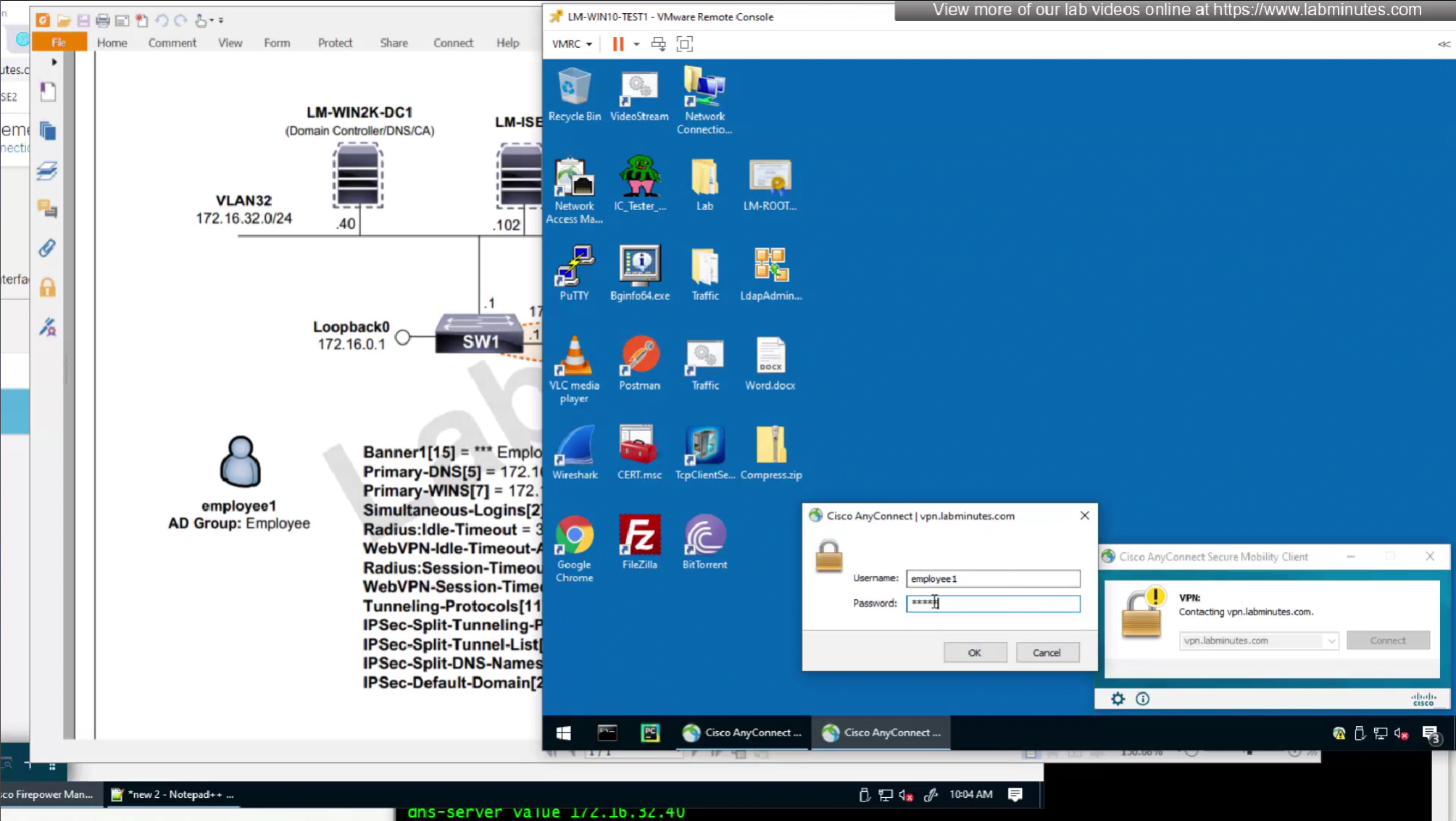

In this video we will see how group policy attributes can be totally returned using RADIUS and not rely on group policy at all

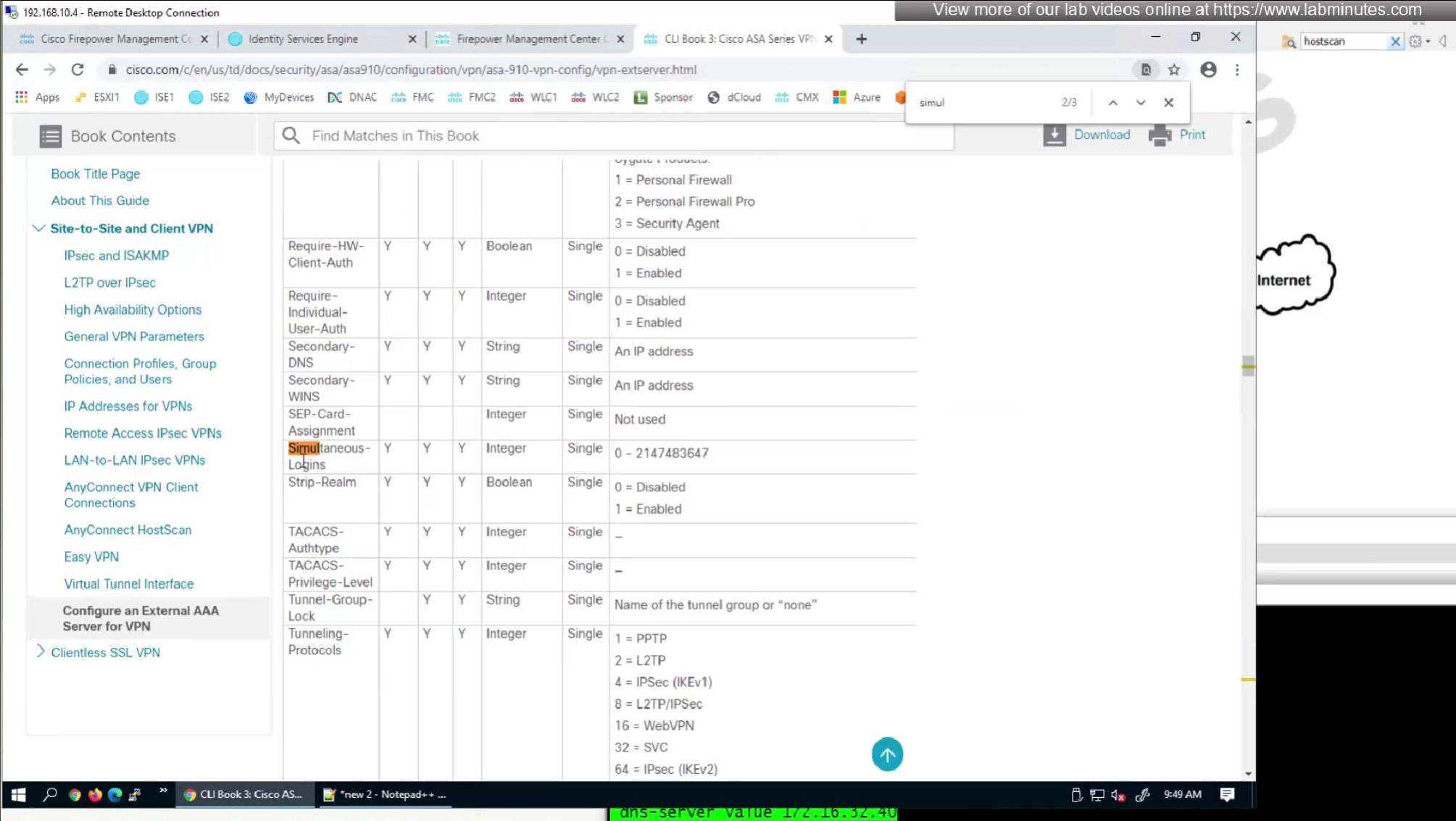

This document does not show exhaustive list but because Anyconnect on firepower is inherited from ASA there are more attributes

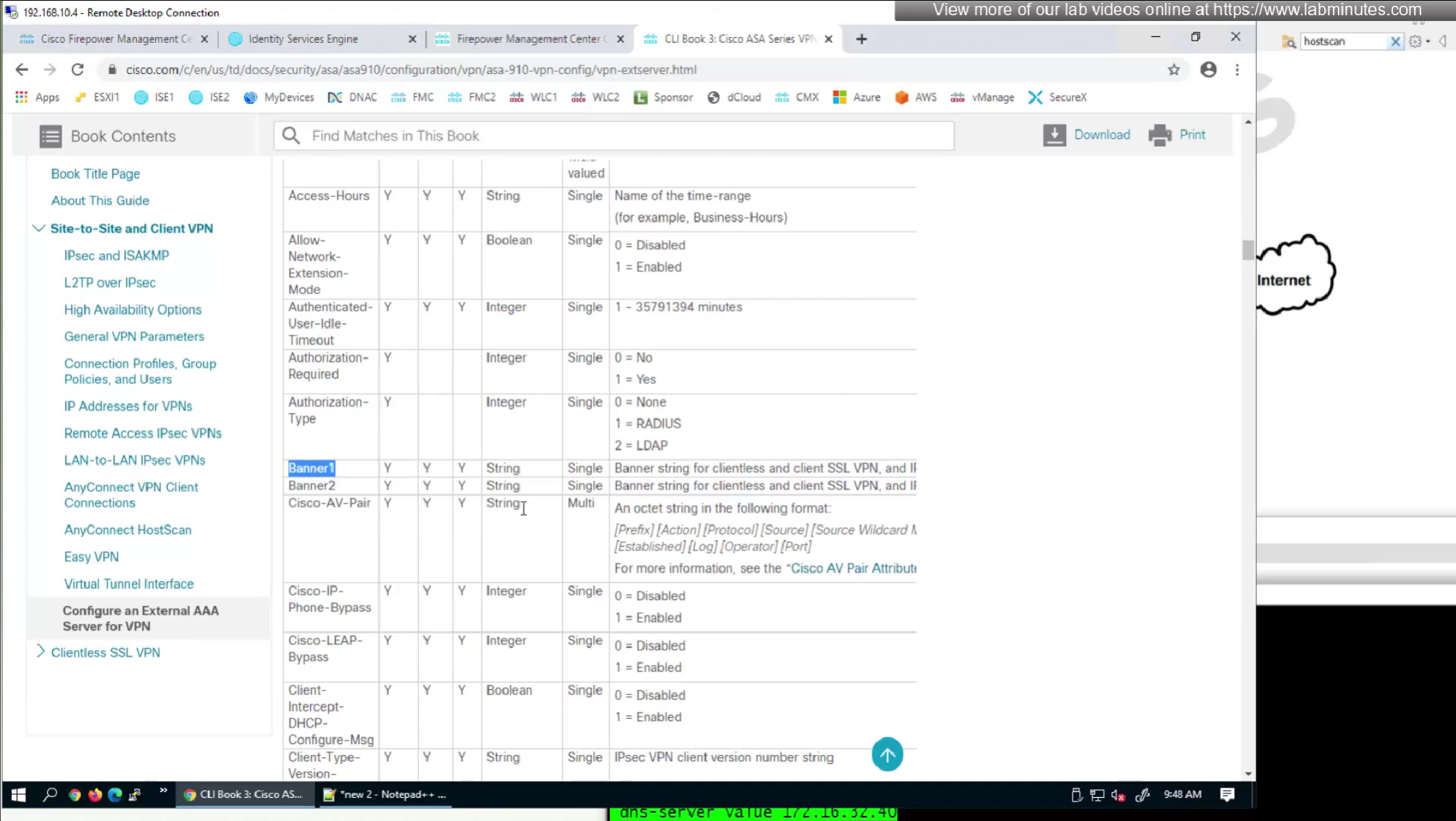

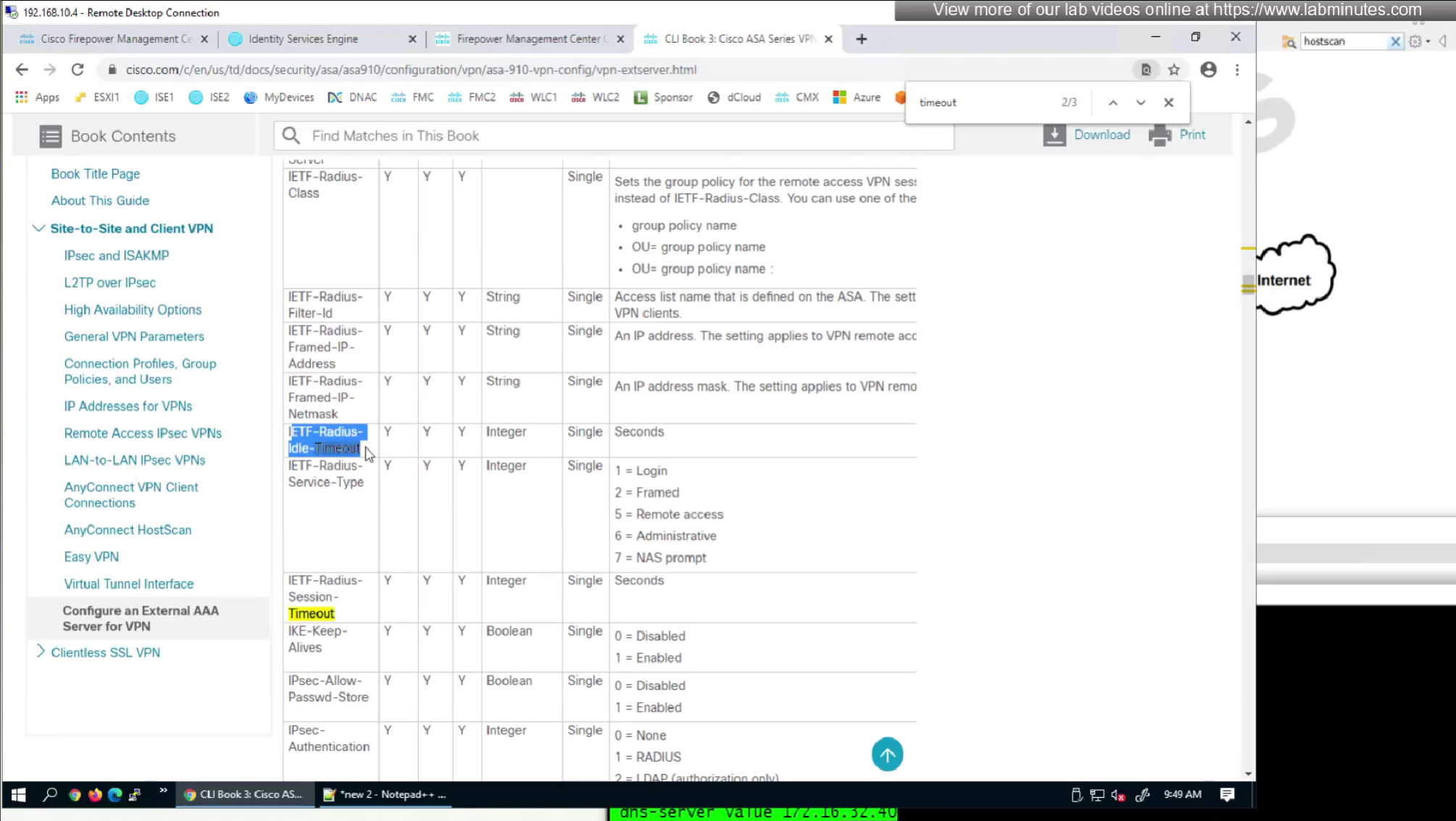

Even though this page says Cisco attributes for LDAP Authorization these are the same attributes we use in RADIUS

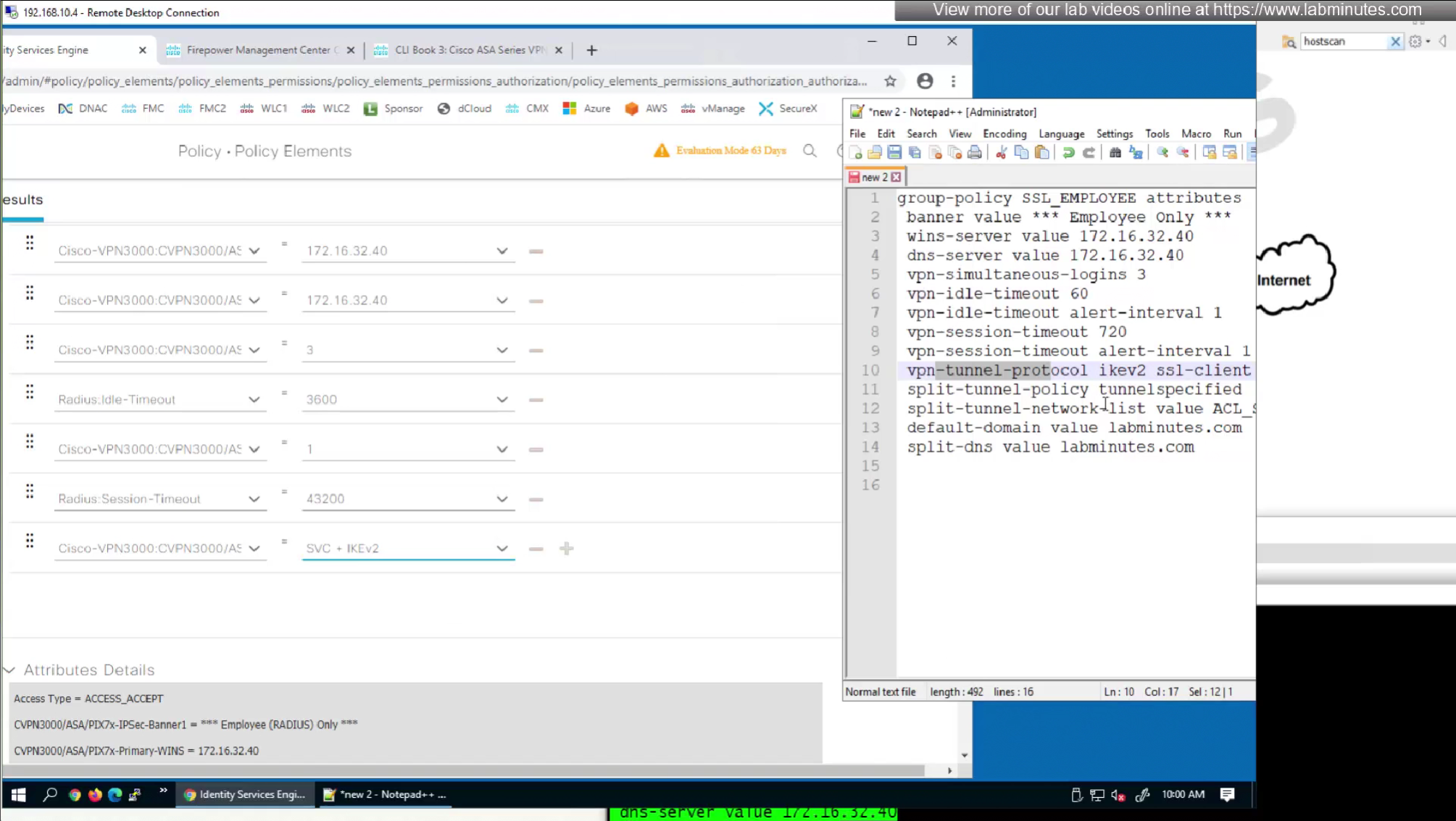

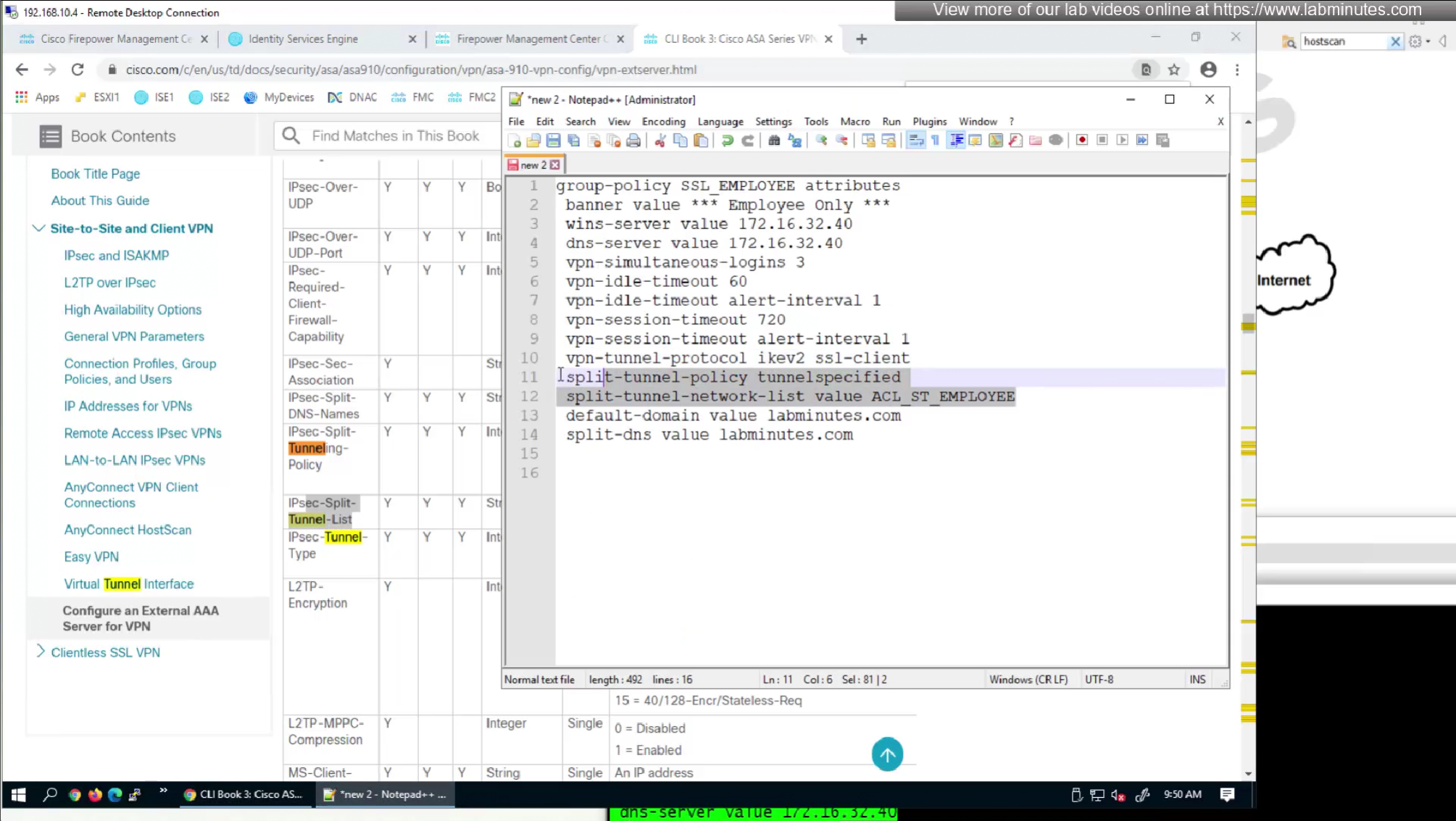

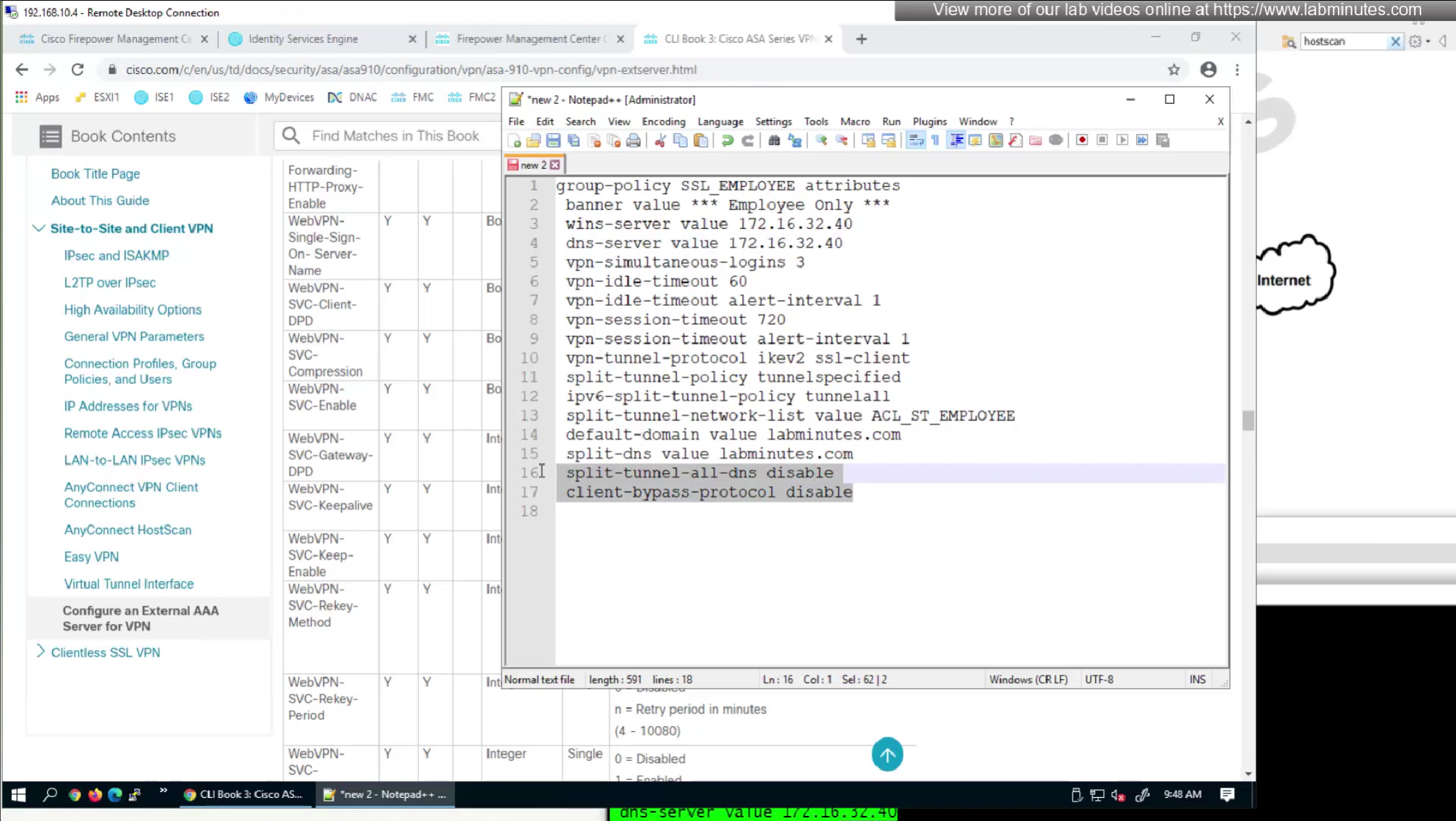

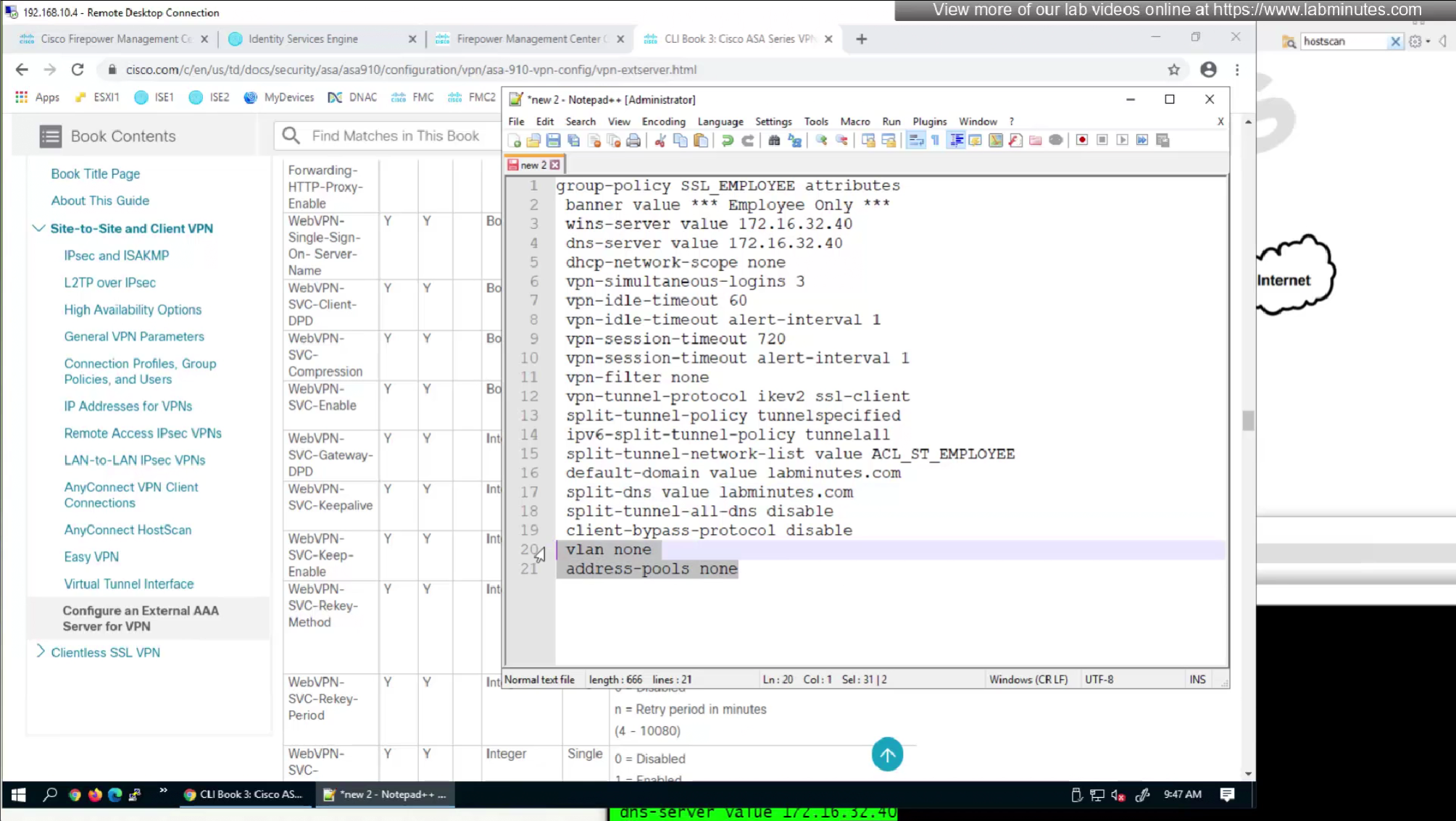

We will remove attributes that we did not configure and remove the lines which says none and disable

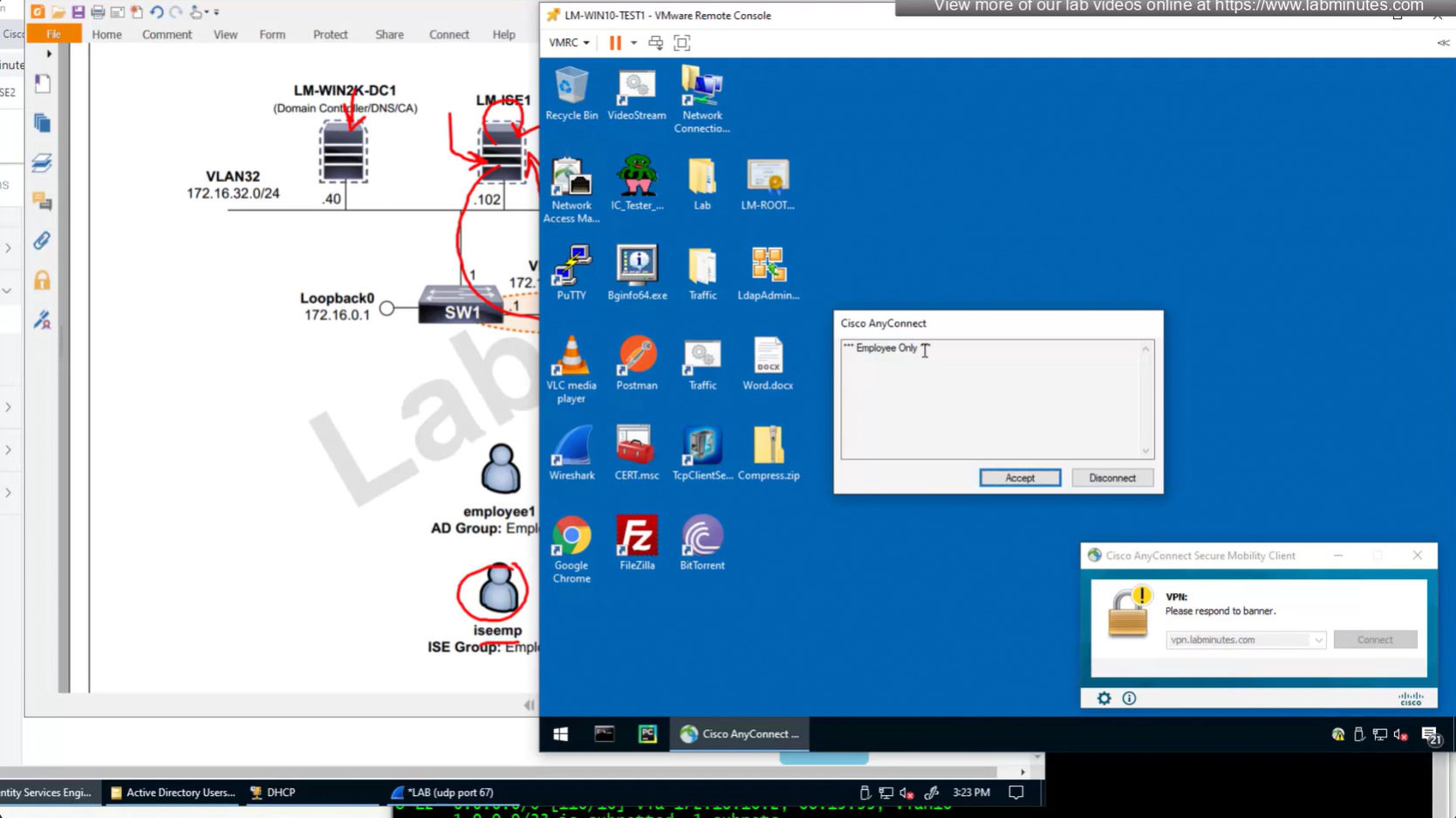

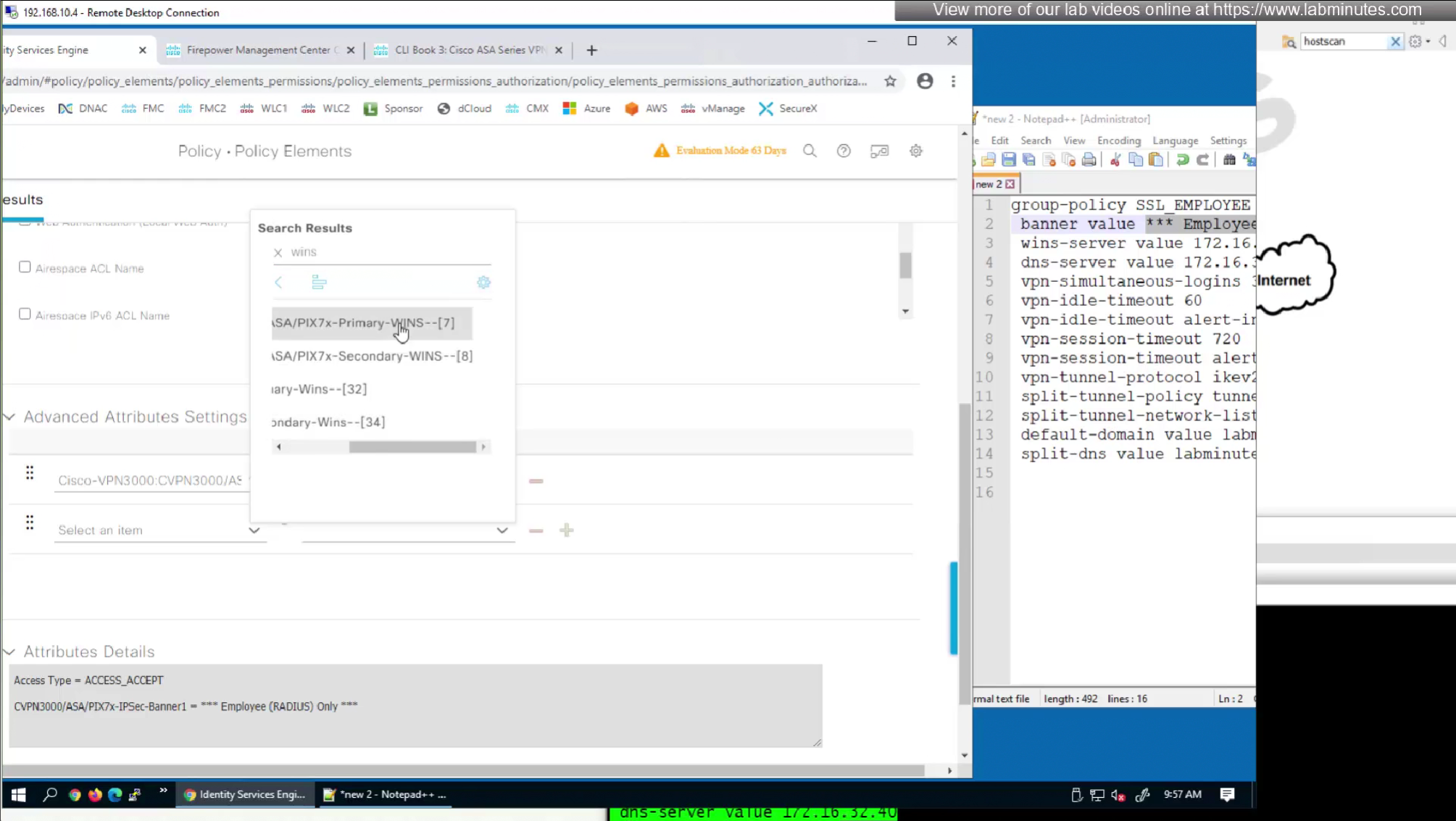

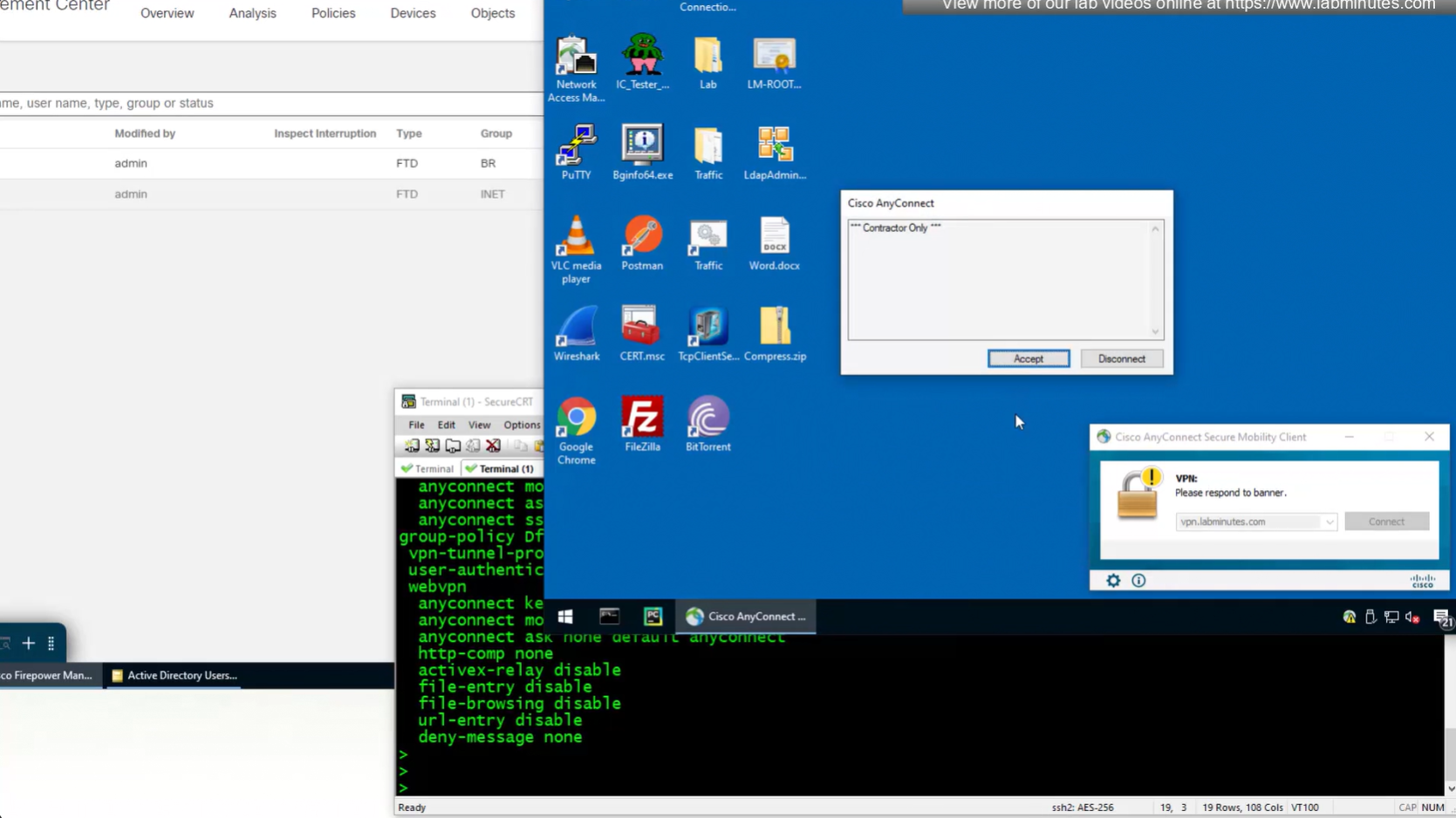

We will look for first attribute “banner value xxxx”

RADIUS attributes with “IETF” in beginning means that they are RADIUS standard and the ones without IETF are Cisco proprietary

alert interval is not present in this list

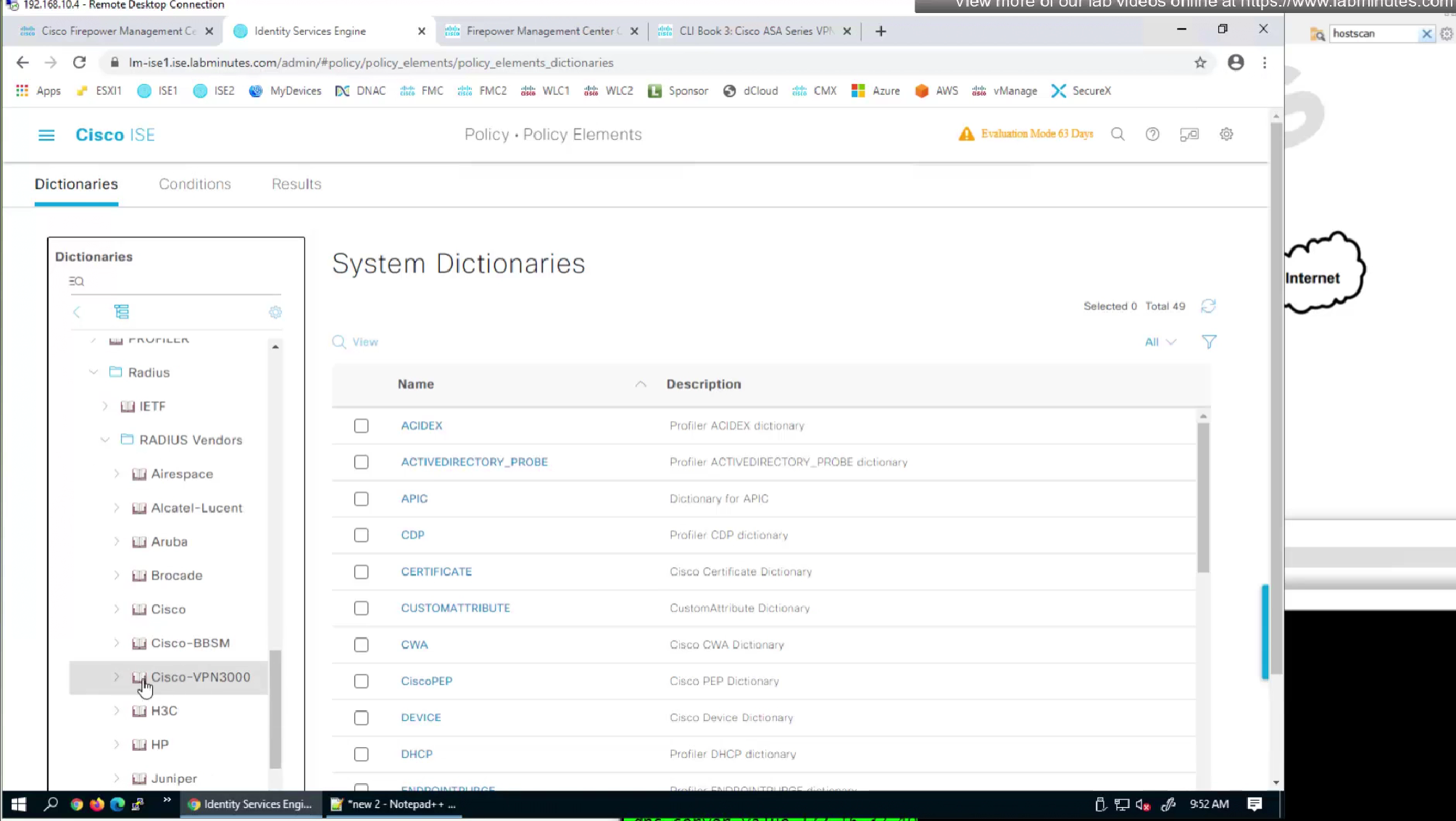

but we can look at ISE as well as this list is outdated as these are available in ISE

We will skip split-tunneling policy for now and we will come back to it

It seems like those attributes are available as we can see in ISE

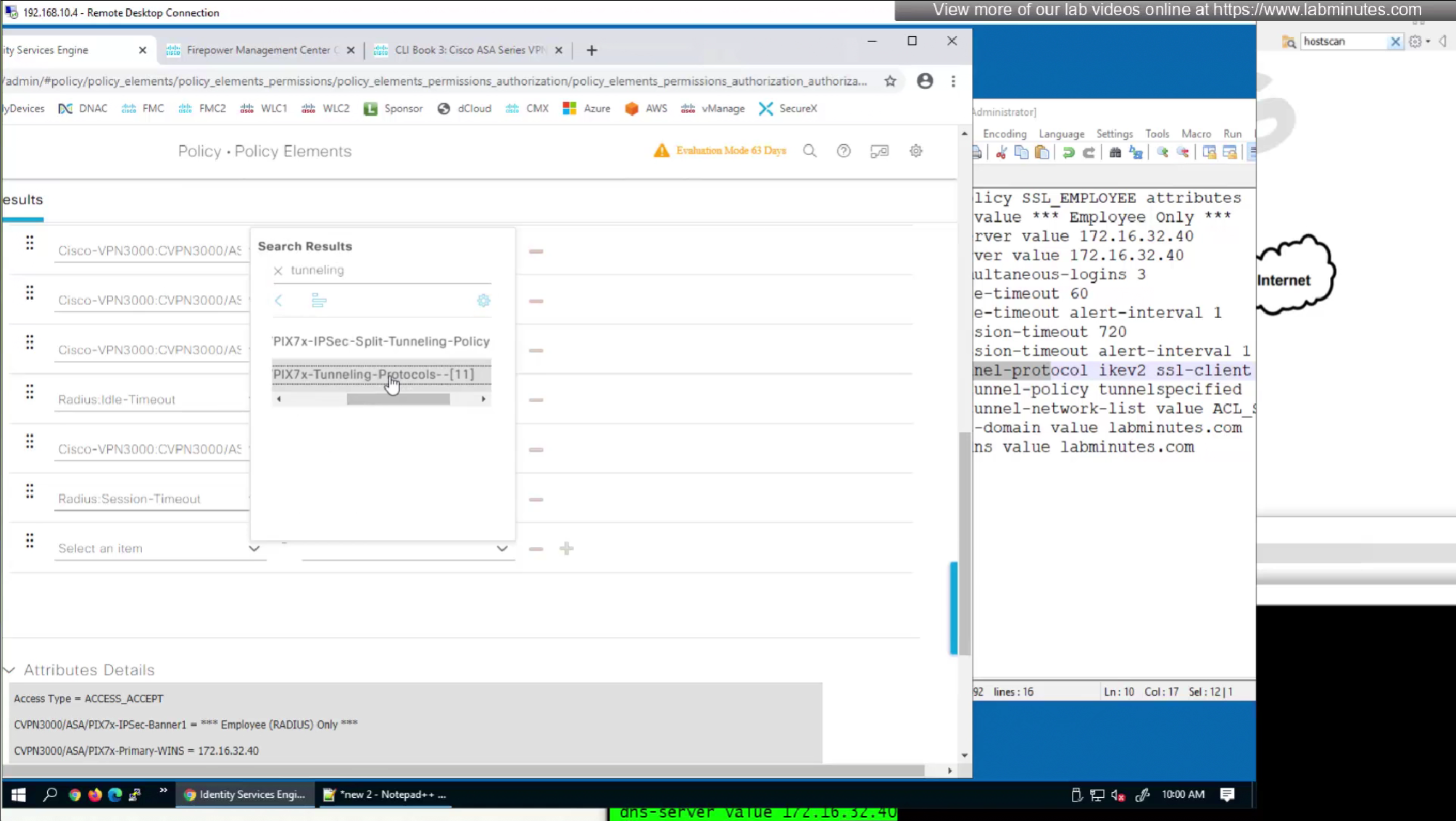

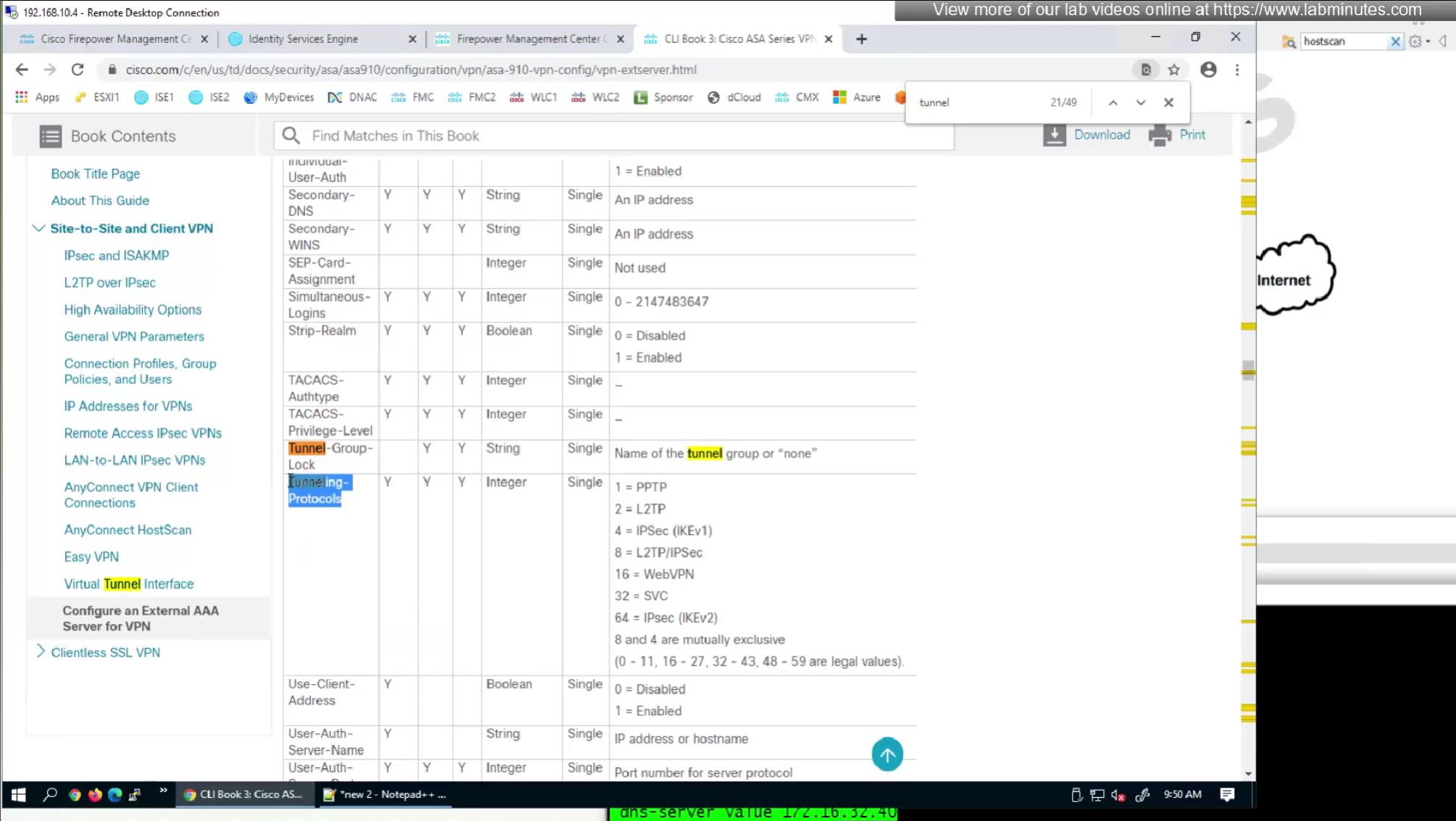

by default ISE does not have full list of protocols but in our case we need two values IKEV2 and SVC (ssl-client)

so from that list we will add values of SVC 32 + IPSec (IKEv2) 64 = 96

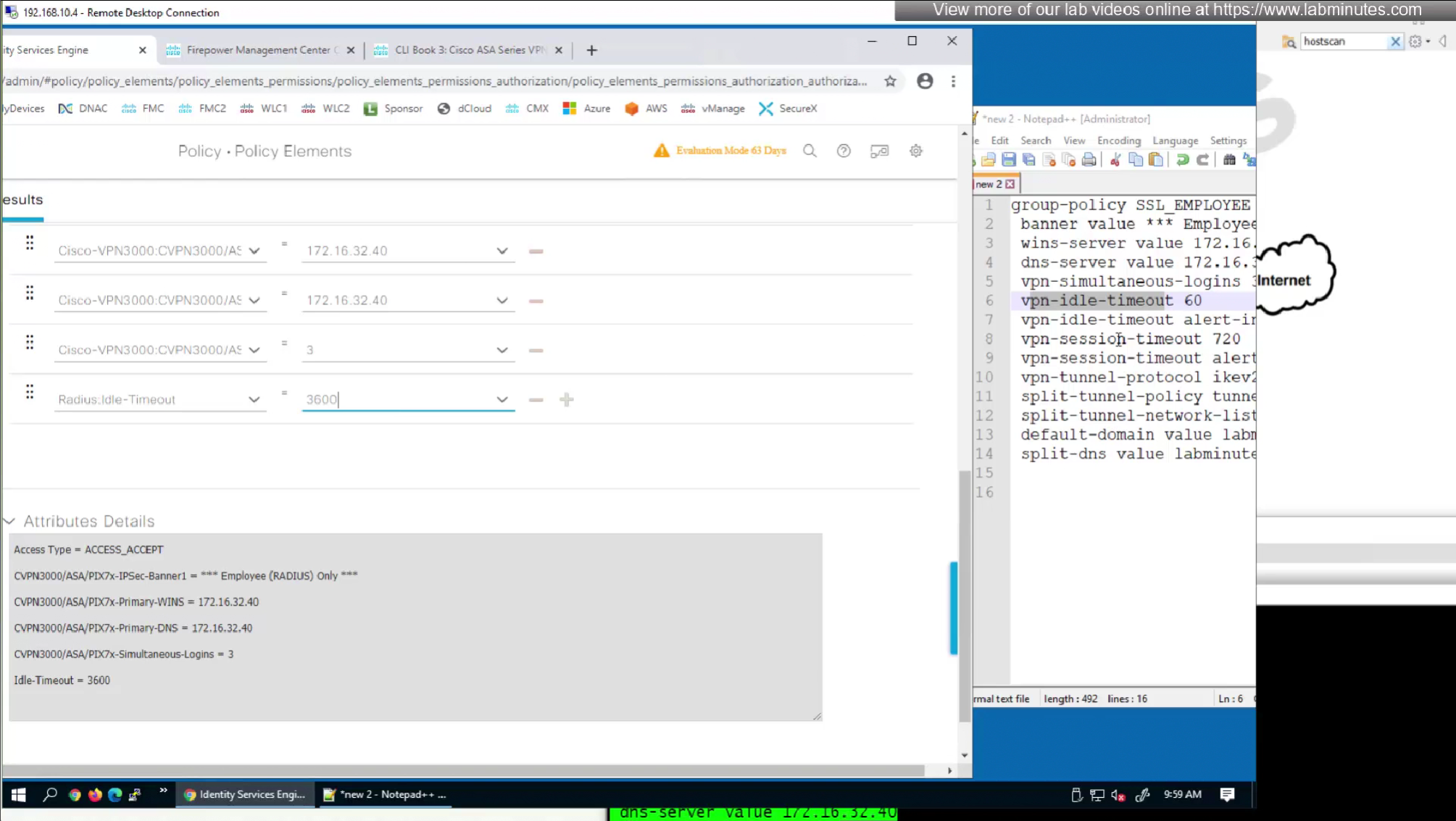

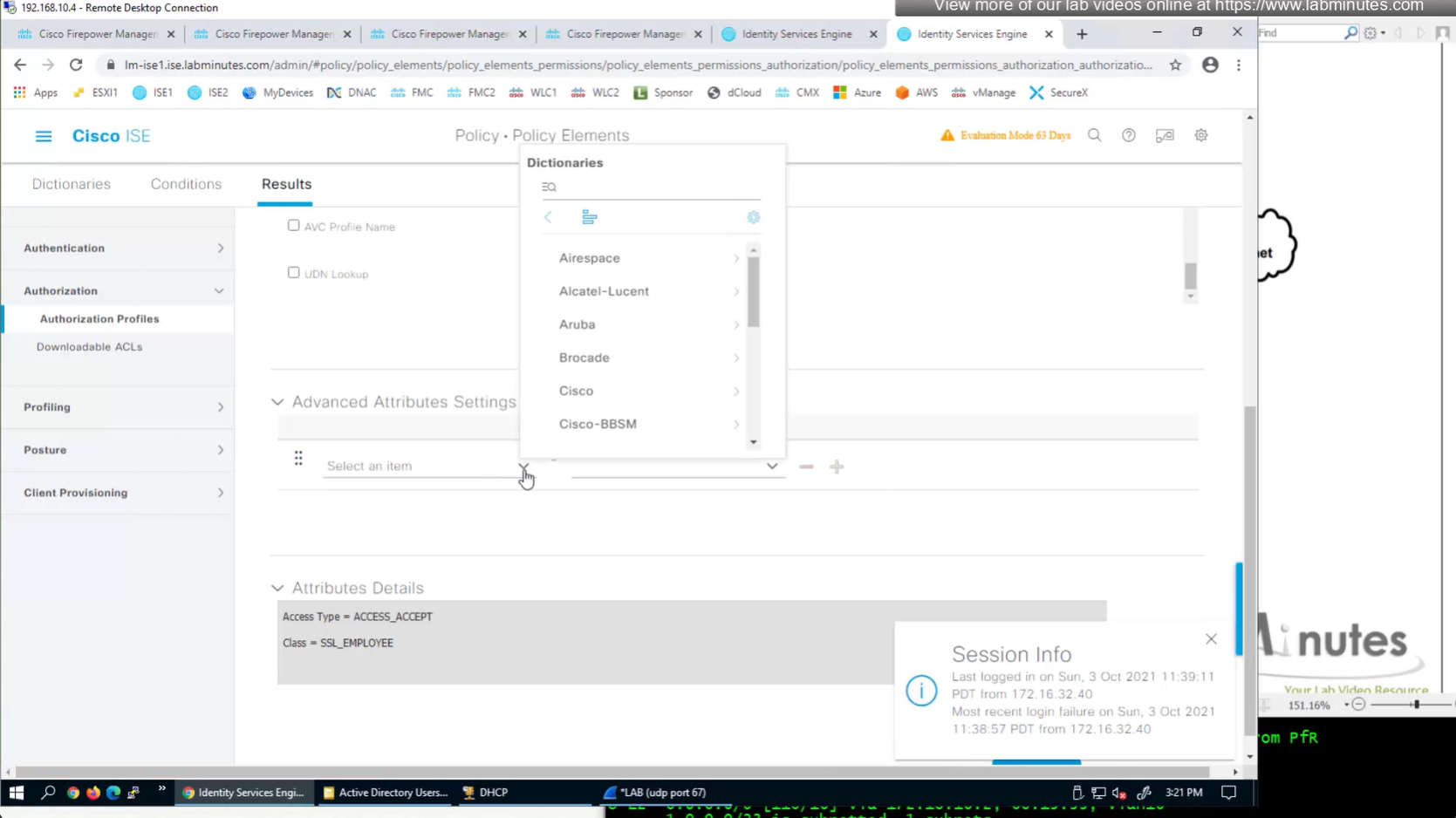

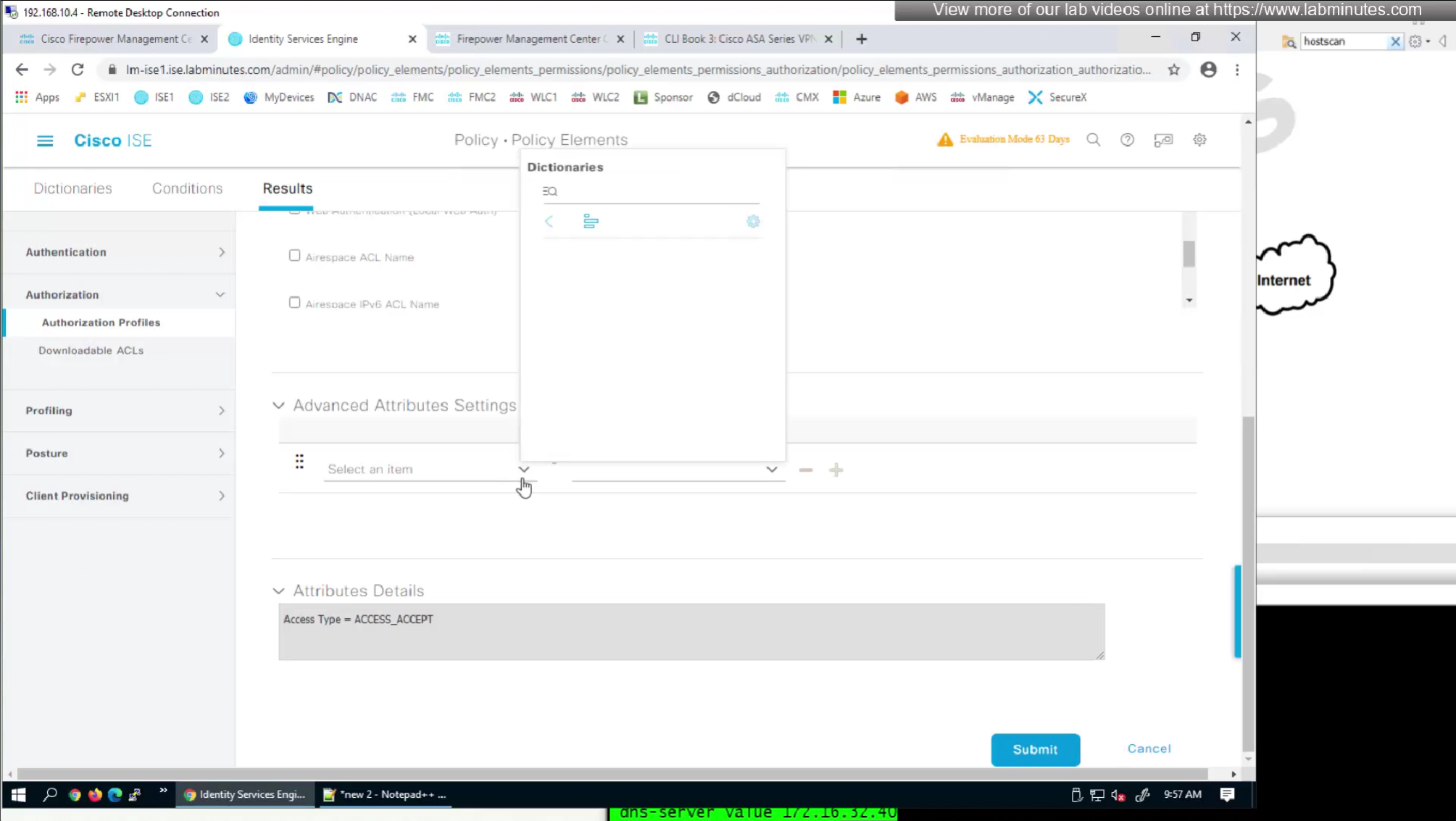

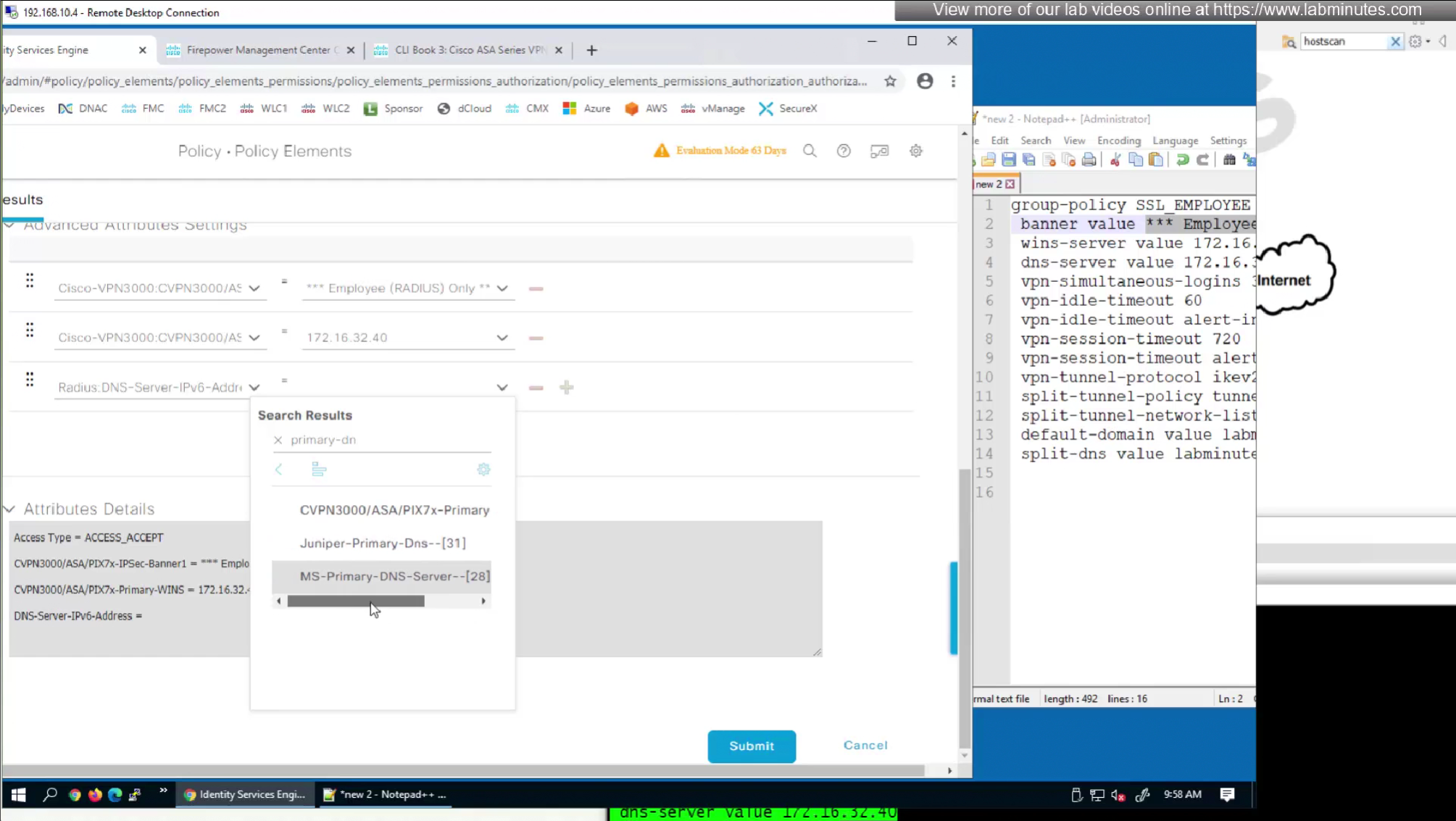

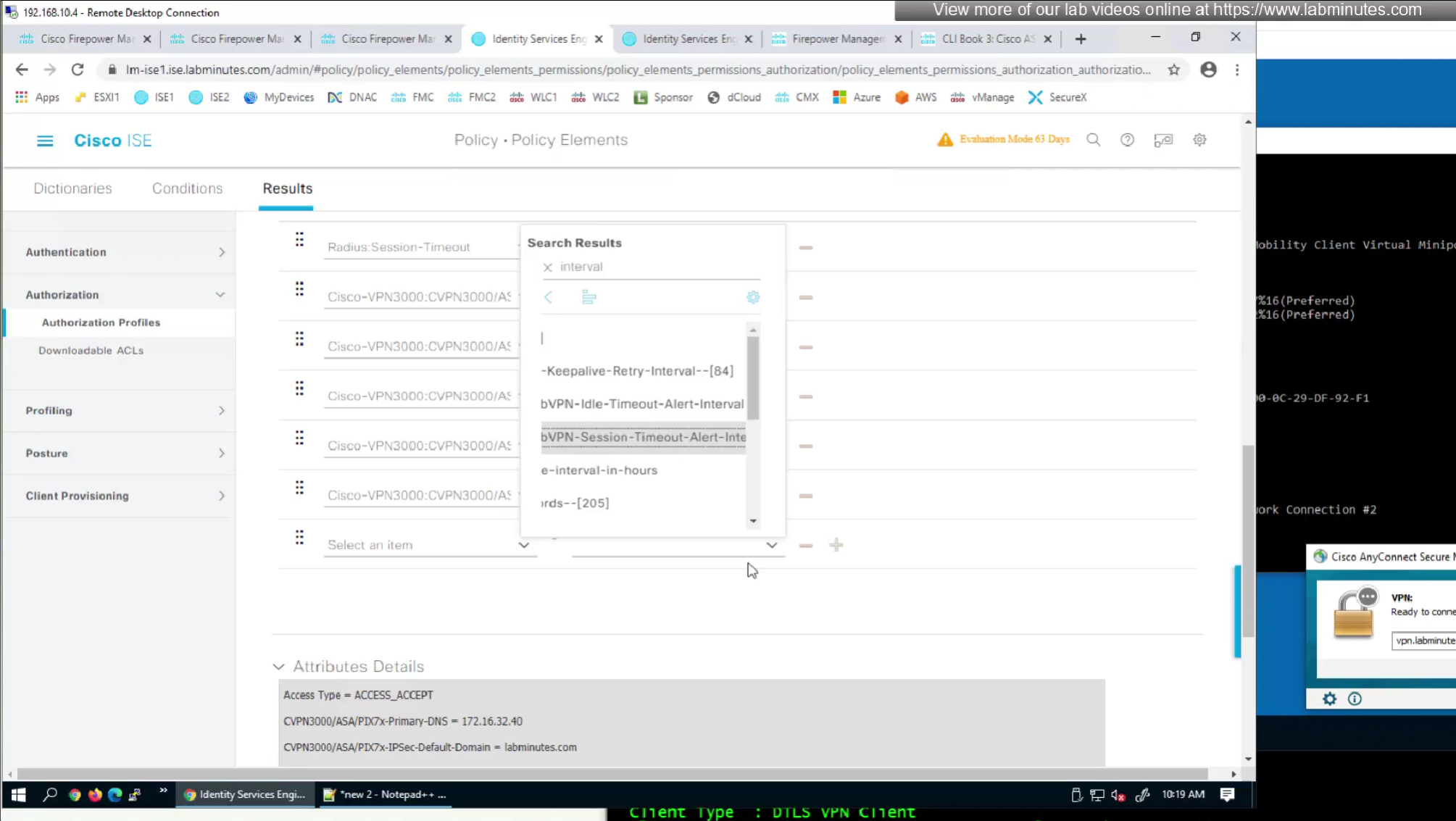

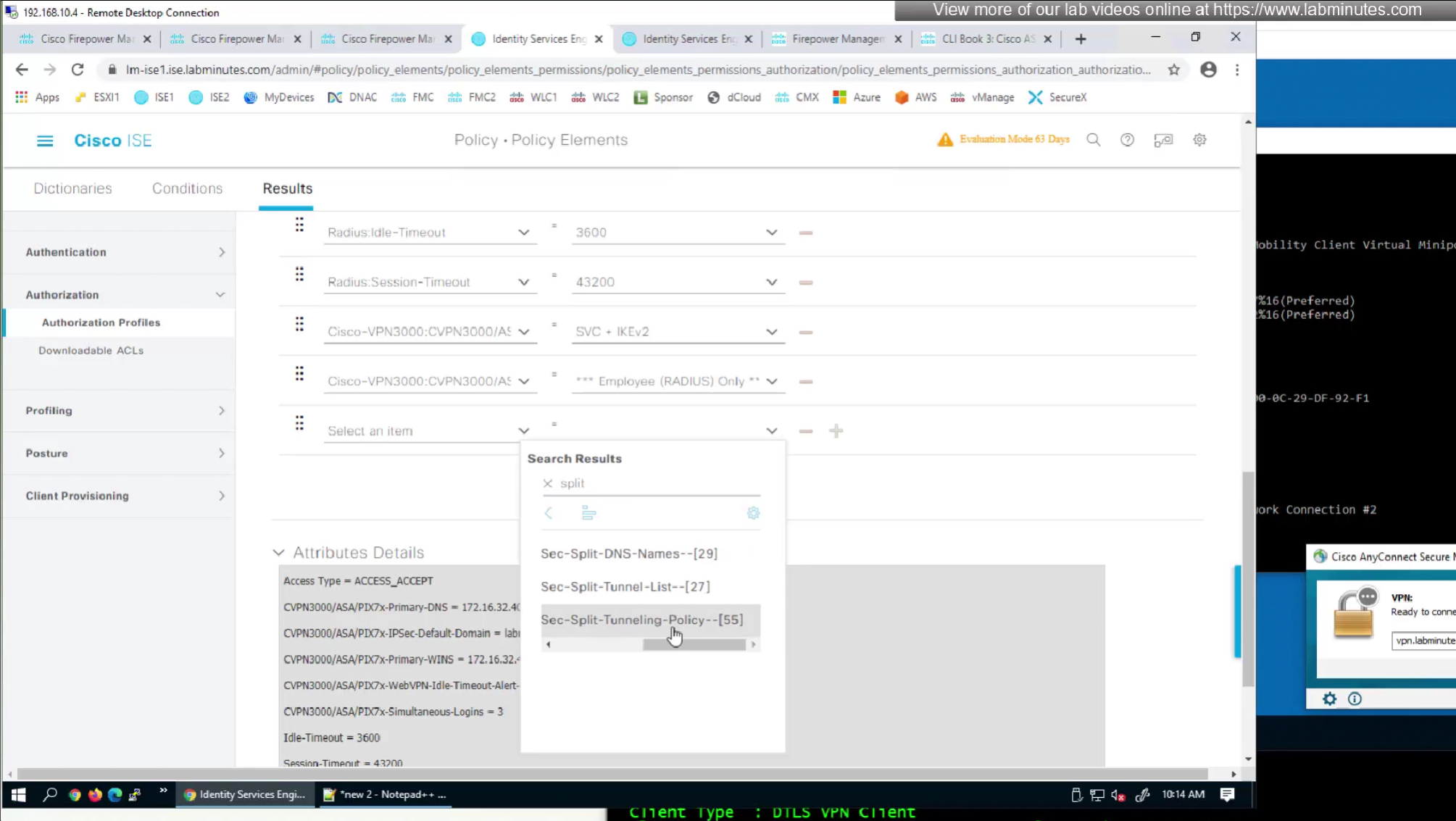

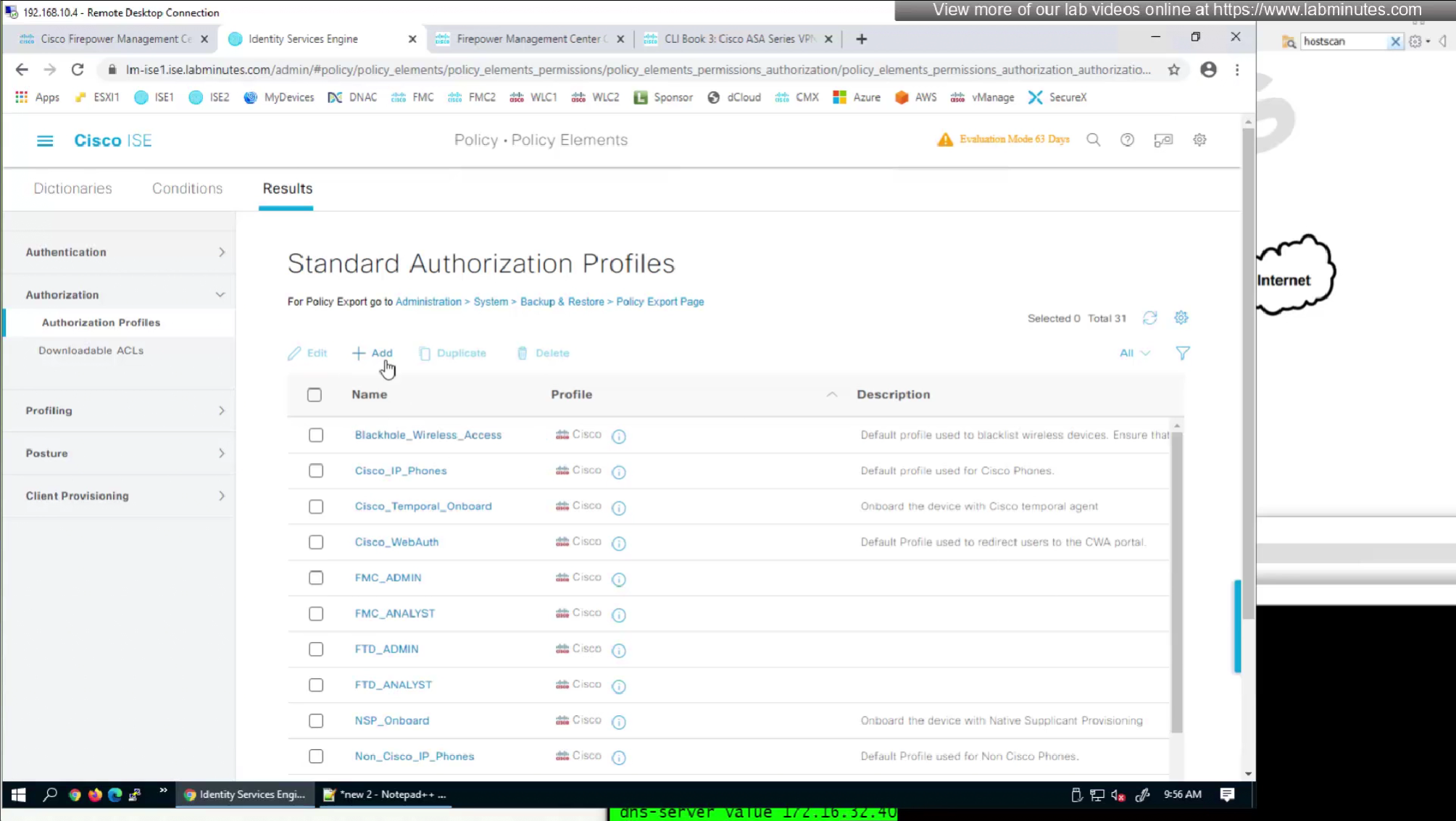

In this authorization profile we will need to use Advanced Attribute settings because these are not common RADIUS attributes

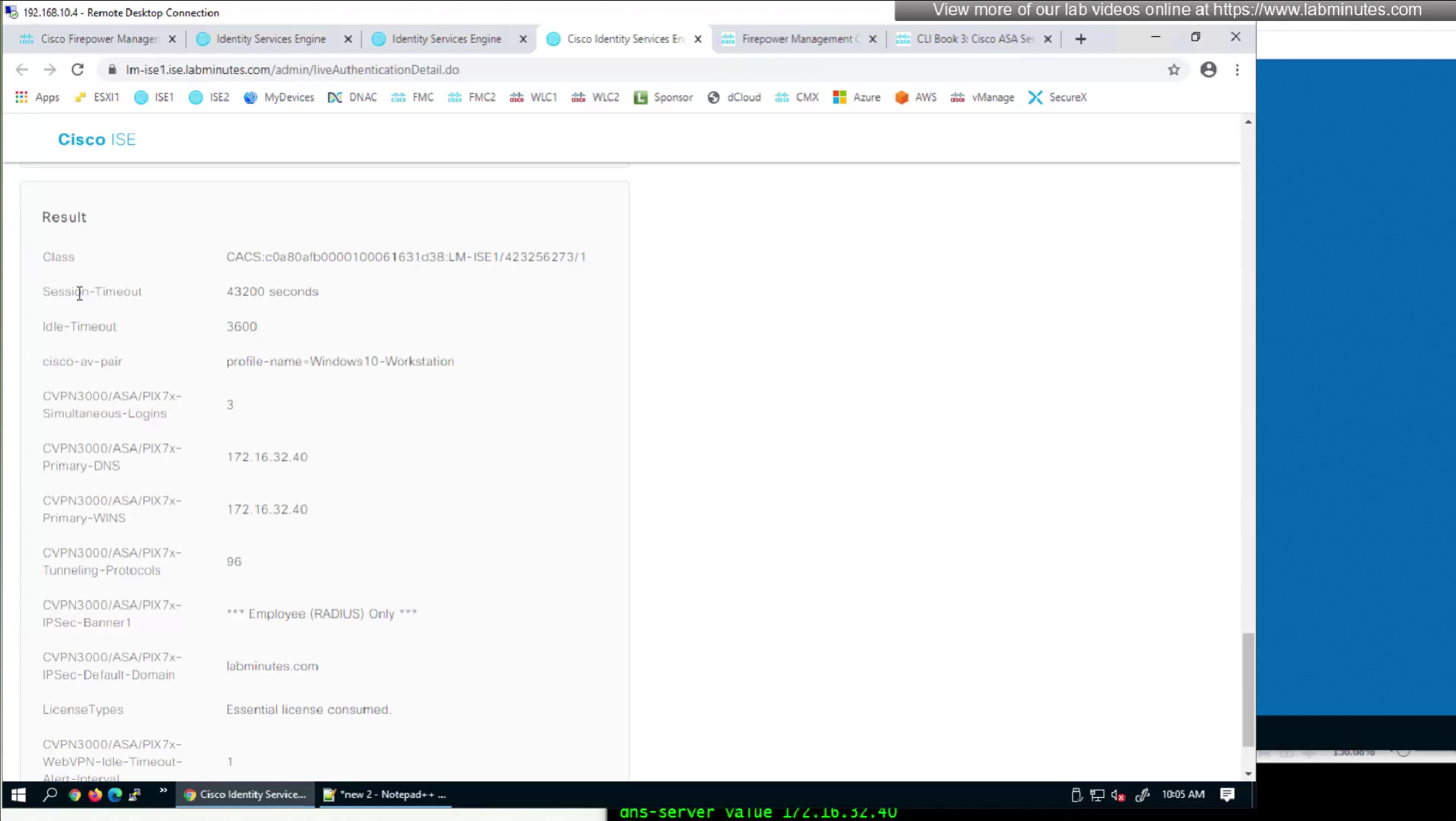

Here we will set time in seconds 3600 instead of 60 minutes

Here also we will set 12 hours time in 43200 seconds instead of minutes (720 mins)

attributes with “Radius” in front means that these are IETF attributes spelled simply as Idle-Timeout and Session-Timeout similarly attributes with Cisco-VPN3000 are vendor specific attributes

Pretty much everything now is being returned from RADIUS so this default group policy will not be of much use

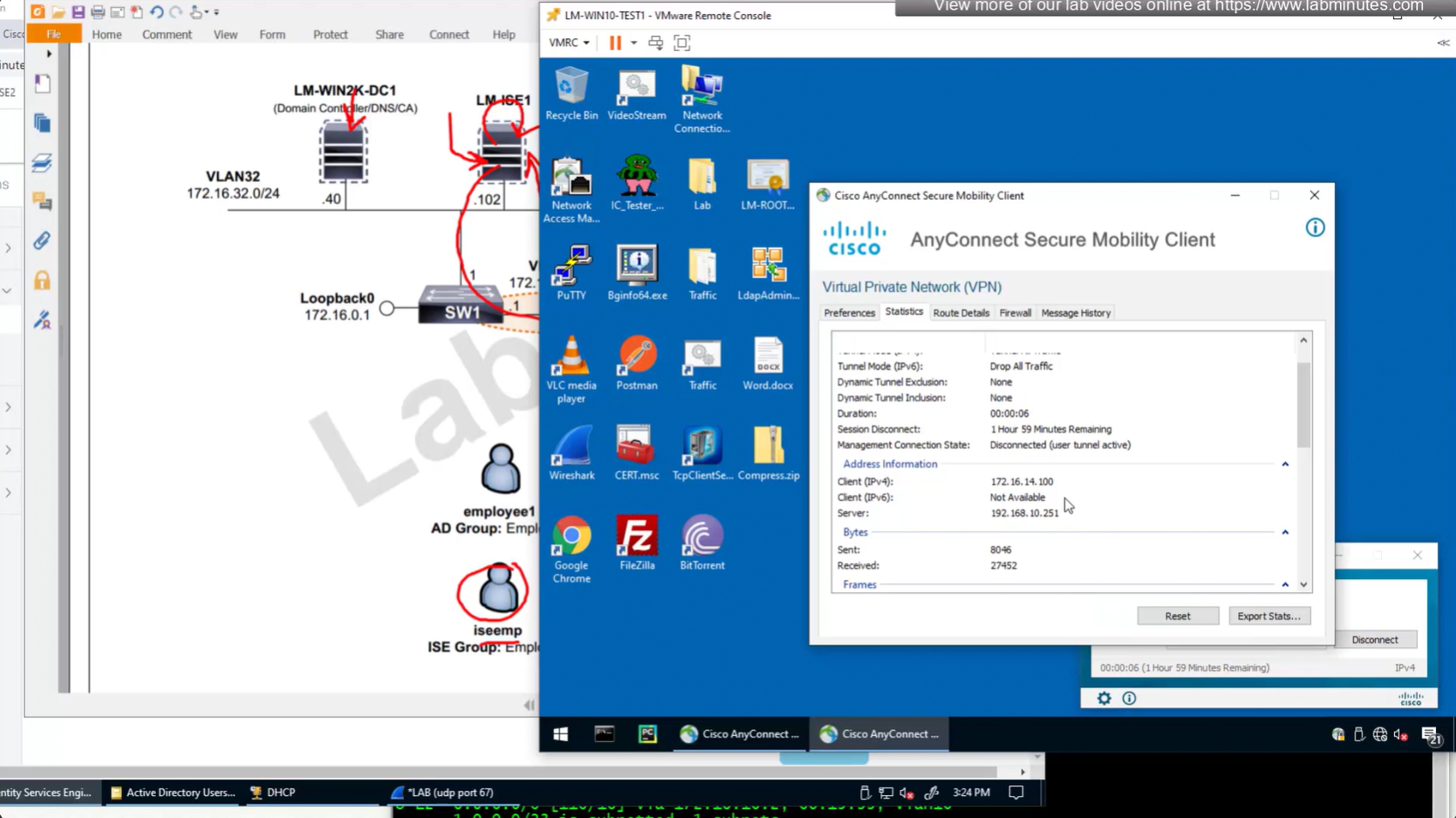

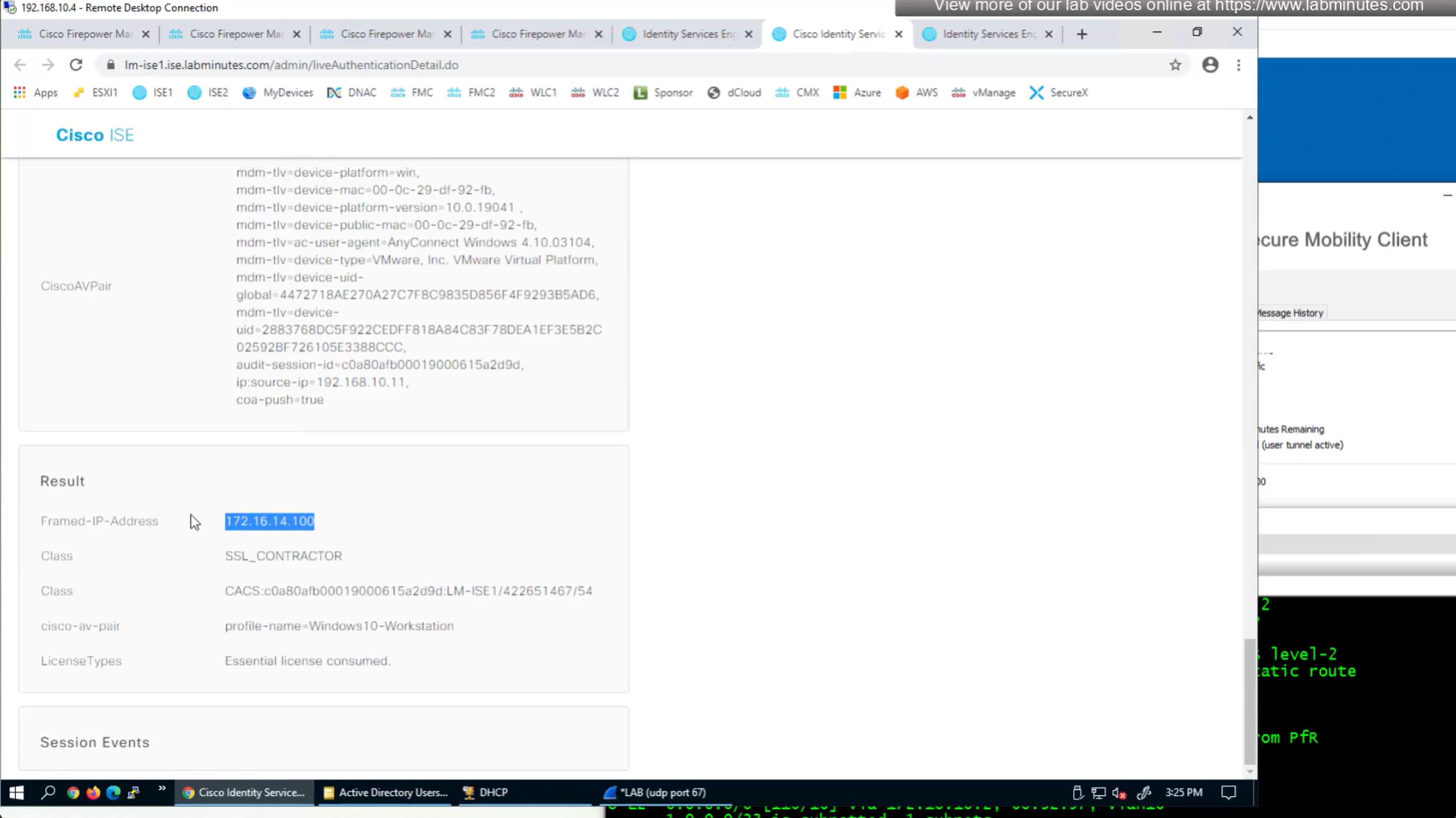

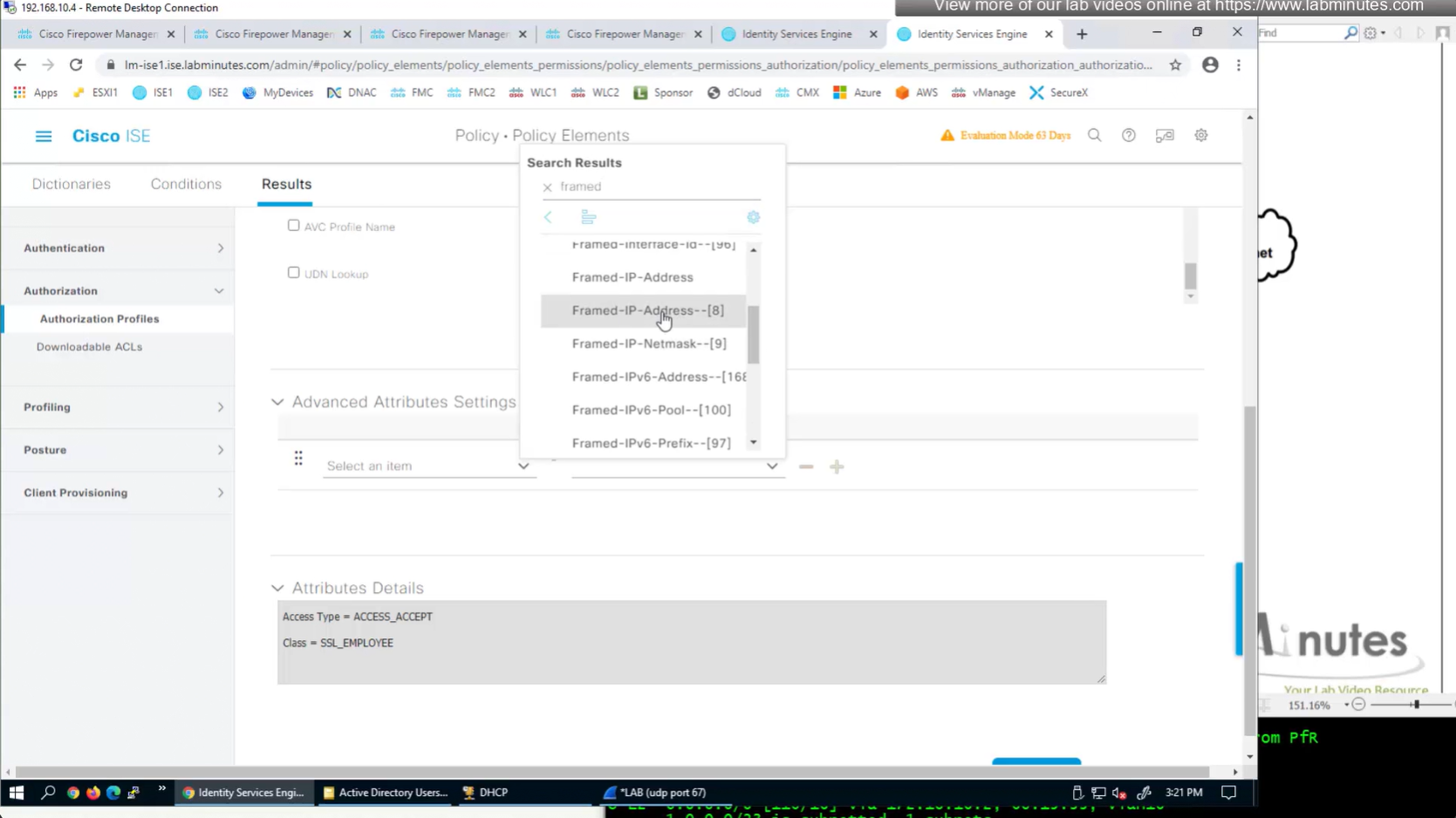

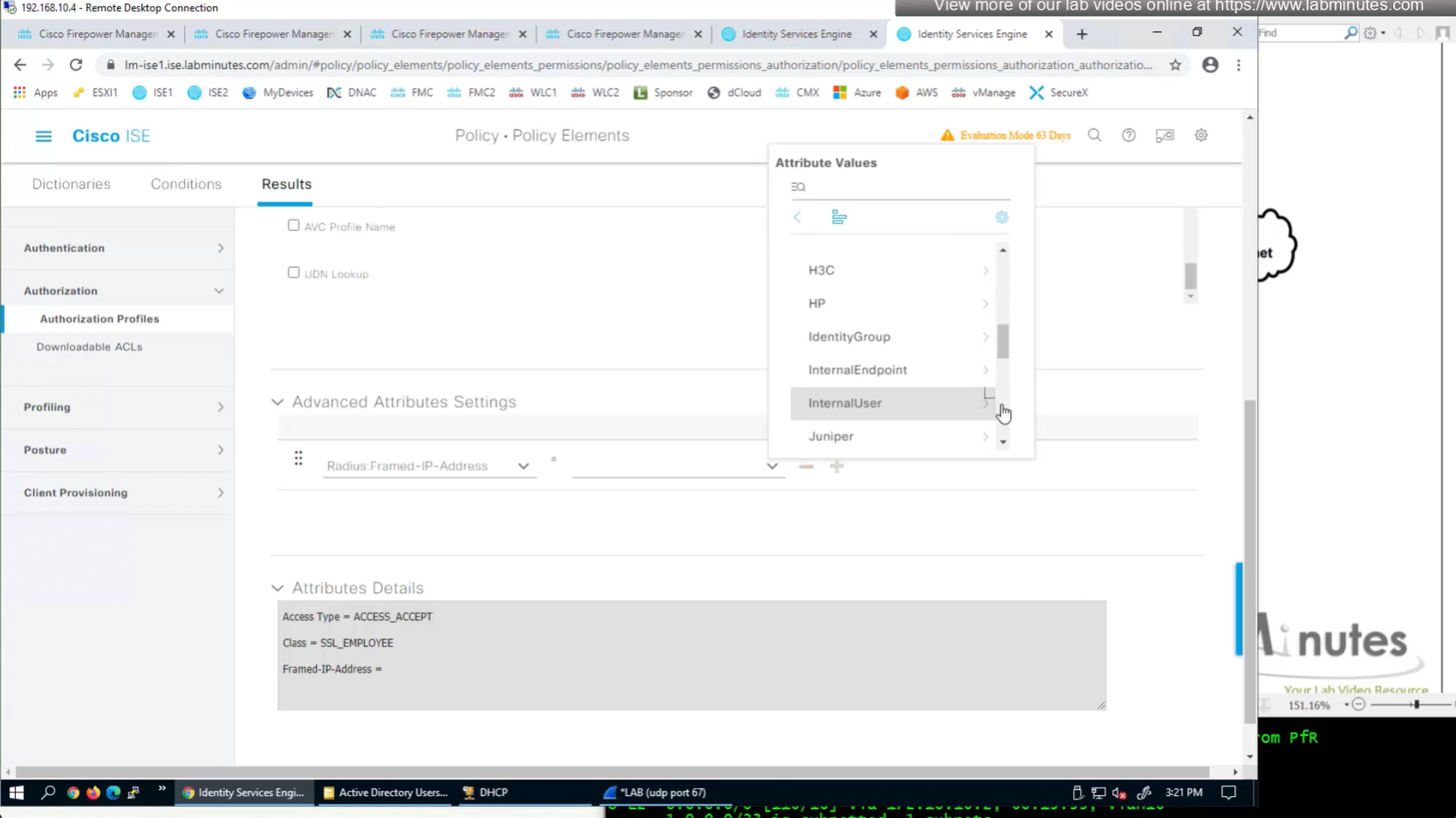

IP address assignment can also be performed through ISE RADIUS server

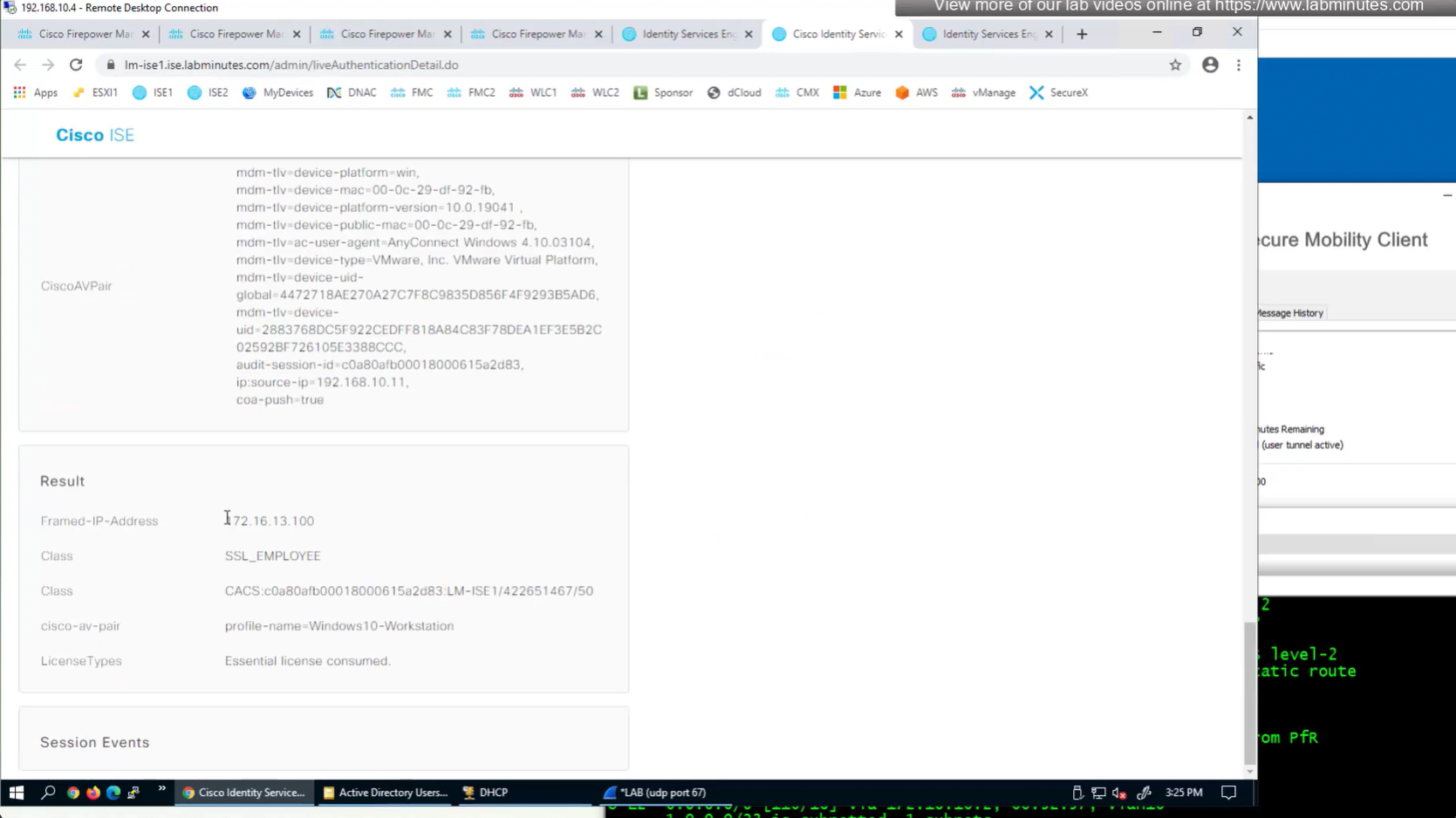

Before we only assigned class , group policy via ISE RADIUS but this time it is IP address

and this IP assigned by ISE is static and never changes and also AAA server takes precedence over DHCP and local IP address Pool

First scenario is when user is locally in ISE
Second scenario is when user is in AD

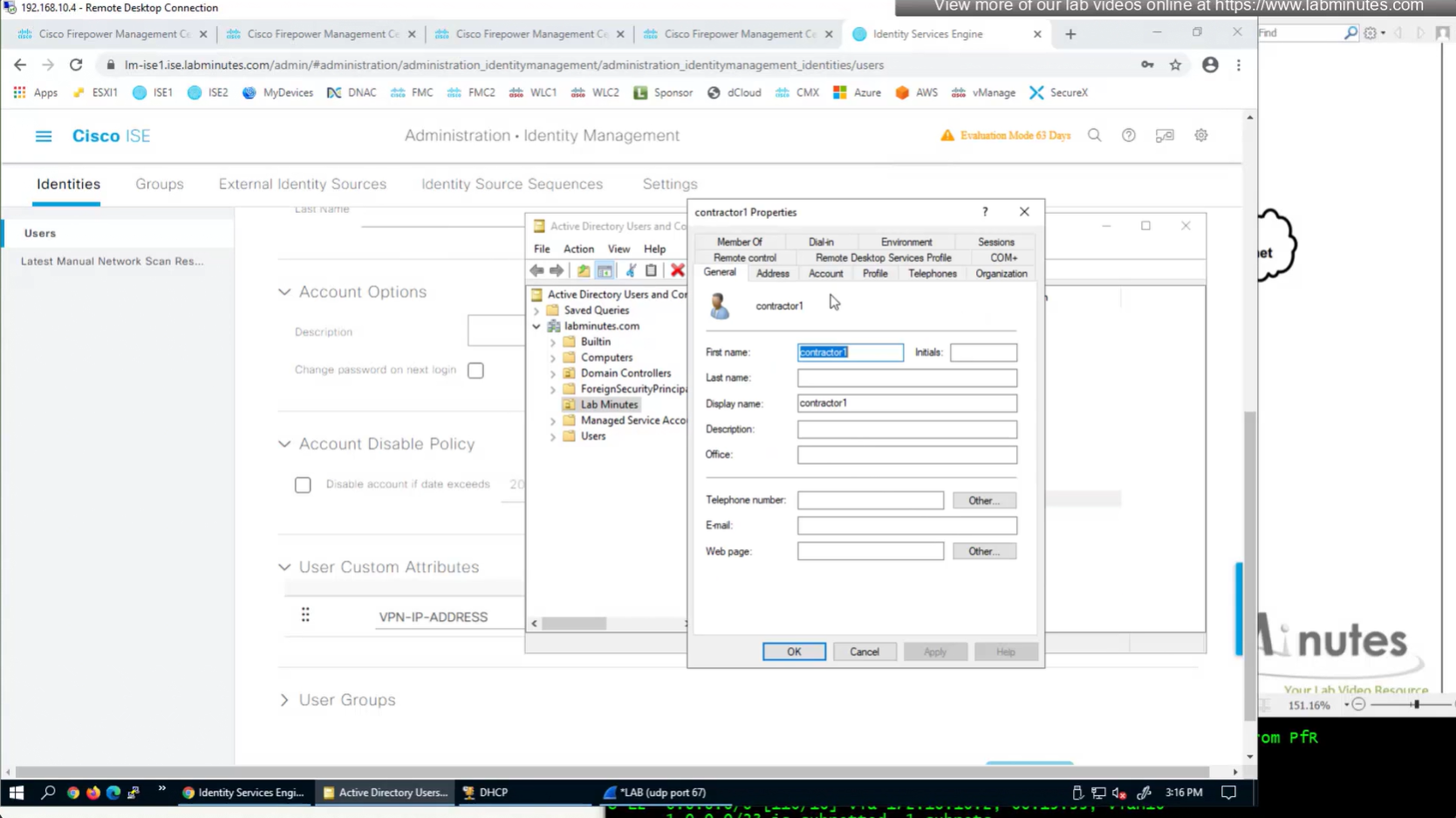

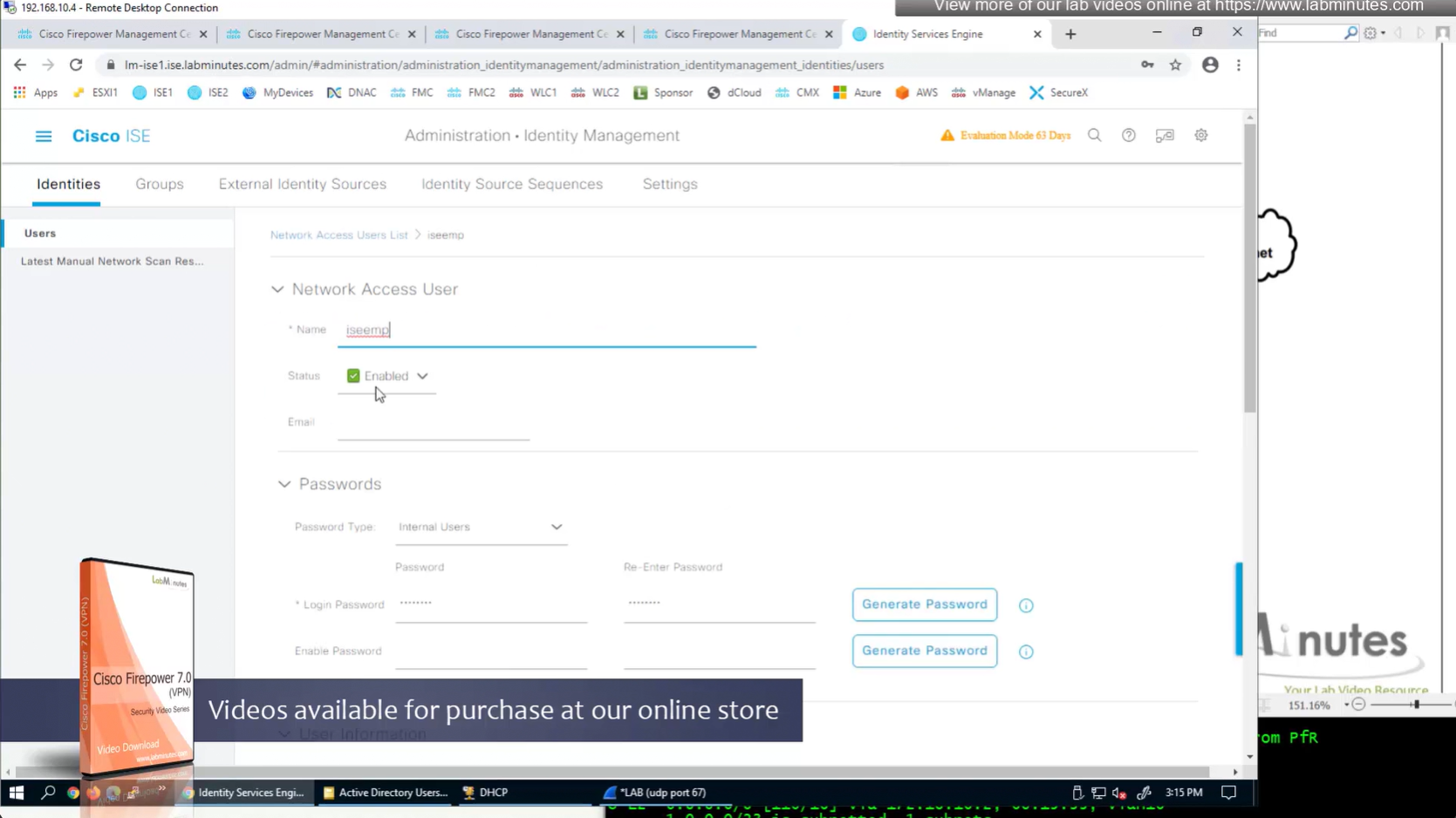

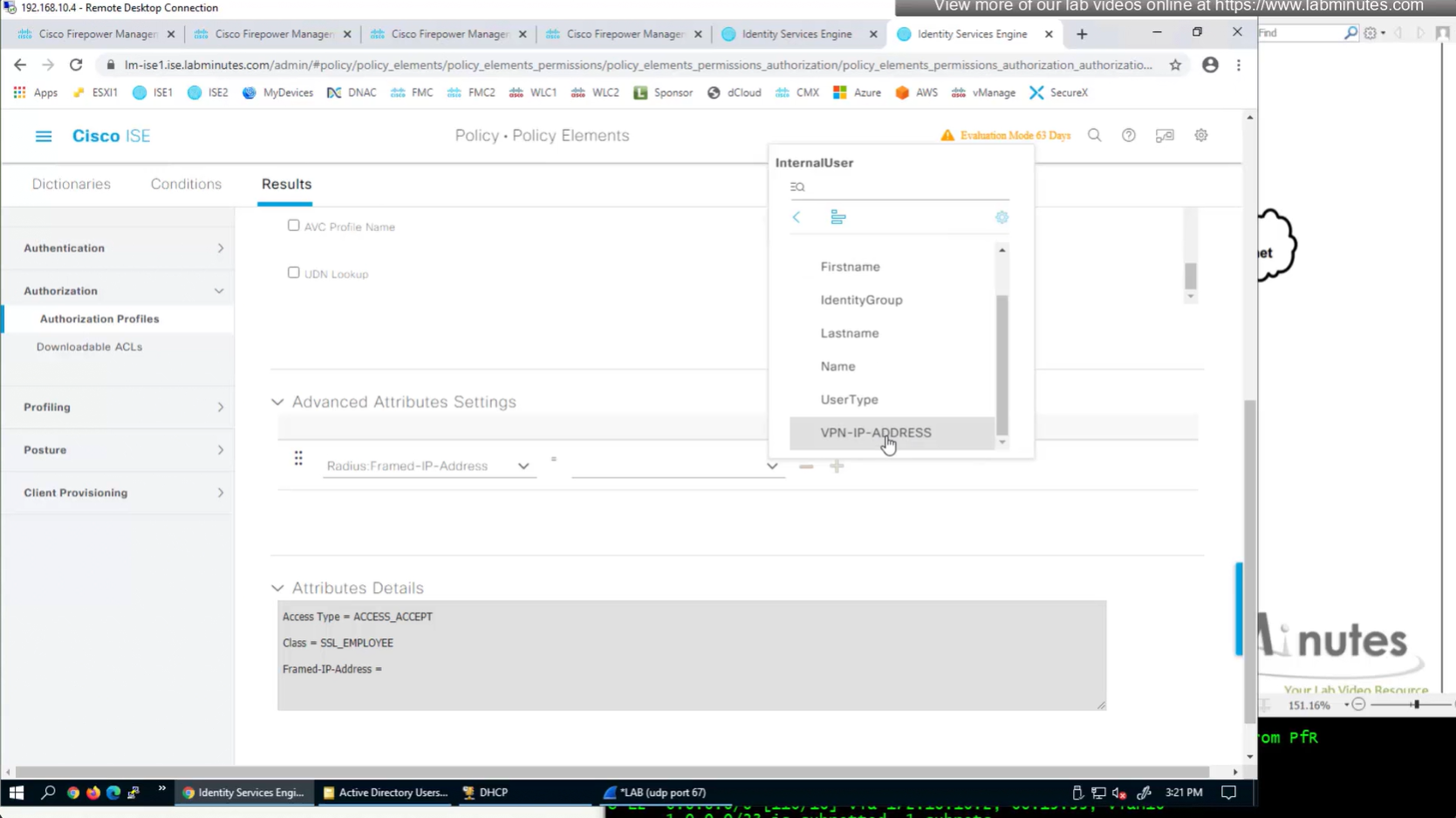

ISE can store user IP in the form of custom user attribute

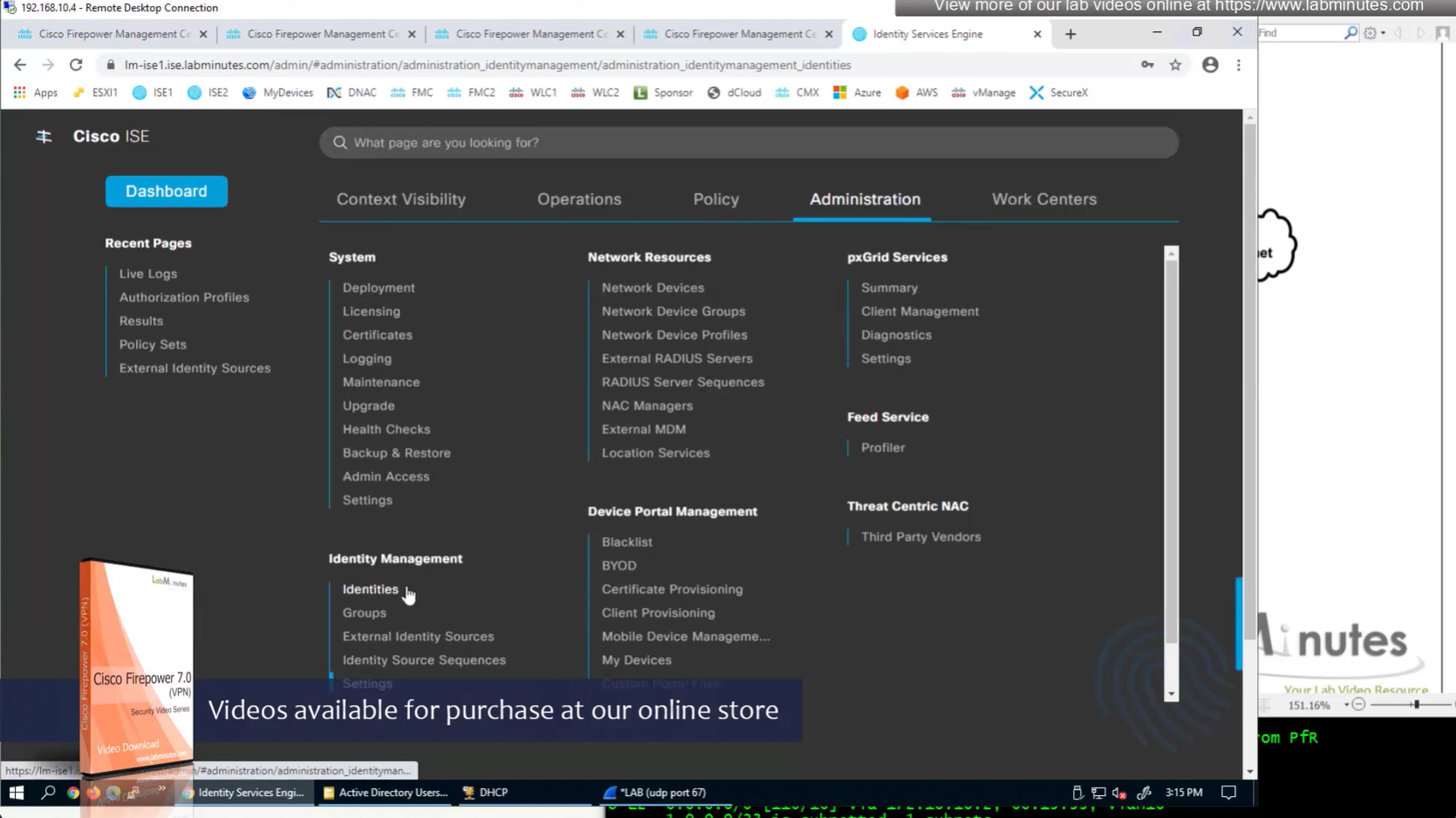

Administration > Identity Management > Settings > User Custom Attributes

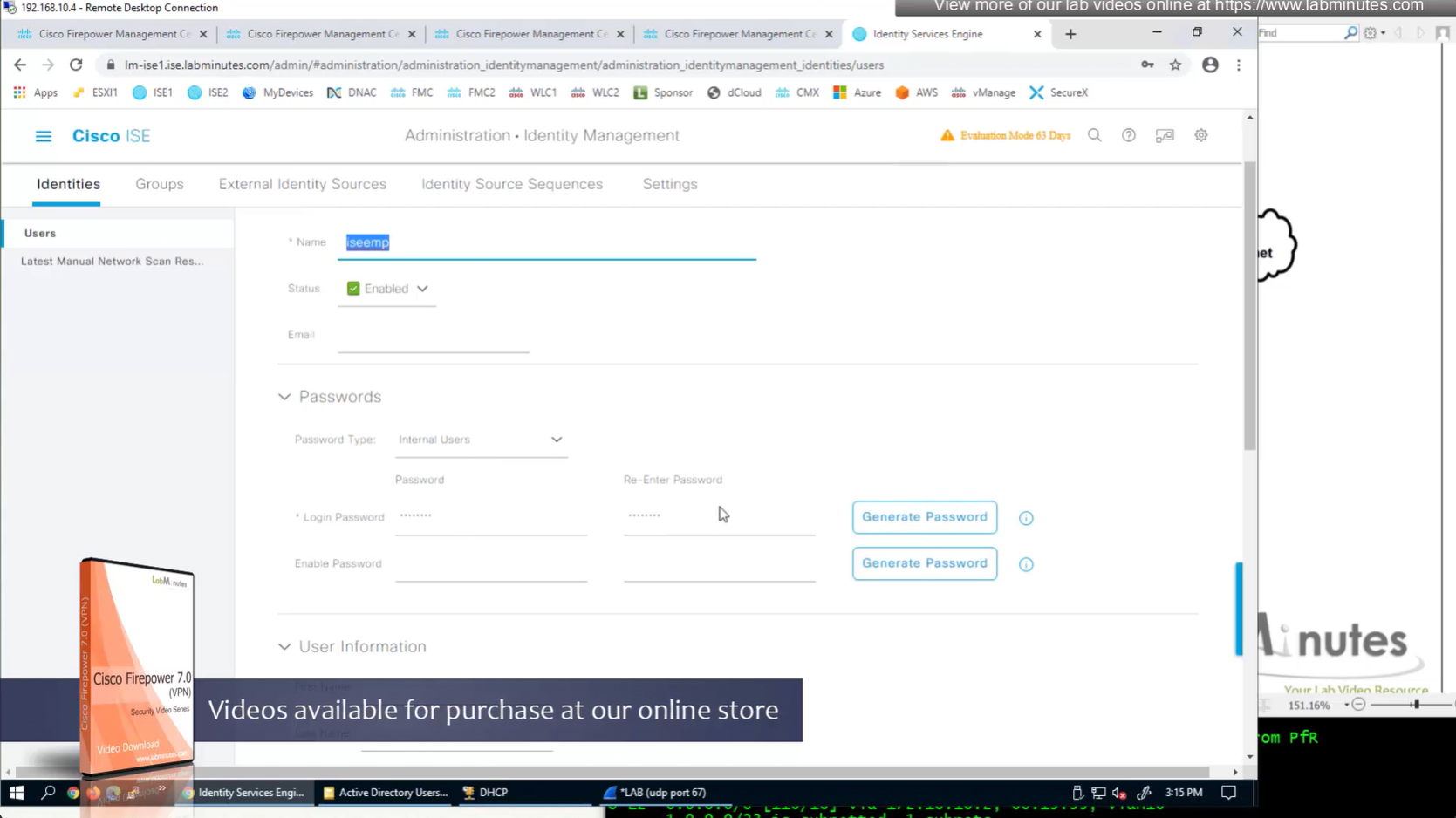

Identity Management > Identities

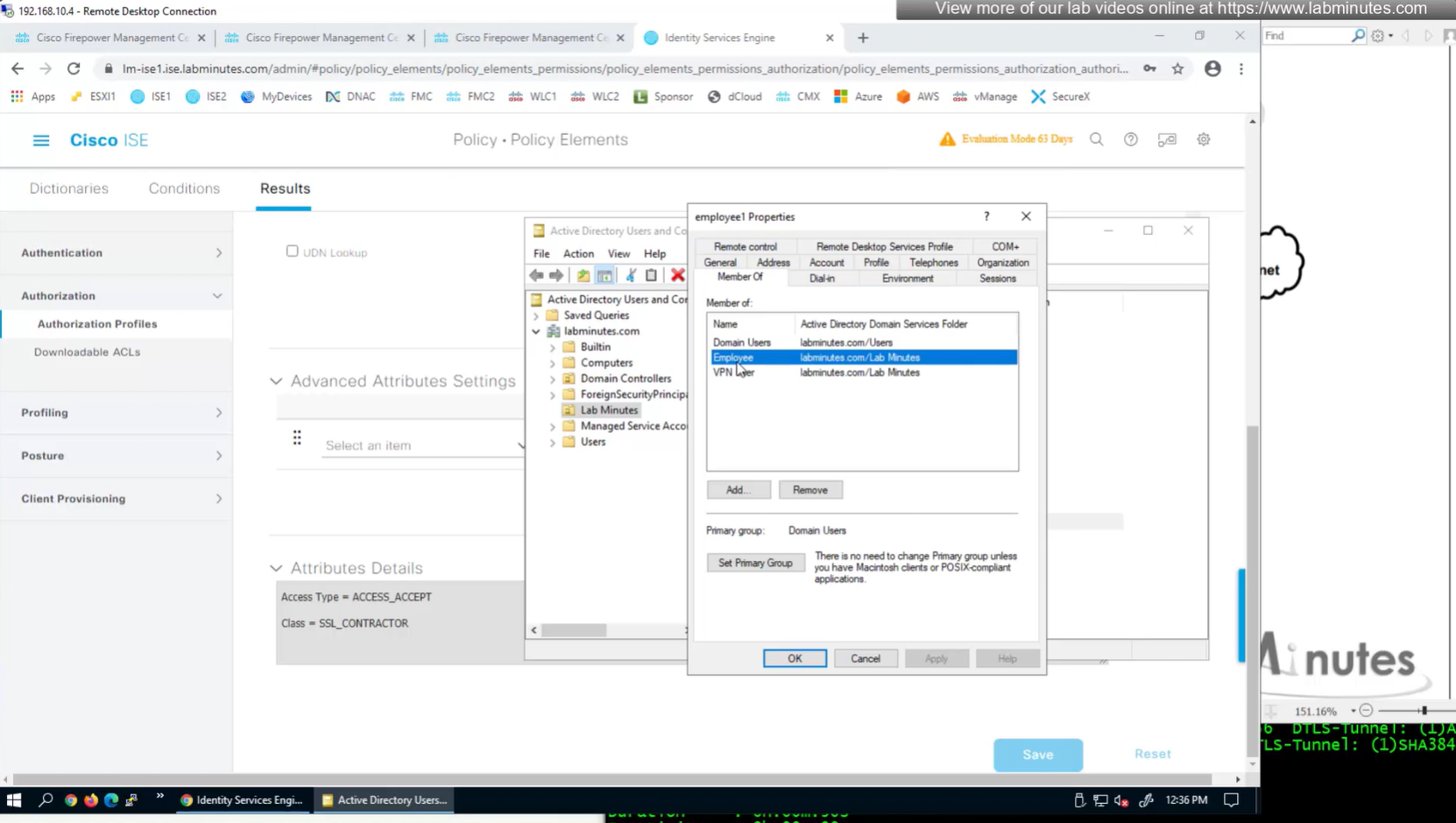

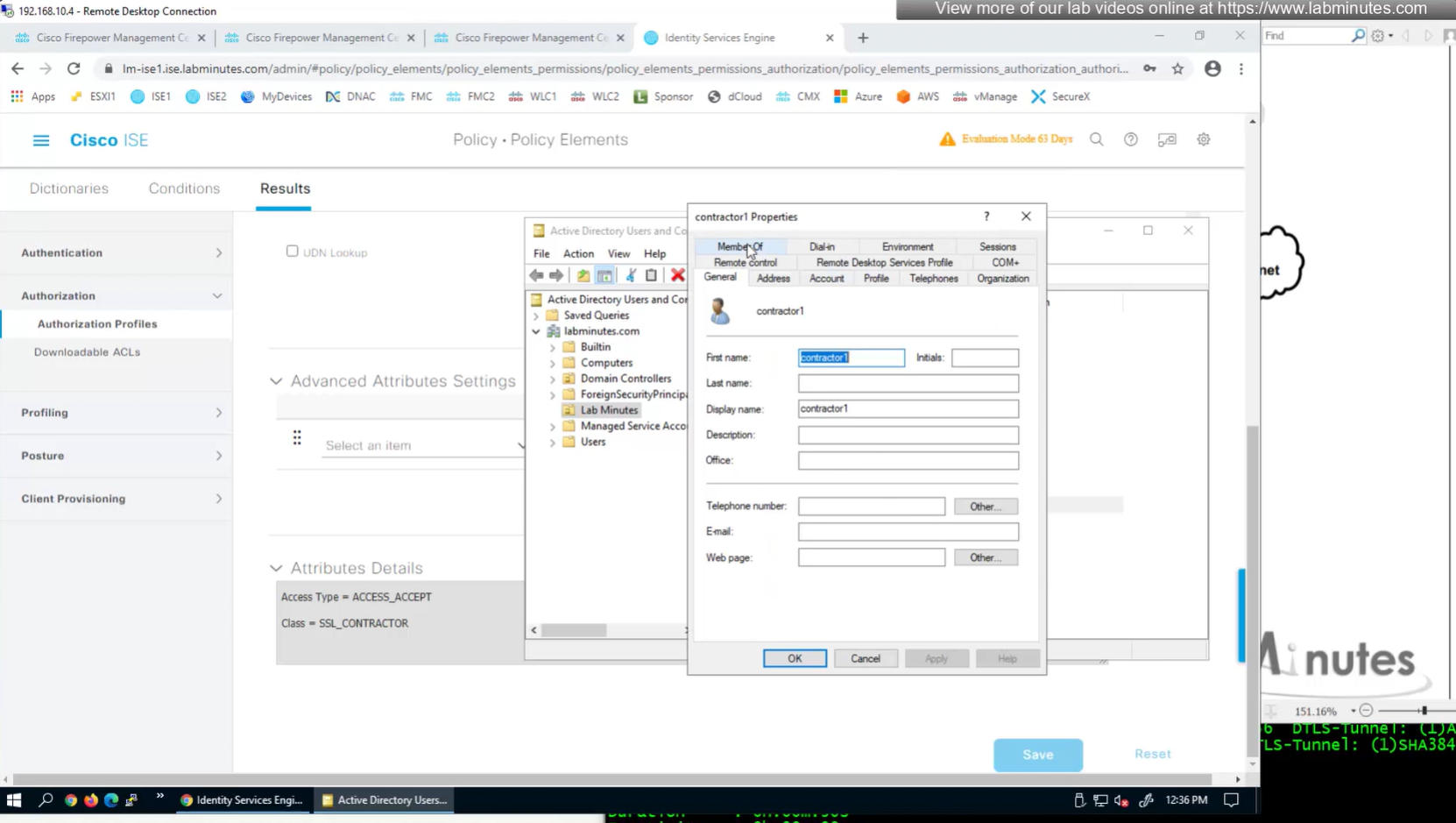

Similar attributes can be stored in AD

Dial-in tab

Technically we could use any of these AD fields on user account for IP address

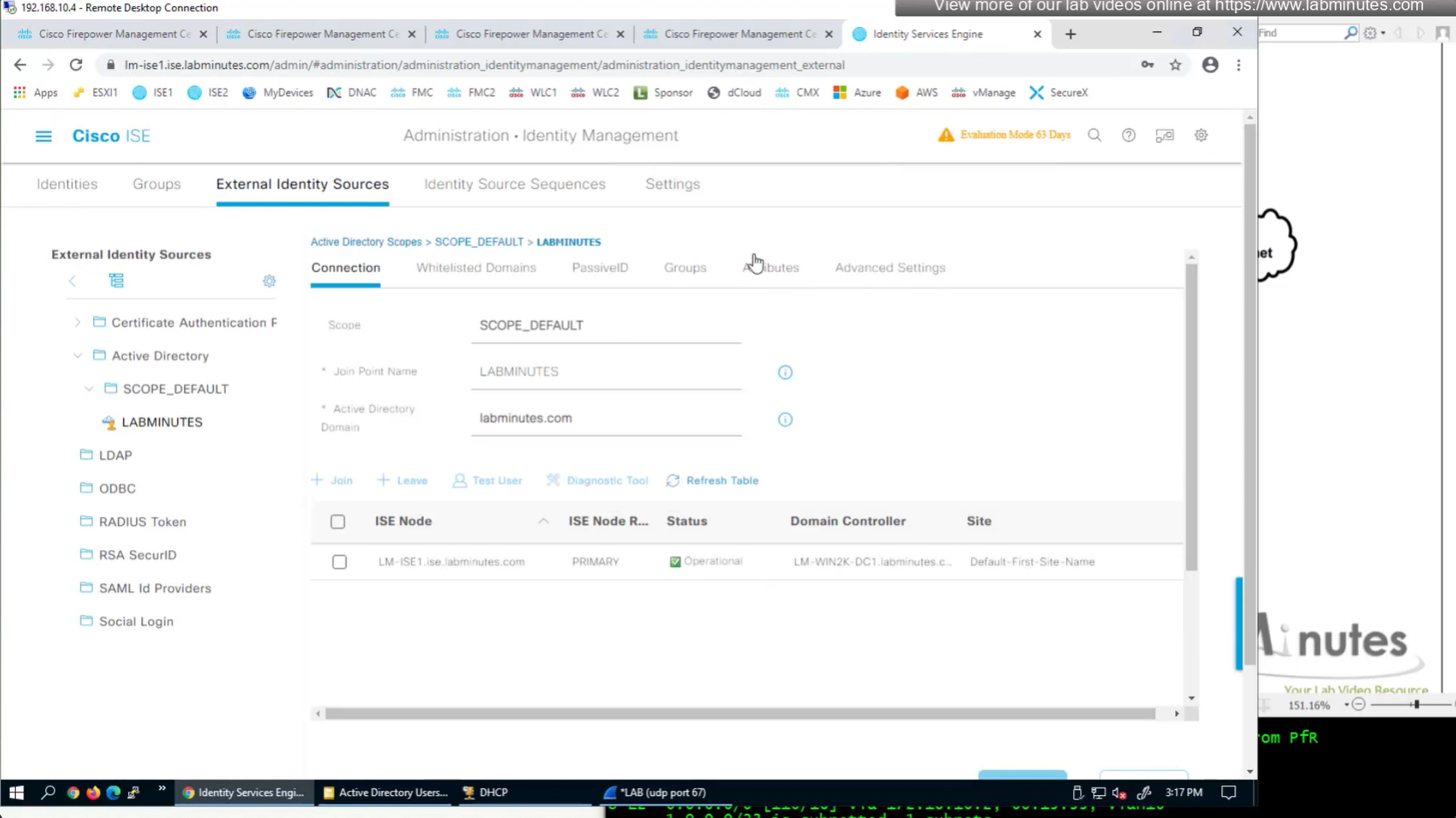

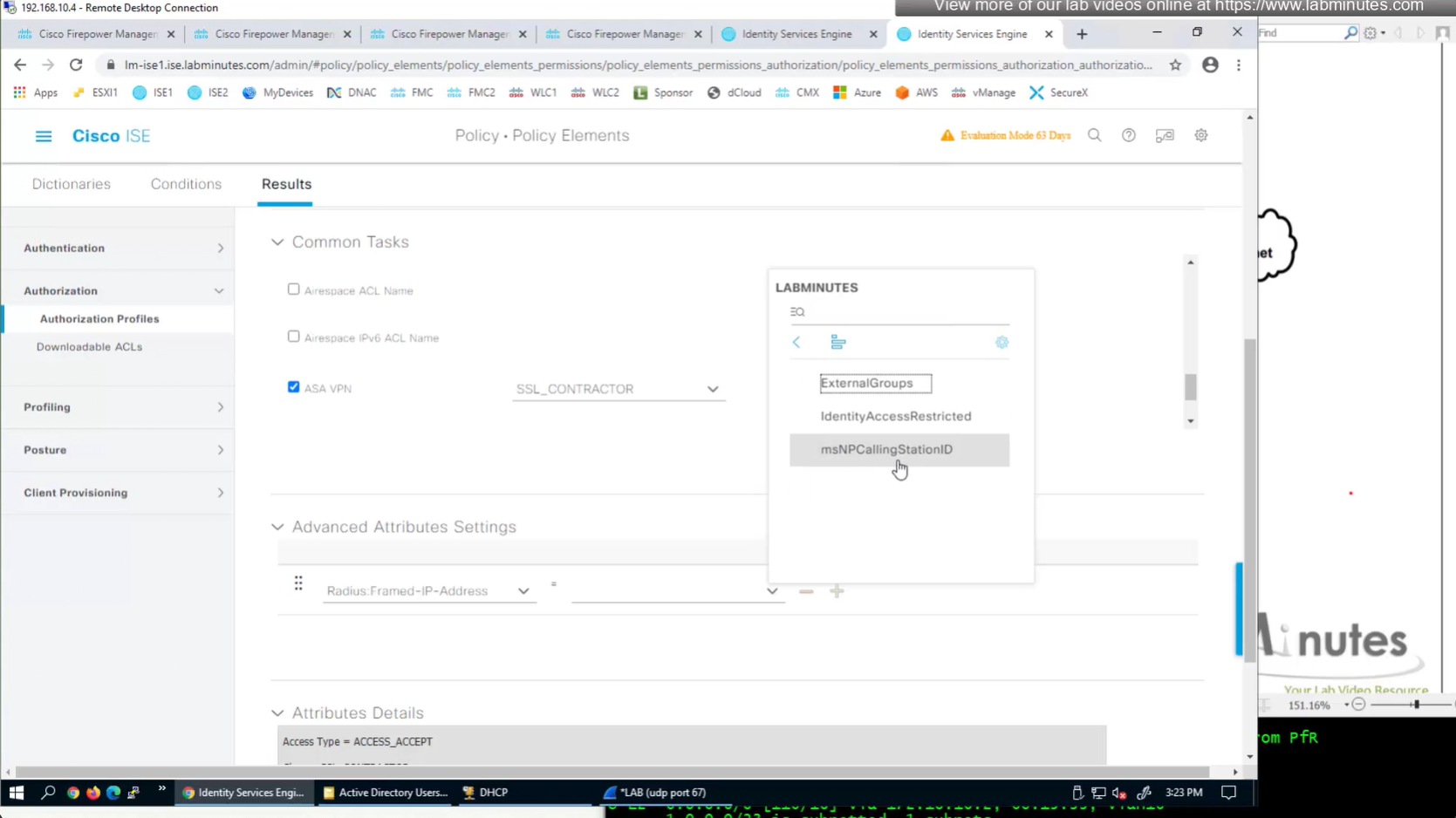

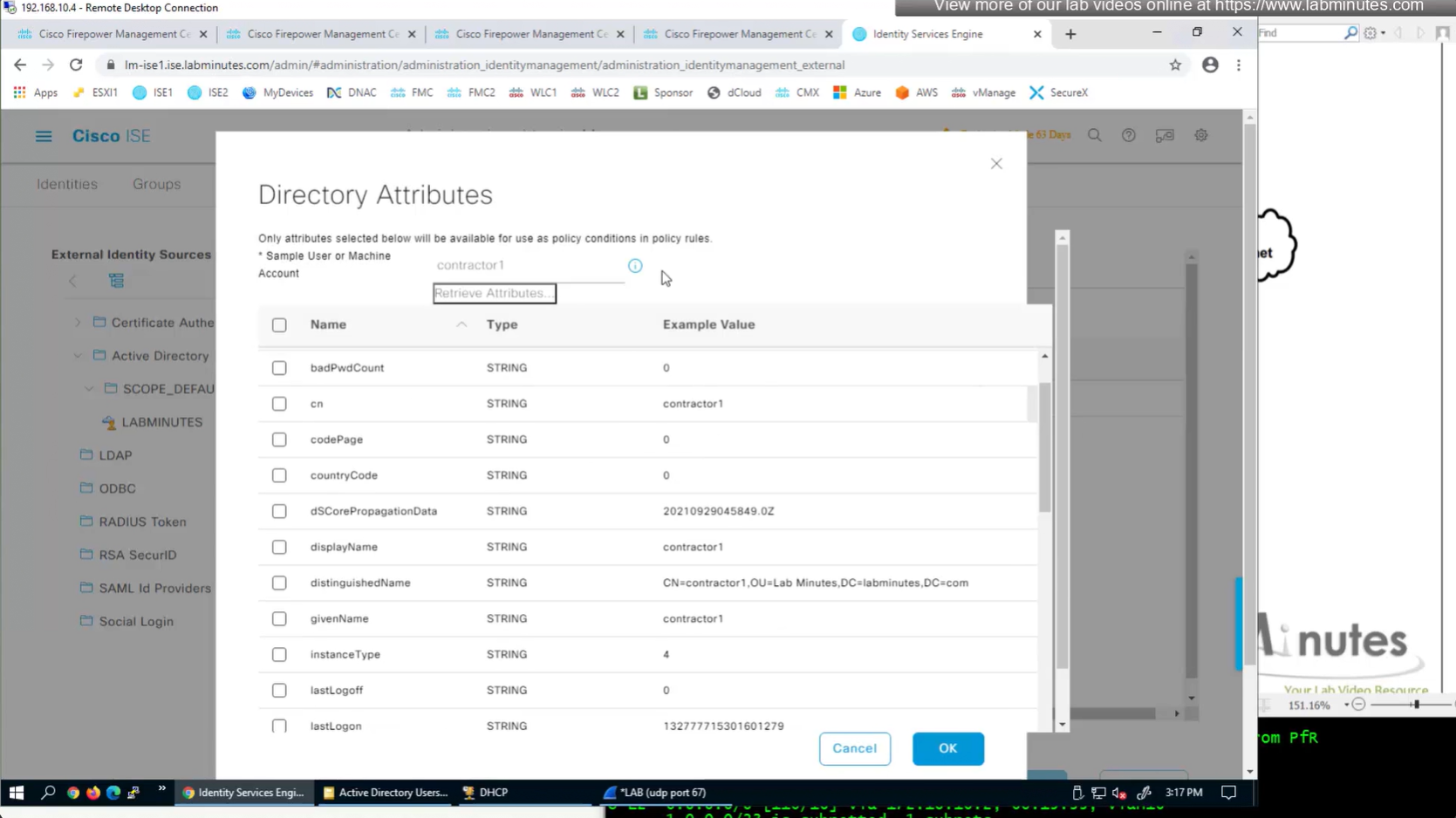

AD join point > Attributes

There are 3 methods of assigning IP address to clients

1. RADIUS
2. DHCP
3. IP address pools

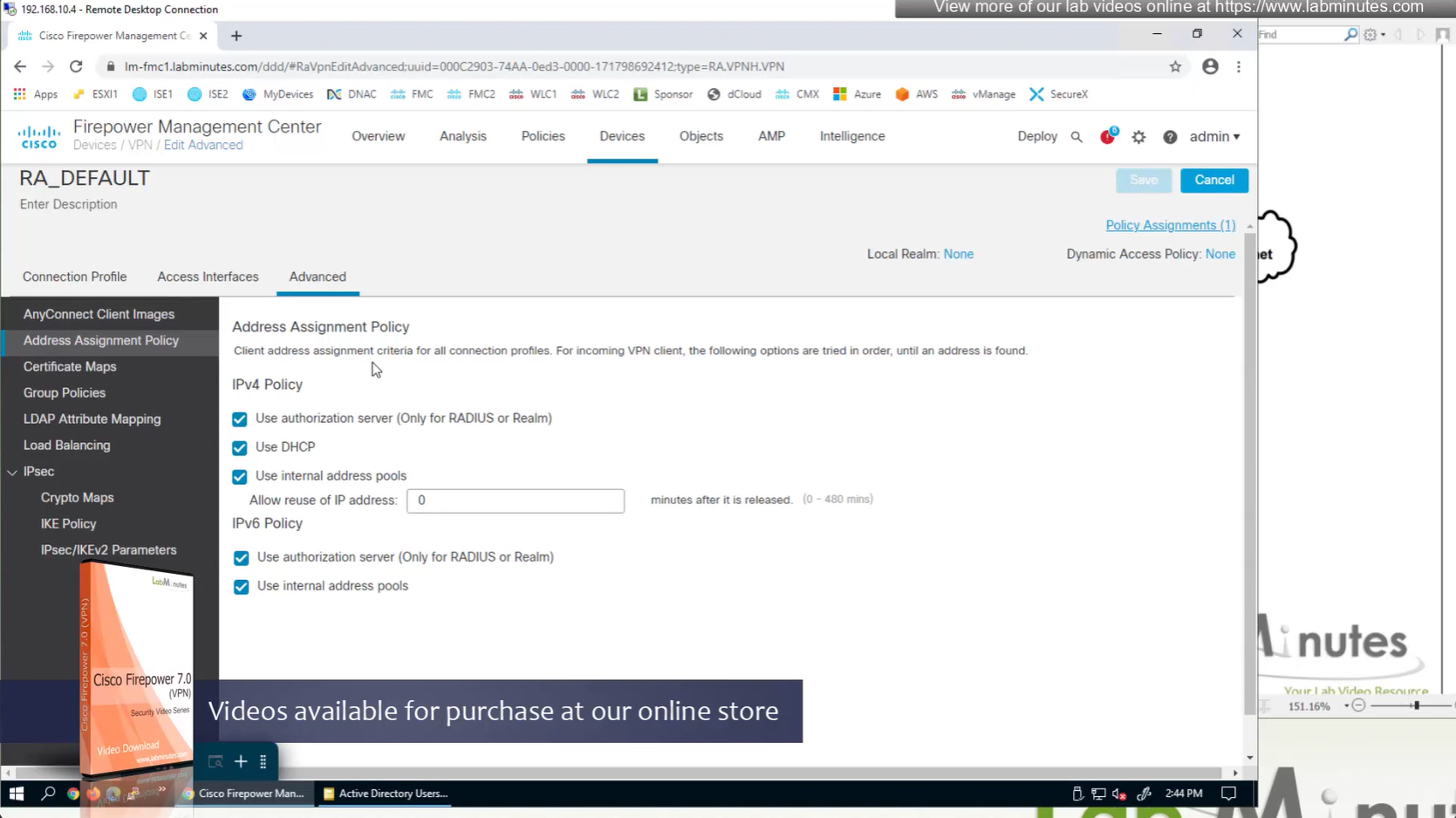

Remote access policy’s Advanced settings

If all of the above are configured at the same time then RADIUS takes precedence and then DHCP and then IP address pools

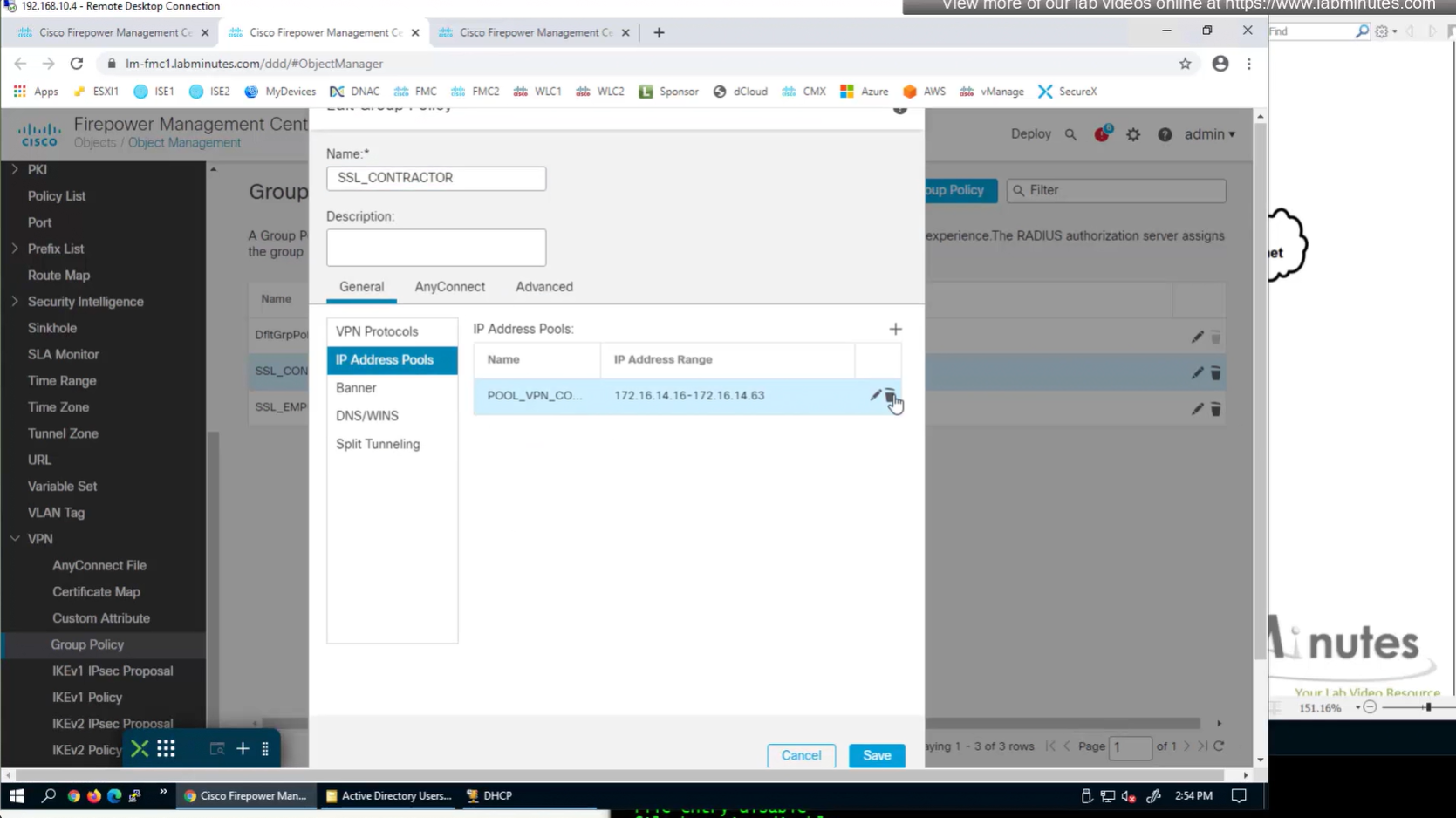

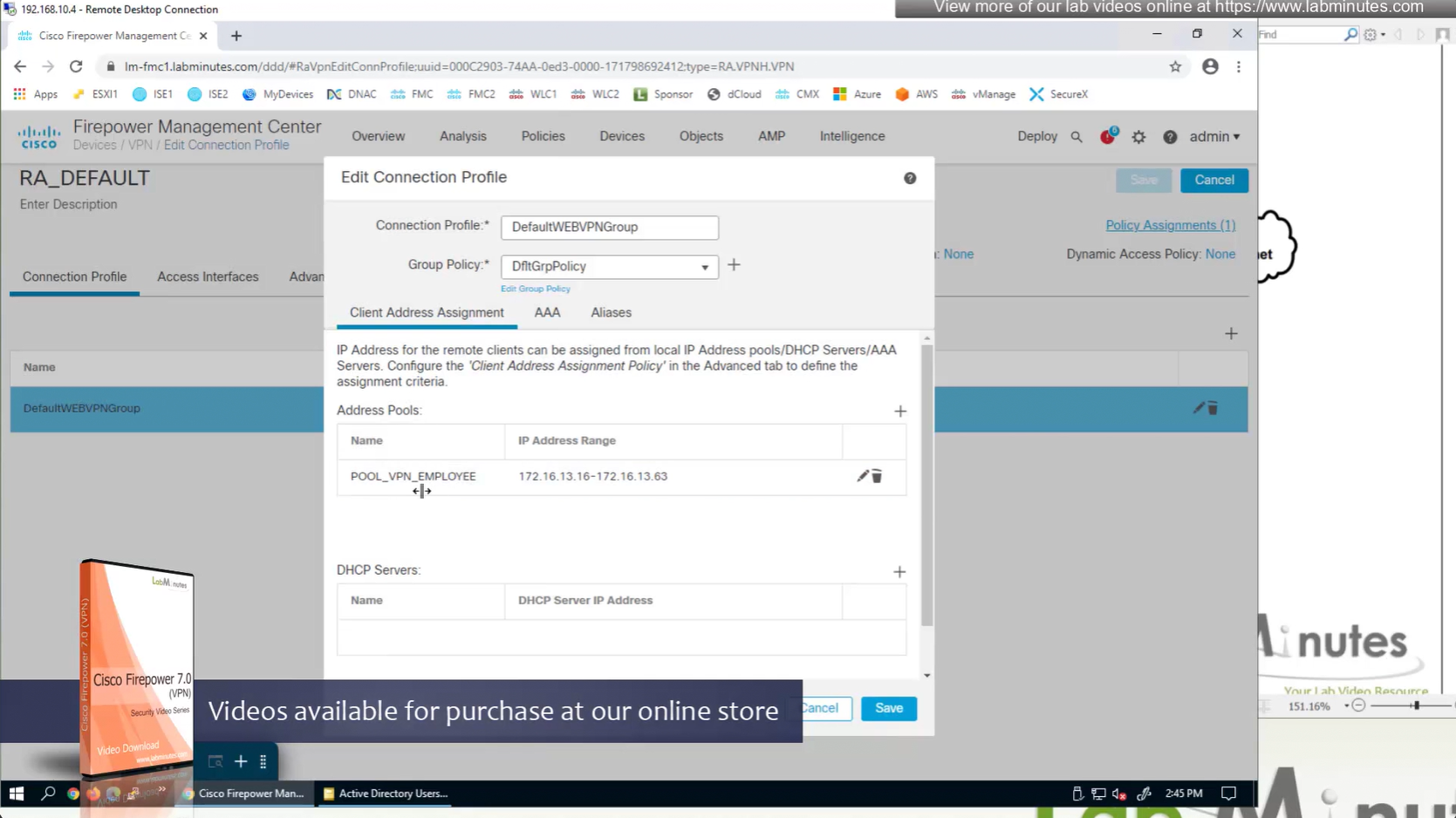

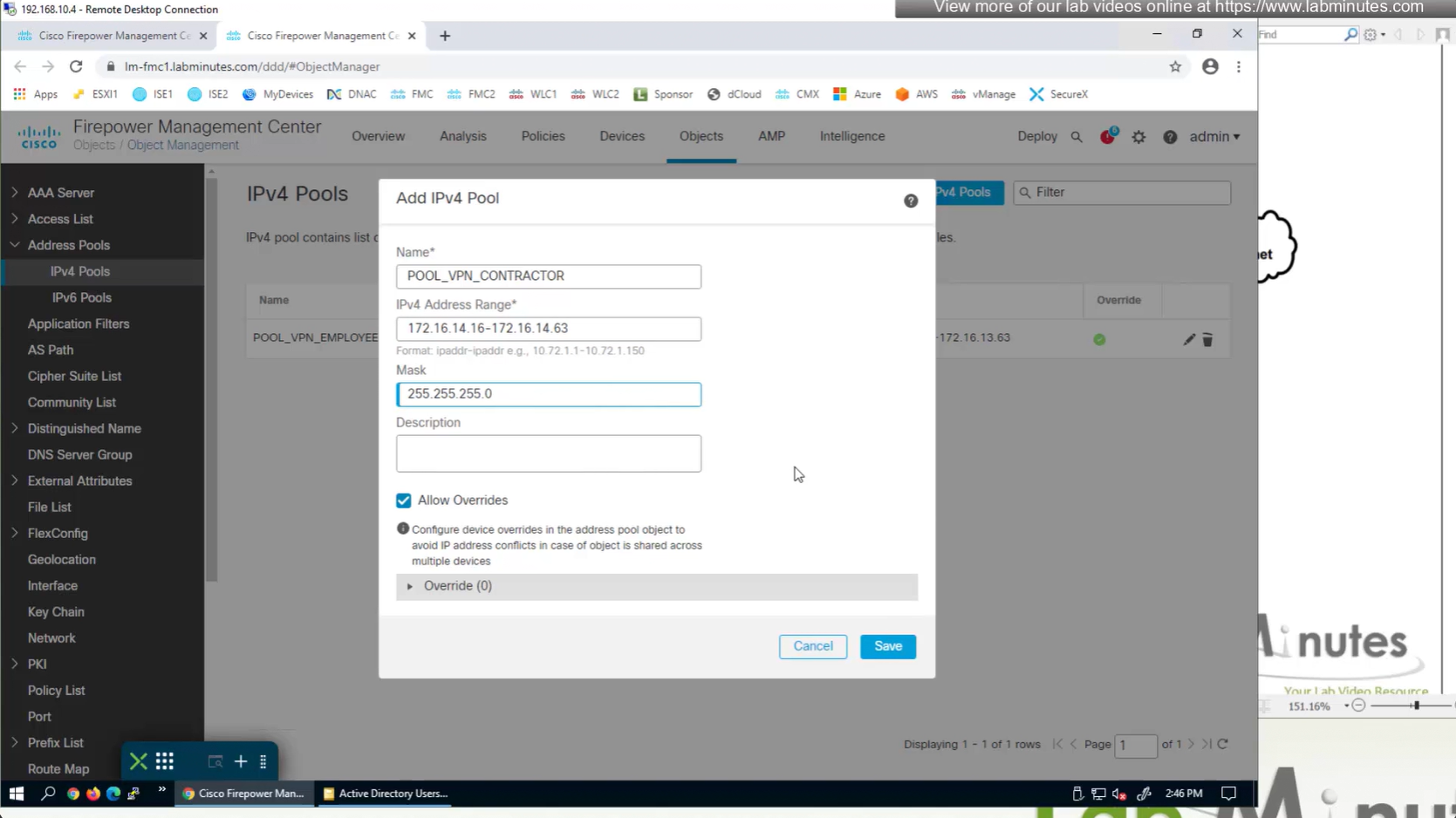

IP address pool settings inside Group policy, rather than connection profile

It is also possible to have IP address pool in group policy if you want to have same connection profile but have different IP address assignment per group policy

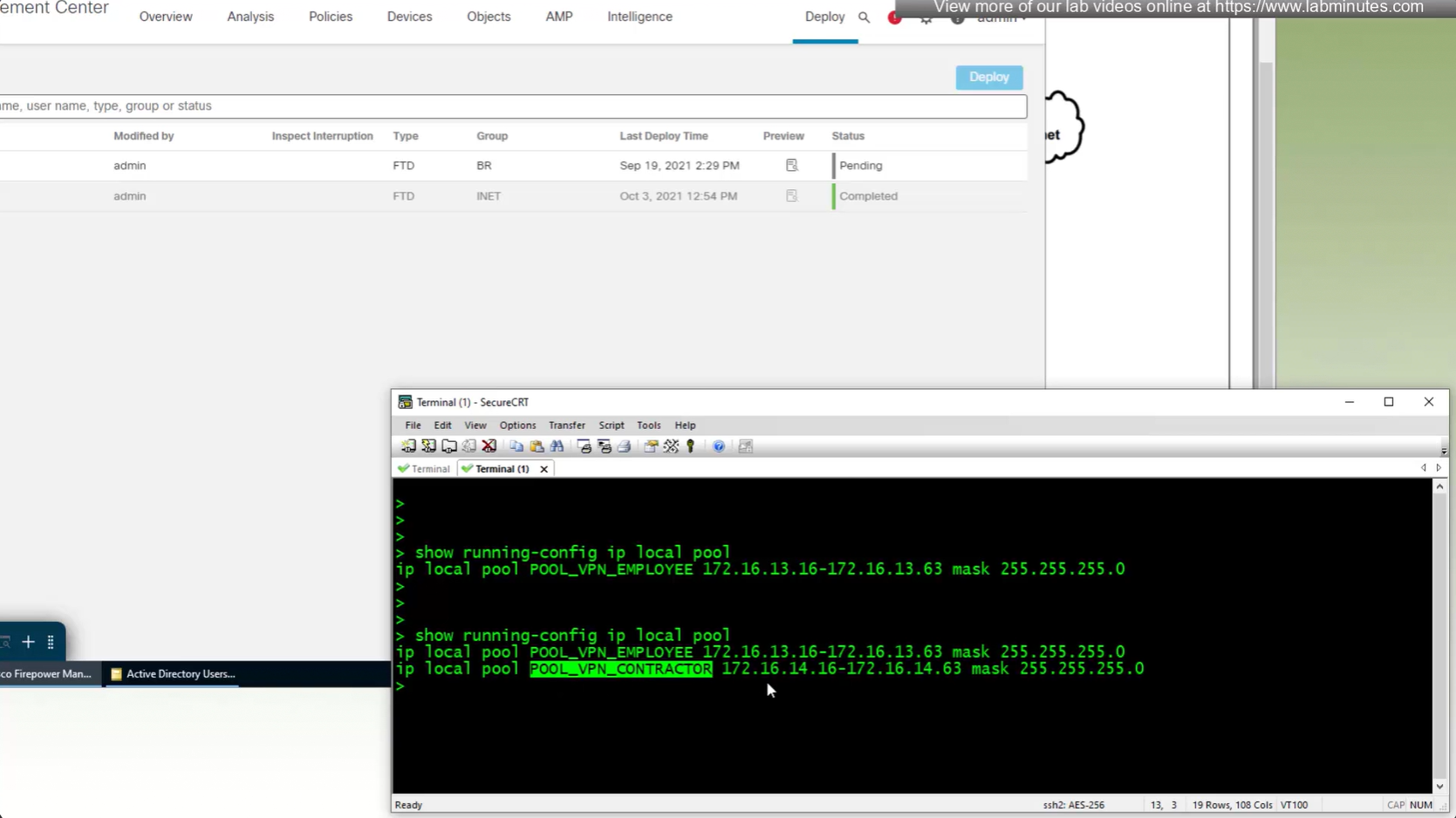

show running-config ip local pool

Now we will remove this IP address pool for DHCP setup

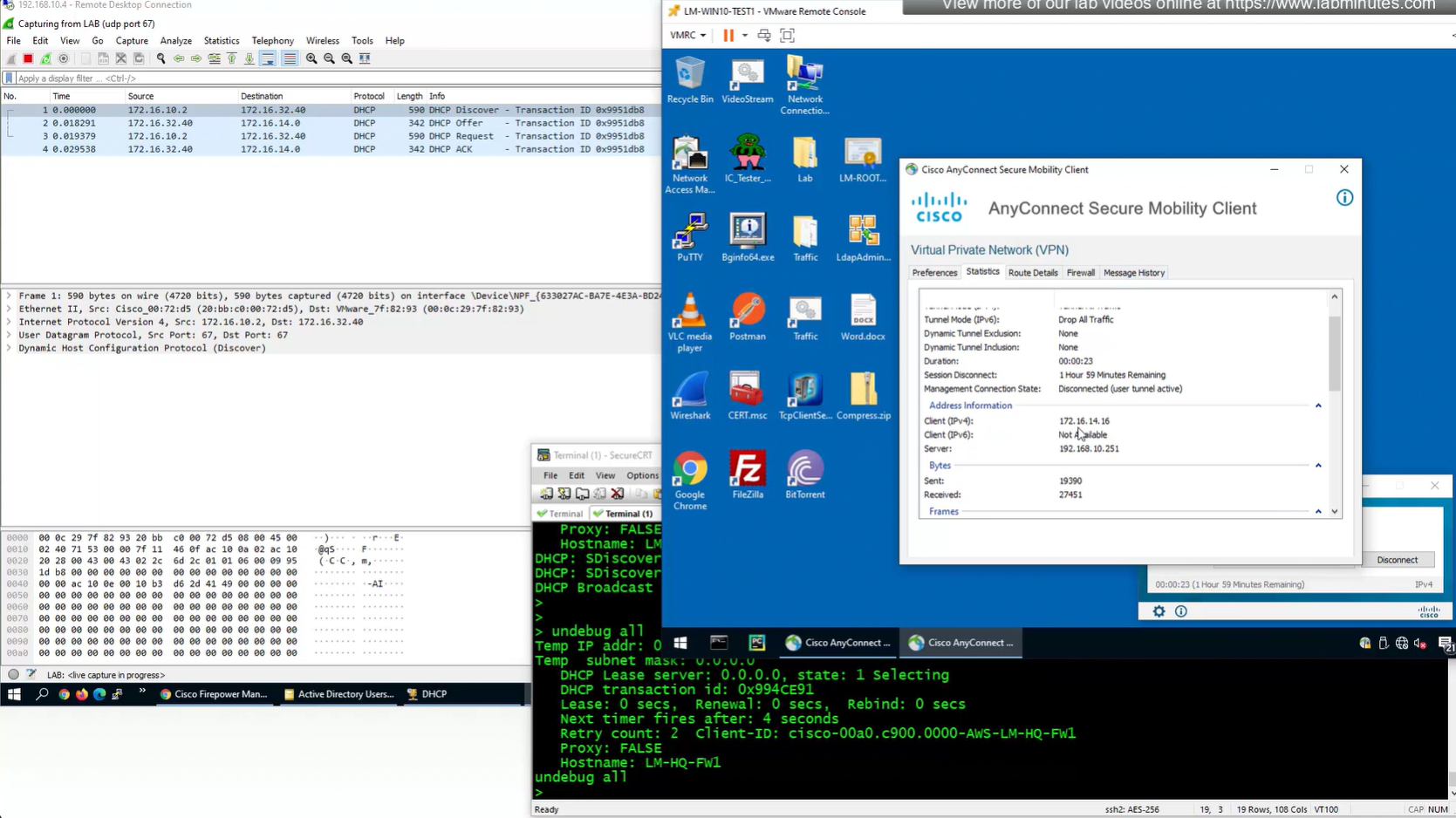

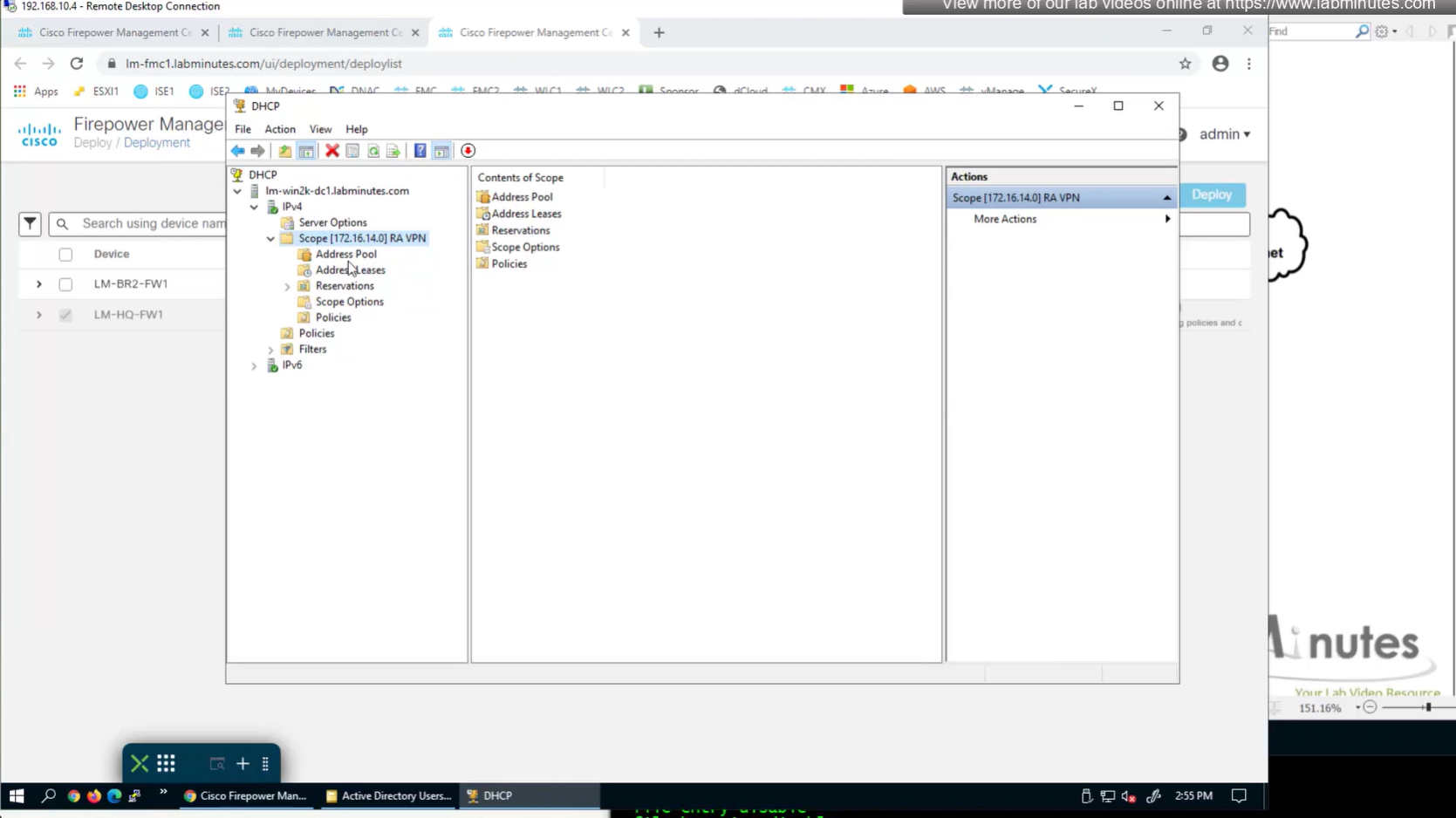

Firepower can use DHCP server for client IP address assignment

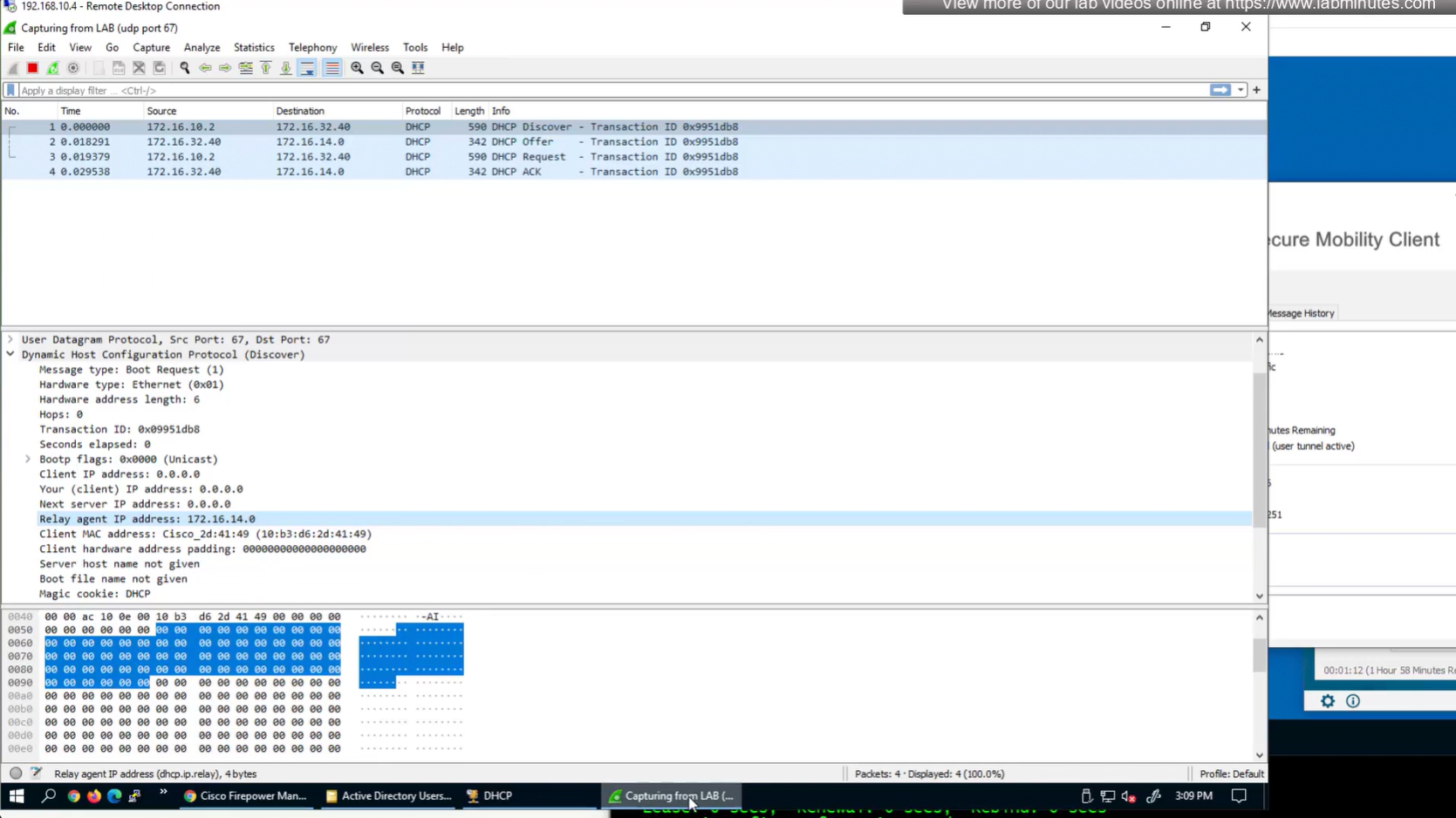

FTD can relay DHCP request from client to DHCP server

Add DHCP server

Now we need to edit the group policy

here we need to define the DHCP scope so when relaying FTD can indicate the IP address pool to DHCP server to select the address from

it looks a bit odd, because it is address of the subnet without its mask

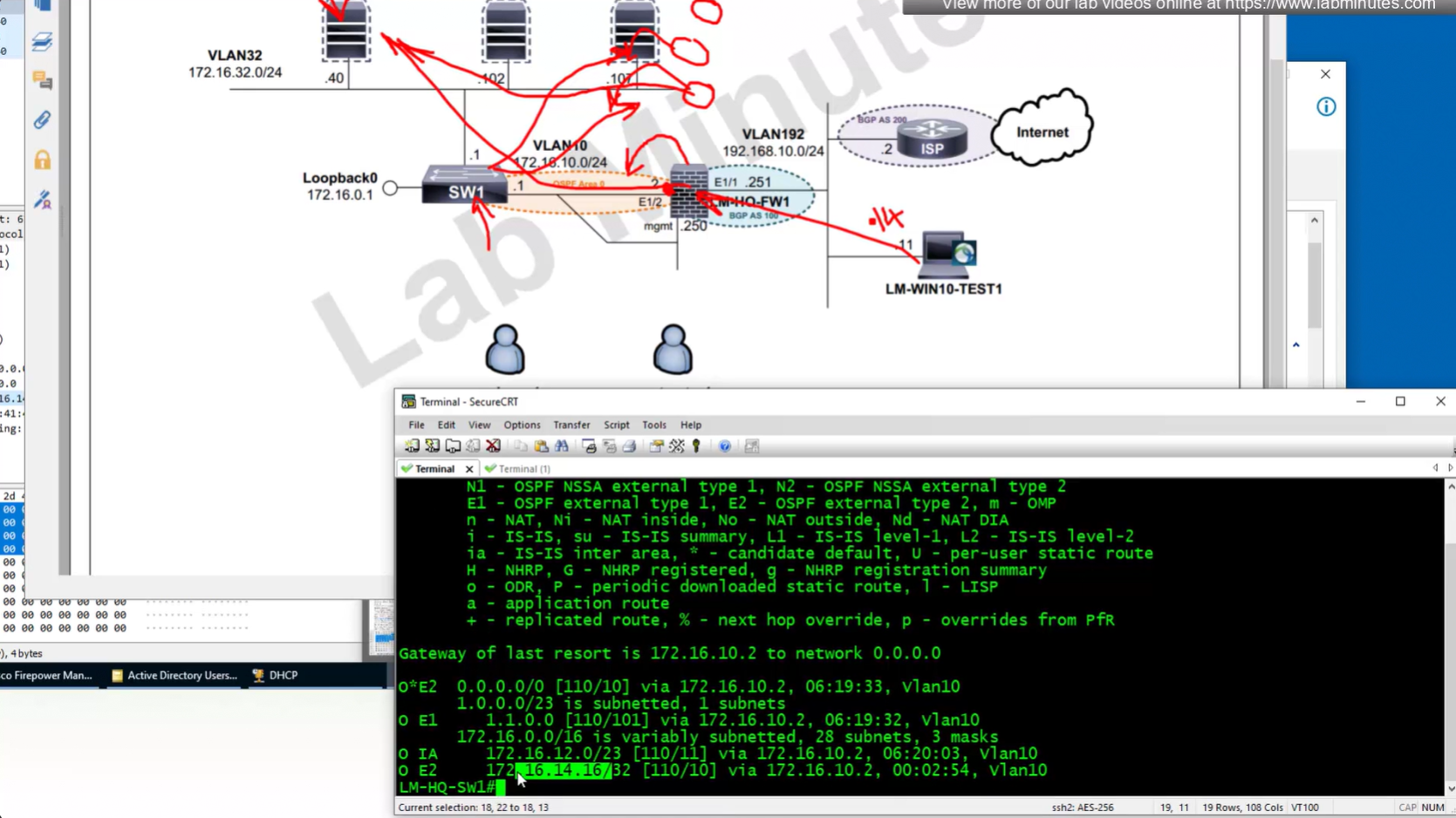

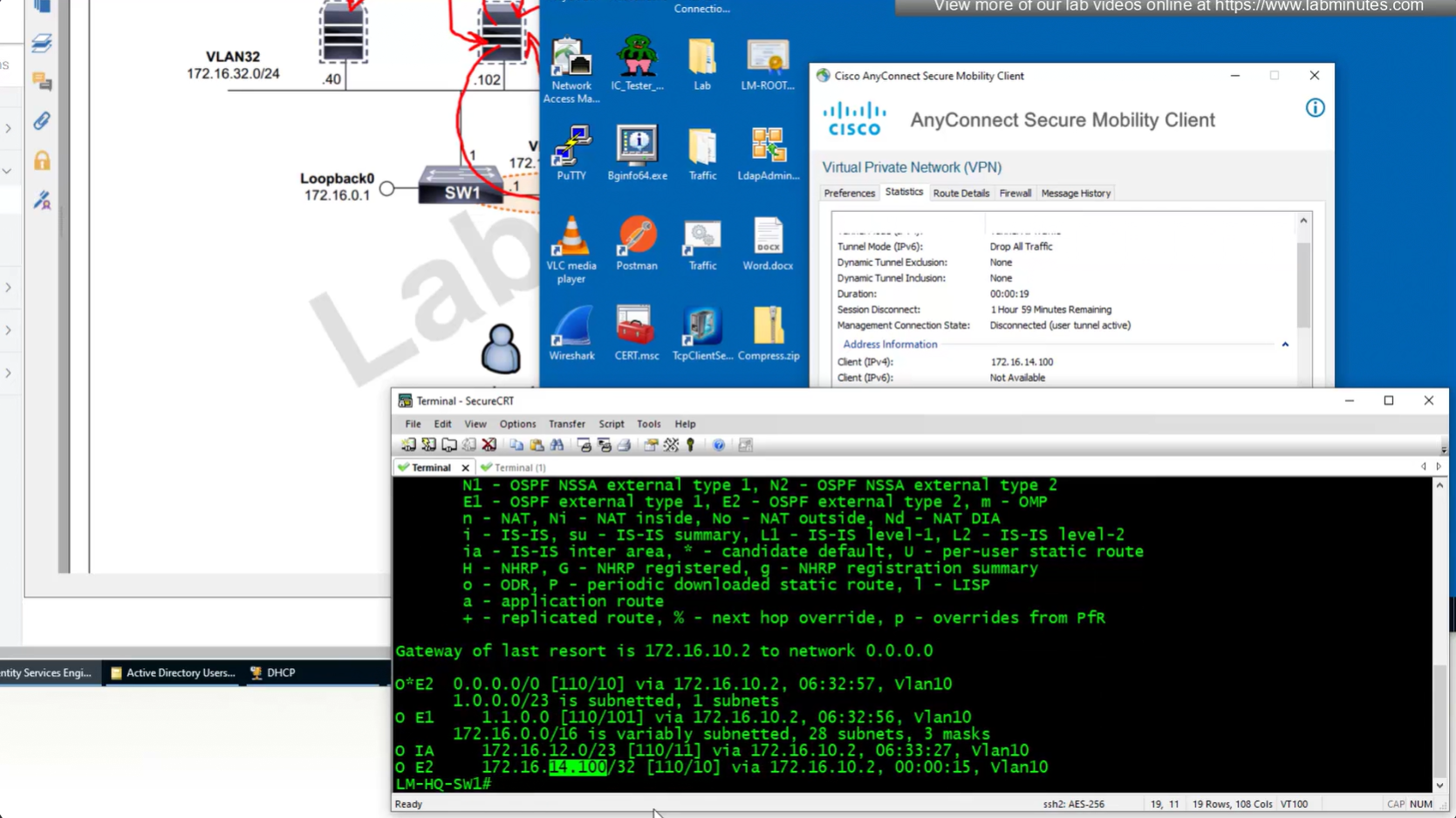

Now for scenario if we have multiple firewalls with same IP address pool, since connected clients show up as “connected” V /32 routes, how would OSPF or internal network know to route back to right firewall? redistribute those connected /32 V routes into OSPF

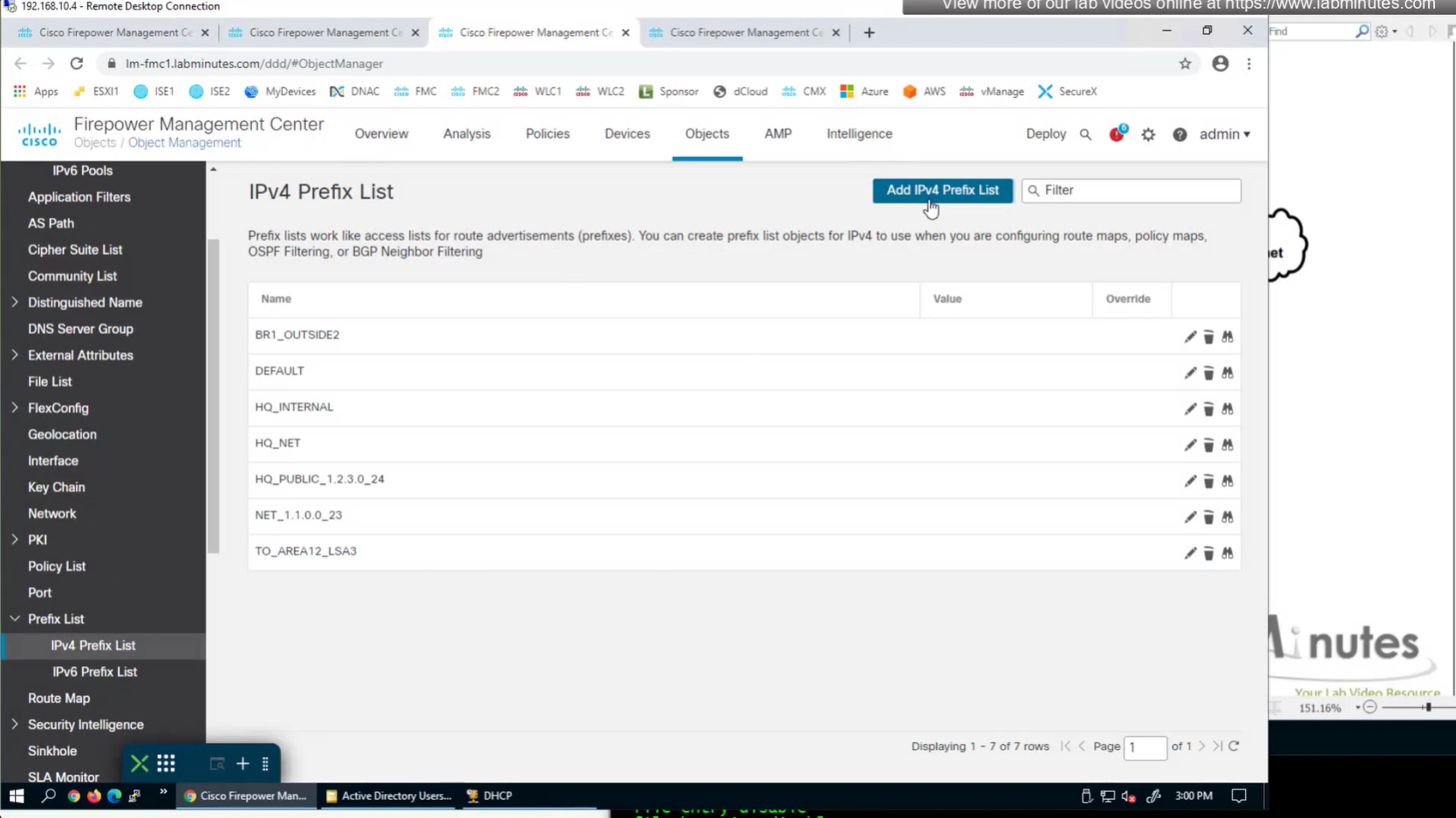

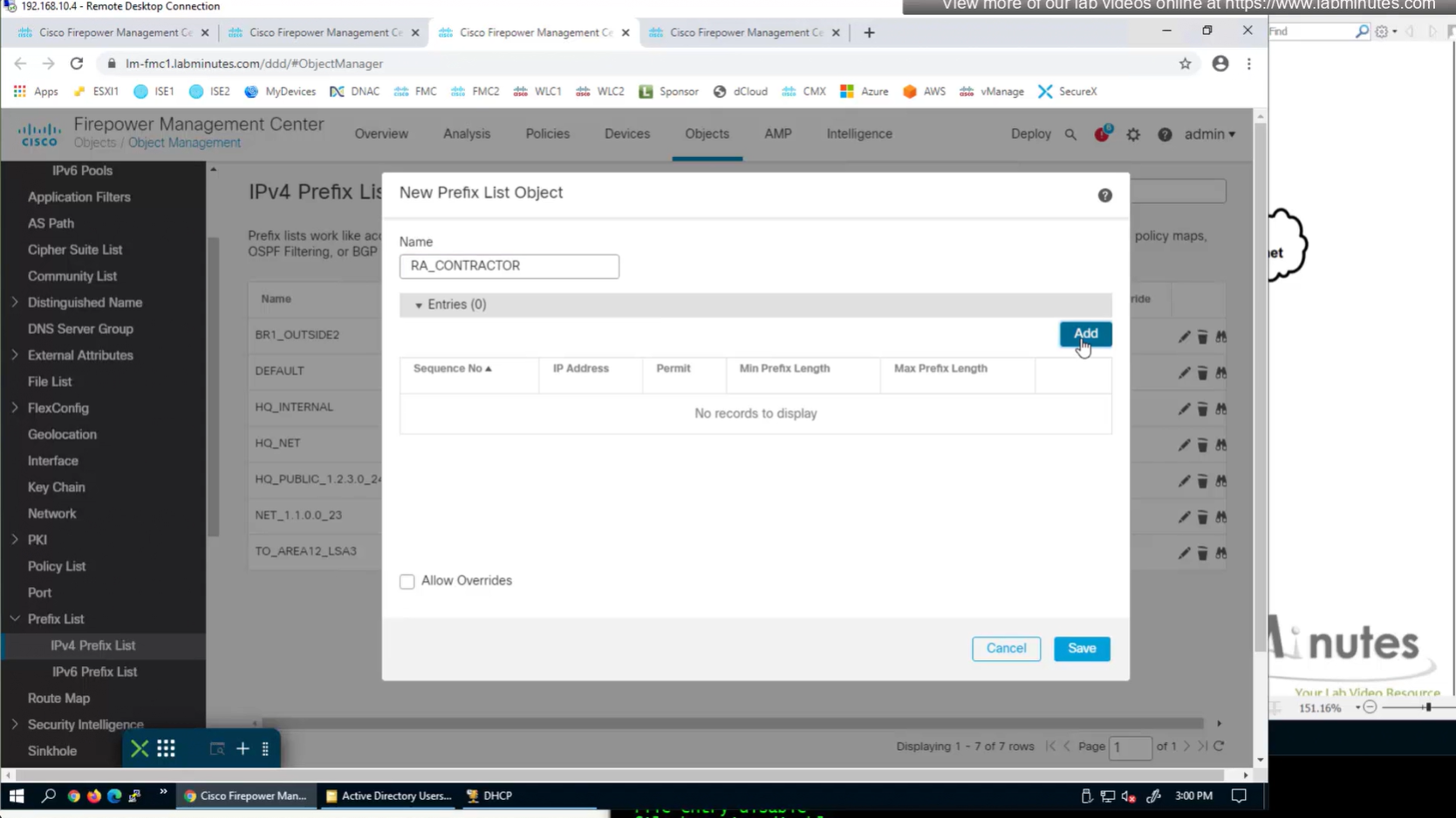

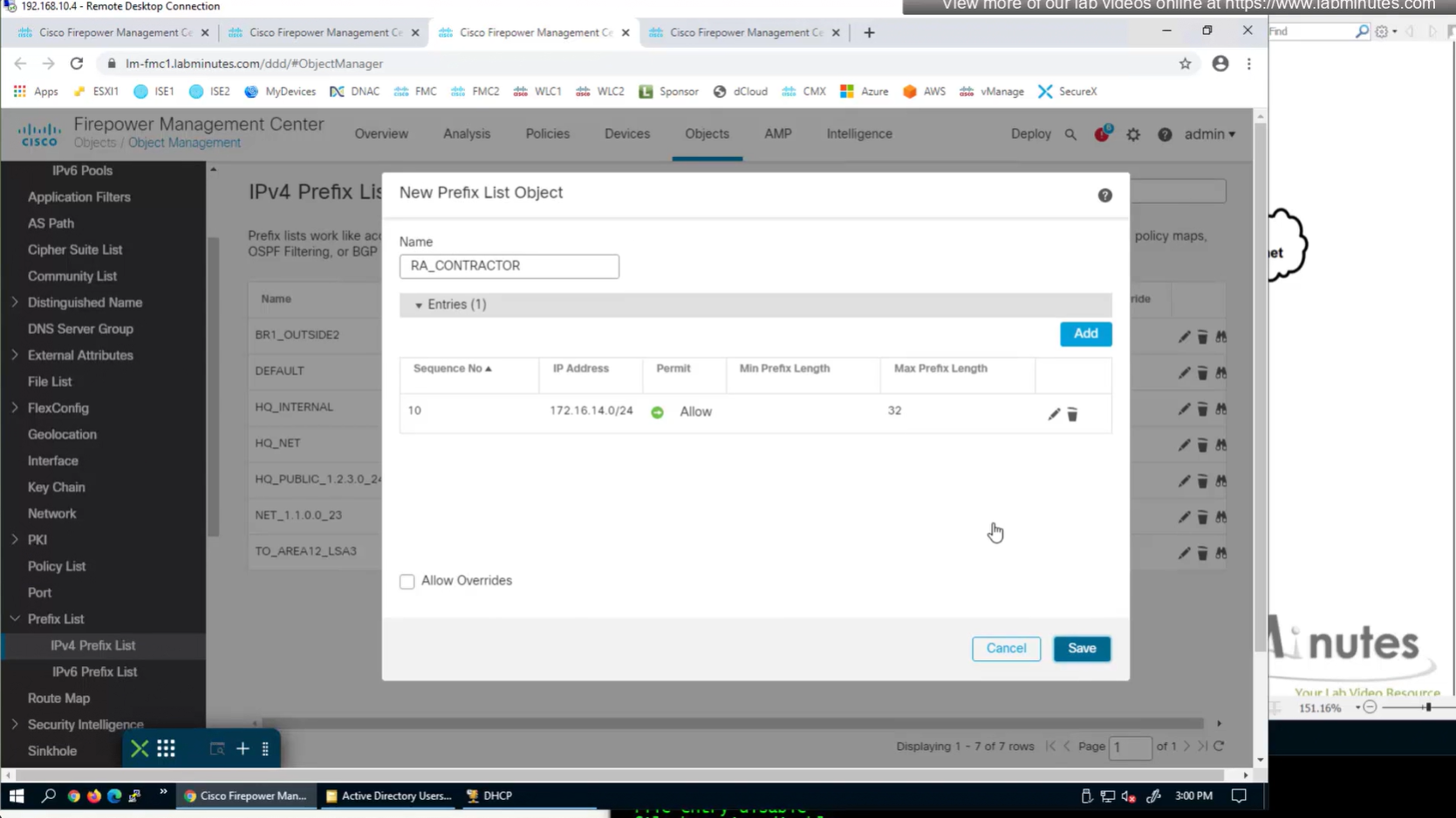

create prefix list

172.16.14.0/24 le 32

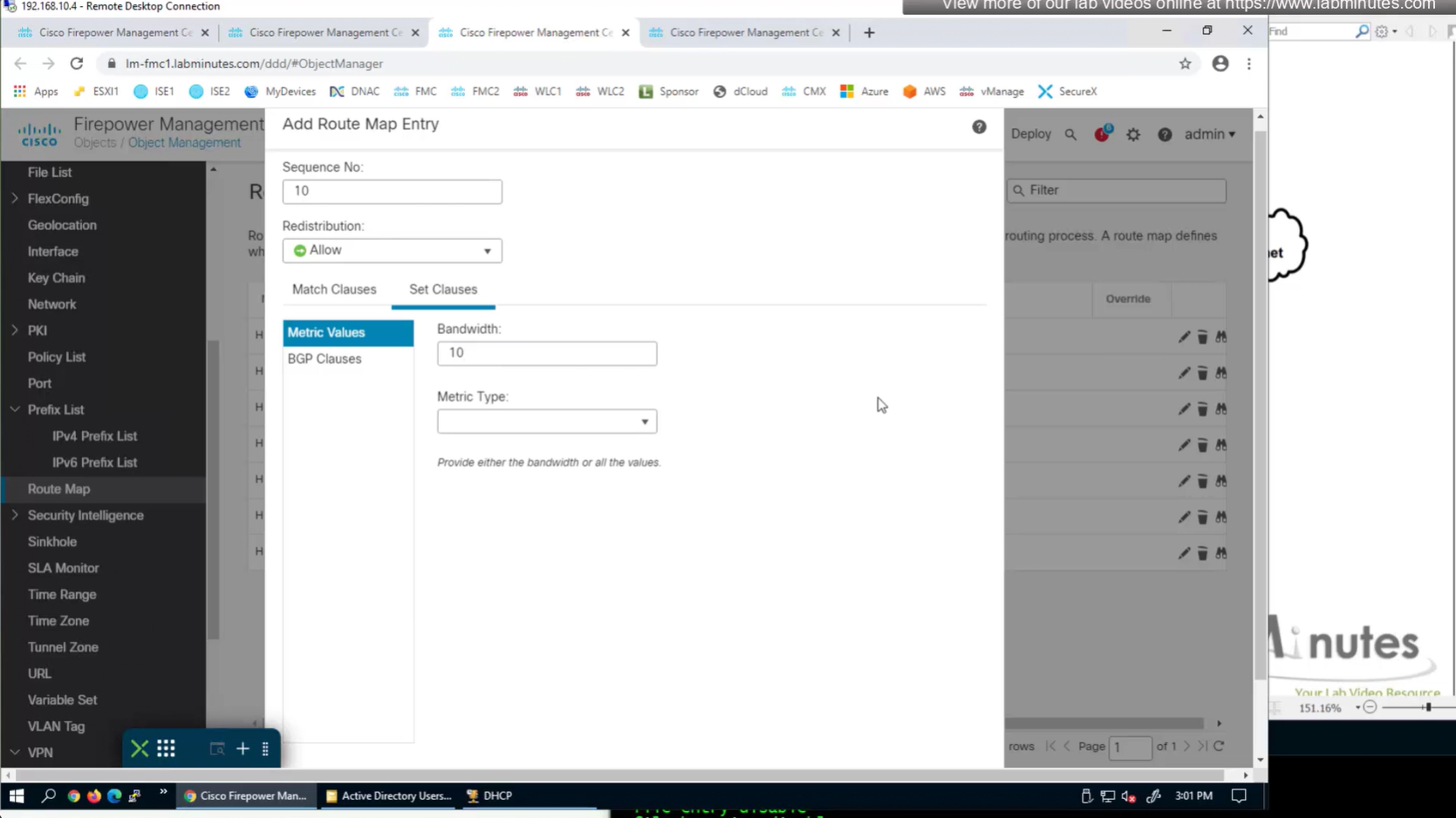

route map

apply that route map on redistribution

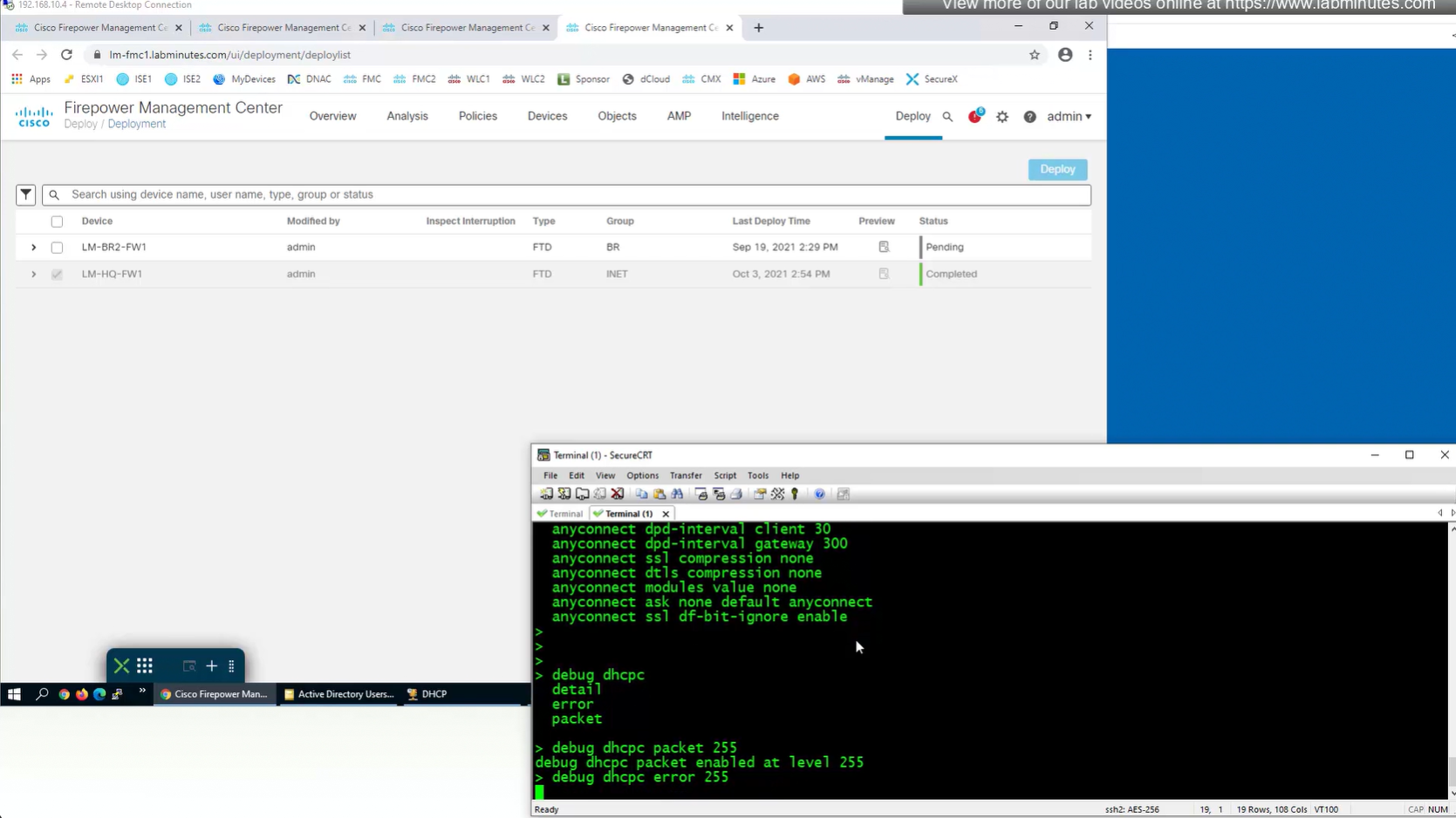

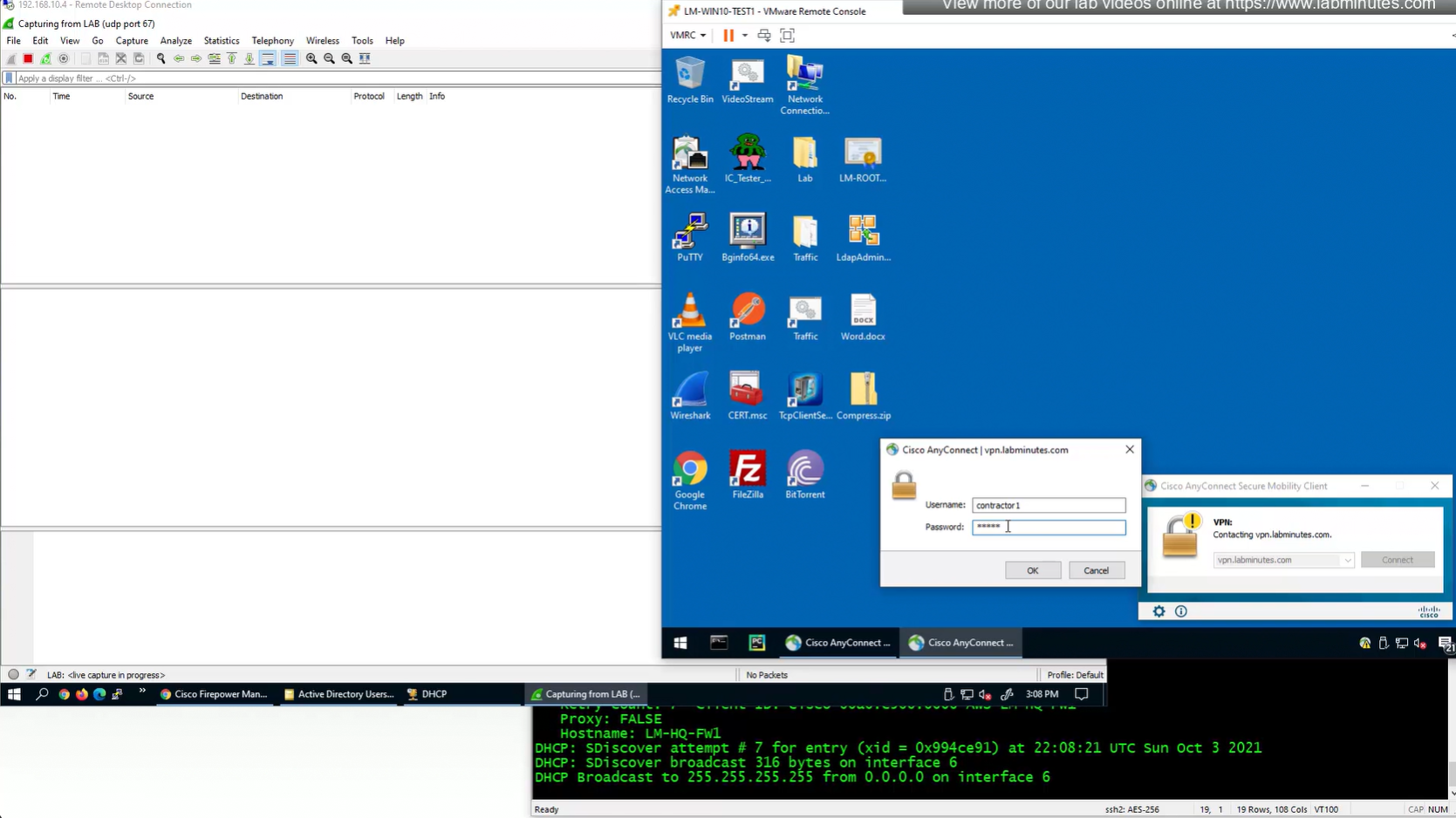

debug dhcpc packet 255
debug dhcpc error 255

show prefix-list RA_CONTRACTOR

show prefix-list detail RA_CONTRACTOR

V /32 connected route

show prefix-list RA_CONTRACTOR show prefix-list detail RA_CONTRACTOR show route static ! shows VPN client , connected V routes

Here we will configure ISE as RADIUS server for user authentication
ISE has integration with AD and users are in AD

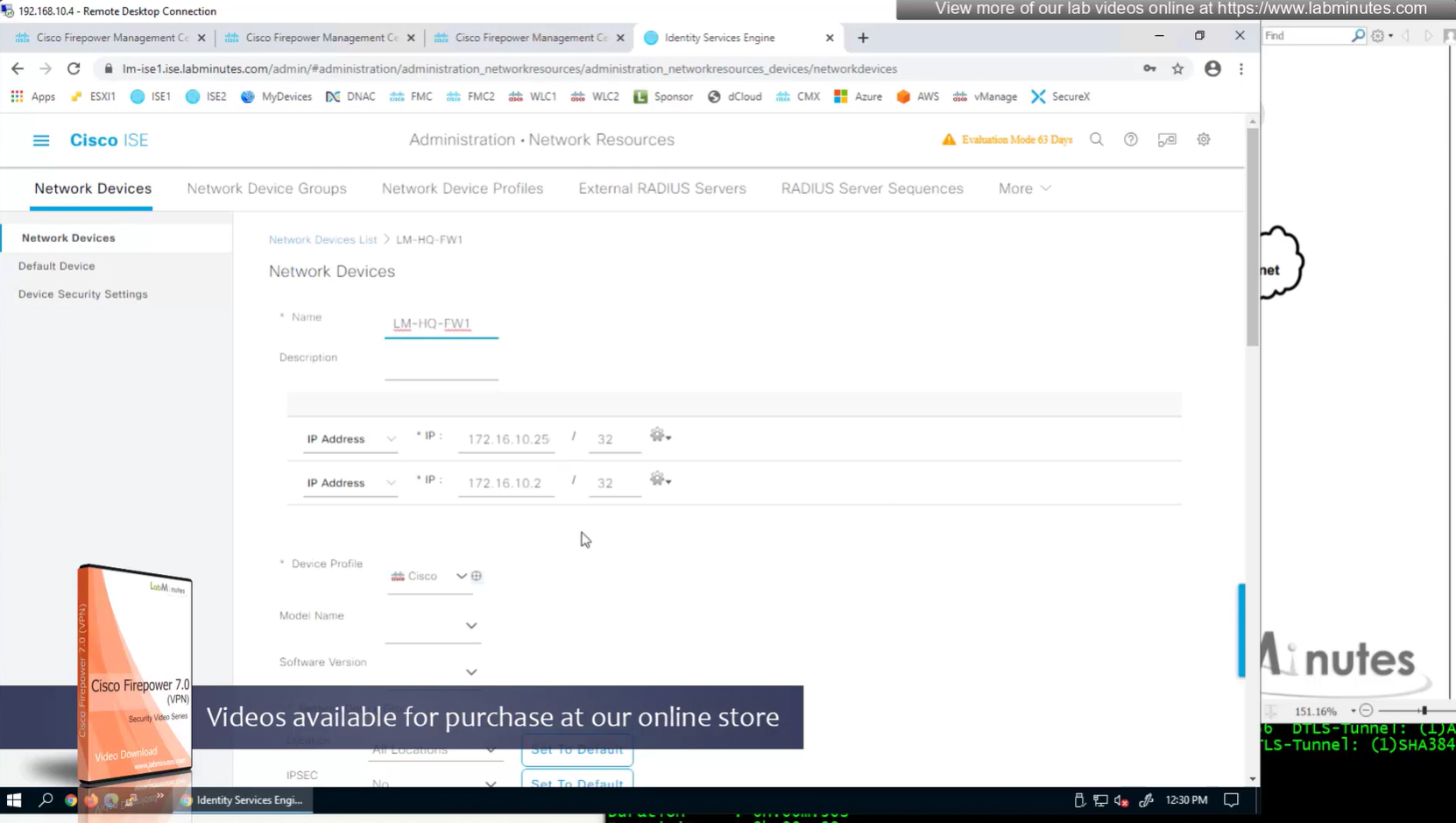

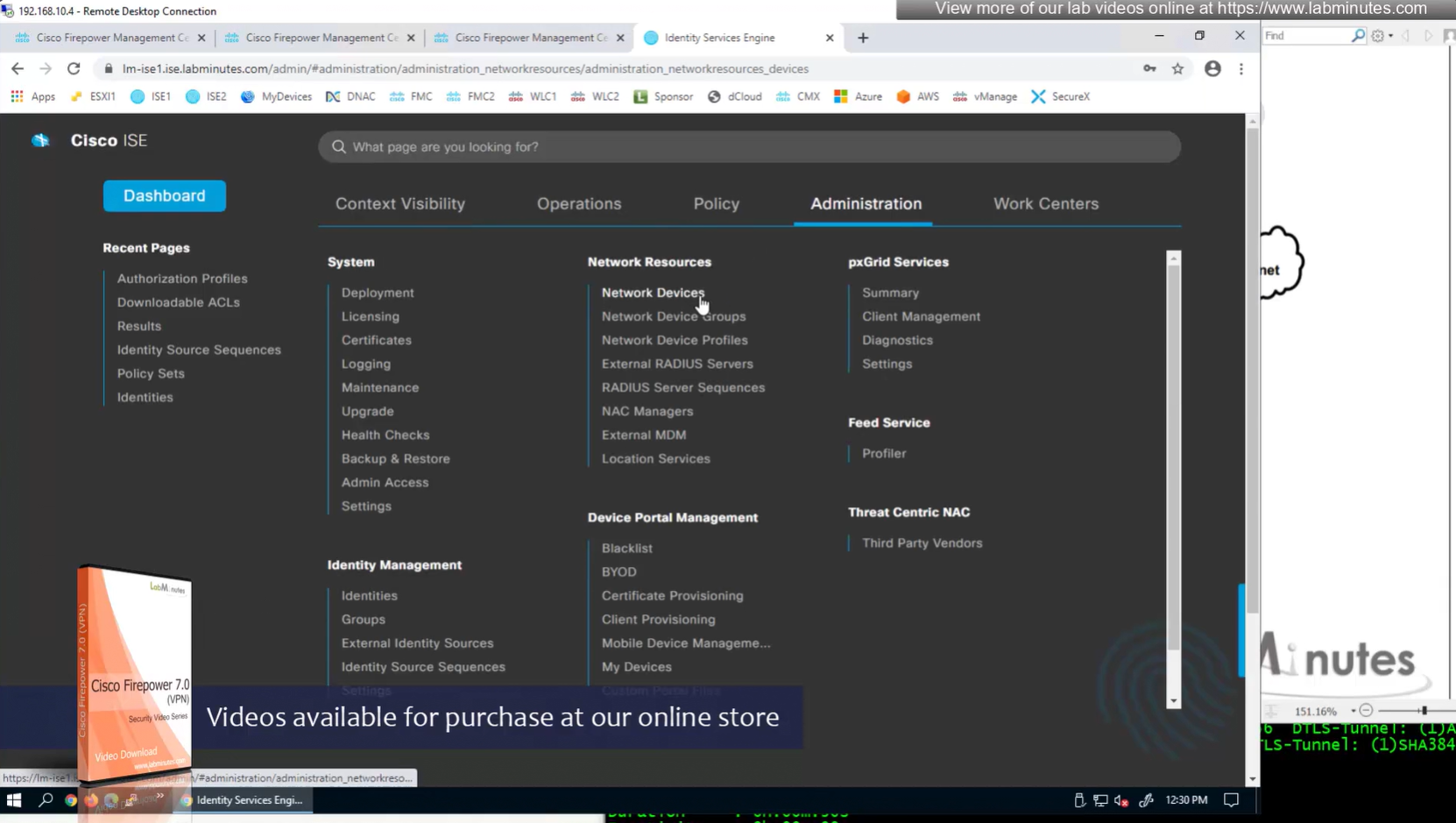

First we need to have NAD added in ISE so we will add FTD in ISE

We can have 2 IP addresses on a network device in ISE

Device type defined as FW

Shared key configured

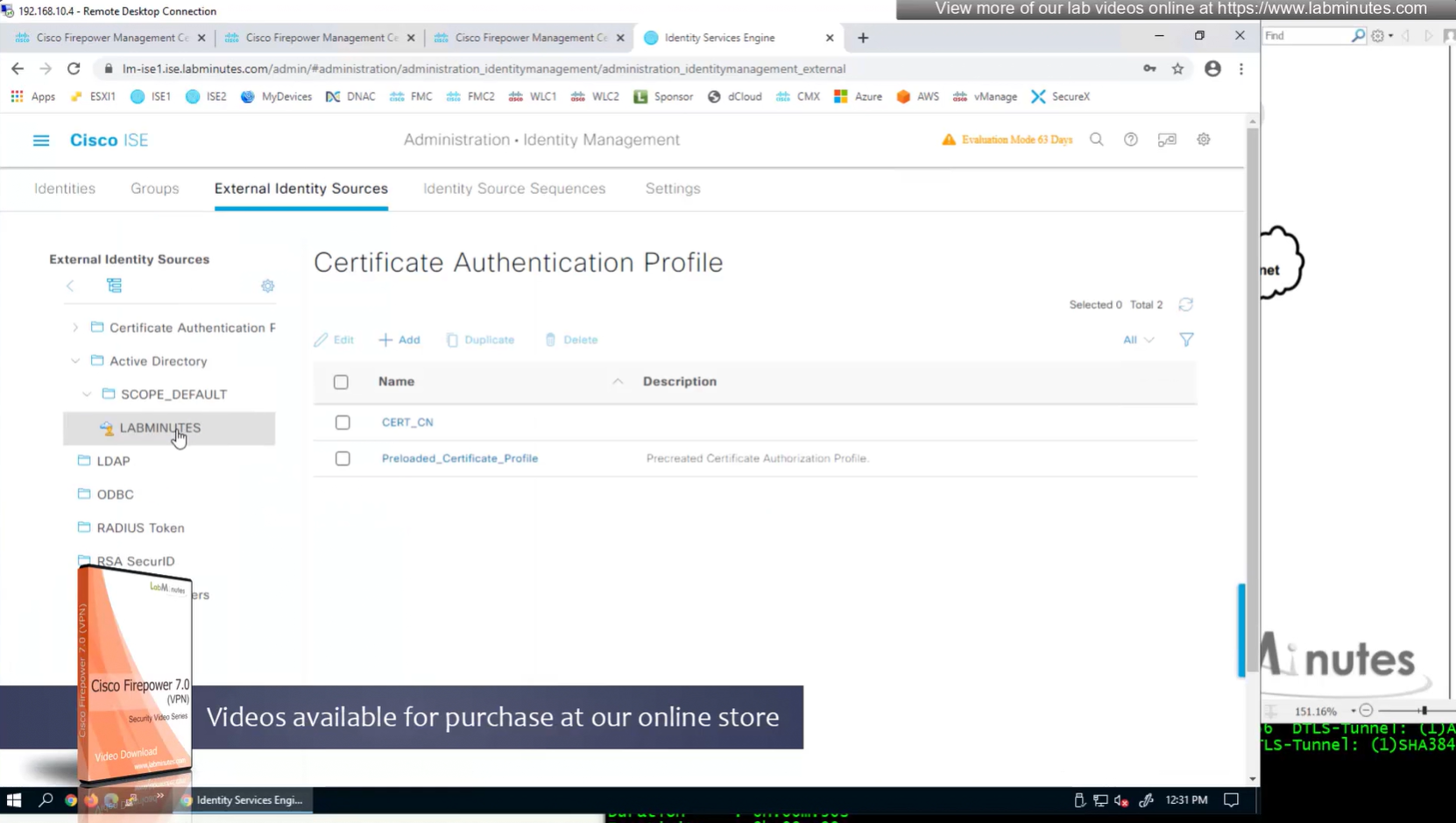

AD integration

AD domain controller

Groups from AD

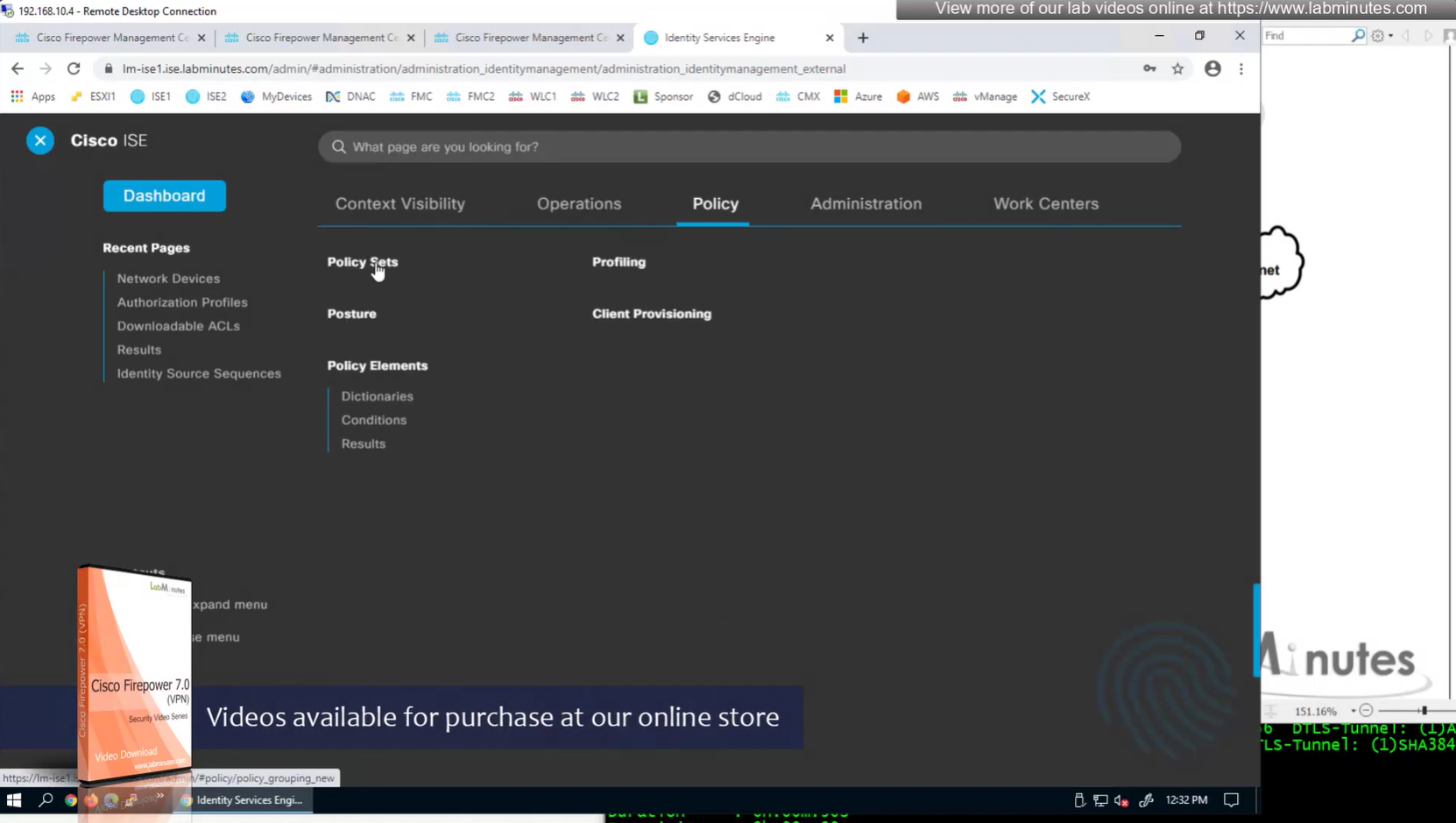

VPN Policy set , conditions AND
Device type EQUALS All Device Types#FW
Radius-NAS-Port-Type EQUALS Virtual

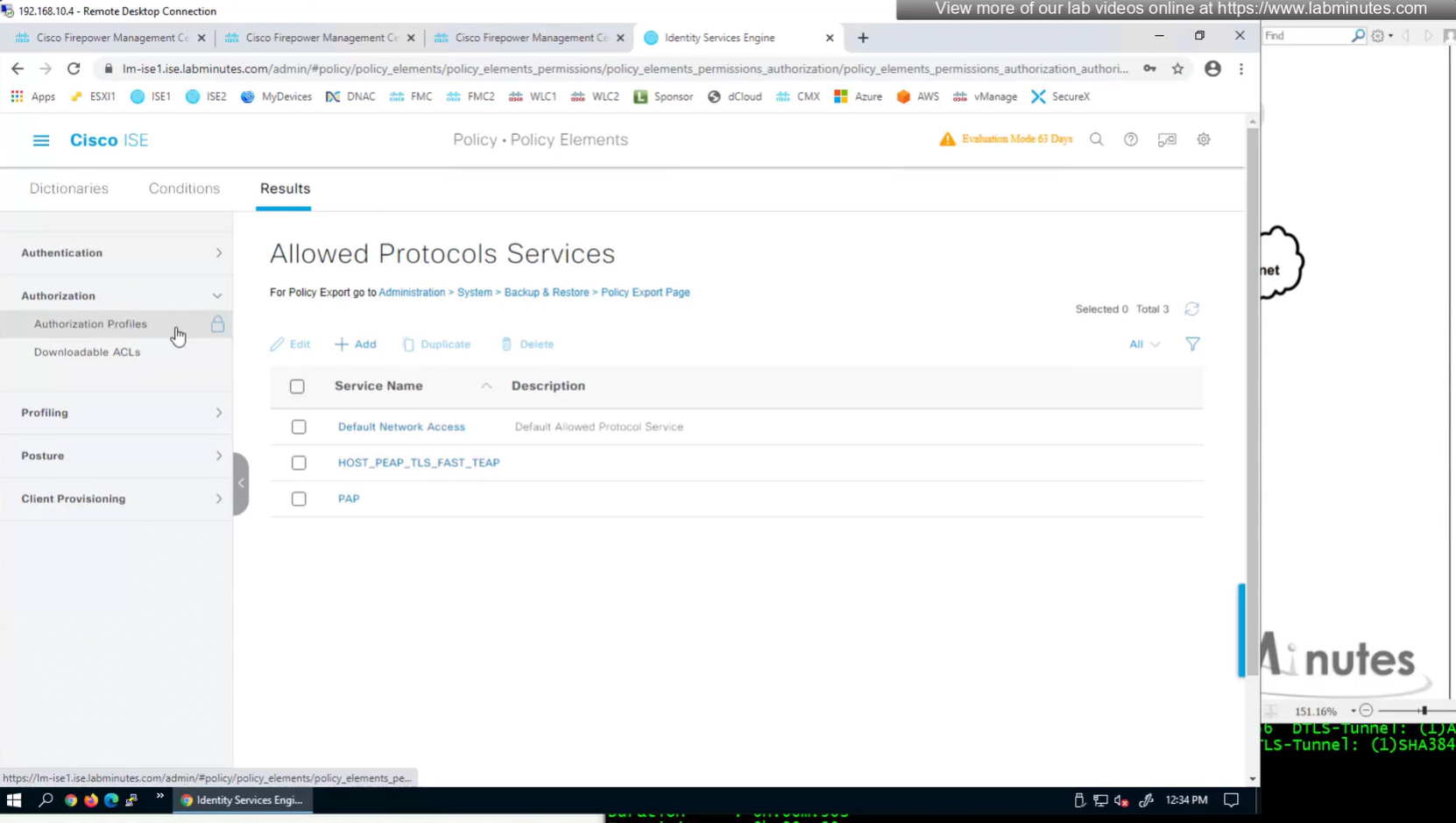

Allowed Protocols
PAP

Authentication Policy – use LOCAL_AD – this contains local ISE users and AD in sequence

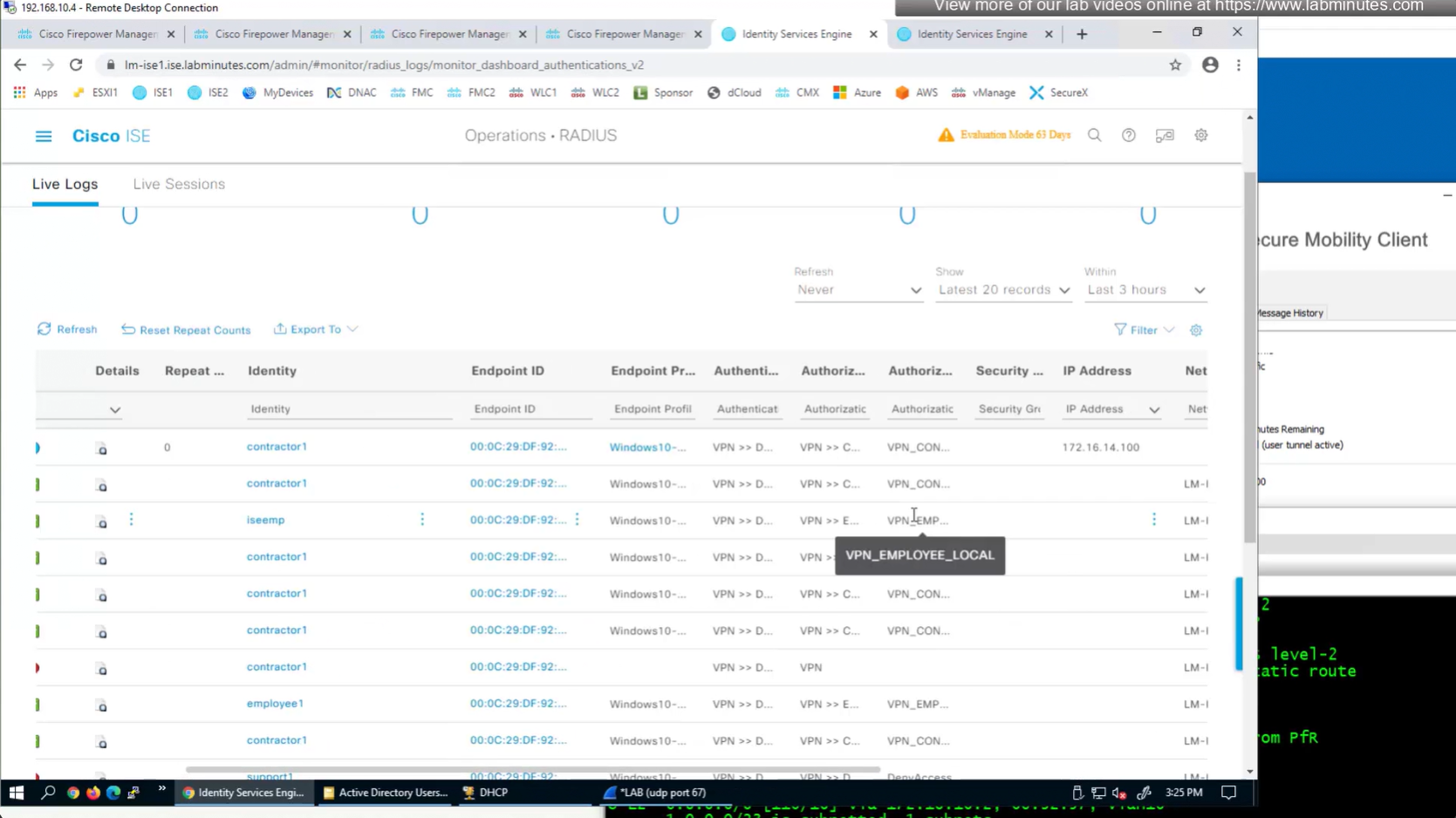

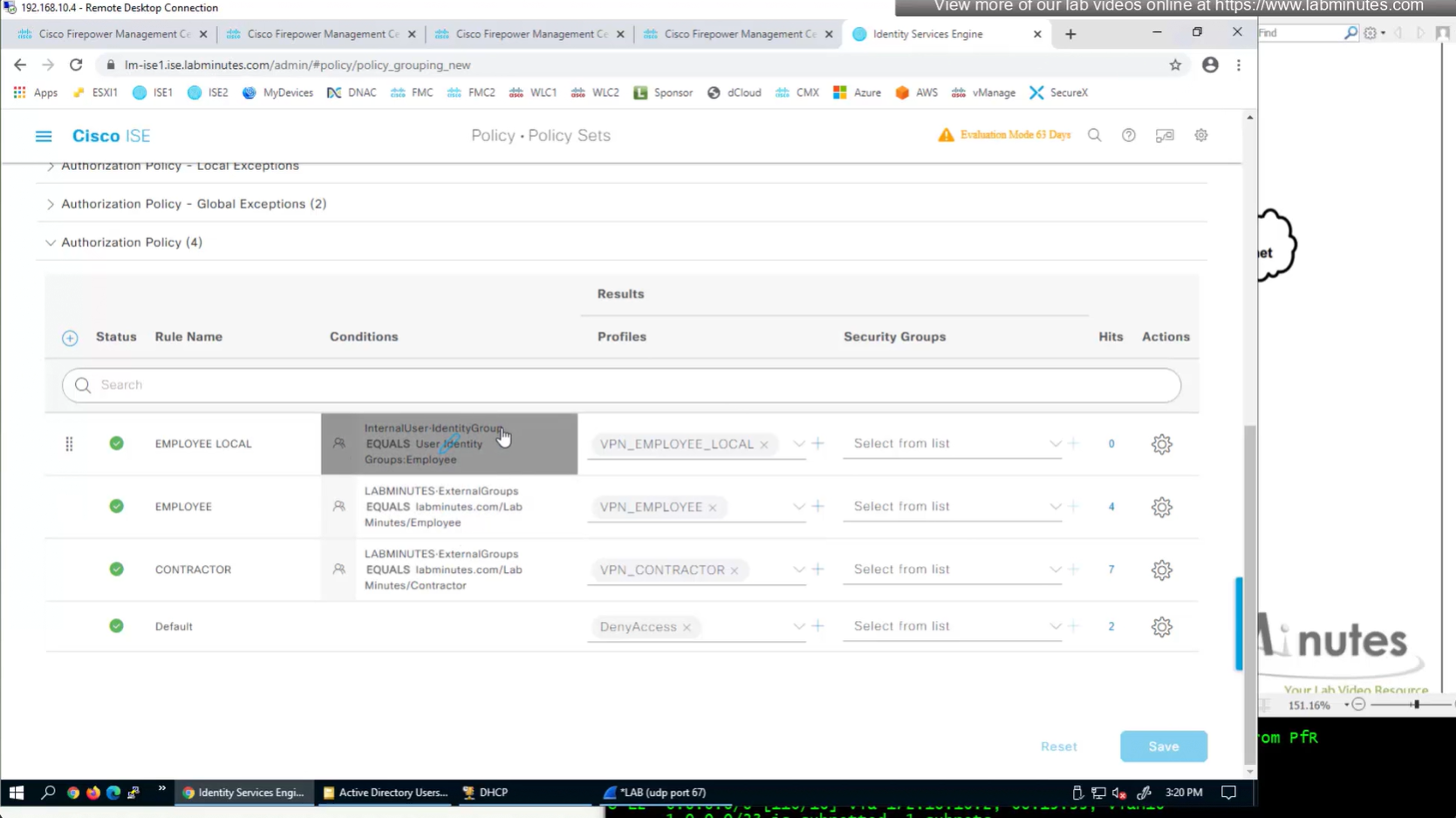

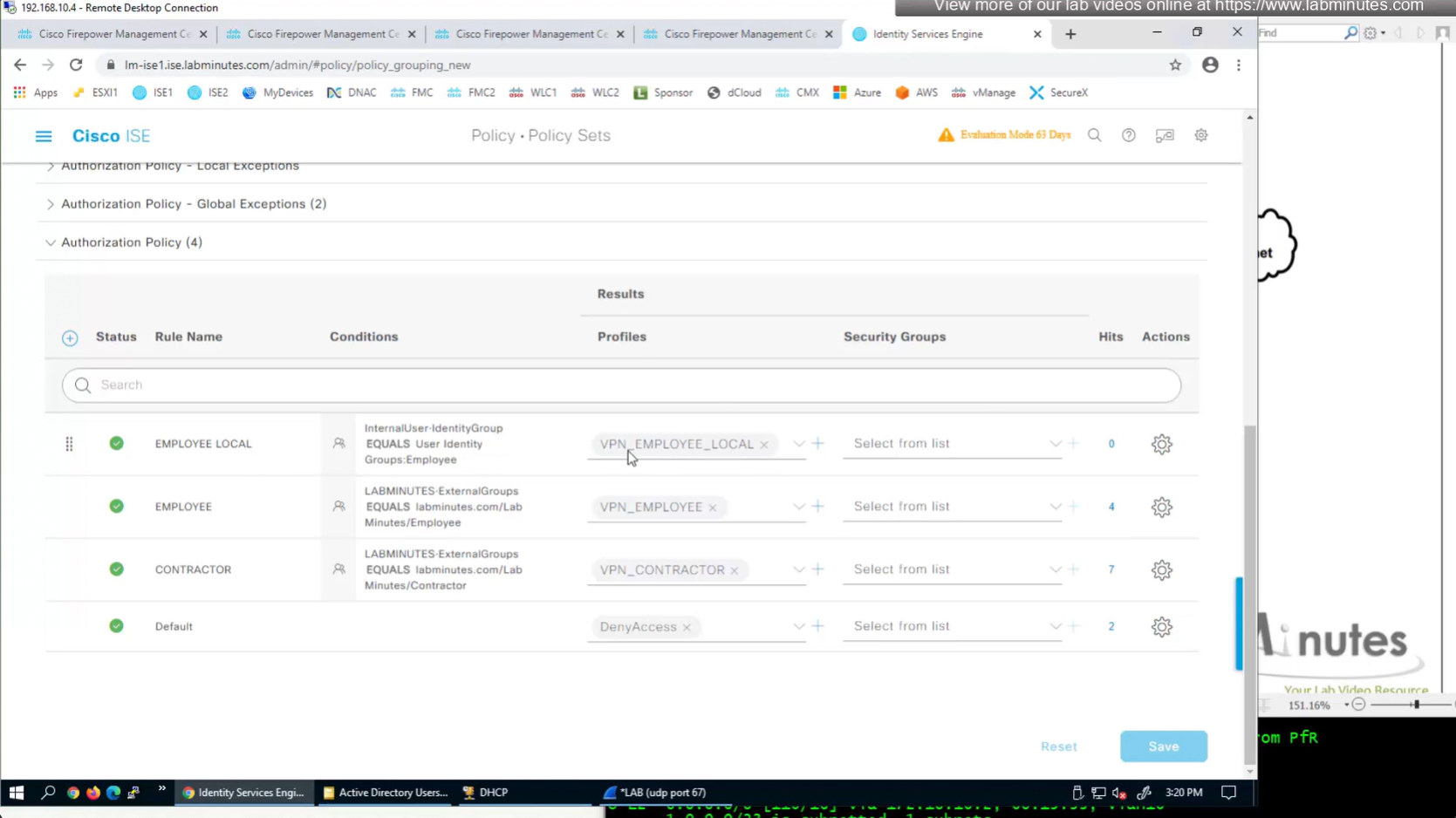

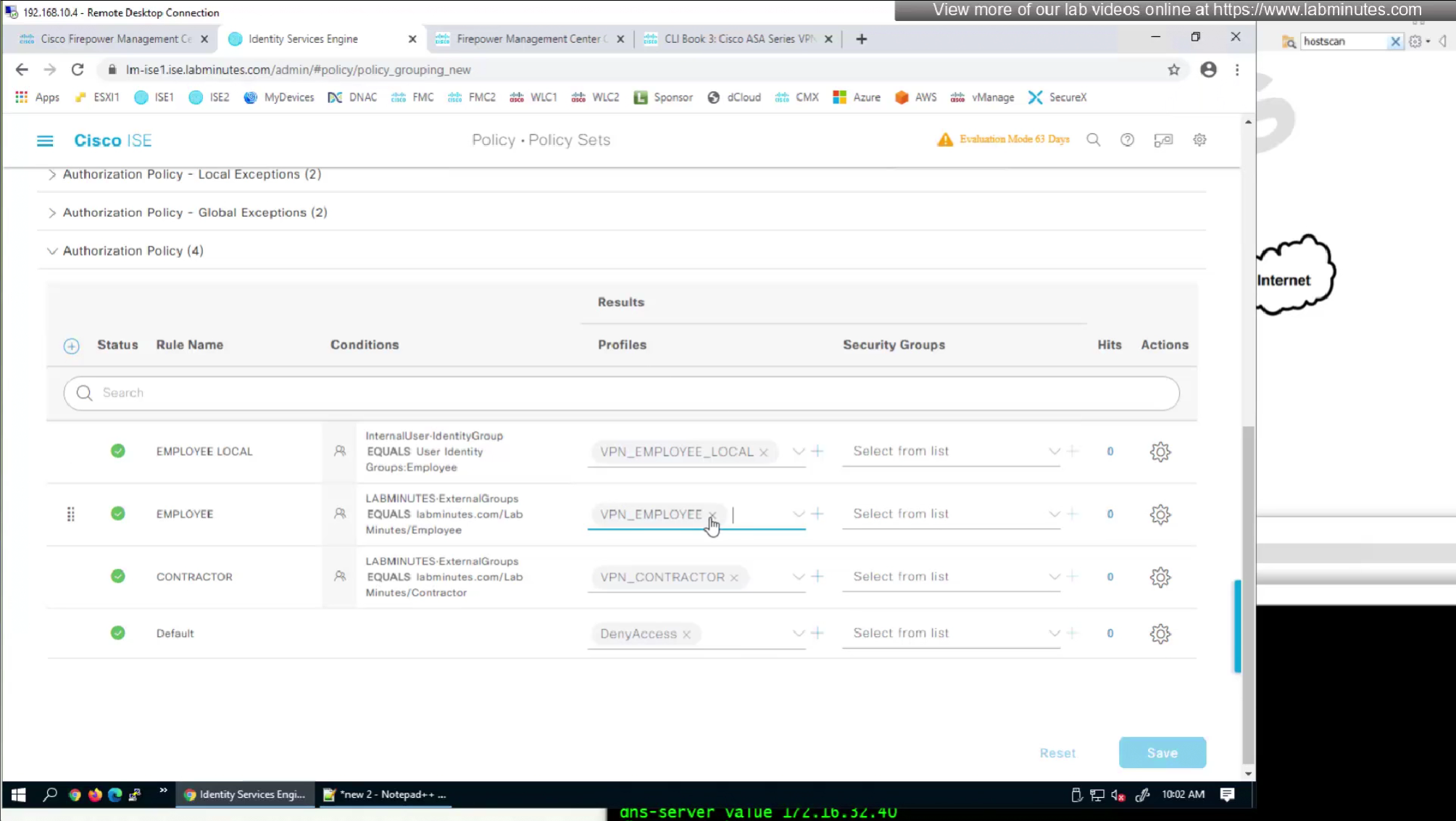

Authorization Policy has rules for EMPLOYEE LOCAL (Internal User) , EMPLOYEE (AD) , CONTRACTOR and Default along with their Authorization profiles

ASA VPN = Group Policy

Define AAA policy and AAA Servers inside it

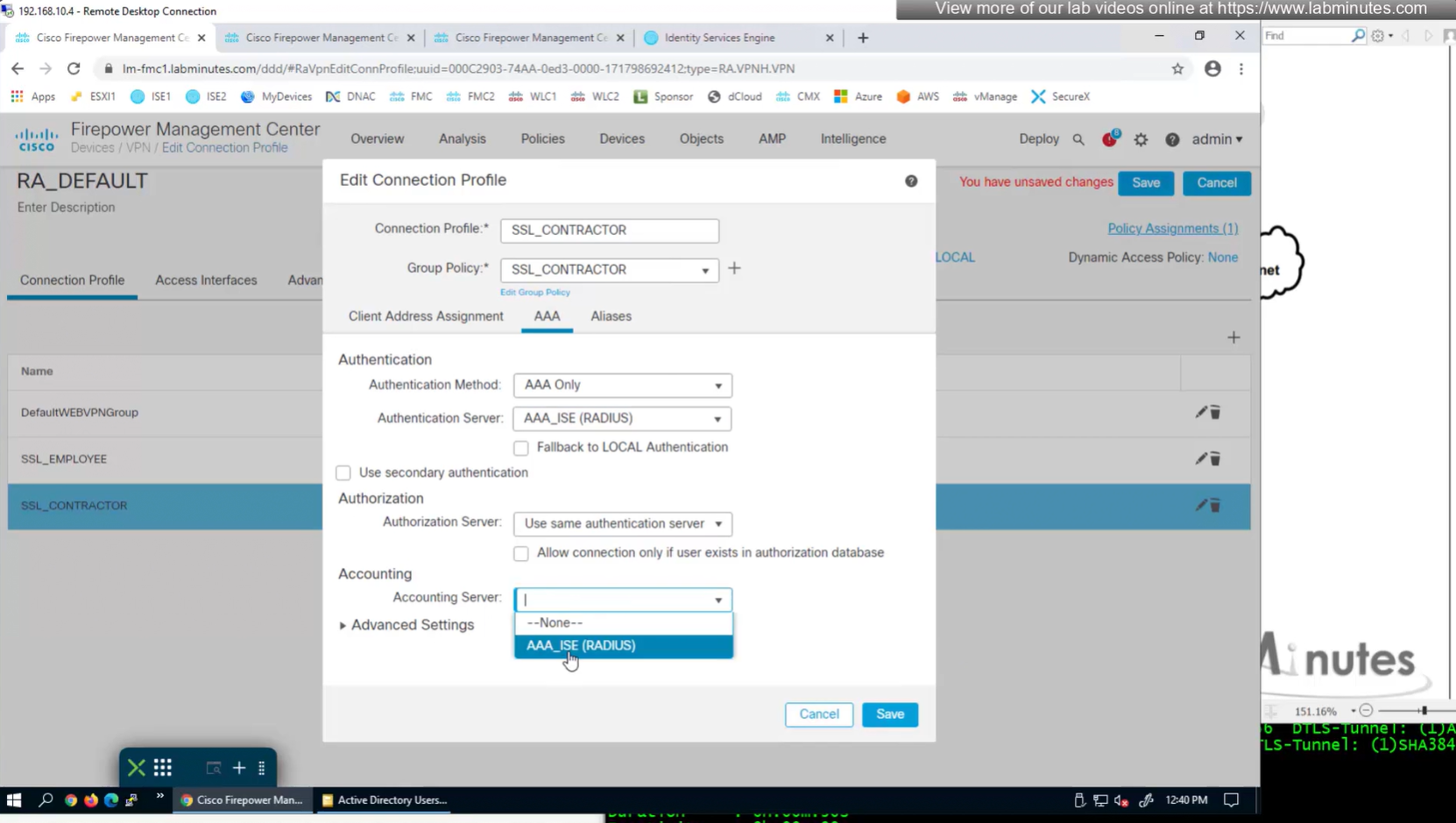

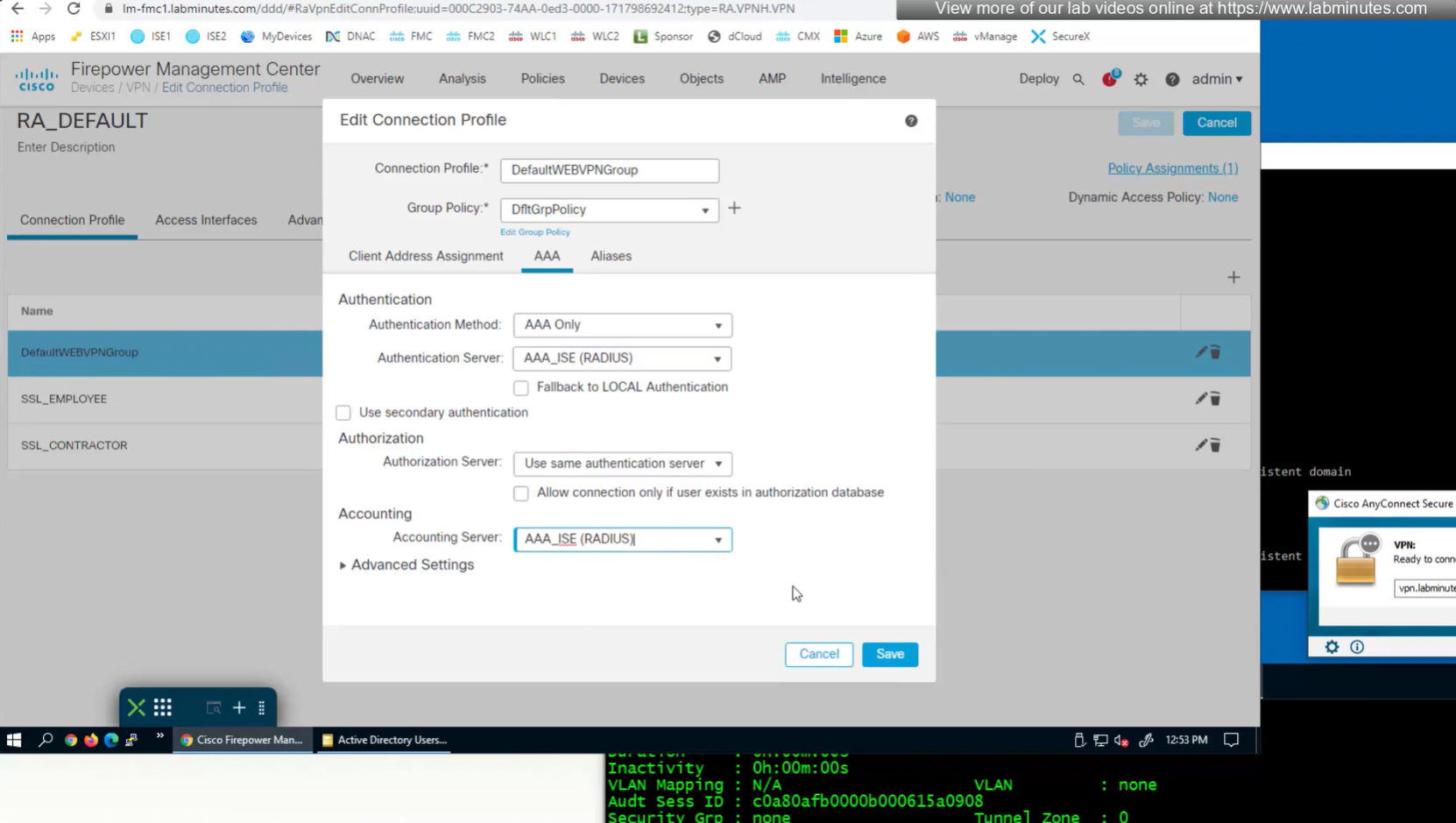

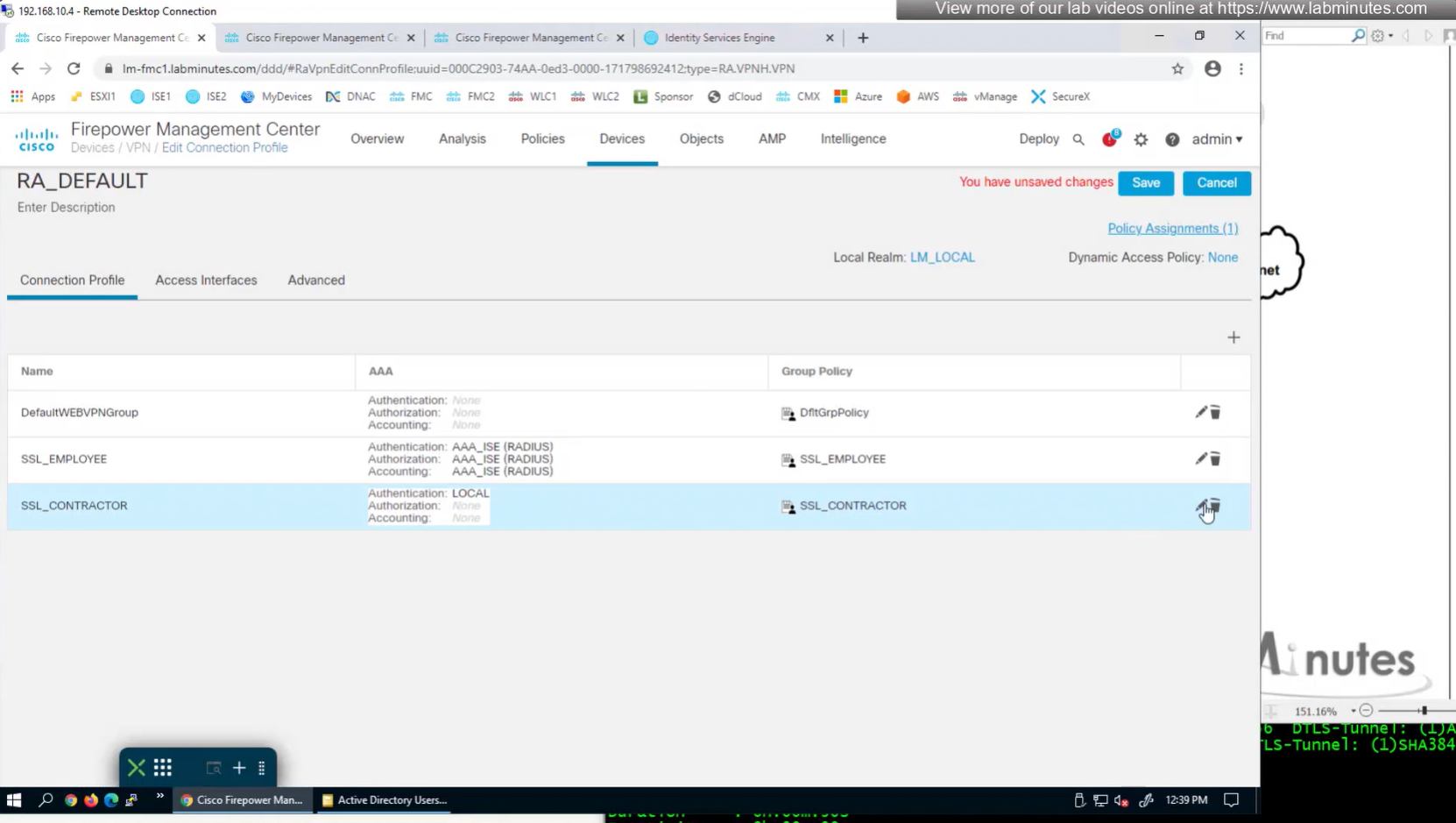

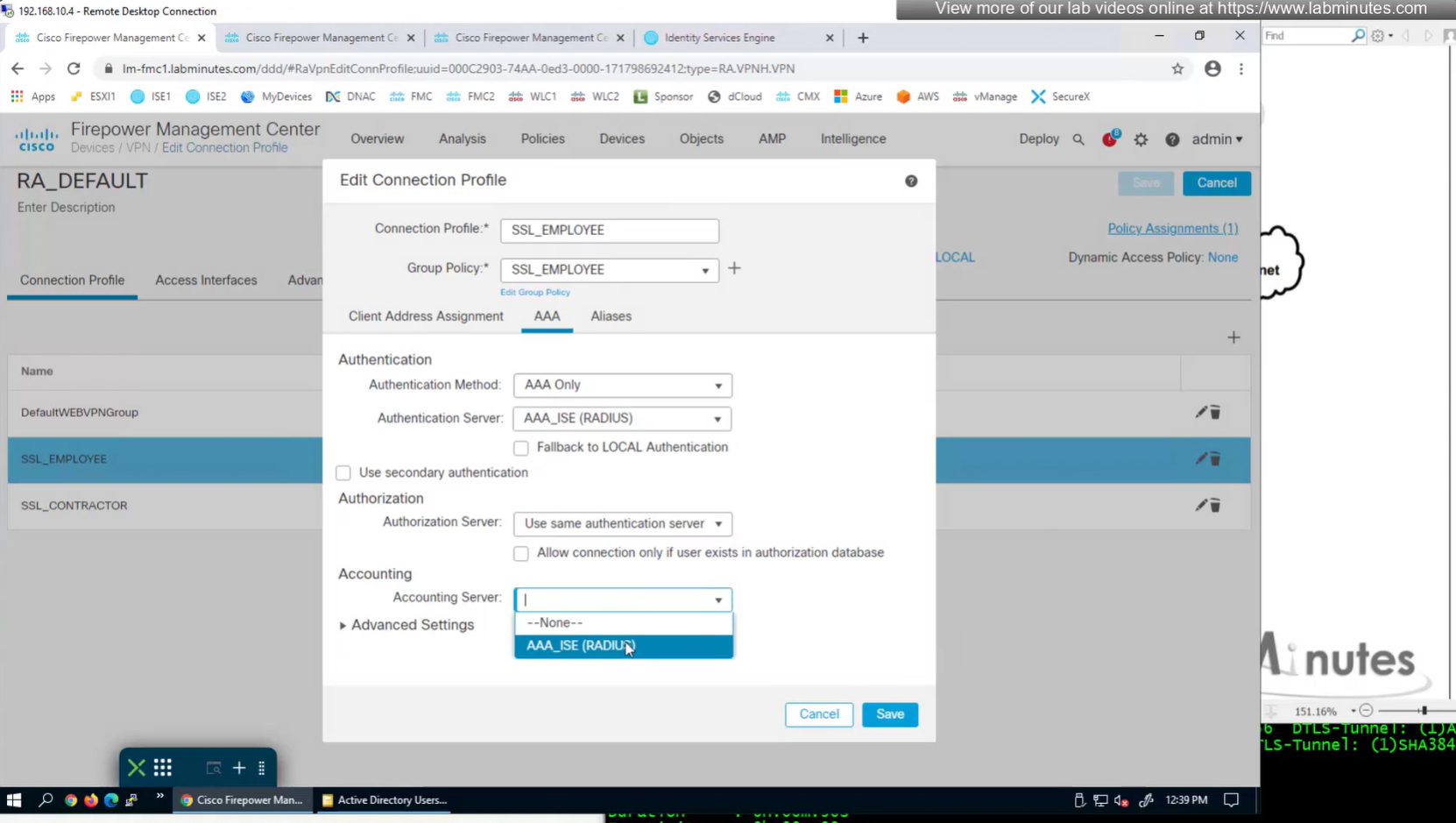

Change connection profiles from Local auth to AAA (RADIUS) auth

Authorization server by default are same as authentication server

Set accounting server same as authentication servers

expand advanced settings for password management

show running-config aaa-server

new config is pushed to FTD

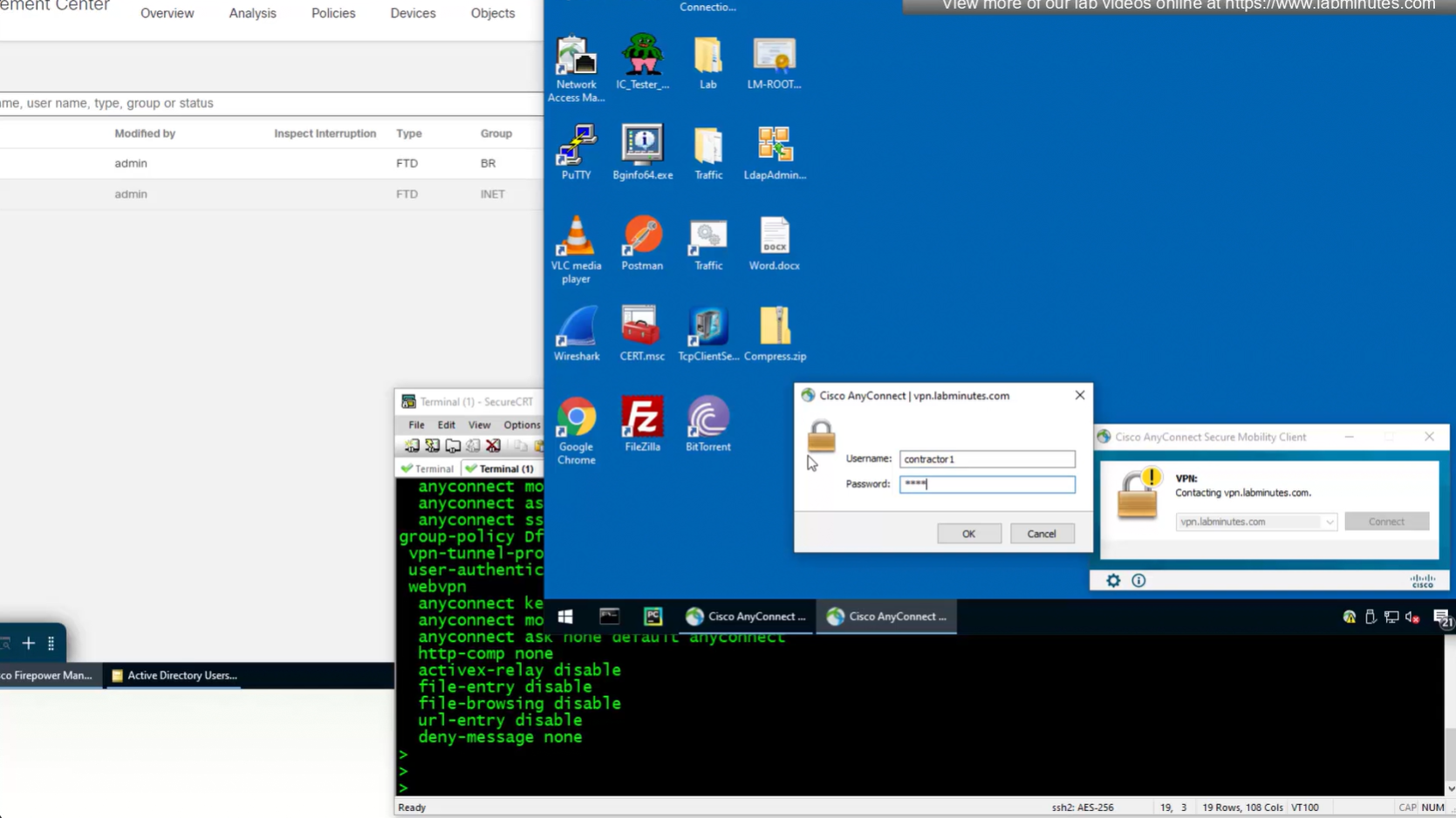

Login works

We dont really need Alias drop down anymore as users will get their group policy (not tunnel group) from ISE

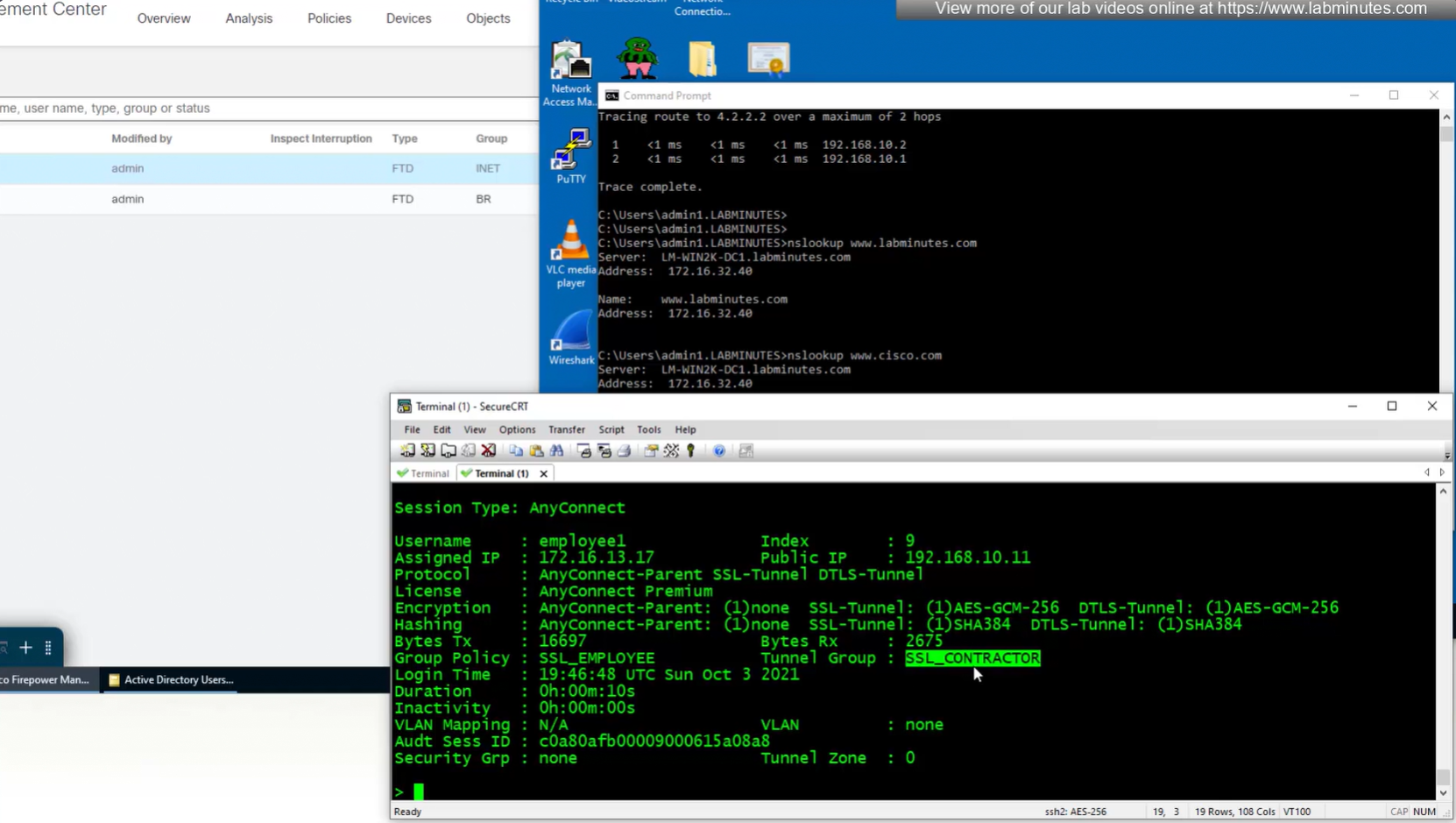

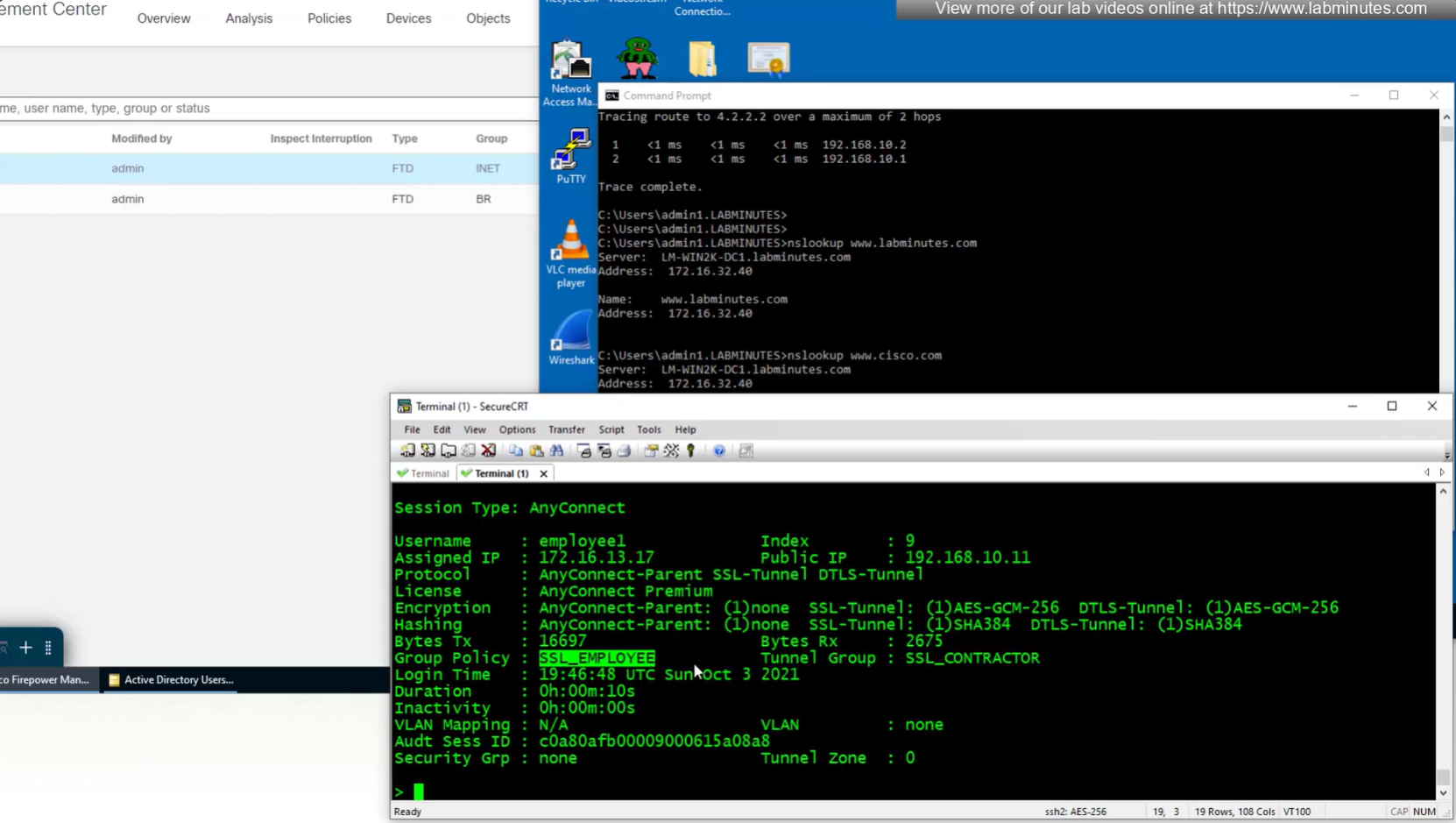

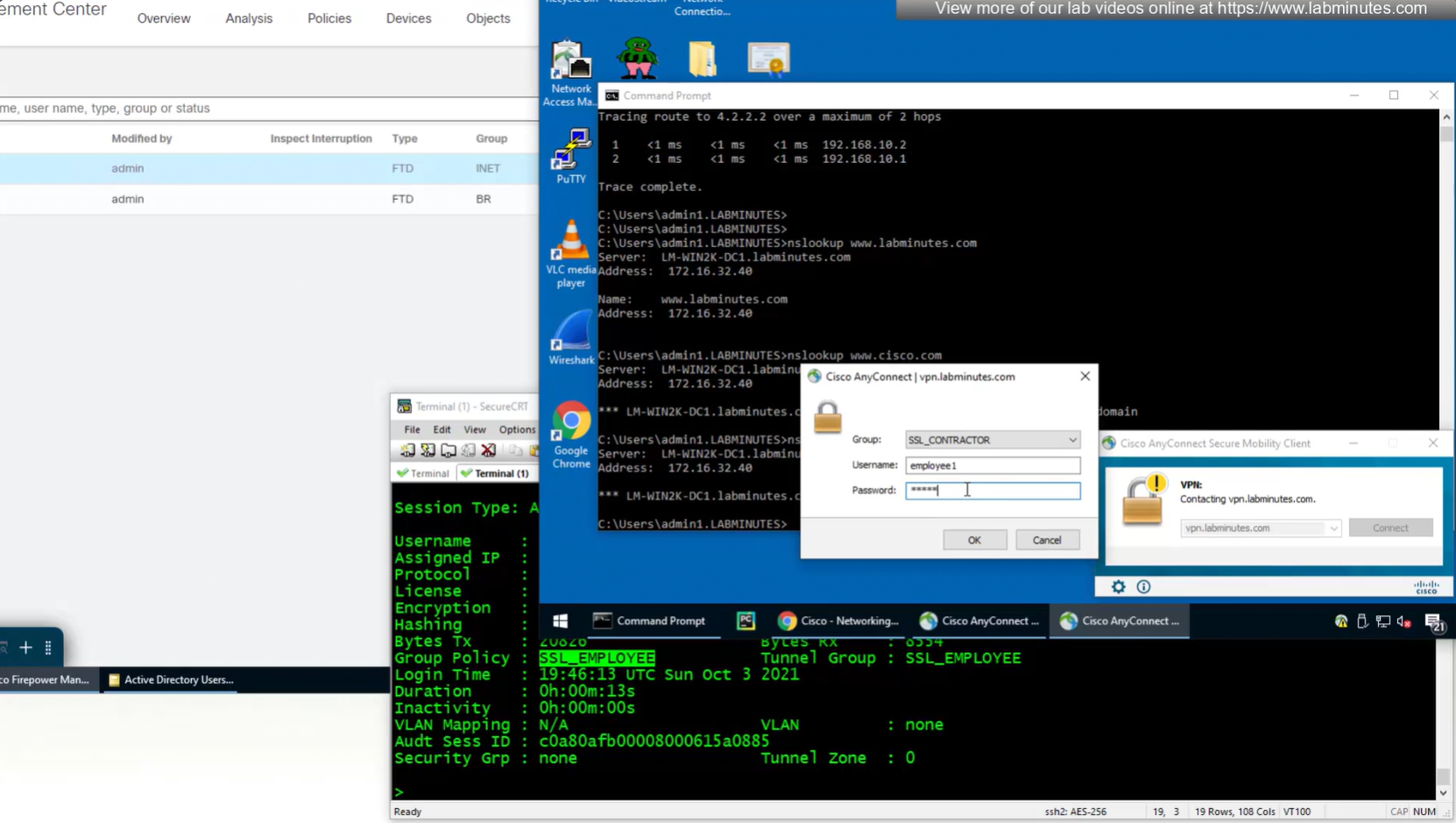

Even if we force login to SSL_CONTRACTOR connection profile

we still get the Employee group policy

Even if the tunnel group is SSL_CONTRACTOR (just because we selected it from drop down) but group policy is SSL_EMPLOYEE

Even the configured group policy under the tunnel group will not make any difference because user gets it from ISE

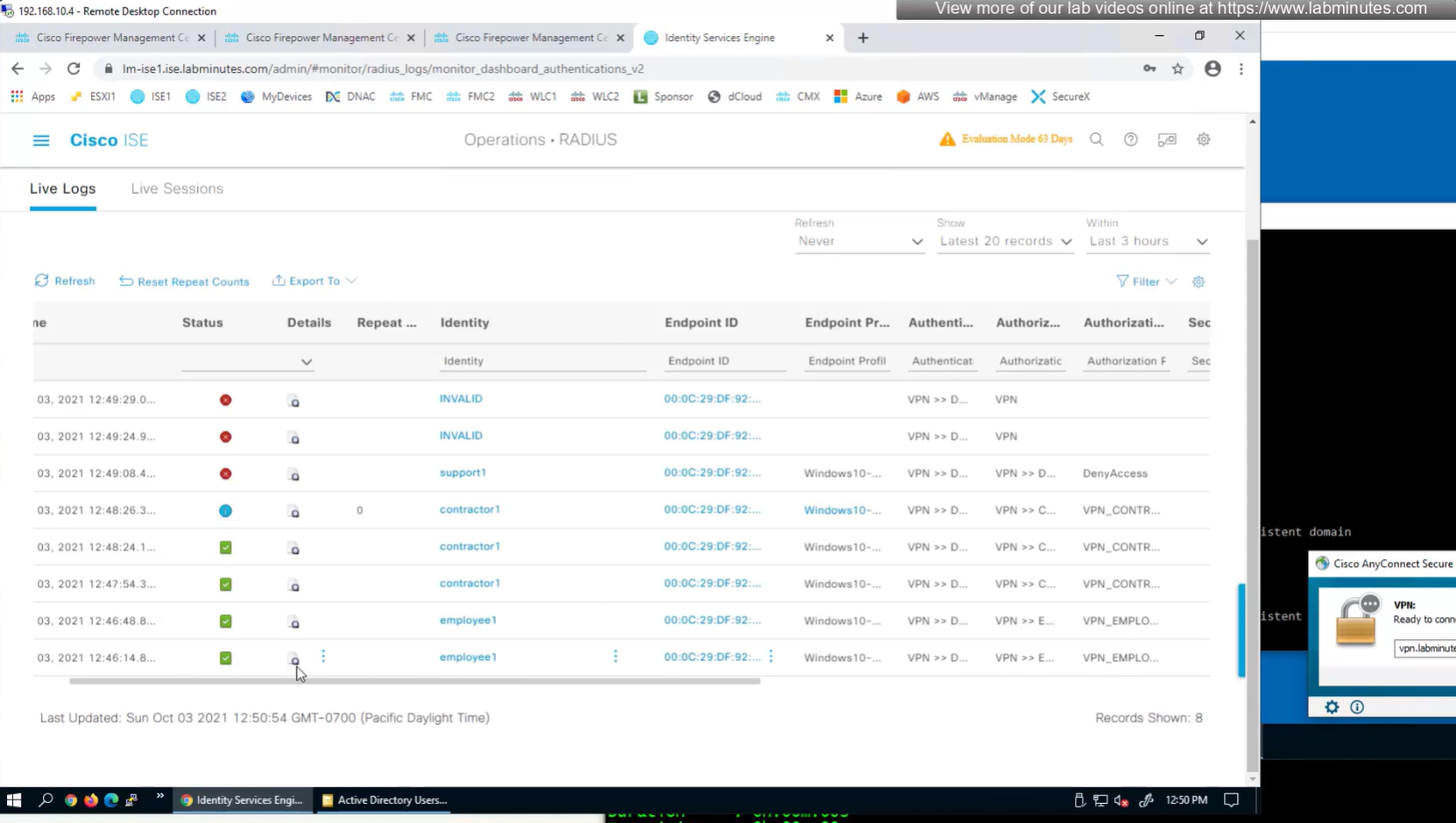

This user exists in ISE but does not have group assigned

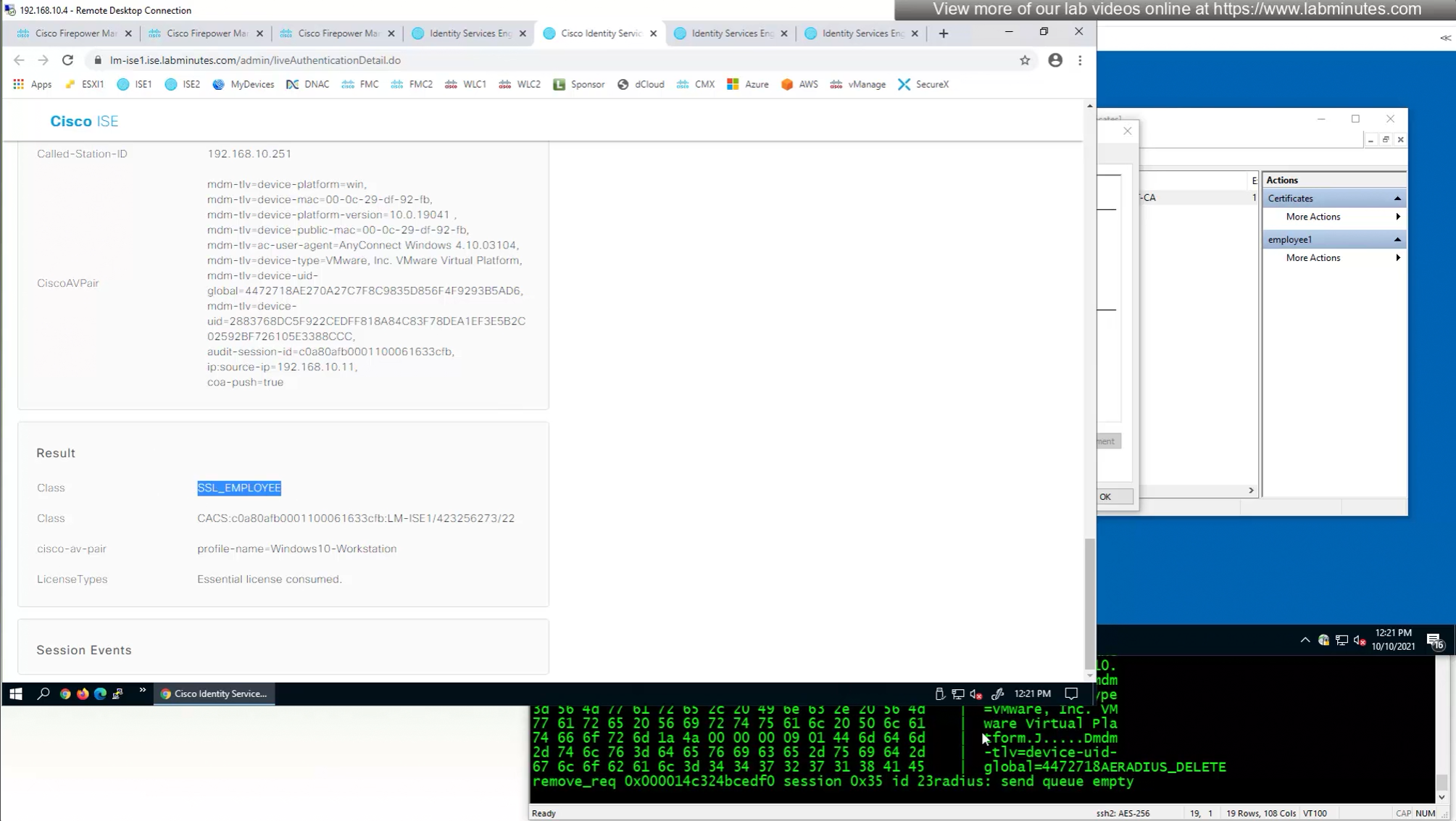

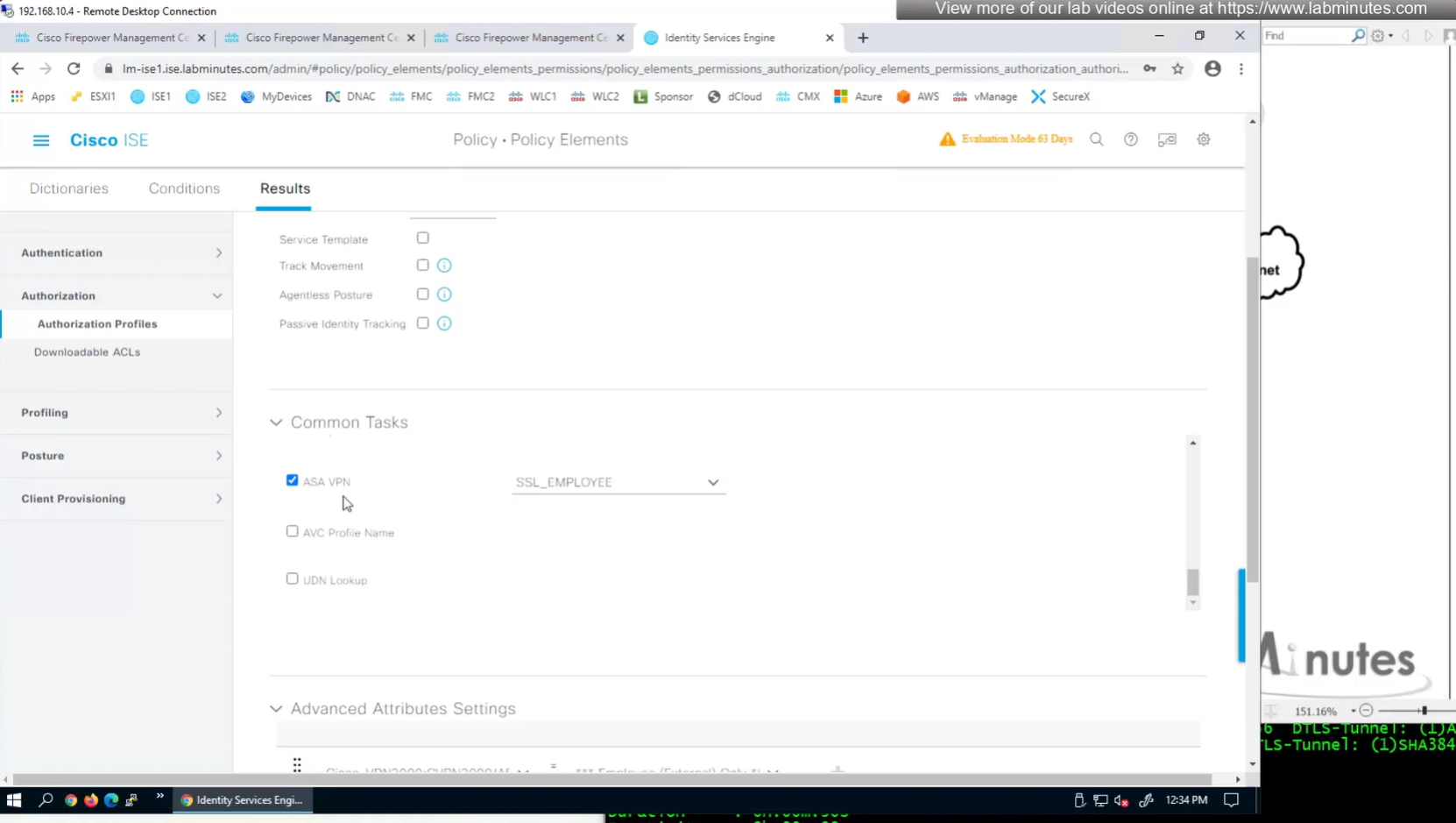

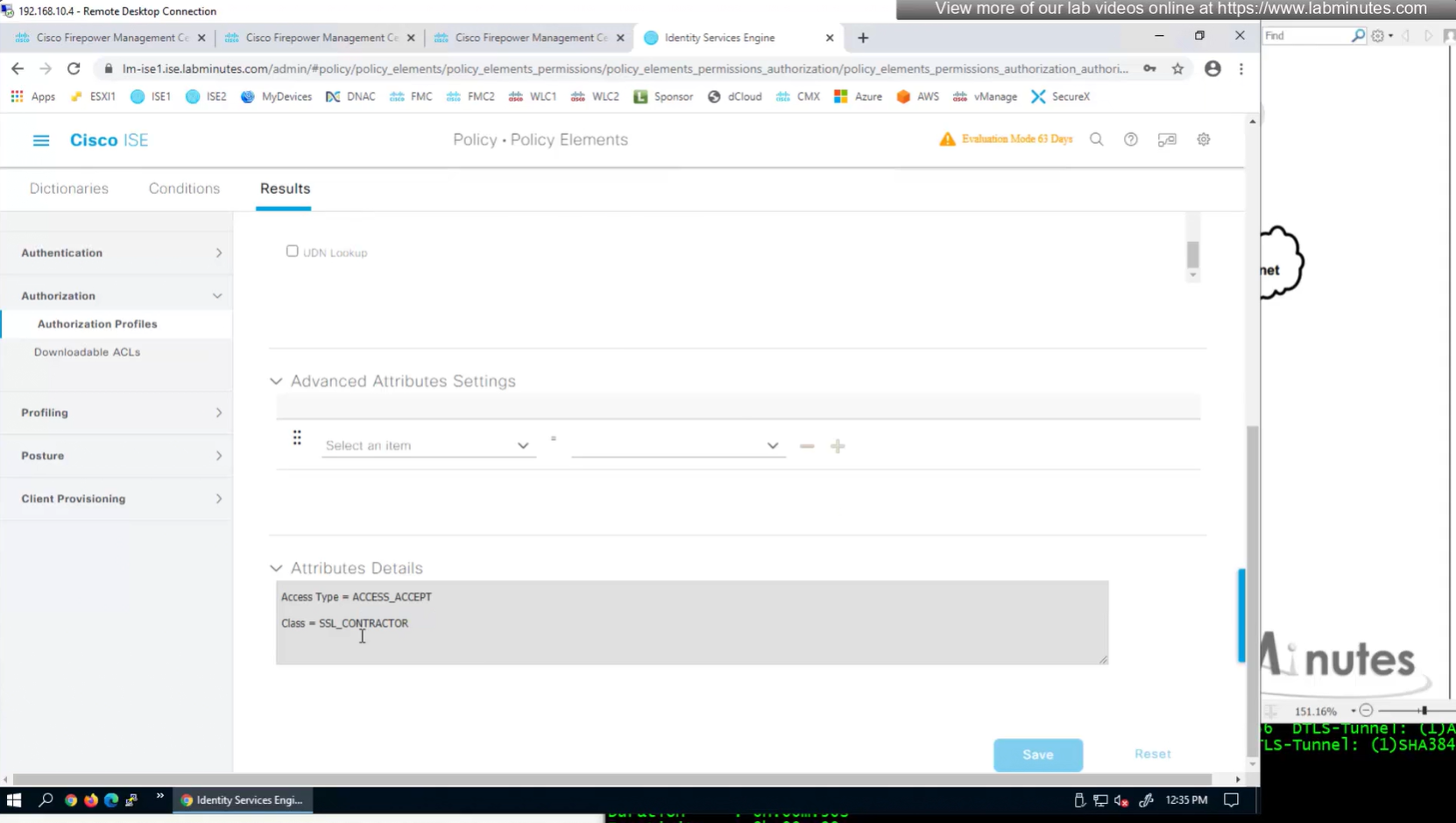

class SSL_EMPLOYEE was returned

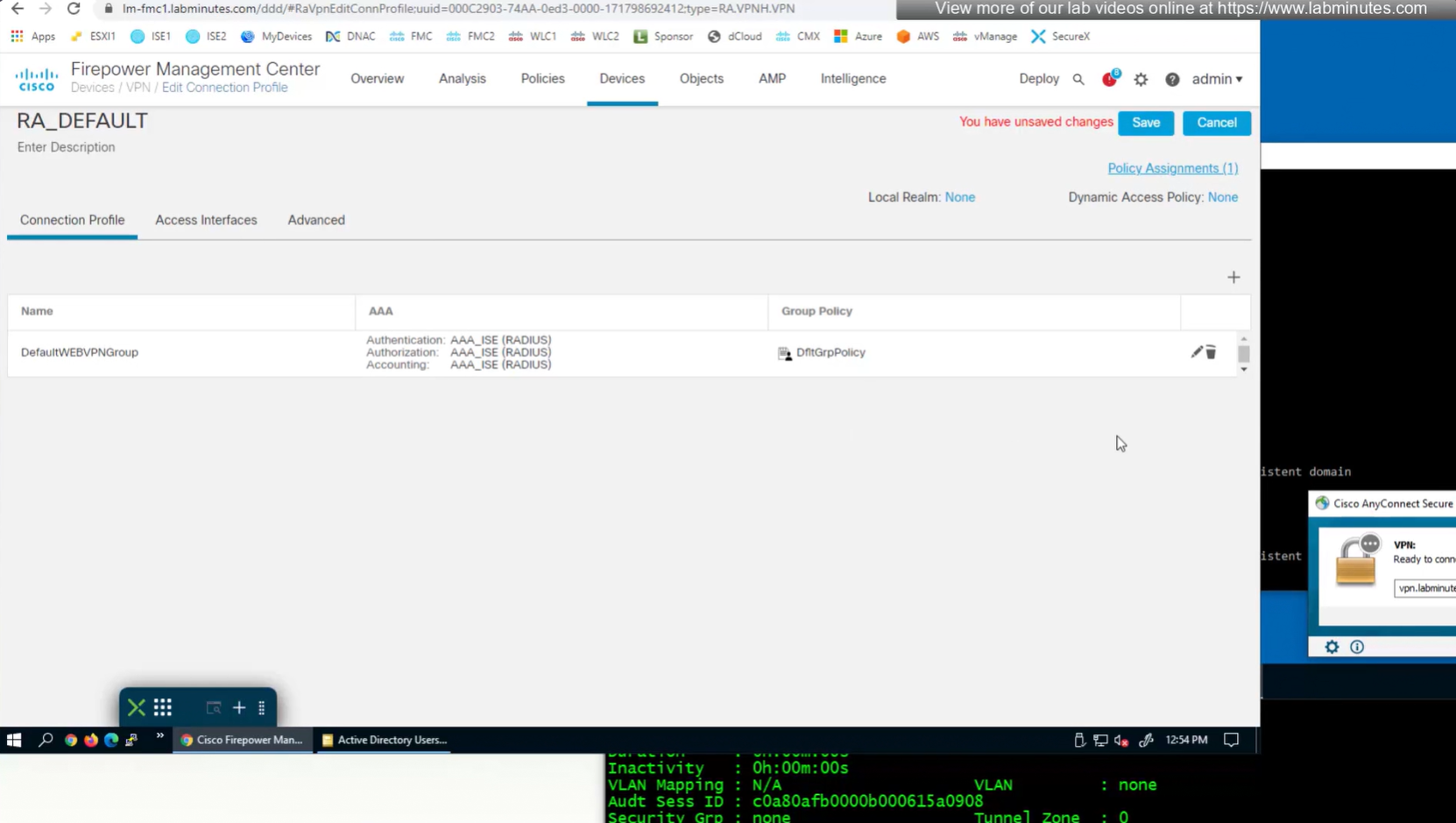

you know at this point we could get rid of alias dropdown and simply configure AAA authentication under default tunnel group / default connection profile

again dont be confused by the assignment of this Group Policy DfltGrpPolicy as we will get group policy from ISE

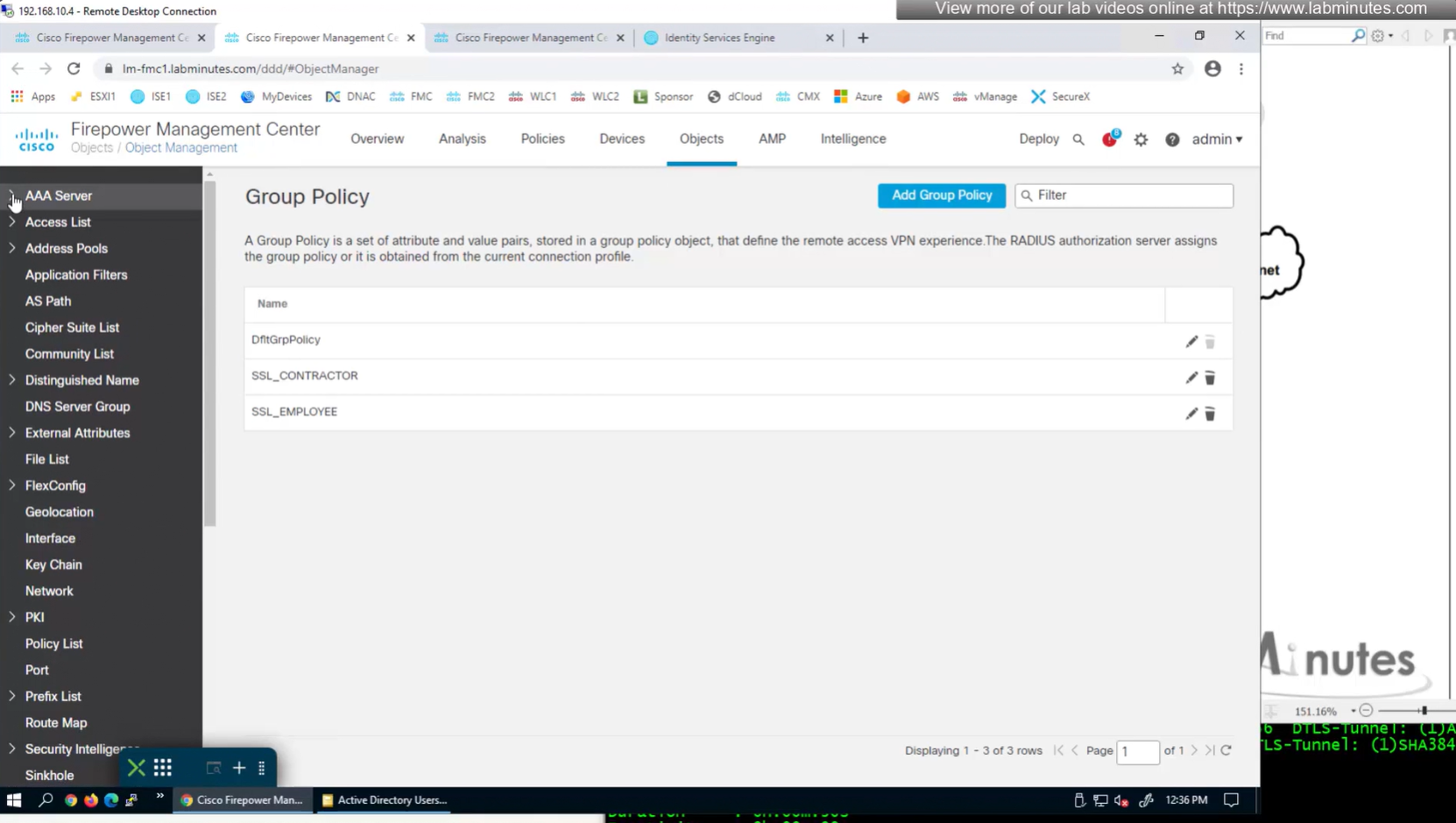

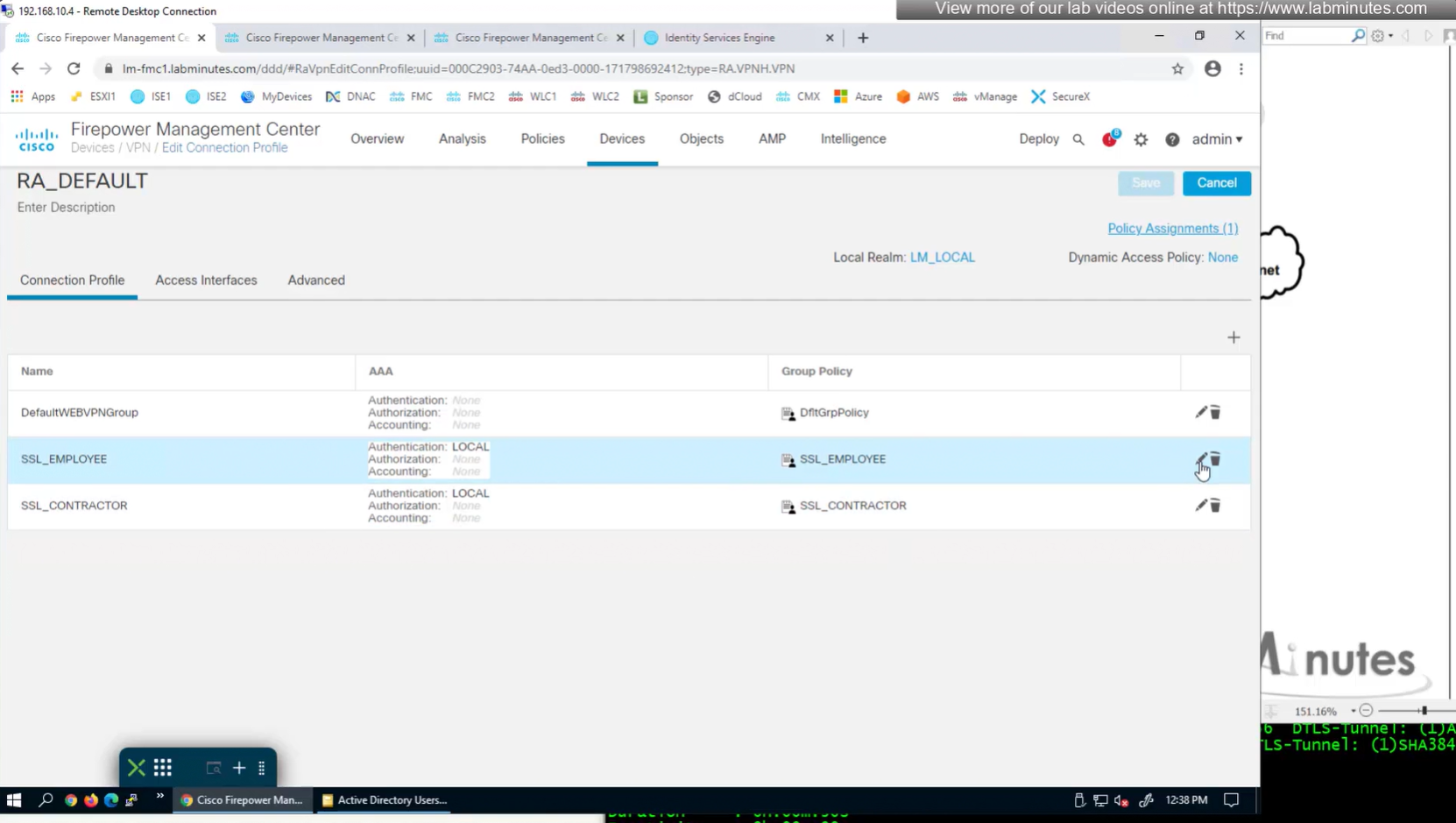

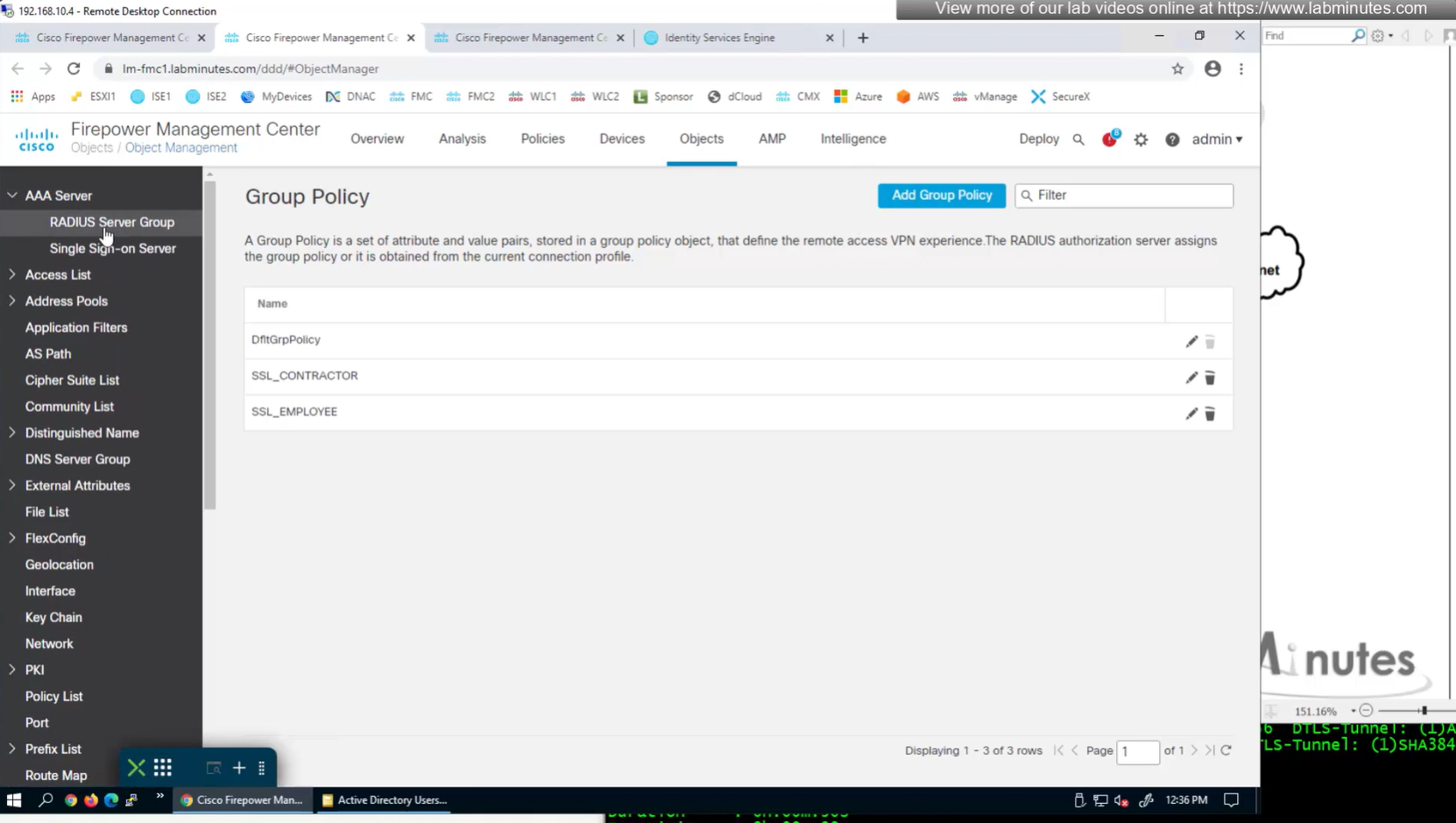

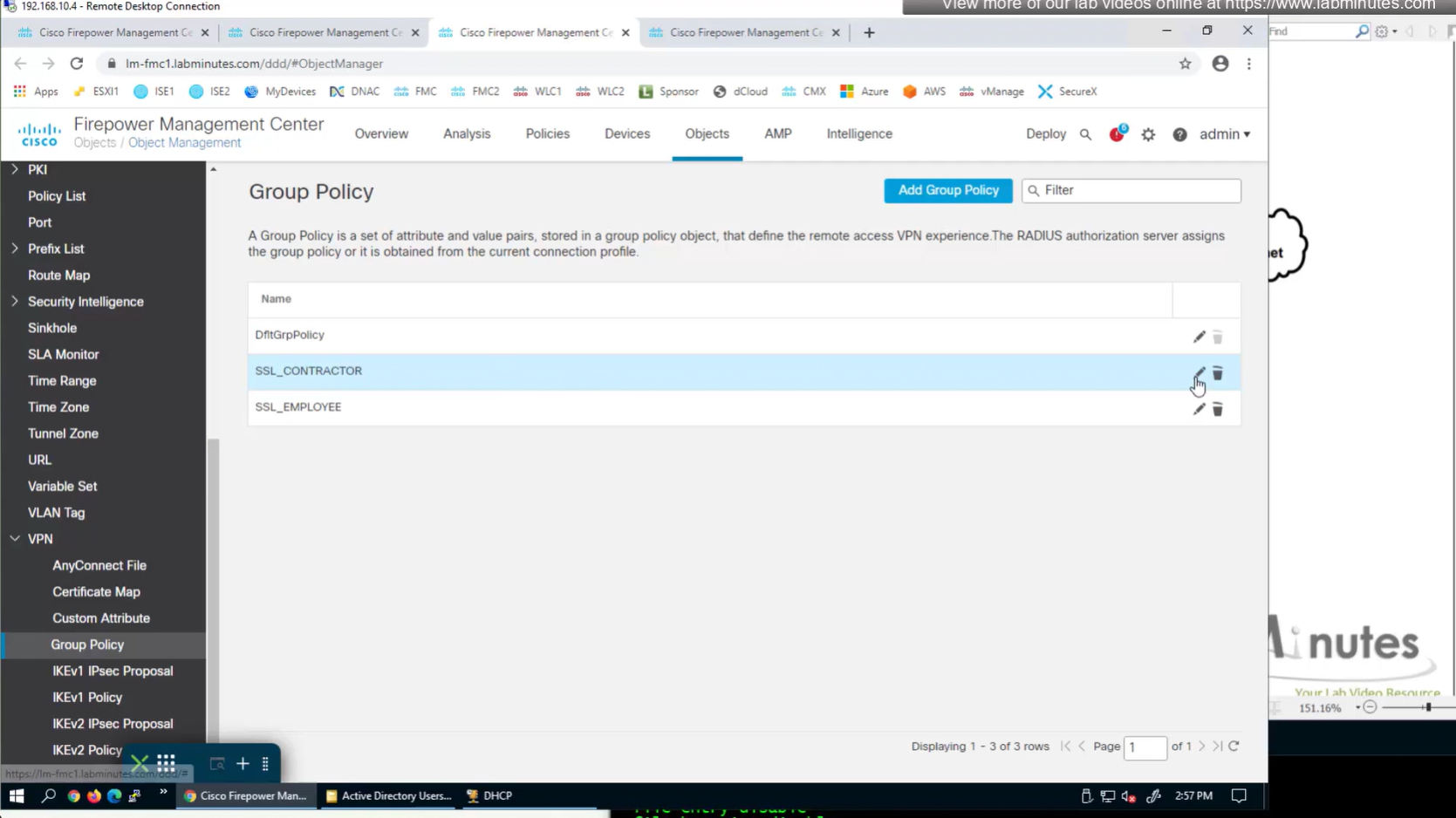

We can delete the employee and contractor connection profiles but keep the employee and contractor group policies since only name of group policy is returned in RADIUS class attribute

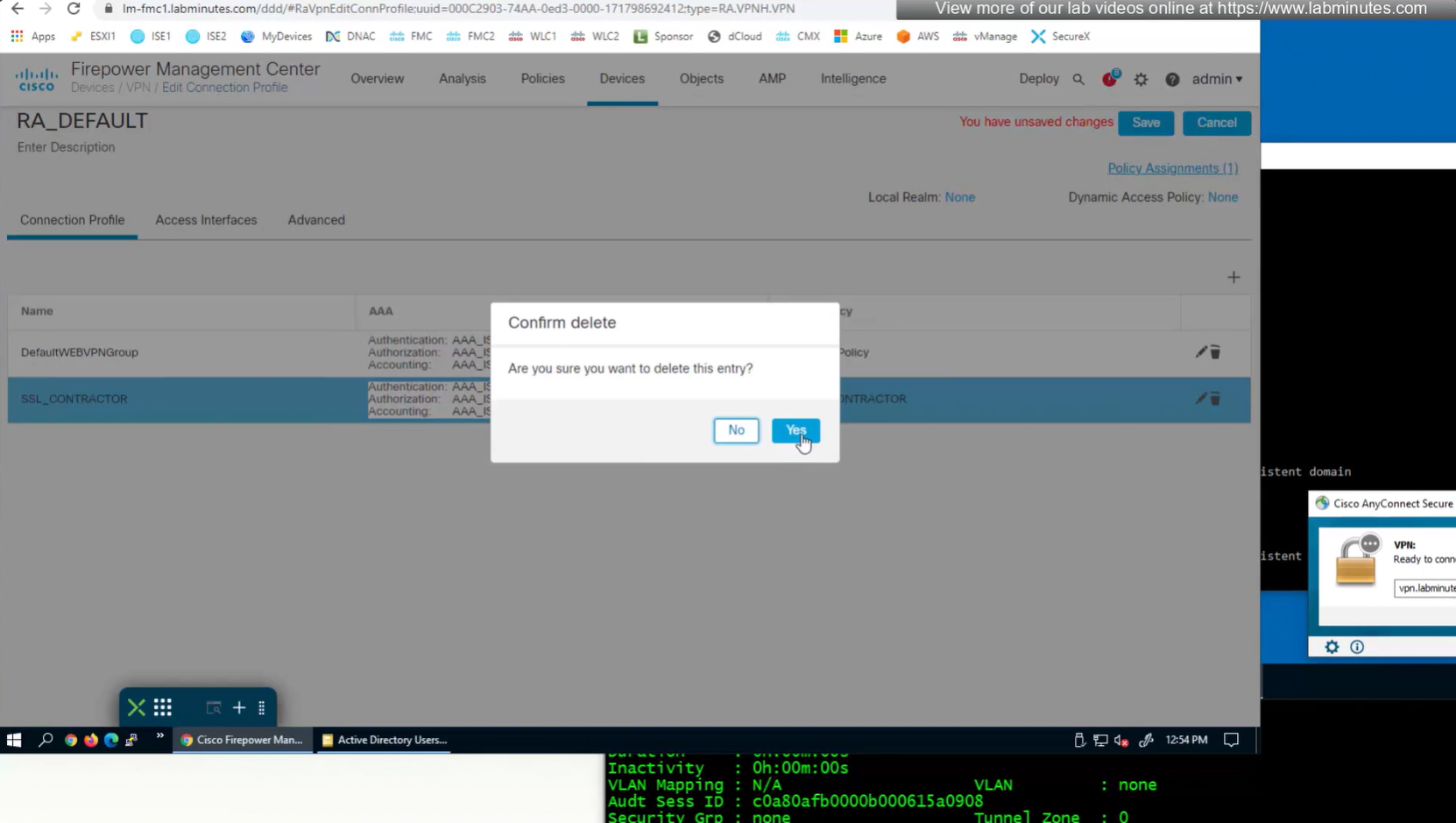

Deleting employee connection profile

Deleting contractor connection profile

see we only have one tunnel group which can be used with different group policies returned by ISE

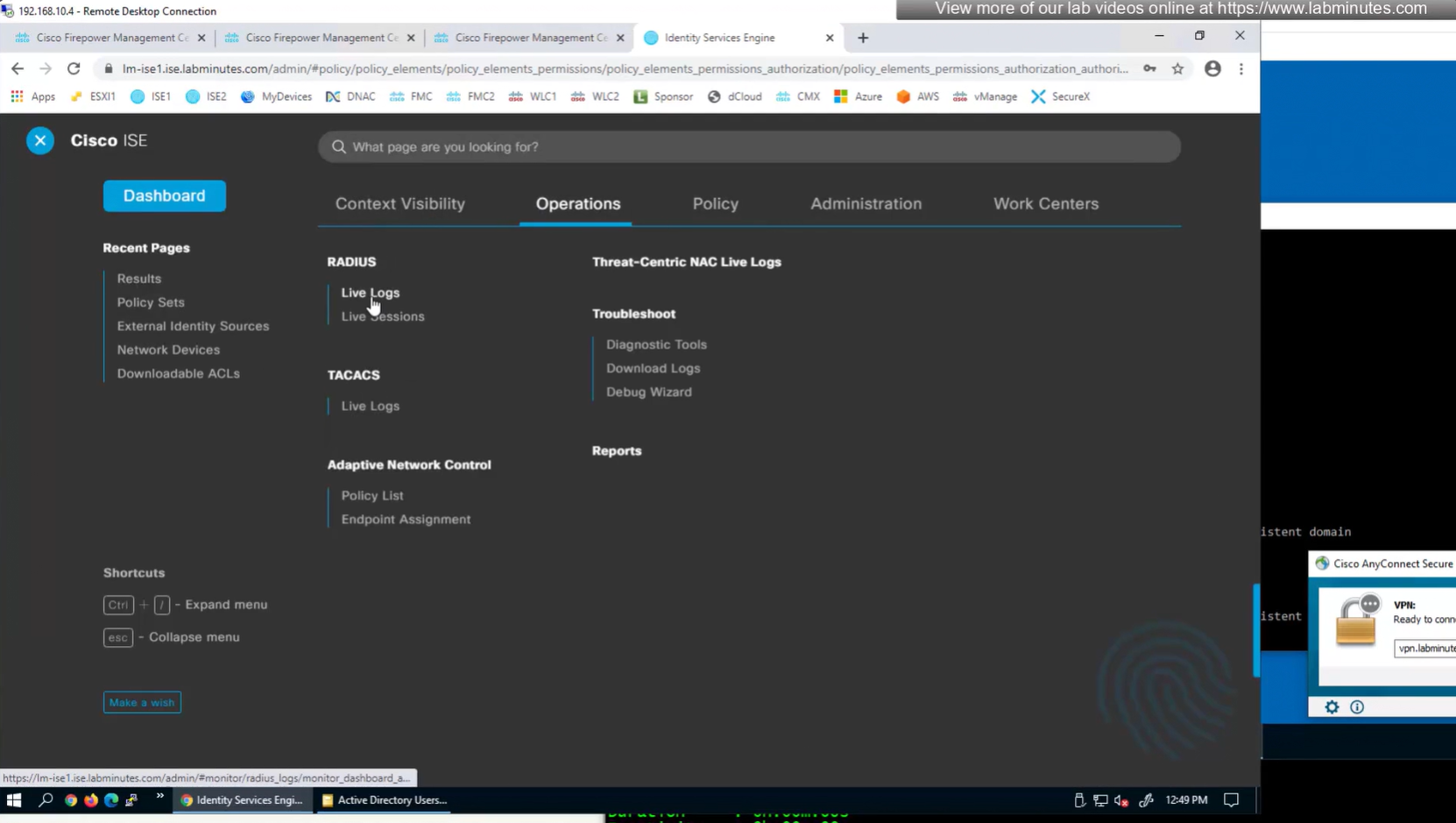

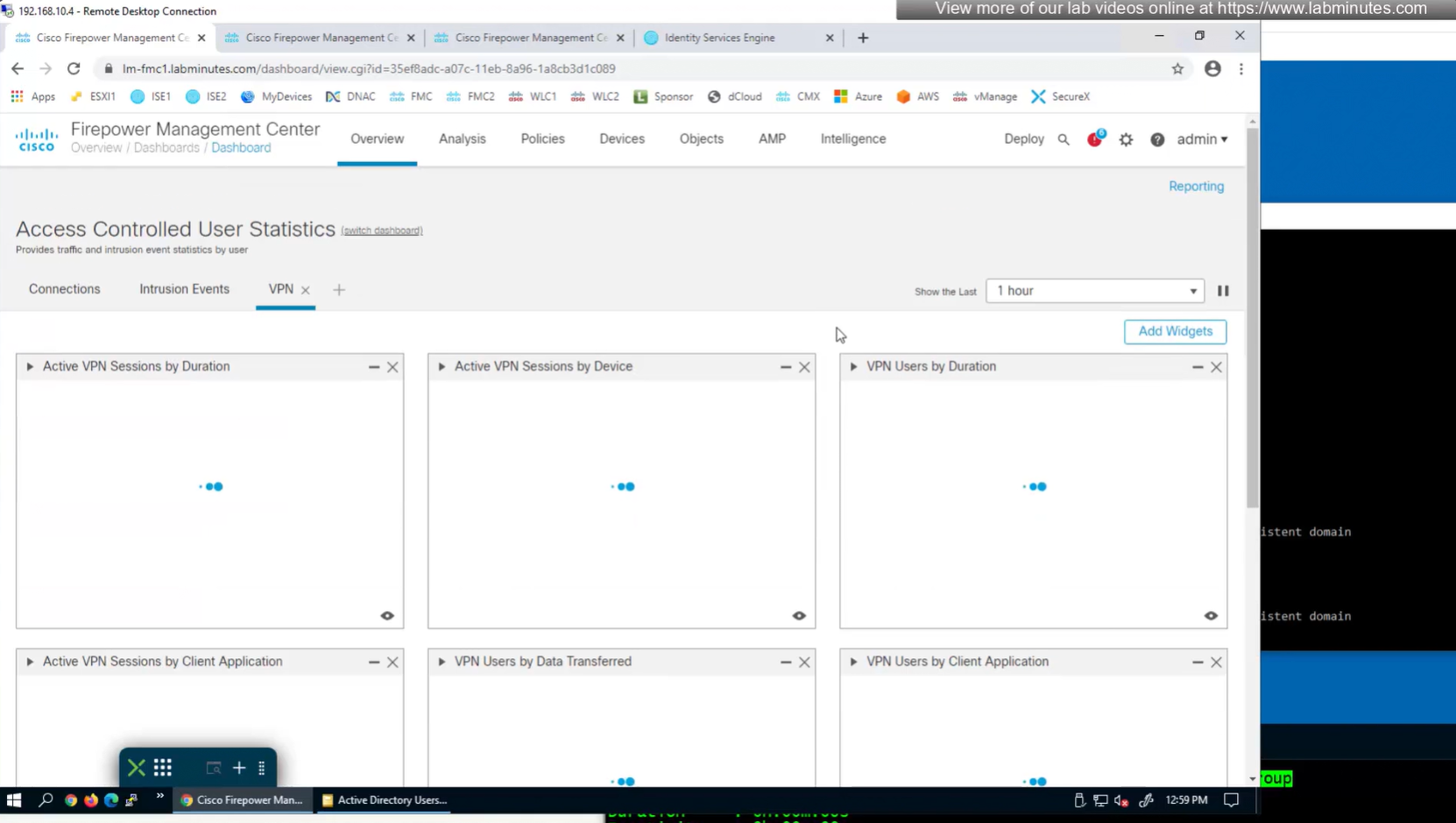

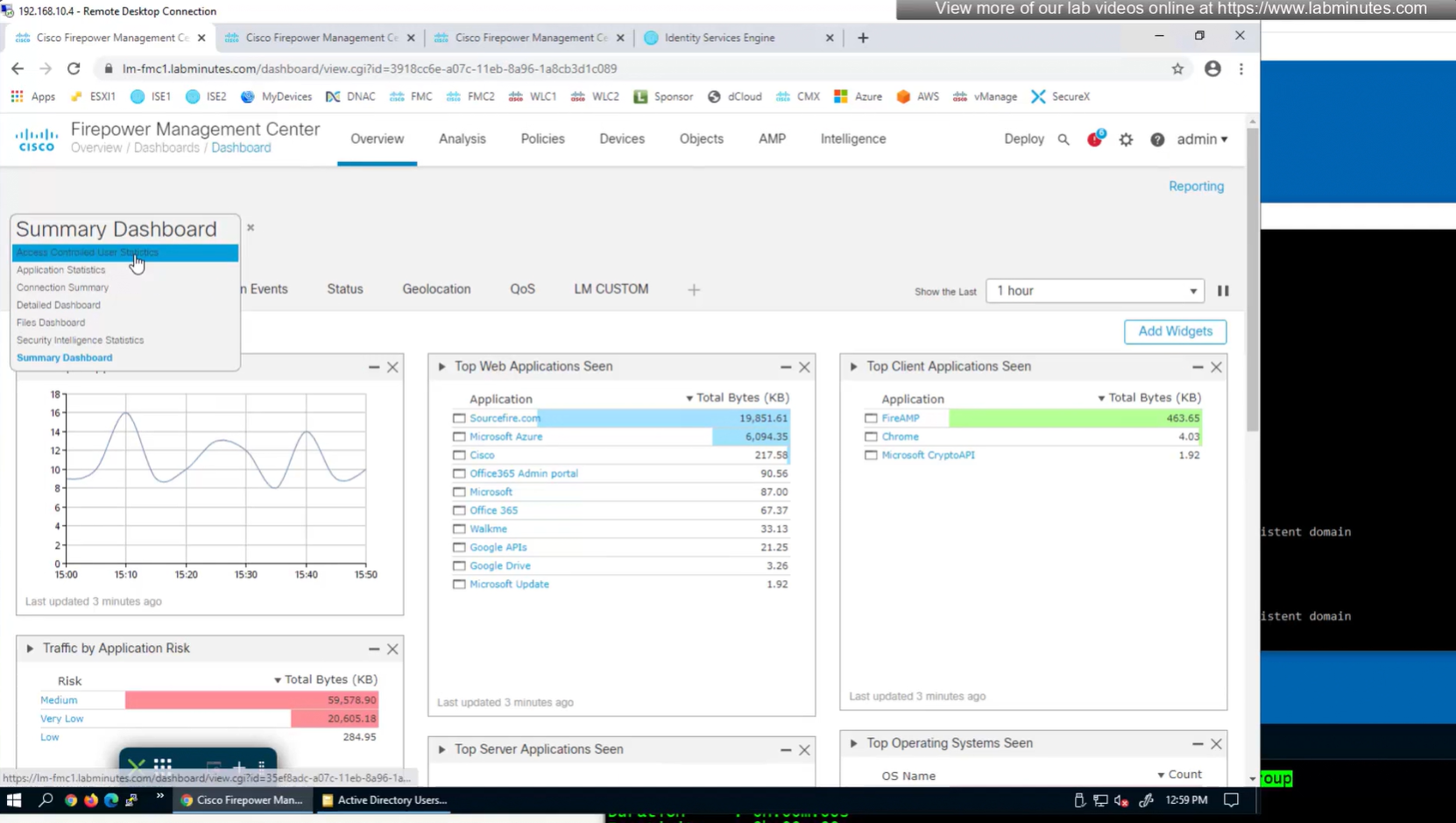

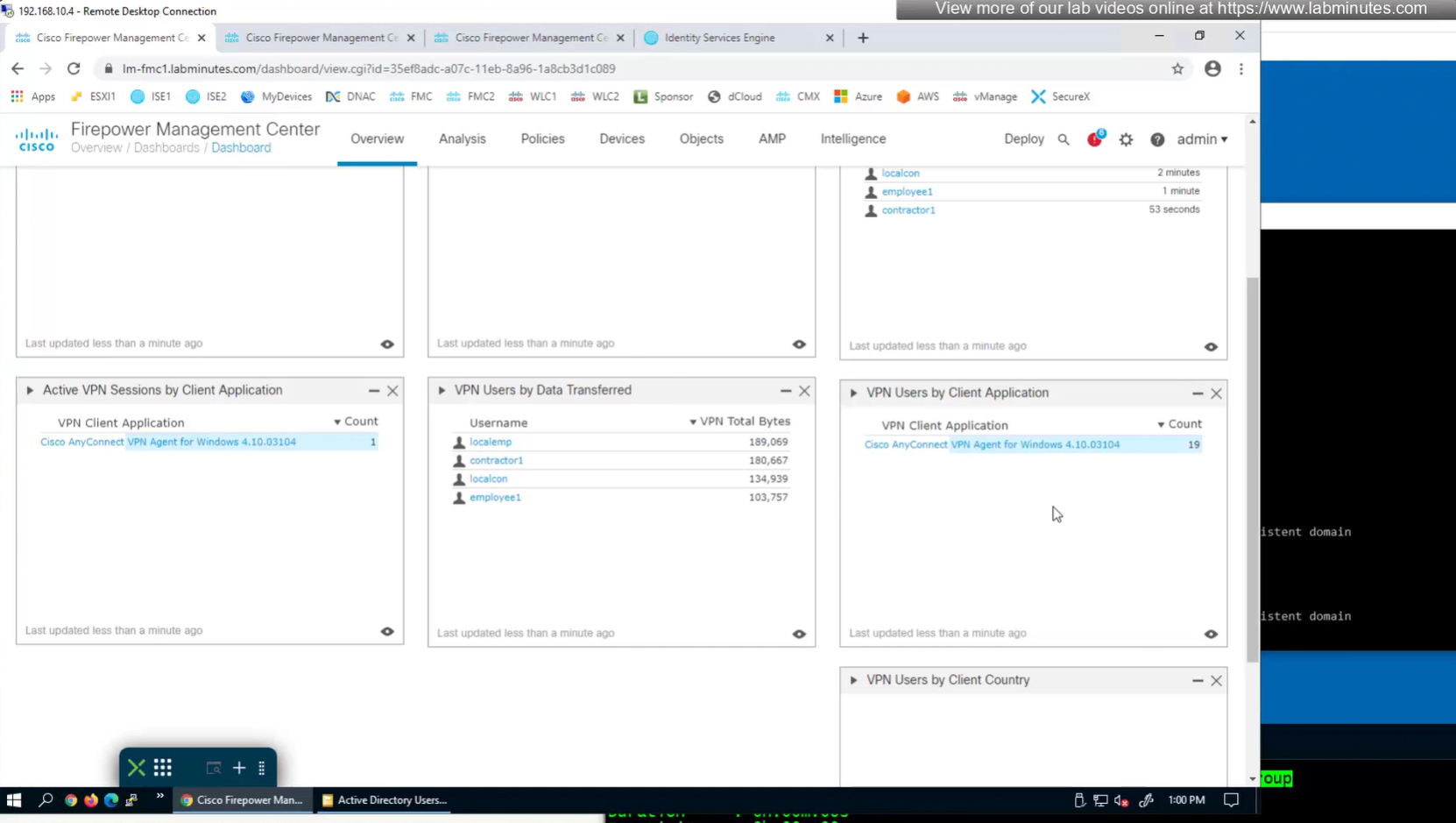

to monitor anyconnect connections there is a hidden dashboard that can be accessed
